Vulcan - Loudspeaker Damson - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Model	Vulcan
Brand	Damson
Dimensions (H x W x D)	2.5 x 2.5 x 2.5 inches
Weight	0.5 lbs
Power Source	Built-in rechargeable lithium-ion battery
Battery Life	Up to 8 hours of playback
Charging Time	Approx. 2 hours via Micro-USB
Wireless Connectivity	Bluetooth 5.0 with range up to 33 ft
Speaker Configuration	Single full-range driver with passive radiator
Sound Output	360-degree surround sound
Frequency Response	80 Hz - 20 kHz
Controls	Power, volume, play/pause, Bluetooth pairing
Additional Features	Built-in microphone for hands-free calling, IPX5 water-resistant
Compatible Devices	Smartphones, tablets, laptops, and any Bluetooth-enabled device
Care and Cleaning	Wipe with a soft dry cloth; do not use harsh chemicals
Safety Warnings	Do not expose to extreme temperatures; avoid dropping or submerging in water
Spare Parts and Repairability	Battery replacement available; contact support for service
What's in the Box	Speaker, Micro-USB charging cable, Quick start guide
Warranty	1-year limited warranty

Frequently Asked Questions - Vulcan Damson

How do I pair my Damson Vulcan speaker with a Bluetooth device?

Press and hold the Bluetooth button on the speaker for 2 seconds until the LED flashes blue. On your device, go to Bluetooth settings, search for 'Damson Vulcan', and select it to pair.

What is the battery life of the Vulcan speaker?

The battery offers up to 8 hours of continuous playback depending on volume level.

How do I charge the speaker?

Use the included Micro-USB cable to connect the speaker to a USB power adapter or computer. The LED will turn red while charging and go green when fully charged. Charging takes about 2 hours.

Is the speaker water-resistant?

Yes, the Vulcan has an IPX5 water-resistance rating, meaning it can withstand splashes and rain but should not be submerged.

Can I use the speaker for hands-free calls?

Yes, the built-in microphone allows you to answer calls hands-free. Press the play/pause button to answer or end a call.

What do I do if the speaker won't turn on?

First, charge the speaker for at least 30 minutes. If it still doesn't turn on, try a reset by pressing and holding the power button and Bluetooth button together for 10 seconds.

How do I reset the speaker to factory settings?

While the speaker is on, press and hold both the power and Bluetooth buttons for 10 seconds until the LED flashes rapidly. This clears all paired devices.

What devices are compatible with the Vulcan?

Any device that supports Bluetooth, such as smartphones, tablets, laptops, and computers. It also works with non-Bluetooth devices via a 3.5mm audio cable (not included).

How do I clean the speaker?

Clean the exterior with a soft dry cloth. Avoid using liquids or abrasive cleaners to prevent damage.

What is the wireless range of the speaker?

The Bluetooth range is up to 33 feet (10 meters) in open space. Walls and obstacles may reduce the range.

USER MANUAL Vulcan Damson

Pairing with Bluetooth

Playback (short press)

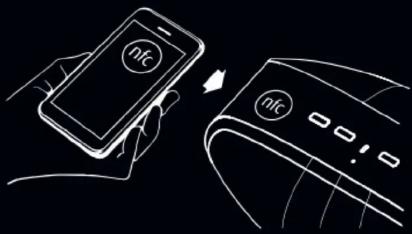

Alternative pairing with NFC

Connecting with Aux in (long press)

Handsfree call (short press)

Illustration of a hand holding a smartphone and a pointing hand with a AUX device (no text or symbols present)

(For more support contact www.damsonaudio.com/support)

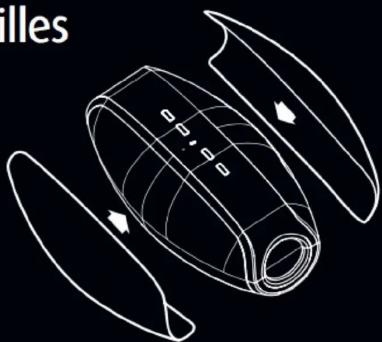

Magnetic
Metal Grilles

Diagram of a flexible electronic device with curved internal structure and directional arrows indicating flow or movement (no text or symbols)

Vulcan features interchangeable and replaceable grilles. If you damage your grilles, or wish to change the colour to customise your Vulcan you can purchase additional grilles from www.damsonaudio.com

FCC

FCC ID: HBODA3D06

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
