USER MANUAL BarCaffe 2000 TERMOZETA

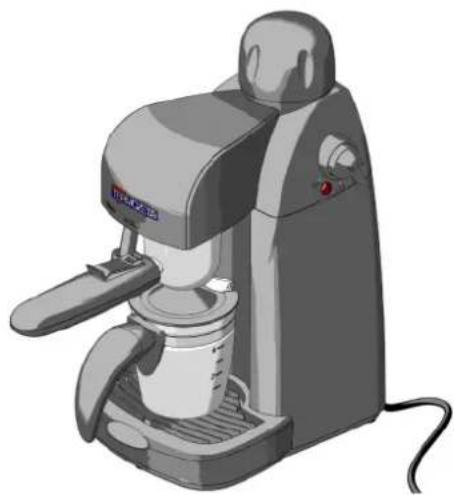

Illustration of a coffee maker with a teapot and control panel (no text or symbols visible)

BarCaffe

2000

Illustration of a coffee maker with a side arm and cup (no text or symbols visible)

DATI TECNICI

TECHNICAL DATA

DATOS TÉCNICOS

BARCAFFÈ 2000

Type 424002

230 V\~ 50 Hz

800 W

Made in P.R.C.

CE

I

GB

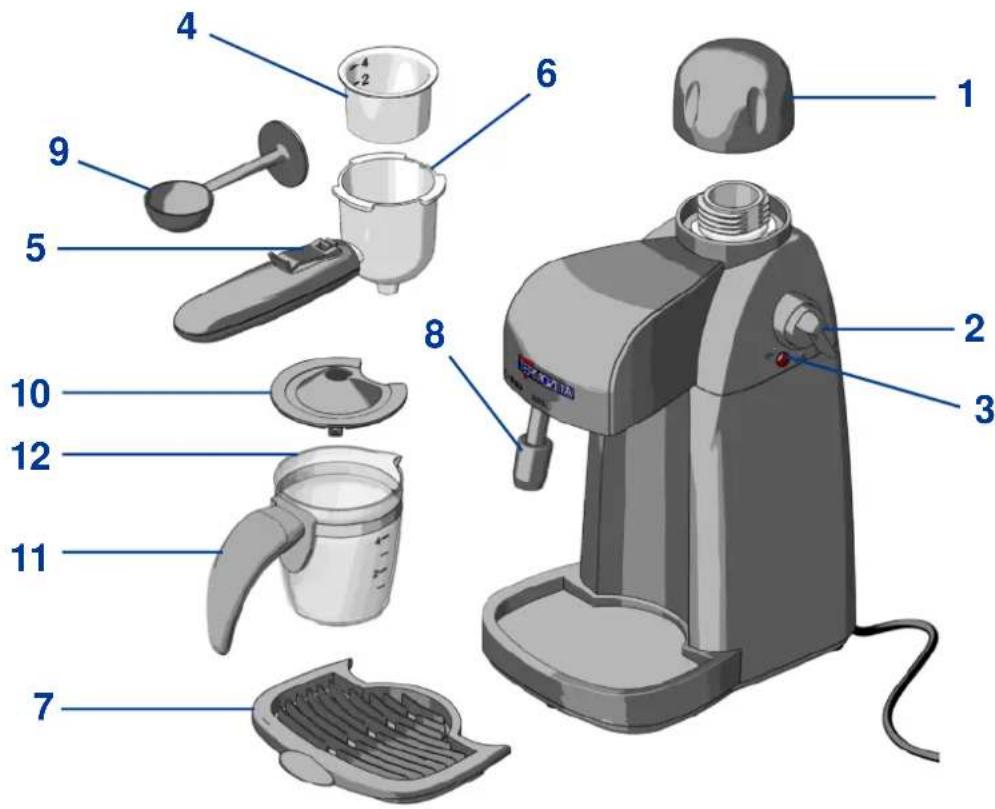

DESCRIZIONE

1. Boiler cap
2. Selector knob
3. Pilot light
4. Coffee filter
5. Filter locking lever
6. Coffee filter holder
7. Removable drip tray
8. Steam nozzle for cappuccino
9. Measuring spoon with presser
10. Carafe lid
11. Carafe handle
12. Carafe

E

DESCRIPCIÓN

3D rendered mechanical component with a red circular end and a black handle, no visible text or symbols

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Termozeta S.p.A. - Via Magenta, 41/43 - 20010 Bareggio (MI) Italy

SAFETY PRESCRIPTIONS

The present manual is an integral part of the appliance and must be carefully read before using it as it gives important indications with regard to safety of installation, use and maintenance. Keep it with care.

• After taking off the packing make sure that the appliance is intact. In case of doubt do not use it and contact an assistance centre authorised by TERMOZETA.
• Do not leave pieces of packing (plastic bags, polystyrene foam, nails etc.) within reach of children or persons with reduced mental capacities, since these are potential sources of danger.
• The electrical safety of this appliance is ensured only if it is correctly connected to an effective earthing system in compliance with the existing electrical safety standards. TERMOZETA shall not be held responsible for any damage caused by the lack of an earthing system.
• Before connecting the plug to the outlet check that the working voltage of the appliance corresponds to the one in your house. If in doubt, contact professionally qualified staff.
• Use of adaptors, multiple outlets and extension leads is not advisable. In case of necessity use exclusively approved devices in conformity with the current safety regulations while making sure that they are compatible with the appliance power. If in doubt, contact professionally qualified staff.
• Any installation which doesn't comply with what is specified can endanger your safety and the warranty expires.
• The appliance was exclusively designed to prepare espresso coffee, cappuccino and hot water in a domestic environment.

• For safety reasons pay attention and:

• do not use the appliance when you are barefoot or having wet hands or feet

• do not use the appliance outside the domestic environment
• do not leave the appliance exposed to atmospheric agents (sun, rain, etc.)
• never pull the feeding cable or the appliance itself in order to disconnect the plug from the outlet
• do not leave the appliance unattended when it is plugged into the

main power supply

- never immerse the appliance in water or other liquids

• The appliance is not intended to be used by persons (including children) with reduced physical, sensorial or mental capacities or without experience or knowledge, unless there is someone controlling them or unless they have the use instructions.
• The feeding cable of the appliance should never be replaced by the user himself. In case of necessity contact an assistance centre authorised by TERMOZETA or professionally qualified staff.
• In case of failure and/or malfunctioning of the appliance, turn it off and do not tamper with it. For any repairs contact an assistance centre authorised by TERMOZETA and ask for the use of original spare parts.
• At the end of the life-cycle of the appliance, put it out of service by cutting the feeding cable after disconnecting the plug from the outlet. For the disposal of the appliance follow the regulations which are valid in your place of residence.
  • TERMOZETA cannot be considered responsible for any damage to persons, animals or things caused by the incorrect installation or as a result of an illegitimate, mistaken or unreasonable use.

USE INSTRUCTIONS

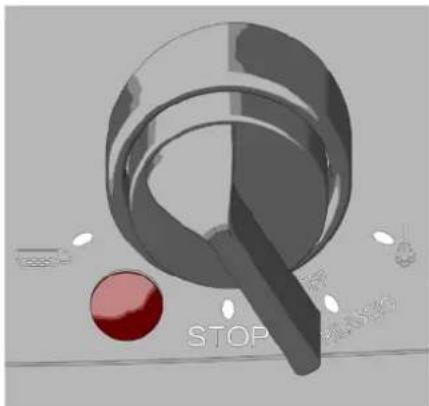

SELECTOR KNOB FUNCTIONS (2)

3D rendered object with a metallic ring and red sphere, no visible text or symbols

POSITION MEANING

	Working machine for preparing and making coffee
STOP	Machine off, nozzle closed
OFF / RILASCIO (OFF / RELEASE)	Machine off and release of the residual pressure from the steam nozzle into the boiler
	Working machine for preparing and making steam

STOP

OFF / RILASCIO (OFF / RELEASE)

PRELIMINARY OPERATIONS

After removing the appliance from the package, wash carafe (12), measuring spoon (9) and coffee filter (4) with water and dish soap. When it is used for the first time or after a long idle period, use the machine to make 2-3 espresso, so as to remove any unpleasant tastes.

ESPRESSO

Unscrew cap (1) of the appliance counterclockwise and fill the boiler container with cold water.

The quantity for two or four cups is indicated on carafe (12).

WARNING!

The maximum water quantity is 240 ml.

Screw boiler cap (1) with maximum care by rotating it clockwise.

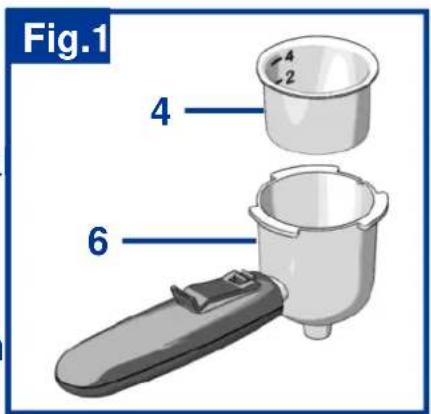

Position filter (4) in filter holder (6) and fill it with the necessary quantity of coffee. Specia marks on the inside of the filter show the appropriate levels for 2 and 4 cups of coffee (fig.1).

If necessary, remove any excess coffee from the edge of the filter holder.

Verify that the selector knob (2) is in the "OFF" position (machine off) and then plug the appliance into the wall socket.

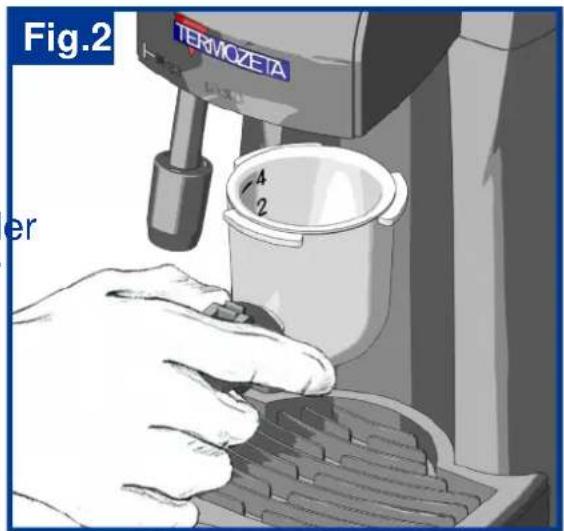

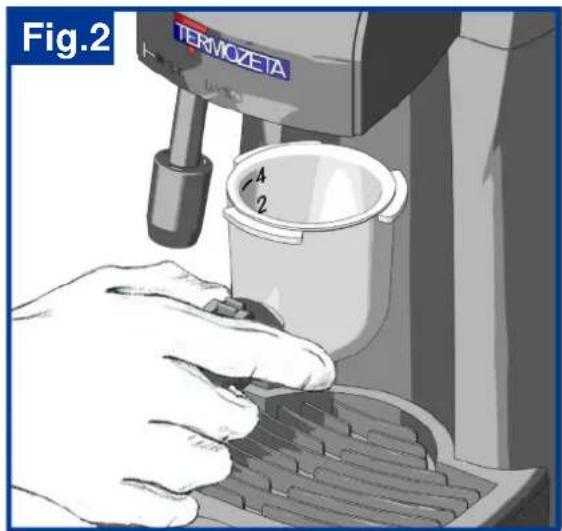

Insert the filter holder (6) in its seat and rotate it as indicated in figure 2. Place carafe (12) under the filter holder and ensure that the spout of the filter holder is aligned with the hole in the carafe lid.

Turn selector knob (2) to position to switch on the machine. Pilot light (3) lights up.

After some minutes the water will begin to boil and coffee will flow into (12).

Once the coffee level in the carafe has reached the desired quantity, turn selector knob (2) to “STOP” position. Pilot light (3) will go out and the coffee will stop going out. Remove then carafe (12) using handle (11).

Take a pitcher filled with cold water and place it under steam nozzle (8) and turn selector knob (2) to the “RILASCIO” position so as to release the possible residual pressure inside the boiler.

WARNING! The boiler cap can be opened only after the brewing cycle is completed or the selector knob is turned to the “OFF / RILASCIO” position and the residual pressure is released.

CAPPUCCINO

Make the espresso coffee as described before.

Verify the boiler is filled with water.

Fill a container, possibly a metal one, with the necessary quantity of fresh and chilled milk.

Place the container under steam nozzle for cappuccino (8). The spout must be immersed in the milk.

Turn the knob to position. After few seconds the steam will begin to come out of the spout.

When you start frothing the milk, move the container by making it rotate with care so as to increase the amount of frothed milk.

Once you have finished frothing milk, immerse the steam nozzle to heat the milk. If you want to stop the steam release for a moment in order to verify the milk temperature, it is possible to turn the knob to “STOP” position.

Pay attention not to take out the steam nozzle from the milk completely as the hot milk could spurt out.

At the end of the operation, turn selection knob (2) to "STOP" position.

Take then a pitcher filled with cold water and place it under steam nozzle (8) and turn selector knob (2) to “RILASCIO” position so as to release the possible residual pressure inside the boiler.

CLEANING AND MAINTENANCE

WARNING!

Always disconnect the plug from the power outlet before carrying out any cleaning operations.

Use lukewarm water and a soft cloth to clean the appliance body. Do not immerge the appliance into water or other liquid substances. It is recommended to clean periodically:

a - Filter holder (6)

c - Steam nozzle for cappuccino (8)

b - Removable drip tray (7)

d - Carafe (12)

DECALCIFICATION

The appliance must be decalcified regularly and/or when you notice that you need more time to prepare the espresso.

Your appliance can be decalcified using any commercial cleaning agent and following the use instructions.

PROBLEM	SOLUTION
Pilot lights do not light up	Check if the plug is correctly plugged into the socket and if selection knob (2) is turned to or position.
Coffee does not come out or comes out too slowly	Check if there is water in the boiler.
	Check that the filter holes are not clogged.
	Check that coffee is not ground too finely or that the quantity of coffee in the filter is not over the maximum level .
Steam does not come out of steam nozzle	Check if the steam nozzle is clogged.
	Check if there is water in the boiler.
Milk does not froth	Check if steam goes out.
	The milk is not cold enough.

If problems persist, please contact Termozeta Customer Service.

Termozeta S.p.A. reserves the right to introduce technical and/or aesthetic changes to its products intended to improve performances.

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Termozeta S.p.A. - Via Magenta, 41/43 - 20010 Bareggio (MI) Italy

3D rendered mechanical component with a red circular end and a black handle, no visible text or symbols

Illustration of a hand using a Termozeta coffee maker to press coffee into a cup (no text or symbols visible)

Termozeta is an international trademark. Copyright © 1995. All rights reserved.

Termozeta S.p.A. - Via Magenta, 41/43 - 20010 Bareggio (MI) Italy

Italy

In accordance with European Directives 2002/95/CE, 2002/96/CE and 2003/108/CE on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal.

• The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.
• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
• Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.
