Type de produit	Stroller
Marque	Lorelli
Modèle	Light
Catégorie	Poussette légère
Poids	Environ 7 kg
Dimensions (déplié)	80 x 50 x 100 cm
Dimensions (plié)	30 x 50 x 70 cm
Âge recommandé	6 mois à 3 ans
Poids maximum de l'enfant	15 kg
Harnais	5 points
Roues	4 roues, avant pivotantes
Frein	Frein de parking
Inclinaison du dossier	Positions multiples réglables
Capote	Avec protection UV
Panier de rangement	Oui
Matériau du châssis	Aluminium
Tissu	Polyester lavable
Accessoires inclus	Aucun spécifié
Homologation	Conforme EN 1888
Entretien	Nettoyer avec un chiffon humide

Frequently Asked Questions - Light Lorelli

Comment plier la poussette Lorelli Light ?

Pour plier la poussette, abaissez d'abord la capote, puis tirez la poignée de pliage située sur le côté. Poussez le châssis vers l'avant jusqu'à ce qu'il se verrouille en position pliée. Consultez le manuel pour les instructions détaillées.

Puis-je utiliser la poussette pour un nouveau-né ?

La poussette Lorelli Light est recommandée à partir de 6 mois. Pour un nouveau-né, vous aurez besoin d'un accessoire nacelle ou d'un siège adapté. Vérifiez la compatibilité avec le siège auto.

Comment nettoyer le tissu de la poussette ?

Le tissu en polyester peut être nettoyé avec un chiffon humide et un détergent doux. Ne pas utiliser de produits agressifs ou de machine à laver. Séchez à l'air libre.

Comment ajuster le harnais de sécurité ?

Pour ajuster le harnais à 5 points, faites glisser les sangles à travers les fentes du dossier. Assurez-vous que les boucles sont bien clipsées et que le harnais est serré mais confortable.

Quel est le poids maximum de l'enfant ?

Le poids maximum supporté par la poussette Lorelli Light est de 15 kg (environ 3 ans). Ne dépassez pas cette limite pour des raisons de sécurité.

Comment freiner la poussette ?

Appuyez sur la pédale de frein située à l'arrière du châssis pour bloquer les roues arrière. Pour débloquer, soulevez la pédale. Vérifiez que le frein est bien enclenché avant de lâcher la poussette.

La capote protège-t-elle du soleil ?

Oui, la capote est dotée d'une protection UV. Elle offre une protection contre les rayons du soleil, mais il est recommandé d'éviter une exposition prolongée.

Comment remplacer une roue ?

Pour remplacer une roue, retirez la goupille ou l'axe qui la maintient. Installez la nouvelle roue et replacez la goupille. Assurez-vous que la roue est correctement fixée avant utilisation.

La poussette est-elle compatible avec un siège auto ?

La compatibilité dépend du modèle de siège auto. Utilisez des adaptateurs spécifiques si disponibles. Consultez le manuel ou contactez le service client pour vérifier la compatibilité.

Où puis-je trouver les pièces détachées ?

Les pièces détachées peuvent être commandées auprès du service client Lorelli ou de revendeurs agréés. Ayez le numéro de modèle à portée de main.

USER MANUAL Light Lorelli

Black and white photo of a baby stroller with a canopy cover, no visible text or symbols on the device itself.

MANUAL INSTRUCTION

ЧАСТИ

1. Метална рамка на количката
2. Летен кош
3. Сенник
4. Гриф
5. Предни колела
6. Задни колела

-16p.
-16p.
-16p.
-16p.
-26p.
-26p.

Close-up of hands holding a small black mechanical component, possibly a device or tool, with no visible text or symbols.

Close-up of a mechanical clamp or bracket with metal rods, no visible text or symbols

Mechanical assembly diagram showing a wheel and bearing assembly (no text or symbols)

Close-up of mechanical components with no visible text or symbols

Close-up of a black wheeled vehicle with two large wheels and a handle, no visible text or symbols

Close-up of a black industrial drier with two wheels and a handle, labeled with number 18 (no text or symbols on the drier itself)

Illustration of a person using a walking stick with numbered arrows and numbered circles (no text or symbols)

Person using a walking exercise machine with motion capture equipment (no visible text or symbols)

Mechanical device with labeled part (22), no visible text or symbols on the device itself

РАЗГЪВАНЕ НА КОЛИЧКАТА

1. This vehicle is suitable for children from 6 months and weight up to 15 kg!
2. Do not add a mattress thicker than 10 mm!
3. Use brakes if you do not hold the stroller with hand!
4. Do not leave the stroller on hills or inclined surfaces even if you have activated the brake systems!
5. Parking device shall be engaged when placing and removing the children!
6. The storage basket bears load up to 2 kg!
7. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle! Do not hang bags!
8. Regularly check for loose parts! Make routine inspection, regularly maintain, clean and/or wash the vehicle!
9. The vehicle shall be used only for up to 1 child!
10. Accessories which are not approved by the manufacturer shall not be used!
11. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used!
12. Start to use safety belts as soon as your child is capable to sit without assistance!
13. Always use the restraint system! Always use the crotch belt in combination with the waist belt! To prevent injury from a fall or a slip off always use the shoulder straps!
14. Make sure that the safety belts are placed properly!
15. The stroller should always be used under the supervision of an adult!
16. Do not allow children to suspend him/herself or play in the stroller!
17. Do not allow children to stand in the stroller!
18. Do not allow your child to stand on the seat and foot rest!
19. Do not use the stroller on uneven surfaces near fire or other dangerous places!
20. Do not use the stroller on stairs and escalators!
21. Fold the stroller before go upstairs and downstairs. Mounting the stroller on stairs, pavements and others with the child in it and by pushing the handle causes deformation of the stroller and is out warranty repair!
22. Adjusting of the back rest must be made only by a person read carefully the instruction rules for adjusting!
23. Oil wheels and metal parts regularly to make sure the stroller works well!
24. Always dry and air the stroller if it has got wet!

25. The person assembling the stroller must be acquainted with the functionality of the stroller!

26. The height of carried child should not exceed 96 cm!

27. This stroller is suitable for children up to 3 years old!

WARNING

WARNING! Never leave your child unattended!

WARNING! Ensure that all the locking devices are engaged before use!

WARNING! To avoid injury ensure that your child is kept away when unfolding and folding this product!

WARNING! Do not let your child play with this product!

WARNING! This seat unit is not suitable for children under 6 months!

WARNING! Always use the restraint system!

WARNING! Check that the seat unit attachment devices are correctly engaged before use!

WARNING! This product is not suitable for running or skating!

EN 1888:2012

MAINTENANCE AND CARE

1. To clean the metal parts use damp cloth and then dry them.

2. To clean the plastic parts use cloth, water and soft detergent.

3. To clean the woven fabric use upholstery cleaner.

4. Any additional load affects stroller's stability!

5. When storing never place other items on or in the stroller. This will damage it!

6. Oil caster bolts and wheels regularly.

7. Check for damaged parts regularly and replace immediately!

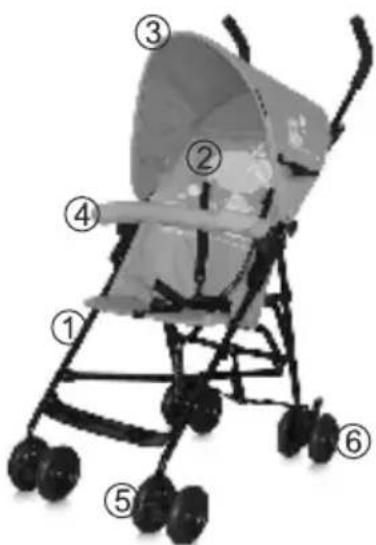

PARTS

1. Metal frame of the stroller - 1 pc.

2. Summer Basket - 1 pc.

3. Canopy -1 pc.

4. Frontbar -1 pc.

5. Front Wheels -2 pcs.

6. Rear Wheels - 2 pcs.

UNFOLDING

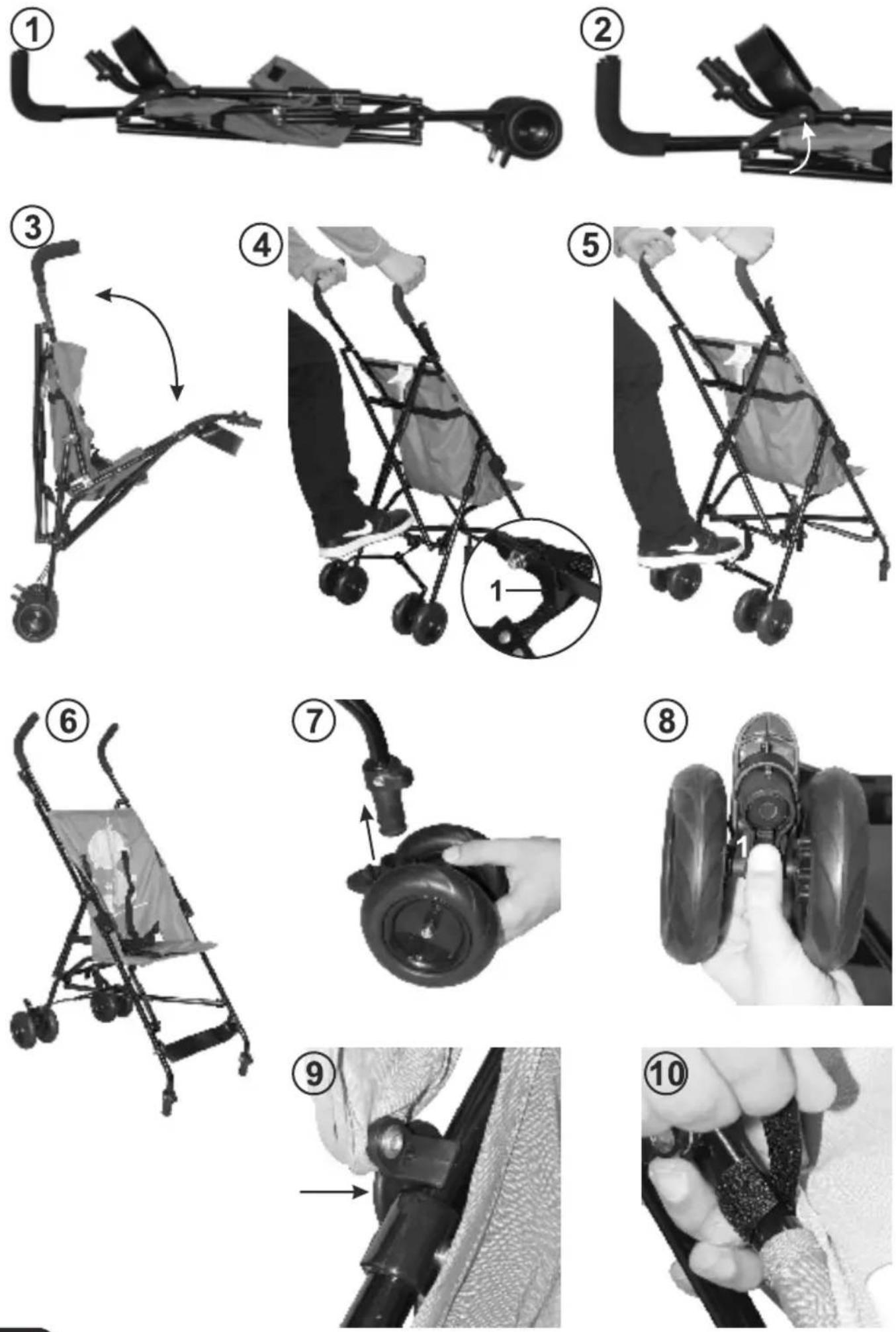

1. Folded stroller. (picture 1)
2. Release the transport lock. (picture 2)
3. Push the metal pipes of the front legs of the stroller from the metal pipes of the handles of the stroller. (picture 3)
4. Step on the metal element until the metal plate clicks. (picture 4)
5. Step on the metal element as shown in picture 5.
6. Correctly unfolded stroller should look as the same way shown in picture 6.

ASSEMBLING

INSTALLATION/UNINSTALLATION OF THE FRONT WHEELS

1. Insert the plastic element of the front wheel into the plastic element of the pipe on the front part of the stroller until "click" sound is heard. (picture 7) Repeat the same operation for the other wheel.
2. To remove the front wheel press button (1) and pull the wheel out. (picture 8) Repeat the same operation for the other wheel.

INSTALLATION/UNINSTALLATION OF THE CANOPY

1. To install the canopy to the stroller press the plastic fixers to the pipes of the stroller until "click" sound is heard. (picture 9)
2. Use self-adhesive plasters on the upper part of the canopy to attach it to the pipes of the stroller. (picture 10)
3. To remove the canopy from the stroller repeat the same operations in reverse order.

INSTALLATION/UNINSTALLATION OF THE FRONTBAR

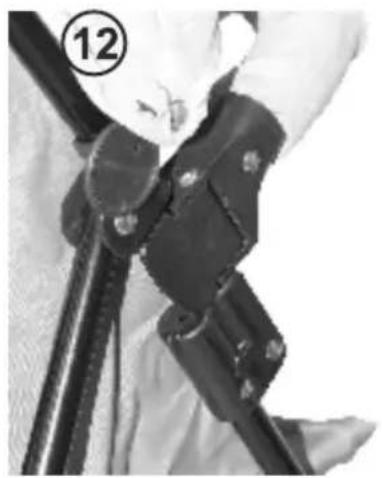

1. To install the frontbar to the stroller open the movable elements of the pegs of the canopy (picture 11) and attach them to the pipes of the stroller (picture 12).
2. To remove the frontbar from the stroller repeat the same operations in reverse order.

USAGE

ADJUSTING THE CANOPY

1. To adjust the position of the canopy use the plastic mechanisms on its both sides. To fold(1)/unfold(2) the canopy push out the plastic elements in the direction of the arrows. (picture 13)

USING THE SAFETY BELT

When using a summer basket MUST use the safety belts to protect your child.

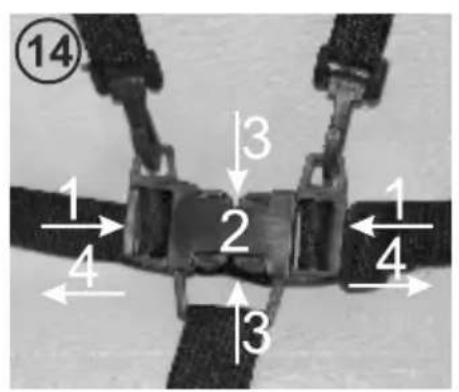

1. To lock the safety belt insert the plastic elements (1) into the central buckle (2).

2. To unlock the safety belt press both plastic elements (3) and pull them out (4). (picture 14)

USING THE BRAKES

1. To activate the brakes of the rear wheels press the levers on it down. (picture 15)

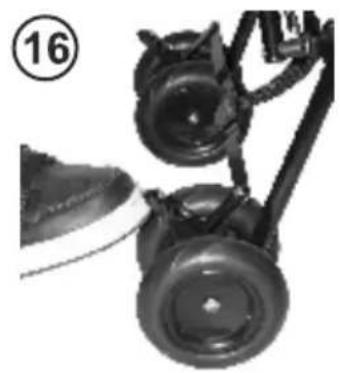

2. To deactivate the brakes lift the levers up. (picture 16)

FIXING THE FRONT WHEELS TO MOVE ONLY FORWARD

1. To fix the front wheels to move only forward lift the levers on them up. (picture 17)
2. To release the front wheels to turn in any directions press the levers down. (picture 18)

FOLDING

1. Activate the brakes of the rear wheels.
2. Fix the front wheels to move only forward.
3. Fold the canopy to maximal position.
4. Remove the frontbar.
5. Release the metal plate (1) and lift the folding mechanism up. Lift the secondary lock up (2). (picture 19)
6. Press both handles of the stroller to each other. (picture 20)
7. Fold the handles together with the front pipes to each other. Put the transport lock. (picture 21)

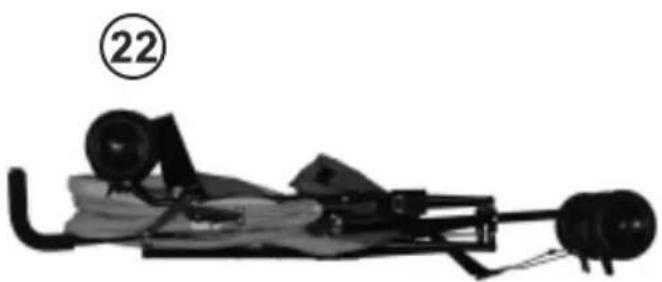

8. Correctly folded stroller should look as the same way shown in picture 22.
