Product Type	Stroller
Brand	Lorelli
Model	Onyx
Suitable Age	From birth to 3 years
Maximum Weight Capacity	15 kg
Maximum Child Height	96 cm
Safety Standard	EN 1888:2012
Brake Type	Rear lever brakes (parking and forward lock)
Harness Type	5-point safety belt with waist, shoulder, and crotch straps
Canopy Adjustment	Pull forward or backward
Backrest Adjustment	Mechanisms on both sides
Footrest Adjustment	Mechanisms on both sides
Front Wheel Installation	Click-in design
Shopping Basket Capacity	Max 2 kg
Toy Bar	Included, removable with release buttons
Folding Mechanism	Pull button on back, then press forward and down
Usage Restriction	Not suitable for running or skating
Cleaning Instructions	Metal: damp cloth; Plastic: mild detergent; Fabric: upholstery cleaner
Maintenance	Oil caster bolts and wheels regularly
Warning	Never leave child unattended; always use restraint system

Frequently Asked Questions - Onyx Lorelli

What is the maximum weight capacity of the Lorelli Onyx stroller?

The stroller can hold a child weighing up to 15 kg.

From what age can I use the stroller?

It is suitable for children from birth up to 3 years old.

How do I unfold the stroller?

Press the button shown in the manual to unlock, pull the handles towards you, then press the mechanism until you hear a click indicating it is fully unfolded and locked.

How do I lock the brakes?

Press the lever downwards to activate the parking brake. To lock only forward movement, step on the lever. Lift the lever up to release.

How do I adjust the backrest?

Use the mechanisms located on the left and right sides of the stroller. Unlock them before adjusting to avoid damage.

How do I install the front wheels?

Insert the front wheel into the frame until it clicks into place. Repeat for the other wheel.

How should I clean the stroller?

Use a damp cloth for metal parts, a mild detergent solution for plastic parts, and an upholstery cleaner for fabric. Dry thoroughly.

Does the stroller have a safety harness?

Yes, it has a 5-point harness with waist, shoulder, and crotch belts. For newborns, place the belts through the inner openings on the backrest and seat.

Can I hang bags on the handle?

No, hanging bags or any load on the handle affects stability and is not recommended.

Is the Lorelli Onyx stroller suitable for jogging?

No, it is not suitable for running or skating. It is designed for normal walking use only.

USER MANUAL Onyx Lorelli

Black and white photo of a baby stroller with open lid and wheels (no text or symbols visible)

MANUAL INSTRUCTION

Black and white photo of a small wheeled scooter with wheels and a back panel, no visible text or symbols.

Close-up of hands assembling a bicycle seat frame (no visible text or symbols)

Black-and-white photo of a stroller with curved arm and arrow indicating rotation (no text or symbols)

Person in a stroller with legs and feet, showing a hand pointing to the seat area (no text or symbols visible)

Close-up of a baby stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

Black-and-white photo of a baby stroller with mesh mesh seat and control buttons (no visible text or symbols)

Close-up of a hand adjusting a seatbelt on a stroller, no visible text or symbols

Close-up of a stroller with a child's foot and upper arm, showing the wheel and seat (no text or symbols visible)

Person using a stroller to adjust the seat area (no text or symbols visible)

Close-up of a stroller with a child's foot and upper arm, showing no text or symbols on the device itself.

Person using a chairbelt device to adjust seatbelt, no visible text or symbols

Close-up of a person adjusting a stroller with hands, showing the motion and size of the device (no text or symbols visible)

Person adjusting a stroller with an arrow indicating rotation (no text or symbols)

Close-up of hands adjusting a zipper on a striped fabric garment (no text or symbols visible)

Close-up of a baby stroller with black wheels and a hand adjusting the seat (no text or symbols visible)

Side view of a small wheeled toy car with wheels and a hand pointing to the side panel (no text or symbols visible)

19

Side view of a black and white toy car with visible wheels and suspension components (no text or symbols)

РАЗГЪВАНЕ НА КОЛИЧКАТА

1. This vehicle is suitable for children from 0 month and weight up to 15 kg!
2. Use brakes if you do not hold the stroller with hand!
3. Do not leave the stroller on hills or inclined surfaces even if you have activated the brake systems!
4. Parking device shall be engaged when placing and removing the children!
5. The storage basket bears load up to 2 kg!
6. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle! Do not hang bags!
7. Regularly check for loose parts! Make routine inspection, regularly maintain, clean and/or wash the vehicle!
8. The vehicle shall be used only for up to 1 child!
9. Accessories which are not approved by the manufacturer shall not be used!
10. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used!
11. Start to use safety belts as soon as your child is capable to sit without assistance!
12. Always use the restraint system! Always use the crotch belt in combination with the waist belt! To prevent injury from a fall or a slip off always use the shoulder straps!
13. Make sure that the safety belts are placed properly!
14. The stroller should always be used under the supervision of an adult!
15. Do not allow children to suspend him/herself or play in the stroller!
16. Do not allow children to stand in the stroller!
17. Do not allow your child to stand on the seat and foot rest!
18. Do not use the stroller on uneven surfaces near fire or other dangerous places!
19. Do not use the stroller on stairs and escalators!
20. Fold the stroller before go upstairs and downstairs. Mounting the stroller on stairs, pavements and others with the child in it and by pushing the handle causes deformation of the stroller and is out warranty repair!
21. Adjusting of the back rest must be made only by a person read carefully the instruction rules for adjusting!
22. Oil wheels and metal parts regularly to make sure the stroller works well!
23. Always dry and air the stroller if it has got wet!

24. The person assembling the stroller must be acquainted with the functionality of the stroller!

25. The height of carried child should not exceed 96 cm!

26. This stroller is suitable for children up to 3 years old!

WARNING

WARNING! Never leave your child unattended!

WARNING! Ensure that all the locking devices are engaged before use!

WARNING! To avoid injury ensure that your child is kept away when unfolding and folding this product!

WARNING! Do not let your child play with this product!

WARNING! Always use the restrained system!

WARNING! This product is not suitable for running or skating!

EN 1888:2012

MAINTENANCE AND CARE

1. To clean the metal parts use damp cloth and then dry them.
2. To clean the plastic parts use cloth, water and soft detergent.
3. To clean the woven fabric use upholstery cleaner.
4. Any additional load affects stroller's stability!
5. When storing never place other items on or in the stroller. This will damage it!
6. Oil caster bolts and wheels regularly.
7. Check for damaged parts regularly and replace immediately!

UNFOLDING OF THE STROLLER

1. Folded stroller. (picture 1)

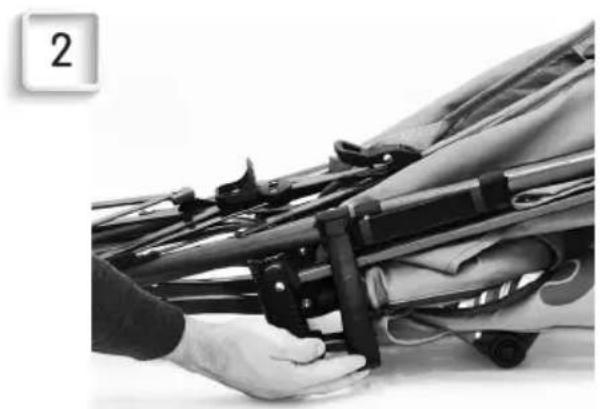

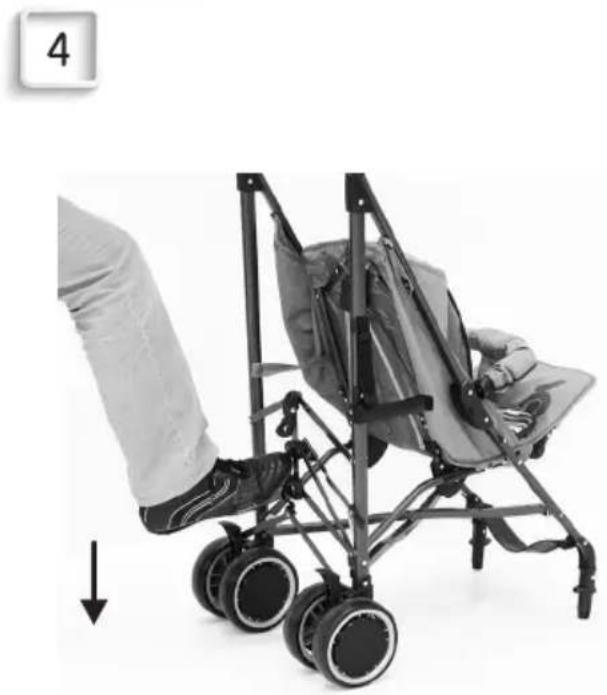

2. Press the button shown on the pic.2 to to unlock the mechanism. Pull the handles towards you, then press the mechanism(pic.4) Stroller will "click" when is completely unfolded and locked. (pictures 2 and 3 and 4)

ASSEMBLING OF THE STROLLER

INSTALLATION OF THE FRONT WHEELS

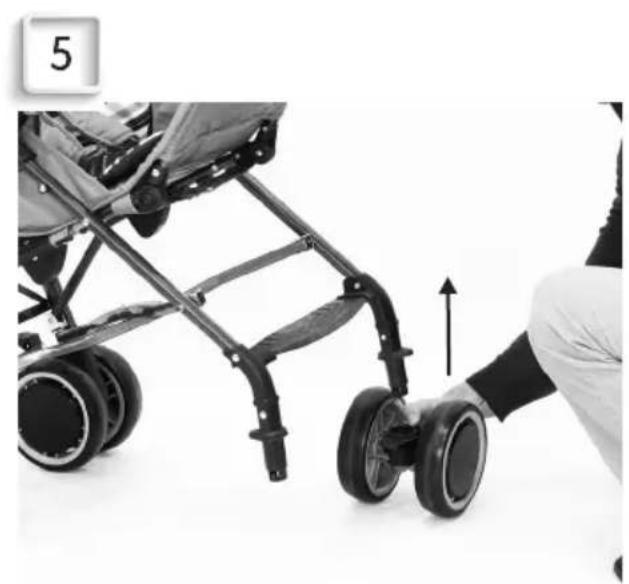

1. Insert the front wheel into frame. Wheel will "click" if it is installed properly. (picture 5)
2. Repeat the same operation to install and the other front wheel. (picture 5)

INSTALLATION OF THE SHOPPING BASKET

1. Install the shopping basket by using the buttons located on its top side. (picture 7)

INSTALLATION OF THE TOY BAR

1. Insert the toy bar into the holes in the frame of the stroller. Press until tray "clicks" into place. (picture 8)

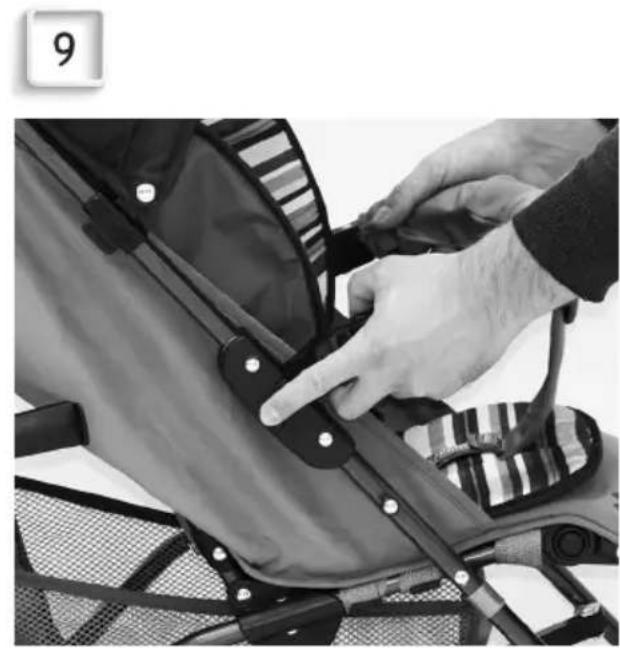

2. To remove the toy bar press the release buttons on the both sides and pull the tray out. (picture 9)

SERVICE USE

USING THE REAR BRAKES

1. Press the lever downwards to activate the brake. (picture 10)
2. Lift the lever up to unlock the brake.(picture 10)

1. Step on the lever to lock the movement only forward. (picture 10)
2. Lift the lever up to release the wheels to turn in all directions.

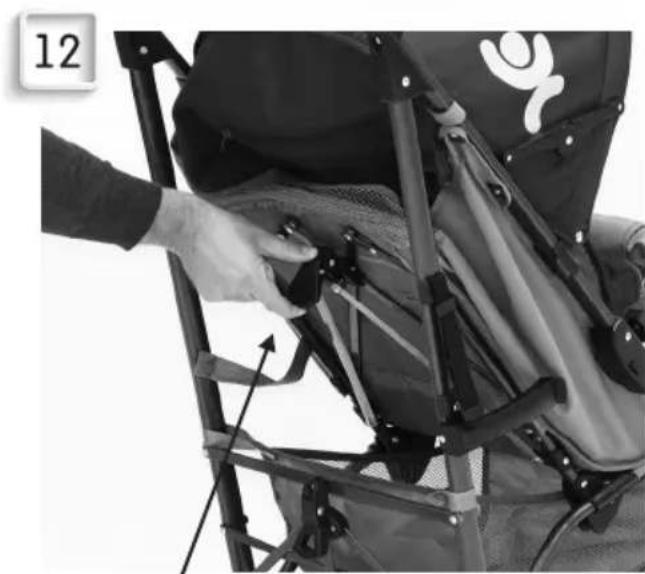

1. To change the position of the backrest you have to use the mechanisms located on the left and right side of the stroller. Trying to adjust the backrest without unlocking the mechanism will be damage it and this is not subject to warranty! (picture 12)

ADJUSTING THE POSITION OF THE FOOTREST

1. To adjust the position of the footrest you have to use the mechanisms located on its both sides. (picture 13)

ADJUSTING THE POSITION OF THE CANOPY

1. To adjust the position of the canopy you have to pull it forward or backward depending on your needs. (picture 14)

USING THE SAFETY BELT

ATTENTION! When use the stroller for a newborn baby, place the seat safety belts in the inner openings on the backrest and seat!

1. To unlock the safety belt press and pull it out. (picture 15)

2. To lock the safety belt bring together the both plastic mechanisms and place them in the locking buckle. (picture 16)

Notice: Before folding the stroller lock the rear brakes and take your child out of the stroller. Fold the canopy and remove any additional load from the basket.

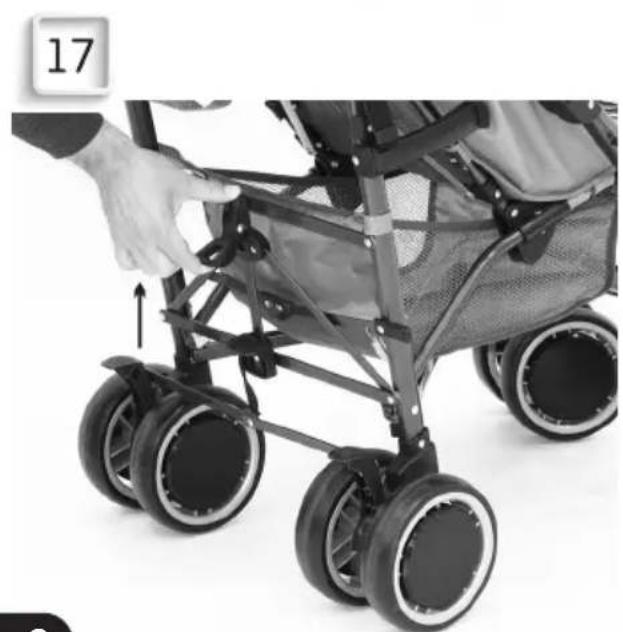

1. Pull up the button on the back side of the stroller.(picture 17).Pull down the button(picture 18) Press forward and down until you lock the stroller. The stroller will remain fixed in this position.(picture 19)
