Product Type	Stroller
Brand	Lorelli
Model	S300
Suitable Age	0 months to 3 years
Maximum Child Weight	15 kg
Maximum Child Height	96 cm
Safety Standard	EN 1888:2012
Storage Basket Capacity	2 kg
Backrest Positions	3
Footrest Adjustment	Yes
Canopy Adjustment	Yes, with zipper extension
Front Wheels	Swivel with lock
Rear Brakes	Foot-operated lever
Safety Belt	5-point harness with crotch strap
Assembly Required	Yes
Material	Metal frame, plastic parts, fabric seat
Cleaning Instructions	Wipe metal/plastic with damp cloth; use upholstery cleaner for fabric
Maintenance	Oil wheels and metal parts regularly; check for loose parts
Accessories Included	Front bar, shopping basket

Frequently Asked Questions - S300 Lorelli

How do I unfold the stroller?

Press the button on the frame to unlock the mechanism, then pull the handle towards you until you hear a click, indicating it is fully unfolded and locked.

How do I install the front wheels?

Insert the front wheel into the frame until it clicks into place. Repeat for the other wheel.

How do I use the rear brakes?

Move the lever from left to right to activate the brake. To unlock, press the button on the lever.

How do I adjust the backrest?

Use the mechanism located on the back side of the backrest. There are 3 positions. Always unlock before adjusting to avoid damage.

How do I adjust the footrest?

Use the mechanisms on both sides of the footrest to adjust its position.

How do I use the safety belt?

For newborns, place the belts through the inner openings on the backrest and seat. To unlock, press the button and pull. To lock, bring both plastic mechanisms together and insert into the buckle.

How do I clean the stroller?

Clean metal and plastic parts with a damp cloth and dry. For fabric, use an upholstery cleaner. Oil wheels and metal parts regularly.

What is the maximum weight for the storage basket?

The storage basket can hold a maximum load of 2 kg.

Can I use this stroller for running or skating?

No, this stroller is not suitable for running or skating.

What safety standards does the stroller meet?

The stroller meets the European safety standard EN 1888:2012.

USER MANUAL S300 Lorelli

Black and white photo of a baby stroller with a child silhouette on the back (no text or symbols visible)

MANUAL INSTRUCTION

Black and white photo of a baby stroller with adjustable straps and a bag (no visible text or symbols)

1

Close-up of a baby stroller with adjustable straps and a hand adjusting the seat (no text or symbols visible)

2

Side view of a baby stroller with adjustable arms and backrest (no text or symbols visible)

3

Close-up of a hand adjusting a stroller with a hand operating the wheel (no visible text or symbols)

Close-up of a baby stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

Close-up of a bicycle's seatbelt with a white cable and magnified view of the wheel (no text or symbols visible)

РАЗГЪВАНЕ НА КОЛИЧКАТА

1. This vehicle is suitable for children from 0 month and weight up to 15 kg!
2. Newborn child is not able to sit and hold his head up unassisted. Therefore, do not fix the backrest in sitting position! For newborn babies use the most reclined position!
3. Do not add a mattress thicker than 10 mm!
4. Use brakes if you do not hold the stroller with hand!
5. Do not leave the stroller on hills or inclined surfaces even if you have activated the brake systems!
6. Parking device shall be engaged when placing and removing the children!
7. The storage basket bears load up to 2 kg!
8. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle! Do not hang bags!
9. Regularly check for loose parts! Make routine inspection, regularly maintain, clean and/or wash the vehicle!
10. The vehicle shall be used only for up to 1 child!
11. Accessories which are not approved by the manufacturer shall not be used!
12. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used!
13. Start to use safety belts as soon as your child is capable to sit without assistance!
14. Always use the restraint system! Always use the crotch belt in combination with the waist belt! To prevent injury from a fall or a slip off always use the shoulder straps!
15. Make sure that the safety belts are placed properly!
16. The stroller should always be used under the supervision of an adult!
17. Do not allow children to suspend him/herself or play in the stroller!
18. Do not allow children to stand in the stroller!
19. Do not allow your child to stand on the seat and foot rest!
20. Do not use the stroller on uneven surfaces near fire or other dangerous places!
21. Do not use the stroller on stairs and escalators!
22. Fold the stroller before go upstairs and downstairs. Mounting the stroller on stairs, pavements and others with the child in it and by pushing the handle causes deformation of the stroller and is out warranty repair!
23. Adjusting of the back rest must be made only by a person read carefully the instruction rules for adjusting!

24. Oil wheels and metal parts regularly to make sure the stroller works well!

25. Always dry and air the stroller if it has got wet!

26. The person assembling the stroller must be acquainted with the functionality of the stroller!
27. The height of carried child should not exceed 96 cm!
28. This stroller is suitable for children up to 3 years old!

WARNING

WARNING! Never leave your child unattended!

WARNING! Ensure that all the locking devices are engaged before use!

WARNING! To avoid injury ensure that your child is kept away when unfolding and folding this product!

WARNING! Do not let your child play with this product!

WARNING! Always use the restrained system!

WARNING! This product is not suitable for running or skating!

EN 1888:2012

MAINTENANCE AND CARE

1. To clean the metal parts use damp cloth and then dry them.
2. To clean the plastic parts use cloth, water and soft detergent.
3. To clean the woven fabric use upholstery cleaner.
4. Any additional load affects stroller's stability!
5. When storing never place other items on or in the stroller. This will damage it!
6. Oil caster bolts and wheels regularly.
7. Check for damaged parts regularly and replace immediately!

UNFOLDING OF THE STROLLER

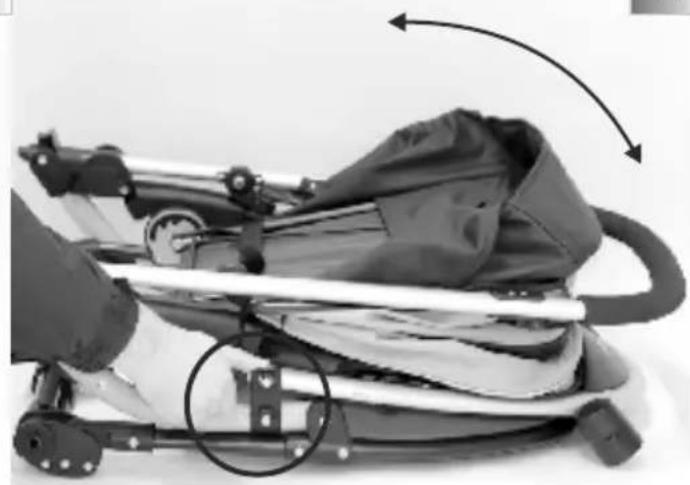

1. Folded stroller. (picture 1)
2. Press the button shown on the pic.3 to to unlock the mechanism. Pull the handle towards you. Stroller will "click" when is completely unfolded and locked. (pictures 2 and 3)

ASSEMBLING OF THE STROLLER

INSTALLATION OF THE FRONT WHEELS

1. Insert the front wheel into frame. Wheel will "click" if it is installed properly. (picture 4)
2. Repeat the same operation to install and the other front wheel. (picture 4)

INSTALLATION OF THE REAR WHEELS

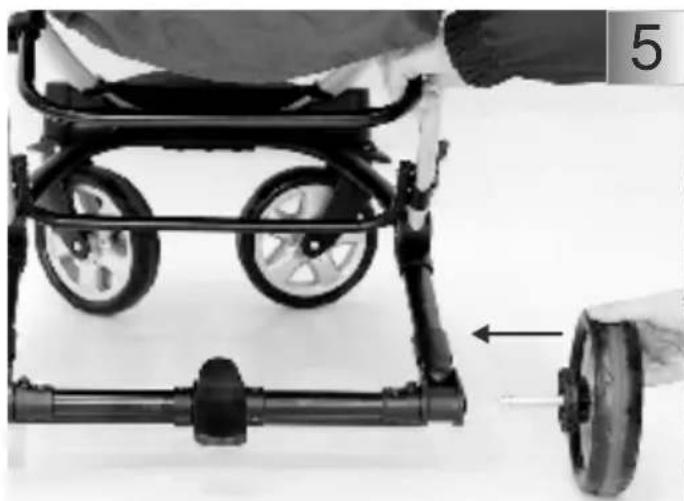

1. Insert the rear wheel into frame. Wheel will "click" if it is installed properly. (picture 5)

2. Repeat the same operation to install and the other rear wheel. (picture 5)

INSTALLATION OF THE SHOPPING BASKET

1. Install the shopping basket by using the buttons located on its top side. (picture 6)

INSTALLATION OF THE FRONT BAR

1. Insert the front bar pins into the holes in the frame of the stroller. Press until tray "clicks" into place. (picture 7)

2. To remove the tray press the release buttons on the both sides and pull the tray out. (picture 8)

SERVICE USE

USING THE REAR BRAKES

1. Move the lever from left to right to activate the brake.

2. Push the button to unlock the brake.(picture 9)

1. Step on the lever between the both front wheels to lock their movement only forward. (picture 10)

2. Lift the lever up to release the wheels to turn in all directions.

1. The backrest has 3 position. To change the position of the backrest you have to use the mechanism located on back side. Trying to adjust the backrest without unlocking the mechanism will be damage it and this is not subject to warranty! (picture 11)

ADJUSTING THE POSITION OF THE FOOTREST

1. To adjust the position of the footrest you have to use the mechanisms located on its both sides. (picture 12)

ADJUSTING THE POSITION OF THE CANOPY

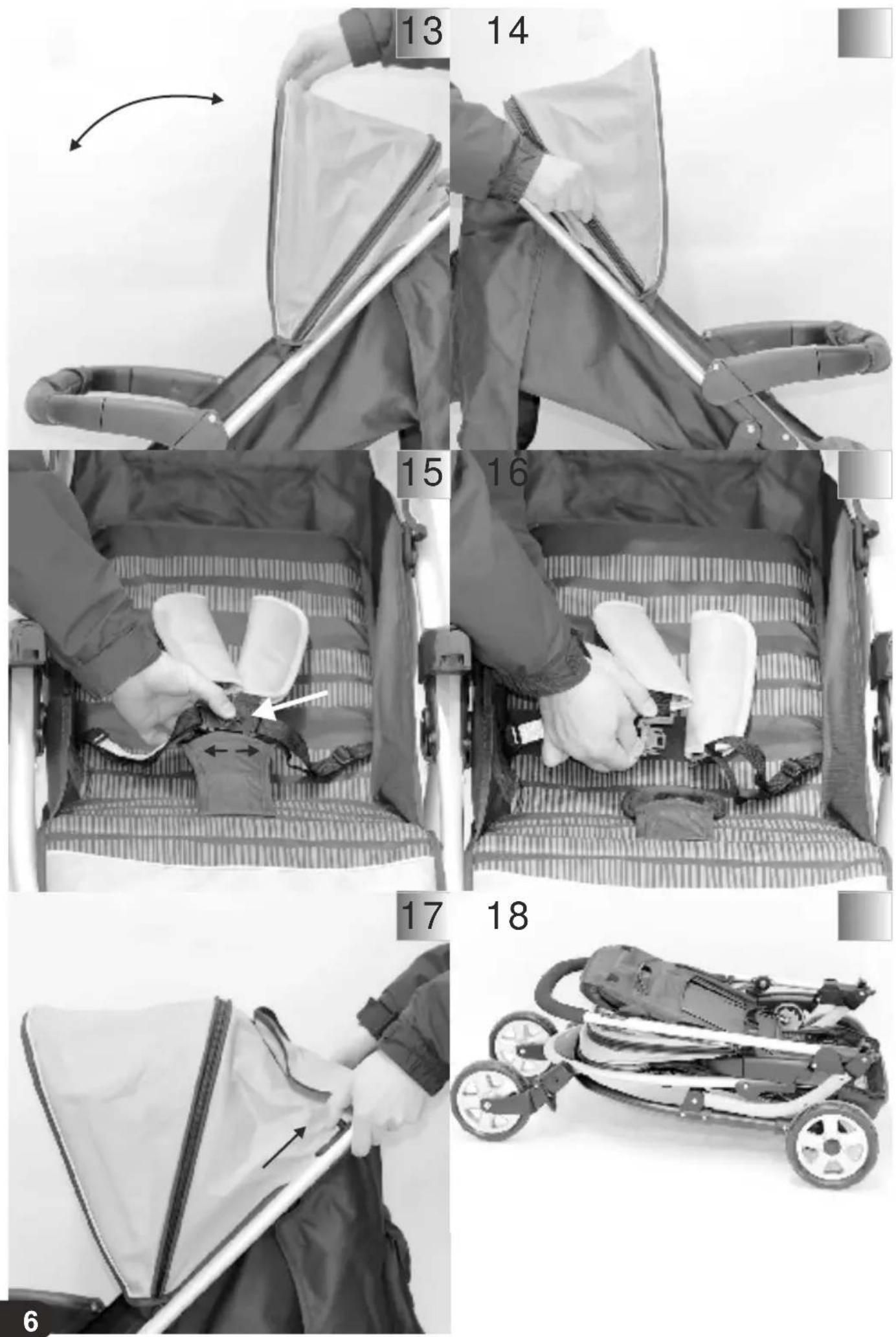

1. To adjust the position of the canopy you have to pull it forward or backward depending on your needs. (picture 13), you can unfold the canopy more by the zipper (picture 14)

USING THE SAFETY BELT

ATTENTION! When use the stroller for a newborn baby, place the seat safety belts in the inner openings on the backrest and seat!

1. To unlock the safety belt press the button and pull it out. (picture 15)

2. To lock the safety belt bring together the both plastic mechanisms and place them in the locking buckle. (picture 16)

FUNCTION AS A NEWBORN BASKET

1. Place the backrest of the stroller in the lowest position.

2. Lift the soft pad for the foot up and fold the both side parts of the backrest inward.

3. Press the releasing mechanisms on both sides of the footrest. Lift the footrest upward.

Notice: Before folding the stroller lock the rear brakes and take your child out of the stroller. Fold the canopy and remove any additional load from the basket.

1. Pull up the button on the back side of the canopy.(picture 17) Press forward and down until you lock the stroller. The stroller will remain fixed in this position.(picture 18)
