TM1CH - Faucet CDA - Free user manual and instructions

Product Type	Single-lever kitchen faucet
Brand	CDA
Model	TM1CH
Material	Brass body with chrome finish
Installation	Deck-mounted, single hole
Spout Height	Approximately 150 mm (6 inches)
Spout Reach	Approximately 150 mm (6 inches)
Flow Rate	Up to 6 liters per minute at 3 bar
Valve Type	Ceramic disc cartridge
Number of Handles	1 (lever)
Handle Material	Zinc alloy with chrome finish
Water Supply Connection	1/2-inch flexible hoses
Weight	Approximately 1.2 kg
Power Supply	None (manual operation)
Main Functions	Single lever controls both flow and temperature; swivel spout for flexible use
Maintenance and Cleaning	Wipe with a damp cloth and mild detergent; avoid abrasive cleaners
Safety Features	Lead-free construction; complies with local plumbing codes
Spare Parts Availability	Replacement cartridges, aerators, and handle kits are available from CDA service centers
Repairability	Modular design allows replacement of internal cartridge without removing faucet
General Information	Suitable for standard kitchen or bathroom sink; professional installation recommended

Frequently Asked Questions - TM1CH CDA

How do I install the CDA TM1CH faucet?

Installation should be performed by a qualified plumber. Ensure the countertop hole is 35 mm. Connect the flexible hoses to ½-inch supply lines. Tighten the mounting nut and secure the faucet. Turn on water and check for leaks.

What do I do if the faucet leaks?

A leaking faucet often indicates a worn cartridge. First, turn off the water supply under the sink. Remove the handle and unscrew the retaining nut. Replace the ceramic disc cartridge with a CDA-approved spare part. Reassemble and test.

How do I clean the faucet without damaging the finish?

Use a soft, damp cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals like bleach, which can dull the chrome finish. Rinse and dry thoroughly.

Can I use the TM1CH faucet with a high-pressure water system?

Yes, the faucet is designed for standard household water pressure up to 5 bar. If pressure exceeds 5 bar, install a pressure reducer to prevent damage.

What spare parts are available for this faucet?

Common spare parts include the ceramic cartridge, aerator, handle lever, and mounting hardware. Contact CDA customer service or an authorized dealer to order genuine parts.

How do I replace the aerator?

Unscrew the aerator from the spout tip by hand or with a small wrench. Clean or replace the screen. Reinstall by hand-tightening. Use a cloth to protect the finish when using tools.

Does the faucet come with a warranty?

CDA typically offers a limited warranty of 5 years on finish and 2 years on internal components. Check your product documentation or contact CDA for specific terms.

What is the recommended water temperature range?

The faucet can handle hot water up to 80°C. For everyday use, avoid exceeding 60°C to prevent scalding and reduce risk of damage to the cartridge.

How do I remove mineral deposits from the faucet?

Soak a cloth in a mixture of equal parts water and white vinegar, wrap it around the affected area for a few minutes, then wipe clean. Rinse thoroughly. Do not use vinegar on the nickel finish if applicable.

Can I use the faucet with a pull-out spray?

The TM1CH model does not include a pull-out spray. It is a standard fixed-spout faucet with a swivel function. For a spray function, consider CDA models with that feature.

USER MANUAL TM1CH CDA

Taking care of your tap

Taps should only be cleaned with a damp cloth or sponge, and dried with a soft cloth.

DO NOT use chemical or cream cleaners, or solutions with bleach content. This can affect the finish of the tap. Please ensure any cloth that has been used with such cleaners is rinsed thoroughly before being used on the tap.

DO NOT use abrasive or wire cleaners.

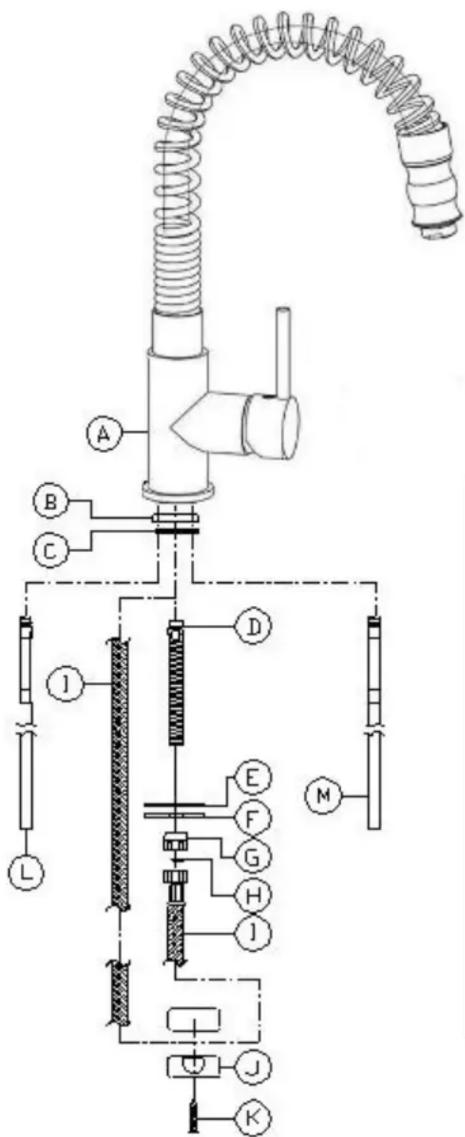

Key:	Description: Qty
A	Mixertap body 1
B	Base plinth 1
C	Upper seal 1
D Hollow fixing stud 1
E	Rubber horseshoe 1
F	Metal horseshoe 1
G	Fixing nut 1
H	Fibre washer 1
I	Nylon hose 1
J	Hose weight 1
K Hose weight screws 2
L	Hot rigid tail pipe			1
M	Cold rigid tail pipe			1

THIS GUARANTEE IS VALID PROVIDING THAT:

• The product has been installed by a suitably qualified person.
• Installation has been carried out in accordance with instructions and current legislation.
  • Proof of purchase can be produced.
• The product has been used for domestic purposes only.
• The product has not been tampered with or repair attempted or modified by any unauthorised person.
• All products have been installed in accordance local water by laws

THIS GUARANTEE DOES NOT COVER:

• Damage by misuse, neglect or transit.
• Use of parts not used or recommended by CDA.
• Routine maintenance, general wear & tear and installation faults.
• Products used for commercial or professional purposes.

Your tap is guaranteed against defects in materials and/or workmanship for 5 years. At the discretion of CDA, should a fault arise the tap may be repaired or replaced and agreed refitting may be reimbursed on receipt on a faulty tap/part, once they have been inspected and deemed faulty.

The CDA Group Ltd

Harby Road

Langar

Nottinghamshire

NG13 9HY

Customer Care

Telephone: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.cda.eu
