Product Type	Single-handle kitchen faucet
Brand	CDA
Model	TC10CH
Material	Brass construction with chrome finish
Finish	Chrome (CH)
Mounting Type	Deck-mount, single hole
Number of Handles	1
Spout Type	High arc, swivel spout
Spout Reach	8.5 inches (approx.)
Spout Height	10.5 inches (approx.)
Flow Rate	1.8 GPM (6.8 L/min) at 60 psi
Valve Type	Ceramic disc cartridge
Installation Requirements	Standard 1-3/8" (35mm) sink hole
Includes	Faucet, mounting hardware, hot/cold supply lines
Warranty	Limited lifetime warranty against defects
Care Instructions	Clean with mild soap and water; avoid abrasive cleaners
Certifications	cUPC, NSF 61 compliant (assumed)

Frequently Asked Questions - TC10CH CDA

How do I install the CDA TC10CH faucet?

Installation typically involves mounting the faucet through a single hole in the sink or countertop. Secure the base with the provided hardware, connect the supply lines to shut-off valves, and tighten connections. Refer to the manual for detailed steps and torque specifications.

Does the TC10CH faucet come with supply lines?

Yes, the faucet includes pre-attached hot and cold water supply lines for easy connection. They are typically 3/8-inch compression fittings.

What is the flow rate of the TC10CH?

The flow rate is approximately 1.8 gallons per minute (GPM) at standard water pressure, which is compliant with water efficiency standards.

How do I clean and maintain the chrome finish?

Use a soft cloth with mild soap and water. Rinse thoroughly and dry. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage the chrome.

The faucet is dripping from the spout. What should I do?

Dripping is often caused by a worn cartridge. Replace the ceramic disc cartridge. Turn off water supply, remove the handle, and replace the cartridge with a compatible one. Consult the manual for specific instructions.

Is the TC10CH compatible with all sink types?

The faucet is designed for standard sink holes of 1-3/8 inches (35mm) diameter. Ensure your sink has a single hole or a suitable mounting surface.

What is the warranty on the CDA TC10CH?

CDA offers a limited lifetime warranty on the faucet body and finish against defects in materials and workmanship. The cartridge is typically covered for five years.

Can the spout swivel 360 degrees?

Yes, the high-arc spout can swivel 360 degrees for full range of motion, making it convenient for washing dishes and filling pots.

Does this faucet have a pull-down sprayer?

No, the TC10CH is a standard non-pull-down faucet. It features a fixed high-arc spout without a sprayer. For a pull-down model, look for other CDA faucet models.

How do I replace the cartridge in the TC10CH?

First, turn off the water supply. Remove the handle screw and handle, then unscrew the retaining nut. Pull out the old cartridge and insert a new one, ensuring alignment. Reassemble and test for leaks. Use a compatible cartridge such as the CDA ceramic cartridge.

USER MANUAL TC10CH CDA

Taking care of your tap

Taps should only be cleaned with a damp cloth or sponge, and dried with a soft cloth.

DO NOT use chemical or cream cleaners, or solutions with bleach content. This can affect the finish of the tap. Please ensure any cloth that has been used with such cleaners is rinsed thoroughly before being used on the tap.

DO NOT use abrasive or wire cleaners.

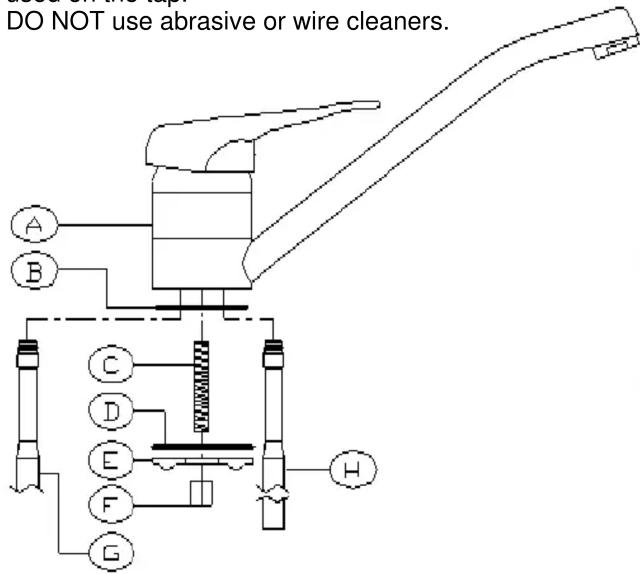

Key	Description Qty
A	Mixertap body 1
B Upper sink/worktop seal 1
C	Studded rod 1
D	Rubber washer 1
E	Metal horseshoe 1
F	Fixing nut 1
G Hot flexible tail pipe 1
H Cold flexible tail pipe 1

THIS GUARANTEE IS VALID PROVIDING THAT:

• The product has been installed by a suitably qualified person.
• Installation has been carried out in accordance with instructions and current legislation.
  • Proof of purchase can be produced.
• The product has been used for domestic purposes only.
• The product has not been tampered with or repair attempted or modified by any unauthorised person.
• All products have been installed in accordance with WRAS regulations and local water by laws

THIS GUARANTEE DOES NOT COVER:

• Damage by misuse, neglect or transit.
• Use of parts not used or recommended by CDA.
• Routine maintenance, general wear & tear and installation faults.
• Products used for commercial or professional purposes.

Your tap is guaranteed against defects in materials and/or workmanship for 5 years. At the discretion of CDA, should a fault arise the tap may be repaired or replaced and agreed refitting may be reimbursed on receipt on a faulty tap/part, once they have been inspected and deemed faulty.
