THE NUMBER ONE CHOICE FOR THE PROFFESSIONAL

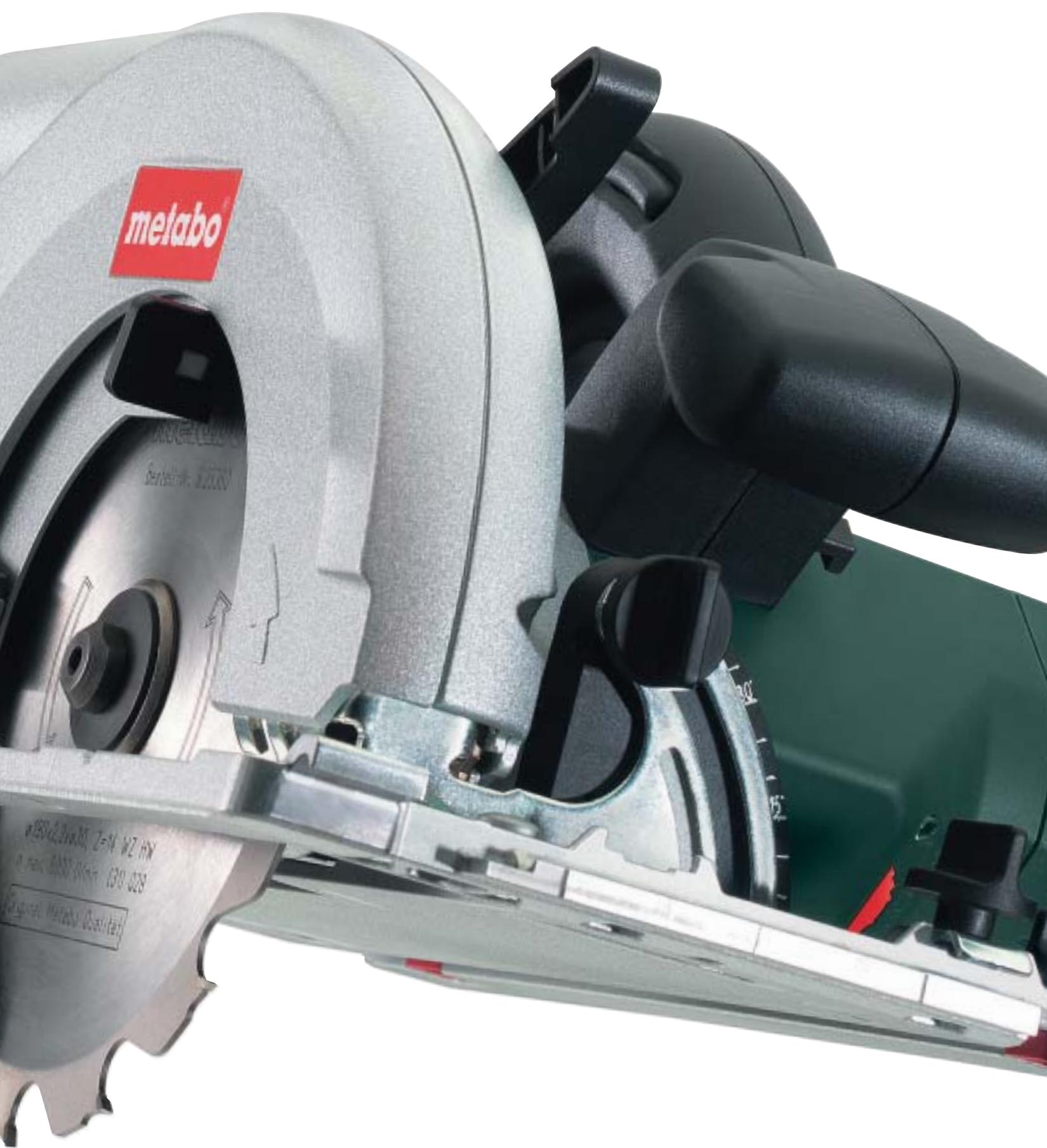

The Metabo circular saw range is built for outright precision and quality. Built tough for the demands of the professional, machines with long life motors, safety clutches, large rip fences, solid all metal gear housings, riving knives and quick cut blades fitted as standard are available within the range. Metabo. Work. Don't play.

Close-up of a mechanical clamp or bracket component (no visible text or symbols)

melabo 100000000000 Standard: 5.2000 W7 W2 W3 W4 W5 W6 W7 W8 W9 W10 W11 W12 W13 W14 W15 W16 W17 W18 W19 W20 W21 W22 W23 W24 W25 W26 W27 W28 W29 W30 W31 W32 W33 W34 W35 W36 W37 W38 W39 W40 W41 W42 W43 W44 W45 W46 W47 W48 W49 W50 W51 W52 W53 W54 W55 W56 W57 W58 W59 W60 W61 W62 W63 W64 W65 W66 W67 W68 W69 W70 W71 W72 W73 W74 W75 W76 W77 W78 W79 W80 w800x2.0mm, Z=4 WZ HW w max. w800 x W81 1310-028 (Exterior: Melabo/Doctant)

EQUIPMENT FEATURES

■ Ideal handling by ergonomic design
■ especially high sawing capacity per battery pack
■ Carbide circular saw blade
■ Easy saw blade replacement with spindle lock
■ Fully closed guide plate for secure support
■ Precisely adjustable and well visible cutting indicator for sawing after initial cut
■ Suitable for bevel cuts up to 47°
■ Safety lock switch to prevent unintentional start of the machine
■ Built-in collector fan to prevent overheating
■ Sturdy aluminum die cast saw housing
■ Rubber-coated handle
■ External dust extraction outlet

... 40% more output with 40% less weight

more with s weight metabio

KSAP 18

COMMON FEATURES

■ Metabo S-automatic torque limiting clutch
Spindle lock
■ Fully closed guide plate for secure support
■ Clearly visible cutting indicator for sawing after initial cut
■ Safety lock switch to prevent unintentional start of the machine
■ Angle adjustment of the sawing blade to the guide plate can be aligned for maximum cutting precision
■ Angle-precise bevel cuts up to 45°
■ Lubrication system for long service life of the gear
■ Optimum sawing dust ejection
■ External dust extraction outlet
■ Precision guide rail available as accessory (order no. 6.31250)

Exterior view of a metal circular saw with a green power tool and red label 'Belabs' (no additional text or symbols visible)

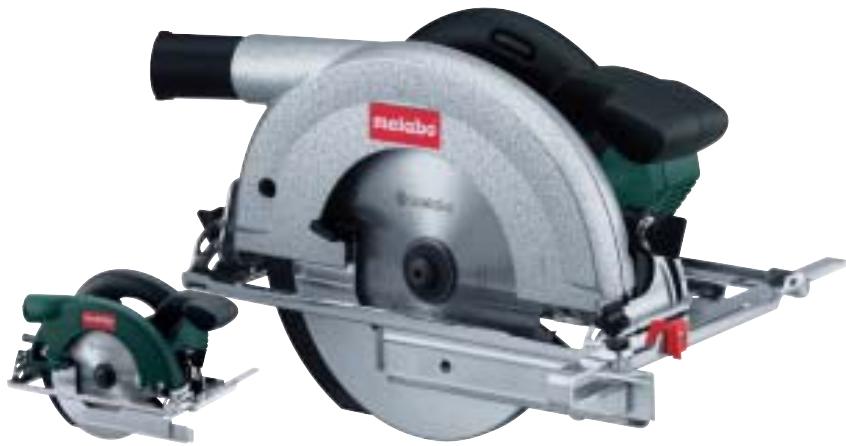

KS 54
KS 66

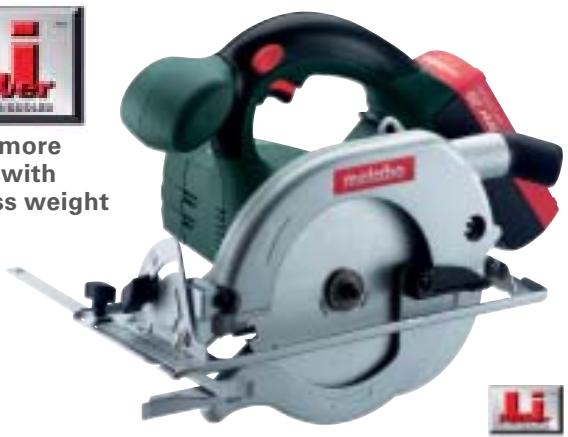

	18 VoltCordless Circular SawKSAP 18
Comparative device characteristics
Type of battery pack	Li-lon
Battery pack voltage	18 V ^1)
Capacity of battery pack	2,2 Ah
Cutting depth adjustable	0 - 53,5 mm
Maximum cutting depth at 90°	53,5 mm
Maximum cutting depth at 45°	42 mm
Saw blade diameter	165 mm
No load speed	2.500 /min
Weight (including battery pack)	4,3 kg
Standard equipment	Carbide circular saw blade(18 teeth), 2 Li-lon battery packs(18 V/2.2 Ah), hexagon spanner,"AIR COOLED" quick chargerAC 30 Plus
^1) at nominal voltage,maximum voltage of 20 Volts
Type	KSAP 18
Order no.	6.02168

	1010 Watt Circular Saw KS 54	1400 Watt Circular Saw KS 66
Special advantages
■ Sturdy aluminum die cast saw housing		•
■ Cutting indicator can be set precisely		•
■ Extraction nozzle rotatable and stoppable		•
■ Auto-stop carbon brushes		•
Comparative device characteristics
Torque	4 Nm	9 Nm
Maximum cutting depth at 90°	54 mm	66 mm
Maximum cutting depth at 45°	38 mm	47 mm
Cutting depth adjustable	0 - 54 mm	0 - 66 mm
Saw blade diameter	160 mm	190 mm
No load speed	6.000 /min	4.200 /min
Rated input power	1.010 W	1.400 W
Output power	630 W	800 W
Rated load speed	4.200 /min	3.200 /min
Cutting speed at rated load	35 m/s	28 m/s
Weight (without mains cable)	3,4 kg	5,5 kg
Standard equipment	Carbide thin circular saw blade (10 teeth), parallel guide/ripping fence, allen key	Carbide thin circular saw blade (14 teeth), parallel guide/ripping fence, allen key
Type	KS 54	KS 66
Order no.	6.00540 ■	6.00542 ■

COMMON FEATURES

■ Metabo S-automatic torque limiting clutch
■ Spindle lock
■ Sturdy aluminum die cast saw housing
■ Sturdy guide plate made from light-weight magnesium die cast
■ Fully closed guide plate for secure support
■ Stylish rubber insert on the top handle to aid a comfortable and secure grip
■ Long double-guided parallel rip fence, can be used left or right
■ Clearly visible cutting indicator for sawing after initial cut
■ Safety lock switch to prevent unintentional start of the machine
■ Angle adjustment of the sawing blade to the guide plate can be aligned for maximum cutting precision
■ Angle-precise bevel cuts up to 45°

■ Lubrication system for long service life of the gear
■ Optimum sawing dust ejection
■ External dust extraction outlet
■ Extraction nozzle rotatable and stoppable
■ Auto-stop carbon brushes
■ Precision guide rail available as accessory (order no. 6.31213)
■ Adjustment of machine without tools for using on the precision guide rail 6.31213

Close-up of a circular cutter blade with metal blades and a red label (no visible text or symbols on the blade itself)

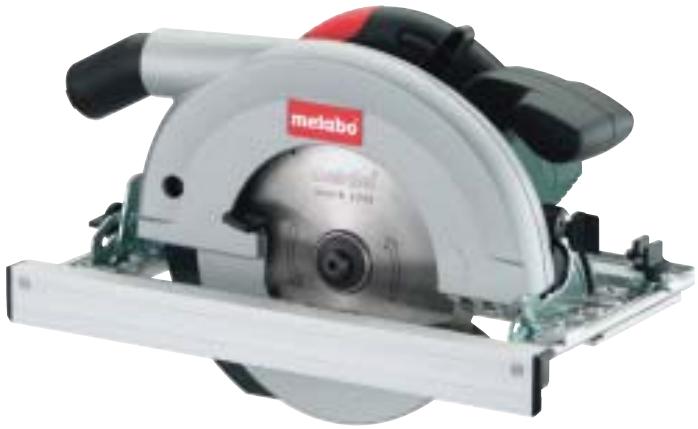

KS 66 Plus
NEW

Exterior view of a metal cutting tool with a red label 'melabó' on its side (no other text or symbols visible)

KSE 68 Plus

NEW

	1400 WattCircular SawKS 66 Plus	1600 WattElectronic Circular SawKSE 68 Plus
Special advantages
■ Quick stop of saw blade on shutting off the machine		•
■ Vario Tacho Constamatic (VTC) full-wave electronics		•
■ Thumbwheel for preselection of speed		•
■ Electronic soft start		•
■ Overload protection		•
■ Two position riving knife lift point		•
Comparative device characteristics
Torque	9 Nm	11 Nm
Maximum cutting depth at 90°	66 mm	68 mm
Maximum cutting depth at 45°	47 mm	48 mm
Cutting depth adjustable	0 - 66 mm	0 - 68 mm
Saw blade diameter	190 mm	190 mm
No load speed	4.200 /min	2.000 - 4.200 /min
Rated input power	1.400 W	1.600 W
Output power	800 W	850 W
Rated load speed	3.200 /min	4.200 /min
Cutting speed at rated load	28 m/s	42 m/s
Weight (without mains cable)	5,5 kg	5,6 kg
Standard equipment	Carbide thin circular saw blade (14 teeth), parallel guide/ripping fence, allen key	Carbide thin circular saw blade (14 teeth), parallel guide/ripping fence, allen key
Type	KS 66 Plus	KSE 68 Plus
Order no.	6.00544	6.00545

Accessories

		Order no.
NEW	Precision guide railClean-cut edges with no splintering thanks to the guide rail's plastic-extrusion strip edging – even with bevel cuts up to 45°Guide rail made of sturdy, anodised Aluminium extrusionAnti-slip backing provides safe and reliable support and protects the workpiece surface against scratchesGuide rule, adjustable to eliminate playsuitable for: Metabo jig saws, circular saws and router models OFE 738 and Of E 1229 Signal (when using the appropriate accessories; KS 66 Plus, KSE 68 Plus can be used)Overall length: 1.500 mm	6.31213
NEW	ConnectorFor joining together two precision guide rails	6.31211
NEW	Set of two clampsFor fixing the precision guide rail on the workpiece or work table	6.31031
NEW	Guide plateFor use with the KSAP 18, KS 54 and KS 54 SP circular saws on the 6.31213 guide rail.Complete guide plate with 2 mounted aluminium threaded bushes for the circular saws	6.31019
NEW	AdaptersFor use with the KS 66 and KSE 68 Plus circular saws (alt. Order No. 6.00543) on the 6.31213 guide rail.	6.31020
NEW	Sawdust ejection nozzleCan be rotatedFor fitting the suction hose on the circular saw KS 54 and KSE 55 Plus	6.30924
NEW	Suction hoseWith connector ∅ 58 mm for bayonet fitting and rubber connector (internal ∅ 30 mm, outside ∅ 35 mm)Connector ∅: 58/35 mmHose length: 3,5 mSuction hose ∅: 27 mm	6.31938
NEW	Metabox IVExtremely robust, unbreakable boxes with a wide carrying handleCarefully thought-out organisation system within the box... ensures that the correct accessory is always with the right tool - special inserts for storing accessories and small parts... and transferring them from box to box - boxes can be stacked and connected - well-structured, clearly arranged storage system, for the workshop, the car, anywhereThe Metabox stays in shape - even at extreme temperatures (-40° to +90°C)No protruding parts, and thus no danger of getting caught up, e.g. on building sitesDimensions: 395 x 295 x 315 mmFor KS 54, KSE 55 Plus, KS 66For KS 66 Plus, KSE 68 Plus	6.245956.24598

Work benches

	Order no.
NEW

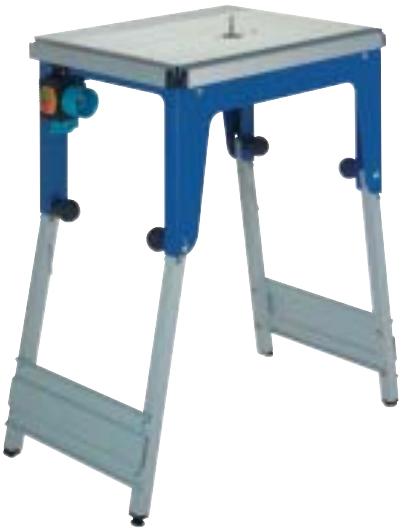

Flexo 500 universal table■ For the stationary use of Metabo jig saws, routers and circular saws (when using appropriate accessories)■ With foldable stand and height adjustment■ Sturdy steel construction and a large table top made from continuous strand casting	0910064304

Special accessories for Flexo 500

			Order no.
	EW	Circular saw setFor Metabo KS 54,KSE 55 Plus, KS 66,KSE 68 Plus circular sawsPackaging dimensions (LxHxW):750 x 280 x 130 mm	0910064398GB
	-	Table width extension■ Increases the supporting surface; ideal for large boards■ Enables cuts with parallel guide of up to 610 mm■ Height adjustableLength: 674 mmWidth: 501 mm	0910064401GB
		Parallel guide/ripping fence■ For long cuts or for cutting large boards■ Long attachment profile for guiding the work piece safely	0910063707GB
		Mitre guide■ Length of rule: 250 mm■ Angle area: +/- 60°	0910064410GB
		Chip and dust extraction unit■ Extraction at two points: at chip box and at the top on the guard■ Clear view of the work piece■ Cleaner working environmentExtraction nozzle ∅: 100 mm	0910064371GB

FOR CIRCULAR SAWS

Carbide-tipped circular saw blades

"power cut"

NEW

• For fast, coarse and semi-fine cuts with continuous feed rates
  • Good cutting results for straight cuts in solid wood
• Partly usable for construction wood with nails and concrete residue
• With coated wood or other composites only coarse cut quality is possible

	Diameter mm	Cutting width mm	Steel blade thickness mm	Bore-∅ mm	Number of teeth	Tooth form	Rake angle	suitable for	Order no.
	152	2,4	1,6	20	12	Flat top tooth	15^	Ks 0852 S	6.28001
	160	2,2	1,4	20	10	Alternately bevel-ground tips	22^	KS 54 / KSE 55 Plus	6.28002
	167	2,4	1,6	20	12	Flat top tooth	15^	Ks 1155 S	6.28003
	190	2,6	1,8	20	14	Alternately bevel-ground tips	25^	Ks 1266 S / Ks 1468 S	6.28004
	190	2,2	1,4	30	14	Alternately bevel-ground tips	25^	KS 66 / KSE 68 Plus	6.28005
	190	2,2	1,4	30	16	Flat/trapezoid tooth	12^	KS 66 / KSE 68 Plus	6.28006^1)
	210	2,6	1,8	30	16	Flat top tooth	25^	Ks E 1678 S-Signal	6.28007
	230	2,6	1,8	30	18	Flat/trapezoid tooth	10^	KS 85	6.28010^1)
	230	2,6	1,8	30	24	Alternately bevel-ground tips	20^	KS 85	6.28011^1)

1) exceptionally nail-proof saw blade

Carbide-tipped circular saw blades

"precision cut"

NEW

• Very wide range of uses in woodworking
• For very good, clean cut results with straight or cross cutting in softwood and hardwood
• Well suited for solid and plywoods, chipboards untreated, coated or veneered, MDF, composite materials
• The circular saw must have a high performance motor

Diameter mm	Cutting width mm	Steel blade thickness mm	Bore-∅ mm	Number of teeth	Tooth form	Rake angle	suitable for	Order no.
160	1,6	1,1	20	24	Alternately bevel-ground tips	22^	KSAP 18	6.28030
160	2,2	1,4	20	24	Alternately bevel-ground tips	20^	KS 54	6.28031
167	2,4	1,6	20	20	Alternately bevel-ground tips	20^	Ks 1155 S	6.28032
167	2,4	1,6	20	40	Alternately bevel-ground tips	10^	Ks 1155 S	6.28033
190	2,6	1,8	20	48	Alternately bevel-ground tips	10^	Ks 1266 S/ Ks 1468 S	6.28034
190	2,2	1,4	30	48	Alternately bevel-ground tips	15^	KS 66 / KSE 68 Plus	6.28035
210	2,6	1,8	30	56	Alternately bevel-ground tips	10^	Ks E 1678 S-Signal	6.28040
230	2,6	1,8	30	56	Alternately bevel-ground tips	15^	KS 85	6.28044

Carbide-tipped circular saw blades

"multi cut"

NEW

• Universal use for demanding materials
- For the highest standards in cutting quality, e.g. laminate, plastic, aluminium, copper and bronze materials
- Ideally suited for many applications in interior work
- Perfect cutting results, also when crosscutting, in solid wood, coarse, coated or veneered chipboards, MDF
- The circular saw must have a very high performance motor
- Requires steady and relatively slow feed rates

Diameter mm	Cutting width mm	Steel blade thickness mm	Bore-∅ mm	Number of teeth	Tooth form	Rake angle	suitable for	Order no.
150	2,4	1,6	20	36	Alternately bevel-ground tips	10^	Ks 0852 S	6.28000
152	2,4	1,6	20	54	Flat/trapezoid tooth	5^ neg.	Ks 0852 S	6.28070
160	2,2	1,4	20	30	Alternately bevel-ground tips	5^ +/-1.5	KS 54 / KSE 55 Plus	6.28071
160	2,2	1,4	20	42	Alternately bevel-ground tips	15^	KS 54 / KSE 55 Plus	6.28072
160	2,2	1,4	20	54	Flat/trapezoid tooth	8^	KS 54 / KSE 55 Plus	6.28073
167	2,4	1,6	20	42	Flat/trapezoid tooth	6^ neg.	Ks 1155 S	6.28074
190	2,2	1,4	30	36	Alternately bevel-ground tips	5^ +/-1.5	KS 66 / KSE 68 Plus	6.28075
190	2,6	1,8	20	54	Flat/trapezoid tooth	5^ neg.	Ks 1266 S / Ks 1468 S	6.28076
190	2,2	1,4	30	56	Flat/trapezoid tooth	8^	KS 66 / KSE 68 Plus	6.28077
210	2,6	1,8	30	54	Flat/trapezoid tooth	5^ neg.	Ks E 1678 S-Signal	6.28078
210	2,8	2,0	30	60	Alternately bevel-ground tips	5^ neg.	Ks E 1678 S-Signal	6.28079
210	2,8	2,0	30	60	Flat/trapezoid tooth	5^ neg.	Ks E 1678 S-Signal	6.28080
230	2,6	1,8	30	60	Alternately bevel-ground tips	5^	KS 85	6.28085
230	2,6	1,8	30	60	Flat/trapezoid tooth	8^	KS 85	6.28086

OTHERS SOMETIMES JUST DON'T CUT IT.

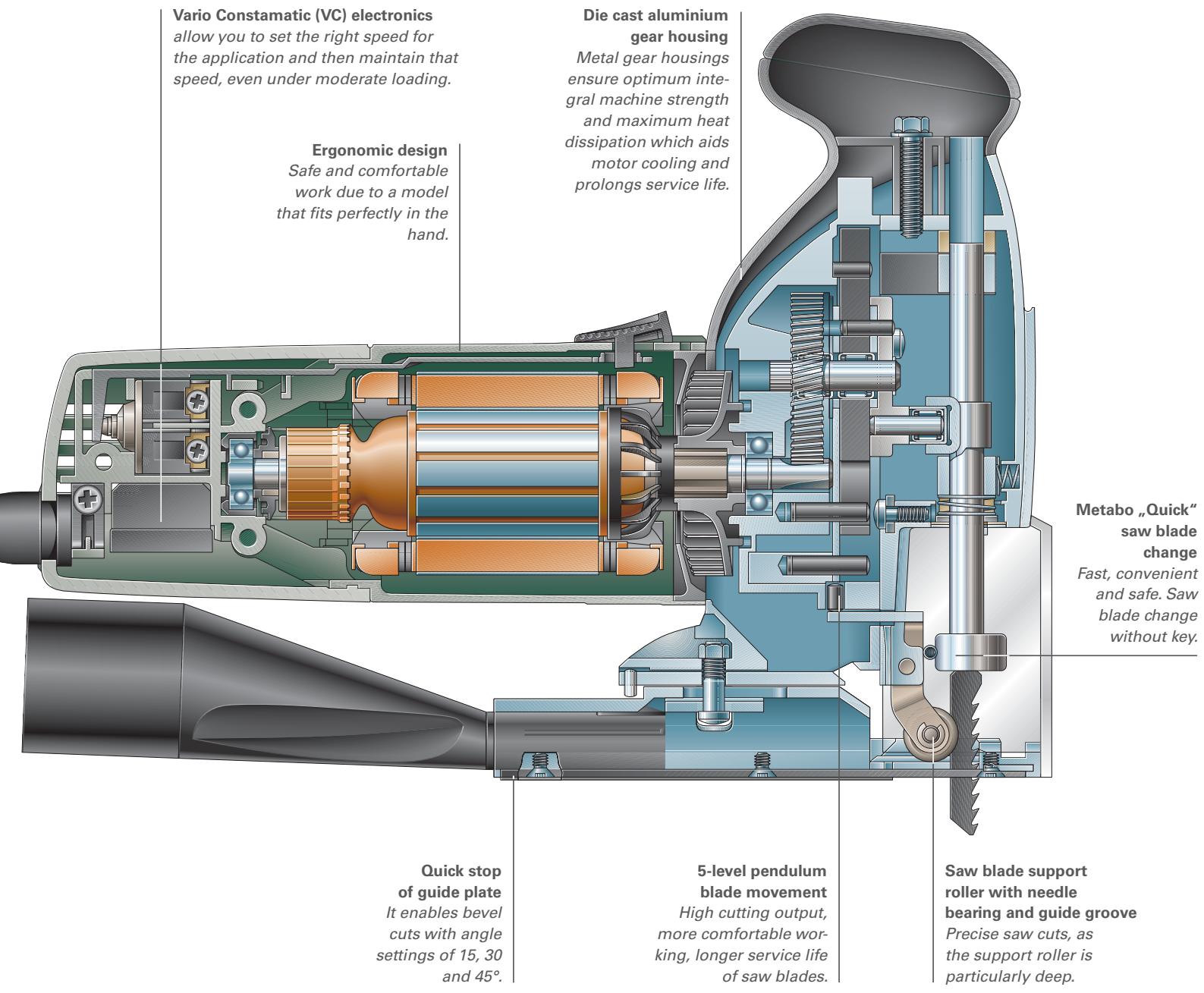

Metabo offer a solid range of Jigsaws from entry level through to top end professional machines. Backed up with an extensive range of accessories these machines are capable of cutting a whole host of materials from wood, metals, plastics, brick and breeze block to fiber glass and rubber. Important features include high powered motors, tough gear housings, solid blade supports and variable speed electronics to enable the right speed selection for the job in hand.

Vario Constamatic (VC) electronics allow you to set the right speed for the application and then maintain that speed, even under moderate loading. Ergonomic design Safe and comfortable work due to a model that fits perfectly in the hand. Die cast aluminium gear housing Metal gear housings ensure optimum int- egral machine strength and maximum heat dissipation which aids motor cooling and prolongs service life. Quick stop of guide plate It enables bevel cuts with angle settings of 15, 30 and 45°. 5-level pendulum blade movement High cutting output, more comfortable wor- king, longer service life of saw blades. Die cast aluminium gear housing Metabo „Quick“ saw blade change Fast, convenient and safe. Saw blade change without key. Saw blade support roller with needle bearing and guide groove Precise saw cuts, as the support roller is particularly deep.

Person using a power tool on a wooden surface, no visible text or symbols

Person using a green power tool on a wooden surface, no visible text or symbols

Person using a green power tool on a blue workbench, no visible text or symbols

Powerful for continuous professional use

The 720-Watt electronic orbital jigsaws enable saw cuts of up to 135 mm thickness in wood.

Absolutely straight or circular cuts

Additional accessories such as guide rails or circular guides expand the range of applications of the Metabo jigsaws.

Vario Constamatic (VC) full-wave electronics

The number of strokes can be adapted individually to the material to be cut. For metal, for example, it is low, for wood it is high.

COMMON FEATURES

■ Robust gear and motor design
■ Easier and quicker saw blade change
■ Low lying saw blade supporting roller
■ Quick locking of guide plate for bevel cuts
■ Ideal handling by ergonomic design
■ Full grip bow type handle
■ Blower for free view of cutting line
■ Upward slidable grip-guard

■ Adjustable pendulum stroke
■ External dust extraction outlet
■ Auto-stop carbon brushes
■ Chip break guard in the guide plate
■ Precision guide rail and guiding device available as accessory
■ Case for allen key

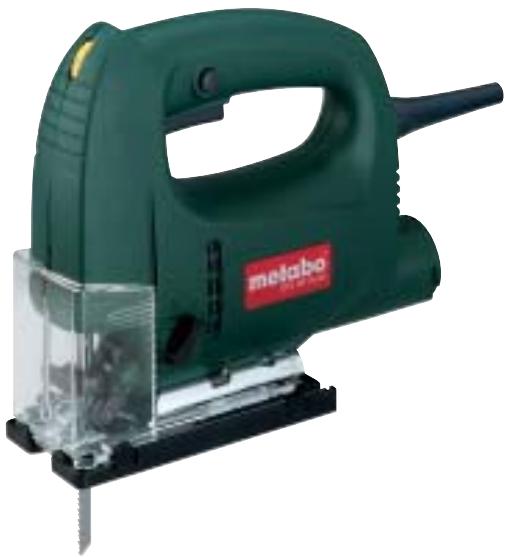

Green portable electronic fDelta tool with visible blade and handle (no text or symbols)

ST 50 Pendix

Green portable electronic device with a red label and transparent grip, no visible text or symbols.

STE 70

Green Melebo f三角形 manual tool with visible blade and base plate (no text or symbols on body)

STE 80 Quick

	400 WattOrbital Jig SawST 50 Pendix	570 WattElectronicOrbital Jig SawSTE 70	610 WattElectronicOrbital Jig SawSTE 80 Quick
Special advantages
■ Metabo "Quick" sawblade change			•
■ Vario Constamatic (VC)full-wave electronics		•	•
■ Thumbwheel for preselectionof number of strokes		•	•
Comparative device characteristics
Torque	4 Nm	5 Nm	5,5 Nm
Maximum thickness of material in- Wood	50 mm	70 mm	80 mm
- Nonferrous metals	10 mm	20 mm	25 mm
- Sheet steel	3 mm	6 mm	8 mm
Levels of pendulum stroke	4	4	4
Strokes at no load	3.000 /min	1.000 - 3.000 /min	1.000 - 3.000 /min
Rated input power	400 W	570 W	610 W
Output power	240 W	340 W	360 W
Weight (without mains cable)	2,2 kg	2,2 kg	2,3 kg
Standard equipment	Grip-guard, chip break guardplate, jig saw blade, allen key	Protective glass, grip-guard,chip break guard plate,jig saw blade, allen key	Protective glass, grip-guard,attachable guard plate with chipbreak guard plate, jig saw blade,allen key
TypeOrder no.	ST 50 Pendix6.04000 ■	STE 706.05700 ■	STE 80 Quick6.06100 ■

COMMON FEATURES

■ Robust gear and motor design
■ Low lying saw blade supporting roller
■ Quick locking of guide plate for bevel cuts
■ Ideal handling by ergonomic design
■ Blower for free view of cutting line
■ Upward slidable grip-guard
■ Vario Constamatic (VC) full-wave electronics
■ Thumbwheel for preselection of number of strokes

■ Adjustable pendulum stroke
■ Die cast aluminium gear housing
■ External dust extraction outlet
■ Auto-stop carbon brushes
■ Chip break guard in the guide plate
■ Precision guide rail and guiding device available as accessory
■ Case for allen key

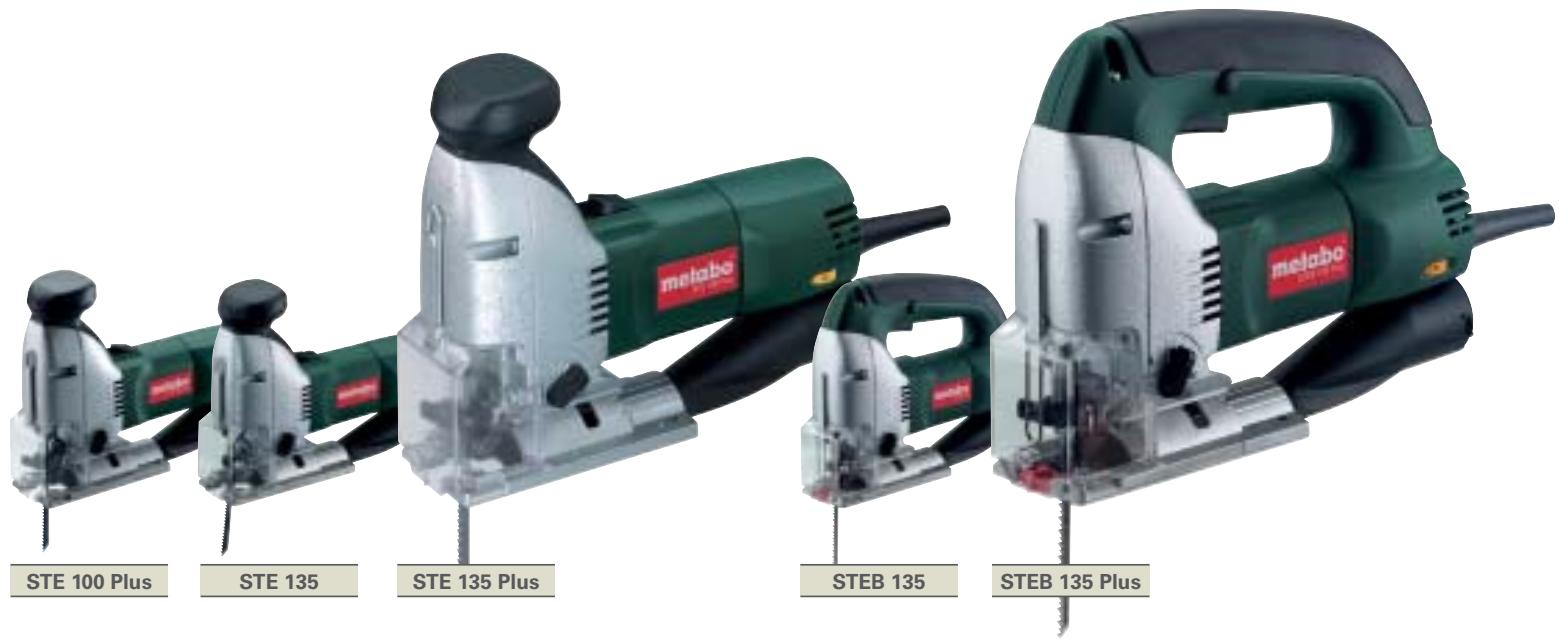

	680 Watt Electronic Orbital Jig Saw STE 100 Plus	720 Watt Electronic Orbital Jig Saw STE 135	720 Watt Electronic Orbital Jig Saw STE 135 Plus	720 Watt Electronic Orbital Jig Saw STEB 135	720 Watt Electronic Orbital Jig Saw STEB 135 Plus
Special advantages
■ Powerful cutting in wood up to 135 mm thickness		●	●	●	●
■ Easier and quicker saw blade change		●		●
■ Metabo "Quick" saw blade change	●		●		●
■ Rubber-coated full grip bow-type handle				●	●
■ Slim motor housing and additional knob	●	●	●
Comparative device characteristics
Torque	6 Nm	7 Nm	7 Nm	7 Nm	7 Nm
Maximum thickness of material in
- Wood	110 mm	135 mm	135 mm	135 mm	135 mm
- Nonferrous metals	25 mm	35 mm	35 mm	35 mm	35 mm
- Sheet steel	8 mm	10 mm	10 mm	10 mm	10 mm
Levels of pendulum stroke	5	5	5	5	5
Strokes at no load	1.000 - 2.800 /min	1.000 - 3.000 /min	1.000 - 3.000 /min	1.000 - 3.000 /min	1.000 - 3.000 /min
Rated input power	680 W	720 W	720 W	720 W	720 W
Output power	400 W	450 W	450 W	450 W	450 W
Weight (without mains cable)	2,6 kg	2,5 kg	2,5 kg	2,6 kg	2,6 kg
Standard equipment	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key	Extraction nozzle, protective glass, grip-guard, chip break guard plate, jig saw blade, allen key
Type Order no.	STE 100 Plus 6.10501	STE 135 6.11100	STE 135 Plus 6.10900 ■	STEB 135 6.11200	STEB 135 Plus 6.11000 ■

Jigsaw blade assortments with single lug bayonet shankSuitable for Metabo, AEG, Atlas Copco, Black & Decker, Bosch, DeWalt, Elu, Festo, Hitachi, Holz-Her, Kress, Makita, Skil ...
		Order no.
	Jigsaw blade assortment 1■ For wood and metal■ HCS saw blades/HSS saw bladeConsisting of 1 saw blade each:6.23634, 6.23633, 6.23637Material suitability:Wood, MetalNumber of parts: 3	6.23968
	Jigsaw blade assortment 2■ For wood, metal and plastic■ HCS saw blades/HSS saw bladeConsisting of 1 saw blade each:6.23633, 6.23635, 6.23632, 6.23631und 6.23637Material suitability:Wood, Plastics, MetalNumber of parts: 5	6.23645
	Jigsaw blade assortment 3■ For wood, metal and plastic■ HCS saw blades/HSS saw bladesConsisting of 2 jigsaw blades each:6.23634, 6.23633, 6.23646,6.23637, 6.23638Material suitability:Wood, Metal, PlasticsNumber of parts: 10	6.23600
	Jigsaw blade assortment 4■ For wood■ HCS saw bladesConsisting of 10 saw blades6.23633 and 6.23635 and5 saw blades 6.23649Material suitability: WoodNumber of parts: 25	6.23698

Accessories
		Order no.
	Guard plate■ For fitting on the base plate of jigsaws. The guard plate protects sensitive workpiece surfaces from scratches	6.23664
	Circle-cutting and parallel guide■ For cutting circles of ∅ 100 to ∅ 360 mm and for cutting parallel to an edge (maximum distance from the edge 210 mm)	6.31340
	Guiding device■ For using jigsaws in conjunction with the guide rail 6.31250/ 6.31213	6.31249
	Precision guide rail■ Clean-cut edges with no splintering thanks to the guide rail's plastic-extrusion strip edging – even with bevel cuts up to 45°■ Guide rail made of sturdy, anodised Aluminium extrusion■ Anti-slip backing provides safe and reliable support and protects the workpiece surface against scratches■ Guide rule, adjustable to eliminate playOverall length: 1.500 mm	6.31213

		Order no.
	Connector■ For joining togethertwo precision guide rails	6.31211
	Set of two clamps■ For fixing the precisionguide rail on theworkpieceor work table	6.31031
	Jigsaw bench mounting plateWith clamp for fixing on theworkbenchTable-top dimensions:183 x 255 mm	6.23689
	Flexo 500 universal table■ For the stationary useof Metabo jig saws,routers and circularsaws (when usingappropriate accessories)■ With foldable stand andheight adjustment■ Sturdy steel constructionand a large table topmade from continuousstrand casting	0910064304GB
	Table width extension■ Increases the supporting surface;ideal for large boards■ Enables cuts with parallel guideof up to 610 mm■ Height adjustableSuitable for: UK 333, UK 290,Flexo 500Length: 674 mmWidth: 501 mm	0910064401GB
	Lubricating stick■ For lubricating thejigsaw blades whensawing metal	6.23443
	3 chip break guard platesSuitable for:ST 50 Pendix,STE 70, STE 80 Quick	6.31208
	3 chip break guard platesSuitable for: STE 100 Plus,STE 135, STE 135 Plus,STEB 135, STEB 135 Plus	6.23665
	Suction hoseWith connector ∅ 58 mmfor bayonet fitting and rubberconnector (internal ∅ 30 mm,outside ∅ 35 mm)Hose length: 3,5 mSuction hose ∅: 27 mm	6.31938
	Carry caseFor ST 50 Pendix, STE 70,STE 80 Quick	6.25450
	Carry caseFor STE 100 Plus, STE 105 Plus,STEB 105 Plus, STE 135,STE 135 Plus, STEB 135,STEB 135 Plus	6.25446
	Metabox I for ST 50-STEB 135For ST 50 Pendix, STE 70,STE 80 Quick, STE 100 Plus,STE 135 Plus, STEB 135 PlusDimensions: 395 x 295 x 105 mm	6.24639

The features of the Metabo jig saw blades

Colour

The colour indicates for which material the blade is suited best.
Yellow	for wood
Yellow with blue lettering	for wood with nails
Blue	for metal
Black	for special applications

Basic blade material

HCS	carbon steel, for cutting soft wood, hardboards, plastics
HSS	High yielding high-speed steel, suitable for metal, aluminium work
BiM(bimetal)	Bimetal especially flexible mix of HCS and HSS. The saw blades have a much higher life expectancy than HCS and HSS and have proven their worth when there is danger of shaft-breaking
HM	Hard-Metal (carbide) applicable to stainless steels, glass, re-inforced plastic, plastics, gypsum plaster or cement fibre boards. Saw blades with HM-coating are suitable for cutting ceramic tiles

Quality class

>classic< series	good results and very good service life
>professional< series	fast, clean and precise angle-cutting with long service life
>pionier< series	cuts fast through all materials ("through thick & thin")
>expert< series	for special applications

Type

Close-up of a metallic blade edge and a separate view of a pointed tool tip (no text or symbols visible)

Teeth milled, offset for clearance gap A relative rough cut, fast progress in cutting on hard and soft wood, aluminium, NE-metals and plastics

Close-up of a saw blade and serrated edge with a separate tip (no text or symbols)

Teeth milled, waved for clearance gap

A relative rough cut, fast progress in cutting hard and soft wood, aluminium, NE-metals and plastics

Close-up of metallic blade and blade assembly (no text or symbols visible)

Teeth ground, offset for clearance gap

Fast cutting in hard and soft wood

Close-up of a saw blade and a triangular saw blade assembly (no text or symbols visible)

Teeth ground, offset for clearance angle and clearance gap

Fine and clean cut in wood and plastics

Shank forms

The jig-saw blades from Metabo are produced to all shank forms matching the jig saws available from other brand names.

Jig saw blades with single lug bayonet shank
Suitable for Metabo, AEG, Atlas Copco, Black & Decker, Bosch, DeWalt, Elu, Festo, Hitachi, Holz-Her, Kress, Makita, Skil ...

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corresponds to Bosch type	Packing unit	Order no.
FOR WOOD, "CLASSIC" SERIES
23631 HCS	Pureset full/wood metabolic
Hard wood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards 2-15 mm, Plastics, Insulating material	Milled, Crimped	HCS	51	2,0 mm	T 119 B	5	6.23631
23620 HCS	Pureset full/wood metabolic
Hard wood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards 2-15 mm, Plastics, Insulating material, Saw blade with insertion head	Milled, Crimped	HCS	66	1,9 - 2,3 mm/23-17 TPI/progressiv	T119B	5	6.23920
23648 HCS	Pureset full/wood metabolic
Hard wood, Soft wood, Chipboards, Wood-core plywood 2-20 mm, Fibre boards 2-20 mm, Plastics, Insulating material, Especially for curved cuts	Milled, Crimped	HCS	51	2,0 mm	T 119 BO	5	6.23646
						25	6.23605
23632 HCS	Pureset full/wood metabolic
Hard wood, Soft wood, Plastics, 4-50 mm, For quick, rough cuts	Milled, Crossed	HCS	74	3,0 mm	T 111 C	3	6.23963
						5	6.23632
						25	6.23606
						100	6.23714
FOR WOOD, "PROFESSIONAL" SERIES
23633 HCS
Hard wood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, For quick cuts	Ground, Crossed	HCS	74	4,0 mm	T 144 D	3	6.23964
						5	6.23633
						25	6.23690
						100	6.23712
23641 HCS
Hard wood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, For quick cuts, Saw blade with insertion head	Ground, Crossed	HCS	74	4-5,2 mm/6-5 TPI/progressiv	T 144 D	5	6.23921
23649 HCS
Hard wood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, Especially for curved cuts	Ground, Crossed	HCS	74	4,0 mm	T 244 D	3	6.23966
						5	6.23649
						25	6.23607
						100	6.23713
23660 HCS
Hard wood, Soft wood, Chipboards, Wood-core plywood 5-50 mm, Especially for curved cuts, Saw blade with insertion head	Ground, Crossed	HCS	74	4-5,2 mm/6-5 TPI/progressiv	T 244 D	5	6.23960
23678 HCS
Hard wood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards, For quick cuts	Ground, Crossed	HCS	126	4,0 mm	T 344 D	5	6.23678
23680 HCS
Hard wood, Soft wood, Chipboards, Wood-core plywood 2-15 mm, Fibre boards, Constructional wood, Extra thick	Ground, Crossed	HCS	150	4,0 mm	T 744 D	5	6.23603
23681 HCS
Soft wood, Plywood, Plastics, 1.5-5 mm, Especially for curved cuts, For clean cuts	Clearance angle ground, Tapered	HCS	57	1,4 mm	T 101 AO	5	6.23651
						25	6.23624
23834 HCEProfessional Hct/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Plastics, 3-30 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	74	2,5 mm	T 101 B	3	6.23961
						5	6.23634
						25	6.23691
						100	6.23703
23969 HCEProfessional Hct/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Plastics, 3-30 mm, For clean cuts, Saw blade with insertion head	Clearance angle ground, Teeth ground	HCS	74	2,7 mm/ 9 TPI	T 101 B	5	6.23969
23650 HCEProfessional Hct/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Coated boards, 3-30 mm, For clean cuts	Clearance angle ground, Teeth ground, Reverse toothed	HCS	74	2,5 mm	T 101 BR	5	6.23650
						25	6.23608
						100	6.23705
23835 HCEProfessional Hct/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood 10-45 mm, Fibre boards 10-45 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	74	4,0 mm	T 101 D	3	6.23962
						5	6.23635
						25	6.23609
						100	6.23704
23923 HCEProfessional Hct/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood 10-45 mm, Fibre boards 10-45 mm, For clean cuts, Saw blade with insertion head	Clearance angle ground, Teeth ground	HCS	74	4-5,2 mm/ 6-5 TPI/progressiv	T 101 D	5	6.23923
23654 HCEProfessional Hct/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood 4-60 mm, Fibre boards 4-60 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	91	3,0 mm	T 301 CD	5	6.23654
23664 HCE
Hard wood, Soft wood, Doors, Kitchen worktops 5-50 mm, For angle-precise cuts, Extra thick	Ground, Crossed	HCS	74	4,0 mm	T 144 DP	5	6.23694
23679 HCE
Hard wood, Soft wood, Chipboards, Wood-core plywood 5-100 mm, Fibre boards 5-100 mm, For angle-precise cuts, Extra thick	Ground, Teeth ground	HCS	104	4,0 mm	T 344 DP	5	6.23679
23680 HCEProfessional Hct/wood metabol
Kitchen worktops, Hard wood 3-65 mm, Soft wood 3-65 mm, Doors, For angle-precise cuts, Extra thick	Clearance angle ground, Teeth ground	HCS	91	2,5 mm	T 301 BCP	5	6.23685
FOR WOOD, "PROFESSIONAL" SERIES, BIM
23976 BIM
Hard wood, Soft wood, Coated boards, 5-50 mm, For quick cuts	Ground, Crossed	BiM	74	4,0 mm	T 144 DF	5	6.23976
23922 BM
Hard wood, Soft wood, Wood with nails, Coated boards, 5-50 mm, For quick cuts, Saw blade with insertion head	Ground, Crossed	BiM	74	4-5,2 mm/ 6-5 TPI/progressiv	T 144 DF	5	6.23933
23960 BM
Hard wood, Soft wood, Coated boards, 5-100 mm, For quick cuts	Ground, Crossed	BiM	126	4,0 mm	T 344 DF	5	6.23980
23605 BMProfessional< Hid/wood metabio
Especially for laminate,Laminated flooring, Hard wood,Soft wood, Coated boards,Plywood, Especially for curved cuts,For clean cuts	Clearance angle ground,Teeth ground,Tapered	BiM	57	1,4 mm	T 101 AOF	5	6.23695
23648 BMProfessional< Hid/wood @metabo
Especially for laminate,Laminated flooring, Hard wood,Soft wood, Coated boards,Plastics, 2-30 mm, For clean cuts	Clearance angle ground,Teeth ground,Tapered	BiM	74	1,7 mm	T 101 AIF	5	6.23948
23975 BMProfessional< Hid/wood metabo
Hard wood, Soft wood,Laminated flooring,Coated boards,Plastics, 3-30 mm,For clean cuts,Saw blade with insertion head	Clearance angle ground,Teeth ground	BiM	74	2,7 mm	T 101 BF	5	6.23975
23606 BMProfessional< Hid/wood metabo
Especially for laminate,Laminated flooring,Kitchen worktops 3-30 mm,Coated boards,For clean cuts	Clearance angle ground,Teeth ground,Reverse toothed	BiM	74	2,5 mm	T 101 BRF	5	6.23686
23606 BMProfessional< Hid/wood metabo
Hard wood,Soft wood,Coated boards, 4-60 mm	Clearance angle ground,Teeth ground	BiM	91	3,0 mm	T 301 CDF	5	6.23696
2377 BMProfessional< Hid/wood @metabo
Hard wood, Soft wood,Chipboards,Glued woods 5-80 mm,Fibre glass reinforcedplastics, 5-30 mm,For quick cuts	Clearance angle ground,Teeth ground	BiM	105	3,0 mm	T 301 CLF	5	6.23977
23949 BMProfessional< Hid/wood @metabo
Hard wood, Soft wood,Wood with nails,Non-ferrous metals, Plastics	Ground	BiM	90	2,5 mm	T 111 HF	5	6.23949
FOR WOOD, "PIONEER" SERIES
23675 HClPioneer< Hid/wood Metabo
Hard wood, Soft wood,Chipboards, Wood-core plywood,Fibre boards,For quick cuts	Clearance angle ground,Teeth ground	HCS	91	2,0-3,0 mm,progressiv	T 234 X	525	6.236756.23617
UNIVERSAL, "PIONEER" SERIES
23677 BMPioneer< Hid+Metall / wood+metal metabo
Wood, Wood with nails,Metal, Non-ferrous metals,Plastics	Crossed, Milled	BiM	106	2,4-5,0 mm,progressiv	T 345 XF	525	6.236776.23621
FOR METAL, "CLASSIC" SERIES
23636 HHSMonium Metal+metal@metabo
Sheet steel, 0.5-1.5 mm,Non-ferrous metals	Milled, Crimped	HSS	66	0,7 mm	T 118 G	3525	6.239676.236366.23693
23637 HHSMonium Metal+metal@metabo
Sheet steel, 1-3 mm,Non-ferrous metals	Milled, Crimped	HSS	51	1,2 mm	T 118 A	3525100	6.239656.236376.236926.23706
23647 HHSMonium Metal+metal@metabo
Sheet steel, 1-3 mm,Non-ferrous metals,Especially for curved cuts	Milled, Crimped	HSS	51	1,2 mm	T 218 A	5	6.23647
23924 IBM Classic MetalMetal >metlobo
Sheet steel, 1-3 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	HSS	66	1,1-1,5 mm/23-17 TPI/progressiv	T 118 A	5	6.23924
23925 IBM Classic MetalMetal >metlobo
Sheet steel, 1-3 mm, Non-ferrous metals, Especially for curved cuts, Saw blade with insertion head	Milled, Crimped	HSS	66	1,1-1,5 mm/23-17 TPI/progressiv	T 218 A	5	6.23926
23929 IBM Classic Metalmetal>metlobo
Sheet steel, 1-3 mm, Non-ferrous metals, sandwich materials	Milled, Crimped	HSS	106	1,2 mm	T 318 A	5	6.23629
						25	6.23623
						100	6.23716
23928 IBM Classic Metalmetal@metlobo
Sheet steel, 2.5-6 mm, Non-ferrous metals	Milled, Crimped	HSS	51	2,0 mm	T 118 B	5	6.23638
						25	6.23618
						100	6.23707
23929 IBM Classic Metalmetal >metlobo
Sheet steel, 2.5-6 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	HSS	66	1,9-2,3 mm/13-11 TPI/progressiv	T 118 B	5	6.23925
23937 IBM Classic Metalmetal>metlobo
Sheet steel, 2.5-6 mm, Non-ferrous metals	Milled, Crimped	HSS	106	2,0 mm	T 318 B	5	6.23697
FOR METAL, "PROFESSIONAL" SERIES
23921 IBM Professional Metalmetal@metlobo
Sheet steel, 1-3 mm, Non-ferrous metals	Milled, Crimped	BiM	57	1,2 mm	T 118 AF	5	6.23971
						100	6.23708
23950 IBM professional Metalmetal >metlobo
Sheet steel, 1-3 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	BiM	66	1,1-1,5 mm/23-17 TPI/progressiv	T 118 AF	5	6.23950
23978 IBM professional Metalmetal>metlobo
Sheet steel, 1-3 mm, Sandwich materials 2-65 mm, Non-ferrous metals, Plexiglas	Milled, Crimped	BiM	106	1,1 mm	T 318 AF	5	6.23978
23979 IBM professional Metal metal>metlobo
Sheet steel, 2.5-6 mm, Sandwich materials 2-65 mm, Non-ferrous metals, Plexiglas	Milled, Crimped	BiM	106	1,8 mm	T 318 BF	5	6.23979
23970 IBM Professional Metalmetal@metlobo
Sheet steel, 1.5 4 mm, Especially for curved cuts	Milled, Crimped	BiM	57	1,5 mm	T 118 EOF	5	6.23970
23973 IBM Professional Metalmetal@metlobo
Sheet steel, 2.5-6 mm, Non-ferrous metals	Milled, Crimped	BiM	57	2,0	T 118 BF	5	6.23973
23929 IBM professional Metalmetal@metlobo
Sheet steel, 2.5-6 mm, Non-ferrous metals, Saw blade with insertion head	Milled, Crimped	BiM	66	1,9-2,3 mm/13-11 TPI/progressiv	T 118 BF	5	6.23929
23984 IBM Professional Sandwich Material >metlobo
Sheet steel, 2.5-6 mm, Sandwich materials 2-120 mm, Non-ferrous metals, Plexiglas	Milled, Crossed	BiM	150	2,0 mm	T 718 BF	5	6.23604
23972 IBM Professional Metalmetal@metlobo
Sheet steel, 2-5 mm, Non-ferrous metals	Milled, Crimped	BiM	50	1,5 mm	T 118 EF	5	6.23972
FOR METAL, "PIONEER" SERIES
23676 HHS>pioneer< Metall-metal>>>metabo
Sheet steel, 1.5-10 mm, Non-ferrous metals up to 30 mm	Milled, Crossed	HSS	74	1,4 - 2,6 mm, progressiv	T 123 X	5	6.23676
						25	6.23620
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
23629 HHS>expert< Aku>>>>metabo
Aluminium 3-15 mm, Non-ferrous metals 4 -20 mm, Plastics, For quick cuts	Milled, Crossed	HSS	74	3,0 mm	T 127 D	5	6.23639
						25	6.23622
						100	6.23709
23648 HHS>expert< Aku>>>>metabo
Aluminium 3-15 mm, Non-ferrous metals 4 -20 mm, Especially for curved cuts	Milled, Crossed	HSS	74	3,0 mm	T 227 D	5	6.23648
23674 HHS>expert< Aku>>>>@metabo
Aluminium 3-15 mm, Non-ferrous metals 4 -20 mm, Plastics, For quick cuts	Milled, Crossed	BiM	75	3,0 mm	T 127 DF	5	6.23974
FOR STAINLESS STEEL, "EXPERT" SERIES
23662 HHS>expert< Inox>metabo
Stainless steel sheets (Inox) 1-2 mm, Non-ferrous metals	Ground	carbide	57	1,1 mm	T 118 AHM	3	6.23662
23663 HHS>expert< Inox>metabo
Stainless steel sheets (Inox) 2-4 mm, Non-ferrous metals	Ground	carbide	57	1,4 mm	T 118 EHM	3	6.23663
FOR PLASTICS, "EXPERT" SERIES
23667 HHS>expert< Kunststoff/plastics>>>>metabo
Fibre glass reinforced plastics, Corian 4-60 mm	Ground	carbide	91	3,3 mm	T 301 CHM	3	6.23687
FOR GYPSUM CARTON/CEMENT MATERIALS, "EXPERT" SERIES
23662 HHS>expert< Gruntartin/plastics>>metabo
Gypsum plaster, Cement fibre boards 5-50 mm, Fibre glass reinforced plastics, 5-20 mm,	Ground	carbide	74	4,3 mm	T 141 HM	1	6.23652
23688 HHS>expert< Gruntartin/plastics >>>>>metabo
Gypsum plaster, Cement fibre boards 5-80 mm, Fibre glass reinforced plastics, 5-50 mm,	Ground	carbide	106	4,3 mm	T 341 HM	1	6.23688
						3	6.23671
FOR PLEXIGLAS, "EXPERT" SERIES
23640 HHS>expert< Plexiglas>>>>metabo
Plexiglas, Polycarbonate 2-20 mm, Non-ferrous metals 2 -10 mm	Clearance angle ground, HSS Teeth ground	74	2,0 mm	T 101 A	5	6.23640
FOR SOFT MATERIALS, "EXPERT" SERIES
23641 HHS>expert< Karton/carton>>@metabo
Expanded polystyrene, Cardboard, Leather, Rubber, Carpet up to 50 mm	Knife-blade ground, Straight	HCS	74		T 113 A	5	6.23641
23684 HHS>expert< Karton/carton>metabo
Expanded polystyrene, Cardboard, Leather, Rubber, Carpet up to 50 mm	Knife-blade ground, Crimped	HCS	126		T 313 AW	3	6.23684
FOR CERAMIC MATERIALS, "EXPERT" SERIES
Ceramic, Glass, Fibre glass reinforced plastics, Cast iron	Coarse	Carbide, coated	76	-	T 130 Riff	1	6.23657
Ceramic, Glass, Fibre glass reinforced plastics, Cast iron	Fine	Carbide, coated	76	-	T 150 Riff	1	6.23658

Jig saw blades with Fein shank Suitable for FEIN jig saws

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corresponds to Bosch type	Packing unit	Order no.
FOR WOOD, "PROFESSIONAL" SERIES
23992 >professional Metal/wood @metlo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 10-40 mm	Clearance angle ground, Teeth ground	HCS	60	3,0 mm	F 1 C	5	6.23992
23993 >professional Metal/wood @metlo
Hard wood, Soft wood, Wood-core plywood, Fibre boards 10-40 mm	Clearance angle ground, Teeth ground	HCS	60	4,0 mm	F 1 D	5	6.23993
FOR METAL, "CLASSIC" SERIES
23994 >classile Metal/metal >>>>> @metlo
Sheet steel, 0.5-1.5 mm	Milled, Crimped	HSS	50	0,7 mm	F 18 G	5	6.23996
FOR METAL, "PROFESSIONAL" SERIES
23994 >professional Metal/metal >>>>>> @metlo
Sheet steel, 1-3 mm	Milled, Crimped	BiM	60	1,2 mm	F 18 AF	5	6.23994
23995 >professional Metal/metal >>>>>> @metlo
Sheet steel, 2.5-6 mm, Plastics	Milled, Crimped	BiM	60	2,0 mm	F 18 BF	5	6.23995
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
23997 >expatri Alu xxxxxxxxxxxxxxxxxxx@metlo
Aluminium, Non-ferrous metals 3-15 mm, Pipes up to 30 mm, Profiles up to 30 mm	Milled, Crossed	BiM	75	3,0 mm	F 127 DF	5	6.23997

Jig saw blades with universal shank Suitable for Black & Decker, Skil, Kress and others

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corresponds to Bosch type	Packing unit	Order no.
FOR WOOD, "CLASSIC" SERIES
23945 >classic< Holz/wood @metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 5-50 mm, For clean cuts	Milled, Crossed	HCS	74	3,0 mm	U 111 C	5	6.23945
FOR WOOD, "PROFESSIONAL" SERIES
23944 >professional< Holz/wood @metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 5-50 mm	Ground, Crossed	HCS	82	4,0 mm	U 144 D	5	6.23944
23936 >professional< Holz/wood @metabo
Hard wood, Soft wood, Plywood, Coated boards, 1.5-15 mm, Especially for curved cuts	Clearance angle ground, Tapered	HCS	52	1,3 mm	U 1 AO	5	6.23936
23943 >professional< Holz/wood @metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 10-45 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	82	2,5 mm	U 101 B	5	6.23943
23942 >professional< Holz/wood @metabo
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 10-45 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	82	4,0 mm	U 101 D	5	6.23942
FOR WOOD, "PROFESSIONAL" SERIES, BIM
> professional< Holt/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 5-50 mm, For quick cuts	Ground, Crossed	BiM	74	4,0 mm	U 144 DF	5	6.23904
> professional< Holt/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 3-30 mm, Coated boards, For clean cuts	Clearance angle ground, Teeth ground	BiM	82	2,5 mm	U 101 BF	5	6.23905
FOR WOOD, "PIONEER" SERIES
> pionier< Holt/wood metabol
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 2-65 mm, For quick cuts	Clearance angle ground, Teeth ground	HCS	90	2,0-3,0 mm, progressiv	U 234 X	5	6.23903
FOR WOOD AND METAL, "PIONEER" SERIES
> pionier< Holt/Metall / wood-metal metabol
Wood, Wood with nails, Metal, Non-ferrous metals, Plastics	Milled, Crossed	BiM	107	2,4 - 5,0 mm, progressiv	U 345 XF	5	6.23906
FOR METAL, "CLASSIC" SERIES
> PIONEER Metall/metal wane metals
Sheet steel, 0.5-1.5 mm	Milled, Crimped	HSS	52	0,7 mm	U 118 G	5	6.23938
> PIONEER Metall/metal wane metals
Sheet steel, 1-3 mm	Milled, Crimped	HSS	52	1,2 mm	U 118 A	5	6.23941
> PIONEER Metall/metal wane metals
Sheet steel, 2.5-6 mm	Milled, Crimped	HSS	52	2,0 mm	U 118 B	5	6.23940
FOR METAL, "PROFESSIONAL" SERIES
> PIONEER Metall/metal wane metals
Sheet steel, 1-3 mm	Milled, Crimped	BiM	52	1,2 mm	U 118 AF	5	6.23907
> PIONEER Metall/metal wane metals
Sheet steel, 2.5-6 mm	Milled, Crimped	BiM	74	2,0 mm	U 118 BF	5	6.23937
FOR METAL, "PIONEER" SERIES
> pionier< Metall/metal >> metabo
Sheet steel, 1.5-10 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	74	1,2 - 2,6 mm, progressiv	U 123 X	5	6.23909
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
> experte Alu >>>>>> metabo
Aluminium, Non-ferrous metals 3-15 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	74	3,0 mm	U 127 D	5	6.23939

Jig saw blades with Makita shank Suitable for Makita jigsaws

Material suitability	Version	Material	Usable length mm	Tooth pitch	Corres- ponds to Bosch type	Packing unit	Order no.
FOR WOOD, "CLASSIC" SERIES
Soft wood, Plywood, Chipboards, Wood-core plywood, Fibre boards 3-15 mm, Especially for curved cuts	Milled, Crossed	HCS	62	2,5 mm	MA 119 HO	5	6.23958
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 4-50 mm, For rough cuts	Milled, Crossed	HCS	62	3,0 mm	MA 111 C	5	6.23955
FOR WOOD, "PROFESSIONAL" SERIES
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 4-50 mm, For quick cuts	Ground, Milled	HCS	82	3,0 mm	MA 144 CD	5	6.23919
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards, Plastics, 3-30 mm, For clean cuts	Clearance angle ground, Teeth ground	HCS	62	2,7 mm	MA 101 BC	5	6.23959
FOR WOOD, "PIONEER" SERIES
Hard wood, Soft wood, Chipboards, Wood-core plywood, Fibre boards 2-65 mm, For quick cuts, For clean cuts	Clearance angle ground, Teeth ground	HCS	92	progressiv, 2,0-3,0 mm	MA 234 X	5	6.23911
FOR WOOD AND METAL, "PIONEER" SERIES
Wood, up to 65 mm, Wood with nails, Metal sheets, Pipes, Aluminium, Plastics, 3-10 mm	Milled, Crossed	BiM	102	progressiv, 2,5-5,0 mm	MA 345 XF	5	6.23912
FOR METAL, "CLASSIC" SERIES
Sheet steel, 1-3 mm	Milled, Crimped	HSS	62	1,0 mm	MA 118 A	5	6.23957
Sheet steel, 2.5-6 mm,	Milled, Crimped	HSS	62	1,8 mm	MA 118 B	5	6.23956
FOR METAL, "PROFESSIONAL" SERIES
Sheet steel, 1-3 mm	Milled, Crimped	BiM	62	1,0 mm	MA 118 AF	5	6.23916
Sheet steel, 2.5-6 mm	Milled, Crimped	BiM	62	1,8 mm	MA 118 BF	5	6.23917
FOR METAL, "PIONEER" SERIES
Sheet steel, 1-10 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	77	progressiv, 1,0-2,6 mm	MA 123 X	5	6.23914
FOR ALUMINIUM AND NON-FERROUS METALS, "EXPERT" SERIES
Aluminium, Non-ferrous metals 3 -15 mm, Pipes, Profiles up to 30 mm	Milled, Crossed	HSS	62	3,0 mm	MA 127 D	5	6.23918
