PLQB10 - Car speaker Pyle - Free user manual and instructions

Product Type	Car Subwoofer
Brand	Pyle
Model	PLQB10
Speaker Size	10 inches
Impedance	4 ohms
Peak Power	800 Watts
RMS Power	400 Watts
Sensitivity	90 dB
Frequency Response	25 Hz - 800 Hz
Voice Coil Type	Single 4-ohm
Cone Material	Non-pressed paper
Surround Material	Foam
Magnet Type	High-energy ferrite
Overall Diameter	10.6 inches
Mounting Depth	5.3 inches
Mounting Cutout	9.2 inches
Weight	10.5 lbs
Recommended Enclosure	Sealed or ported (1.0-1.5 cu ft)
Wiring	Dual binding posts

Frequently Asked Questions - PLQB10 Pyle

What is the recommended enclosure volume for the Pyle PLQB10 subwoofer?

For a sealed enclosure, use 1.0-1.25 cubic feet. For a ported enclosure, use 1.25-1.5 cubic feet with a tuning frequency of 35 Hz.

What is the RMS power handling of the PLQB10?

The PLQB10 handles 400 Watts RMS and 800 Watts peak power. Ensure your amplifier matches this rating.

What impedance is the Pyle PLQB10?

It has a single 4-ohm voice coil, making it suitable for most mono amplifiers.

Can I install the PLQB10 in a free-air (infinite baffle) setup?

It is not recommended for free-air use. The subwoofer performs best in a proper sealed or ported enclosure to avoid damage.

What is the mounting depth of the PLQB10?

The mounting depth is approximately 5.3 inches, so ensure your box has sufficient internal depth.

Does the PLQB10 come with a grille?

No, a grille is not included. You can purchase an aftermarket grille if needed.

What type of speaker wire should I use?

Use 12-16 gauge speaker wire for optimal power transfer. Connect positive to positive and negative to negative.

Is the Pyle PLQB10 compatible with a 2-ohm stable amplifier?

Yes, but because it is a 4-ohm subwoofer, the amplifier will see a 4-ohm load unless you use two subwoofers wired in parallel.

What is the frequency response range of the PLQB10?

The frequency response is 25 Hz to 800 Hz, making it suitable for deep bass applications.

How do I clean and maintain the PLQB10?

Gently wipe the cone and surround with a dry microfiber cloth. Avoid liquids and always ensure the subwoofer is securely mounted.

USER MANUAL PLQB10 Pyle

PLHB8/PLHB10/PLHB12

Black electronic device with two speakers, no visible text or symbols

PLTB8/PLTB10/PLTB12

Close-up of a black cylindrical device with a grid-patterned lens and blue LED display (no visible text or symbols)

PLTAB8/PLTAB10/PLTAB12

Close-up of a black cylindrical object with a blue and white fan-like pattern, resembling a mechanical or electronic component (no visible text or symbols)

PLTA8N/PLTA10N/PLTA12N

Close-up of a cylindrical mechanical component with a recessed circular opening, no visible text or symbols.

PLBAW210/PABAW212

Black and white electronic device with dual speakers and a digital display (no visible text or symbols)

WWW.PYLEAUDIO.COM

MANFACTURER'S LIMITED TWO YEAR WARRANTY

PYLE AUDIO CORP. warranties this unit to be free from defective material or workmanship and will repair or replace this unit or any parts belonging to this unit. only if proven that after normal use it was defective within one(1) years from the date of original purchase.

The item, when sent in for service should be accompanied by proof of purchase.

Our obligation under this warranty is limited to the repairing or replacing at our discretion, the defective instrument or any part there of when it is returned, transportation must be prepaid to the legacy Service Center at the address below. The return shipping fees are as follows if the entire enclosure is sent in there will be a fee of \20.00 for return shipping, however we would suggest you would return only the defective speakers if that \10.00. Be advised we are not responsible for cosmetic damage of the unit. this, warranty will be considered void, if the unit has been tampered in a commercial vehicel. This warranty does not cover accidental damage. All payment accompanying defective units should be by US money order, or any other payment option must be authorized by out service center.

Send your unit to:

PLYE SERVICE CENTER

1600-63 ^RD Street

Brooklyn, New York 11204 USA

1-718-236-2400

1-800-444-5671

www.pyleaudio.com

IMPORTANT

Pack carefully in original carton if possible. We are not responsible for damage incurred in returning items for repair. A letter stating your exact street address, daytime phone number, and a brief statement describing the problem you are experiencing to ensure proper repair of the unit in question.

PLHB10

PLHB8

PLHB12

FEATURESD	PLHB8	PLHB10	PLHB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	600W	800W	1000W
Frequency Response	35Hz-20k Hz	30Hz-20k Hz	25Hz-20k Hz
Woofer Used	PLHB8	PLHB10	PLHB12
Ports	2	2	2
Dimensions	28.25"x12.25"x12.25"	32.5"x14.25"x14.25"	36"x16.5"x16.5"

PLQB10

PLQB8

PLQB12

FEATURESD	PLQB8	PLQB10	PLQB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	400W	500W	600W
Frequency Response	35Hz-800 Hz	30Hz-700 Hz	25Hz-600 Hz
Woofer Used	PLQB8	PLQB10	PLQB12
Ports	2	2	2

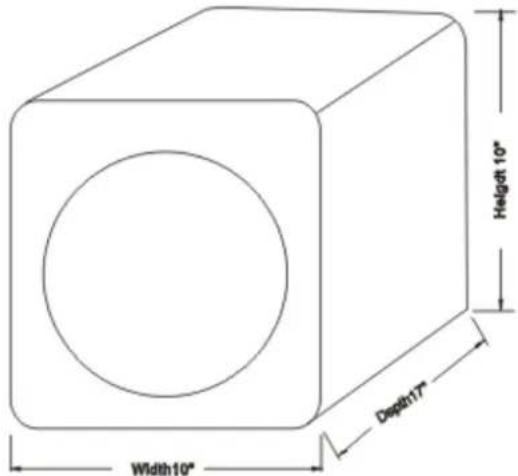

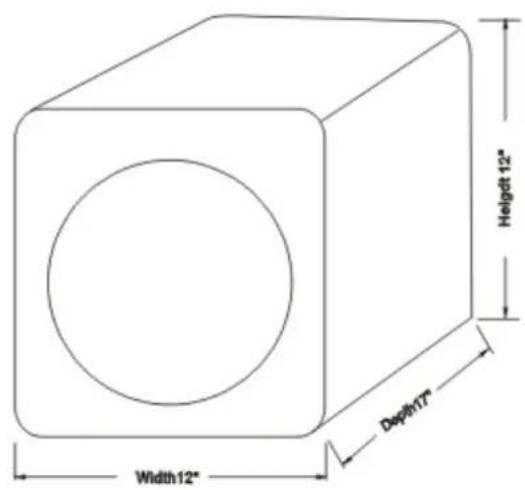

Dimensions	10"x10"x17"	12"x12"x17"	14"x14"x17"

PLTAB10

PLTAB8

PLTAB12

FEATURESD	PLTAB8	PLTAB10	PLTAB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	250W	500W	800W
Frequency Response	35Hz-800 Hz	30Hz-700 Hz	25Hz-600 Hz
Woofer Used	PLTAB8	PLTAB10	PLTAB12
Ports	1	1	1
Dimensions	10"x19.8"	12"x19.8"	14.2"x19.8"

PLTB10

PLTB8

PLTB12

FEATURESD	PLTB8	PLTB10	PLTB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	400W	500W	600W
Frequency Response	35Hz-800k Hz	30Hz-700k Hz	25Hz-600k Hz
Woofer Used	PLTB8	PLTB10	PLTB12
Ports	1	1	1
Dimensions	11.5"x19.5"	13.6"x19.5"	16.8"x19.5"

PLTA8N

PLBAW210

PLTA10N

PLBAW212

PLTA12N

FEATURESD	PLTA8N	PLTA10N	PLTA12N	PLBAW210	PLBAW212
Woofer Size	8"	10"	12"	10"	12"
Power Handling(Peak)	250W	500W	800W	800W	1000W
Frequency Response	35Hz-800 Hz	30Hz-700 Hz	25Hz-600 Hz	30Hz-700 Hz	25Hz-600 Hz
Woofer Used	PLTA8N	PLTA10N	PLTA12N	PLBAW210	PLBAW212
Ports	1	1	1	2	2

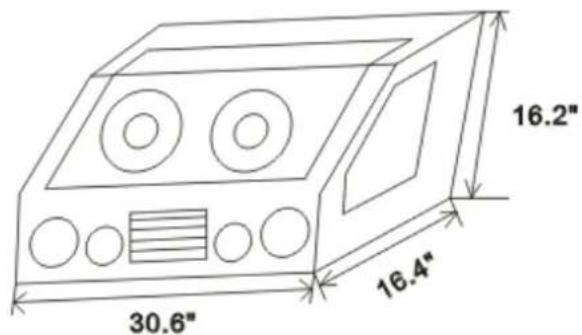

Dimensions	10.4"x20"x9.6"	11.6"x22"x12.8"	13.8"x22.8"x15.4"	14.4"x22.8"x16"	16.2"x30.6"x16.4"

About Pyle PLQB/PLHB/PLTB/PLTAB/PLTA/PLBAW-Series Hatchback SubWoofer Systems

Congratulations

You have just purchased one of our high quality Pyle Hatchback Subwoofer Systems, PLQB/PLHB/PLTB/PLTAB/PLTA/PLBAW Series Hatchback Subwoofer System is carefully designed & manufactured for vehicle use. They could deliver consistent and high performance

The General Features of Pyle PLQB/PLHB/PLTB/PLTAB/PLTA/PLBAW Series Hatchback SubWoofer Systems

High Power 4 Ohm Sub-woofers Aluminium Voice Coil Bandpass Alignment For Extra Deep Bass PLQB/PLTB Series: Non-Press Paper Cone With Cloth Edge Plhb Series: Blue Polypropylene Cone Specially Treated Black Rubber Edge Suspension PLTAB series:Blue Polypropylene Cone Specially Treated Black Rubber Edge Suspension PLTA/PLBAW Series: Silver Polypropylene Cone Specially Treated Black Rubber Edge Suspension
