Product Type	Hatchback Subwoofer System
Model	PLTAB12
Woofer Size	12 inches
Peak Power Handling	800 Watts
Frequency Response	25 Hz - 600 Hz
Impedance	4 Ohms
Voice Coil	Aluminum
Cone Material	Blue Polypropylene
Edge Suspension	Specially Treated Black Rubber
Enclosure Type	Bandpass Alignment
Number of Ports	1
Dimensions (W x H)	14.2 x 19.8 inches
Warranty	Two-Year Limited Manufacturer Warranty
Installation	Designed for hatchback vehicles
Recommended Use	Car audio subwoofer

Frequently Asked Questions - PLTAB12 Pyle

What is the peak power handling of the Pyle PLTAB12?

The Pyle PLTAB12 has a peak power handling of 800 Watts.

What is the woofer size of the PLTAB12?

The PLTAB12 features a 12-inch woofer.

What type of enclosure does the PLTAB12 use?

It uses a bandpass alignment enclosure for extra deep bass.

What is the frequency response of the PLTAB12?

The frequency response is 25 Hz to 600 Hz.

What is the impedance of the PLTAB12 subwoofer?

The impedance is 4 Ohms.

What materials are used in the cone and surround?

The cone is made of blue polypropylene and the surround is a specially treated black rubber edge suspension.

What are the dimensions of the PLTAB12?

The dimensions are 14.2 inches wide by 19.8 inches high.

Is the PLTAB12 compatible with any car audio system?

Yes, it is designed for hatchback vehicles and can be integrated with most car audio systems with appropriate power and wiring.

What is the warranty period for the Pyle PLTAB12?

Pyle offers a two-year limited manufacturer warranty covering defects in material and workmanship.

How many ports does the PLTAB12 have?

It has one port.

USER MANUAL PLTAB12 Pyle

PLHB8/PLHB10/PLHB12

Black electronic device with two speakers, no visible text or symbols

PLTB8/PLTB10/PLTB12

Close-up of a black cylindrical device with a grid-patterned lens and blue LED display (no visible text or symbols)

PLTAB8/PLTAB10/PLTAB12

Close-up of a black cylindrical object with a blue and white fan-like pattern, resembling a mechanical or electronic component (no visible text or symbols)

PLTA8N/PLTA10N/PLTA12N

Close-up of a cylindrical mechanical component with a central circular recess and a label 'PYLE' on its side (no other text or symbols visible)

PLBAW210/PABAW212

Black and white electronic device with dual speakers and a digital display (no visible text or symbols)

WWW.PYLEAUDIO.COM

MANFACTURER'S LIMITED TWO YEAR WARRANTY

PYLE AUDIO CORP. warranties this unit to be free from defective material or workmanship and will repair or replace this unit or any parts belonging to this unit. only if proven that after normal use it was defective within one(1) years from the date of original purchase.

The item, when sent in for service should be accompanied by proof of purchase.

Our obligation under this warranty is limited to the repairing or replacing at our discretion, the defective instrument or any part there of when it is returned, transportation must be prepaid to the legacy Service Center at the address below. The return shipping fees are as follows if the entire enclosure is sent in there will be a fee of \20.00 for return shipping, however we would suggest you would return only the defective speakers if that \10.00. Be advised we are not responsible for cosmetic damage of the unit. this, warranty will be considered void, if the unit has been tampered in a commercial vehicel. This warranty does not cover accidental damage. All payment accompanying defective units should be by US money order, or any other payment option must be authorized by out service center.

Send your unit to:

PLYE SERVICE CENTER

1600-63 ^RD Street

Brooklyn, New York 11204 USA

1-718-236-2400

1-800-444-5671

www.pyleaudio.com

IMPORTANT

Pack carefully in original carton if possible. We are not responsible for damage incurred in returning items for repair. A letter stating your exact street address, daytime phone number, and a brief statement describing the problem you are experiencing to ensure proper repair of the unit in question.

PLHB10

PLHB8

PLHB12

FEATURESD	PLHB8	PLHB10	PLHB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	600W	800W	1000W
Frequency Response	35Hz-20k Hz	30Hz-20k Hz	25Hz-20k Hz
Woofer Used	PLHB8	PLHB10	PLHB12
Ports	2	2	2
Dimensions	28.25"x12.25"x12.25"	32.5"x14.25"x14.25"	36"x16.5"x16.5"

PLQB10

PLQB8

PLQB12

FEATURESD	PLQB8	PLQB10	PLQB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	400W	500W	600W
Frequency Response	35Hz-800 Hz	30Hz-700 Hz	25Hz-600 Hz
Woofer Used	PLQB8	PLQB10	PLQB12
Ports	2	2	2

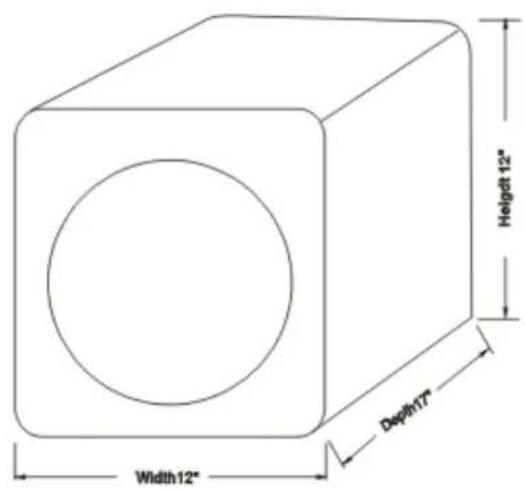

Dimensions	10"x10"x17"	12"x12"x17"	14"x14"x17"

PLTAB10

PLTAB8

PLTAB12

FEATURESD	PLTAB8	PLTAB10	PLTAB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	250W	500W	800W
Frequency Response	35Hz-800 Hz	30Hz-700 Hz	25Hz-600 Hz
Woofer Used	PLTAB8	PLTAB10	PLTAB12
Ports	1	1	1
Dimensions	10"x19.8"	12"x19.8"	14.2"x19.8"

PLTB10

PLTB8

PLTB12

FEATURESD	PLTB8	PLTB10	PLTB12
Woofer Size	8"	10"	12"
Power Handling(Peak)	400W	500W	600W
Frequency Response	35Hz-800k Hz	30Hz-700k Hz	25Hz-600k Hz
Woofer Used	PLTB8	PLTB10	PLTB12
Ports	1	1	1
Dimensions	11.5"x19.5"	13.6"x19.5"	16.8"x19.5"

PLTA8N

PLBAW210

PLTA10N

PLBAW212

PLTA12N

FEATURESD	PLTA8N	PLTA10N	PLTA12N	PLBAW210	PLBAW212
Woofer Size	8"	10"	12"	10"	12"
Power Handling(Peak)	250W	500W	800W	800W	1000W
Frequency Response	35Hz-800 Hz	30Hz-700 Hz	25Hz-600 Hz	30Hz-700 Hz	25Hz-600 Hz
Woofer Used	PLTA8N	PLTA10N	PLTA12N	PLBAW210	PLBAW212
Ports	1	1	1	2	2

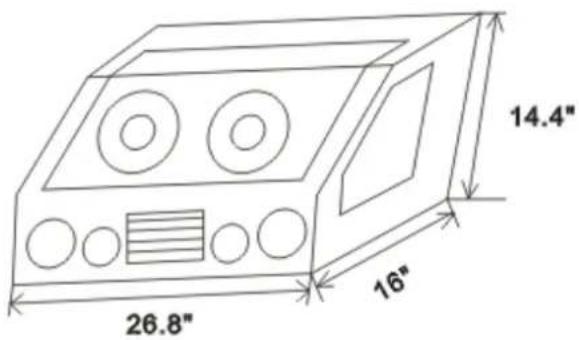

Dimensions	10.4"x20"x9.6"	11.6"x22"x12.8"	13.8"x22.8"x15.4"	14.4"x22.8"x16"	16.2"x30.6"x16.4"

About Pyle PLQB/PLHB/PLTB/PLTAB/PLTA/PLBAW-Series Hatchback SubWoofer Systems

Congratulations

You have just purchased one of our high quality Pyle Hatchback Subwoofer Systems, PLQB/PLHB/PLTB/PLTAB/PLTA/PLBAW Series Hatchback Subwoofer System is carefully designed & manufactured for vehicle use. They could deliver consistent and high performance

The General Features of Pyle PLQB/PLHB/PLTB/PLTAB/PLTA/PLBAW Series Hatchback SubWoofer Systems

High Power 4 Ohm Sub-woofers Aluminium Voice Coil Bandpass Alignment For Extra Deep Bass PLQB/PLTB Series: Non-Press Paper Cone With Cloth Edge Plhb Series: Blue Polypropylene Cone Specially Treated Black Rubber Edge Suspension PLTAB series:Blue Polypropylene Cone Specially Treated Black Rubber Edge Suspension PLTA/PLBAW Series: Silver Polypropylene Cone Specially Treated Black Rubber Edge Suspension
