Product Type	Wired Optical Mouse
Model	RX-310
Brand	Sven
Dimensions (L x W x H)	Approx. 120 x 70 x 40 mm
Weight	Approx. 100 g
Power Supply	USB-powered from computer
Interface	USB 2.0
Cable Length	1.5 m
Number of Buttons	3 (Left, Right, Scroll wheel with click)
Scroll Wheel	Yes, with click function
DPI Resolution	800 / 1200 / 1600 DPI (switchable)
Sensor Type	Optical
Operating Systems Supported	Windows 7/8/10/11, macOS
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety Precautions	Do not expose to water or extreme temperatures; unplug if not in use for long periods
Spare Parts and Reparability	Not user-serviceable; contact authorized service center for repairs
Certifications	CE, RoHS
Warranty	1 year limited warranty

Frequently Asked Questions - RX-310 Sven

How do I connect the Sven RX-310 mouse to my computer?

Simply plug the USB cable into an available USB port on your computer. The mouse will be automatically recognized without needing additional drivers.

Does the Sven RX-310 require batteries?

No, this mouse is wired and powered directly via the USB connection, so no batteries are needed.

How can I change the DPI settings?

Press the DPI button located on the top of the mouse (near the scroll wheel) to cycle through 800, 1200, and 1600 DPI. The current DPI may be indicated by an LED color.

Is the mouse compatible with macOS?

Yes, the Sven RX-310 works with macOS (versions 10.12 and later) as well as Windows 7/8/10/11. No extra drivers required.

What should I do if the cursor moves erratically?

Try cleaning the sensor on the bottom of the mouse with a dry cloth. Ensure you are using the mouse on a non-reflective surface. If issues persist, restart your computer or try a different USB port.

Can I use the mouse on a glass surface?

Optical mice generally perform poorly on glossy or glass surfaces. For best results, use a mouse pad or a matte surface.

How do I clean the mouse?

Unplug the mouse and wipe the exterior with a soft, slightly damp cloth. Do not use any solvents or immerse the mouse in water. Dry thoroughly before use.

The scroll wheel is not working properly. What can I do?

First, check if the issue is software-related by testing on another computer. If the problem persists, gently clean the scroll wheel with compressed air or a dry cloth. If still not working, contact support.

What is the warranty period for the Sven RX-310?

The mouse comes with a 1-year limited warranty covering manufacturing defects. Retain your purchase receipt for service.

Can I adjust the polling rate?

The RX-310 does not offer user-adjustable polling rate settings. It operates at the standard 125 Hz polling rate.

USER MANUAL RX-310 Sven

Black and white computer mouse with a USB flash drive, no visible text or symbols on the device itself.

Рис. 2. Вид снизу

Рис. 1. Вид сверху

Рис. 3. Ресивер

Line drawing of a computer keyboard layout with no text or symbols

Technical line drawing of a computer mouse with a handle and control panel (no text or symbols)

Technical line drawing of a computer mouse case with internal components and mounting holes (no text or symbols)

Black and white computer mouse with a USB flash drive, no visible text or symbols on the device itself.

Line drawing of a laptop keyboard with an arrow pointing to the right side (no text or symbols present)

Technical line drawing of a computer mouse with a button and handle (no text or symbols)

Technical line drawing of a computer mouse with internal components and a labeled component (no text or symbols)

Black and white computer mouse with a USB flash drive, no visible text or symbols on the device itself.

Congratulations on your purchase of the SVEN PC mouse!

Please read the following instructions carefully before connecting, operating or adjusting this product. Besides, please keep this Manual in a safe place for future reference.

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).

This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The information in this Manual is given on “as is” terms. The author and the publisher do not bear any liability to a person or an organization for loss or damage which has arisen from the information contained in this Manual.

CONTENTS

RUS 1

UKR 7

ENG 14

1. SPECIAL FEATURES ...... 16
2. PACKAGE CONTENTS 16
3. SYSTEM REQUIREMENTS ...... 16
4. DESCRIPTION 17
5. INSTALLATION ...... 17
6. TROUBLESHOOTING 20
7. TECHNICAL SPECIFICATIONS 20

Technical support is on www.sven.fi

1. SPECIAL FEATURES

• BlueLED advanced optical technology
  • Power saving wireless technology
• Symmetric shape
  • Effective on most surfaces
  • High speed operation
  • 2.4GHz USB nano receiver included (range up to 10 m)
• Resolution 1200 dpi
• USB interface
• Powered by AA battery
• Drivers installation is not required for Windows XP/Vista/7/8
  • Symmetrical shape of the mouse
• Convenient for laptop operation

2. PACKAGE CONTENTS

• Optical mouse — 1 pc
• 2.4 GHz USB nano receiver — 1 pc
- AA battery — 1 pc
- User's Manual — 1 pc
- Warranty card — 1 pc

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

User's Manual

RX-310 WIRELESS

4. DESCRIPTION

① Scroll wheel
② Battery compartment
③ Optical sensor
④ Nano receiver
⑤ USB connector

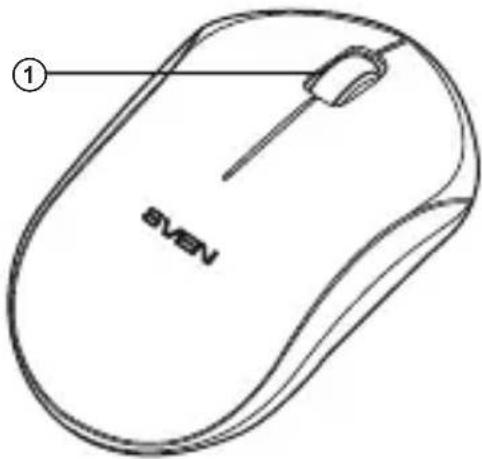

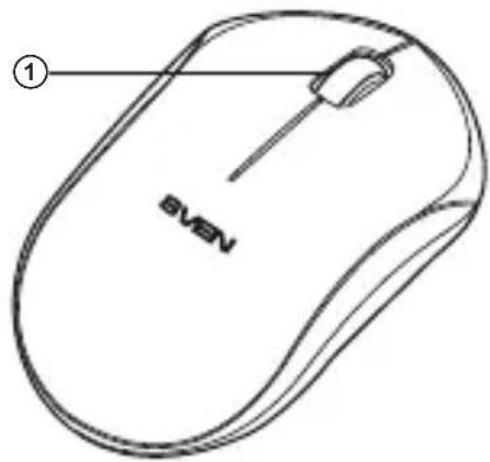

Fig. 1. Top view

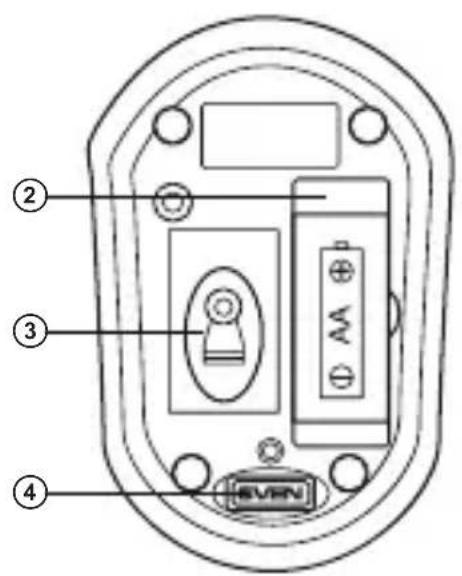

Fig. 2. Bottom view Fig. 3. Nano receiver

5. INSTALLATION

• Open the cover of the mouse battery compartment ②, insert the AA battery into the battery compartment matching the polarity, and close the cover of the battery compartment (see Fig. 4).
• Connect the included nano receiver ④ to a free PC USB port (Fig. 5). To activate the mouse, press any button of the mouse or turn the scroll wheel. If the mouse has been connected correctly, it will turn on automatically.

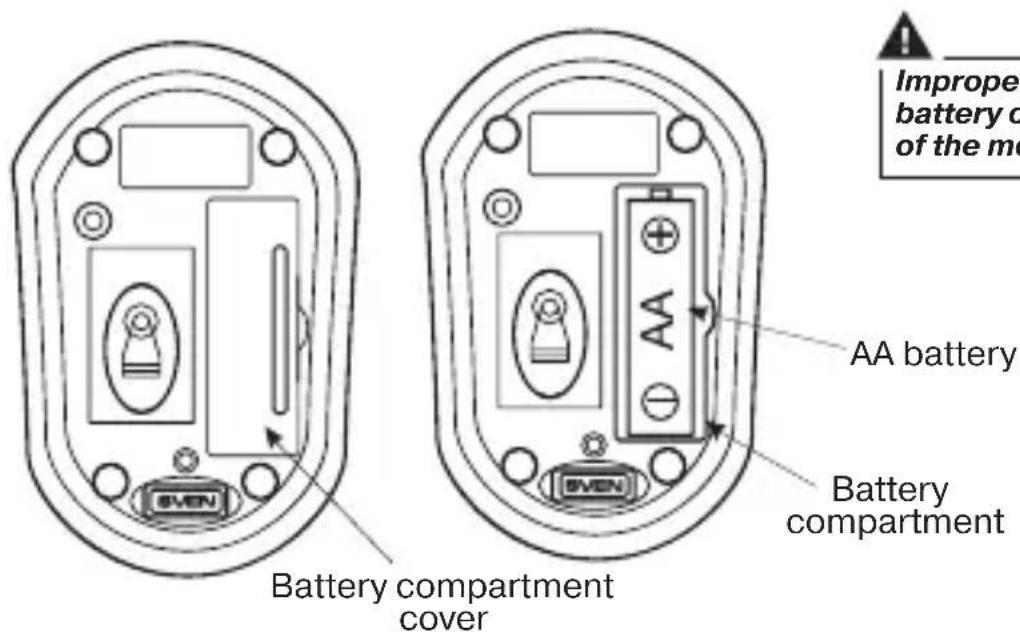

Fig. 4. Battery installation

Line drawing of a keyboard layout with a mouse pointer and an arrow indicating the keyboard's left side (no text or symbols present)

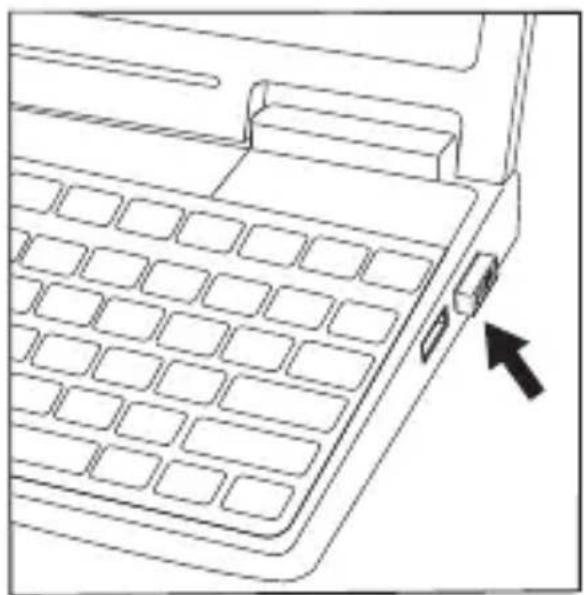

Fig. 5. Receiver connection

User's Manual

RX-310 WIRELESS

• After finishing your work, you can pull out the receiver ④ from the PC USB port and insert it into the mouse (Fig. 6). When using the receiver again, pull it out from the mouse (Fig. 7) and connect it to the PC USB port again.
• Do not place the receiver into a confined metal space (table drawer, box, safe), as a metal screen does not transmit radio signals.
• If the battery runs down, the mouse works by fits. It means that the battery should be replaced with a new one, as it is shown in Fig. 4.

Technical line drawing of a computer mouse with an internal component and a black arrow indicating a specific part (no text or symbols present)

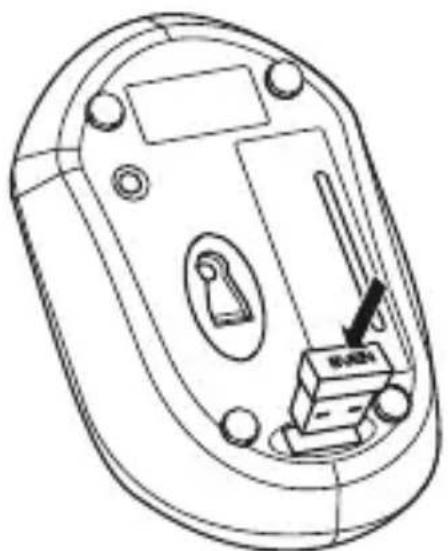

Fig. 6. Fitting the receiver into the mouse case

Technical line drawing of a computer mouse with an internal component labeled 'SAS' (no text or symbols beyond label)

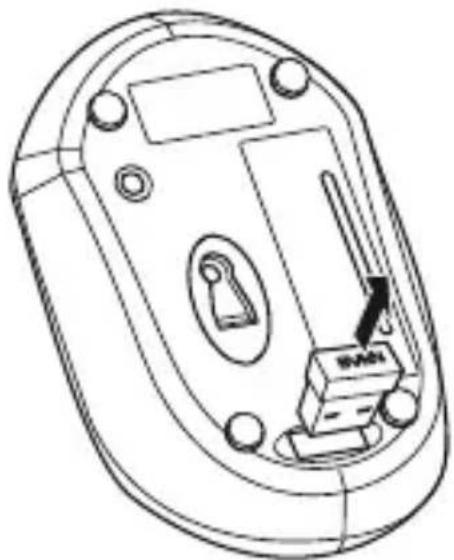

Fig. 7. Extraction of the receiver from the mouse case

Important

This device meets the highest standards of energy conservation. During long pauses in operation the mouse enters the economical Sleep mode. To enter the working mode just press any button or turn the scroll wheel.

6. TROUBLESHOOTING

Problem	Solution
The mouse does not work.	1. Make sure that the nano receiver has been inserted into the USB port and its distance to the mouse is less than 10 m.2. Check whether the battery has been installed correctly.3. Check if the battery has run down, replace the battery with a new one if necessary.4. Address nearest authorized service center.

7. TECHNICAL SPECIFICATIONS

Parameter	Value
OS compatibility	Windows XP/Vista/7/8
Type of mouse	wireless 2.4 GHz
Resolution, dpi	1200
Q-ty of buttons	2 + 1 (scroll wheel)
Interface	USB
Dimensions, mm	62 × 40 × 101
Weight, g	54.5

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

Nº 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolah-

dentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
