Product Type	Electric Water Heater
Brand	Philips
Model	AquaShield AWH1066 (AWH1066/93)
Capacity	55 Liters
Dimensions (W x H x D)	156 mm x 55 mm x 230 mm (body only, approximate)
Weight	Approximately 18 kg (filled with water)
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W (typical, check rating plate)
Temperature Range	45°C to 80°C (adjustable)
Heating Time	Approximately 1-2 hours from cold to max temperature
Control Type	Electronic with LED display and buttons
Safety Features	Overheat protection, pressure relief valve, dry heating protection
Installation Type	Wall-mounted (horizontal or vertical)
Water Connection	G 1/2 inch inlet/outlet
Energy Efficiency Class	A (typical for modern models)
Maintenance	Annual descaling and anode rod inspection
Spare Parts Available	Heating element, thermostat, anode rod, pressure valve
Warranty	2 years (check local terms)
Certifications	CE, RoHS

Frequently Asked Questions - AquaShield AWH1066 PHILIPS

How do I set the desired water temperature?

Press the + or - button on the control panel to adjust the temperature between 45°C and 80°C. The display shows the current setting.

What should I do if the water heater is not heating?

First, check the power supply and ensure the circuit breaker is on. If the problem persists, the heating element or thermostat may be faulty. Contact a qualified technician for inspection.

How often should I descale the water heater?

Descaling is recommended every 6-12 months, depending on water hardness. Use a descaling agent suitable for electric water heaters and follow the instructions in the manual.

Is the water heater safe to use in a bathroom?

Yes, the AquaShield AWH1066 has IPX4 water resistance and built-in safety features like overheat protection and a pressure relief valve. However, ensure proper installation by a professional.

Can I install the water heater horizontally?

Yes, the unit can be installed both horizontally and vertically. Make sure the pressure relief valve is at the highest point for proper operation.

What does the error code on the display mean?

Error codes indicate specific faults. For example, E1 may mean a sensor failure. Refer to the user manual for a full list of error codes and troubleshooting steps.

How do I drain the water heater for maintenance?

Turn off the power and water supply. Connect a hose to the drain valve, open the valve, and let the water flow out. Be careful, as the water may be hot.

What type of anode rod does the water heater use?

It uses a magnesium anode rod to prevent corrosion. Inspect it annually and replace if more than 50% consumed.

Can I use an extension cord for the water heater?

No, always plug the water heater directly into a properly grounded outlet. Extension cords can overheat and cause a fire hazard.

Where can I find spare parts for my water heater?

Spare parts such as heating elements, thermostats, and anode rods are available through Philips authorized service centers or online retailers. Use only genuine parts.

USER MANUAL AquaShield AWH1066 PHILIPS

©2023 AquaShield All rights reserved.

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke

Philips N.V. and are used under license. This product has been manufactured by and is sold under the

responsibility of Guangdong AquaShield Health Technology Company Limited and Guangdo

AquaShield Health Technology Company Limited is the warrantor in relation to this product.

水汽箱是《利润》Rev A Sep 23

PHILIPS

热水器

电热水器

AWH1066/93(55LA)

说明书

目录

图A注：本图为示意图，以实物为准。

操作面板如下：

图 B

4

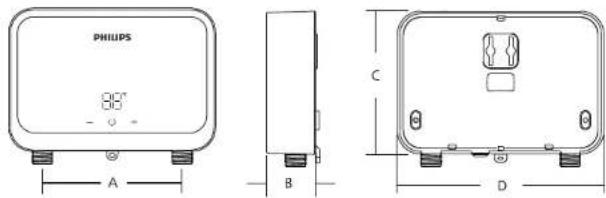

7 产品尺寸

机身尺寸(mm)
A	B	C	D
156	55	160	230

图C

8 安装及使用

8.1 安装前注意事项
