Gamdias Chione P5-240 - CPU liquid cooler

Chione P5-240 - CPU liquid cooler Gamdias - Free user manual and instructions

Find the device manual for free Chione P5-240 Gamdias in PDF.

📄 44 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Gamdias Chione P5-240 - page 1
1 / 44
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type All-in-One Liquid CPU Cooler
Radiator Size 240mm
Radiator Dimensions 274 x 120 x 27 mm
Fan Dimensions 120 x 120 x 25 mm
Fan Speed 800 - 1800 RPM ± 10%
Fan Airflow 65 CFM (max)
Fan Noise Level 18 - 35 dBA
Pump Speed 2600 RPM ± 10%
Pump Noise Level < 20 dBA
Socket Compatibility Intel LGA 115x/1200/1700/1851; AMD AM4/AM5
Material Aluminum radiator, copper cold plate
Tubing Length 380 mm
LED Lighting Addressable RGB (compatible with motherboard sync)
Power Consumption (Pump + Fans) 12V DC, ~0.3A each
Net Weight Approx. 1.2 kg
Maintenance Sealed loop; no refilling required. Clean radiator and fans periodically with compressed air.
Safety Use only with compatible sockets. Ensure proper mounting to avoid leakage.
Spare Parts Replacement fans and mounting kits available from Gamdias support.
Warranty 3 years limited warranty

Frequently Asked Questions - Chione P5-240 Gamdias

What does 'Chione P5-240' stand for?
Chione is Gamdias' line of liquid coolers. P5-240 indicates a 240mm radiator model.
Is the Chione P5-240 compatible with Intel LGA 1700?
Yes, the cooler includes mounting brackets for Intel LGA 115x/1200/1700/1851 and AMD AM4/AM5.
How do I control the RGB lighting?
The cooler uses addressable RGB (ARGB). Connect the 3-pin ARGB cable to a compatible motherboard header or controller to sync lighting via software.
Can I replace the fans?
Yes, the fans are standard 120mm and can be replaced with any 120mm fan. Gamdias also offers replacement fans.
How often should I clean the radiator?
Clean every 6 months using compressed air to remove dust. Avoid water or solvents.
Does the pump require maintenance?
The pump is sealed and maintenance-free. Do not open the loop.
What thermal paste is pre-applied?
The cooler comes with pre-applied thermal paste of good quality. You can replace it if desired.
What is the warranty period?
Gamdias provides a 3-year limited warranty against defects in materials and workmanship.
Can I mount the radiator vertically?
Yes, the radiator can be mounted vertically or horizontally as long as the pump is not the highest point in the loop.
The pump is making noise. Is it normal?
Some noise is normal during startup. If loud humming persists, check for air bubbles by tilting the case gently. Ensure the pump is securely mounted.

User questions about Chione P5-240 Gamdias

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your CPU liquid cooler in PDF format for free! Find your manual Chione P5-240 - Gamdias and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Chione P5-240 by Gamdias.

USER MANUAL Chione P5-240 Gamdias

All-In-One Gaming CPU Liquid Cooler

240/360/420

Package contents 01

03Fan/

05Intel

LGA 1200/ 115X 12Intel

LGA 17XX 20Intel

AMD AM5/AM4/AM3 28

36Conn

▼ Package contents

A
Technical line drawing of a dual-flower cooling unit with cooling fan and cooling unit (no text or symbols)

x1

B
Isometric line drawing of a mechanical fan or compressor unit with blades and mounting holes (no text or symbols)

240mm x2
360mm x3

C
Gamdias Chione P5-240 - ▼ Package contents - 3
240mm x8
360mm x12

DE
Line drawing of a screw with a circular head and internal threading (no text or symbols)

240mm x8
360mm x12

●
Technical illustration of a mechanical gear or bushing component (no text or symbols)

x4 x1

●
Technical line drawing of a cylindrical mechanical component with flanged base and top (no text or symbols)

▼ Package contents

Gamdias Chione P5-240 - ▼ Package contents - 1
LGA 1700/ 1200 / 115X

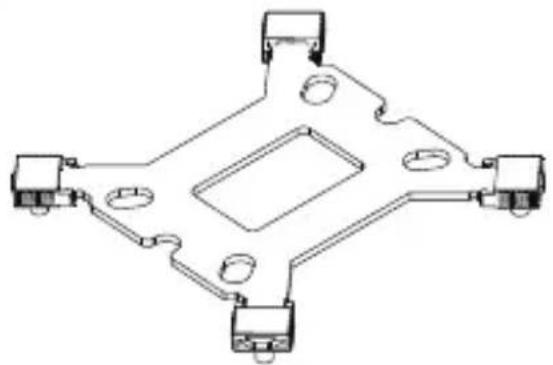

Technical line drawing of a mechanical component with four mounting holes and a central square cutout (no text or symbols)

x1

Gamdias Chione P5-240 - ▼ Package contents - 3
LGA 1700/1200/115X/2011

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

x1

Gamdias Chione P5-240 - ▼ Package contents - 5
LGA 2011

Gamdias Chione P5-240 - ▼ Package contents - 6

x4 x4 | x4

Gamdias Chione P5-240 - ▼ Package contents - 7
LGA 1200 / 115X

Gamdias Chione P5-240 - ▼ Package contents - 8

Gamdias Chione P5-240 - ▼ Package contents - 9
LGA 1700 *12th Gen or above

Gamdias Chione P5-240 - ▼ Package contents - 10

Gamdias Chione P5-240 - ▼ Package contents - 11
AM5/ AM4/ AM3

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

x1 x4

Gamdias Chione P5-240 - ▼ Package contents - 13
AM5/ AM4/ AM3

Gamdias Chione P5-240 - ▼ Package contents - 14

▼ Fan/ Radiator Type1

Technical diagram showing a screwdriver installation with labeled components and directional arrows indicating motion or assembly.

▼Fan/ Radiator Type2

Technical diagram of a multi-chamber electric fan assembly with labeled components A, B, and C, showing screwdriver installation and rotation arrows.

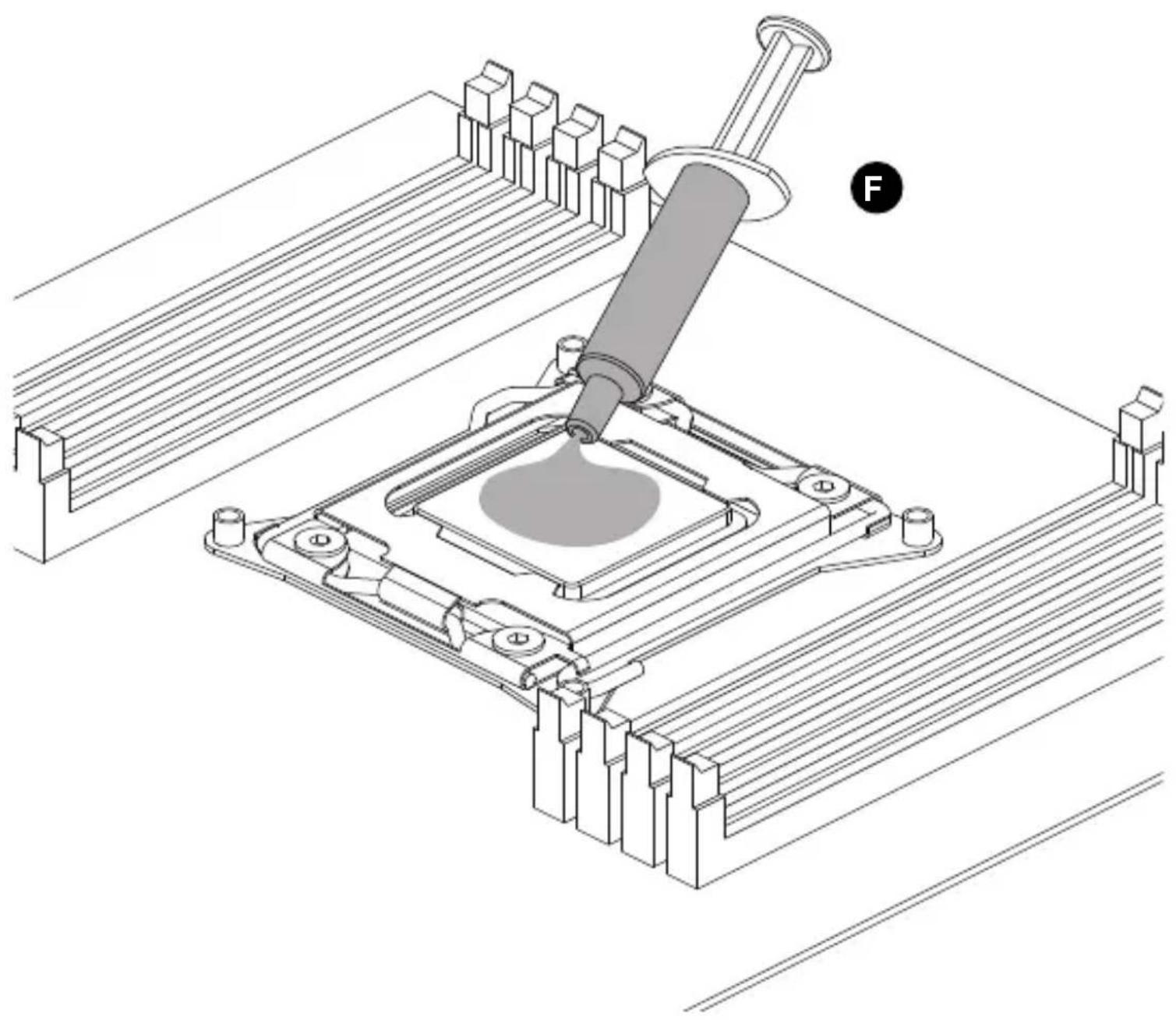

Technical line drawing of a mechanical assembly with a central tool and base components (no text or symbols)

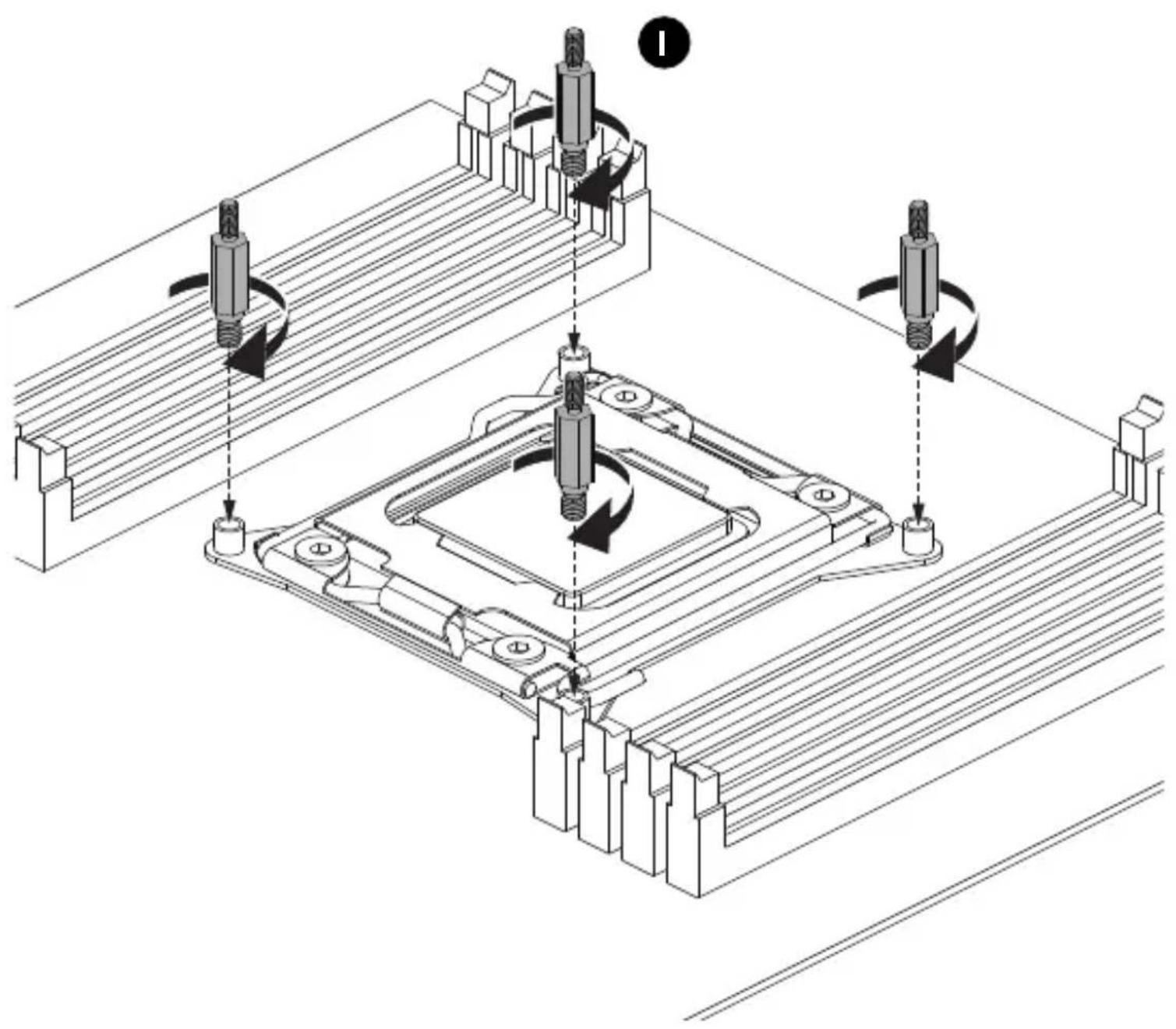


Technical line drawing of a mechanical assembly with an arrow indicating rotation or assembly (no text or symbols present)

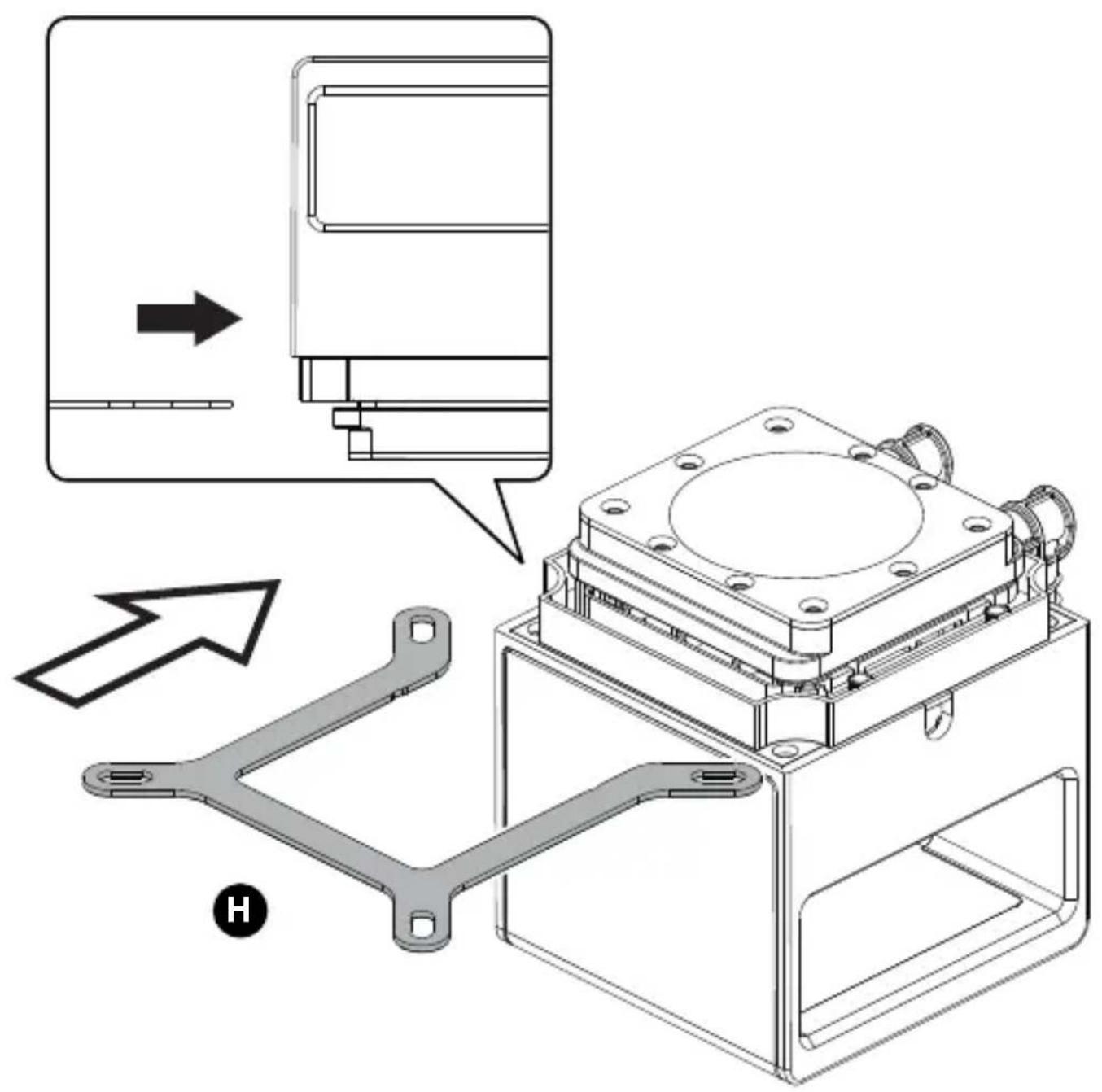

Technical diagram showing assembly of a mechanical component with labeled parts and directional arrow, including a magnified inset view.

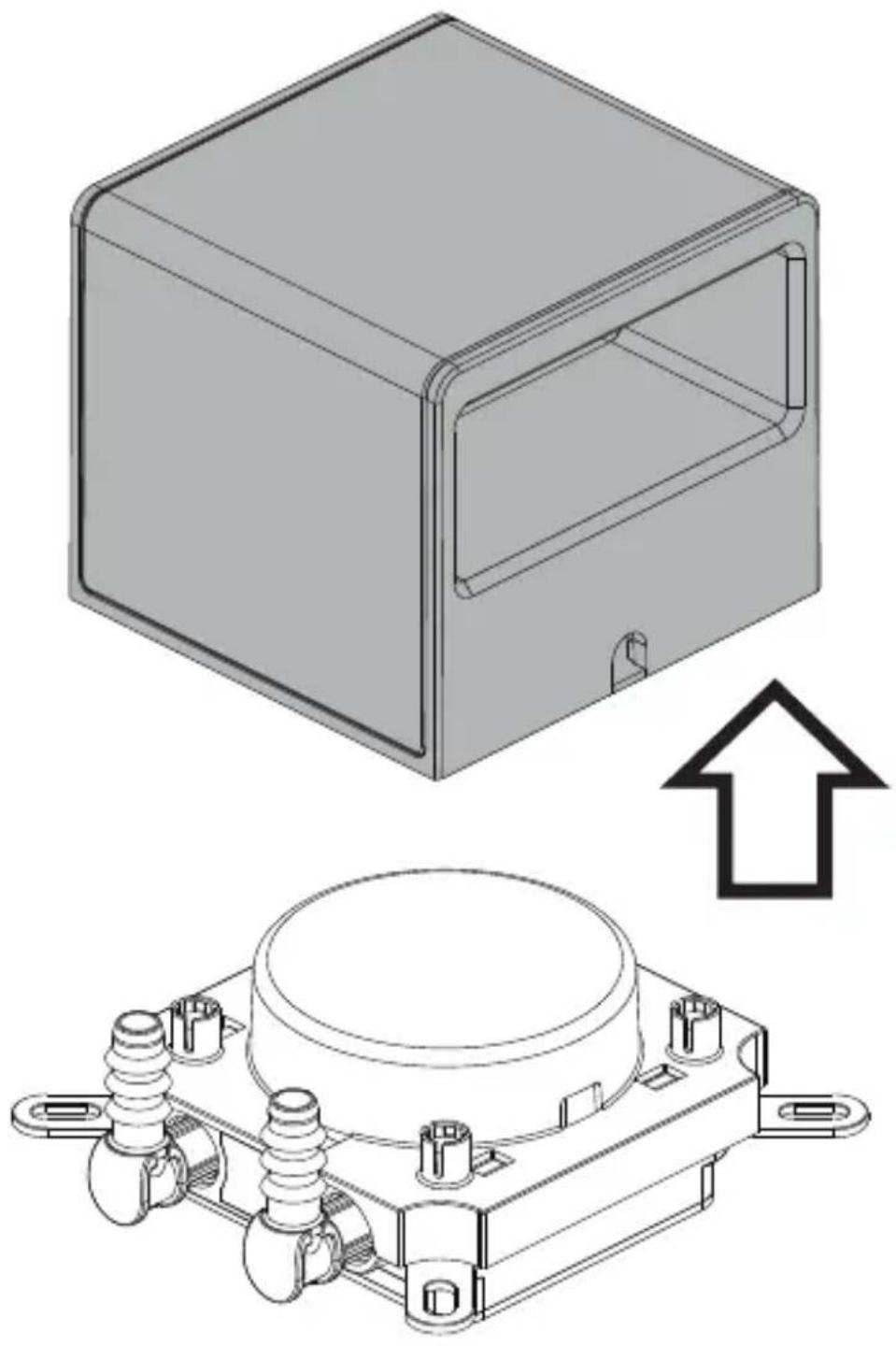

Technical illustration of a mechanical enclosure and its electrical component, showing internal structure and mounting base (no text or symbols)

ATTENTION 1 4 3 2 E

Technical illustration of an electrical enclosure mounted on a circuit board with insulators and wiring (no text or symbols)

Technical illustration of a mechanical assembly with a syringe and base components, no visible text or symbols

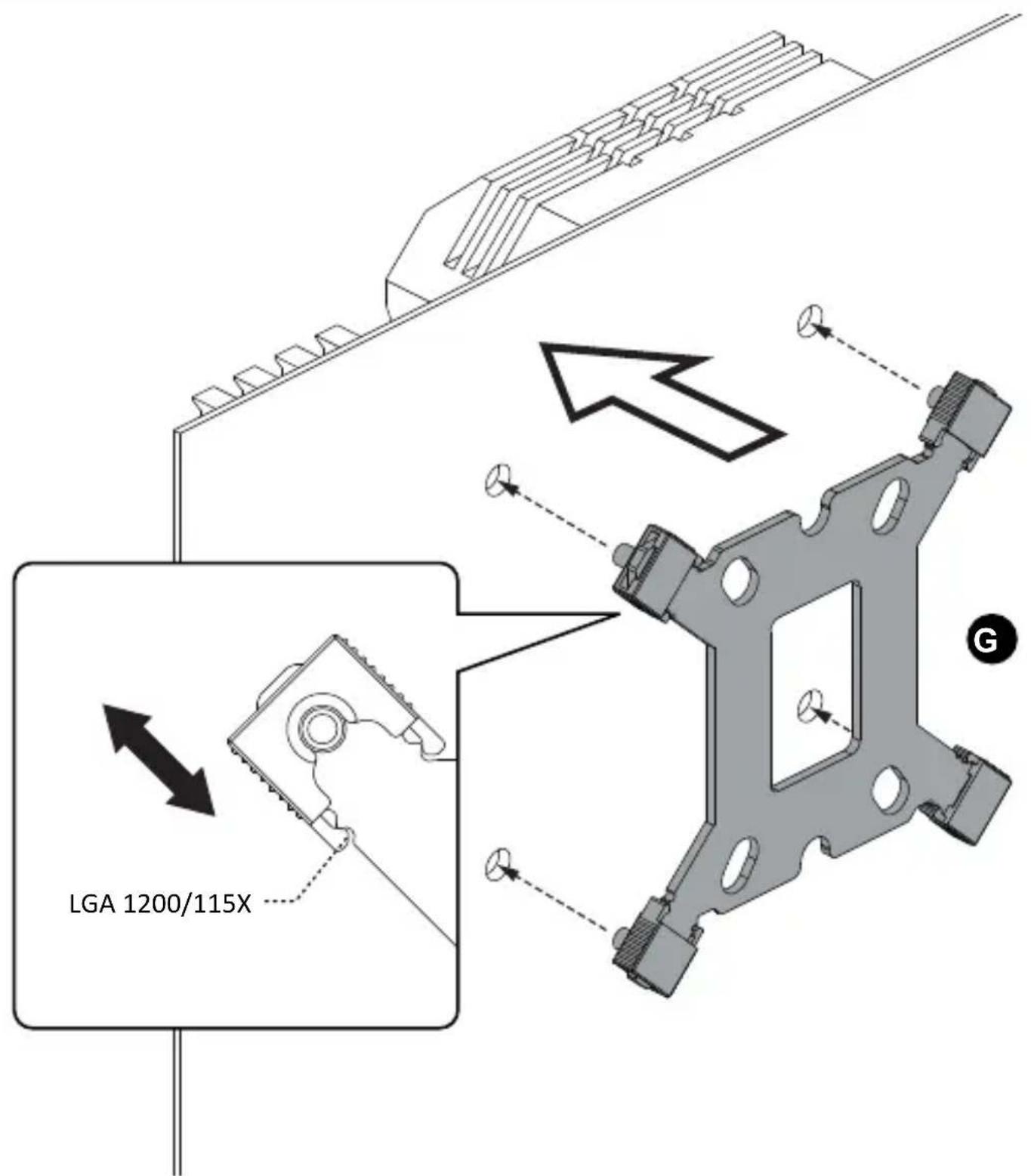

LGA 1200/115X G

Technical diagram showing mechanical assembly steps with labeled components and directional arrows indicating rotation or movement.

Technical line drawing of a mechanical device with an arrow indicating rotation or assembly (no text or symbols present)

Technical diagram showing assembly of a mechanical component with labeled parts and directional arrows indicating process flow.

Technical illustration of a mechanical component with an inset view showing its mounting base and mounting holes (no text or symbols present)

▼ Intel LGA1200/ 115X

ATTENTION 1 4 3 2 E

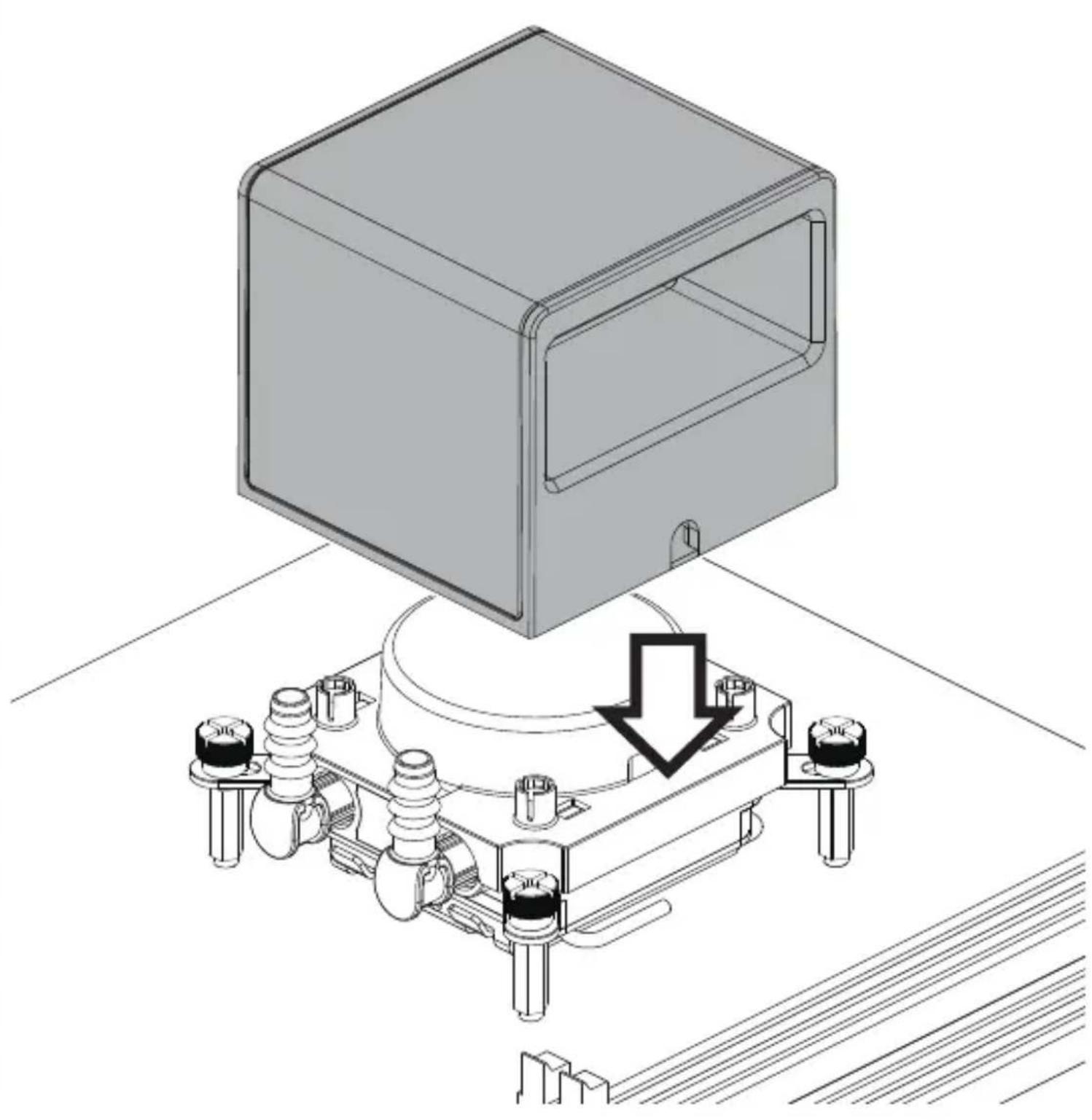

Technical illustration of an electrical enclosure mounted on a base with insulators and a downward arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical assembly with a syringe inserted into a housing (no text or symbols)

▼ Intel LGA1700 (12th Gen Intel and above)

LGA 1700 G

▼ Intel LGA1700 (12th Gen Intel and above)

▼ Intel LGA1700 (12th Gen Intel and above)

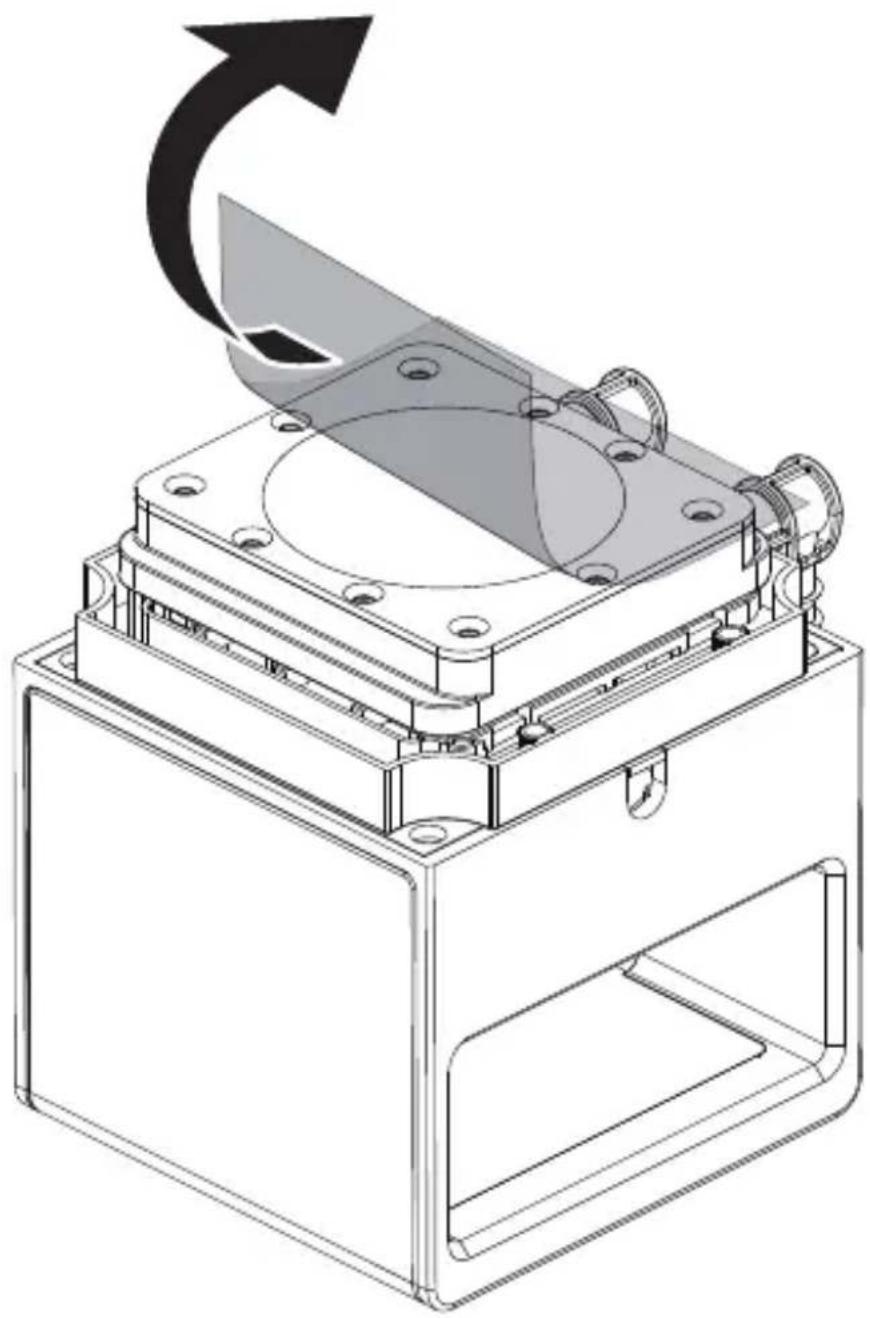

Technical line drawing of a mechanical assembly with an arrow indicating upward motion (no text or symbols present)

▼ Intel LGA1700 (12th Gen Intel and above)

Technical diagram showing assembly of a mechanical component with labeled parts and an inset view of a component being processed.

▼ Intel LGA1700 (12th Gen Intel and above)

Technical illustration of a mechanical enclosure and its internal components, showing mounting holes and wiring (no text or symbols)

▼ Intel LGA1700 (12th Gen Intel and above)

▼ Intel LGA1700 (12th Gen Intel and above)

Technical illustration of an electrical enclosure mounted on a base with insulators and wiring (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Technical illustration of a mechanical assembly with a pipette dispensing liquid into a base, surrounded by cylindrical components and a rack (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Technical line drawing of a mechanical assembly with an arrow indicating rotation or assembly (no text or symbols present)

Technical line drawing of a mechanical assembly with a component box and bracket, showing a close-up view of the part (no text or symbols present)

Gamdias Chione P5-240 - ▼ Intel LGA1700 (12th Gen Intel and above) - 7

▼ AMD AM5/AM4/AM3

ATTENTION 1 4 3 2 E

Technical illustration of a mechanical assembly with a housing and insulator base (no text or symbols)

▼ Connection

Case LED button Attached switch PSU

▼ Connection

Motherboard

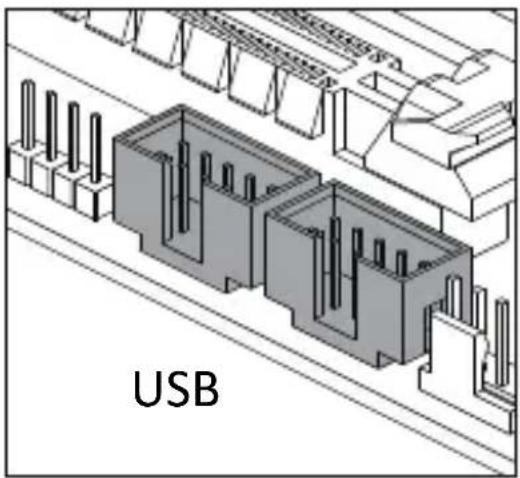

Isometric technical diagram of an electronic component with labeled 'USB' (no other text or symbols)

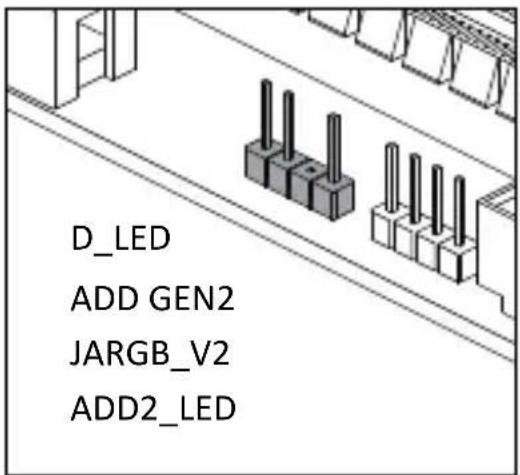

D_LED ADD GEN2 JARGB_V2 ADD2_LED

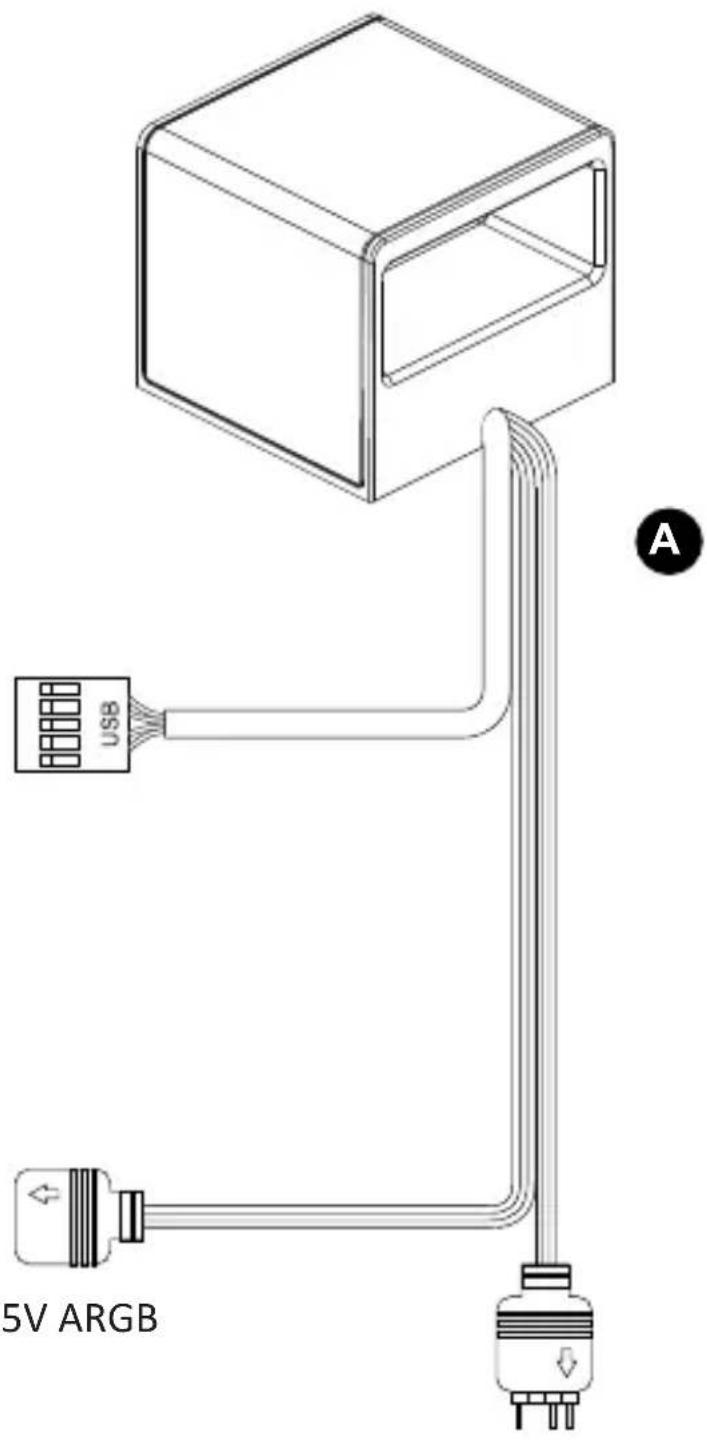

USB 5V ARGB

▼ Connection

Motherboard CPU-FAN CPU-AIO PWM 5V ARGB A

HTTPS://WWW.GAMDIAS.COM/
