Product Type	All-in-One Liquid CPU Cooler
Radiator Size	420 mm
Radiator Dimensions	457 x 140 x 27 mm
Fan Quantity	3
Fan Size	140 mm
Fan Speed (Max)	1500 RPM
Fan Airflow	70 CFM
Fan Noise Level	26 dBA
Pump Speed (Max)	2800 RPM
Pump Noise Level	< 15 dBA
Material (Radiator)	Aluminum
Material (Cold Plate)	Copper
LED Lighting	Addressable RGB
Socket Compatibility	Intel LGA 1700/1200/115x, AMD AM5/AM4
Power Consumption (Pump)	6 W
Weight (Net)	2.8 kg
Warranty	2 Years
Installation	Tool-free mounting bracket
Maintenance	Sealed loop, no refill needed
Safety Certifications	CE, RoHS

Frequently Asked Questions - Chione E4-420 Gamdias

What sockets does the Gamdias Chione E4-420 support?

It supports Intel LGA 1700/1200/115x and AMD AM5/AM4 sockets. Check the manual for specific models.

How do I install the cooler?

First, install the backplate and mounting brackets for your socket. Apply thermal paste, then mount the pump head. Secure the radiator in your case and attach the fans. Connect all cables to the motherboard.

What is the radiator size?

The radiator is 420 mm long, 140 mm wide, and 27 mm thick. Ensure your case supports a 420 mm radiator.

Can the RGB lighting be controlled?

Yes, it features addressable RGB (ARGB) that can be controlled via motherboard software or a compatible controller.

Is the pump noise loud?

The pump operates at less than 15 dBA, making it virtually silent under normal operation.

How many fans come with the cooler?

It includes three 140 mm PWM fans designed for optimal airflow and low noise.

What is the warranty period?

The Gamdias Chione E4-420 comes with a 2-year manufacturer warranty.

Does the cooler require maintenance?

No, it is a sealed all-in-one liquid cooler. Refilling or maintenance is not required under normal use.

What is the thermal performance like?

With a 420 mm radiator and three high-static fans, it can handle high TDP processors (up to 350W) efficiently.

Where can I find the full manual?

The user manual is available for download on the Gamdias official website or through notice-facile.com in PDF format.

USER MANUAL Chione E4-420 Gamdias

CHIONE | E4 240/360/420 All-In-One Gaming CPU Liquid cooler

Package contents 01

03Fan/

07Intel

LGA 1200/ 115X 12Intel

LGA 17XX 18Intel

AMD AM5/AM4/AM3 24

30Conn

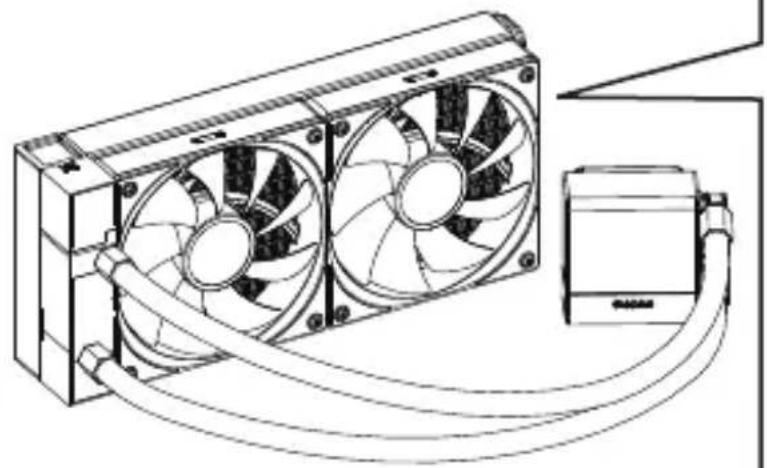

▼ Package contents

A

Technical line drawing of a computer tower connected to a power adapter via coiled cable (no text or symbols)

x1

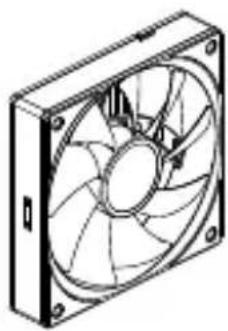

B

Isometric line drawing of a computer fan with visible blades and mounting holes (no text or symbols)

240mm x2

360mm x3

420mm x3

C

240mm x8

360mm x12

420mm x12

DE

Line drawing of a screw with a star-shaped hole on top (no text or symbols)

240mm x8

360mm x12

420mm x12

●

Technical illustration of a mechanical gear or cam component with symmetrical teeth and central hub (no text or symbols)

x4 x1
●

Technical line drawing of a cylindrical mechanical component with flanged base and top (no text or symbols)

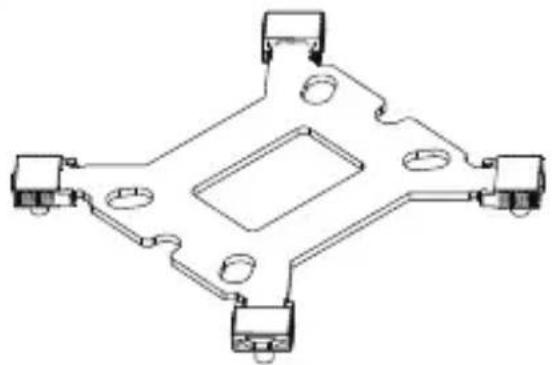

▼ Package contents

LGA 17XX/ 1200 / 115X

Technical line drawing of a mechanical component with four mounting holes and a central square cutout (no text or symbols)

x1

LGA 17XX/ 1200 / 115X/ 20XX

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

x1

LGA 20XX

x4 x4 | x4

LGA 1200 / 115X

LGA 17XX *12th Gen or above

AM5/ AM4/ AM3

Technical line drawing of a mechanical bracket or bracket (no text or symbols)

x1 x4

AM5/ AM4/ AM3

▼ Fan/ Radiator Type1

▼Fan/ Radiator Type2

Technical illustration of a computer fan assembly with a screwdriver and fan blade (no text or symbols)

▼Fan/ Radiator Type2

Technical line drawing of a computer power supply unit with cooling fan and heat exchanger (no text or symbols)

▼Fan/ Radiator Type2

Technical line drawing of a mechanical assembly with a central tool and base components (no text or symbols)

Technical illustration of a mechanical assembly with a curved arrow indicating rotation or force direction (no text or symbols present)

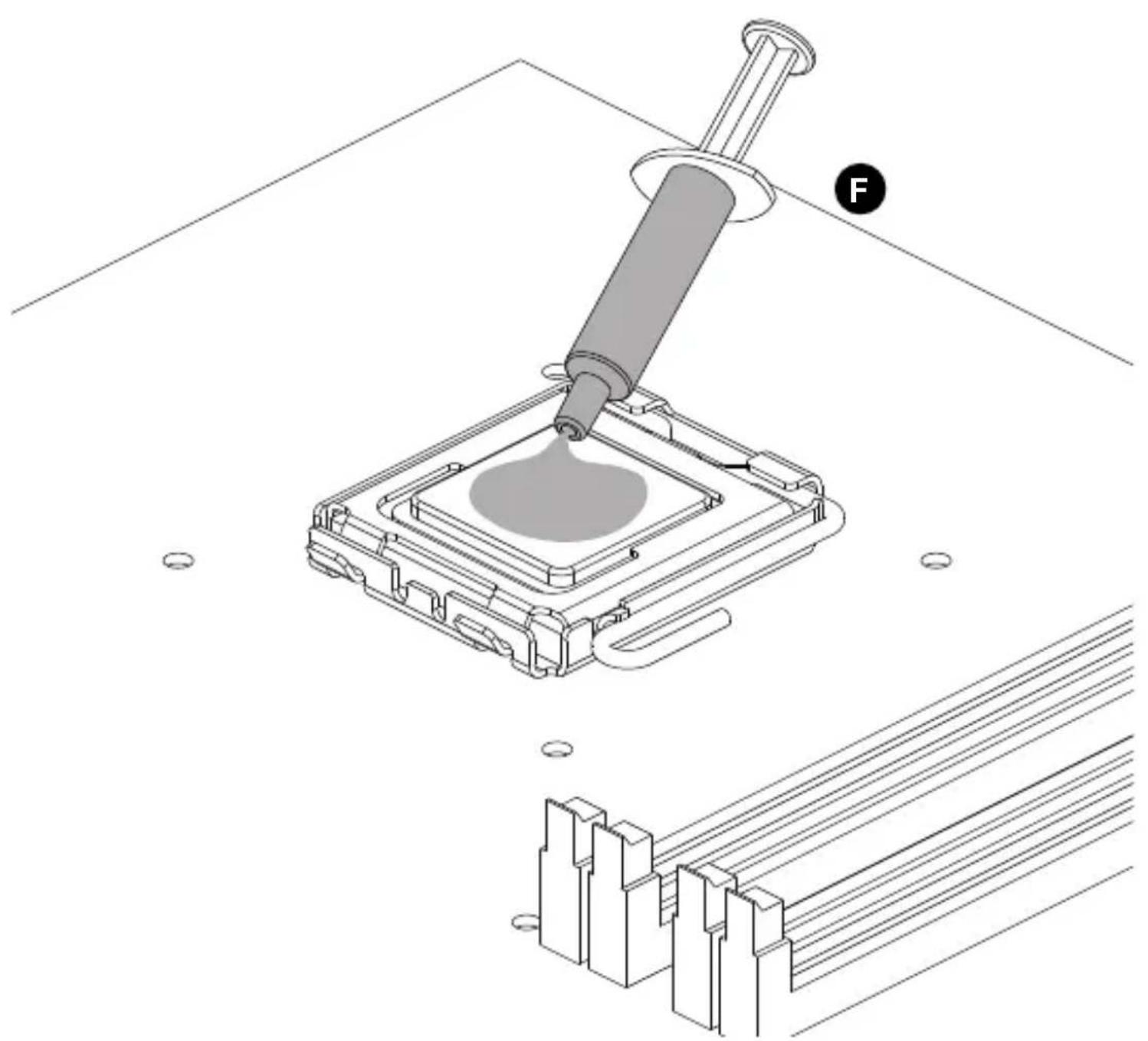

Technical illustration of a mechanical assembly with a syringe and base components, no visible text or symbols

Technical illustration of a mechanical assembly with a curved arrow indicating rotation or force direction (no text or symbols present)

▼ Intel LGA1200/ 115X

Technical line drawing of a mechanical assembly with a syringe inserted into a housing (no text or symbols)

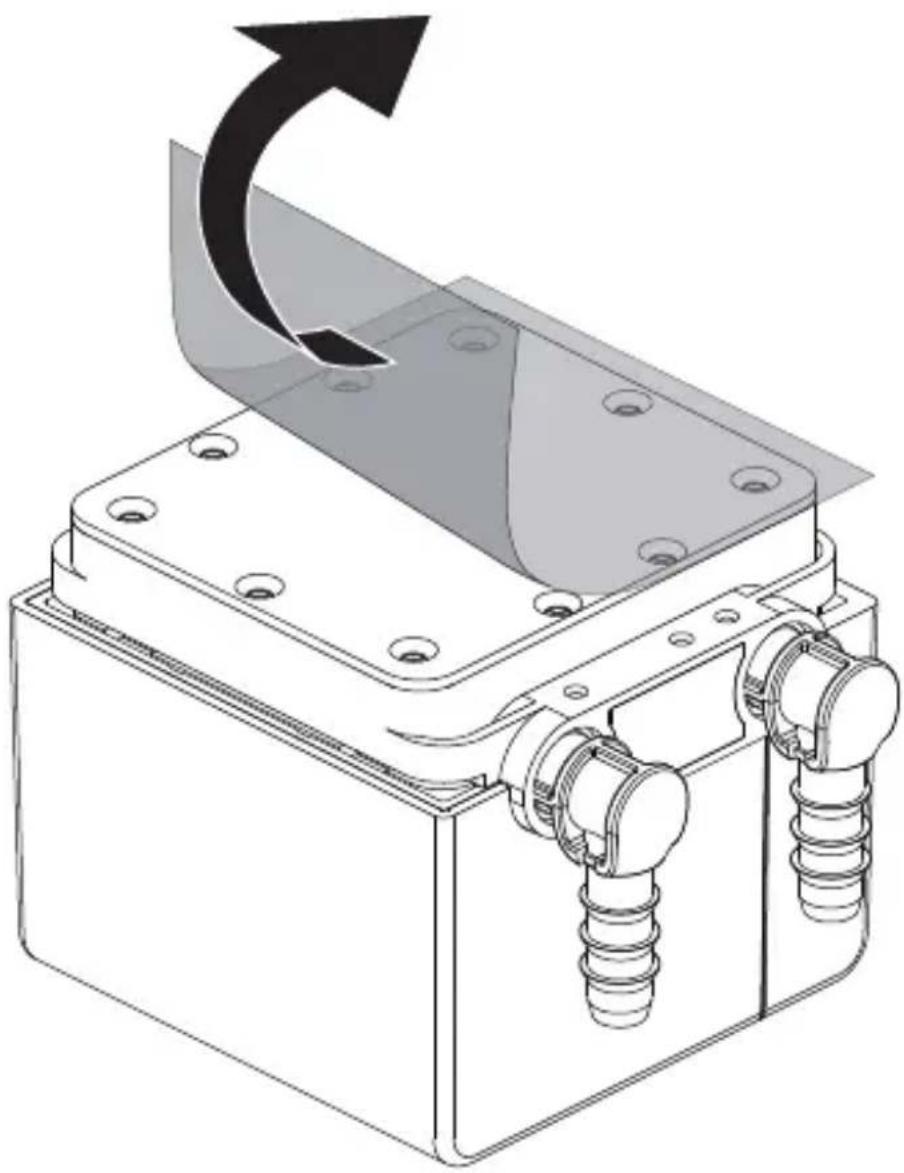

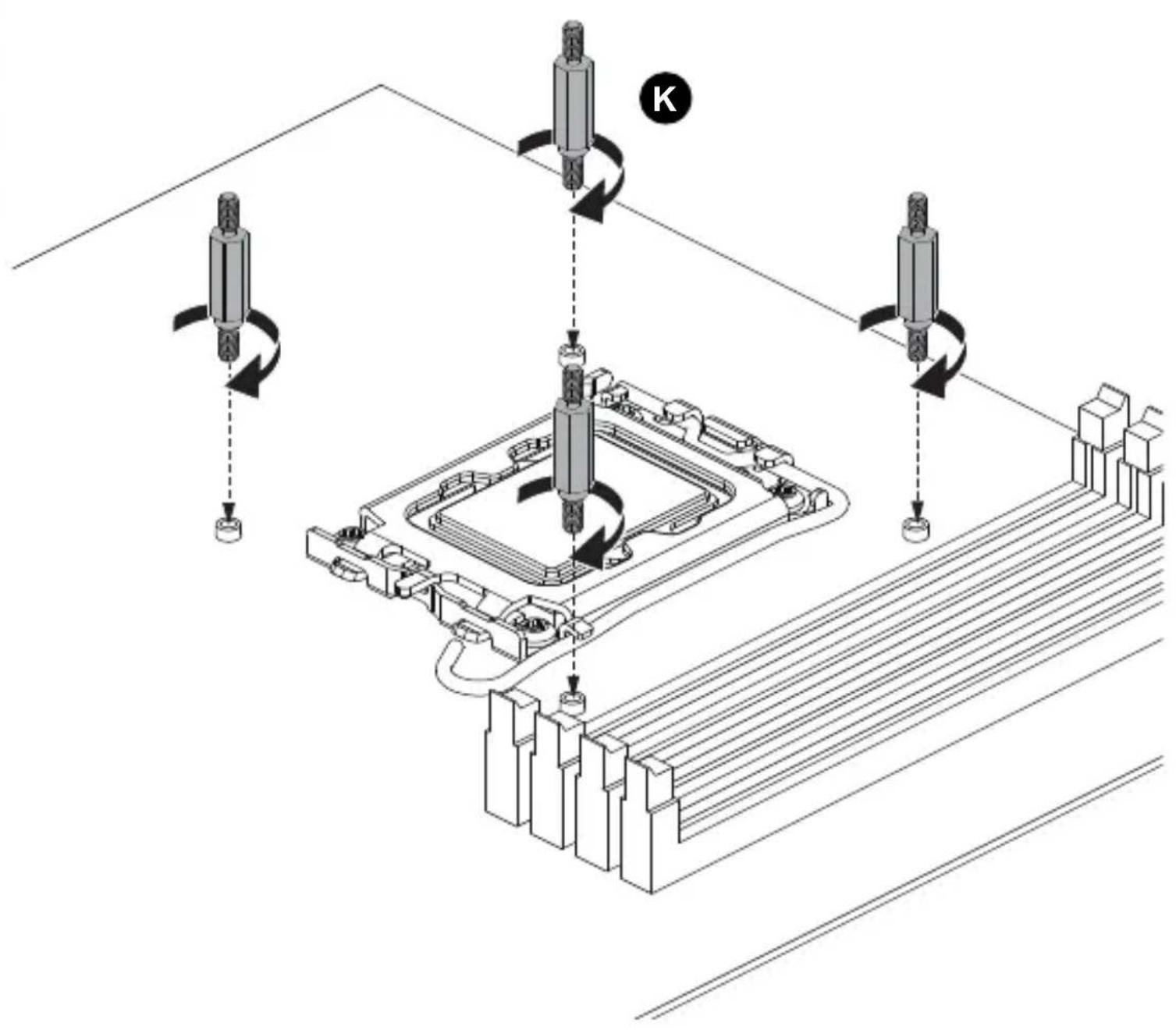

▼ Intel LGA17XX (12th Gen Intel and above)

▼ Intel LGA17XX (12th Gen Intel and above)

▼ Intel LGA17XX (12th Gen Intel and above)

Technical illustration of a mechanical assembly with a curved arrow indicating rotation or force direction (no text or symbols present)

▼ Intel LGA17XX (12th Gen Intel and above)

▼ Intel LGA17XX (12th Gen Intel and above)

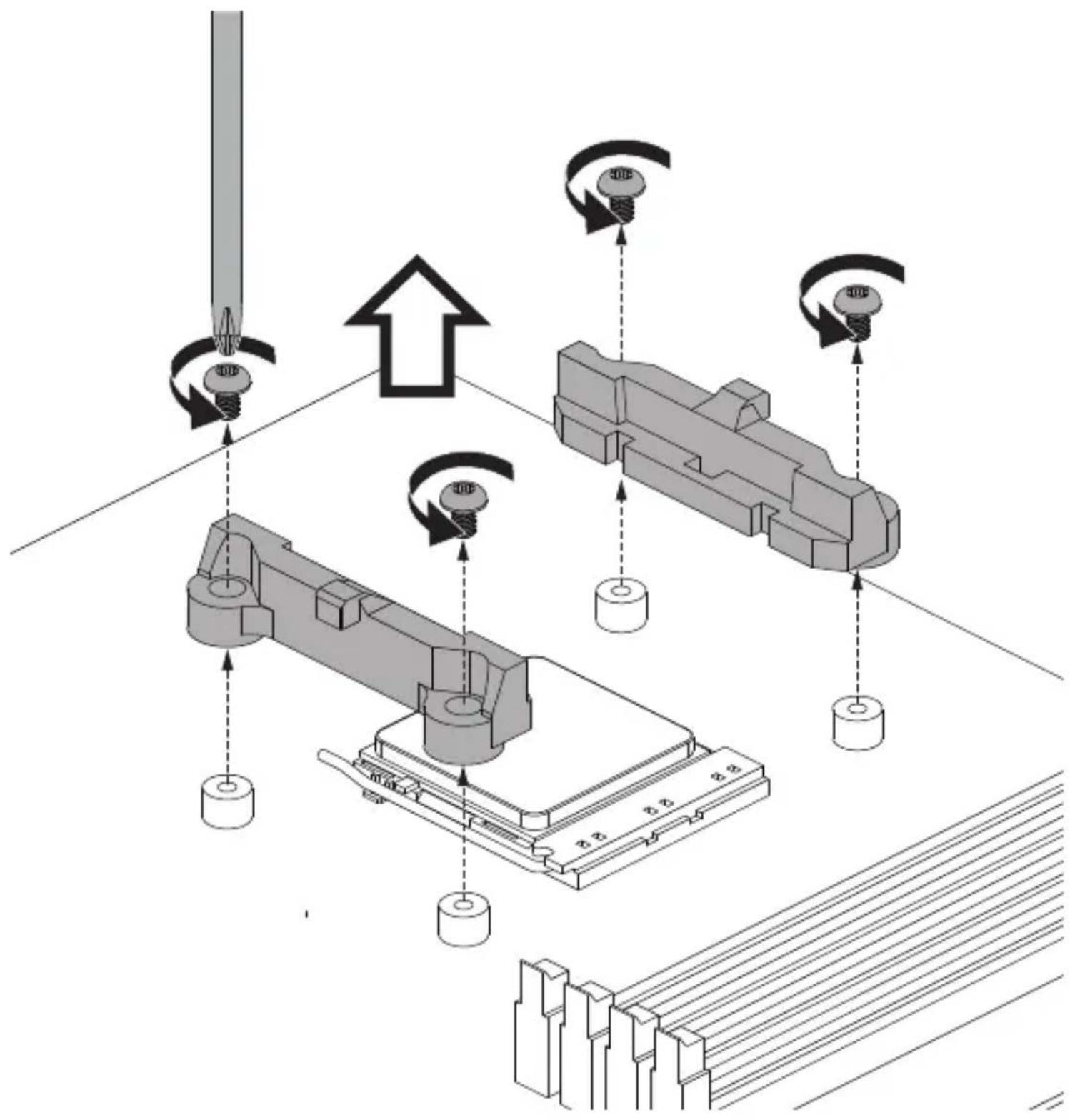

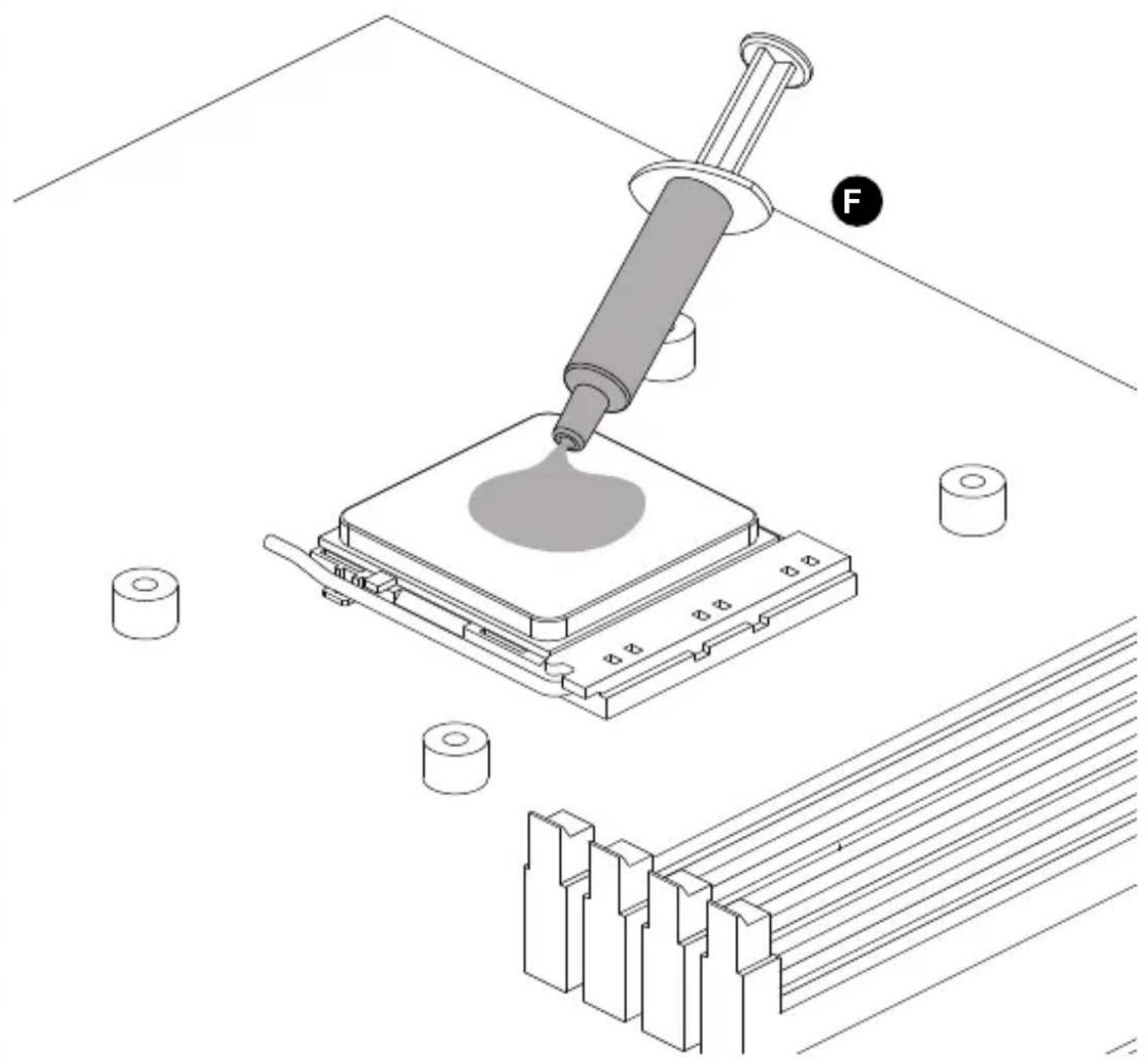

▼ AMD AM5/AM4/AM3

Technical illustration of a mechanical assembly with a pipette dispensing liquid into a base, surrounded by cylindrical components (no text or symbols)

Technical illustration of a mechanical assembly with a curved arrow indicating rotation or force direction (no text or symbols present)

▼ AMD AM5/AM4/AM3

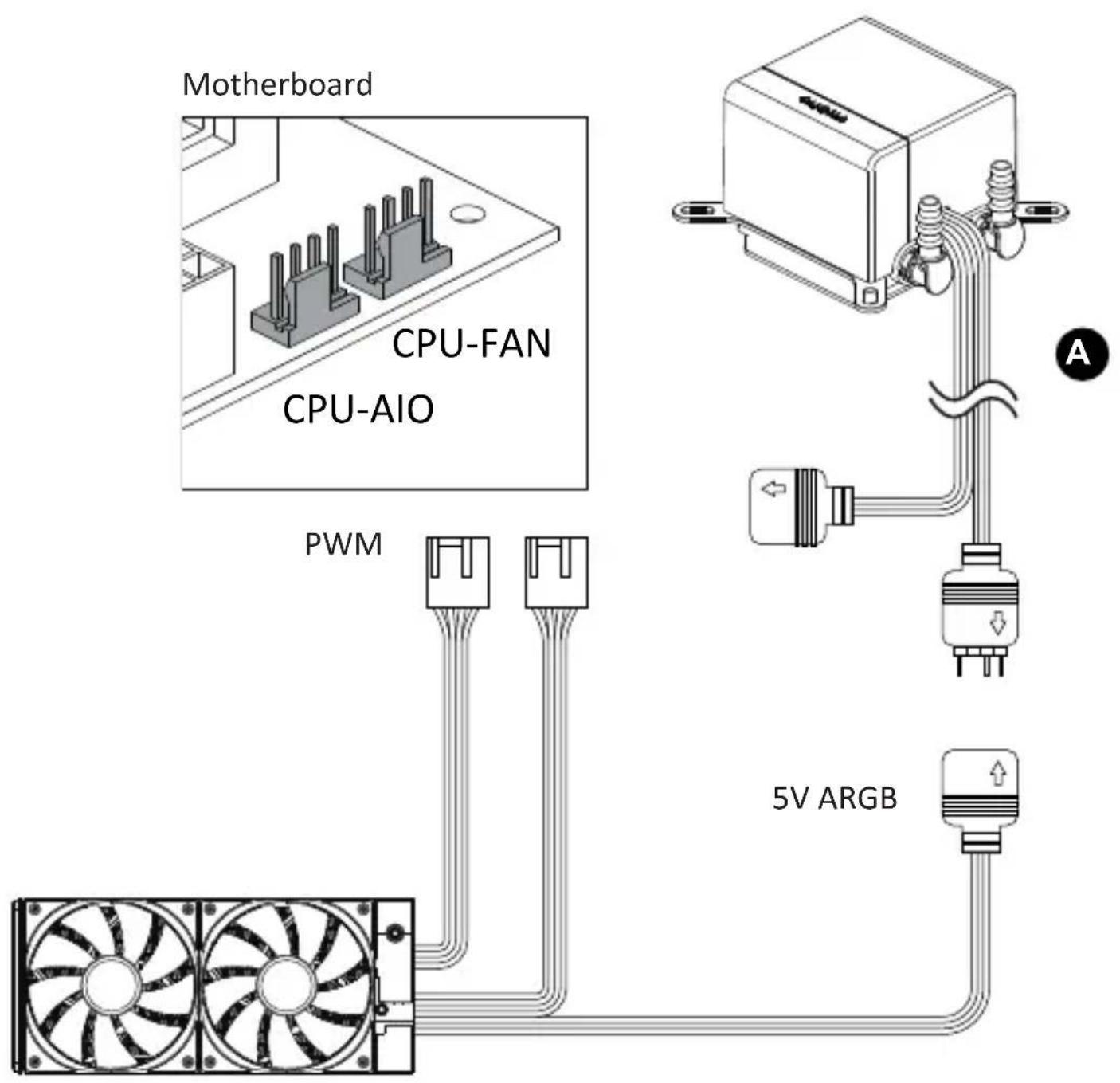

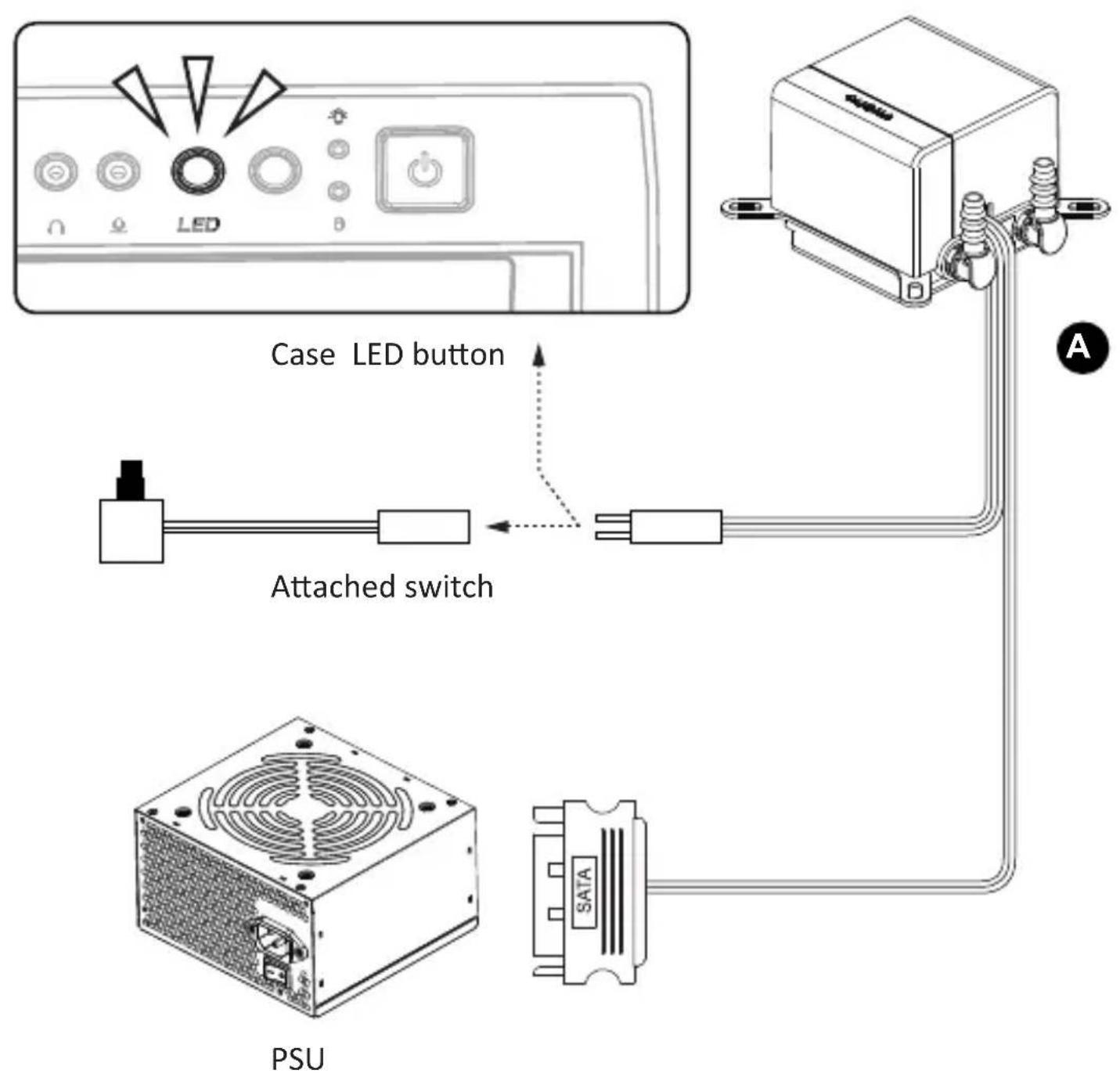

▼ Connection

▼ Connection

Motherboard

Isometric technical diagram of an electronic component with labeled 'USB' (no other text or symbols)

▼ Connection
