Product Type	Video Conferencing System (K-Bar Communication Bar)
Model	K-Bar Camera Bracket
Camera Resolution	12 MP
Field of View	120° (Diagonal)
Microphone Array	6 built-in microphones
Microphone Pickup Distance	Up to 8 meters
Speaker Output	1x8W
Connections	1 USB-C 2.0 port, 1 Audio Out (3.5mm mini jack)
Power Supply	12V DC, 2A (adapter included)
Power Consumption	Max 12W (1A), Standby ≤0.5W
Net Dimensions (W x D x H)	46 cm x 9.7 cm x 7.3 cm (18.1" x 3.8" x 2.9")
Net Weight	1.05 kg (2.3 lbs)
Mounting Options	Surface, wall, or on top of display (wall bracket included)
Camera Adjustment	Manual tilt ±15° (Up/Down)
Focus Mode	Fixed focus (2m)
Video Output Formats	H.264, MJPG, YUY2
Resolution and Frame Rate	Up to 4K@30fps (3840x2160)
Controls	IR remote control, mute button on unit
Auto-framing	Yes (toggle via remote)
Enclosure Material	Aluminum and plastic
Operating Temperature	0° to +40°C (32° to 104°F)
Safety Compliance	CE, FCC, RoHS, WEEE
Included Accessories	USB-C cable, remote control, power cord and adapter, lens cover, wall bracket kit, screws
Maintenance	No user-serviceable parts. Contact tech support for service.

Frequently Asked Questions - K-Bar Camera Bracket Kramer

How do I connect the K-Bar to my computer?

Use the included USB-C cable to connect the DEVICE USB-C 2.0 port on the K-Bar to a USB port on your computer. Your computer should automatically recognize it as a webcam, speaker, and microphone.

Can I mount the K-Bar on the wall?

Yes, the K-Bar comes with a wall bracket kit. Drill three holes (6mm drill bit) at the desired location, attach the wall bracket with the supplied screws, then slide the device bracket mounted to the K-Bar onto the wall bracket.

How do I adjust the camera angle?

The camera can be manually tilted ±15° up/down. For directional control during video, use the directional keys on the remote after zooming.

What is the maximum resolution and frame rate?

The K-Bar supports up to 3840x2160 at 30fps in H.264 or MJPG formats. Lower resolutions are also available.

How does the auto-framing feature work?

Press the Auto framing button on the remote (button 11) to enable or disable auto-framing. When enabled, the camera automatically adjusts to keep participants in frame.

Can I save custom camera presets?

Yes, you can save up to 10 preset positions. Adjust the image using zoom and directional keys, then press and hold a number key (1-10) on the remote for 3 seconds to save. Briefly press the number key to recall.

Is the K-Bar compatible with all video conferencing software?

The K-Bar acts as a standard USB video and audio device, so it is compatible with most conferencing apps like Zoom, Microsoft Teams, Google Meet, etc.

What does the mute button do?

The On/Off push button on the unit toggles the microphone on/off. The remote also has a Mute button (button 10) for the same function. When muted, the microphone is disabled.

How do I clean the K-Bar?

Disconnect the power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or sharp objects. For internal cleaning, contact tech support.

What power supply does the K-Bar require?

The K-Bar uses a 12V DC, 2A power adapter (included). Connect the power cord to the unit and plug into a mains outlet. The power consumption is max 1A (12W).

USER MANUAL K-Bar Camera Bracket Kramer

P/N:

2900-301774QS

Rev:

3

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to these installation instructions may be found.

We welcome your questions, comments, and feedback.

K-Bar Communication Bar

Congratulations on purchasing your Kramer K-Bar Communication Bar. K-Bar provides a 3 in 1 compact design, including a camera, a speaker, and a microphone. Control K-Bar via the IR remote controller.

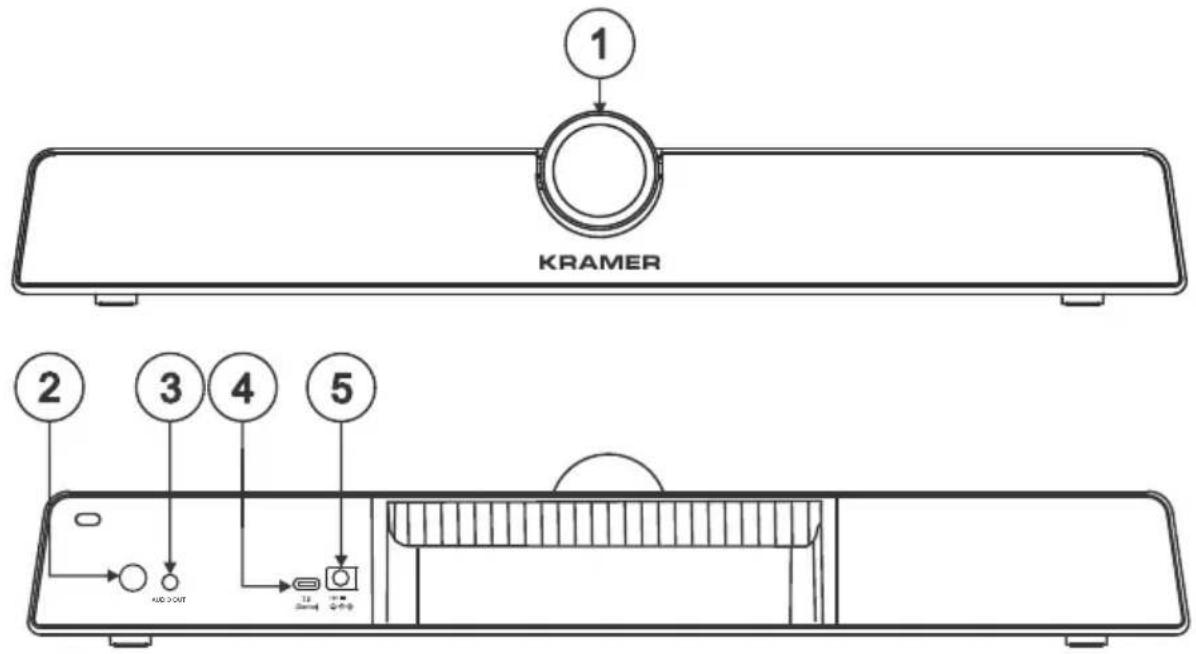

Get to know your K-Bar

#	Feature	Function
1	Camera	High quality Camera.
2	On/OFF Push Button	Press to toggle microphone on/off.
3	AUDIO OUT 3.5mm Mini Jack	Connect to an audio acceptor.
4	DEVICE USB-C 2.0 Port	Connect to a computer.
5	12V	Connect to the power adapter.

Mounting K-Bar

You can place your K-Bar on a surface, mount it on the wall or on top of the display (using the special TV mount, purchased separately).

• Ensure that the environment (e.g., dust, maximum ambient temperature, humidity & air flow) is compatible for the device.
• Avoid exposing the product to direct sunlight or any other heat source.
• Keep away from children – product includes small accessories and components.
• Avoid uneven mechanical loading.
  • Do not insert any sharp objects into the product.
• Avoid dropping or hitting the product to avoid damaging the product.
  • For maintenance, call tech support.

To attach K-Bar onto a wall:

1. Find the correct location on the wall.
2. In the desired location, Drill 3 holes (using a 6mm drill-bit).
3. Attach the wall bracket to the wall using the 3 supplied screws.

Technical line drawing of a mechanical bracket with screw holes and mounting holes (no text or symbols)

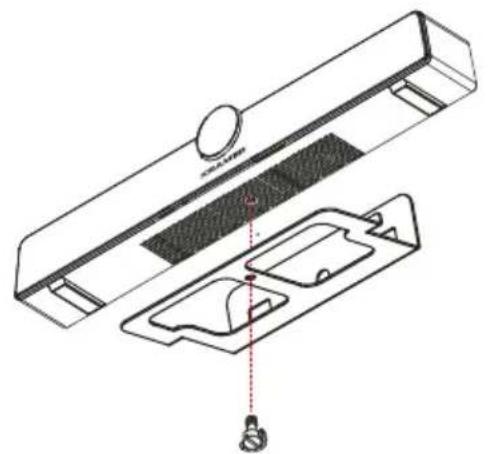

1. Attach the device bracket to the K-Bar using smaller size screw.

Technical line drawing of a mechanical component with internal parts and a dial indicator (no text or symbols)

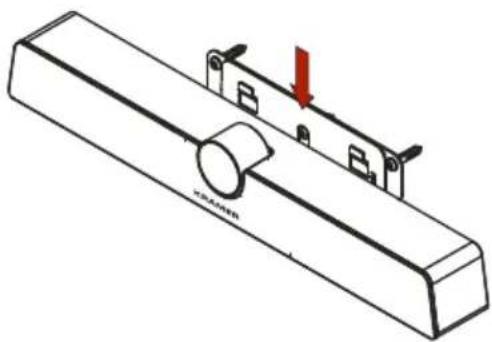

1. Slide the fixed device bracket onto the wall bracket.

Technical line drawing of a mechanical component with a red arrow indicating a specific part (no text or symbols present)

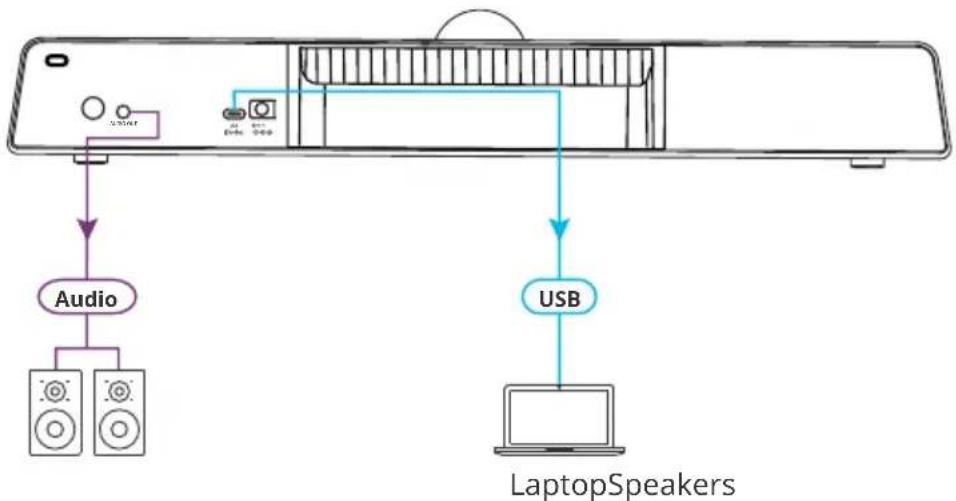

Connecting the K-Bar

Always switch OFF the power on each device before connecting it to your K-Bar.

Connect the power cord to the K-Bar and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
• Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
• To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the bottom of the unit.

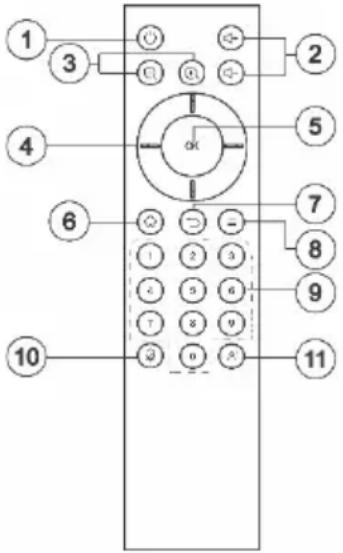

Controlling K-Bar

You can operate K-Bar via the remote IR, or via your PC, as follows:

#	Feature	Function
1	Power Button	N/A (no function)
2	Volume Button	Press to increase/decrease volume level.
3	Zoom Button	Press zoom camera in or out.
4	Directional keys	Press, after zooming, to move the camera direction.
5	OK Button	Press to restore camera image to original settings.
6	Home Button N/A (no function)
7	Return Button	N/A (no function)
8	Menu Button	N/A (no function)
9	Present positions	1. Adjust the image to the desired position using digital zoom or directional keys, press and hold the corresponding number key for 3 seconds to save the current image as a preset position.2. After saving, press the number key briefly to switch to the preset position.
10	Mute Button	Press to turn Mic on or off.
11	Auto framing	Press to enable/disable auto-framing feature.

Technical Specifications

Ports	1 USB-C 2.0	On a USB-C connector
	AUDIO OUT	On a 3.5mm mini jack
Camera	Pixel	12M
	Max. Field of View (FOV)	120° (D)
	Adjustable Angle (Manual)	±15° (Up/Down)
	Focus Mode	Fixed focus
	Focus Distance	2m
	Resolution and Frame Rate	H.264/MJPG: 3840x2160; 2560x1440; 1920x1080; 1280x720; 1024x576; 960x540; 800x600; 640x480; 640x360; 480x270; 352x288; 320x240
		YUY2: 640x480; 640x360; 480x270; 352x288; 320x240
	Output Format	MJPG/YUY2/H.264
Sound Reinforcement	Sound Channel 1.0	Sound Channel 1.0
	Output Power 1x8W	Output Power 1x8W
Microphone	Quantity	6
	Voice Pickup Distance	Up to 8 meters
Controls		Remote control
Power	Consumption	12V DC, 1A max.
	Source	12V DC, 2A
	Standby Power	≤0.5W
Environmental Conditions	Operating Temperature	0° to +40°C (32° to 104°F)
	Storage Temperature	-20° to +60°C (-4° to 140°F)
	Humidity	10% to 90%, RHL non-condensing
	Altitude	Below 5000 meters
Regulatory Compliance	Safety	CE, FCC
	Environmental	RoHs WEEE
Enclosure	Type	Aluminum and plastic
General	Net Dimensions (W, D, H)	46cm x 9.7cm x 7.3cm (18.1" x 3.8" x 2.9")
	Shipping Dimensions (W, D, H)	53cm x 16.5cm x 15.7cm (20.8" x 6.5" x 6.2")
	Net Weight	1.05kg (2.3lbs) approx.
	Shipping Weight	2.3kg (5.1lbs) approx.
Accessories	Included	1 USB-C cable, remote control, power cord and adapter, lens cover, wall bracket kit, screws set

Specifications are subject to change without notice at www.kramerav.com
