Tahoe TWS2-TAH07GH - Electric towel warmer WarmlyYours - Free user manual and instructions

Product Type	Electric Towel Warmer
Brand	WarmlyYours
Model	Tahoe TWS2-TAH07GH
Dimensions (Approx.)	28 x 4 x 27 inches
Weight (Approx.)	15 lbs
Power Supply	120V AC, 60Hz
Power Consumption	Approximately 400W
Heating Element	Electric resistive
Material	Stainless steel or aluminum
Finish	Polished chrome or custom
Mounting Type	Wall-mounted
Number of Bars	7
Installation	Hardwired or plug-in (model-dependent)
On/Off Control	Manual switch or built-in timer
Safety Features	Overheat protection, splash-resistant design
Cleaning Instructions	Wipe with damp cloth, mild detergent; avoid abrasives
Maintenance	Check electrical connections periodically; no user-serviceable parts
Spare Parts Availability	Contact manufacturer or authorized distributors
Repairability	Repairs should be carried out by qualified electricians
Warranty	Limited lifetime warranty (typical)
Certifications	cETLus, CSA, or equivalent
Manual Language	English (PDF available)

Frequently Asked Questions - Tahoe TWS2-TAH07GH WarmlyYours

What is the power requirement for the WarmlyYours Tahoe TWS2-TAH07GH?

The unit requires a standard 120V AC, 60Hz electrical outlet. It draws approximately 400W, so it can typically be plugged into a regular household outlet, but we recommend a dedicated circuit for best performance.

Can the towel warmer be installed in a bathroom?

Yes, the Tahoe model is designed for bathroom use and has a splash-resistant construction. However, it must be installed in accordance with local electrical codes and should not be placed directly in a shower or tub area.

How do I clean the towel warmer?

Disconnect the unit from power. Use a soft, damp cloth with mild soap. Rinse with a clean damp cloth and dry thoroughly. Do not use abrasive cleaners or immerse the unit in water.

Is the towel warmer hardwired or plug-in?

The Tahoe TWS2-TAH07GH is available in both hardwired and plug-in configurations. Check your specific model and installation manual for details.

What should I do if the towel warmer doesn't heat up?

First, ensure the unit is connected to power and the switch is on. Check the circuit breaker. If it still doesn't heat, contact WarmlyYours customer support for troubleshooting.

Does the towel warmer have an automatic shut-off?

Some models include a built-in timer or thermostat. Refer to your specific user manual to determine if your unit has automatic shut-off features.

Can I paint the towel warmer to match my bathroom?

No, painting the unit is not recommended as it may affect heat dissipation and void the warranty.

What is the warranty coverage?

WarmlyYours typically offers a limited lifetime warranty to the original owner against manufacturing defects. Proof of purchase is required.

How many towels can the Tahoe TWS2-TAH07GH hold?

With 7 bars, it can comfortably hold 2-3 standard bath towels or up to 4 hand towels, depending on thickness.

Where can I find the user manual?

The user manual is available for free download in PDF format on notice-facile.com and the WarmlyYours official website.

USER MANUAL Tahoe TWS2-TAH07GH WarmlyYours

For TWS2 Series hardwired towel warmers.

TOOLS REQUIRED ACCESSORIES FOR SQUARE/ROUND MOUNTING TUBES

INSTRUCTIONS

Before using this product, please read the following instructions carefully and keep this pamphlet for future reference.

ABOUT THE PRODUCT:

This heated towel warmer is designed for drying/warming towels or clothes, it has a surface stabilized temperature of 122-131°F, and it is used in household bathrooms and kitchens, as well as in hotels and restaurants or other public areas. This appliance uses a voltage of 120 VAC, and is manufactured according to cULus standards.

SAFETY PRECAUTIONS:

1. The towel warmer must be used with a Ground Fault Circuit Interceptor (GFCI) circuit.
2. This product is supplied with a three-prong plug or three-wire cable.
   To avoid unnecessary risk or danger, this product must be properly grounded.
3. Any repairs must be done by a qualified technician who is deemed qualified by industry standards. When any external wire fittings are required, the unit must be disconnected from the circuit.

WARNING:

1. Only use for drying textiles which have been dampened by water. Please note: silk fabrics can not be used on the towel warmer.
2. If heating wire is damaged, the whole product should be replaced.
3. If warming multiple towels on the device simultaneously, make sure that the towels do not overlap one another.

NOTE:

1. In the event of any difference in technical specifications, please refer to the actual product.
2. Please wipe the towel rail with a soft, dry cloth when cleaning it.

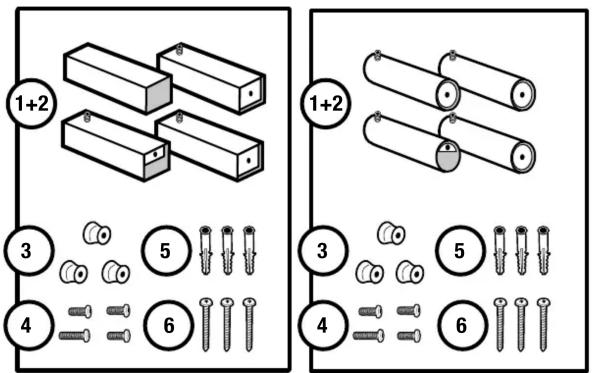

Installation Fittings:

(1+2): Mounting tubes (4 pieces) & Set screws (4 pieces)
(3) 3 brackets (3 pieces)
(4) Short mounting screws (3 pieces) Long mounting screw (1 piece)
(5) Drywall anchor (3 pieces)
(6) Long screws (3 pieces)

This product must be installed in accordance with the instructions in the manual and the NEC and CEC guidelines relating to electrical fixtures in bathrooms. The Towel Warmer must be on a GFCI protected circuit and be wired by a professional who is certified to do electrical wiring.

In order to reduce electrical shock, this towel warmer should be installed on a 15A GFCI protected branch circuit (14AWG) and to an outlet box that is 4 inches (10.16 cm) high by 2 Inches (5.08 cm) wide.

WarmlyYours

Radiant Heating

INSTALLATION GUIDE

For TWS2 Series hardwired towel warmers.

ACCESSORIES

INSTALLATION: (WARNING: The electrical connection should avoid all water.)

Please refer to all the following steps if the wall brackets are taken apart from the vertical bars.

Please refer to Steps 5-11 if the wall brackets are fixed on vertical bars already.

STEP 1

STEP 1: As shown in the picture, insert the short mounting screw (d) through the tube in the center of the mounting tube (a).

STEP 2

STEP 2: Use the short mounting screw (d) to fix the mounting tube (a) to the threaded metal pad on the vertical bar on the back of the towel warmer.

STEP 3

STEP 3: Screw down the short mounting screw (d) with a screwdriver. Note that the set screw of the tube (a) should point towards the floor when the towel warmer is wall mounted. Fix the remaining two mounting tubes (a) to the vertical bars with threaded metal pads by repeating Step 1-3.

STEP 4

STEP 4: Guide the electrical cord through the electrical connection mounting tube (b) and use the long mounting screw (e) to tighten the electrical connection mounting tube to the vertical bar.

WarmlyYours

Radiant Heating

INSTALLATION GUIDE

For TWS2 Series hardwired towel warmers.

STEP 5

STEP 5: Use a tape measure to measure the distance between the center points of each wall bracket tube; record the distances between points AB, AC, CD, and BD. Mounting point C will determine electrical box location. See Electrical Assembly in following instructions.

STEP 6

STEP 6: Mark A, B, C, and D according to the data from Step 5; It is suggested that this product be installed at least 23.5 inches (59.69 cm) above floor level. (WARNING: The electrical connection should avoid all water). This mounting location must comply with all local building and electrical codes.

ALTERNATIVE TO STEPS 5 & 6

Place towel warmer on the box (or a large sheet of paper) and lay on a flat surface with mounting tubes facing downwards. Mark the location of the following:

- The electrical collar (hardwired model only) - The location of the mounting tubes

Use the template as a guide to mark the wall with the correct locations of the four mounting tubes (A, B, C, and D)

STEP 7: Drill A, B, C, and D holes with an appropriately sized bit.

STEP 8

STEP 8: Use a hammer to knock plastic drywall anchor (f) into wall completely.

STEP 9

STEP 9: Insert long screw (i) through mounting bracket (g), then screw into plastic drywall anchor (f).

STEP 10

STEP 10: Install the tube (a) onto the bracket (g).

STEP 11

STEP 11: As shown in the picture, install the set screws (c) into the hole of all the tubes (a and b) using the allen wrench; fix the tube (a) onto the mounting bracket (g).

WarmlyYours

Radiant Heating

INSTALLATION GUIDE

For TWS2 Series hardwired towel warmers.

ELECTRICAL ASSEMBLY

2" x 4" ELECTRICAL BOX
CAUTION :
To provide continued protection against risk of electric shock, connect to properly grounded outlets only.
