SED-5000S - Voltage regulator Imarflex - Free user manual and instructions

Product Type	Precision Voltage Regulator
Brand	Imarflex
Model	SED-5000S
Input Voltage Range	140V - 260V
Output Voltage	110V / 220V (selectable)
Output Voltage Precision	±1% (110V) / ±3% (220V)
Power Rating	5000 VA
Circuit Breaker Rating	22.3 A
Frequency	50/60 Hz
Delay Time	6 seconds or 180 seconds (selectable)
High Voltage Protection	Activates at 255V
High Temperature Protection	Activates at 120°C
Overload Protection	Yes (automatic shutdown with alarm)
Display	LCD showing input/output voltage and output current
Selectors	Time delay selector, Precision selector
Power Switch	General power on/off
Cooling	Natural convection (ensure ventilation)
Safety Features	High voltage, high temperature, overload protection with audible alarm
Operation Environment	Well-ventilated, away from moisture, sunlight, heat, and flammable substances

Frequently Asked Questions - SED-5000S Imarflex

What is the input voltage range of the Imarflex SED-5000S voltage regulator?

The input voltage range is 140V to 260V.

Can I select the output voltage?

Yes, the regulator provides 110V or 220V output, selectable via the precision selector.

What is the precision of the output voltage?

The output precision is ±1% for 110V and ±3% for 220V.

How do I set the delay time?

Use the time delay selector to choose between 6 seconds or 180 seconds delay before output is restored after a power interruption.

What protections does the SED-5000S have?

It has high voltage protection (at 255V), high temperature protection (at 120°C), and overload protection. All trigger an audible alarm and shut down output.

How do I reset the regulator after a protection shutdown?

After a high temperature or overload protection event, you must manually restart the regulator by switching it off and on again.

Can I connect a motor or compressor to this regulator?

Yes, but ensure the total starting power of all motor-driven appliances does not exceed the regulator's maximum output (5000VA). Starting power is typically several times the rated power.

What should I avoid when using the regulator?

Avoid overloading, using near water, oil, or grease, exposing to direct sunlight or heat, and placing in non-ventilated areas. Keep away from children.

What does the LCD display show?

The LCD displays the input voltage, output voltage, and output current. It also shows symbols for normal or abnormal conditions.

What is the power rating and circuit breaker rating?

The power rating is 5000VA and the circuit breaker rating is 22.3A.

USER MANUAL SED-5000S Imarflex

PRECISION VOLTAGE REGULATOR

SPECIFICATION

MODEL		SED-5000S
INPUT	Voltage	140V-260V
OUTPUT	Voltage	110V/220V
	Precision	±1%/±3%
	Power	5000VA
Circuit breaker		22.3A
Frequency		50/60Hz
Delay time		6S/180S
High protect voltage		255V
High protect temperature		120°C

Caution

• Avoid overloading
  Do not use the regulator beyond its maximum power.
• When connected to any appliance with built-in motor compressor, the starting power is generally several times of the appliance's listed power rating. Make sure that the total starting power capacity of all connected appliance does not exceed the listed maximum output power of the regulator. For color TV, calculate it twice as its listed capacity.
• Make sure that the regulator is of the same output voltage and frequency as the appliance's it connected.
  ● Make sure that the voltage of electrical source is within the listed range of the input voltage of the regulator.
  ● Always place the regulator in an environment that is:

----well ventilated.

----not exposed to direct sunlight or heat source.

----Out of reach from children.

----away from water moisture oil or grease.

----away from any flammable substance.

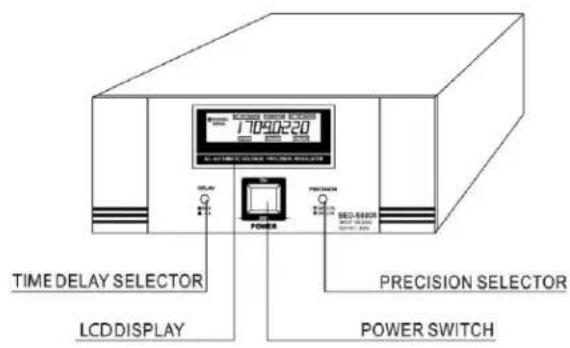

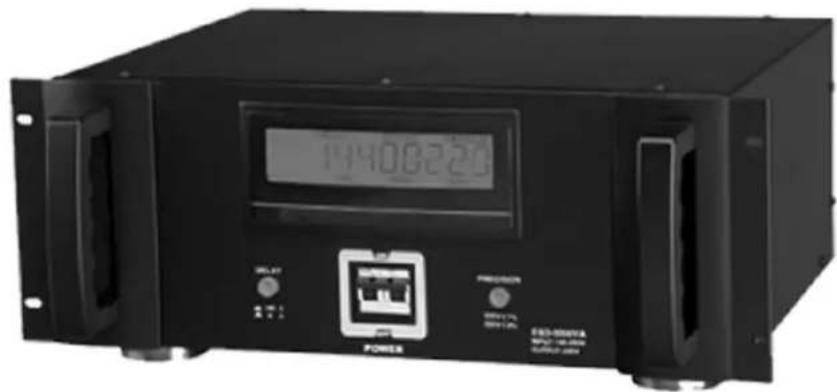

DESCRIPTION OF PARTS

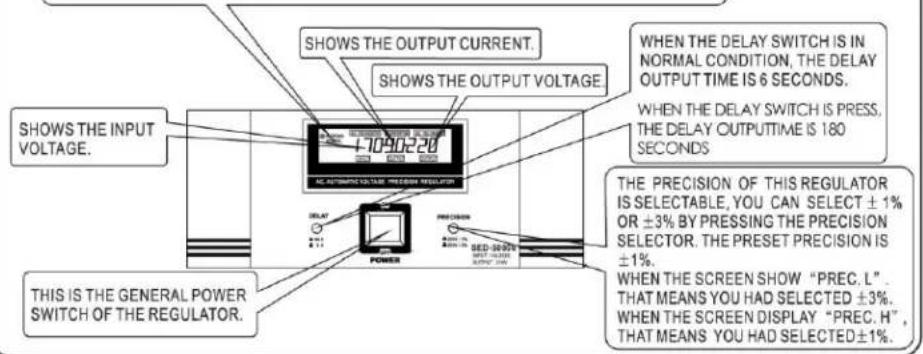

WORKING NORMAL UNUSUAL
WHEN THE REGULATOR IS WORKING IN NORMAL CONDITION, THE DISPLAY SCREEN WILL SHOW THIS SYMBOL AND WORDS. THIS REGULATOR HAS SEVERAL PROTECT FUNCTION INCLUDING HIGH VOLTAGE PROTECTION, HIGH TEMPERATURE PROTECTION AND OVERLOAD PROTECTION. THE PROTECTION FUNCTION WILL AUTOMATICALLY SHUT DOWN THE OUTPUT POWER AND EMIT AUDIBLE ALARM, AT THE SAME TIME, THE DISPLAY SCREEN WILL SHOW THIS SYMBOL AND WORDS. IT IS REQUIRED TO RESTART THE REGULATOR AFTER THE HIGH TEMPERATURE PROTECTION OR OVERLOAD PROTECTION COMPLETE.

NOTE: BE SURE TO CONNECT THE INPUT PLUG INTO THE CONVENIENCE OUTLET PROPERLY. OPERATE THE REGULATOR IN THE RANGE OF RATED INPUT VOLTAGE ONLY.

REMINDER: Please do not forget to fill up and send the warranty card
