IDR-8000VA - Voltage regulator Imarflex - Free user manual and instructions

Product Type	Automatic Voltage Regulator (AVR)
Brand	Imarflex
Model	IDR-8000VA
Power Rating	8000 VA (8 kVA)
Input Voltage Range	100-280 V AC
Output Voltage	220 V AC ± 10%
Frequency	50/60 Hz
Protection	Overload, short circuit, over/under voltage, surge
Display	LED indicators for input/output voltage and status
Cooling	Fan cooling
Dimensions (L x W x H)	350 x 250 x 200 mm
Weight	12 kg
Power Cord	1.5 m detachable cable
Outlet Type	Universal outlets (multiple)
Surge Protection	Yes, 1800 J
Voltage Regulation Technology	Relay-based step regulation
Response Time	< 10 ms
Operating Temperature	0°C to 40°C
Humidity	20% to 90% non-condensing
Certifications	CE, RoHS
Warranty	2 years
Included Accessories	User manual, warranty card
Maintenance	Keep ventilated, clean dust regularly
Repairability	Repairable by qualified technician; spare parts available

Frequently Asked Questions - IDR-8000VA Imarflex

What is the power capacity of the Imarflex IDR-8000VA?

The Imarflex IDR-8000VA is rated for 8000 VA (8 kVA), suitable for powering multiple devices or larger appliances.

Does it support both 50 Hz and 60 Hz?

Yes, the IDR-8000VA automatically detects and works with both 50 Hz and 60 Hz input frequencies.

What input voltage range does it handle?

It accepts an input voltage range of 100-280 V AC, making it ideal for areas with unstable mains power.

How does it stabilize voltage?

The regulator uses relay-based step regulation to adjust the output voltage to a stable 220 V AC (±10%).

What protection features are included?

It includes protection against overload, short circuit, over/under voltage, and surge (1800 J surge protection).

How should I install the voltage regulator?

Place the unit in a well-ventilated area, away from direct sunlight and moisture. Connect the input to a wall outlet and plug your devices into the regulator's outlets.

Can I use it for sensitive electronics like computers?

Yes, the IDR-8000VA provides stable 220 V output and surge protection, making it safe for computers, TVs, and other sensitive equipment.

What is the response time to voltage fluctuations?

The response time is less than 10 milliseconds, ensuring quick correction of voltage dips or spikes.

How do I maintain the device?

Regularly dust the exterior and ensure the ventilation slots are clear. Avoid overloading the unit beyond its 8000 VA rating.

What should I do if the regulator trips or fails?

Check for overload or short circuit. Reduce connected load and reset the unit. If problem persists, contact a qualified technician for repair.

USER MANUAL IDR-8000VA Imarflex

imarflex®

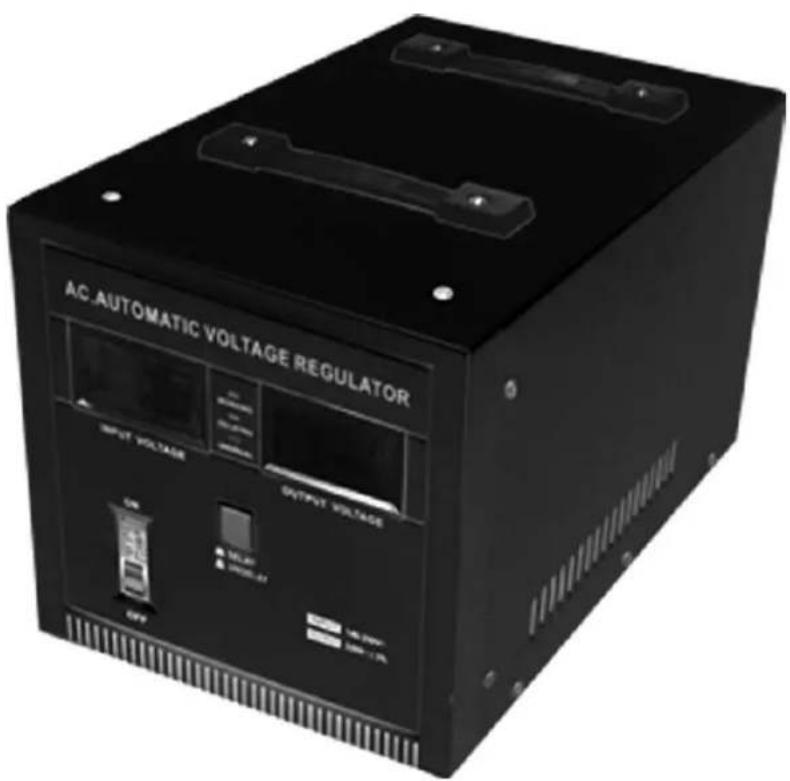

PRECISION VOLTAGE REGULATOR

AC.AUTOMATIC VOLTAGE REGULATOR INPUT VOLTAGE OUTPUT VOLTAGE OFF VCLK UNIT-24 10k Pamp 50Hz - 1 Ps

SPECIFICATION

MODEL		IDR-8000VA
INPUT	Voltage	140-260V
OUTPUT	Voltage	110V 220V
	Precision	±3%
	Power	8000VA
Circuit breaker		----
Frequency		50/60Hz
Delay time
High protect voltage
Low protect voltage
High protect temperature

Caution

• Avoid overloading
  Do not use the regulator beyond its maximum power.
• When connected to any appliance with built-in motor compressor, the starting power is generally several times of the appliance's listed power rating. Make sure that the total starting power capacity of all connected appliance does not exceed the listed maximum output power of the regulator. For color TV, calculate it twice as its listed capacity.
• Make sure that the regulator is of the same output voltage and frequency as the appliance's it connected.
  ● Make sure that the voltage of electrical source is within the listed range of the input voltage of the regulator.
  ● Always place the regulator in an environment that is:
  ----well ventilated.
  ----not exposed to direct sunlight or heat source.
  ----Out of reach from children.
  ----away from water moisture oil or grease.
  ----away from any flammable substance.

DESCRIPTION OF PART

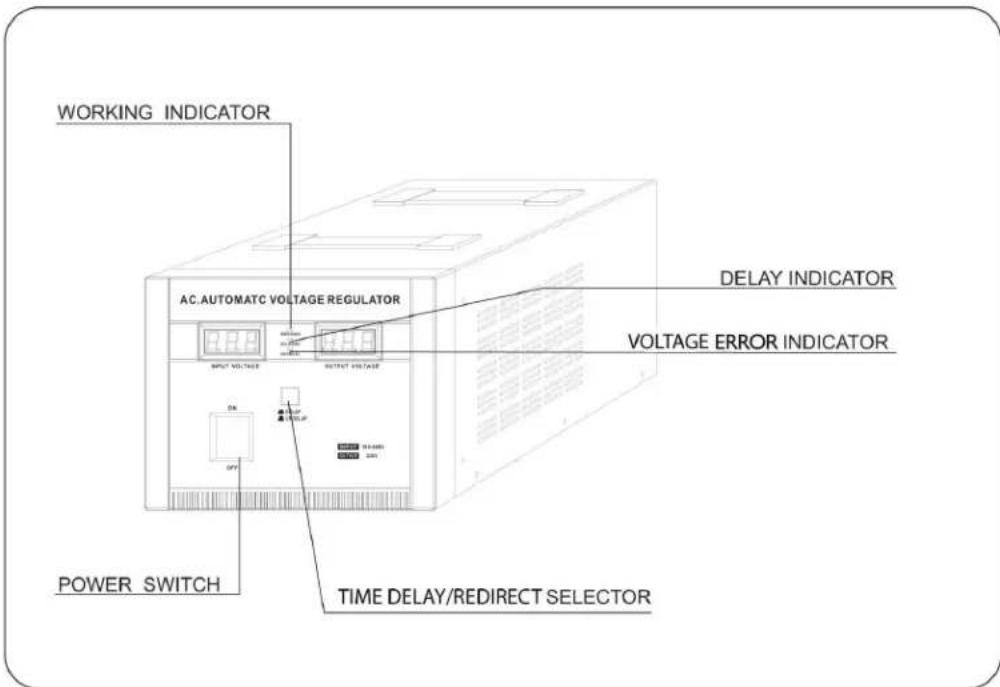

WORKING INDICATOR AC.AUTOMATIC VOLTAGE REGULATOR OUTPUT VOLTAGE POWER SWITCH TIME DELAY/REDIRECT SELECTOR DELAY INDICATOR VOLTAGE ERROR INDICATOR

POWER 100% 75% 50% 130 160 170 220 260 INPUT VOLTAGE(V) FAN I 10V OUTPUT INPUT OUTPUT GROUND TERMINAL TV SET REFRIGERATOR REMARK: Input plugs and output sockets could be changed upon request. Please operate refer to the practicality. THE REGULATOR'S MAXIMUM OUTPUT POWER WILL CHANGE AS THE CURVE SHOWN BELOW. MAKE SURE THAT THE TOTAL LOAD POWER DOES NOT EXCEED THE LISTED MAXIMUM OUTPUT POWER OF THE REGULATOR. REMARK: Input plugs and output sockets could be changed upon request. Please operate refer to the practicality.

NOTE:

BE SURE TO CONNECT THE INPUT PLUG INTO THE

CONVENIENCE OUTLET PROPERLY. OPERATE THE REGULATORIN THE RANGE OF RATED INPUT VOLTAGE ONLY.

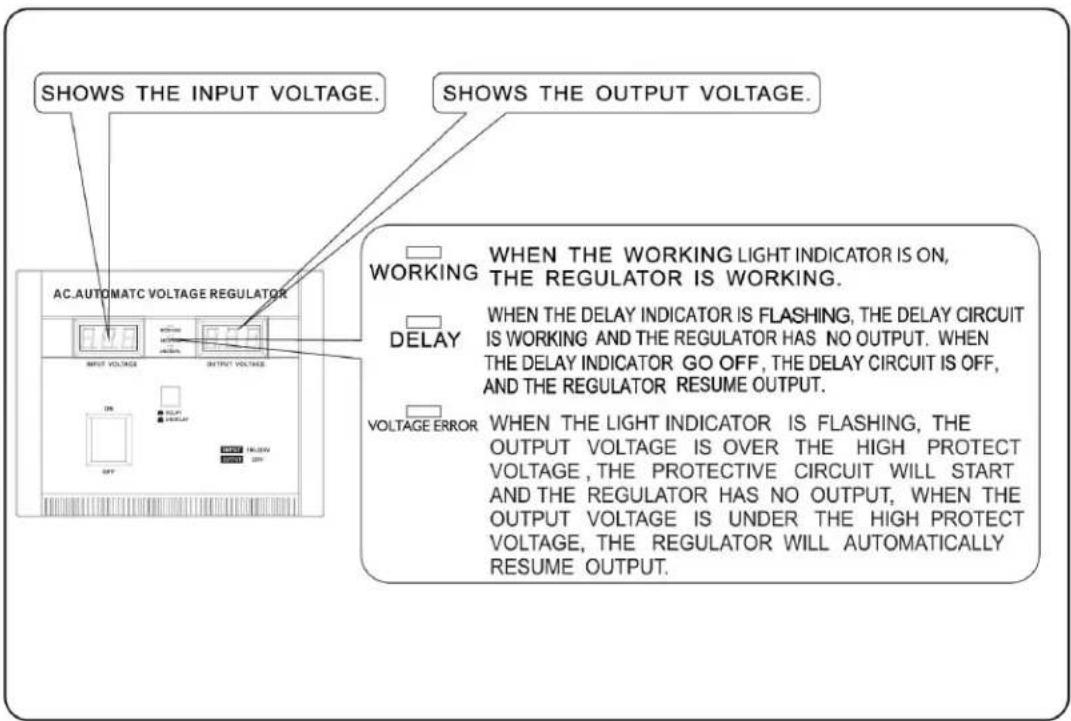

SHOWS THE INPUT VOLTAGE. SHOWS THE OUTPUT VOLTAGE. AC.AUTOMATIC VOLTAGE REGULATOR WORKING WHEN THE WORKING LIGHT INDICATOR IS ON, THE REGULATOR IS WORKING. DELAY WHEN THE DELAY INDICATOR IS FLASHING, THE DELAY CIRCUIT IS WORKING AND THE REGULATOR HAS NO OUTPUT. WHEN THE DELAY INDICATOR GO OFF, THE DELAY CIRCUIT IS OFF, AND THE REGULATOR RESUME OUTPUT. VOLTAGE ERROR WHEN THE LIGHT INDICATOR IS FLASHING, THE OUTPUT VOLTAGE IS OVER THE HIGH PROTECT VOLTAGE, THE PROTECTIVE CIRCUIT WILL START AND THE REGULATOR HAS NO OUTPUT, WHEN THE OUTPUT VOLTAGE IS UNDER THE HIGH PROTECT VOLTAGE, THE REGULATOR WILL AUTOMATICALLY RESUME OUTPUT.

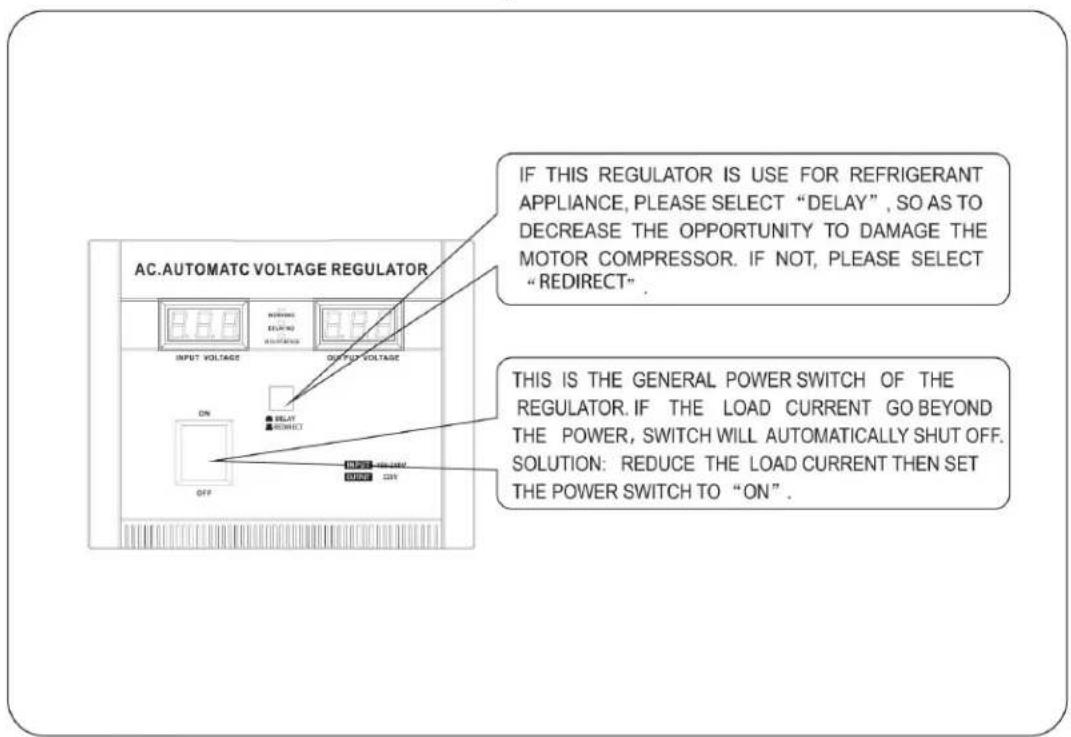

AC.AUTOMATIC VOLTAGE REGULATOR IF THIS REGULATOR IS USE FOR REFRIGERANT APPLIANCE, PLEASE SELECT "DELAY" , SO AS TO DECREASE THE OPPORTUNITY TO DAMAGE THE MOTOR COMPRESSOR. IF NOT, PLEASE SELECT "REDIRECT". THIS IS THE GENERAL POWER SWITCH OF THE REGULATOR. IF THE LOAD CURRENT GO BEYOND THE POWER, SWITCH WILL AUTOMATICALLY SHUT OFF. SOLUTION: REDUCE THE LOAD CURRENT THEN SET THE POWER SWITCH TO "ON".

REMINDER: Please do not forget to fill up and send the warranty card
