Product Type	Mini Desktop Computer
Brand	ECS
Model	LIVA Q3H
Processor	Intel Celeron N4500 / N5100 / Pentium N6000 (up to 2.8 GHz)
Memory	LPDDR4x 2933 MHz, up to 4 GB
Storage	eMMC 32 GB / 64 GB / 128 GB
Operating System	Windows 11 Pro 64-bit
Dimensions (W x D x H)	74 mm x 74 mm x 34.6 mm
Weight	Approximately 0.5 kg
Power Supply	12V / 3A (36W) DC-in adapter
Rear I/O Ports	1 x USB 2.0, 2 x USB 3.2 Gen 1x1, 1 x Gb LAN, 1 x HDMI 2.0 out, 1 x HDMI in, 1 x Micro SD slot, 1 x DC power
Wireless Connectivity	802.11 ac/b/g/n Wi-Fi, Bluetooth 5.1
Video Output	HDMI 2.0 (supports dual display via HDMI out and HDMI in)
Cooling	Internal heatsink and cooling fan
Mounting	VESA mount bracket included (75mm and 100mm compatible)
Security	TPM 2.0, Secure Boot, Kensington lock slot
Operating Temperature	0°C to 40°C
Regulatory Compliance	FCC Class B, CE, RoHS
Warranty	Standard manufacturer warranty (check retailer for details)
Included Accessories	Power adapter, VESA mount kit, manual

Frequently Asked Questions - LIVA Q3H ECS

How do I install the VESA mount?

Attach four screws to the VESA bracket, then fasten two screws under the case. Slide the case down onto the bracket until it locks. Ensure the bracket is securely attached to the monitor or wall.

Can I upgrade the RAM or storage?

The LIVA Q3H has soldered LPDDR4x memory (up to 4GB) and eMMC storage (up to 128GB), which are not user-upgradable. However, you can expand storage via the Micro SD card slot or USB drives.

How do I enter the BIOS setup?

Press the Del key repeatedly during power-on until the BIOS menu appears. You can then navigate using arrow keys and change settings as needed.

What operating system does it support?

It comes pre-installed with Windows 11 Pro 64-bit. It may also support Linux distributions, but drivers are provided for Windows only.

How can I reset the BIOS to default settings?

In the BIOS Setup Utility, go to the Exit menu and select Restore Defaults. Confirm and then select Save Changes and Exit.

Does it support dual monitors?

Yes, it has one HDMI 2.0 output and one HDMI input port. However, the HDMI-in is for capturing external video, not for extending displays. For dual monitors, use the HDMI output with a USB-to-HDMI adapter if needed.

What is the power consumption?

The system uses a 12V/3A (36W) power adapter. Typical power consumption is around 15-25W under normal use.

How do I update the BIOS?

Download the latest BIOS from ECS website. Create a bootable USB drive, copy the BIOS file and flash utility to it. Boot from the USB and run the flash utility (e.g., AFUDOS.EXE) with the BIOS file. Do not interrupt the process.

Is the device compatible with Linux?

While not officially supported, many Linux distributions (e.g., Ubuntu) work with the integrated Intel graphics and Wi-Fi. You may need to install firmware for the wireless adapter.

What should I do if the system overheats?

Ensure the ventilation slots are not blocked. Place the device on a flat, hard surface. Clean dust from vents periodically. If the fan stops working, contact support.

USER MANUAL LIVA Q3H ECS

Black rectangular device with ventilation slots and ports, no visible text or symbols

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Windows ^® 11 are registered trademarks of Microsoft Corp.

Other product names used in this manual are the properties of their respective owners and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and the receiver
- Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This device is in conformity with the following EC/EMC directives:

☐ EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
☐ EN 61000-3-2 Electromagnetic Compatibility(EMC)

Part 3-2: Limits-Limits for harmonic current emissions (equipment input current ≤ 16A per phase)

☐ EN 61000-3-3 Electromagnetic Compatibility(EMC)

Part 3-3: Limits-Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16A per phase and not subject to conditional connection

☐ EN EN55035 Information technology equipment-Immunity characteristics-Limits and methods of measurement
☐ EN 62368 Safety for information technology equipment including electrical business equipment
□ CE marking CE

Safety Instructions

Your system is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source such as a radiator.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0°C and 40°C.
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Attention during use

• Do not step on the power cord or let anything rest on top of it.
• Do not spill water or any other liquid on your system.
• When the system is turned OFF, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.

• Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes

The warranty does not apply to products that have been disassembled by users

Safety cautions and warnings

Product disposal notice

IMPORTANT:

This symbol if the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION:

Danger of explosoin if battery is incorrectly replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Product disposal notice

1. Do not place this product underneath heavy loads or in an unstable position.
2. Do not use or expose this product around magnetic fields as magnetic interference may affect the performance of the product.
3. Do not expose this product to high levels of direct sunlight, highhumidity or wet conditions.
4. Do not block the air vents to this product or impede the airflow in any way.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

This device complies with the essential requirements of the Radio Equipment Directive (RED)-2014/53/EU. This device is restricted for indoor use only when operating under 5150 MHz to 5350 MHz of frequency range.

	AT BE	BG CZ	DK EE DE
	CY IE	IT EL ES	FR LV
	LT LU	HU MT	NL PL PT
	RO SI	SK FI SE	HR UK

Manufacturer:

Elitegroup Computer Systems Co., Ltd.

No.239, Sec.2, Tiding Blvd., Neihu Dist., Taipei City 114, Taiwan

EU Single Place of Contact:

Noorderhoeve 8

2993 TP Barendrecht

The Netherlands(Holland)

TABLE OF CONTENTS

Prefacel....i

Chapter 1 Introducing the PC

Introduction....1

Specification....2

Front and Rear I/O 4

Side I/O 6

Install the VESA Mo....7

Motherboard Components....9

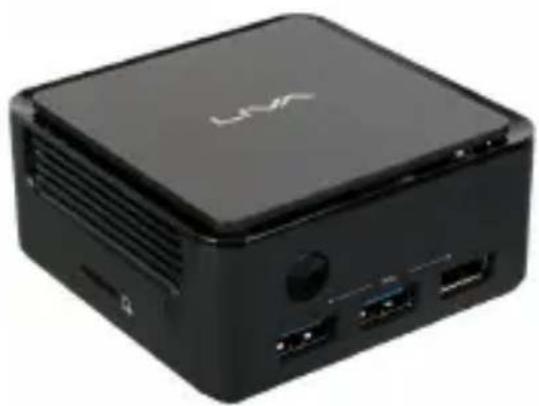

Introduction

Thank you for choosing LIVA Q3H Mini PC featuring Intel® Jasper Lake of great performance and with stylish and flexible design.

This mini PC is based on Intel® Celeron® processor N4500/Intel® Celeron® processor N5100/Intel® Pentium® Silver processor N6000 Mobile platform. This latest Core-M processor is a multi-core system-on-a-chip (SoC) that integrates the next generation Intel® processor core, graphics, memory, and I/O interfaces into one solution.

It supports LPDDR4x up to 4GB memory, It also can add additional storage from USB Flash Drive.

The system is equipped with a set of I/O ports at the front/rear panel, including one USB 2.0 port, two USB 3.2 Gen 1x1 ports, one Giga LAN connector, one HDMI 2.0 port, one HDMI_IN port, one Micro SD card slot, one DC port, one power button.

Black rectangular electronic device with ports and ventilation slots (no visible text or symbols)

Note:

ID design and specification may vary, please refer to actual goods you purchase.

Specifications

CPU/Chipset • Intel® Dual Core Celeron® N4500/Intel® Quad Core Celeron® N5100/Intel® Quad Core Pentium® N6000

Memory • Support LPDDR4x (2933Mhz) up to 4GB

Storage • Support eMMC 32GB/64GB/128GB

Rear Panel I/O • 1 x USB 2.0 port• 2 x USB 3.2 Gen 1x1 ports• 1 x Giga LAN connector(10/100/1000Mbps)• 1 x HDMI 2.0 port• 1 x HDMI_IN port• 1 x Micro SD card slot• 1 x DC port

Button and LED Light • Power button• Power LED Light

LAN • 802.11 ac/b/g/n WiFi• Bluetooth 5.1 supports BT peripheral device

Power Supply • 12V / 3A 36W1) Suzhou Pseakin Electronics Technology Co., Ltd. / AD36BLH1203002) Channel Well Technology Co., Ltd. / 2AED036FC

System BIOS • AMI BIOS with 128Mb SPI Flash ROM• Supports dual display

Operation System • Windows 11 Pro 64bit

Heatsink Design • Heatsink and cooling fan

Operation Temp • 0~ + 40°C

Dimension • 74mm x 74mm x 34.6mm

Color • Black

Front and Rear I/O

Note:

ID design and specification may vary, please refer to actual goods you purchase.

1. Power Button Use this button to power on/off the system.
2. Power State LED This is power state LED light.
3. USB 3.2 Gen 1x1 Ports Connect USB 3.2 Gen 1x1 ports compatible devices.
4. USB 2.0 Port Connect your USB 2.0 device to this port.

1. HDMI Port You can connect the display device to the HDMI port.
2. Giga LAN Port Connect the RJ-45 jack to the LAN (10/100/1000Mbps) ports for Network connecting.
3. HDMI_IN Port You can connect a HDMI source to the HDMI_IN port.
4. 12V DC_IN Port Connect the DC_IN port to the power adapter.

Side I/O

Back view of a black electronic device with ventilation grille and ports, labeled with number 9 (no text or symbols on the device itself)

1. Micro SD card slot This is Micro SD card slot.

Front view of a black portable air conditioner unit with ventilation grilles and a labeled button (no text or symbols on the device itself)

1. Security Key hole This is security key hole.

Install the VESA Mount

1. Mount 4 screws on VESA bracket.

1. Fasten 2 screws under the case.

Black electronic device casing with four mounting holes and a small antenna (no visible text or symbols)

1. Hold the case towards the VESA bracket and insert the screws into the holes.

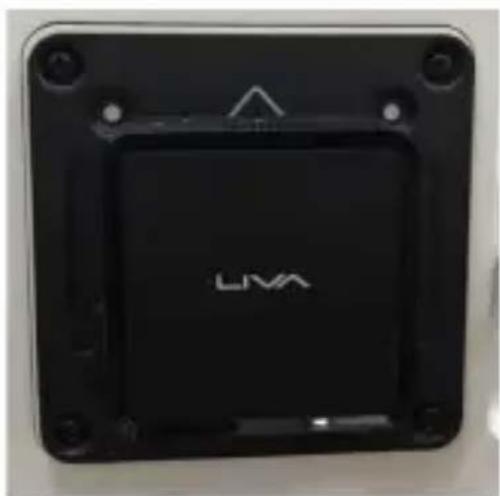

1. Slide the case down until it fixed.

Close-up of a black square electronic device labeled 'LVA' with mounting holes and a triangular indicator symbol (no readable text beyond label)

Motherboard Components

Note:

Find CN1\~2 and SCN1\~2 on the two motherboards, insert SCN1\~2 into CN1\~2 correctly after their alignment.

Table of Motherboard Components

LABEL COMPONENTS
1. SoC Intel® Dual	Core Celeron® N4500/Intel® Quad Core Celeron® N5100/Intel® Quad Core Pentium® N6000
2. DC_IN Power input port
3. LED1 Power state LED
4. SHDMI-BTN Power On/Off button
5. SCN1 Motherboard connector
6. SPWR_ON External power on header
7. SBAT Battery connector
8. SCN2 Motherboard connector
9. SUSB3~4 USB 3.2 Gen 1x1 ports
10. SUSB2 Standard USB 2.0 port
11. HDMI_OUT HDMI connector
12. SLAN Network connector (10/100/1000Mbps)
13. HDMI_IN HDMI connector
14. SD Micro SD card slot
15. CN1 IO board connector
16. CN2 IO board connector

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters. The parameters are stored in battery-backedup CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives and peripherals
  • Video display type and display options
• Password protection from unauthorized use
  • Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

• when changing the system configuration
• when a configuration error is detected and you are prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Press the delete key to access BIOS Setup Utility.

Resetting the Default CMOS Values

When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory

by the manufacturer. You simply need to Load Default Settings and Save it to reset the default CMOS values.

Note: Changes to system hardware such as different CPU, memories, etc. may also trigger this message.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing .

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle ▶) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle ▶.

The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

KEY FUNCTION
ESC Exits the current menu
↑↓←→	Scrolls through the items on a menu
+/- Change Opt.
Enter Select
F1 General Help
F2 Previous Value
F3 Optimized Defaults
F4 Save & Exit

For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture's website for updated manual.

Main Menu

When you enter the BIOS Setup program, the main menu appears, giving you an overview of the basic system information. Select an item and press to display the submenu.

BIOS Information System Language [English] System Date [Tue 09/05/2024] System Time [00:12:31] BIOS Version 24.09.03	Set the Date, use Tab to switch between Data elements.
	◆: Select Screen ■: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Language (English)

This item is used to set system language.

System Date & Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

BIOS Version (24.09.03)

This item shows the information of Project version.

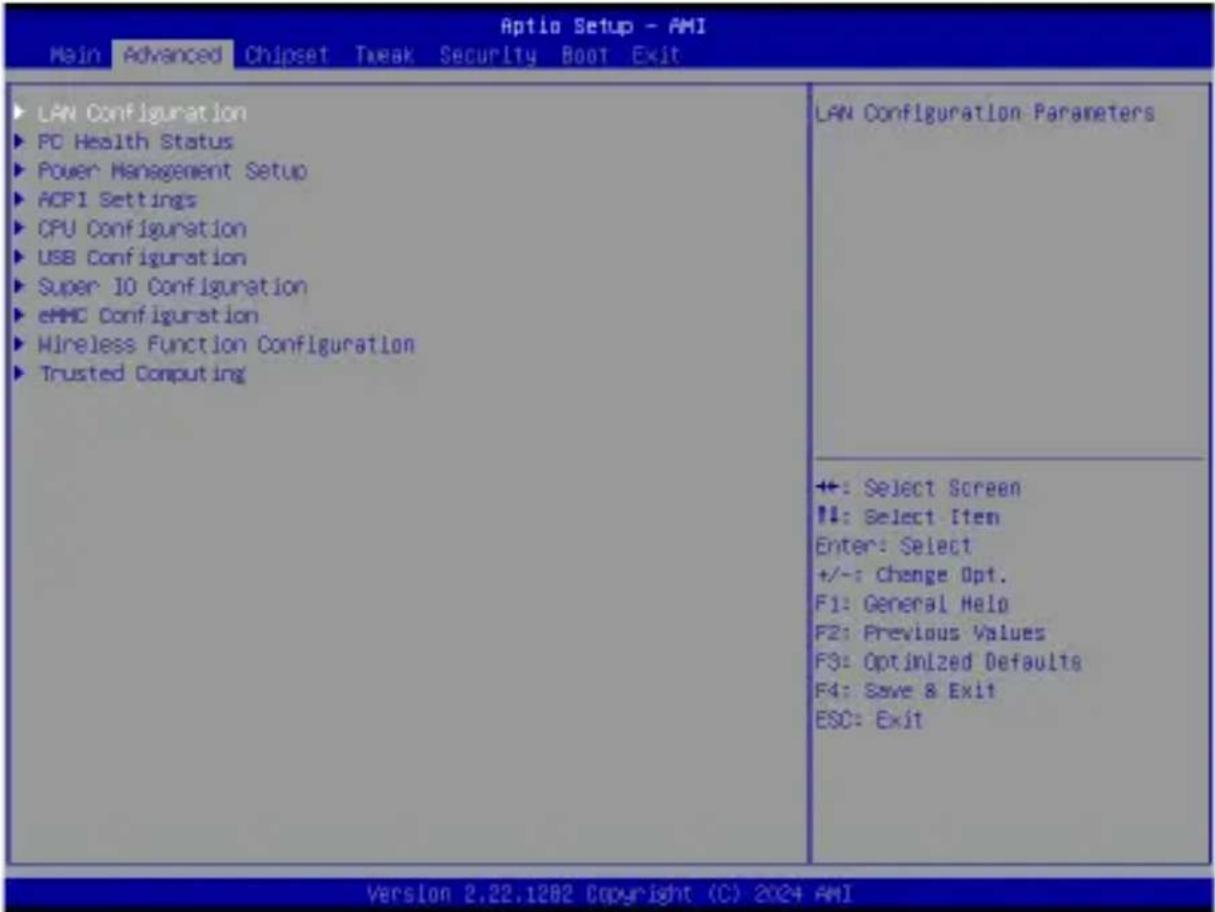

Advanced Menu

The Advanced menu items allow you to change the settings for the CPU and other system.

▶ LAN Configuration

The item in the menu shows the LAN-related information that the BIOS automatically detects.

Onboard LAN Controller (Enabled)

Use these items to enable or disable Onboard LAN controller.

Press to return to the Advanced Menu page.

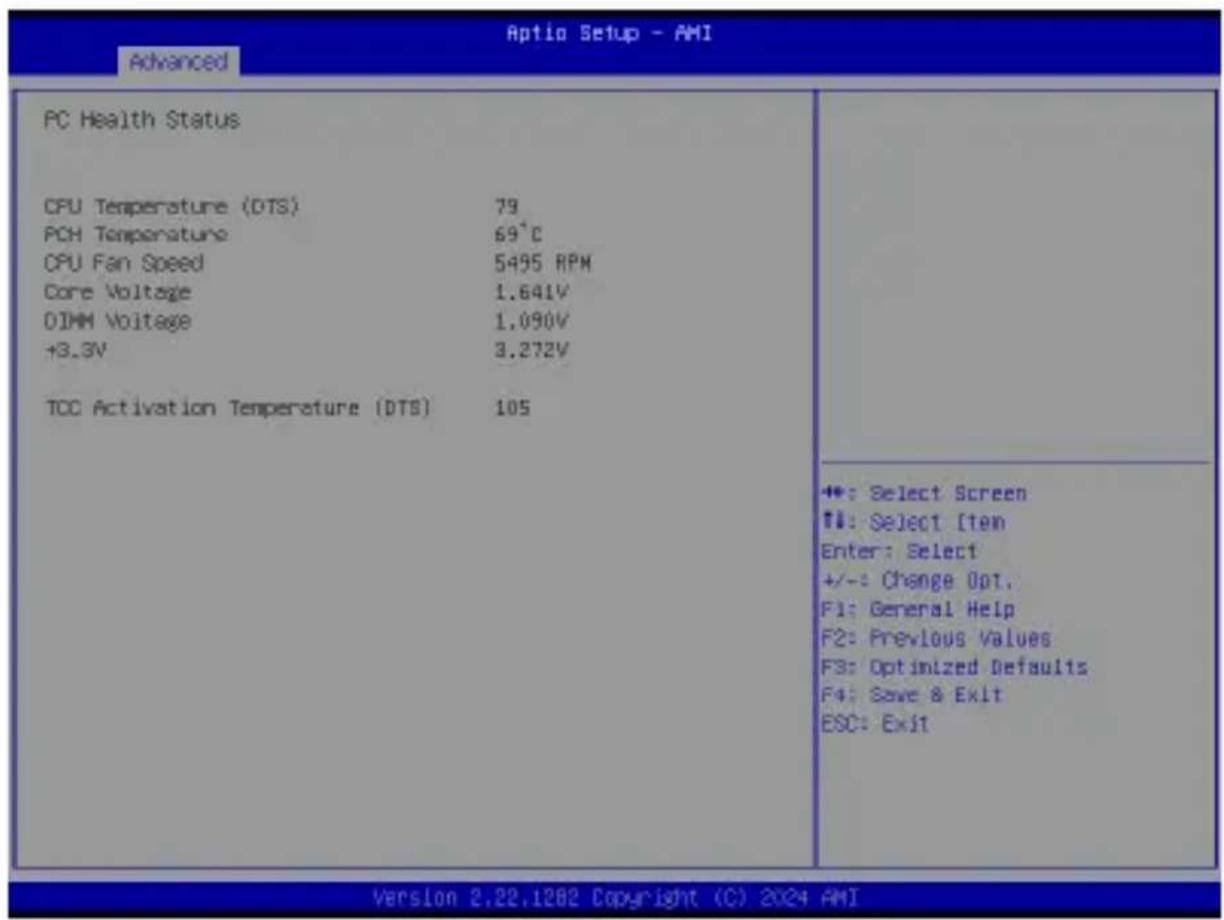

▶ PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the parameters for critical voltages, temperatures and fan speeds.

These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU & DIMM voltage, CPU & System fan speed... etc.

• CPU Temperature (DTS)
- PCH Temperature
- CPU Fan Speed
- Core Voltage
- DIMM Voltage
- +3.3V

TCC Activation Temperature (DTS) (105)

This item is used to set the value from the factory TCC activation temperature.

Press to return to the Advanced Menu page.

▶ Power Management Setup

This page sets up some parameters for system power management operation.

Resume By PME (Disabled)

This item specify whether the system will be awakened from power saving modes when activity or input signal of the specified hardware peripheral or components is detected.

Resume By USB (Disabled)

This item allows you to enable/disable the USB device wakeup function from S3 mode.

Resume By RTC Alarm (Disabled)

The system can be turned off with a software command. If you enable this item, the system can automatically resume at a fixed time based on the system's RTC (realtime clock). Use the items below this one to set the date and time of the wake-up alarm. You must use an ATX power supply in order to use this feature.

EUP Funtion (enabled)

This item allows user to enable or disable EUP support.

Press to return to the Advanced Menu page.

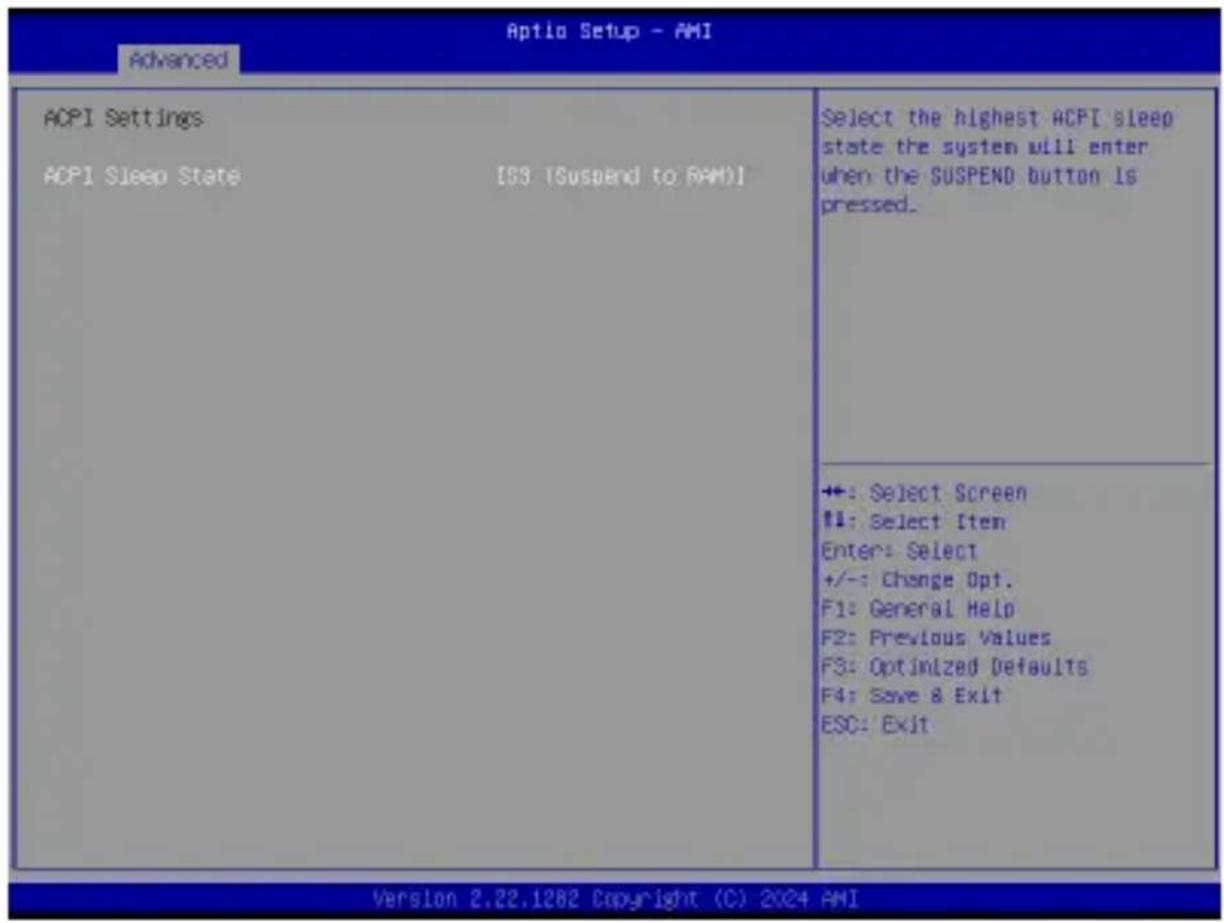

▶ ACPI Settings

This page provides items for ACPI configuration.

ACPI Sleep State [S3(Suspend to RAM)]

This item allows user to select the highest ACPI sleep state that the system will enter.

Press to return to the Advanced Menu page.

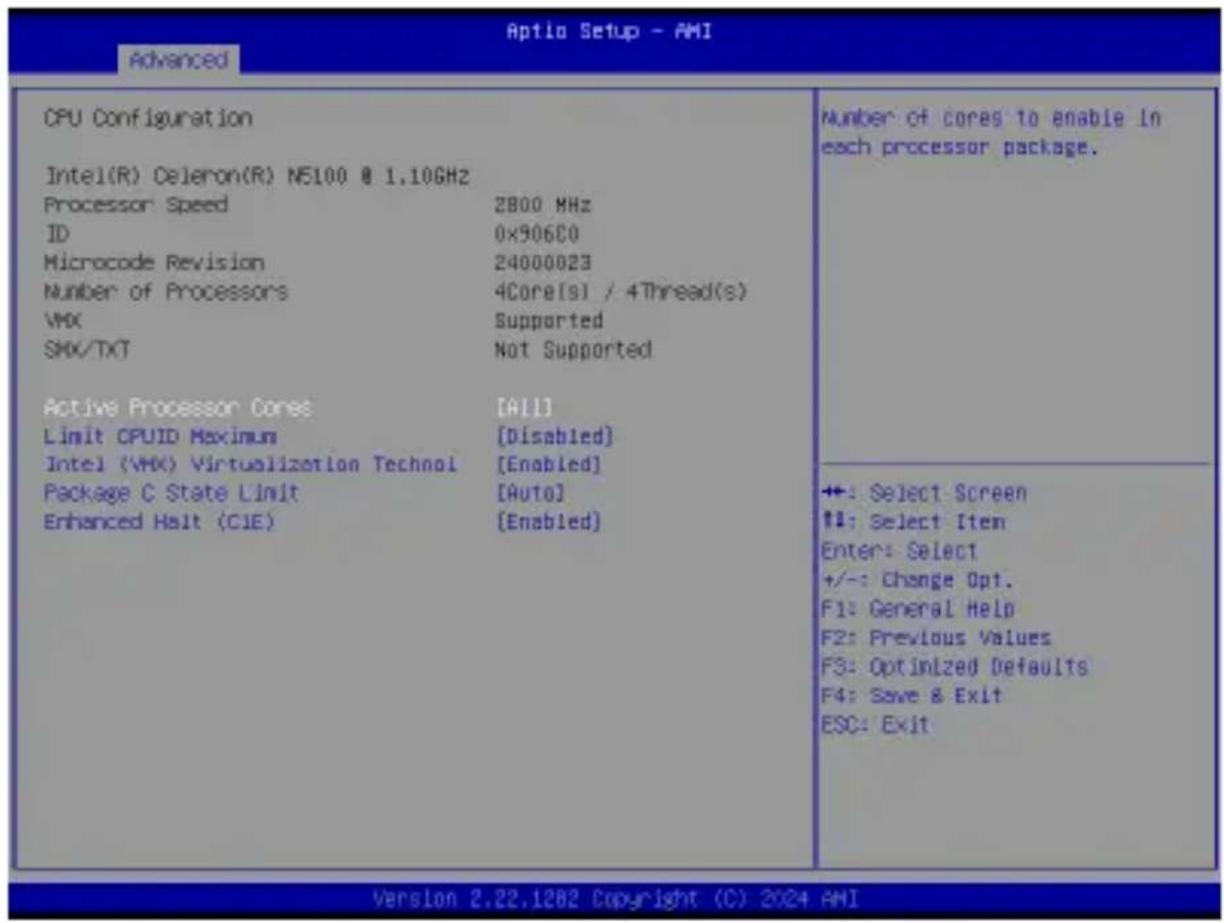

▶ CPU Configuration

The item in the menu shows the CPU Configuration.

Intel(R) Celeron(R) N5100 @ 1.10GHz

This item shows the information of the CPU type.

Processor Speed (2800MHz)

This item shows the current processor speed.

ID (0 x 906C0)

This item shows the rating vision of the processor.

Microcode Revision (24000023)

This item shows the revision of Microcode.

Number of Processors (4Core(s) / 4Thread(s))

This item shows the number of corn(s) and thread(s) of processors.

VMX (Supported)

This item shows your computer supports VMX or not.

SMX/TXT (Not Supported)

This items show your computer supports SMX/TXT or not.

Active Processor Cores (All)

This item is used to controll the active processor cores.

Use this item to enable or disable the maximum CPUID value limit, you can enable this item to prevent the system from “rebooting” when trying to install Windows NT 4.0.

Intel (VMX) Virtualization Technology (Enabled)

When enabled, a VMM can utilize the additional hardware capabilities provided by Vandor Pool Technology.

Package C State Limit (Auto)

Use this item to set the package C state limit.

Enhanced Halt (C1E) (Enabled)

Enable/Disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State.

Press to return to the Advanced Menu page.

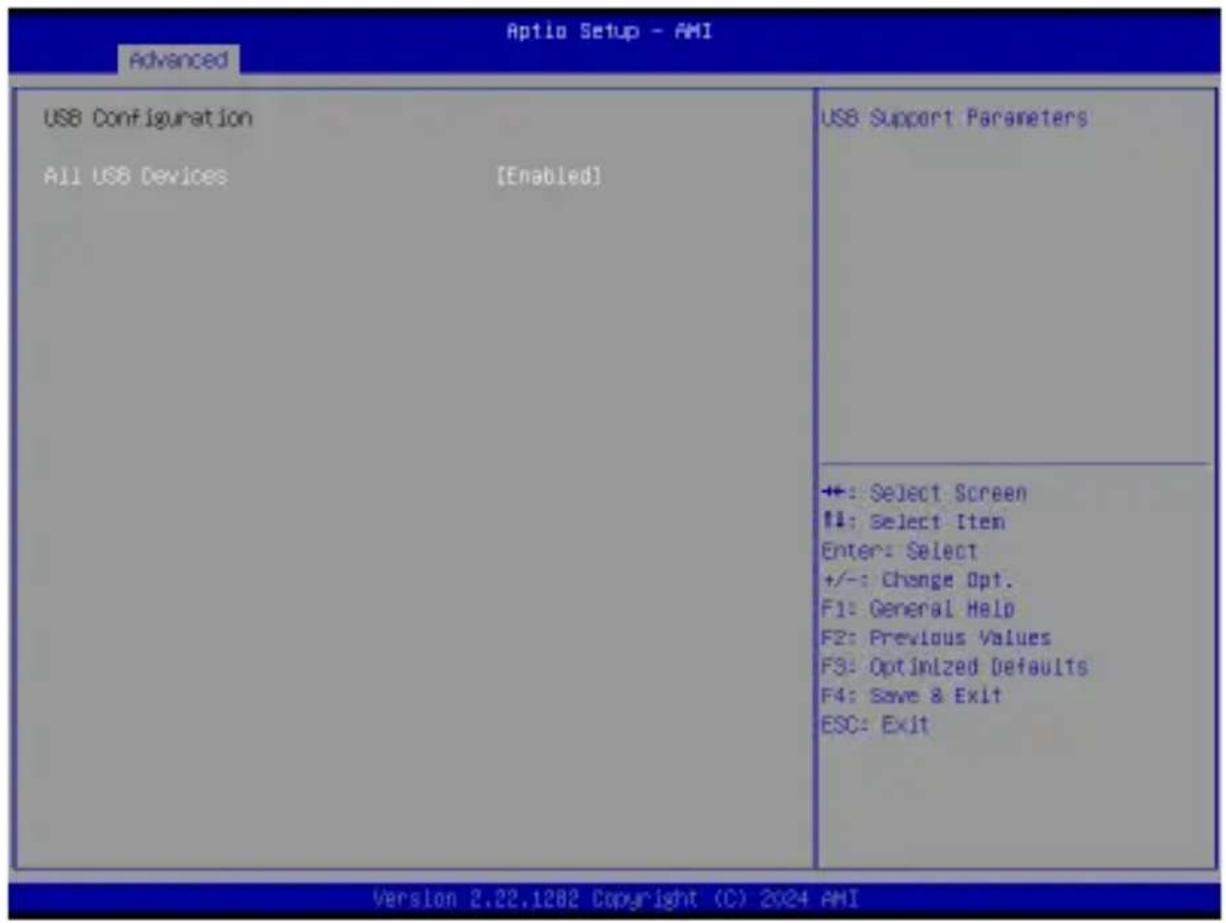

▶ USB Configuration

This page provides the configuration for USB devices.

All USB Devices (Enabled)

Use this item to enable or disable all USB devices.

Press to return to the Advanced Menu page.

▶ Super IO Configuration

Use this item to show the information of Super IO configuration.

Super 10 Configuration Super 10 Chip IT5571 EC Firmware Version 4.00 HDMI CEC Control	HDMI CEC Control
	++: Select Screen !!: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Super IO Chip (IT5571)

This item shows the information of the super IO chip.

EC Firmware Eersion (4.00)

This item shows the information of EC firmware version.

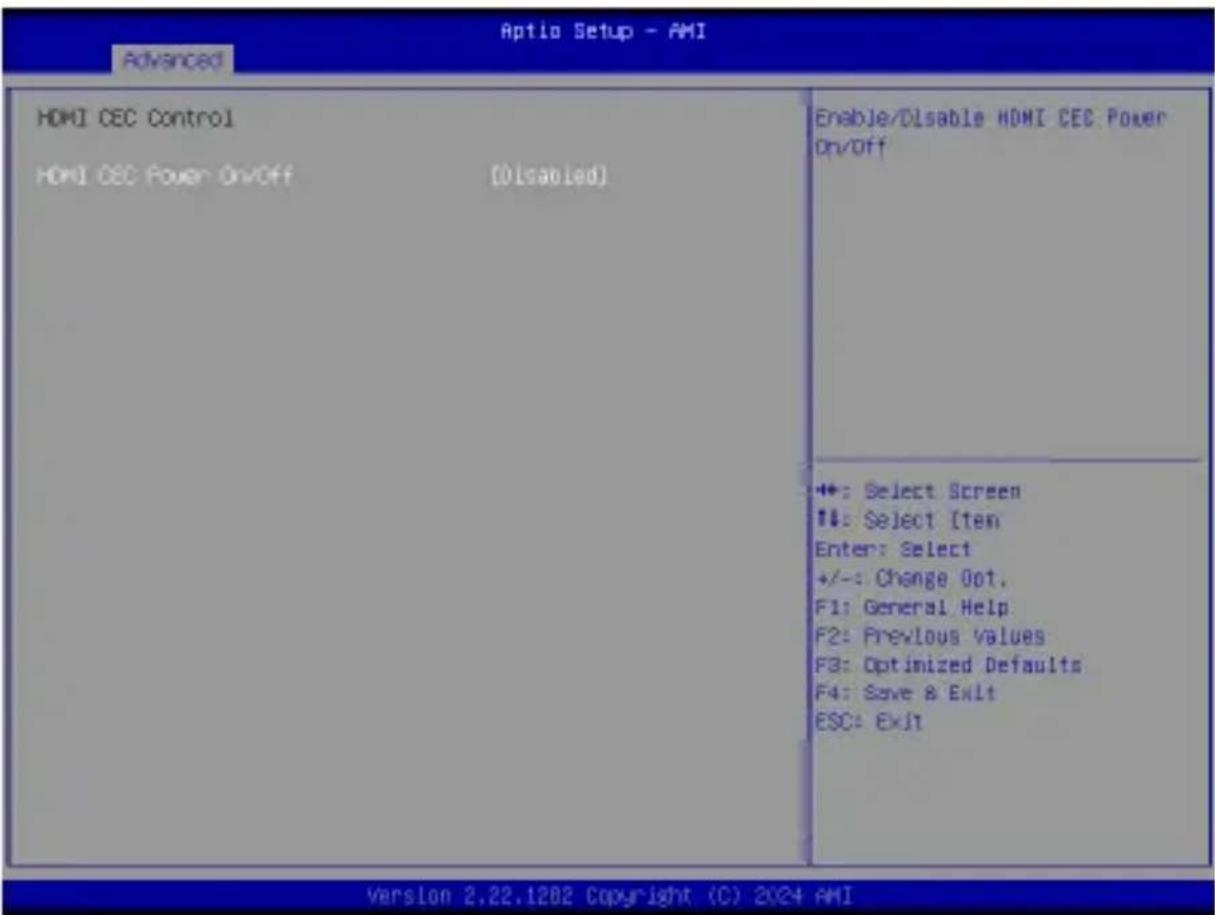

▶ HDMI CEC Control

Scroll to this item and press to view the following screen:

HDMI CEC Power On/Off

This item enables or disables HDMI CEC function.

Press to return to the Super IO Configuration page.

▶ eMMC Configuration

This page provides configuration for eMMC.

eMMC 5.1 Controller (Enabled)

This item enable or disable SCS eMMC 5.1 Controller.

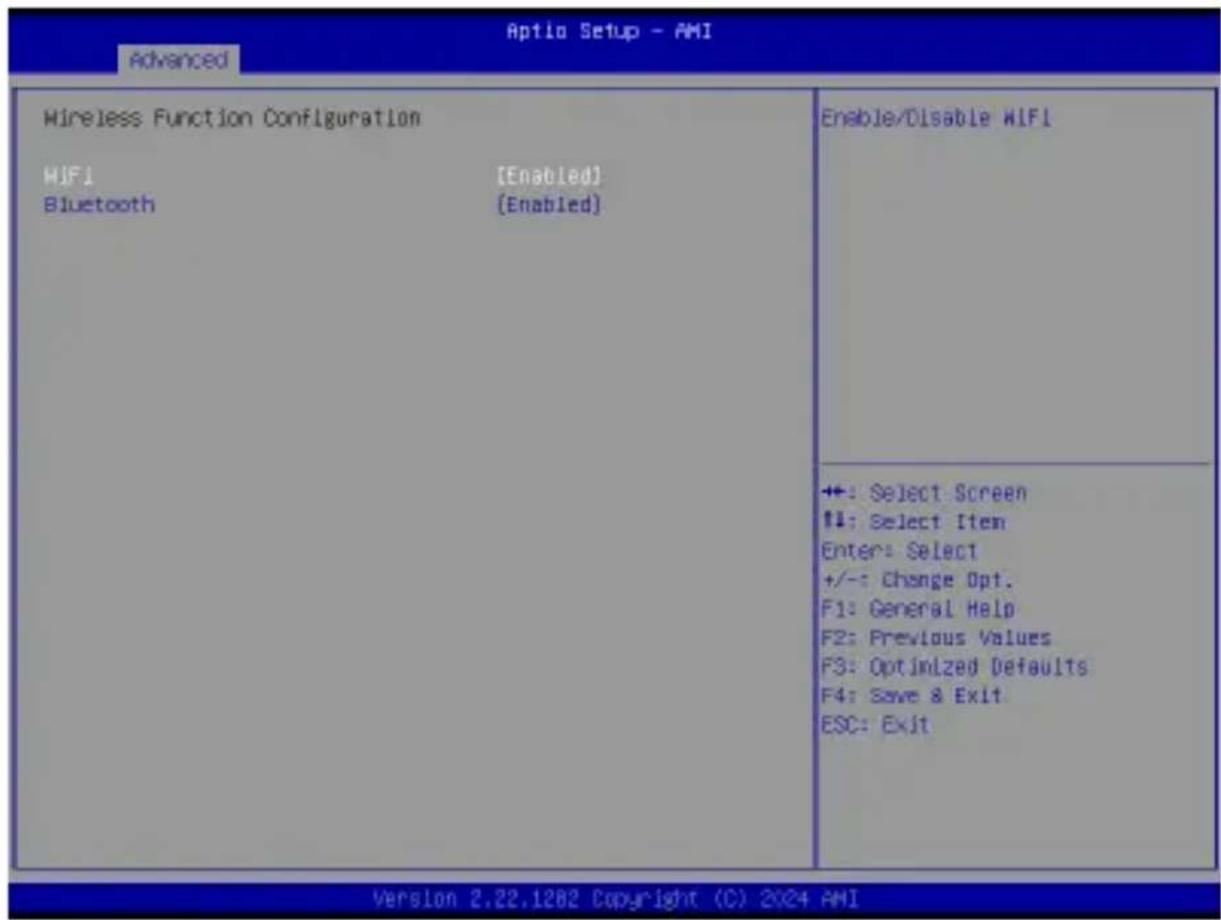

▶ Wireless Function Configuration

This page provides configuration for Wireless Function.

WiFi (Enabled)

This item allows you to enable or disable the WiFi device support.

Bluetooth (Enabled)

This item allows you to enable or disable the Bluetooth device support.

▶ Trusted Computing

This page provides configuration for Trusted Computing.

Aptio Setup - AMI Advanced
TPM 2.0 Device Found Firmware Version: Vendor:	500.10 INTC
TPM Support Active PCR banks Available PCR banks	[Enabled] SHA256 SHA256
SHA256 PCR Bank	[Enabled]
Pending operation Platform Hierarchy Storage Hierarchy Endorsement Hierarchy Physical Presence Spec Version TPM 2.0 InterfaceType	[None] [Enabled] [Enabled] [Enabled] [1.3] [CRB]
	Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INTiA Interface will not be available.
++: Select Screen #1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.22.1282 Copyright (C) 2024 AMI

Firmware Version (500.10)

This item shows the information of firmware version.

Vendor (INTC)

This item shows the information of TPM2.0 device found vendor.

TPM Support (Enabled)

This item allows you to enable or disable the security device support.

Active PCR banks (SHA256)

This item shows activated PCR banks.

Available PCR banks (SHA256)

This item shows available PCR banks.

SHA256 PCR Bank (Enabled)

Use this item to enable or disable the SHA256 PCR Bank.

Pending operation (None)

Schedule an Operation for the Security Device. NOTE: Your Computer will reboot during restart in order to change State of Security Device.

Platform Hierarchy (Enabled)

Use this item to enable or disable the Platform Hierarchy.

Storage Hierarchy (Enabled)

Use this item to enable or disable the Storage Hierarchy.

Endorsement Hierarchy (Enabled)

Use this item to enable or disable the Endorsement Hierarchy.

Physical Presence Spec Version (1.3)

Select to tell OS to support PPI Spec Version 1.2 or 1.3.

TPM 2.0 InterfaceType (CRB)

Select the Communication Interface to TPM 2.0 device.

Press to return to the Advanced Menu page.

Chipset Menu

The chipset menu items allow you to change the settings for the SoC chip and other system.

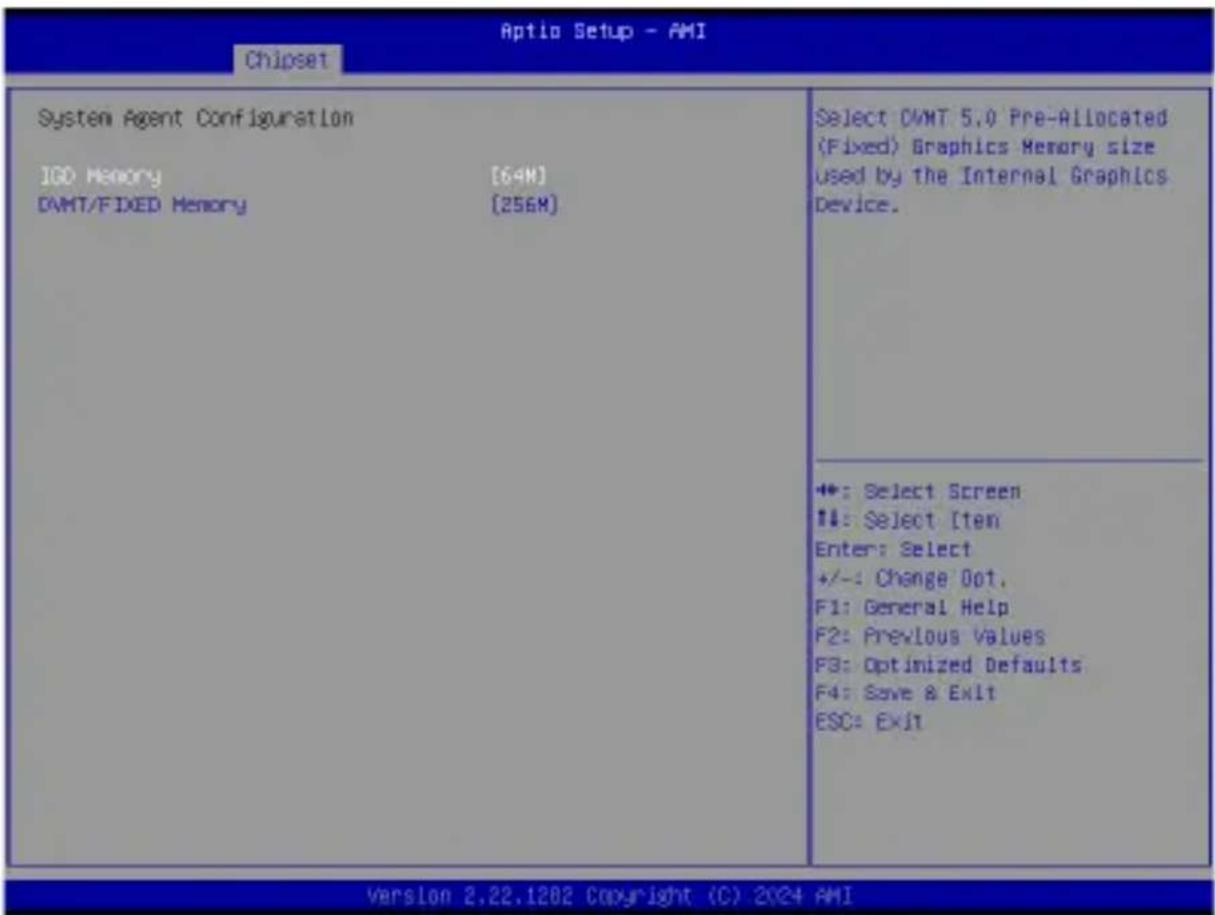

▶ System Agent Configuration

Scroll to this item and press and view the following screen:

IGD Memory (64M)

This item shows the information of the IGD (internal Graphic Device) memory.

DVMT/FIXED Memory (256M)

When set to DVMT Mode, the graphics chip will dynamically allocate system memory as graphics memory, according to system and graphics requirements.

Press to return to the Chipset Menu page.

▶ PCH Configuration

Scroll to this item and press and view the following screen:

Resotre AC Power Loss (Power Off)

This item enables your computer to automatically restart or return to its operating status.

HD Audio (Enabled)

This item enables or disables HD audio.

Press to return to the Chipset Menu page.

▶ ME Configuration

Scroll to this item and press and view the following screen:

Aptio Setup - AMI Chipset
Management Engine Technology Configuration HE Control [Enabled] TPM Device Selection [PTT] HE FW Version 13.50.20.1673	Enable/Disable ME Firmware
	++: Select Screen ##: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.22.1282 Copyright (C) 2024 AMI

ME Control (Enabled)

Use this item to enable or disable the ME control.

TPM Device Selection (PTT)

Use this item to select TPM device: PTT or dTPM. PTT-Enables PTT in SkuMgr. dTPM 1.2-Disables PTT in SkuMgr Warning! PTT/dTPM will be disabled and all data saved on it will be lost.

ME FW Version (13.50.20.1673)

This item shows the ME FW version.

Press to return to the Chipset Menu page.

Tweak Menu

This page enables you to set the clock speed and system bus for your system. The clock speed and system bus are determined by the kind of processor you have installed in your system.

Intel(R) Celeron(R) N5100 @ 1.10GHz

This item shows the information of the CPU type.

Processor Speed (2800 MHz)

This item shows the current processor speed.

Memory Speed (2933 MHz)

This item shows the memory speed.

This item shows the total memory.

EIST (Enabled)

This item allows you to enable or disable the EIST (Enhanced Intel SpeedStep Technology).

Turbo Mode (Enabled)

This item allows you to control the Intel Turbo Boost Technology.

Security Menu

This page enables you to configure system security settings.

System Mode sate (Setup)

This item shows system of secure boot (can be setup or user).

Secure Boot (Not Active)

This item shows the active state of secure boot.

Secure Boot (Enabled)

Use this item to enable or disable the secure boot.

Secure Boot Mode (Standard)

Use this item to enable or disable the secure boot mode.

Boot Menu

This page enables you to configure the system boot related parameters.

Boot Configuration Fast Boot [Disabled] Network Stack [Disabled] Bootup NumLock State [On] Quiet Boot [Enabled] Update System BIOS [Disabled]		Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.
FIXED BOOT ORDER Priorities Boot Option #1 [Hard Disk:Windows ...] Boot Option #2 [CD/DVD] Boot Option #3 [USB Floppy] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Hard Disk:UEFI...] Boot Option #6 [USB Key] Boot Option #7 [Network] Boot Option #8 [Other Device]		++: Select Screen ##: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
▶ UEFI Hard Disk Drive EBS Priorities ▶ UEFI USB Hard Disk Drive BBS Priorities

Quiet Boot (Enabled)

This item enables or disables the quiet boot.

Update System BIOS (Disabled)

This item enables or disables update the system BIOS.

Boot Option #1\~8

These items show the boot priorities and can be used to set the boot priorities of various device categories.

▶ UEFI Hard Disk Drive BBS Priorities

This item enables you to specify the sequence of loading the operating system from the installing UEFI Hard Disk drive. Press to view the submenu.

▶ UEFI USB Hard Disk Drive BBS Priorities

This item enables you to specify the sequence of loading the operating system from the installing USB Hard drive. Press to view the submenu.

Exit Menu

This page enables you to save, discard, or restore Setup Utility settings.

Main Advanced Chipset Tweak Security Boot Exit
Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset	Exit system setup after saving the changes.
Save Options Save Changes Discard Changes
Restore Defaults Save as User Defaults Restore User Defaults
Boot Override Windows Boot Manager (eMMC TY2964) UEFI: USB, Partition 1	++: Select Screen !!: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Exit

This item enables you to exit the system setup after saving the changes.

Discard Changes and Exit

This item enables you to exit the system setup without saving any changes.

Save Changes and Reset

This item enables you to reset the system setup after saving the changes.

Discard Changes and Reset

This item enables you to reset the system setup without saving any changes.

Save Options

This item enables you to save the options that you have made.

Save Changes

This item enables you to save the changes that you have made.

Discard Changes

This item enables you to discard any change that you have made.

Restore Defaults

This item enables you to restore the system defaults.

Save as User Defaults

This item enables you to save the changes that you have made as user defaults.

This item enables you to restore the user defaults.

Boot Override

Use this item to select the boot device.

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer's Website. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer's Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer. (You might need to run the Setup Utility and change the boot priority items on the Advanced BIOS Features Setup page, to force your computer to boot from the bootable device first.)

6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file name of the new BIOS and then press . Example: AFUDOS.EXE 040706.ROM
7 When the installation is complete, remove the bootable device from the computer and restart your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the newly installed BIOS from being overwritten. The computer will restart automatically.
