Product Type	Built-in Electric Oven
Model	Lofra FDS66TE
Number of Functions	6 (Conventional, Even Cooking, Grill, Grill with Fan, Bottom Heat, Oven Light)
Oven Capacity	70 Liters
Total Power	2.6 kW (LEDA 6F variant)
Upper Resistance Power	900 W
Bottom Resistance Power	1,650 W
Grill Resistance Power	1,500 W
Circular Resistance Power (Fan)	2,000 W (for 9-function models)
Power Supply	220-240 V ~ 50/60 Hz
Installation Width	600 mm (standard housing unit)
Oven Door Type	Removable with hinge locking mechanism
Lighting	Oven light (12V, 5W, G4 bulb)
Grill Function	Including mini and maxi grill options (on 9-function models)
Fan Assisted Cooking	Yes, with forced air circulation
Telescopic Guides	Yes, for easy access to racks
Anti-Fall Device	Yes, on trays to prevent accidental full extraction
Rotisserie	Available (mounting mechanism included)
Cleaning Recommendation	Manual cleaning with damp cloth; avoid abrasive cleaners; oven door removable for thorough cleaning
Safety Features	Automatic shut-off when door open? Not specified; child safety advice
Energy Saving Advice	Pre-heat 10-15 min; turn off 10 min before end to use residual heat
Warranty	In accordance with EU Directive 1999/44/CE
User Manual Languages	English, Italian, and others available on request

Frequently Asked Questions - FDS66TE LOFRA

How do I set the cooking time on my Lofra FDS66TE oven?

Turn the timer knob (labeled 'C') counterclockwise until it points to the bell symbol for continuous operation. To set a specific cooking time, turn the knob to the desired minutes (0-120). The oven will automatically shut off when the time elapses.

What is the difference between conventional and fan-assisted cooking?

Conventional cooking uses top and bottom heating elements for even heat distribution, ideal for pastries and roasts. Fan-assisted cooking uses a circular resistance and a fan to circulate hot air, resulting in faster cooking at temperatures 10-20°C lower, and allows cooking multiple dishes simultaneously without flavor transfer.

How do I clean the oven door?

First, remove the oven door by following the instructions in the manual (open door, insert pin in hinge hole, close slightly, then lift door off). For inner glass cleaning, remove the upper border with a screwdriver and slide out the glass panels. Clean with warm water and neutral detergent, then dry thoroughly. Do not soak the door in water.

Can I use the grill function with the door open?

No, the oven door must remain closed during grilling. Accessible parts become very hot. Pre-heat the grill for about 5 minutes with the door shut before placing food inside.

What should I do if the oven light stops working?

Disconnect the oven from the power supply. Open the door, pull down the protective glass near the fixing screw, and replace the bulb with a 12V, 5W, G4, T250°C bulb. Reattach the protective glass.

How do I install the rotisserie?

Attach the threaded bushings to the tray, place the skewer through the holes, and mount the tray on the rotisserie grill upside down on the bottom shelf. Ensure the mechanism is secure before use.

Why does my oven produce smoke or smell during first use?

This is normal. Before first use, heat the empty oven at maximum temperature for about an hour to burn off residual oils and adhesives from manufacturing. Ventilate the room during this process.

What is the recommended temperature for baking cakes?

For conventional cooking, typically 160-180°C. For fan-assisted, reduce by 10-20°C. Refer to the cooking chart in your manual for specific recipes and times.

How do I access the electrical components for maintenance?

Disconnect the oven from the mains. For rear/upper components (lamp holder, cable, resistances), remove the back or upper protection panel by unscrewing side screws. For dashboard components (keypad, programmer), remove knobs and side screws, then pull the dashboard vertically and towards you.

How can I save energy while using the oven?

Pre-heat for only 10-15 minutes, choose appropriate temperatures, check door seal integrity regularly, and turn off the oven 10 minutes before the end of cooking to use residual heat. Also, cook multiple dishes at once using fan-assisted mode.

USER MANUAL FDS66TE LOFRA

1. FRONT PANEL
2. VENTILATORE
3. GUIDE TELESCOPICHE
4. GRIGLIE DI INSERIMENTO
5. SPORTELLO DEL FORNO

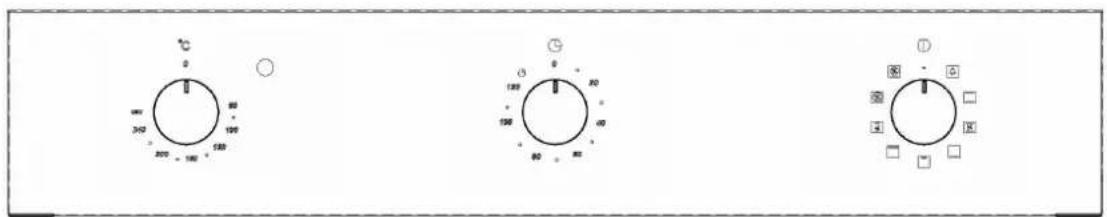

6 funzioni

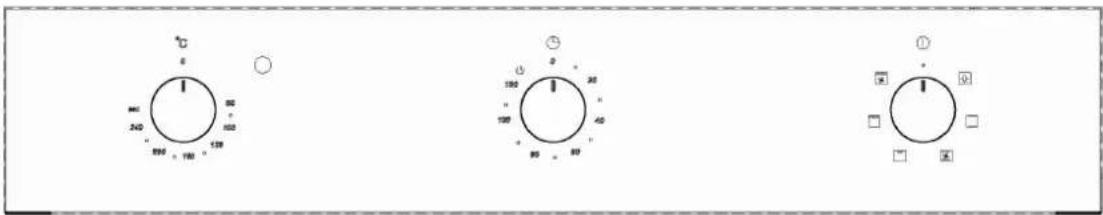

9 funzioni

INDICE ARGOMENTI

AVVERTENZE PER LA VOSTRA SICUREZZA E CONSIGLI.....4

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

2.2 ACCESSO AI COMPONENTI ELETTRICI

Diagram of a refrigerator with labeled component (C), no text or symbols present

Close-up of a mechanical component with labeled point A, showing internal wiring and a tool (no readable text or symbols)

Close-up of a transparent glass table with a metallic handle and a small metallic object on top (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

1. FRONT PANEL
2. AIR FAN
3. TELESCOPIC GUIDES
4. RAIL POSITIONS
5. OVEN DOOR

6 funzioni

9 funzioni

WARRANTY :

Lofra guarantees the quality of its products sold and their proper operation in normal conditions of use for the period of the warranty, which shall be in accordance with and comply with the rights of consumers under the provisions of EU Council Directive 1999/44/CE. Conditions are reported in a pamphlet apart. Warranty does not apply to the product which has been damaged or defaced, subject to any type of damage derived from improper voltage or other misuse, abnormal service or handling and alterations or modifications in design.

INDEX

SAFETY INSTRUCTIONS AND SUGGESTIONS ...... 21

1. INSTALLATION......25

1.1 CHOOSING A LOCATION FOR YOUR OVEN 25
1.2 ELECTRICAL CONNECTION 26

2. MAINTENANCE ...... 27

2.1 SUPPLY CABLE 27
2.2 ACCESS TO THE ELECTRICAL COMPONENTS......27
2.3 OVEN DOOR REMOVAL....27
2.4 REPLACEMENT OF THE LIGHT BULB 28

3. HOW TO USE YOUR OVEN 28

3.1 GRILL 28
3.2 HOW TO USE MULTIFUNCTION OVENS 28

4. CLEANING AND CARE 32

5. ADVICE ON ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT 33

TECHNICAL SPECIFICATIONS....34

Lofra reserves the right to modify the product without any notice.

SAFETY INSTRUCTIONS AND SUGGESTIONS

Please read the entire service manual before installing and using the oven.

• This appliance has been specifically designed for domestic use only.
• These instructions are specific for the country of destination indicated on the label inside the oven.

IMPORTANT!

Installation, regulations, alterations and maintenance procedures must be done by qualified personnel only in accordance to this manual and laws in force. The company will not be liable for any type of damage derived from improper voltage or other misuse, abnormal service or handling and alterations or modifications in design.

• Technical specifications Information regarding the model can be obtained from the technical data
plate on the appliance or by consulting the charts.

- When obtaining service be sure to show the technician, along with the warranty, the

document stating the date of purchase or the date of delivery.

Prior to proceeding with any kind of alteration or maintenance be sure to unplug the oven from the mains. In case the replacement of parts/accessories is needed use original replacement parts by Lofra only. Trust qualified personnel only.

• It’s recommended to save this instruction manual for future reference and have the appliance checked yearly by the service centre.
• Be sure to remove the protective film which may cover some parts of the oven (steel, aluminium, enamelled,...) prior to use. It's recommended to proceed with the removal of the film very carefully to avoid any damage to the protected parts.
• It’s recommended to disconnect the oven before cleaning it. Clean the oven using tepid water and a neutral detergent; rinse well using a damp cloth. Wash the oven’s accessories separately in a dishwasher or by using tepid water and a neutral detergent; dry them with a soft cloth.

- Before using the oven for the first time it's recommended to turn it on to the maximum temperature and leave it to heat for an hour. During this period there may be some smell and smoke due to the oven's thermal insulation adhesives and oils. It is recommended to leave a window open for the air to circulate.

When using the oven its surfaces will get hot: always keep children and people with learning disabilities at a safe distance and avoid letting them operate the oven.

This appliance is not intended for use by person (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Warning: Accessible parts may become hot during use. Young children should be kept away.

⚠️ Don not sit on top of the oven door or place heavy objects on it, it could cause serious damage to the hinges.

If oil and fat are frequently used at high temperatures it's recommended to have the oven checked periodically to ensure that eventual squirts don't catch fire.

To avoid any damage to the internal enamel refrain from using the bottom part of the oven for cooking.

Don’t dispose of the packaging, accessories or anything else inherent to the appliance in the environment.

Use the appropriate bins in accordance to the laws in force.

In case you notice an abnormal cooking temperature have the oven checked by a qualified technician, who will proceed with the replacement of the thermostat as necessary.

☐ Stationary appliances not fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III, the instructions state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules

• Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock (see “Replacing the light bulb”)
  • To clean the appliance, refer to the corresponding chapter in this manual.

This instruction manual is also available on the website www.lofra.it

1. INSTALLATION

Installation, regulation, transformation and maintenance procedures must be done by qualified personnel in accordance to this manual and laws in force. The company will not be liable for any type of damage derived from improper voltage or other misuse, abnormal service or handling and alterations or modifications in design or construction..

This appliance has been designed to be fitted in a standard housing unit of about 600mm in width. The housing unit and the adjacent furniture must be able of withstanding heat up to 150^ C. Additionally, make sure the adjacent furniture's doors don't interfere with the oven.

WARNING

- Check that the electrical system meets the requirements shown on the data plate of the appliance.

1.1 CHOOSING A LOCATION FOR YOUR OVEN

The unit can be fitted either underneath a work surface or in a column unit.

Fitting measurements are shown in the pictures below..

Ovens door need to be fitted using 4 screws

Don't lever against the oven door during the installation process.

Put the oven inside the furniture and open the door.

Insert four self-threading burnished screws for wood with washer salvo-enamel edge in four holes of diameter 9mm from the front.

Close the oven door.

1.2 ELECTRICAL CONNECTION

Connection to the electrical system must be done using the oven's cable. Do not position the cable on parts of the oven which get to a temperature above 50C room temperature (top and sides); it's recommended to use a plug which complies with the CEE regulations in force. If the appliance is directly connected to the mains electricity supply or if the plug is not accessible after installation, an omni polar cut-out device (with a contacts gap of at least 3mm) must be fitted in an accessible area to the user.

Use the yellow-green cable for earthing. If the cable is not long enough, replace it with a cable at least as thick as required in the chart.

The company does not accept any liability for accidents derived from faulty or inexistent earthing.

2. MAINTENANCE

WARNING :

Prior to proceeding with any kind of maintenance or alteration be sure to disconnect the oven from the electricity system, either by using the appropriate switch or by unplugging the plug from the mains. In case some accessories and/or parts of the oven need to be replaced, use replacement parts by Lofra only.

2.1 SUPPLY CABLE

In case replacement of the supply cable is needed; leave enough cable length to facilitate maintenance; the earth cable (yellow-green) must be at least 2cm longer than the other two.

This expedient ensures electrical safety in case the supply cable is accidentally damaged. Refer to the chart for the cable's specifications.

Simple line drawing of a vertical pole with a base and a circular symbol labeled B (no text or symbols present)

2.2 ACCESS TO THE ELECTRICAL COMPONENTS

Technical line drawing of a mechanical device with labeled component C (no text or symbols beyond label)

In order to proceed with maintenance/replacement of the electrical components situated at the back or on the upper part of the oven (i.e. lamp holder, roasting jack, supply cable, A.E. generator, resistances) remove the back or upper protection panel, respectively, by unscrewing the screws that fasten them to the sides.

In case maintenance/replacement is needed for the components situated behind the dashboard (i.e. keypad,

programmer,...) remove the dashboard along with the upper panel; this is done by removing the knobs and unscrewing the screws on the two sides of the dashboard. At this point simultaneously pull the dashboard vertically and towards you.

To re-attach the panels/dashboard reverse the directions.

2.3 OVEN DOOR REMOVAL

Open completely the oven door, put in the apposite hinge hole a pin block-movement of rotation (A) as indicated in the picture. Catch the door at sides and close it slowly until You feel a sort of resistance, at this moment lift up the door in order to free the hinge dap from the oven body and to take it off.

For the assembly carry out vice versa the indications above described paying attention the hinge hole is put in its own seat.

Close-up of a mechanical component with labeled parts (A), showing internal wiring and a metallic clip (no readable text or symbols)

N.B. Attention, reassembling the windows, the writing "REFGLASS" must be read with the door open.

2.4 REPLACEMENT OF THE LIGHT BULB

Prior to replacing the light bulb disconnect the appliance from the power supply.

Open the oven door, pull down the protective glass from the side of the fixing screw, replace the bulb (12V – T 250°C – G4 – 5W) and fit the protective glass back on.

3. HOW TO USE YOUR OVEN

3.1 GRILL

Place the food on top of the oven's grid.

Place the grid on the dripping pan and the put the food on top of it.

Select the desired function and temperature.

Pre-heat the grill resistance for about 5 minutes with the door shut.

Place the grid in the oven along with the dripping pan on shelf level 3 or 4 for flat types of food or on shelf level 1 or 2 for bigger quantities of food.

Close the oven door.

How to use the electric grill:

Turn the function knob clockwise on the desired grill cooking type and set the temperature to 200^ C on the programmer. The oven door has to remain shut.

WARNING: Accessible parts of the oven can become very hot while the grill is operating. Keep children at a safe distance.

3.2 HOW TO USE MULTIFUNCTION OVENS

Multifunction ovens are characterized by the fact that the heat can spread both in a natural way (conventional) or in a forced way (fan assisted).

CONVENTIONAL COOKING: The heat that warms the oven up is produced by the resistances placed on the upper and bottom part.

These resistances can work both individually or together. This method results in a more even cooking. The temperature is always kept constant by the thermostat in accordance to the selected temperature ranging from 50^ C and MAX. During this type of cooking humidity loss in the food is slow and even.

FAN ASSISTED COOKING: Heat is obtained by a forced flow of hot air inside the oven.

The air is warmed by a circular resistance adjacent to the fan. Its circulation is made possible by the fan which spreads it quickly and evenly.

This method guarantees a quicker cooking compared to the conventional one and with temperatures 10-20°C lower. The thermostat assures a constant temperature inside the oven.

Pre-heating of the oven is necessary only for pastry making, all other types of cooking do not require it. It's ideal to defrost foods or cook simultaneously more than one dish without altering the flavours.

This feature allows different types of cooking with separate regulation of the temperature

(ranging from 60^ C to MAX) by operating the function knob or the touch panels.

WARNING: On the ovens the chosen temperature is reached when the temperature indicator light (thermometer symbol) switches off.

The multiple function ovens are distinguished by the fact that the heat, inside the oven, can be spread naturally (convection) or forced (with the fan).

Thanks to this, by turning the selector to the desired function, 5 or 8 different types of cooking with separate temperature (thermostat knob) regulation are possible between 60 and MAX;

therefore even the most varied cooking requirements are satisfied.

Ovens with timer :

Ovens with this device allow uninterrupted manual working and programming the cooking time of the oven between 0 and 120 minutes.

Uninterrupted manual working: set the type of cooking and the oven temperature using the "F" and "T" knobs respectively, turn the timer knob "C" in an anti-clockwise direction until it coincides with the 🔊 symbol.

6 FUNCTIONS

1 Conventional oven.

The heat distributes evenly from the top and the bottom. Ideal for baking patries, cakes & biscuits and roasts. Recommended for cooking individual items.

2 Even cooking.

The heat emitted by the top and bottom heating elements is distributed by the fan for quick, even cooking, inside and out. Recommended for cooking individual items.

3 Grilling.

The heat is radiated in the oven. Ideal for grilling, toasting, browning, gratin dishes.

4 Grilling with fan-assisted oven.

The heat is radiated in the oven and evenly distributed by the fan. Ideal for grilling, toasting, browning, gratin dishes, etc. without the inside of the food drying out..

5 Cooking from below.

The heat distributes from the bottom to give cooked food a finishing touch.

6 Oven light

9 FUNCTIONS

1 Oven light

2 Conventional oven.

The heat distributes evenly from the top and the bottom. Ideal for baking

patries, cakes & biscuits and roasts. Recommended for cooking individual items.

3 Even cooking.

The heat emitted by the top and bottom heating elements is distributed by the fan for quick, even cooking, inside and out. Recommended for cooking individual items.

4 Cooking from below.

The heat distributes from the bottom to give cooked food a finishing touch.

5 Mini grill.

The heat is radiated in the oven. Ideal for grilling, toasting, browning, gratin dishes.

6 Maxi grill.

The heat is radiated in the oven. Ideal for grilling, toasting, browning, gratin dishes.

7 Mini grill with fan-assisted oven.

The heat is radiated in the oven and evenly distributed by the fan. Ideal for grilling, toasting, browning, gratin dishes, etc. without the inside of the food drying out.

8 Fan-assisted cooking

The heat is distributed by forced ventilation. Ideal for food that has to be well-cooked in the middle and not well-done on the outside. This cooking system enables you to cook three different dishes at the same time.

9 Cooking from below and Fan-assisted cooking

The heat is distributed by forced ventilation. Ideal for food that has to be well-cooked in the middle and not well-done on the outside.

3.5 TELESCOPIC GUIDES

Telescopic guides offer a higher stability to the oven's accessories. Placing the food on top of the grid or pan will be simpler and safer.

The grids and the pans must be secured correctly to the guide mechanism.

It is recommended to use oven gloves when the oven is operating.

3.6 RAY WITH ANTI-FALL DEVICE

The tray are equipped with safety system to prevent its extraction out of the oven.

Inserting check that the anti-fall device (see picture) is always in the back.

The tray are extracted from the oven only if raised before.

Technical line drawing of a mechanical cage or rack structure with an arrow indicating a component (no text or symbols present)

For insertion of the trays on the grid please follow the directions as per image, which can be positioned either at the top or bottom.

3.7 Mounting mechanism rotisserie

Attach the tray 4 threaded bushings with nuts. Place the media and the skewer through the holes of the bushings previously attached to the tray. Place the tray with the mechanism mounted on the rotisserie grill upside down as shown in the bottom shelf of the oven.

4. CLEANING AND CARE

Prior to cleaning the oven make sure it has cooled down and is unplugged from the mains. It is recommended to clean the oven after each use to prevent incrustation which may be difficult to remove and may damage the oven surfaces.

It is recommended to use a damp cloth or sponge to clean all the steel, enamel and glass parts as well as the control panel. Avoid using any kind of abrasive and corrosive substances which could scratch the materials.

To maintain the internal enamel shine clean those parts using tepid water and a neutral detergent, rinse well with a damp cloth; wash the accessories separately in the dishwasher or by using tepid water and a neutral detergent. The rail positions' guides can be removed by unscrewing the ring nuts G (refer to the image in chapter 3.6) allowing more accurate cleaning; to reattach the ring nuts insert the two lateral guides' extensions P in the F holes on the bottom of the oven, align the two anterior guides' eyelets to the screws on the flanks, fasten the guides to the ring nuts G; to simplify the cleaning process the oven door may be removed following the instructions given in chapter 2.3; don't soak the oven door in water; dry the oven and its accessories completely using a damp cloth. Don't clean the oven while it's still hot and do not use abrasive/corrosive substances.

WARNING: Do not use steam cleaners to clean the oven.

Do not allow alcaline or acid substances (i.e. VINEGAR, COFFEE, MILK, SALTED WATER, LEMON JUICE, TOMATO JUICE,...) to stay on enamelled surfaces for too long.

To clean the internal parts of the oven door remove the upper border with a screwdriver as shown in the picture and detach the glass from its guides. Proceed with maximum care.

FOR THE INNER CLEANING OF THE OVEN DOOR, REMOVE THE UPPER SECTIONS HELPING YOURSELF WITH A SCREWDRIVER, AS INDICATED IN THE PICTURE, UNTHREAD GLASSES FROM THE GUIDES. CARRY OUT THESE WORKINGS WITH EXTREME CAUTION AND PRECISION.

Close-up of a metallic mechanical component with a curved handle and a small metallic object on top (no visible text or symbols)

It recommends to carry out with extreme caution the inner cleaning of the oven upper part, paying special attention to not force temperature feeler. In case of damage it could happen oven misworking.

5. ADVICE ON ENERGY SAVING AND RESPECT FOR THE ENVIRONMENT

• Pre-heat the oven for 10-15 minutes prior to placing the food into it. Choose the appropriate temperature (refer to the Times and Temperatures chart).
• Periodically check the integrity of the oven door's basket.
• Turn the oven off 10 minutes before the scheduled end cooking time to take advantage of the thermal inertia..
• The packaging of the appliance must be taken to the allocated recycling areas
• The electrical appliance no longer in use must be taken to the appropriate rubbish collection area.

The presence of the following symbol means that the appliance is considered as a “new type of waste” an thus is subject to the separate collection of rubbish.

According to the art.13 of Legislative Decree 25 July 2005, n.151 “Carrying out Regulations 2002/95/CE, 2002/96/CE and 2003/108/CE, relative to reduction of dangerous substances using in electric and electronic devices, as well as to the getting rid of waste.

The symbol of rubbish skip indicated on the device or on the packing, shows that the product at the end of its life must be gathered separately respect the other waste. So the user must take the dead device to the right centres of differentiated collections of electric and electronic waste, or hand back it to the shopkeeper atb the moment of the purchase of a new equivalent device, in reason one by one. The right differentiated collection for the following starting of the removed device to recycling, to treatment and getting rid compatible with ambient helps in avoiding possible negative effects on ambient and on human health and favour the reusing and the recycle of the material's device.

The abusive getting rid of device by the user causes the application of administrative sanctions provided by the regulations in force.

TECHNICAL SPECIFICATIONS

Model	Vol. [lt]	Total power of the elements [Kw]	Upper resistance	Bottom resistance	Grill resistance	Circular resistance
LEDA 6F	70 26	00 W 900	W 1650 W	1500 W	-
LEDA 9F	70 35	00 W 900	W 1650 W	1500 W	2000 W

Sede Via Montegrotto, 125 – 35038 TORREGLIA (PADOVA) – ITALY

Tel.: [phone]

Telefax: [phone]
