BSTV2 - Flat Screen Mount SANUS - Free user manual and instructions

Product Type	Swivel TV Base
Brand	Sanus
Model	BSTV2
TV Size Compatibility	40 – 86 inches (diagonal)
Weight Capacity	125 lbs (56.6 kg) including accessories
Swivel	Yes
Tilt	Yes
Height Adjustment	Yes, via vertical bracket
Cable Management	Yes
Included Parts	TV brackets (horizontal & vertical), post, base, screws, spacers, lock screws
TV Screw Sizes Supplied	M6 and M8 (various lengths)
Installation Type	Floor-standing on furniture
Tools Required	Not included; typical screwdriver and level
Safety Features	Anti-tip warnings, weight limit compliance
Material	Steel
Manual Languages	English, Spanish (ES)

Frequently Asked Questions - BSTV2 SANUS

What is the maximum TV weight that the BSTV2 can support?

The maximum weight capacity is 125 lbs (56.6 kg) including any accessories. Exceeding this limit can cause instability and serious injury.

What TV sizes are compatible with the BSTV2?

This base supports TVs from 40 to 86 inches diagonal.

Does the BSTV2 allow swivel and tilt?

Yes, the base provides swivel (left/right rotation) and tilt (up/down angle) adjustment for optimal viewing.

How do I attach the TV brackets to the TV?

Select the correct screw diameter (M6 or M8) and length. Use spacers for round-back TVs or extra space. Hand-tighten screws only, do not use power tools. Ensure the vertical bracket is centered.

Are screws and hardware included?

Yes, the kit includes M6 and M8 screws in various lengths, washers, spacers, and lock screws. Not all hardware will be used.

How do I manage cables with this base?

The BSTV2 includes a cable management path to hide and organize wires, keeping your setup clean.

Can I adjust the height of the TV after installation?

Yes, the vertical bracket allows height adjustment before final tightening. Choose the desired height and secure with lock screws.

Is it safe to place the TV on a standard entertainment center?

The BSTV2 is designed to sit on a sturdy, flat surface. Always follow the safety warnings about tip-over risk, especially around children.

How do I remove the TV from the base?

To remove the TV, first disconnect cables, then remove the two lock screws securing the TV bracket assembly to the post. Lift the TV off carefully.

What tools are needed for installation?

You will need a screwdriver and a level (not included). Power tools are not recommended to avoid overtightening.

USER MANUAL BSTV2 SANUS

BSTV2

Swivel TV Base

INSTRUCTION MANUAL

Technical line drawing of a mechanical scale with measurement markings (no text or symbols)

WE'RE HERE TO HELP

Person sitting on a surface with a play button overlay (no text or symbols visible)

Want to watch a video that shows how easy this DIY project will be?

Watch it now at: SANUS.com/3088

Black-and-white photo of three men in a meeting or office setting, one wearing a headset and glasses (no visible text or symbols)

Our install experts are standing by to help.

Call us at: US: [phone]

Chat at: SANUS.com/chatSP

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ MANUAL PRIOR TO USE - SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

CAUTION: Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
⚠ WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the weight of the display (including accessories) does not exceed 125 lbs (56.6 kg). Use with heavier televisions may result in instability causing tip over resulting in death or serious injury!
⚠ WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
⚠ WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over onto the child.
⚠ WARNING: Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or overturning onto a child.
NOTE: This product supports TVs from 40 in. to 86 in. (diagonal).
NOTE: This product has no user serviceable parts.

Please read through these instructions completely to be sure you're comfortable with this easy install process. Also check your TV owner's manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (plus accessories) weighs MORE, this mount is NOT compatible.

Visit SANUS.com or call customer service to find a compatible mount.

Tools Needed

Dimensions

TV INTERFACE

3-D

HEIGHT ADJUSTMENT

TOP VIEW - SWIVEL

SIDE VIEW - EXTENDED

FULLY ASSEMBLED MOUNT

SIDE VIEW - TILT

SIDE VIEW - RETRACTED

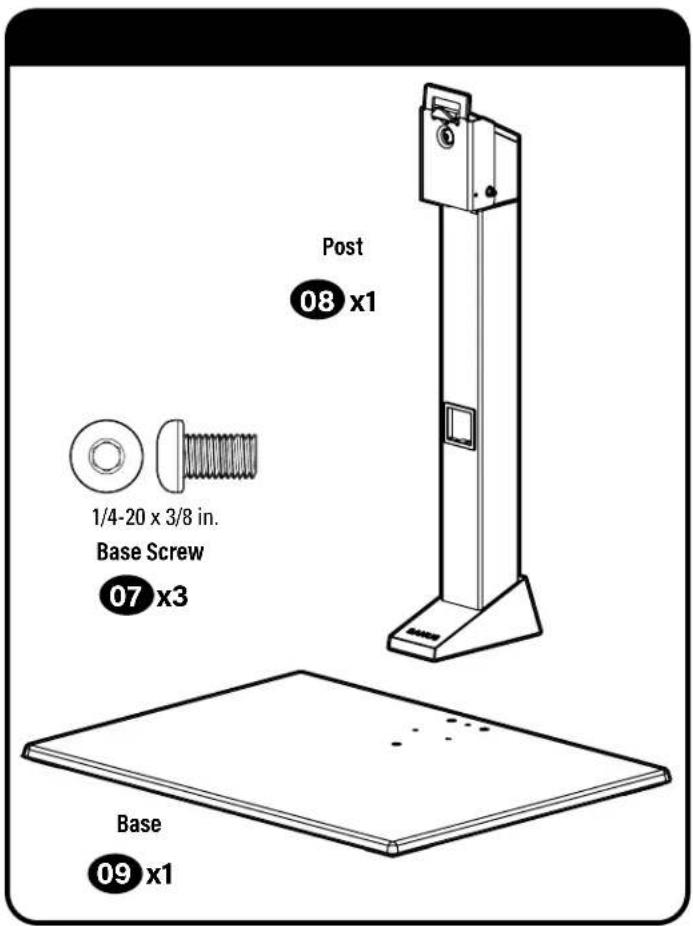

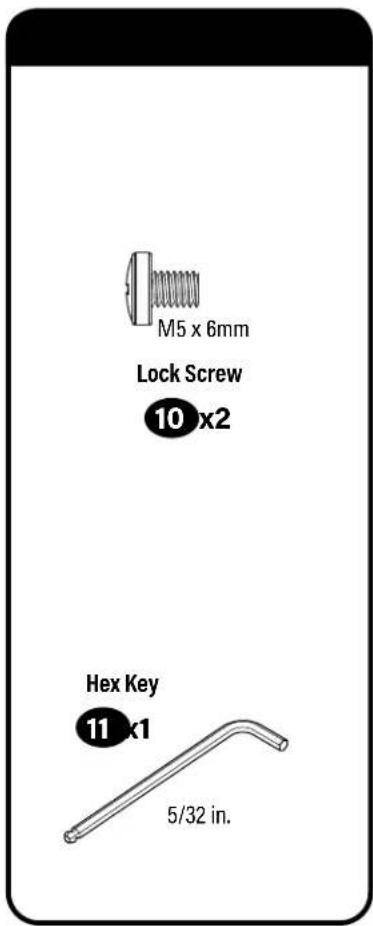

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

STEP 1

TV Screws

(qty. 4 each)

04

M6

M6 x 12mm

M8

M8 x 16mm

STEP 1 STEP 2 STEPS 2 and 3

STEP 1 Attach TV Brackets to TV

1.1 Select TV Screw Diameter

Test the three TV screw diameters (M6, or M8) in the threaded inserts on the back of your TV to determine which screw diameter fits your TV.

1.2 Select TV Screw Length

a: For flat-back TVs, no spacers 02 required.

b: Spacers 02 supplied for:

- Round (irregular) back TVs - Extra space needed (for cables or inset mounting holes)

CAUTION:

Verify adequate thread engagement with your screw/washer/spacer combination AND TV bracket.
- Too short will not hold the TV.
- Too long will damage the TV.

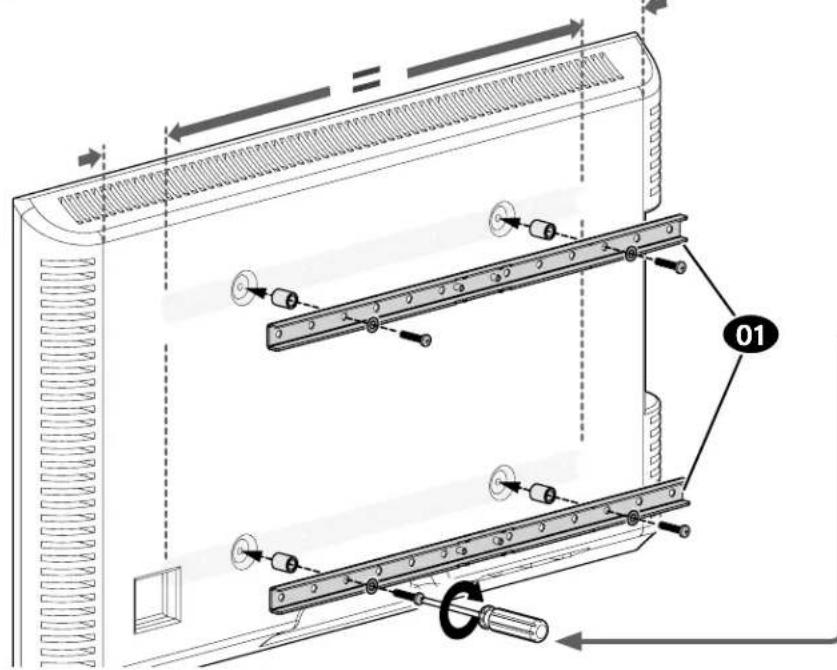

1.3 Attach Horizontal Brackets

Position your TV brackets 01 over your TV hole pattern - making sure the brackets are centered. Secure TV brackets 01 using your selection for screw/washer (a: Flat Back) or screw/washer/spacer (b: Round Back / Extra Space).

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV bracket to the TV. DO NOT overtighten the screws.
IMPORTANT: Ensure TV brackets are securely fastened before moving on to the next step.

1.4 Attach Vertical Bracket

Make sure the vertical height adjustment bracket 05 is CENTERED on the TV and secure using interface screws 06.

IMPORTANT: Ensure all brackets are securely fastened before moving on to the next step.

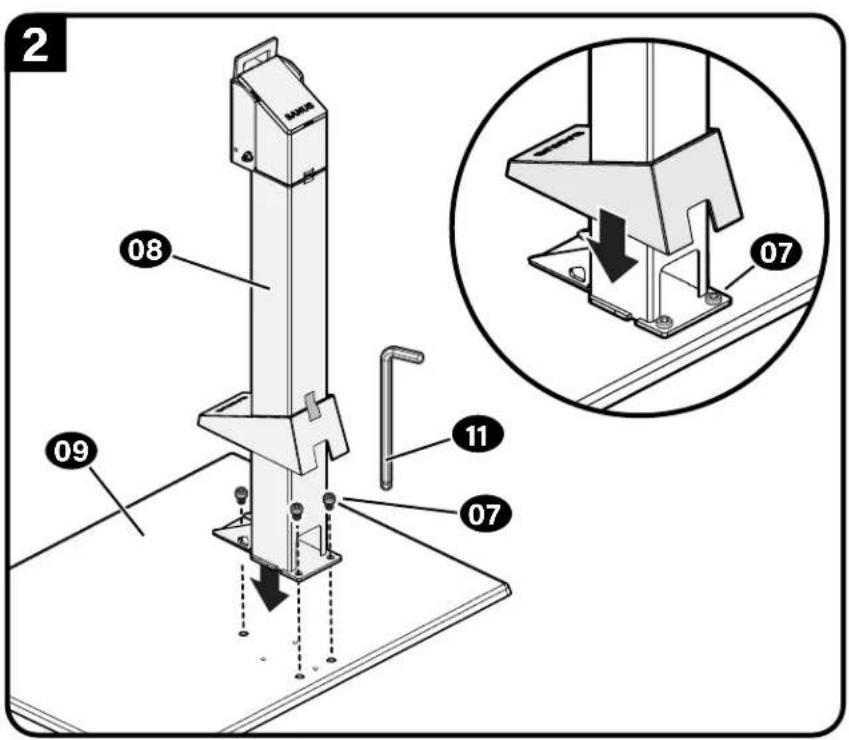

STEP 2 Attach Post to Base

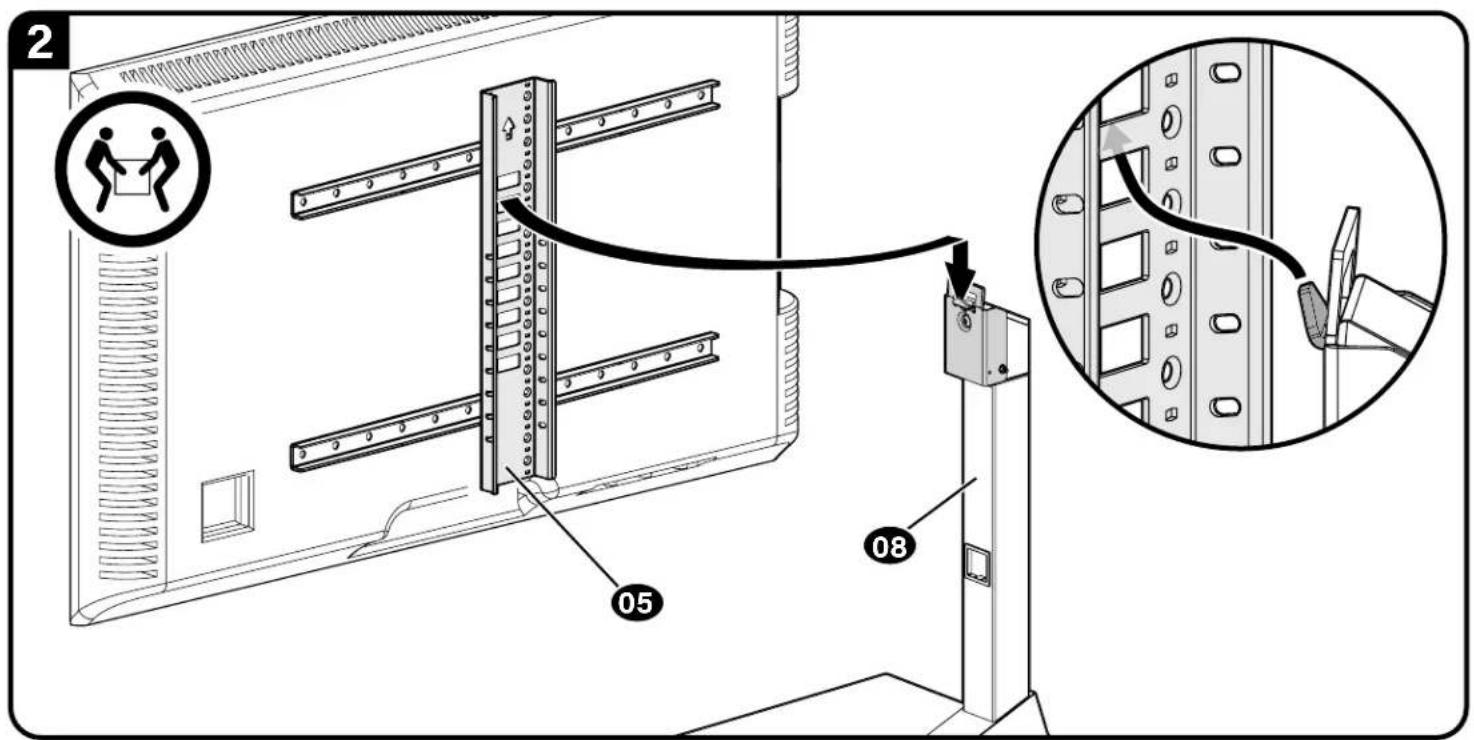

STEP 3 Attach TV to Post

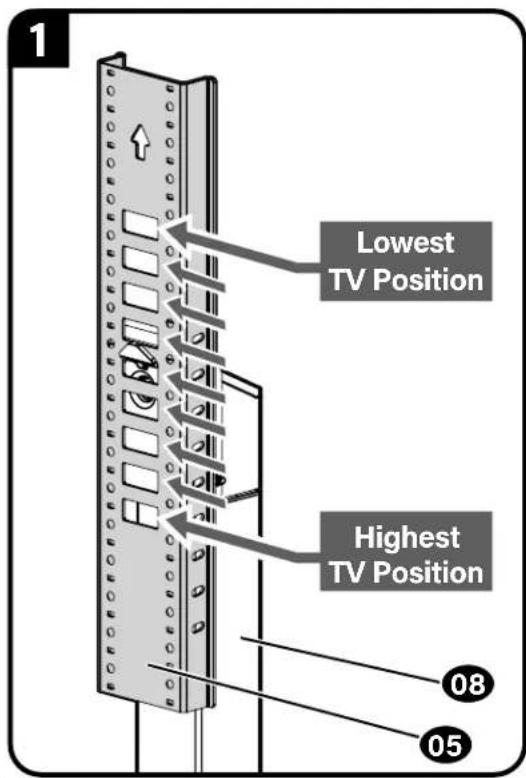

Determine the height from the base 08 that you would like your TV to hang.

Hang the TV/bracket assembly (at your desired height) onto the post 08.

NOTE: Leave enough space under your TV, for any accessories that you may want to place on the shelf.

Secure the TV/bracket assembly to post 08 with two lock screws 10

IMPORTANT: Keep the base clear while installing TV.
IMPORTANT: Ensure TV/bracket assembly is securely fastened to post 08 before moving on to the next step.

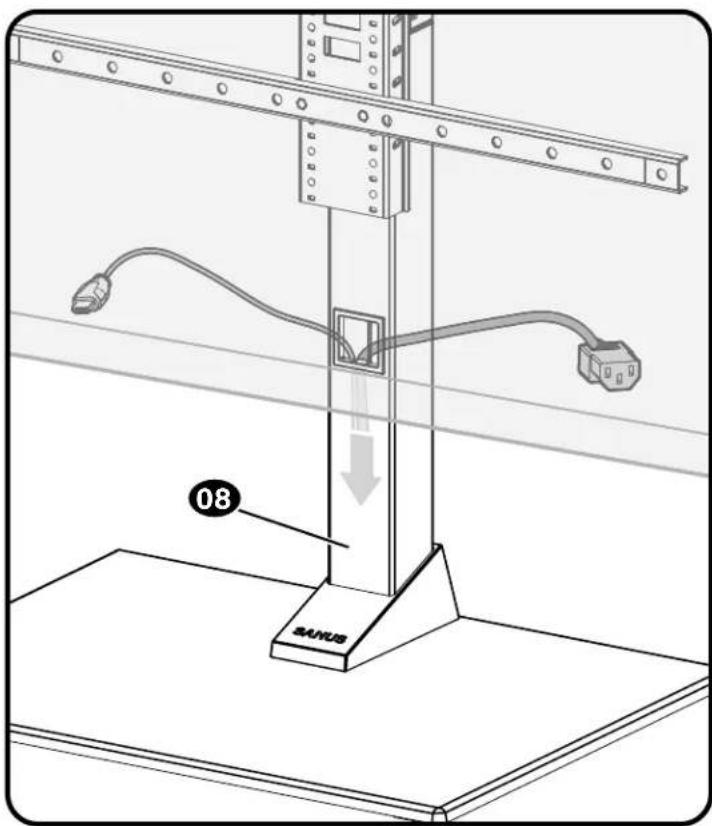

Cable Management

Adjustments

To Remove Your TV
