Accomplish 2 - Sewing machine BABY LOCK - Free user manual and instructions

Product Type	Sewing Machine
Brand	Baby Lock
Model	Accomplish 2
Dimensions (approx)	40 x 20 x 30 cm
Weight	6 kg
Power Supply	100-240V, 50/60Hz
Power Consumption	60W
Stitch Types	Built-in utility and decorative stitches
Sewing Speed	Up to 800 stitches per minute
Bobbin Type	Top drop-in, quick bobbin threading
Needle System	Standard household (130/705H)
Key Features	Automatic needle threader, bobbin winding clutch, tension adjustment, drop feed, presser foot lift
Maintenance	Clean lint from bobbin area; oil as recommended in manual
Safety Features	Finger guard, locking stitch mechanism
Spare Parts	Bobbins, needles, presser feet, light bulb (available from dealer)
Repairability	Authorized Baby Lock service centers

Frequently Asked Questions - Accomplish 2 BABY LOCK

How do I wind the bobbin?

Raise the thread antenna fully. Place thread spool on spool pin, pass thread through the first hole on antenna, then down through eyelet and around tension disk. Pass thread through bobbin winding thread guide, then through top notch on bobbin. Press bobbin winding clutch against bobbin, wind a few turns, trim excess, then continue until full. Push clutch back to original position.

How do I thread the needle?

Raise the take-up lever to highest position. Place thread on spool pin, pass through antenna holes and tension guides. Thread the take-up lever from right to left. Lower presser foot, use the automatic needle threader: pull down the threader, hook thread around and in front of needle eye, release to thread. Raise bobbin thread by turning handwheel.

How do I adjust thread tension?

Turn the tension dial on the front of the machine. Higher numbers increase tension (for thicker fabrics), lower numbers decrease tension (for thinner fabrics). Test on a scrap piece first. For balanced stitching, upper and lower tensions should match.

How do I change the needle?

Turn off machine. Loosen the needle clamp screw with the provided screwdriver. Remove old needle, insert new needle with flat side facing back (or as indicated). Tighten screw securely. Use correct needle type for fabric.

How do I clean the machine?

Unplug machine. Remove needle plate and clean lint from feed dogs and bobbin area with soft brush. Wipe exterior with damp cloth. Oil only as recommended in manual (typically after every 4-5 bobbin changes).

What bulb does the Accomplish 2 use?

It uses a standard sewing machine light bulb (typically 10-watt, screw base). Replace by removing the light cover, unscrewing old bulb, and screwing in a new one. Ensure power is off.

How do I select a stitch?

Use the stitch selection dial on the front of the machine. Turn to desired stitch pattern. Adjust stitch length and width if available. Always test on scrap fabric first.

Why does my machine skip stitches?

Common causes: bent or dull needle, incorrect needle type for fabric, improper threading, or tension too tight. Re-thread, change needle, and check tension. Also ensure presser foot is lowered.

How do I use the automatic needle threader?

Raise needle to highest position, lower presser foot. Pull the needle threader lever down, hook thread around the small hook and in front of needle eye. Release lever slowly; the thread will pass through eye. Pull thread tail out.

How do I lower the feed dogs?

Locate the feed dog drop lever on the side of the machine (usually behind a door). Slide the lever to lower the feed dogs for darning or free-motion quilting. Slide back to raise for normal sewing.

USER MANUAL Accomplish 2 BABY LOCK

Close-up of a hand operating a sewing machine needle with thread spools against a blue background (no text or symbols visible)

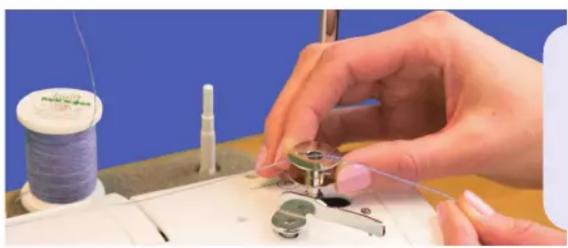

- Pull up the thread antenna to its highest position. Place the thread spool on the first spool pin. Pass the thread up through the first triangular hole on the antenna and then down through eyelet and around the tension disk.

1.

Close-up of hands operating a sewing machine with thread spools and thread, against a blue background (no text or symbols visible)

- Pass the thread through the bobbin winding thread guide as shown on the machine.

- Bring thread through the top thread notch on the bobbin. Position bobbin on post.

2.

Close-up of hands using a sewing machine to adjust metal components (no visible text or symbols)

- Press the bobbin winding clutch up against empty bobbin. Start winding the bobbin a few rotations, then stop and trim the extra thread next to the notch on the bobbin.

- Stop the winding process when the bobbin is full, then manually move the bobbin winding clutch back to its original position. Remove bobbin and cut the thread.

3.

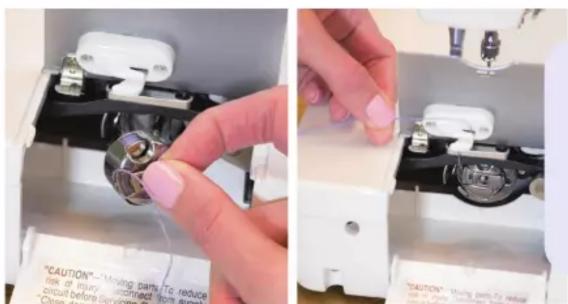

- To locate the bobbin case, raise the needle plate, lower the door and place the bobbin inside the bobbin case. Bobbin should be positioned so it winds to the left. Run the thread through the thread notch and under latch spring, so that a length of thread is exposed.

4.

- Pull latch lever to hold bobbin in place and return it to its original position.

- Pass thread through the quick bobbin threading device until the thread is cut.

5.

the needle

Close-up of hands tying a string on a white sewing machine (no text or symbols visible)

- Thread through antenna and eyelet as shown in directions. Thread the tension guide with thread from the top down, repeating until all three holes are threaded.

1.

Close-up of a sewing machine needle being adjusted, showing the needle being inserted (no text or symbols visible)

- Bring thread down and around the tension assembly, making sure to catch the tension spring before traveling up to the take-up lever.

2.

- Turn handlewheel counterclockwise, or toward you, to bring needle and take-up lever to the highest position. Thread take-up lever.

3.

Close-up of a sewing machine being adjusted for a hand, showing needle positioning and stitching details (no text or symbols visible)

- Lower the presser foot. Pull down the needle threader, bring the thread around the needle threader and in front of the eye of the needle.

4.

Close-up of a sewing machine needle stitching a metal sheet on a workbench, with no visible text or symbols.

- Bring up the bobbin thread by holding the needle thread and turning the hand wheel one full rotation towards you. The bobbin thread will loop around the needle thread. Pull the loop through to retrieve the bobbin thread.

5.
