Product Type	Lithium-Ion Battery Pack
Model Number	BPB022S
Brand	Arris
Cells	2-Cell
Voltage	8.4 V
Capacity	2200 mAh (2.2 Ah)
Charge Type	Standard Charge
Dimensions (H x W x D)	1.2 x 3.1 x 1.8 in (3.1 x 7.9 x 4.7 cm)
Weight	Approx. 0.2 lb (90 g)
Part Number (Single)	790513
Part Number (10-Pack)	718003
Compatible Models	TM602G, TM602v2, DTM602, TM604, WTM652, etc.
Hold-Up Time (TM602v2 Idle)	8 hours
Hold-Up Time (TM602v2 1 Line Off-Hook)	5 hours
Battery Life (Typical)	At least 5 years (warranted for 1 year)
Operating Temperature	Room temperature 72°F (22°C) recommended
Safety Features	Multiple protection mechanisms, safety qualification tested
Environmental Compliance	RoHS compliant, recyclable through Call2Recycle
Charging Time	Up to 72 hours for initial calibration
Replacement	Order from ARRIS battery website

Frequently Asked Questions - Touchstone BPB022S Arris

What is the Arris Touchstone BPB022S battery?

The Arris Touchstone BPB022S is a 2-cell Lithium-Ion battery pack designed for use with compatible Touchstone E-MTA devices to provide backup power for lifeline telephony during outages.

What are the dimensions and capacity of the BPB022S?

The BPB022S measures 1.2 x 3.1 x 1.8 inches (3.1 x 7.9 x 4.7 cm) and has a capacity of 2200 mAh (2.2 Ah) at 8.4V.

Which Arris Touchstone models are compatible with the BPB022S?

The BPB022S is compatible with models such as TM602G, TM602v2, DTM602, TM604, WTM652, and others listed in the battery reference table.

What is the typical hold-up time provided by the BPB022S?

Hold-up time varies by model. For example, in the TM602v2, it provides up to 8 hours idle or 5 hours with one line off-hook.

How long does it take to fully charge the BPB022S?

Initial charge and calibration can take up to 72 hours. The device repeats calibration after a full discharge or every 6 months.

How can I check the battery status of my BPB022S?

Access the device's HSD pages via a web browser and navigate to the CM State link. Look for Power Supply Telemetry and Battery Test State.

How do I properly dispose of or recycle the BPB022S battery?

Arris partners with Call2Recycle for proper battery recycling. Do not dispose of lithium-ion batteries in household waste. Visit call2recycle.org for drop-off locations.

What factors affect the battery's hold-up time?

Factors include battery age, number of charge/discharge cycles, and ambient temperature. Rated capacity assumes room temperature (72°F/22°C).

Can I use cordless phones during a power outage with the BPB022S?

No, cordless phones that require AC power will not work unless they have their own backup power. Only analog phones connected directly to the telephone jack are supported.

Where can I purchase a replacement BPB022S battery?

Replacement batteries can be ordered from the Arris battery website (shop.surfboard.com). The single part number is 790513 and the 10-pack is 718003.

USER MANUAL Touchstone BPB022S Arris

Setting the Standard for Battery Backup Solutions

ARRIS pioneered using Lithium-Ion (Li-Ion) battery technology in DOCSIS® compliant Touchstone® Embedded Multimedia Terminal Adapters (E-MTAs) in 2003. ARRIS battery back-up solutions optimize E-MTA performance for lifeline telephony, reduce risk through multiple protection mechanisms, and maximize battery life with proprietary low power designs. ARRIS superior battery technology ensures that all Touchstone battery-backed E-MTA products provide unsurpassed quality, safety, and value within the industry.

Lithium-Ion Technology Leadership

ARRIS battery packs come in 2, 4, 6, and 8-cell configurations. ARRIS maintains a comprehensive cell and pack qualification process, which includes safety qualification testing, electrical performance analysis, and rigorous manufacturing standards. With ARRIS batteries, Cable Operators can count on hours of dependable voice service during a local power outage.

Environmentally Friendly ARRIS "Green"

ARRIS is pleased to provide products that meet the Restriction of Hazardous Substances (RoHS) directive. Beyond the present directive to remove lead and other heavy metals, ARRIS has increased our focus by removing other environmentally impacting materials from the packaging, cables, and other accessories. Please contact your sales representative for more information.

In many areas, consumers are not allowed to dispose of lithium-based batteries as household waste. To minimize the inconvenience of recycling used batteries, ARRIS has partnered with Call2Recycle for proper disposal. For information about the battery recycling and disposal program, visit the Call2Recycle (http://www.call2recycle.org/) website.

Minimum 8-Hour Hold-up Time by Model

An 8-hour hold-up time means the device can support voice service for at least 8 hours. The actual talk time available is 5 hours. The following factors can affect hold-up time:

Battery age—most batteries have a service life (when the battery can provide the rated hold-up time) of at least 5 years. ARRIS warrants batteries for 1 year.
A high number of charge and discharge cycles—whether caused by frequent outages, or frequently disconnecting power (by unplugging the unit or putting it on a switched outlet) can reduce battery service life.
- Ambient temperature—rated capacity and service life assumes room temperature (72°F or 22°C). Lower temperatures may increase service life while reducing capacity, and higher temperatures may increase capacity while decreasing service life.

The following table shows the minimum battery size required to provide an 8-hour hold-up time for each listed model. The following conditions apply:

■ The battery is new.
■ The battery is fully charged.
The battery remains at room temperature: 72°F (22°C) at all times.

Model	Minimum Battery for 8-hour Hold-up Time
	Model #	Part # (single)	Part # (10-pack)
TM602G	BPB022S	790513	718003
TM604G	BPB044S	790512	718005
TM608G	BPB044S	790512	718005
WTM652G	BPB026S	794068	789699
TM722G	BPB044S	790512	718005
TM802G	BPB026S	794068	789699
TM804G	BPB026S	794068	789699
TM822G	BPB026S	794068	789699
TG852G	BPB026S	794068	789699
TG862G	BPB026S	794068	789699
TM1602G, TM3202G	BPB044S	790512	718005
TG1662G, TG1672G, TG1682G, TG2472G	BPB044S	790512	718005

When installing or replacing a battery in a Touchstone device, it typically takes up to 72 hours to calibrate and charge. The device repeats the calibration cycle:

■ After the battery has been totally depleted.

■ Approximately every 6 months, as part of routine battery maintenance.

On loss of AC power, all units shut down data services (WiFi, Ethernet, and USB as applicable) either immediately or after several minutes depending on model. If continued data service during an outage is required, use a UPS to maintain AC power.

While operating on battery power, the Touchstone® E-MTA supports analog telephones plugged into a telephone jack. However, cordless telephones or other phones that require AC power will not work unless powered by their own backup power source.

The following table provides detailed information about battery support and hold-up times per model for each supported battery type.

Model #	BPB022S	BPB026S	BPB044S	BPB044H	BPD066H	BPB088S	BPC088S	BPD088H
Part # (single)	790513	794068	790512	-	-	790514	-	802251
Part # (10-pack)	718003	789699	718005	722841	785170	721192	722842	785171
Capacity (Ah)	2.2	2.6	4.4	4.4	6.6	8.8	8.8	8.8
TM502
Idle	5	5	10	10	-	-	-	-
1 line off-hook	3	3	6	6	-	-	-	-
2 lines off-hook	2	2	4	4	-	-	-	-
TM504
Idle	4	4	8	-	-	16	-	-
1 line off-hook	3	3	6	-	-	12	-	-
2 lines off-hook	2	2	4	-	-	8	-	-
3 lines off-hook	1.75	1.75	3.5	-	-	7.5	-	-
4 lines off-hook	1.5	1.5	3	-	-	7	-	-
WTM552
Idle	5	5	10	-	-	-	-	-
1-line off-hook	3	3	6	-	-	-	-	-
2-lines off-hook	2	2	4	-	-	-	-	-
TM602v2
Idle	8	8	12	12	-	24	-	-
1-line off-hook	5	5	8	8	-	16	-	-
2-lines off -hook	4	4	6	6	-	13	-	-
DTM602
Idle	4	5	8	8	-	-	-	-
1-line off-hook	2.5	3	5	5	-	-	-	-
2-lines off-hook	1.5	2	4	4	-	-	-	-
TM604
Idle	6	7	12	12	-	24	-	-
1-line off-hook	4	5	8	8	-	16	-	-
2-lines off-hook	3.5	4.25	7	7	-	14	-	-
3-lines off-hook	3	3.5	6	6	-	12	-	-
4-lines off-hook	2.5	3	5	5	-	10	-	-
WTM652
Idle	6	8	12	12	-	-	-	-
1-line off-hook	3.75	5	7.75	7.75	-	-	-	-
2-lines off-hook	3	4	6	6	-	-	-	-
TM608
Idle	-	-	8	8	-	-	16	-
1-line off-hook	-	-	6	6	-	-	12	-
2-lines off-hook	-	-	4	4	-	-	8	-
3-lines off-hook	-	-	3.25	3.5	-	-	7	-
4-lines off-hook	-	-	2.75	3	-	-	5.5	-
TM722
Idle	4 4 8		^1	8^2	12^2	-- 16
1-line off-hook	3.25	3.5	6.5	6.5	9.75	-	-	13
2-lines off-hook	2.75	3	5.5	5.5	8.25	-	-	11
TM802
Idle	6	8	12	12	18	-	-	24
1-line off-hook	4	6	8	8	12	-	-	16
2-lines off-hook	3	4	6	6	10	-	-	14
TM822
Idle	6	8	12	12	18	-	-	24
1-line off-hook	4	6	8	8	12	-	-	16
2-lines off-hook	3	4	6	6	10	-	-	14
TM804
Idle	6	6	12	12	18	-	-	24
1-line off-hook	4	6	8	8	12	-	-	16
2-lines off-hook	3.5	3.5	7	7	10	-	-	14
3-lines off-hook	3	3	6	6	8	-	-	12
4-lines off-hook	2.5	2.5	5	5	6	-	-	10
TG852
Idle	6	8	12	12	-	-	-	-
1-line off-hook	4	6	8	8	-	-	-	-
2-lines off-hook	3	4	6	6	-	-	-	-
TG862
Idle 6 8 12 12 - -		-	-
1-line off-hook	4	6	8	8	-	-	-	-
2-lines off-hook	3	4	6	6	-	-	-	-
TM1602/TM3202
Idle 4 4 8	8 12 16		16 -
1-line off-hook	3	3	6	6	9	12	12	-
2-lines off-hook	2.5	2.5	5.5	5.5	8	10	10	-
TG1652/TG1662/TG1672/TG1682/TG2472
Idle	4	4	8	8	-	-	-	-
1-line off-hook	3	3	6	6	-	-	-	-
2-lines off-hook	2.5	2.5	5.5	5.5	-	-	-	-

Notes:

1. The BPB044S will function in the TM722, but only charges at the standard rate.
2. The BPB044H is a high charge 4-cell pack intended for the TM722; it charges at the standard rate in other models.

On loss of AC power, E-MTA units shut down data services (configurable; default 15 minutes or less, depending on the model).

"-" indicates battery not applicable or supported on this E-MTA model.

Getting Battery Information

Battery status information is available on the Touchstone device's Registration Status Screen. To access this screen:

1. Access the HSD pages as follows:

Gateway devices: Using a web browser, access http://192.168.0.1/ and click the HSD tab at the top of the page.
- Other devices: Using a web browser, access http://192.168.100.1/ You may have to manually adjust your computer's IP address to (for example) 192.168.100.6 to access the HSD pages.

1. Click the CM State link below the ARRIS banner.
2. Scroll down, if necessary, to see the Power Supply Telemetry and Battery Test State information at the bottom of the page. The expected states are:

• Power Supply Telemetry: TELEMETRY NORMAL

● Battery Test State: Not Currently Under Battery Test

The latest version of your Touchstone guide should list all telemetry and test states. Download a guide from ARRIS documentation (http://www.arris.com/support/guides/).

Ordering Information

To order upgraded or replacement batteries, visit the ARRIS battery website (http://shop.surfboard.com/).

Model Number	Description	Part # (single)	Part # (10-pack)
BPB022S	Touchstone Li-Ion Battery Pack, 2-Cell, 8.4V, 2200 mAH, Standard Charge	790513 718003
BPB026S	Touchstone Li-ion Battery Pack, 2-Cell, 8.4 V, 2600 mAH, Standard Charge	794068 789699
BPB044S	Touchstone Li-Ion Battery Pack, 4-Cell, 8.4V, 4400 mAH, Standard Charge	790512 718005
BPB044H	Touchstone Li-Ion Battery Pack, 4-Cell, 8.4V, 4400 mAH, High Charge	- 722841
BPD066H	Touchstone Li-Ion Battery Pack, 6-Cell, 8.4V, 6600 mAH, High Charge	- 785170
BPB088S	Touchstone Li-Ion Battery Pack, 8-Cell, 8.4V, 8800 mAH, Standard Charge	790514 721192
BPC088S	Touchstone Li-Ion Battery Pack, 8-Cell, 8.4V, 8800 mAH, Standard Charge	- 722842
BPD088H	Touchstone Li-Ion Battery Pack, 8-Cell, 8.4V, 8800 mAH, High Charge	802251 785171

Technical Specifications

This section provides a brief overview of the batteries available for Touchstone products. For more detailed information about battery operation, see the Battery Reference.

Visual / Dimension Specifications

Note: photos are not to scale when document is printed.

Model BPB022S

Ordering codes:

10-pack: 718003
■ Single: 790513

Dimensions (H x W x D):

in.: 1.2 × 3.1 × 1.8
■ cm: (3.1 x 7.9 x 4.7)

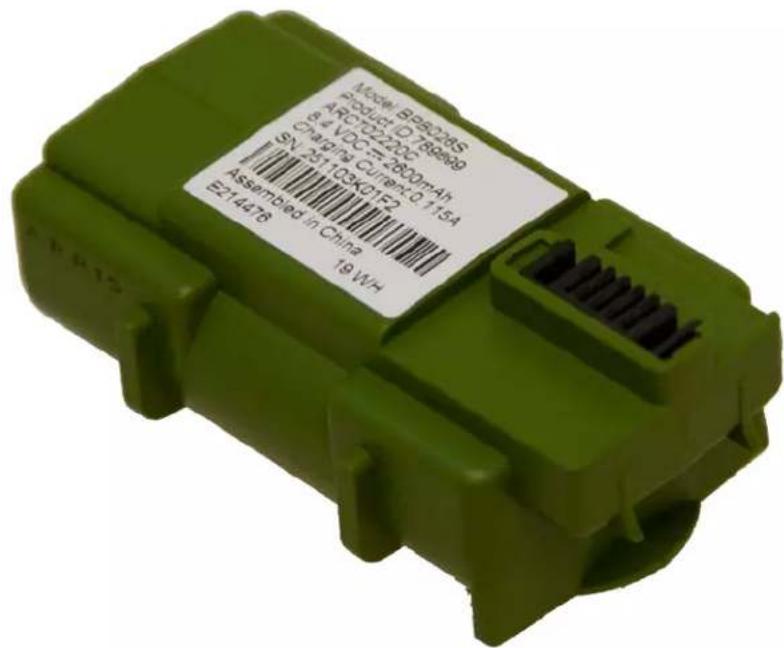

Model BPB026S

Ordering codes:

10-pack: 789699
■ Single: 794068

Dimensions (H x W x D):

in.: 1.2 × 3.1 × 1.8
■ cm: (3.1 x 7.9 x 4.7)

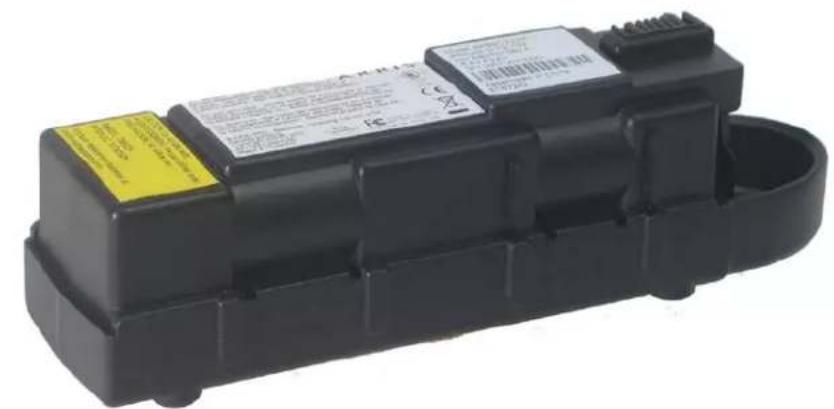

Model BPB044S

Ordering codes:

10-pack: 718005
■ Single: 790512

Dimensions (H x W x D):

in.: 1.2 x 5.7 x 1.8
cm: (3.1 x 14.5 x 4.7)

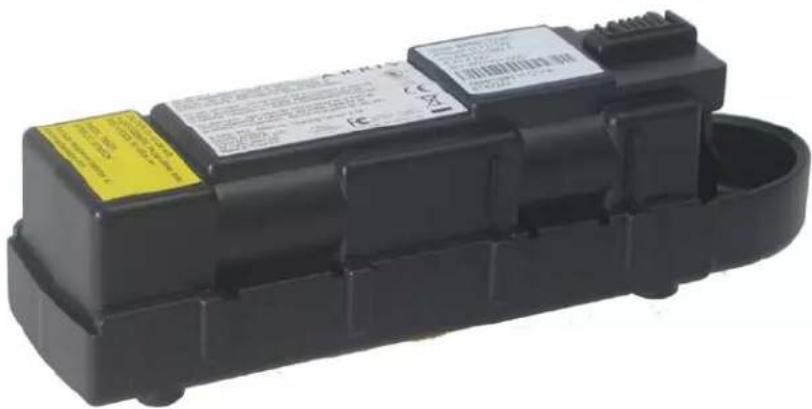

Model BPB044H

Ordering codes:

10-pack: 722841

Dimensions (H x W x D):

in.: 1.2 x 5.7 x 1.8
cm: (3.1 x 14.5 x 4.7)

Model BPD066H

Ordering codes:

10-pack: 785170

Black plastic electronic component with perforated base and mounting bracket (no visible text or symbols)

Dimensions (H x W x D):

in.: 6.3 x 2.0 x 2.1
cm: (16.0 x 5.1 x 5.3)
Model BPB088S
Ordering codes:
10-pack: 721192
■ Single: 790514

Dimensions (H x W x D):

in.: 2.0 x 6.9 x 2.0
cm: (5.1 x 17.6 x 5.1)

Model BPC088S

Ordering codes:

10-pack: 722842

Close-up of a black plastic electronic component with a yellow band, no visible text or symbols

Dimensions (H x W x D):

in.: 2.0 x 2.0 x 6.9

cm: (5.0 x 4.7 x 14.4)

Model BPD088H

Ordering codes:

10-pack: 785171

■ Single: 802251

Dimensions (H x W x D):

in.: 6.3 x 2.0 x 2.1

cm: (16.0 × 5.1 × 5.3)
