Type de produit	Microwave Oven
Brand	Emerson
Model	MW8997W
Capacity	0.7 cu ft
Microwave Power	700 Watts
Dimensions (W x H x D)	17.3 x 10.2 x 13.0 inches
Weight	22.5 lbs
Voltage / Frequency	120 V / 60 Hz
Color	White
Control Type	Digital with membrane keypad
Door Type	Side-opening with handle
Turntable	Yes, 10.6-inch glass
Display	LED digital clock
Timer	Up to 99 minutes 99 seconds
Clock	12-hour or 24-hour
Child Lock	Yes
Defrost Function	By weight or time
Cooking Modes	5 power levels plus popcorn, potato, pizza, beverage, reheat, dinner plate
Interior Light	Yes
Cleaning	Wipe with damp cloth; no abrasive cleaners
Power Cord Length	36 inches
Warranty	1 year limited

Frequently Asked Questions - MW8997W Emerson

How do I set the clock on my Emerson MW8997W microwave?

Press the Clock button. Enter the time using the number pad (for 12-hour format, press AM/PM if needed). Then press Clock again to confirm.

Can I use metal utensils in this microwave?

No, metal objects can cause sparks and damage the microwave. Only use microwave-safe containers such as glass, ceramic, or plastics labeled for microwave use.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until a beep sounds and the display shows 'L'. Repeat to unlock.

Why is my microwave not heating food?

Check that the door is fully closed and the microwave is plugged in. If the interior light and turntable work, the magnetron may be faulty. Contact Emerson support.

How do I defrost food using weight?

Press Defrost once. Enter the weight of the food in pounds (e.g., 1.5 for 1.5 lbs). Press Start. The microwave will calculate time automatically.

What is the maximum cook time I can set?

You can set up to 99 minutes and 99 seconds. Enter the desired time using the number pad and press Start.

Can I cook popcorn in this microwave?

Yes, use the Popcorn preset. Press Popcorn once for a 3-oz bag or twice for a 3.5-oz bag. The microwave will set the time automatically.

How do I clean the interior?

Unplug the microwave. Wipe with a damp cloth and mild soap. Do not use abrasive cleaners. To remove odors, place a bowl of water with lemon slices and heat for 2 minutes.

Why is my microwave making strange noises?

A low humming is normal. If you hear grinding or clicking, the turntable motor or magnetron fan may be obstructed. Check for foreign objects or contact service.

Does the microwave consume power when not in use?

Yes, it uses a small amount of standby power for the clock and display. To save energy, unplug the microwave when not in use for extended periods.

USER MANUAL MW8997W Emerson

Visit our web site at "www.emersonradio.com"

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged.
It is particularly important that the oven door closes properly and that there is no damage to the following: (1) door (bent), (2) hinges and latches (broken or loosened) and/or (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

Precautions to Avoid Possible Exposure to Excessive Microwave Energy ....1

Important Safety Instructions ....2

Safety Precautions ....4

Grounding Instructions ....5

Installation 5

Care of Your Microwave Oven ....6

How to Use Your Microwave Oven Safely ...6

Location of Controls ....7

Operation 8

Setting the Clock....8

Weight Defrost 9

Time Defrost....9

Cooking In One Stage....10

Auto Start 10

Cooking in Two Stages....11

Defrosting/Cooking in Two Stages......12

Quick Cook....12

Stop/Cancel Button 12

Auto Cook 13

Child Lock 13

Auto Cook Menu Chart ....14

Memory 15

Enquiry 16

Cooking Guide ....17

The Principles of Microwave Cooking ..17

Food Characteristics ......17

Microwave Techniques....17

Hot Snacks and Appetizers......18

Meats 19

Poultry....20

Seafood....20

Eggs & Cheese......21

Vegetables ......22

Soups....22

Sauces....23

Casseroles....23

Sandwiches....24

Pasta and Grains 24

Cereals....25

Convenience Foods....25

Desserts....26

Weight & Measure Conversion Chart......26

Specifications ......27

Before You Call for Service .....27

Limited Warranty 28

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of burns. Electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1 Read all instructions before using this appliance.

2 Read and follow the specific

"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 1.

3 This appliance must be grounded. Connect only to a properly grounded outlet. See

"GROUNDING INSTRUCTIONS"

found on page 5.

4 Install or locate this appliance only in accordance with the provided installation instructions.

5 Some products such as whole eggs and sealed containers, for example, closed glass jars, may explode and should not be heated in this oven.

6 Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7 As with any appliance, close supervision is necessary when used by children.

8 Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

9 This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair or adjustment.

10 Do not cover or block any openings on this appliance.

11 Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like.

12 Do not immerse cord or plug in water.

13 Keep cord away from heated surfaces.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

14 Do not let cord hang over edge of table or counter.

15 When cleaning surfaces of door and oven that come together when closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth.

16 To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
(c) If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
(d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

17 Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides). Vapors from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.

18 Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

19 Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

20 Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through heating it.
c) Do not use straight-sided containers with narrow necks.
d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
e) Use extreme care when inserting a spoon or other utensil into the container.

SAVE THESE INSTRUCTIONS

SAFETY PRECAUTIONS

General Use

1 Do NOT attempt to tamper with or make any adjustments or repairs to door, control panel or any other part of the oven. Do NOT remove outer panel from oven. Repairs should only be done by qualified service personnel.
2 Do NOT operate the oven empty. The microwave energy will reflect continuously throughout the oven if no food or water is present to absorb energy.
3 If a fire occurs in the oven, touch the Cancel/Stop button and LEAVE THE DOOR CLOSED. Disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
4 Do NOT attempt to dry clothes, newspapers or other materials in the oven. They may catch on fire.
5 Do NOT use recycled paper products. Recycled paper towels, napkins and waxed paper can contain metal flecks which may cause arcing or ignite. Paper products containing nylon or nylon filaments should be avoided, as they may ignite.
6 Some styrofoam trays (like those that meat is packaged on) have a thin strip of metal embedded on the bottom. When microwaved, the metal can burn the floor of the oven or ignite a paper towel.
7 Avoid inserting nails, wire, etc. through any holes in the unit during operation. Never insert a wire, nail or any other metal objects through the holes on the cavity or any other holes or gaps, because such objects may cause electric shock and microwave leakage.

Utensils

1 METAL CONTAINERS or dishes with metallic rims should not be used. Arcing may occur.
2 METAL TWIST-TIES may not be used in the microwave oven.
3 Do NOT use SEALED JARS or NARROW NECK bottles for cooking or reheating. They may shatter.
4 Do NOT use CONVENTIONAL THERMO-METERS in the microwave oven. They may cause arcing.
5 Remove PLASTIC STORE WRAPS before cooking or defrosting foods in the oven.

6 For FURTHER INFORMATION on proper cooking utensils, refer to the COOKING GUIDE on page 14.

Food

1 Never use your microwave oven for HOME CANNING. The oven is not designed to permit proper canning. Improperly canned food may spoil and be dangerous to consume.
2 COOKING TIMES given in the cooking guide are approximate. Factors that may affect cooking are starting temperature, altitude, volume, size and shape of food and utensils used. As you become familiar with the oven, you will be able to adjust for these factors.
3 It is better to UNDERCOOK RATHER THAN OVERCOOK foods. If food is undercooked, it can always be returned to the oven for further cooking. If food is overcooked, nothing can be done. Always start with minimum cooking times.
4 SMALL QUANTITIES of food or foods with LOW MOISTURE content can burn, dry out or catch on fire if cooked too long.
5 Do NOT boil eggs in their shell. Pressure may build up and the eggs may explode.
6 Potatoes, apples, egg yolks, whole acorn squash and sausage are some examples of food with NONPOROUS SKINS. These must be pierced before cooking to prevent bursting.
7 POPCORN must be popped in a microwave corn popper. Microwave popped corn produces a lower yield than conventional popping. Do not use oven for popcorn unless popped in a microwave approved popcorn utensil or unless it's commercially packaged and recommended especially for microwave ovens. Do not use oil unless specified by the manufacturer.
8 Do NOT attempt to deep fat fry in your oven.
9 HEATED LIQUIDS can ERUPT if not mixed with air. Do not heat liquids in your microwave oven without first stirring.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service personnel if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a three wire extension cord that has a three blade grounding plug, and a three slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance.

INSTALLATION

1. Steady, flat location: When positioning the microwave oven, it should be set on a steady, flat surface.
2. Ventilation: Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause oven failure. For proper ventilation, keep three inches of space between the oven's top, sides, rear and the area where the unit is to be installed.
3. Radio and TV reception: Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna, or antenna wire. Position the oven as far from them as possible.
4. Temperature and moisture: Keep the oven away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.

5. Power supply:

6. Check your local power source. This microwave oven requires a 120V, 60Hz power supply.

7. Use a receptacle that will accept the ground prong.

A. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
B. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
C. If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

1. Examine the oven for any damage such as: Dents, a misaligned door, broken door or a dent in the cavity. If any of the above are visible, DO NOT INSTALL THE UNIT. Notify the dealer immediately.

When using a 3-pronged plug

When using a grounding adapter, make sure the receptacle box is fully grounded.

1 Disconnect the AC plug from the outlet before cleaning.
2 Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.
3 The outside oven surface should be cleaned with soap and water, rinsed and dried with a soft cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation slots.
4 If the Control Panel becomes dirty or wet, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on Control Panel.
5 If steam accumulates on both sides of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and this is not an indication of a malfunction in the unit.

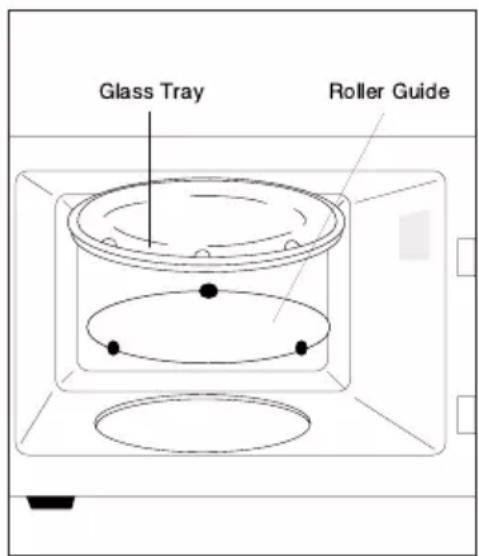

Roller Guide

1 The ROLLER GUIDE and oven floor should be cleaned frequently to prevent excessive noise.
2 The ROLLER GUIDE MUST ALWAYS be used for cooking together with the Glass Tray.

Glass Tray

1 Do NOT operate the oven without the Glass Tray in place.
2 Do NOT use any other Glass Tray with this oven.
3 If the Glass Tray is hot, ALLOW IT TO COOL before cleaning it or placing it in water.
4 Do NOT cook directly on the Glass Tray.

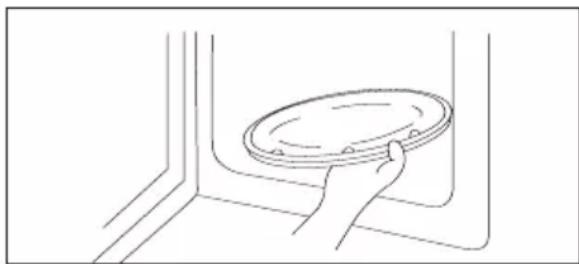

6 It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm, sudsy water or in a dishwasher.

Line drawing of a hand holding a circular object inside a corner (no text or symbols)

7 The roller guide and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent water or window cleaner and dry. The roller guide may be washed in mild, sudsy water or in the dishwasher.

HOW TO USE YOUR MICROWAVE OVEN SAFELY

Although your oven is provided with safety features, it is important to observe the following:

a) It is important not to defeat or tamper with safety interlocks.
b) Do not place any object between the oven face and the door or allow residue to accumulate on sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and wipe dry. Never use abrasive powders or pads.
c) When opened, the door must not be subjected to strain, for example, a child hanging on an open door or any load which could cause the oven to fall forward and cause injury and damage to the door. Do not operate the oven if it is damaged, until it has been repaired by a qualified person. It is particularly important that the oven door close properly and that there is no damage to the following: i) Door (bent), ii) Hinges and Latches (broken or loosened), iii) Door seals and sealing surfaces.
d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

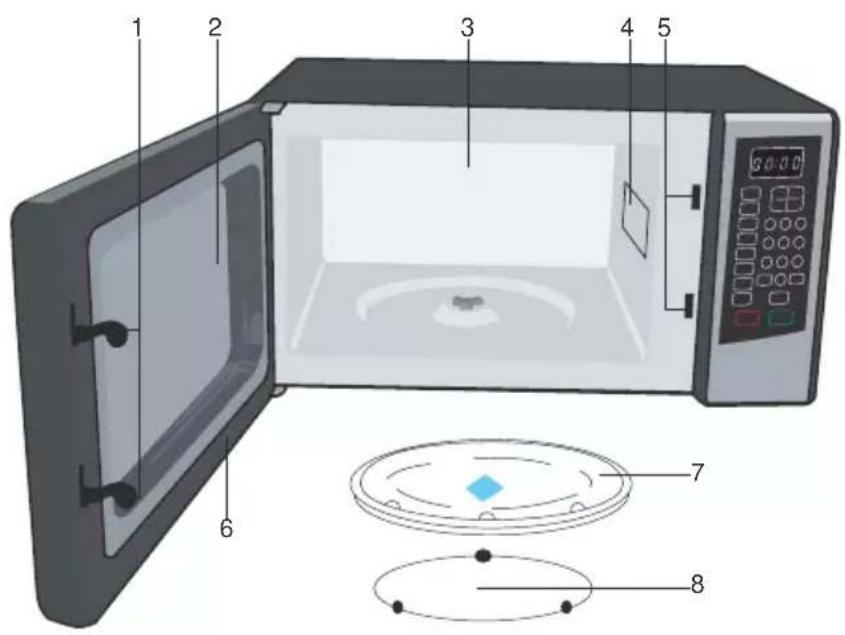

LOCATION OF CONTROLS

1. Door latch-When the door is closed, it will automatically lock shut. If the door is opened while the oven is operating, the magnetron will automatically shut off.
2. Door screen-Allows viewing of food. The screen is designed so that light can pass through, but not the microwaves.
3. Oven cavity
4. Spatter shield-Protects the microwave outlet from splashes of cooking foods.
5. Safety interlock system-Prevents the oven from operating while the door is opened.
6. Door seal-The door seal maintains the microwaves within the oven cavity and prevents microwave leakage.
7. Glass cooking tray-Made of special heat resistant glass. The tray must always be in proper position before operating the oven. Do not cook food directly on the tray.
8. Roller guide-Supports the glass cooking tray. Must always be in proper position before operating the oven.

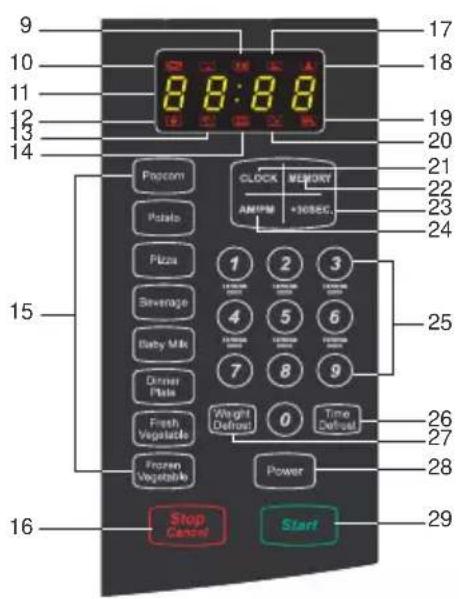

9. Defrost Indicator
10. Microwave Indicator
11. Display
12. Clock Indicator
13. Child Lock Indicator
14. Auto Cook Indicator

15. Auto Cook Menu-Used to select an Auto Cook program.

16. Stop/Cancel Button-Use to stop and/or cancel a cooking program.

17. High Cook Indicator
18. Low Cook Indicator
19. ML Indicator
20. Oz Indicator
21. Clock Button-Used to set the clock or preset the auto Cook time.
22. Memory Function
23. • 30 Seconds Function
24. AM/PM
25. Number 1-9 1-6 Minutes Express Cook Function
26. Time Defrost Button-Used to set the oven to defrost by a preset time.
27. Weight Defrost Button-Used to set the oven to estimate the defrosting time by weight entered.
    28.Power Level-Used to set a power level
28. Start Button-Press to start a cooking program

OPERATION

Power

Ten power levels are available, to change the power level, press POWER repeatedly.

Level	10	9	8	7	6	5	4	3	2	1
Power	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%

Remarks: When a power between level 10-8 is chosen, the high cook indicator is lighted and it will flash in operation. When a power between level 7-1 is chosen, the low cook indicator is lighted and it will flash in operation.

SETTING THE CLOCK

When the microwave oven is plugged into an outlet,the oven will display " 0:00 "
1. Press the CLOCK button; the hour digit will blinkand the clock indicator will light.
2. Press the number keys to set current hour.
3. Press the number keys to set current minute.
4. Press AM/PM to choose AM or PM.
5. Press the CLOCK button again; the display willshow the present time. After the clock has been set,the time will appear with blinking colon, unlessthe oven is cooking or defrosting.		3:03

NOTES:

• To reset the present time in the display window when the oven is off, press the CLOCK button and reset.
• If you make a mistake when setting the time, press the Stop/Cancel button.
• To recall the actual time while the oven is cooking or defrosting, simply press the CLOCK button and the display will show the actual time for three seconds.

WEIGHT DEFROST lets you easily defrost foods by eliminating guesswork in determining defrosting time.

The minimum weight for Auto Weight Defrost is 4 Oz and maximum weight is 100 Oz. Follow the steps below for easy defrosting.

1. Press Weight Defrost button, LED will display "dEF1"; when at the same time "Microwave", "Defrost" indicators will light.
2. Press the number keys to set desired weight; the Ounce indicator will light.
3. Press the Start button to start defrosting; the Microwave and Defrost indicators will blink and the display will countdown the remaining defrosting time in minutes and seconds. It will beep five times when defrosting is completed.

TIME DEFROST

TIME DEFROST will automatically set the oven to defrost at a time set by the user. The minimum time for Time Defrost is 1 second. The maximum time is 99 minutes 99 seconds. Follow the steps below for easy defrosting.

1. Press Time Defrost button, the Microwave and Defrost indicators will light and “dEF2” will appear in the display.
2. Press number keys to set the desired time.
3. The default microwave power is power level 3. If you want to change the power level, press Power button once, and the LED will display "PL 3", then press the number keys of the power level wanted.
4. Press the Start button to start defrosting; the Microwave and Defrost indicators will blink and the display will show count down the remaining defrosting time in minutes and seconds. It will beep five times when defrosting is completed.

Set a cooking or other operational time/power as follows. The maximum cooking time is 99 minutes 99 seconds.

1. Press the Power button; the Microwave and High Cook indicators will light and "PL 10" will light in the display.

Abstract diagram with white rounded rectangles and a red/green arrow pointing to a green rectangle, no text or symbols present.

1. Press the Power button different times to set the desired power; the display will show the percentage you choose. If selecting power level 70%-10%, the Low Cook indicator will light instead of the High Cook indicator.

1. Press number keys to set the desired cooking time.

Abstract diagram with geometric shapes and arrows, no readable text or symbols

1. Press the Start button to start cooking; the Microwave and one of the Cook indicators will blink and the display will countdown the remaining cooking time in minutes and seconds. It will beep five times when cooking is completed.

AUTO START cooking-CLOCK MUST BE SET BEFORE PERFORMING TIMER COOK.

1. Repeat steps 1 through 3 above, then press the CLOCK button; the Timer Cook hour digit will blink.

1. Press the number keys to set the timer hour and minute.

Pure diagram of a grid layout with circles and an arrow, no text or symbols present

1. Press the Start button. When the actual time matches the preset Auto Start time, the microwave will turn on and cook as per the preset cooking instructions.

When you press START pad, the clock indicator will blink and the present time appears in the display. When the selected start time arrives, the oven begins operating and the oven light turn on.

COOKING IN TWO STAGES

Set up to two cooking stages as follows:

1. Press the Power button; the Microwave and High Cook indicators will light and "PL 10" will light in the display.

1. Press the Power button different times to set the desired power; the display will show the level of power you chose. If selecting power level 70%-10%, the Low Cook indicator will light instead of the High Cook indicator.

1. Press number keys to set the desired cooking time. (up to 99 minutes 99 seconds).

1. Press the Power button; the Microwave and High Cook indicators will light and "PL 10" will light in the display.

1. Press the Power button different times to set the desired power; the display will show the level of power you chose.

1. Press number keys to set the desired cooking time. (up to 99 minutes 99 seconds).

1. Press the Start button to start cooking; the Microwave and one of the Cook indicators will blink and the display will countdown the remaining cooking time in minutes and seconds and beep once between stages. It will beep five times when all the stages have completed cooking.

DEFROSTING/COOKING IN TWO STAGES

Set up weight defrosting and cooking in two stages as follows.

The minimum weight for Auto Weight Defrost is 4 oz. The maximum weight is 100 oz.

1. Press the Weight Defrost button; the Microwave and Defrost indicators will light and "dEF 1" will appear in the display.

Abstract diagram with white rounded rectangles and a white arrow pointing to a circle (no text or symbols)

1. Press number keys to set the desired cooking weight.

Pure diagram of a grid layout with circles and an arrow, no text or symbols present

1. Follow one steps on the previous page (COOKING IN ONE STAGE) to set a second stage, then press the Start button to start cooking; the display will countdown the remaining time in minutes and seconds and beep once between stages. It will beep five times when all the stages have completed cooking.

Abstract diagram with white rounded rectangles and a red rectangle, one highlighted with a white arrow (no text or symbols)

QUICK COOK

The microwave oven can start cooking at the press of a button as follows:

1. Press the number keys 1-6 (express cook); the Microwave oven will immediately start cooking at high(100%) power for one to six minutes.

Abstract diagram with geometric shapes and a white arrow pointing right (no text or symbols)

1. Repeatedly press the +30SEC. button to increase the cooking time in 30 seconds increments. (up to 99 minutes 59 seconds).

Abstract diagram with white rectangular shapes and a central arrow, no text or symbols present

STOP/CANCEL BUTTON

To stop cooking or cancel a cooking program, simply press the STOP/CANCEL button once to stop cooking or twice to cancel a cooking program.

Auto cook lets you easily cook items in the oven as it will automatically set the times and power levels to give better results than one power only cooking.

1. Press the desired Auto Cook button; the Auto Cook indicator will appear and weight/portion will light in the display (see chart on next page).

1. Repeatedly press the desired Auto Cook button to set the desired weight/portion. Each Auto Cook item will have the most popular weight/portion settings to choose from.

1. Press the Start button to start cooking; the Auto Cook indicator will blink and the display will countdown the remaining cooking time in minutes and seconds. It will beep five times when cooking is completed.

NOTES: AUTO COOK BABY MILK.

The temperature of milk after heating may vary depending on the original temperature of milk. Be sure to check temperature, before feeding baby.

CHILD LOCK

The CHILD LOCK prevents unwanted oven operation by small children. The oven can be set so that the control panel is deactivated or locked.

1. To activate, press and hold the Stop/Cancel button for three seconds, the display will appear as shown at the right and no buttons can be pressed.

Abstract diagram with white rounded rectangles and a red arrow pointing to a green rectangle, no text or symbols present.

1. To deactivate, press and hold the Stop/Cancel button for three seconds, the display will return to the time.

Abstract diagram with white rectangles and a red arrow pointing right, no text or symbols present

Memory lets you cook items in your own special style. Totally 5 memory settings are available in this model. Set a memory setting as follows:

1. Press the MEMORY button repeatedly to select 1-5 memory.
2. Press the Power button; the Microwave and High Cook indicators will light and “PL10” will light in the display.
3. Press the Power button different times to set the desired power; the display will show the percentage you chose. If selecting power 70-10, the Low Cook indicator will light instead of the High Cook indicator.
4. Press number keys to set the desired cooking time.
5. Press the MEMORY button to write your settings into the chip. Or press the Start button to start cooking this will also write your settings into the chip. The Microwave and one of the Cook indicators will blink and the display will countdown the remaining cooking time in minutes and seconds. It will beep five times when cooking is completed. Remember above settings for future use.
6. Press the MEMORY button repeatedly to choose the memory setting in order to cook the desired item.

Abstract diagram with white rectangular shapes and circles on dark background, no text or symbols present

- Press AM/PM button during cooking, the display will show AM or PM for 3 seconds. (Time must be set before.)

- Press the Power button during cooking; the display will show current power level for 3 seconds.

Abstract diagram with white rounded rectangles and a red rectangle, one arrow pointing right (no text or symbols)

- Press CLOCK button during cooking, the display will show the preset time for 3 seconds, and AM or PM for 3 seconds.

NOTES:

• To prolong the magnetron's life, the power will be switched to mid-low when cooking at high power for more than 30 minutes.
  • One beep will sound when pressing the buttons.
• Five beeps will sound when the cooking/defrosting ends.
• If the door is opened during oven operation, close the door and press the START button to continue the cooking.
• If a cooking program has been set, but the START button (or any other button) is not pressed within 1 minutes, the display will revert back to the time.

COOKING GUIDE

THE PRINCIPLES OF MICROWAVE COOKING

Microwaves are a form of high frequency radio waves similar to those used by a radio including AM, FM and CB. Electricity is converted into microwave energy by the magnetron tube. From the magnetron tube, microwave energy is transmitted to the oven where it is reflected, transmitted and absorbed by the food.

Reflection

Microwaves are reflected by metal just as a ball is bounced off of a wall. For this reason, metal utensils are not suitable for use in the microwave. A combination of stationary interior walls and a rotating metal turntable or stirrer fan helps assure that the microwaves are well distributed within the oven cavity to produce even cooking.

Transmission

Microwaves pass through some materials such as paper, glass and plastic much like sunlight shining through a window. Because these substances do not absorb or reflect the microwave energy, they are ideal materials for microwave oven cooking containers.

Absorption

During cooking, microwaves will be absorbed by food. They penetrate to a depth of about 3/4 to 1 1/2 inches. Microwave energy activates the molecules in the food (especially water, fat and sugar), and heat is produced. If you vigorously rub your hands together, you will feel heat produced by friction. The internal cooking of larger foods is done by conduction as the heat which is produced by friction is conducted to the middle of the food. Foods also continue to cook by conduction during standing time.

FOOD CHARACTERISTICS

Quantity: The amount of food placed in a microwave oven has a direct effect on the cooking time. Small amounts of food or liquid require less cooking time than larger amounts of the same substance. As quantity increases, concentration decreases.

Size: Small pieces cook faster than large ones. To speed cooking, cut pieces smaller than two inches (5 cm), so microwaves can penetrate to the middle from all sides. Pieces which are similar in size and shape cook more evenly.

Shape: Many foods are uneven, like a chicken, ribs or broccoli. The thin parts will cook faster than the thick parts, while uniformly thick foods cook evenly. To compensate for irregular shapes, place thin pieces toward the center of the dish and thicker pieces toward the edge of the dish.

Starting Temperature: Frozen or refrigerated foods take longer to cook than foods at room temperature.

Bone and Fat: Because bones conduct heat, the side of the meat the bone is on will cook first, while boneless cuts cook slower but more evenly. Fat attracts microwaves. The middle of these foods are cooked by heat conduction.

Moisture Content: Microwaves are attracted by moisture. Naturally moist foods absorb microwaves better than dry ones. Add a minimum of liquid to moist foods, as excess water slows cooking.

Density: The density of food determines how easily the microwaves can penetrate and how quickly it will cook. Porous foods, like chopped beef or mashed potatoes, microwave faster than dense ones like steak or whole potatoes.

Piercing: Steam builds up pressure in foods which are tightly covered by a skin or membrane. Pierce potatoes, egg yolks and chicken livers to prevent bursting.

MICROWAVE TECHNIQUES

Stirring: Stir foods from outside to center of dish once or twice during cooking to equalize heat and speed microwaving. Foods will not burn or stick, so there's no need to stir constantly as you do in conventional cooking.

Arrangement: Arrange foods with thin or delicate ends, like drumsticks or asparagus spears, with the thick or tougher portions to the outside of the dish. The parts which need more cooking will receive more energy, so food will microwave evenly.

Spacing: Individual foods, such as baked potatoes and cupcakes will cook more evenly if placed in the oven an equal distance apart. When possible, arrange foods in a circular pattern. Similarly, when placing foods in a baking dish, arrange around the outside of the dish, not lined up next to each other. Food should not be stacked on top of each other.

Rearrangement: Rearrange overlapping areas, like tails of long fish fillets, from top to bottom, and closely packed pieces, like meatballs, from the outside to the center of the dish.

Standing Time: Standing time is especially important in microwave cooking. Microwave energy creates heat in the outer layers of the food. As a result of normal conduction, the food continues to cook for a few minutes after removal from the oven. Letting roasts, large whole vegetables, casseroles and cakes stand to finish cooking allows the middles to cook completely without overcooking, drying or toughening the outsides.

COOKING GUIDE (CONTINUED)

Covering: Covering speeds cooking time, retains moisture, tenderizes, insures even cooking and prevents spattering. Casserole lids or plastic wrap are used for a tighter seal. Vent plastic by turning back one edge at the side of dish to form a narrow slot where excess steam can escape. Various degrees of moisture retention are also obtained by using wax paper or paper towels.

Browning: Microwave energy cooks some foods so quickly that the fats and sugars within the food do not have time to caramelize and give a "browned" appearance. Browning agents do not affect the quality of microwaved foods, but can add color and flavor. For meats and poultry, use bouquet sauce diluted with water or melted butter, soy, Worcestershire, barbecue or steak sauce, a sprinkling of paprika or dry gravy mix; jelly glaze or crumb coating. Frosting and topping finish cakes and breads. Top casseroles at the end of microwaving with grated cheese or crumbs.

Some Foods Do Not Microwave Well

Eggs in Shells and hard boiled eggs can burst.

Pancakes do not crust, but they reheat well. Fully-prepared, frozen pancakes are available for microwaving.

Deep Fat Frying can cause burns.

Bottles with narrow necks may shatter if heated.

Pop Popcorn only in special microwave poppers. Do not use oil unless specified by the manufacturer, or heat longer than recommended. Never pop popcorn in paper bags or glass utensils or directly on the glass tray.

HOT SNACKS AND APPETIZERS

Hot hors d'oeuvres and appetizers can be prepared very quickly in the oven by the hostess, or individual servings may be prepared by guests.

Many appetizers may be cooked on the serving platter, provided the platter does not have metal trim. A time saving tip - prepare these foods ahead of time, refrigerate or freeze, and refresh in the oven at serving time. A plate of appetizers will take only seconds to prepare or refresh.

Cheese melts very rapidly and will toughen if overcooked, so watch foods combined with cheese closely so that overcooking will not occur. As soon as cheese starts to bubble, cooking is completed.

Appetizers that have a crisp pastry exterior are best prepared in a conventional oven.

To prepare appetizers wrapped in bacon, it will be necessary to precook the bacon and then wrap around the foods.

Oysters wrapped in bacon are easier to prepare in the broiler of your conventional range.

Seafood mixtures can be prepared in serving shells as microwave energy will pass through the seafood shells without heating. Aluminum foil should not be used for shells.

If spreads are placed on crackers, care should be taken not to overcook as moisture from the food will cause crackers to become soggy. Crackers used for spreads should be very dry and crisp. This helps avoid sogginess. Heat only until spread is at serving temperature.

The time required to heat all appetizers will depend on the amount of food, and the number and the type of dish selected. Remember the food will become very hot even if the dish is cool. Cheese mixtures retain heat longer when heated with microwave energy.

COOKING GUIDE (CONTINUED)

MEATS

Guide for Cooking Meats

Roasts, chops, hamburgers and small cuts of tender meat cook beautifully in the microwave oven. Most roasts can be cooked rare, medium rare or even well done in less than one hour. Less tender cuts of meat such as pot roast can be simmered fork tender in a sauce or gravy. Tough cuts that require slow cooking will do better in the conventional range or oven. A large piece of meat, especially if the shape is uneven, should be turned over occasionally for uniform roasting.

Meat Power Cooking Time Standing Special Notes Level (per lb) Time

Beef RoastRare 80 6 - 8 min. 5 - 7 min.Medium 80 8 - 10 min. 10 - 15 min. Turn over after half the time.Well 80 10 - 12 min. 10 - 15 min.

Pork RoastBone-in 80 12 - 15 min. 10 min. Cover with plastic wrap.Boneless 80 16 - 18 min. 10 - 15 min. Turn over after half the time.

Lamb RoastBone-in Medium 80 7 - 9 min. 10 - 12 min.Well 80 9 1/2 - 11 1/2 min. 10 - 15 min.Boneless Medium 80 9 - 11 min. 10 - 12 min.Well 80 11 - 13 1/2 min. 10 - 15 min.

Beef Patties (3 1/2 oz) each2 patties 100 2 1/2 - 3 min. 5 - 7 min.4 patties 100 3 1/2 - 4 1/2 min. 5 - 7 min.

Meat Loaf(2lbs) 100 15 - 17 min. 10 - 12 min. Cover with wax paper.

BaconSlices (4 strips) 100 4 - 5 min. —(1 slice; weight: 1 oz,length: 11 in.)

HamSlices (1 in. thick) 50 7 1/2 - 8 1/2 min. 5 - 7 min.4 slices

COOKING GUIDE (CONTINUED)

POULTRY

Guide for Cooking Poultry

Chicken is one of the most popular foods and microwaving chicken is one of the best uses of your microwave oven. Chicken stays juicy and tender in the microwave oven. However, juiciness prevents browning because chicken crisps and browns only when the skin dries out enough to change color. Standing time is important, because it allows the interior to finish cooking without toughening the delicate breast meat.

Food Power Cooking Time Standing Special Notes
Level (per lb) Time

Roast
Chicken whole 100 6 - 8 min. 10 - 15 min. Place breast side up on
Chicken cut up 100 6 - 7 min. 7 - 10 min. roasting rack. Let stand,
Turkey 80 6 1/2 - 8 min. 10 -15 min. covered, before serving.
Cornish Hens 100 7 - 8 min. 7 - 10 min.
Turkey Breast 50 10 - 11 min. 5 - 7 min. Rearrange once during cooking. Cover with wax paper.

SEAFOOD

Guide for Cooking Seafood

Microwaving is one of the easiest and most efficient ways of preparing fish and seafood, which stay delicate and tender with quick, moist cooking. Overcooking dries out and toughens seafood, so you should check it after the minimum time. If thick pieces like fish steaks or lobster tails are done on the outside, but still slightly translucent in the middle, let them stand for a few minutes; internal heat will complete the cooking.

Food Power Cooking Time Standing Level		Special Notes Time
Whole Fish (1 lb to 1 1/2 lbs)	100 6 - 7 min.	5 min.	Turn over after half the time.
Fish Fillet (1 lb)	100	5 - 6 min.	4 - 5 min.	Turn over after half the time.
Fish Steak 100 4 - 5 min.	5 - 6 min.	Turn over after half the time.		Cover with wax paper.
1 inch thick (1 lb)
Shrimp (1 lb)	100 3 - 4 min.	5 min.	Rearrange once during cooking.	Cover with plastic wrap.
Sea Scallops (1 lb)	80	6 - 7 min.	5 min.	Rearrange once during cooking. Cover with plastic wrap.

COOKING GUIDE (CONTINUED)

EGGS & CHEESE

Guide for Cooking Eggs & Cheese

• CHEESE

Cheese melts quickly and smoothly. When serving cheese as an appetizer, flavor is at peak when served at room temperature. Use a low power level for melting. Cheese melts best when shredded and heated with milk or other liquids. Stir cheese mixtures several times for even heating.

• EGGS

Eggs cook differently by microwave. The high fat content of egg yolks absorb energy, so yolks cook faster than whites. It's easy to poach eggs in a microwave oven, but if you want soft yolks, remove eggs from the oven before whites are completely cooked. A brief standing time allows whites to set without overcooking yolks. Check eggs for completion of cooking early, they toughen when overcooked.

When eggs and yolks are mixed together for omelets, scrambled eggs or custards, they cook more evenly and need less stirring than during conventional cooking methods.

Do not try to cook eggs in the shell. Steam can build up inside the shells, causing them to burst.

Scrambled Eggs

Eggs Butter Milk or Cook on ProcedureWater Power 100
2 1 Tbsp 2 Tbsp 1 - 2 min.	Place butter in small casserole and melt.Add eggs and milk, scrambling with fork.
4 1 Tbsp 2 Tbsp 2 - 3 min.	Cook as directed in chart, breaking upand stirring eggs twice. Let stand,covered, before serving.
6 2 Tbsp 4 Tbsp 3 - 4 min.

Poached Eggs

Eggs Water Cook Water Cook Eggs Standing Procedureon Power 100 on Power 80 Time
1	1 1/2 cups	4 - 6 min.	1 min.	2 min.	Place water into medium casserole. Cook at High until boiling. Break eggs, one at a time, into separate dish, pierce yolk once with wooden pick and slip egg carefully into hot water, cook as directed in chart.
2	1 1/2 cups	4 - 6 min.	1 1/2 - 2 min.	2 min.
4	2 cups	6 - 7 min.	2 1/2 - 3 min.	2 min.

VEGETABLES

Guide for Cooking Fresh Vegetables

Nutrition research indicates that many microwaved vegetables and fruits lose less water soluble vitamin C than when cooked conventionally. This is due to shorter cooking time and to the fact that less cooking water is needed when microwaving fruits and vegetables. Best of all, vegetables keep their fresh color, texture and flavor. Vegetables should be microwaved covered with vented plastic wrap or a casserole lid. Vegetables cooked in their skins, such as potatoes, are already so tightly covered that they should be pricked with a fork before cooking in order to release excess steam. To assure even cooking, vegetables should be cut in uniform pieces and stirred during the cooking time. Always add salt to water before adding vegetables. Reduce time a minute or two for crisp-tender texture. Increase time for very soft texture. Remember to allow standing time of two to five minutes after cooking because, as most foods do, vegetables will continue to cook after they are removed from the microwave oven.

Food Water Cook on Standing Special NotesAmount Power 100 Time
Asparagus
Spears (1lb) 1/4 cup 5 - 6 min. 2 min. Medium Casserole. Re-Cuts (1lb)1/2 cup 5 - 6 min. 2 min. arrange once.
Beans
Fresh green (1/2 lb) 1/4 cup 4 - 5 min. 2 min. Stir twice.
Frozen green (1/2 lb)	2 Tbsp	5 1/2 - 6 1/2 min. 2 min.	Stir twice.
Green Peas (2 cups)	1/4 cup 4 - 5 min. 2 min. Small casserole. Stir twice.
Broccoli (2 cups)	1/4 cup 4 - 5 min. 2 min. Medium casserole. Rearrange once during cooking.
Brussels Sprouts (1 lb)	1/4 cup	6 - 7 1/2 min.	2 - 3 min.	Medium casserole. Stir once.
Cabbage (1 lb)	1/4 cup	5 - 6 min.	2 - 5 min.	Rearrange once during cooking.
Cauliflower pieces (1 head)	1/4 cup	6 - 7 min.	2 - 5 min.	Wrap in plastic wrap. Stir once.
Mushroom slices (1/2 lb)	2 Tbsp	3 - 4 min.	2 - 3 min.	Small casserole. Stir once.

SOUPS

Guide for Cooking Soups

Satisfy appetites with savory soups prepared in your microwave oven. Adapt your favorites by using similar cooking times and techniques.

Food	Power Level	Cooking Time	Standing Time	Special Notes
Canned Condensed
Cream style, Bean, Pea or Mushroom (10 1/2 - 11 1/2 oz)
With Water	100	4 1/2 - 5 1/2 min.	2 - 3 min.	Stir halfway through cooking time. Cover.
With Milk	80	5 1/2 - 6 1/2 min.	2 - 3 min.
Dry Soup Mix	100 then	5 1/2 - 7 min.	2 - 3 min.	Add water. Cover with lid.
1 envelope (10 1/2 oz)	50	3 - 4 min.		Stir twice.
Broth (10 1/2 oz)	100	4 - 5 min.	2 - 3 min.	Stir twice. Cover

COOKING GUIDE (CONTINUED)

SAUCES

Guide for Cooking Sauces

Sauces boil over rapidly, especially those that contain milk. As soon as the door is opened, cooking stops. If ingredients are not taken directly from the refrigerator, cooking time will be less than given in the recipe. Stir sauce quickly, about every 30 seconds to eliminate lumps. Be sure to use a container twice the size of the amount of liquid to prevent boiling over.

A wooden spoon may be left in the dish while sauce is cooking for easy stirring. If sauce is stirred slowly, cooking time may require about 15 seconds longer. If desired, a 1 quart glass measure may be used to prepare some sauces.

White Sauce

Amount Butter Flour Milk Cook Cook Special NotesButter Sauce
1 cup, thin 1 Tbsp 1 Tbsp 1 cup 30 sec. 2 1/2 - 3 1/2 min.	Cook on Full power as directed or until thickened, stirring once.Let stand, covered, before serving.
med. 2 Tbsp 2 Tbsp 1 cup 1 min. 2 1/2 - 3 1/2 min.
thick 3 Tbsp 3 Tbsp 1 cup 1 min. 3 - 4 min.

Brown Gravy

Amount	Fat from Drippings	Flour	Liquid or Drippings	Cook on Power 100	Special Notes
1 cup, thin 1 Tbsp		1 Tbsp 1 cup		2 1/2 - 3 1/2 min.	Cook on Full power as directed or until thickened, stirring once.Let stand, covered, before serving.
med.	1 Tbsp	1 Tbsp 1 cup		3 - 4 min.
thick	1 Tbsp	1 Tbsp 1 cup		3 - 4 min.

CASSEROLES

Casseroles may require occasional stirring to distribute heat. They cook more evenly when made with ingredients of similar size and shape. Because of their shorter cooking time, casseroles cooked in the microwave oven generally need less liquid. Casseroles with cream and cheese sauces, or meats which need slower cooking to tenderize, cook best on power level 40.

When cooking a favorite casserole, make two and freeze the second for future use. Line a casserole or baking dish with plastic wrap. Transfer the cooked food to the lined container and freeze. As soon as the food is frozen in the shape of the dish, remove it and wrap with freezer paper. Later it can be unwrapped and returned to the container for defrosting and heating.

Dry Casserole Mixtures

Many prepared box type casseroles are available on the grocery shelves. Many have freeze dried foods or evaporated foods included. Cooking periods are so short there may not be time for the foods to absorb the moisture sufficiently and reconstitute the foods. To prepare this type, boil the amount of water recommended on the package. Add the noodles (when included), cover and cook for approximately 10 minutes. Allow noodles to stand covered for an additional 10 minutes, rinse with warm water and drain. Then follow package directions for preparing the mix. Reheat four to six minutes before serving.

SANDWICHES, INCLUDING HAMBURGERS AND HOT DOGS

Guide for Heating Sandwiches

Sandwiches heat very quickly because, being porous, they have a low density. Since the filling is usually more dense than the bread or rolls, the filling determines the heating time. Surprisingly, the filling will always be hotter than the bread feels. Care must be taken not to overcook as the bread will become tough. Use several thin slices of meat. Thin slices heat more quickly and are better than one thick slice. The slow heating thick slice often causes the bread to overcook before the meat is hot. Sandwiches may be placed on a paper plate, napkin or paper towel to be warmed. The sandwich should be covered with a paper towel. Remove wrapping immediately after warming. Already-baked frozen breads and rolls may be used for sandwiches. The filling, however, should be thawed first. Toasted bread is fine for sandwiches and provides a firm base. The toast is warmed only; no further browning occurs.

Food Amount Cook Special Noteson Power 100

Sandwich 1 1 min.(6 oz) 2 1 1/2 - 2 min. Place on paper towels.4 3 - 4 min.

Hamburger 1 1 min. Cover with paper towel.(4 oz) 4 3 - 4 min.

Hot Dogs 4 1 1/2 - 2 min. Cover with paper towel.(2 oz)

Sloppy Joes 4 4 min. Place on microwaveable plate.

PASTA & GRAINS

Guide for Cooking Pasta and Grains

Raw long grain rice takes time to rehydrate. Microwaving time is a little shorter than conventional, but the greatest advantage is the ease with which you can prepare fluffy rice without sticking or burning. Cooked rice and pasta reheat easily in the microwave oven without loss of flavor or texture. No extra water is needed to prevent sticking or drying, so there's no danger of overcooking rice and pasta or thinning sauces.

Food Hot Salt Oil or Power Cooking Standing
	Water	Butter	Level	Time	Time
Pasta (8 oz)
Egg Noodles	4 cups	1 tsp.	1 Tbsp.	100	6 1/2 - 7 1/2 min.	2 - 5 min.
Macaroni	4 cups	1 tsp.	1 Tbsp.	100	8 - 10 min.	2 - 5 min.
Spaghetti	4 cups	1 tsp.	1 Tbsp.	100	8 - 10 min.	2 - 5 min.
Lasagna Noodles	4 cups	1 tsp.	1 Tbsp.	100	12 - 14 min.	2 - 5 min.
Rice, Long Grain
White Rice (1 cup)	2 cups	1 tsp.	1 tsp.	100 then 80	5 - 6 min.	5 - 7 min.
					9 1/2 - 12 min.
Brown Rice (1 cup)	2 cups	1/2 tsp.	1 tsp.	100 then 80	5 - 6 min.	5 - 7 min.
					22 - 27 min.

COOKING GUIDE (CONTINUED)

CEREALS

Microwaveable hot cereals can be cooked directly in the cereal bowl and make cleaning up easy.

CONVENIENCE FOODS

Frozen Foods

A large variety of frozen foods, special dishes and dinners are available and the selections continue to increase. The market is changing rapidly, therefore it is impossible to list the foods and types available and recommend cooking procedures. In this book we can only give general directions to assist you.

T.V. Dinners

To prepare a T.V. dinner, follow the maker's instructions for use with microwave ovens. To cook a T.V. dinner will require approximately five to seven minutes for the food to thaw and heat to serving temperature (depending on the types of food). Allow plastic wrap to remain over the dish for two minutes to allow heat to equalize. Dinners that contain mashed potatoes have presented a bit of a problem due to the large compact mass of this particular food. You may want to remove about half the mashed potatoes after defrosting is started, then spread the remaining potatoes over the individual section of the tray. Heat the removed mashed potatoes in an individual dish. For foods that should be crisp when cooking is completed, remove the plastic wrap and use the broiler of a conventional range to crisp the food.

Individual Frozen Foods

These may be commercially prepared or frozen at home. Place the container of frozen food in the oven and heat only until the food starts to defrost and can be removed easily. Empty contents into a casserole or serving dish and continue to defrost and heat. Do not heat foods in deep foil containers. To crisp and brown special toppings, use the broiler of a conventional range. If allowed to heat to serving temperature in a plastic container, the container will warp or melt from the high heat of food.

Frozen Foods in Cooking Pouches or Boilable Bags

To prepare these foods, slit the plastic bag. An X-type cut will help remove the food at the end of cooking time. Place the cut side down on a serving dish (with no metal trim). Heat foods other than vegetables for about three minutes. Frozen vegetables require about eight to nine and a half minutes of cooking time. Allow the pouch bag to remain over the food for about two minutes to allow time for the heat to equalize. Foods prepared in cheese or white sauce should be removed from the pouch and placed in a glass casserole dish and stirred to prevent overcooking of the sauce around the edges of the dish.

Complete Meals from Table Leftovers

Complete meals from leftovers can be prepared in advance. Foods can be frozen and ready for quick heating in the oven at any time. Choose foods suitable for freezing and put serving portions on paper, glass or china (no metal trim) plates. Wrap with recommended freezer paper and freeze quickly. When apportioning the servings of food on the plate, use approximately the same amount of each kind of food for more even heating. Mashed potatoes will heat quicker if spread slightly and hollowed, with a pat of butter in the center. To prevent small pieces of vegetables, corn, peas, etc., from dehydrating during heating, mound well near the center of the plate.

COOKING GUIDE (CONTINUED)

DESSERTS

There's always time to make dessert with a microwave oven. Fruit desserts have a remarkably fresh flavor and texture. Microwaved cakes are higher and more tender than conventionally baked; since cakes are usually frosted, browning is unimportant. Microwaved pie crusts are exceptionally tender and flaky, while delicate custards and puddings are easy to prepare.

Guide for Cooking Cakes

Food Power Cooking Time Standing Special NotesLevel Time
Cake, round 100 3 1/2 - 5 min. 2 - 5 min. Pour into greased and wax(Mixed 9 inch) 80 4 1/2 - 6 min. paper lined cake dishes.
Ring or Angel Food Cake 80 5 1/2 - 6 1/2 min. 2 - 5 min. Cover with wax paper.
Muffin (6 muffins) 50 4 1/2 - 6 1/2 min. 2 - 5 min. Rearrange once.
Custard (6 servings) 50 10 - 12 min.	5 - 7 min. Rearrange once.

Baking

• Bar cookies work best. Greasing or lining of the microwaveable baking dish is optional.
  • If insufficient browning disturbs you, frost, glaze or add food coloring to white or yellow batters.
• A microwaveable cookie sheet can be made by covering cardboard with waxed paper.
• Round glass baking dishes, and fluted or smooth microwaveable ring molds work best for cakes. You can make a microwaveable ring mold of your own by placing a medium-size glass in the center of a round glass baking dish.
• Because your cakes will rise higher in microwave cooking, never fill microwaveable cake pans more than half full.
• Reduce baking powder and soda by approximately one-fourth when converting a conventional recipe.
  • Fill paper-lined muffin cups to only half full which allows for muffins to rise more than normal.
• You can prepare your own "brown 'n serve" breads and rolls by baking them ahead of time in the microwave oven. Then, place them in a conventional oven to brown prior to serving.
• Breads and rolls should be reheated to the point where they are warm to the touch. Overheating or overcooking makes bread tough and rubbery.
• When making yeast bread in a microwave oven, choose a recipe with cornmeal, whole wheat flour, or rye flour to achieve a richer color.

WEIGHT & MEASURE CONVERSION CHART

- POUNDS & OUNCES TO GRAMS

POUNDS (lbs)	GRAMS (g)
1/4	114
1/2	227
3/4	341
1	454
2	907
3	1361
4	1814
5	2268
6	2722
7	3175
8	3629
9	4082
10	4536
11	4990

OUNCES (oz)	GRAMS (g)
1	28
2	57
3	85
4	113
5	142
6	170
7	198
8	227

OUNCES (oz)	GRAMS (g)
9	255
10	284
11	312
12	340
13	369
14	397
15	425
16	454

• FLUID MEASUREMENTS

1 Cup =	8 fluid ounces =	240 ml
1 Pint =	16 fluid ounces =	480 ml
1 Quart =	32 fluid ounces =	960 ml
1 Gallon =	128 fluid ounces =	3840 m

SPECIFICATIONS

Item Rating Specification

Power Supply 120V~ 60Hz
Microwave Output Power	900W
Microwave Frequency 2450MHz
Oven Capacity	0.9 cubic feet
Outside Dimensions	19.1 (W) x 14.6 (D) x 11.3 (H) inches
Weight	29.1 Lbs (Approx)

BEFORE YOU CALL FOR SERVICE

Refer to the following checklist before you call for service.

If the oven does not work:

1. Check that the power cord is securely plugged in.
2. Check that the door is firmly closed.
3. Check that the cooking time is set.
4. Check for a blown circuit fuse or tripped main circuit breaker in your house.
5. Check that the Child Lock feature is not engaged.

If there is sparking in the cavity:

1. Check the containers, dishes or utensils in the oven and make sure they are not metal or have metal trim.

Emerson®

AUTHORIZED SERVICE

TO FIND THE LOCATION AND PHONE NUMBER OF YOUR NEAREST AUTHORIZED SERVICE CENTER...

CALL TOLL FREE: 1-800-695-0098

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE

PLEASE CALL:

1-800-898-9020

FOR CUSTOMER SERVICE, PLEASE WRITE TO:

Emerson Radio Corp. Consumer Affairs Dept. 5101 Statesman Drive, Irving, TX 75063.

LIMITED WARRANTY MICROWAVE OVENS

Emerson Radio Corp. warrants this product to be free from manufacturing defects in original material, including original parts, and workmanship under normal use and conditions (“manufacturing defect”) for a period of one (1) year from date of original purchase in, and if used in, the United States (“warranty”). Should service be necessary under this warranty, Emerson will provide the following at an Independent Service Center or Regional Repair Facility permitted by Emerson to perform repairs, provided the manufacturing defect is verified along with the date of purchase:

* Repair service for one (1) year from date of original purchase at no charge for labor and parts.
* Replacement of a defective magnetron for seven (7) years from date of original purchase (labor not included after initial twelve (12) months).

There are Independent Service Center and Regional Repair Facilities located through out the country. For one nearest you, DIAL TOLL FREE: 1-800-695-0098. In the event the product must be mailed to a Regional Repair Facility which is permitted by Emerson to perform repairs:

* Pack the unit in a well-padded heavy corrugated box.
* Enclose your check or money order payable to the REGIONAL REPAIR FACILITY in the amount of \$15.00 to cover return shipping and handling costs.
* Enclose a copy of your proof of purchase (warranty service will not be provided without dated proof of purchase).
* Ship the unit prepaid via UPS or parcel post (insured).

NOTE: This warranty does not cover:

(a) Damage to equipment not properly connected to the product.
(b) Cost incurred in the shipping of the product to and from a Regional Repair Facility permitted by Emerson to perform warranty repairs.
(c) Damage or improper operation of unit caused by customer abuse, misuse, negligence or failure to follow operating instructions provided with the product.
(d) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's manual.
(e) Signal reception problems caused by external antenna or cable systems.
(f) Products not purchased in the United States.
(g) Damage to product if used outside the United States.

THIS WARRANTY IS NON-TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESSED WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESSED OR IMPLIED, SHALL APPLY TO THE PRODUCT THEREAFTER. EMERSON MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE OR USE.

THE EXTENT OF EMERSON RADIO CORP'S LIABILITY UNDER THIS LIMITED WARRANTY IS THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL EMERSON RADIO CORP'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER OF THE PRODUCT. UNDER NO CIRCUMSTANCES SHALL EMERSON RADIO CORP. BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT. THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.

The serial number can be found on the back cabinet. We suggest that you record the serial number of your unit in the space below for future reference

Model Number:

Serial Number: ____

MV1094F

Emerson®

EMERSON

PART NO.:80-5122

511-02

Printed in China
