Product Type	Electric Infrared Heater
Model	Smart-Heat BH3622004
Brand	Bromic
Power Source	240V / 50Hz
Power Output	2000W
Heating Technology	Infrared Quartz Element
Coverage Area	Up to 20 m²
Mounting	Wall-mountable or Freestanding (with optional stand)
Dimensions (HxWxD)	45 x 100 x 15 cm
Weight	5.5 kg
Control	Remote control and touch panel
Heat Settings	Low, Medium, High (1000W / 1500W / 2000W)
Thermostat	Adjustable digital thermostat (5-35°C)
Timer	1-24 hours programmable timer
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Indoor/Outdoor Use	Indoor and covered outdoor areas (IP24 rated)
Material	Aluminum body with powder coating
Noise Level	Silent operation (no fan)
Energy Efficiency	Class A (estimated)
Warranty	2 years

Frequently Asked Questions - Smart-Heat BH3622004 Bromic

How do I install the Bromic Smart-Heat BH3622004 heater?

Ensure the heater is mounted on a solid wall with at least 1 meter clearance from ceilings and floors. Use the provided mounting bracket and secure with appropriate screws. For freestanding use, purchase the optional stand.

Can I use this heater in a bathroom?

Yes, it is IP24 rated for splash-proof protection, making it suitable for bathrooms. However, keep it away from direct water spray and ensure it is installed in zone 3 or higher per local regulations.

How do I clean the heater?

Disconnect the heater from power and let it cool. Wipe the exterior with a soft damp cloth. Do not use abrasive cleaners or immerse in water. Clean the heating element gently with a dry brush.

What safety features does this heater have?

It includes overheat protection that automatically shuts off the heater if internal temperatures exceed safe limits, and a tip-over switch that cuts power if the unit is knocked over.

Can I use a remote control with this heater?

Yes, a remote control is included for adjusting temperature, timer, and power settings from a distance. Ensure the remote has fresh batteries and is pointed at the receiver.

What is the maximum heating area?

The heater can effectively warm up to 20 square meters in a well-insulated room. Actual coverage may vary based on ceiling height and insulation.

How do I set the timer?

Press the timer button on the control panel or remote. Use the +/- buttons to set the desired hours (1-24). The heater will automatically turn off after the set time.

Is the heater energy efficient?

Yes, it uses infrared technology that heats objects directly rather than the air, reducing energy waste. It also has a digital thermostat to maintain set temperature efficiently.

What should I do if the heater turns off unexpectedly?

Check for overheating (may need to cool down), tip-over activation, or if the timer has expired. Ensure the unit is on a stable surface and that air vents are not blocked.

Where can I find replacement parts?

Contact Bromic customer support or authorized dealers for parts like remote control, mounting bracket, or heating element. Use only genuine parts for safety.

USER MANUAL Smart-Heat BH3622004 Bromic

PLATINUM SMART-HEAT™ ELECTRIC

Available in black and white, our Platinum Smart-Heat ^™ Electric heater is specifically suited for low-clearance and design-focused spaces. This slim-line, stainless-steel unit spreads comfort evenly in its space, all while minimizing light emission and blending seamlessly into the background with our recess mounting solutions.

2300W, 3400W & 4500W SERIES BLACK | WHITE

2300W, 3400W & 4500W SERIES BLACK | WHITE

SPECIFICATIONS

Reference the specification guide below to help you select the correct solution for your needs.

MODEL NUMBER
2300W SERIES 3400W SERIES 4500W SERIES

PRODUCT CODES PLATINUM ELECTRIC	BH0320003 | BH0320007BH0320019 | BH0320020	BH0320005 | BH0320008BH0320021 | BH0320022	BH3622000 | BH3622004BH3622001 | BH3622005
PRODUCT CODES PLATINUM ELECTRIC MARINE	BH0320015 | BH0320017BH0320023 | BH0320024	BH0320016 | BH0320018BH0320025 | BH0320026	BH3622002 | BH3622006BH3622003 | BH3622007
FUEL TYPE	ELECTRIC ELECTRIC ELECTRIC
COLOR	BLACK | WHITE BLACK | WHITE BLACK | WHITE
HEAT AREA	65FT 1	108FT 2	143FT 2
RATED CURRENT**	220 - 240V/9.6A208V/11A	220 - 240V/14.2A208V/16.3A	220 - 240V/18.8A208V/21.6A
MINIMUM FLOOR CLEARANCE	WALL 72" | CEILING 96" WALL 72" | CEILING 96" WALL 72" | CEILING 96"

MOUNTING OPTIONS

CEILING MOUNT	INCLUDED INCLUDED INCLUDED
WALL MOUNT	INCLUDED INCLUDED INCLUDED
RECESS KIT | FLUSH MOUNT	√	√	√
CEILING RECESS KIT PRODUCT CODES	BH3130017	BH3130027	BH3623000
NEW RECESS KIT | LOW CLEARANCE	√	√	-
LOW CLEARANCE RECESS KIT PRODUCT CODES	BH 3623009	BH 3623008	-
CEILING POLE EXTENSION	√	√	√
CEILING POLE (2') PRODUCT CODE	BH3130025-1	BH3130025-1	BH3623020
CEILING POLE (4') PRODUCT CODE	BH3130024-1	BH3130024-1	BH3623021
FREESTANDING	-	-	-

CONTROL OPTIONS

ON | OFF	√	√		√
ON | OFF PRODUCT CODE	BH3130010-1 BH3130010-1		BH3130010-1
DIMMER	√	√		√
DIMMER PRODUCT CODE	BH3130011-BH3130011-1		BH3130011-1
MASTER REMOTE *	√	√		√
MASTER REMOTE PRODUCT CODE	BH3130012-1 BH3130012-1		BH3130012-1

* Control up to six zones of heaters with unlimited heaters per zone from a single remote control. Dimmer control required. Works with dimming controllers. Remote control operates within 100V of heaters. ** Available in 208V and 220-240V configurations
Measurements displayed within this document are for reference only, for complete requirements see the installation/user manual. Basic takes no responsibility for incorrect or non-compliant installations. All measurement in this document are displayed in inches.

DIMENSIONS

With a wide range of sizes available, find the ideal heater to suit your outdoor space.

CONTROL OPTIONS

ON | OFF CONTROL

DIMMER CONTROL

MASTER REMOTE

PROFILE
2300W

3400W

4500W

CEILING RECESS
CEILING RECESS FRAME 2300W

CEILING RECESS FRAME 3400W

CEILING RECESS FRAME 4500W

LOW CLEARANCE RECESS KIT 2300/3400W

MINIMUM CAVITY OPTION 1 2300/3400W

MINIMUM CAVITY OPTION 2 2300/3400W

MINIMUM CAVITY FOR 4500W

MOUNT OPTIONS

With a wide array of mounting options, Bromic offers solutions to compliment any decor and provide functionality for ambiance and comfort.

HEATING REACH

Creating ideal comfort levels, Bromic heaters offer a variety of heat distribution options to suit your outdoor heating needs.

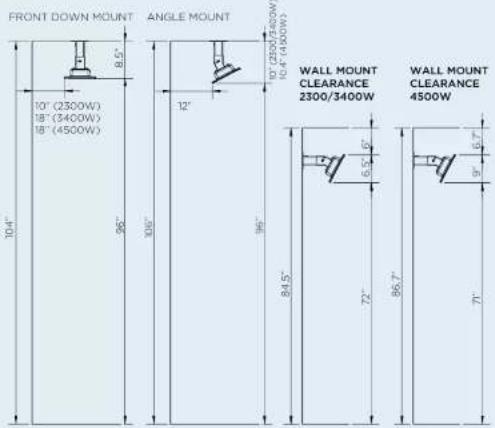

CEILING & WALL MOUNT
CEILING MOUNT CLEARANCE

CEILING POLE CLEARANCE

HEAT AREA
2300W SERIES
HEATING APPROXIMATELY (SEFT) 230OW HEATING POWER
HEATING APPROXIMATELY OBT ³ \$400W HEATING POWER

3400W SERIES

WALL BRACKET (INCLUDED)

CEILING BRACKET (INCLUDED)

4500W SERIES
HEATING APPROXIMATELY 143FT ² 1500W HEATING POWER

Diagram of a rectangular object with internal components and directional arrows, labeled with dimensions 13' and 14' (no text or symbols within the diagram itself)

EXTEND YOUR COMFORT OUTDOORS WITH THE SUPERIOR HEAT AND AWARD-WINNING DESIGN OF OUR SMART-HEAT™ OUTDOOR HEATERS.
