Product Type	Commercial Food Waste Disposer
Brand	Hobart
Model	FD4-300
Intended Use	Commercial kitchens for grinding food waste
Height (Adjustable)	22-5/8" to 28-7/8" (575 mm to 733 mm)
Width (Diameter)	15" (381 mm)
Depth (Overall)	8" (203 mm) approximate
Weight	Approximately 60 lbs (27 kg)
Electrical Supply	208-230V, 3-phase, 60 Hz (typical)
Motor Power	3 HP (estimated)
Motor Protection	Manual reset thermal overload protector
Water Supply Connection	1/2" cold water line, 3/4" IPS
Drain Connection	2" IPS drain line
Minimum Water Flow Pressure	16 psig (110 kPa)
Maximum Water Supply Pressure	60 psig (414 kPa) with pressure reducing valve over
Control Type	Optional Group 4, 5, or 6 control panel with solenoid valve
Rotation Direction	Reversible (clockwise or counter-clockwise)
Safety Features	Automatic shut-off on overload; manual reset; emergency disconnect
Warranty	Refer to Hobart service center
Maintenance	No lubrication required; sealed bearings
Cleaning	Flush with water after use; use stiff brush and soap; avoid chemical drain cleaners
Materials Not to Grind	Metal, glass, plastic, large bones, cloth, grease, oil
Grounding	Connect to grounded metal permanent wiring system
Installation Requirement	Must comply with local plumbing and electrical codes; vacuum breaker or air gap required

Frequently Asked Questions - FD4-300 Hobart

What is the purpose of the Hobart FD4-300?

The Hobart FD4-300 is a commercial food waste disposer designed to grind food waste in commercial kitchens, reducing volume and facilitating drainage.

What are the key safety precautions to follow?

Always disconnect power before clearing jams. Never put hands or implements inside while operating. Keep the vinyl silver trap or sink stopper in place. Do not operate if damaged.

How do I install the FD4-300?

Installation requires fabricating a cone or sink attachment, plumbing connections to cold water and 2" drain, and electrical wiring to a dedicated motor control switch. Follow local codes and use flexible conduit.

What electrical specifications are needed?

The disposer typically requires 208-230V, 3-phase power. Use a dedicated motor control switch with a marked OFF position. Size the branch circuit per motor nameplate and use NEMA 4 watertight fittings.

How do I operate the FD4-300?

Start the disposer and ensure water is flowing before feeding waste. Do not grind prohibited items like metal, glass, or grease. Allow the disposer to run after grinding to flush the system. Use automatic controls if equipped.

How do I clean the disposer?

Run the disposer a few minutes after use to flush. For odor, clean with a stiff brush and hot soapy water. You can also grind ice and lemon. Do not use chemical drain cleaners.

What maintenance is required?

No lubrication is needed; bearings are sealed. Cutter blocks can be rotated by a qualified technician if worn. Check the overload protector and reset if tripped after cooling.

What should I do if the motor overload trips?

Allow 5 minutes for cooling, then press the manual reset button on the motor shell. If it continues to trip, contact Hobart Service.

Can the FD4-300 grind bones?

Only small bones may be ground; large, whole bones should not be fed into the disposer to avoid damage.

Where can I get replacement parts or service?

Contact a factory-authorized Hobart service center. Refer to the service list included in the Owner's Information Packet or visit www.hobartcorp.com.

USER MANUAL FD4-300 Hobart

FOOD WASTE DISPOSERS

MODELS

FD4-150

FD4-200

FD4-300

INSTRUCTION

HOBART

701 S. RIDGE AVENUE

TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

TABLE OF CONTENTS

SAFETY 4

INSTALLATION 5

Fabricating 5

Plumbing Connections....5

Electrical Connections 6

Grounding 6

OPERATION....8

Cleaning....8

MAINTENANCE 8

Lubrication 8

Cutter Blocks 8

Overload Protection 8

Installation, Operation and Care of MODELS FD4-150, FD4-200, & FD4-300 FOOD WASTE DISPOSERS

SAVE THESE INSTRUCTIONS

SAFETY

RECOGNIZE SAFETY INFORMATION

⚠ WARNING When you see this symbol on your machine or in this manual, be alert to the potential for personal injury.

READ ALL INSTRUCTIONS

Read this owner's manual before using the machine. Failure to follow the instructions provided could result in personal injury or equipment damage.

KEEP OUT OF REACH OF CHILDREN

This disposer is intended for commercial use only.

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

DO NOT PUT HANDS OR ANY IMPLEMENT IN THE DISPOSER WHILE IN OPERATION.

NEVER FEED WASTE BY HAND PAST VINYL SILVER TRAP SCRAPPING RING.

DO NOT OPERATE IF DAMAGED.

Do not install or operate this disposer if the disposer has been dropped or damaged in any manner. Contact the nearest factory-authorized service center for examination, repair, or adjustment. (Refer to the service list included in the Owner's Information Packet.)

DO NOT LEAVE DISPOSER UNATTENDED WHILE OPERATING.

SET THE POWER SWITCH TO OFF BEFORE CLEARING JAMS OR REMOVING OBJECTS FROM DISPOSER.

When the disposer is wired to a Group 4 Control or Group 5 Control Panel, SHUT OFF the branch circuit main switch or disconnect.

When the disposer is wired to a Group 6 Control Panel, TURN OFF emergency disconnect.

Use long-handled tongs or pliers to remove objects.

TO REDUCE THE RISK OF INJURY BY MATERIALS THAT MAY BE EXPELLED BY DISPOSER, DO NOT PUT THE FOLLOWING INTO DISPOSER: drain cleaner; glass, china, or plastic; large, whole bones; metal (bottle caps, tin cans, aluminum foil, etc); whole cornhusks.

ALWAYS KEEP VINYL SILVER TRAP SCRAPPING RING OR SINK STOPPER IN PLACE, EVEN WHEN NOT IN USE.

This reduces the risk of objects falling into the disposer.

WHEN CLEANING KITCHEN AND DISPOSER AREA, ONLY DAMP WIPE OUTSIDE OF DISPOSER AND CONTROLS. DO NOT AT ANY TIME HOSE DOWN THE EXTERIOR SURFACES OF THE DISPOSER AND CONTROLS.

INSTALLATION

Immediately after unpacking the disposer, check for possible shipping damage. If the disposer is found to be damaged, save the packaging material and contact the carrier within 15 days of delivery.

Prior to installation, test the electrical service to make sure that it agrees with the specifications on the disposer data plate.

Temporary support, such as blocking, must be provided for the disposer during installation to avoid excessive stress at welded or soldered cone to table connection.

FABRICATING

1. Consult installation and connection data and installation diagrams on the following pages for cone or sink attachment dishtable cutout sizes.
2. For cone attachment, position cone so water swirl inlet fitting is nearest to operator.
3. Weld the total circumference of the cone or sink attachment to prevent leakage.
4. Smooth grind and polish to match and blend weld seams.

NOTICE Do not place control mounting brackets in direct water splash areas.

PLUMBING CONNECTIONS

⚠ WARNING Plumbing connections must comply with applicable sanitary, safety, and plumbing codes.

1. Consult installation and connection data and installation diagrams on the following pages for mounting, hookups, and pipe sizes.
2. Slide in, or position, disposer to connect to waste line, avoiding as many bends, elbows, and tees as possible.

3. Connect disposer from a 34 " IPS cold water supply line. Install the flow control supplied with the disposer. If the water line pressure exceeds 60 psig, a pressure reducing valve (not supplied) should be installed. The minimum flow pressure for the disposer to function properly is 16 psig. Install a shut-off valve (not supplied) for proper servicing of the disposer.

4. All controls are supplied with a solenoid valve which must be installed in the water supply line as shown.

1. Install a vacuum breaker according to local plumbing codes. If local plumbing codes prohibit the use of vacuum breaker, install an air gap water inlet (not supplied) observing the local codes.
2. Secure disposer to floor using the holes provided in the feet.

ELECTRICAL CONNECTION

⚠ WARNING Electrical and grounding connections must comply with the applicable portions of the National Electrical Code and/or other local electrical codes.
WARNING Disconnect the electrical power to the machine and follow lockout/tagout procedures.

This unit must be connected to a dedicated, acceptable motor control switch with a marked OFF position to disconnect the appliance from all ungrounded supply conductors. The switch must be mounted within sight of the disposer or sink opening for the disposer.

Knockouts are provided in the motor junction box for making electrical connections to the unit. Flexible conduit should be used to permit moving the unit for periodic servicing and maintenance.

Select and follow wiring diagram, furnished with machine, applicable to your disposer and electrical service.

NOTICE Do not place control in direct water splash areas.

Follow supplied wiring schematics for all controls, solenoid valves and pre-wired custom control centers. Size and fuse disposer branch circuit or use circuit breakers as required by motor nameplate rating. Check that motor voltage wiring matches incoming voltage.

NOTICE All conduit and fittings shall be of the NEMA 4 watertight type.

Disposers have thermal protection of the manual reset type in motor. Check that reset button is not jammed. Check that all connections are tight, secure, and well grounded.

NOTICE Disposers are designed to operate in both a clockwise and counter-clockwise direction. Direction of rotation does not have to be considered when wiring motor.

GROUNDING

Connect disposer to a grounded metal permanent wiring system or run a disposer grounding conductor with the circuit conductors and connect it to the disposer grounding terminal or lead on the disposer.

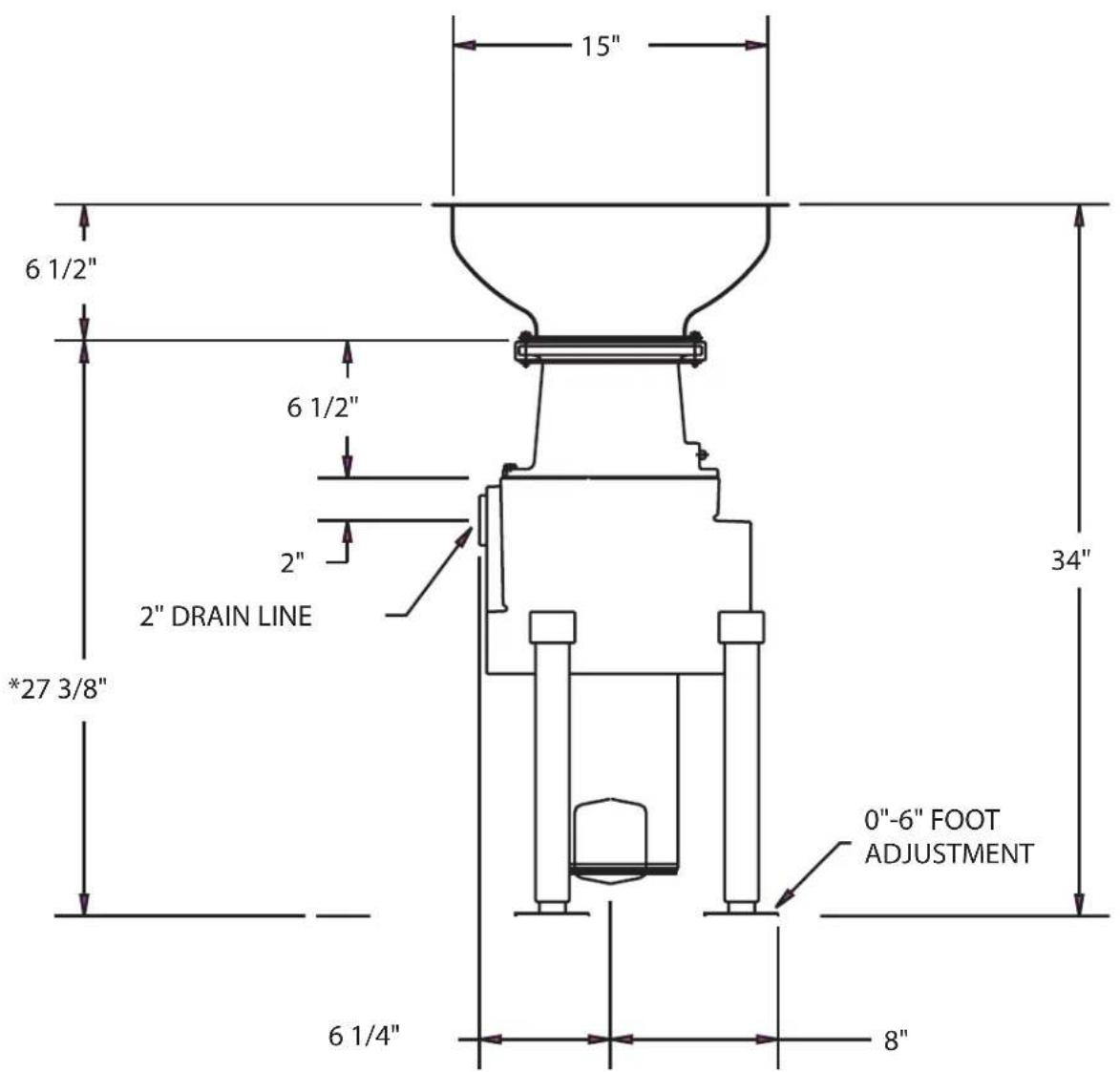

* HEIGHT CAN VARY FROM 22-5/8" TO 28-7/8"

OPERATION

Before operating disposer make sure it is clear of foreign objects such as metal or wire clippings, screws, nails, etc., which may have dropped into it during installation. Check the flywheel for free rotation.

⚠ WARNING Never use your hand to check rotation of flywheel or to remove foreign matter from the disposer. Use a stick or similar object to turn the flywheel. Foreign matter can be removed with tongs or pliers.

Start the disposer before feeding food waste. Be sure water is flowing. With typical optional controls, water flow and unit starting are simultaneous and automatic. Feed food waste into disposer. DO NOT feed china, metal, rags, clam shells, or similar material into the unit. DO NOT put grease or oil in the disposer. Oil or grease can clog the drain. Always allow the disposer to run for a short period after grinding is complete to assure proper flushing of the disposer and waste line. This flushing is automatically controlled with certain optional controls.

CLEANING

The food waste disposer should be kept in a clean and sanitary condition. Allow the disposer to run a few minutes after disposing of all food waste to completely flush out the interior. If food waste is allowed to accumulate due to improper clean-up, it will give off offensive odors. If this happens, cleaning can be accomplished by using a stiff brush with a strong soap and hot water solution. Light cleaning can be accomplished by grinding ice and a lemon through the disposer.

⚠ WARNING Do not use chemical solvents or other drain cleaning compounds through the disposer.

MAINTENANCE

LUBRICATION

No lubrication is required for the food waste disposer. The disposer has grease packed sealed bearings requiring no service.

CUTTER BLOCKS

The cutter blocks (1, Fig. 1) may be rotated by a qualified Hobart Service Technician if the cutting edges become worn.

OVERLOAD PROTECTION

The disposer motor is protected by a thermal, resetable overload protector and will trip if the motor is overloaded. To reset, allow approximately five minutes for cooling, then press the manual reset button located on the motor shell opposite the motor junction box. An arrow on the motor shell indicates location of the button. Restart the disposer using normal operating procedure. If overload protector continues to trip, contact your local Hobart Service Office.
