Product Type	Commercial Food Waste Disposer
Brand	Hobart
Model	FD4-125
Overall Height (Single Phase)	23-5/8 inches
Overall Height (Three Phase)	22-3/4 inches
Cone Diameter	8-3/8 inches
Waste Discharge Spout	1-1/2 inch O.D.
Water Connection	3/4 inch IPS cold water supply
Flow Control	5 gallons per minute
Minimum Water Pressure	16 psig
Maximum Water Pressure	60 psig (use pressure reducing valve above)
Electrical Requirement	Dedicated motor control switch with marked OFF position
Grinding Mechanism	Hardened stainless steel cutter blocks and stationary shredder ring
Rotation	Reversible, grinds in both directions
Overload Protection	Manual reset thermal overload protector
Self-Feeding	Yes
Lubrication	None required; sealed bearings
Cleaning	Run with water after use; use stiff brush with soap and hot water; grind ice and lemon for light cleaning
Prohibited Materials	Drain cleaner, glass, china, plastic, large bones, metal, whole cornhusks, grease, oil
Safety Features	Vinyl silver trap scraping ring; remote control options; lockout/tagout compatibility
Installation	Plumbing and electrical per local codes; requires temporary support during installation

Frequently Asked Questions - FD4-125 Hobart

What is the Hobart FD4-125 food waste disposer used for?

The FD4-125 is a commercial food waste disposer designed to grind food waste into small particles for easy disposal through waste lines. It is intended for use in commercial kitchens.

What are the dimensions of the FD4-125?

The overall height is 23-5/8 inches for single-phase models and 22-3/4 inches for three-phase models. The cone diameter is 8-3/8 inches and the waste outlet is 1-1/2 inches O.D.

How do I install the FD4-125 disposer?

Installation requires temporary support to avoid stress on the cone connection. Attach the disposer to the cone using clamp rings and screws. Plumbing connections must comply with local codes; connect the waste discharge spout to a standard trap and the water supply to a 3/4 inch IPS line with a 5 GPM flow control. Electrical connections require a dedicated motor control switch with lockout/tagout capability.

What materials should not be put into the disposer?

Do not put drain cleaner, glass, china, plastic, large whole bones, metal (bottle caps, cans, foil), whole cornhusks, grease, or oil into the disposer. These can damage the unit or clog the drain.

How do I clean the FD4-125 disposer?

Run the disposer and water for a few minutes after grinding to flush the interior. For accumulated waste, use a stiff brush with hot, soapy water. Light cleaning can be done by grinding ice and a lemon. Do not use chemical solvents or drain cleaners.

What maintenance does the FD4-125 require?

No lubrication is needed as bearings are sealed. The cutter blocks can be rotated by a qualified Hobart service technician if edges become worn. The motor has a manual reset overload protector that may trip if overloaded; allow 5 minutes cooling then press the reset button.

How do I reset the overload protector?

If the motor stops due to overload, wait approximately 5 minutes for cooling. Locate the manual reset button on the motor shell opposite the junction box (indicated by an arrow). Press the button to reset, then restart the disposer normally.

Can the FD4-125 be used with a sink?

Yes, an accessory group E sink adapter is available for 3-1/2 inch to 4 inch sink openings. Use the short upper housing for this configuration.

What electrical requirements are needed for the FD4-125?

The unit must be connected to a dedicated motor control switch with a marked OFF position that disconnects all ungrounded supply conductors. The switch should be within sight of the disposer. Follow the wiring diagram supplied with the machine.

Is the FD4-125 suitable for household use?

No, this disposer is intended for commercial use only. It is not designed for residential kitchens.

USER MANUAL FD4-125 Hobart

FOOD WASTE DISPOSERS

MODELS

FD4-50

FD4-75

FD4-125

INSTRUCTION

HOBART

701 S. RIDGE AVENUE

TROY, OHIO 45374-0001

937 332-3000

www.hobartcorp.com

TABLE OF CONTENTS

SAFETY 4

GENERAL 5

INSTALLATION 6

Fabricating....6

Plumbing Connections....6

Electrical Connections 7

Grounding 7

OPERATION....9

Cleaning....9

MAINTENANCE 10

Lubrication....10

Cutter Blocks 10

Overload Protection 10

Installation, Operation and Care of MODELS FD4-50, FD4-75, & FD4-125 FOOD WASTE DISPOSERS

SAVE THESE INSTRUCTIONS

SAFETY

RECOGNIZE SAFETY INFORMATION

⚠ WARNING When you see this symbol on your machine or in this manual, be alert to the potential for personal injury.

READ ALL INSTRUCTIONS

Read this owner's manual before using the machine. Failure to follow the instructions provided could result in personal injury or equipment damage.

KEEP OUT OF REACH OF CHILDREN

This disposer is intended for commercial use only.

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

DO NOT PUT HANDS OR ANY IMPLEMENT IN THE DISPOSER WHILE IN OPERATION.

NEVER FEED WASTE BY HAND PAST VINYL SILVER TRAP SCRAPPING RING.

DO NOT OPERATE IF DAMAGED.

Do not install or operate this disposer if the disposer has been dropped or damaged in any manner. Contact the nearest factory-authorized service center for examination, repair, or adjustment. (Refer to the service list included in the Owner's Information Packet.)

DO NOT LEAVE DISPOSER UNATTENDED.

SET THE POWER SWITCH TO OFF BEFORE CLEARING JAMS OR REMOVING OBJECTS FROM DISPOSER.

When the disposer is wired to a Group 4 Control or Model Group 5 Center, SHUT OFF the branch circuit main switch or disconnect.

When the disposer is wired to a Group 6 Control Panel, TURN OFF emergency disconnect.

Use long-handled tongs or pliers to remove objects.

TO REDUCE THE RISK OF INJURY BY MATERIALS THAT MAY BE EXPELLED BY DISPOSER, DO NOT PUT THE FOLLOWING INTO DISPOSER: drain cleaner; glass, china, or plastic; large, whole bones; metal (bottle caps, tin cans, aluminum foil, etc); whole cornhusks.

ALWAYS KEEP VINYL SILVER TRAP SCRAPPING RING OR SINK STOPPER IN PLACE, EVEN WHEN NOT IN USE.

This reduces the risk of objects falling into the disposer.

WHEN CLEANING KITCHEN AND DISPOSER AREA, ONLY DAMP WIPE OUTSIDE OF DISPOSER AND CONTROLS. DO NOT AT ANY TIME HOSE DOWN THE EXTERIOR SURFACES OF THE DISPOSER AND CONTROLS.

GENERAL

The FD4 Series disposers utilize hardened stainless steel cutter blocks (1, Fig. 1) mounted to a rotating flywheel (4, Fig. 1) and a stationary shredder ring (2 Fig. 1) to grind food waste to a small particle size for discharge through waste lines. With the motor running and flushing water turned on, food waste is reduced to grinding size by the rotating "hi-bulk" cutter (3, Fig. 1). Grinding occurs as the food waste is forced against the shredder ring by the cutter blocks and the centrifugal force due to rotation. The flushing water aids the grinding action and discharges ground food waste into the waste line.

The disposer features removable hardened steel components and reversible rotation with grinding in both directions and a manual reset inherent overload protector in the motor circuit. The disposer is self feeding, making it unnecessary to force the food waste into the grinding mechanism. It may be completely filled with waste when idle, and will start and operate at full load.

Control groups and accessory groups are available to suit each installation.

Fig. 1

INSTALLATION

Immediately after unpacking the disposer, check for possible shipping damage. If the disposer is found to be damaged, save the packaging material and contact the carrier within 15 days of delivery.

Prior to installation, test the electrical service to make sure that it agrees with the specifications on the disposer data plate.

Temporary support, such as blocking, must be provided for the disposer during installation to avoid excessive stress at welded or soldered cone to table connection.

ASSEMBLY

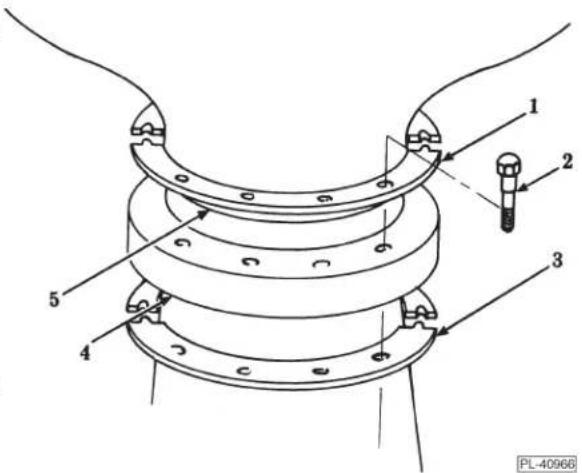

To attach the disposer assembly to the cone for a regular duty installation, see Fig. 2. Note the top clamp ring (1, Fig. 2) has drilled holes and the bottom clamp ring (3, Fig. 2) has threaded holes. Using five screws (2, Fig. 2) assemble rear halves of clamp rings to the back of the disposer flange (4, Fig. 2). Lift the disposer into position on the cone flange (5, Fig. 2) and assemble front halves of clamp rings using remaining five screws. Tighten all screws finger tight. Rotate disposer to desired position and tighten all screws evenly to form a water-tight joint.

To install accessory group E (sink adapter for 3-1/2" to 4" sink opening), use the short upper housing. See (2, Fig. 4) and the accessory group parts catalog.

Fig. 2

Fig. 3

PLUMBING CONNECTIONS

⚠ WARNING Plumbing connections must comply with applicable sanitary, safety, and plumbing codes.

Drain

The disposer is furnished with a 1-1/2" O.D. waste discharge spout suitable for connection to a standard trap. Install waste lines with the shortest possible run and best fall. The waste exit must not be higher than the center line of the waste outlet (1, Fig. 3 and 1, Fig. 4). Old waste lines must be thoroughly cleaned. Ream burrs from cut pipe ends and use fittings which will permit unrestricted flow. Drum traps and grease traps must NOT be used.

Water Connections

Connect disposer swirl (1, Fig. 5) from a 3/4" IPS cold water supply line. Install the five gallon per minute flow control supplied with the disposer (2, Fig. 5). If the water line pressure exceeds 60 psig, a pressure reducing valve (6, Fig. 5) (not

Fig. 4

supplied) should be installed. The minimum flow pressure for the disposer to function properly is 16 psig. Install a shut-off valve (not supplied) for proper servicing of the disposer.

All controls are supplied with a solenoid valve (4, Fig. 5) which must be installed in the water supply line as shown. Control Group 3 is furnished with a pressure switch which must be installed between the solenoid valve and pressure reducing valve.

Install a vacuum breaker (3, Fig. 5) according to the local plumbing codes. If local plumbing codes prohibit the use of a vacuum breaker, install an air gap water inlet (not supplied) observing the local codes.

ELECTRICAL CONNECTION

⚠ WARNING Electrical and grounding connections must comply with the applicable portions of the National Electrical Code and/or other local electrical codes.

⚠ WARNING Disconnect the electrical power to the machine and follow lockout/tagout procedures.

This unit must be connected to a dedicated, acceptable motor control switch with a marked OFF position to disconnect the appliance from all ungrounded supply conductors. The switch must be mounted within sight of the disposer or sink opening for the disposer.

Knockouts are provided in the motor junction box for making electrical connections to the unit. Flexible conduit should be used to permit moving the unit for periodic servicing and maintenance.

Select and follow wiring diagram, furnished with machine, applicable to your disposer and electrical service.

Fig. 5

OPERATION

Before operating disposer make sure it is clear of foreign objects such as metal or wire clippings, screws, nails, etc., which may have dropped into it during installation. Check the flywheel for free rotation.

⚠ WARNING Never use your hand to check rotation of flywheel or to remove foreign matter from the disposer. Use a stick or similar object to turn the flywheel. Foreign matter can be removed with tongs or pliers.

Start the disposer before feeding food waste. Be sure water is flowing. With typical optional controls, water flow and unit starting are simultaneous and automatic. Feed food waste into disposer. DO NOT feed china, metal, rags, clam shells, or similar material into the unit. DO NOT put grease or oil in the disposer. Oil or grease can clog the drain. Always allow the disposer to run for a short period after grinding is complete to assure proper flushing of the disposer and waste line. This flushing is automatically controlled with certain optional controls.

CONTROLS

WARNING Never reach inside this disposer while it is operating.

The operation of the disposer and additional available controls will depend on the selection of control devices. Refer to control group data sheet..

CLEANING

The food waste disposer should be kept in a clean and sanitary condition. Allow the disposer to run a few minutes after disposing of all food waste to completely flush out the interior. If food waste is allowed to accumulate due to improper clean-up, it will give off offensive odors. If this happens, cleaning can be accomplished by using a stiff brush with a strong soap and hot water solution. Light cleaning can be accomplished by grinding ice and a lemon through the disposer.

NOTICE Do not use chemical solvents or other drain cleaning compounds through the disposer.

MAINTENANCE

LUBRICATION

No lubrication is required for the food waste disposer. The disposer has grease packed sealed bearings requiring no service.

CUTTER BLOCKS

The cutter blocks (1, Fig. 1) may be rotated by a qualified Hobart Service Technician if the cutting edges become worn.

OVERLOAD PROTECTION

The disposer motor is protected by a thermal, resetable overload protector and will trip if the motor is overloaded. To reset, allow approximately five minutes for cooling, then press the manual reset button located on the motor shell opposite the motor junction box. An arrow on the motor shell indicates location of the button. Restart the disposer using normal operating procedure. If overload protector continues to trip, contact your local Hobart Service Office.
