USER MANUAL CX 680 SPORTS SENNHEISER

SPORTS Printed in China Publ. 10/09, AO1 Pa 4

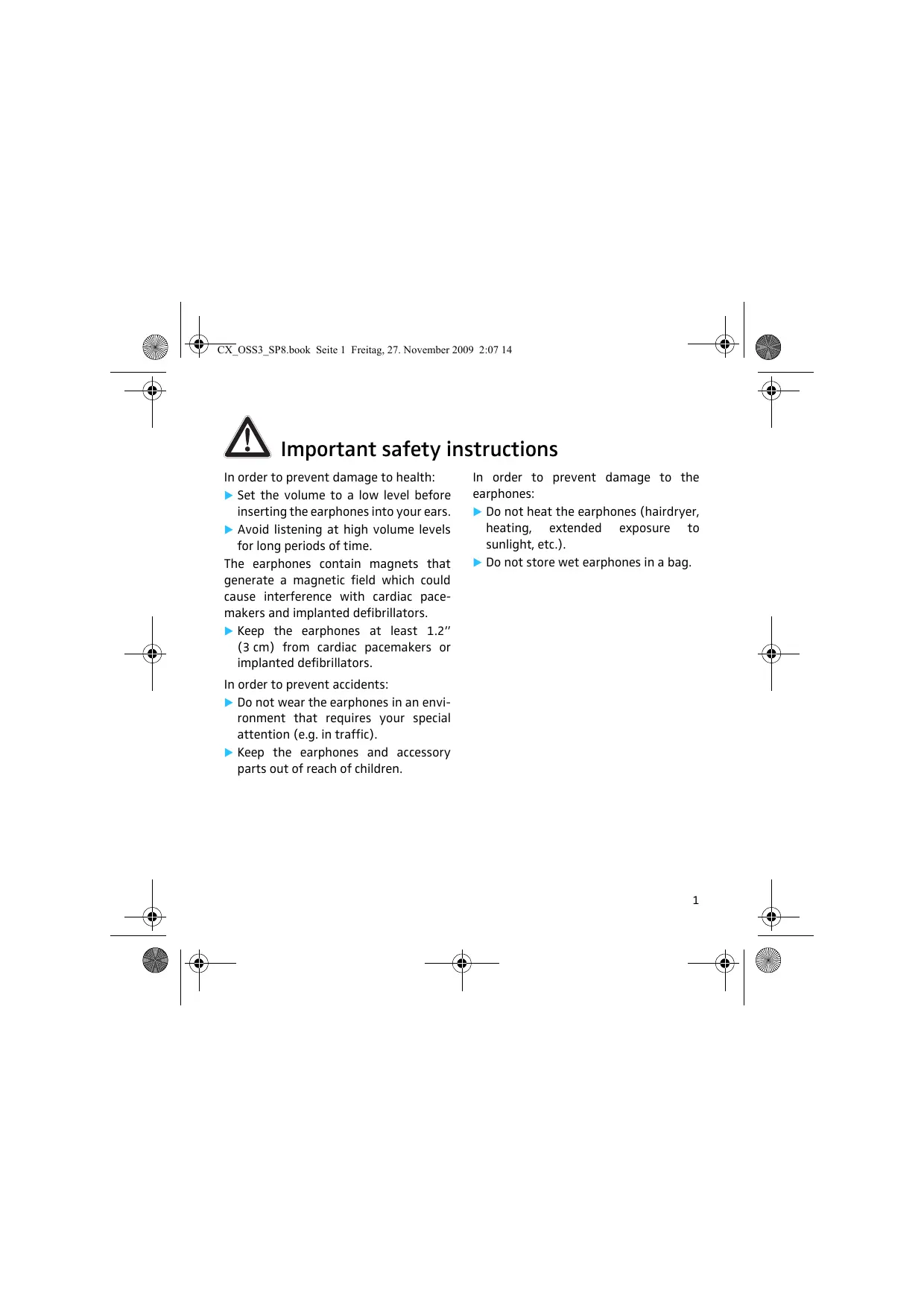

ÂÀ Important safety instructions In order to prevent damage to health: » Set the volume to a low level before inserting the earphones into your ears. » Avoid listening at high volume levels for long periods of time The earphones contain magnets that generate a magnetic field which could cause interference with cardiac pace- makers and implanted defibrillators. » Keep the earphones at least 1.2" (cm) from cardiac pacemakers or implanted defibrillators. In order to prevent accidents: > Do not wear the earphones in an envi- ronment that requires your special attention (e.g. in traffic) » Keep the earphones and accessory parts out of reach of children.

In order to prevent damage to the earphones: > Do not heat the earphones (hairdryer, heating, extended exposure to sunlight, etc.). > Do not store wet earphones in a bag.

d à a & WP CX_OSS3_SP8.book Seite 2 Freitag, 27. November 2009 2:07 14 | Éd PS 7 Delivery includes Sound quality and 1 pair of CX 680 Sports ear canal phones Correct fit 3 pairs of ear adapters n n {size S, ML) @ WARNING Hearing damage due to high 3 pairs of EarFins ’ VAN Listening at high volume levels for long periods can lead to permanent hearing defects. > Avoid listening at high pair of housing covers volume levels for long © periods of time Use the earphones: (size 5, M, L)

À 1 pair of spare diaphragm Ps 7 guards + With EarFins during sports activities à 1 cleaning tool + Without EarFins during normal daily 1 extension cable with volume control use 1 cable clip The ear adapters must seal your ear is h canals in order to obtain the optimum Storage pouc sound and so that the earphones are 1 instruction manual perfectly seated. Select the size that fits your ears. @ L

d à a & WP CX_OSS3_SP8.book Seite 3 Freitag, 27. November 2009 2:07 14 | Éd Ps dd Using EarFins during sports activities Daily use without EarFins To ensure that the earphones are To adjust the earphones for daily use: securely seated during sports activities: a » Attach the housing covers to the » Select the correct size of EarFins and earphones. attach them to the earphones (1). a A Observe the “L" (left) and “R" (right) 7 7 markings on the earphones and Ÿ EarFins. » Select the ear adapters to fit your ears. S/M/L » Attach the ear adapters to the earphones. > Select the ear adapters to fit our ears. » Attach the ear adapters to the earphones. PS £

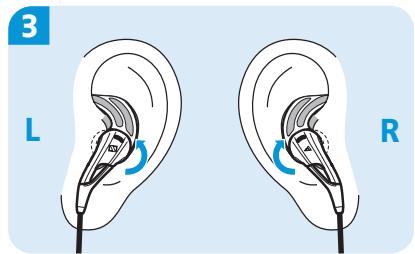

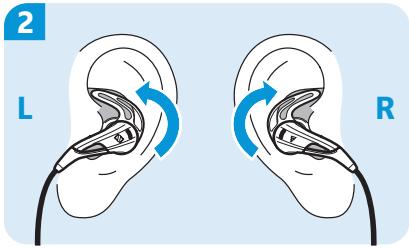

& & TX_OSS3_SP8.book Seite 4 Freitag, 27. November 2009 2:07 14 & | Éd Inserting into the ears To use the earphones with EarFins: Ps | ne ER ACE (NS » Release the EarFins and position the > Slightly press the EarFins down. earphones so that a comfortable and a snug fit is ensured. TZ _ 7 N e > With the EarFins pressed down, insert the earphones into your ear. Lis + HS

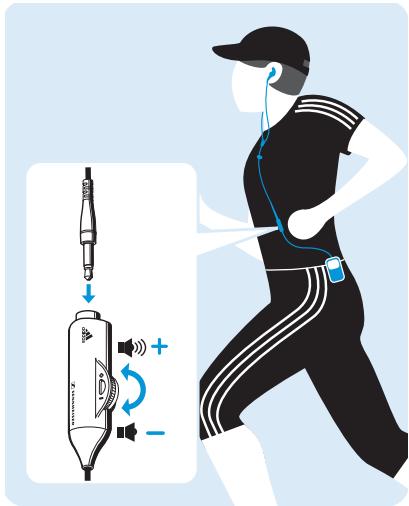

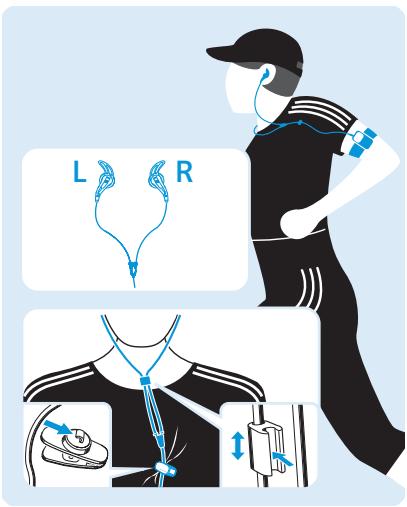

d à a & WP CX_OSS3_SP8.book Seite 5 Freitag, 27. November 2009 2:07 14 | Éd Ps dd Optimum cable routing Adjusting the volume » Ensurethatthe cable is routed closeto > Use the supplied extension cable with the body, but that your freedom of volume control if you want to wear movement is not restricted. your audio source e.g. attached to To relieve cable strain and reduce body your waistband. sound: > Use the supplied cable clip.

Cleaning the earphones CAUTION Danger of damage to the earphones! Contact with any liquid under pressure or extended contact with any liquid can cause it to seep into the earphone housing resulting in damage to the earphone > Do not use any solvents or cleansing agents. > Do not immerse the earphones into water for extended periods of time > Do not expose the earphones to excessive water pressure. > Use a cloth to carefully remove buildup from the earphones and ear adapters. Or: » Carefully rinse the earphones under lukewarm running water. > Then allow the earphones to air dry at room temperature.

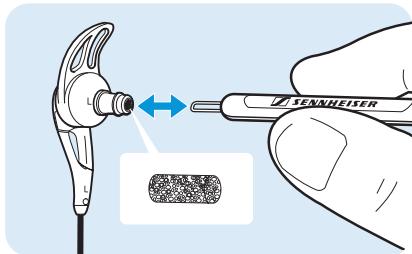

Replacing the diaphragm guards The diaphragm qguards protect the diaphragms of the earphones and contribute to the sound quality of the earphones. Ensure that the diaphragm guards are always installed in the earphones. » Replace dirty diaphragm guards using the cleaning tool or tweezers. Accessory parts are available from your Sennheiser partner. To find your Sennheiser partner, please visit our website at www.sennheiser.com > Service & Support > Service Partners.

d à a & WP CX_OSS3_SP8.book Seite 7 Freitag, 27. November 2009 2:07 14 | Éd PSI 4 Specifications Manufacturer Frequency response 18 to 20,000 Hz Declarations SPL 120 dB Warranty GkHz/1Vrms) Sennheiser GmbH & Co. KG gives Impedance 160 a warranty of 24 months on this product. Weight Approx.10g Forthe current warranty conditions, please visit our website at www.sennheiser.com under "Service & Support” or contact your Sennheiser partner. Declaration of Conformity C This product is in compliance with the essential requirements and & other relevant provisions of k directives: EMC 2004/108/EC, RoHS 2002/95/EC, WEEE 2002/ 96/EC. WEEE Declaration Please dispose of this product by D taking it to your local collection point or recycling center for such equipment. The declarations are available at www.sennheiser.com PS L
