| Product Type | Commercial Tankless Water Heater |
| Model | iQ3001 Gen II |
| Brand | Intellihot |
| Fuel Type | Natural Gas / Propane |
| Input Rating | 199,000 BTU/h |
| Flow Rate | Up to 9.8 GPM at 70°F rise |
| Thermal Efficiency | Up to 98% (condensing) |
| Dimensions (W x H x D) | 20.5" x 30.5" x 24.5" |
| Weight | 110 lbs (empty) |
| Power Supply | 120V / 60Hz / 3A |

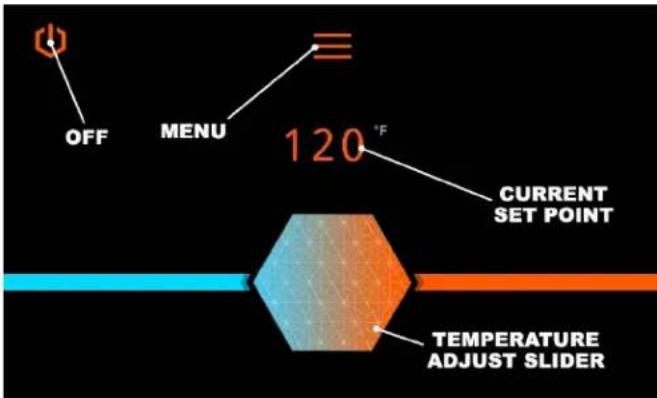

| Temperature Range | 85°F to 140°F |
| Venting Type | Direct vent (PVC/CPVC), up to 100 ft |
| Ignition | Hot surface ignition |
| Control System | Electronic microprocessor with LED display |
| Main Functions | On-demand hot water, recirculation mode, frost protection, self-diagnostics |

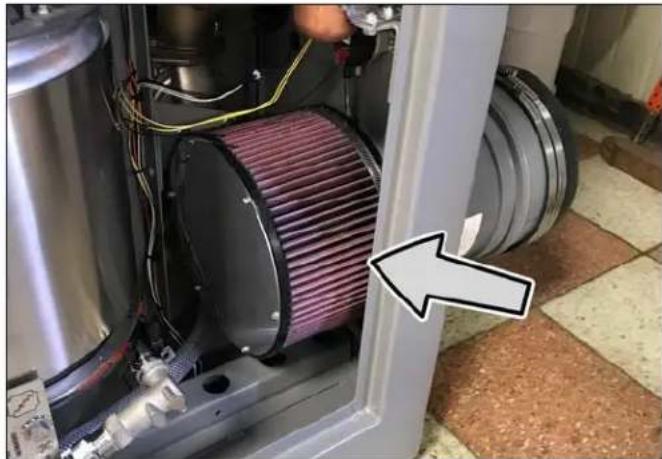

| Maintenance | Annual flushing, cleaning of air intake and vent screens, check anode rod |
| Safety Features | Flame failure protection, overheat protection, pressure relief valve, freeze protection down to -20°F |
| Spare Parts & Repairability | Replacement heat exchanger, control board, gas valve, sensors available; modular design for easy service |
| Warranty | 10-year heat exchanger, 5-year parts |
| Certifications | ANSI Z21.10.3 / CSA 4.3, Low NOx, Energy Star qualified |
Frequently Asked Questions - iQ3001 Gen II Intellihot
What is the maximum flow rate of the iQ3001 Gen II?
The iQ3001 Gen II provides up to 9.8 gallons per minute at a 70°F temperature rise, making it suitable for large commercial applications.

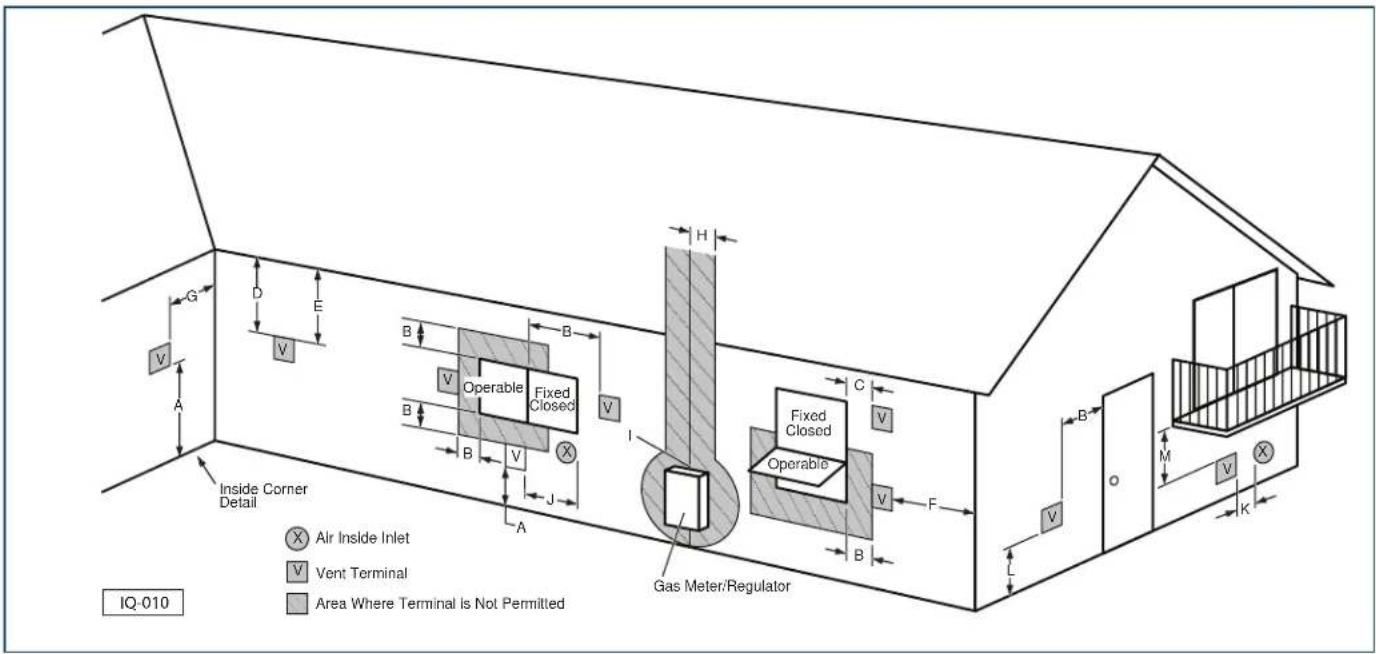

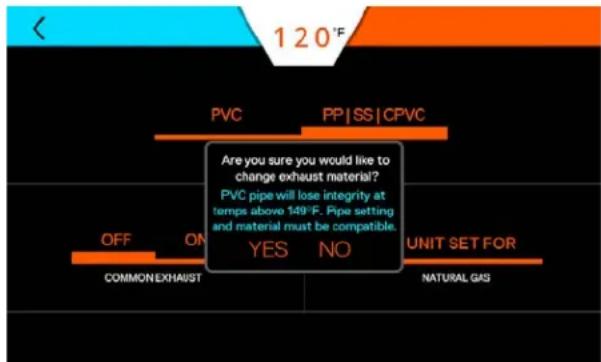

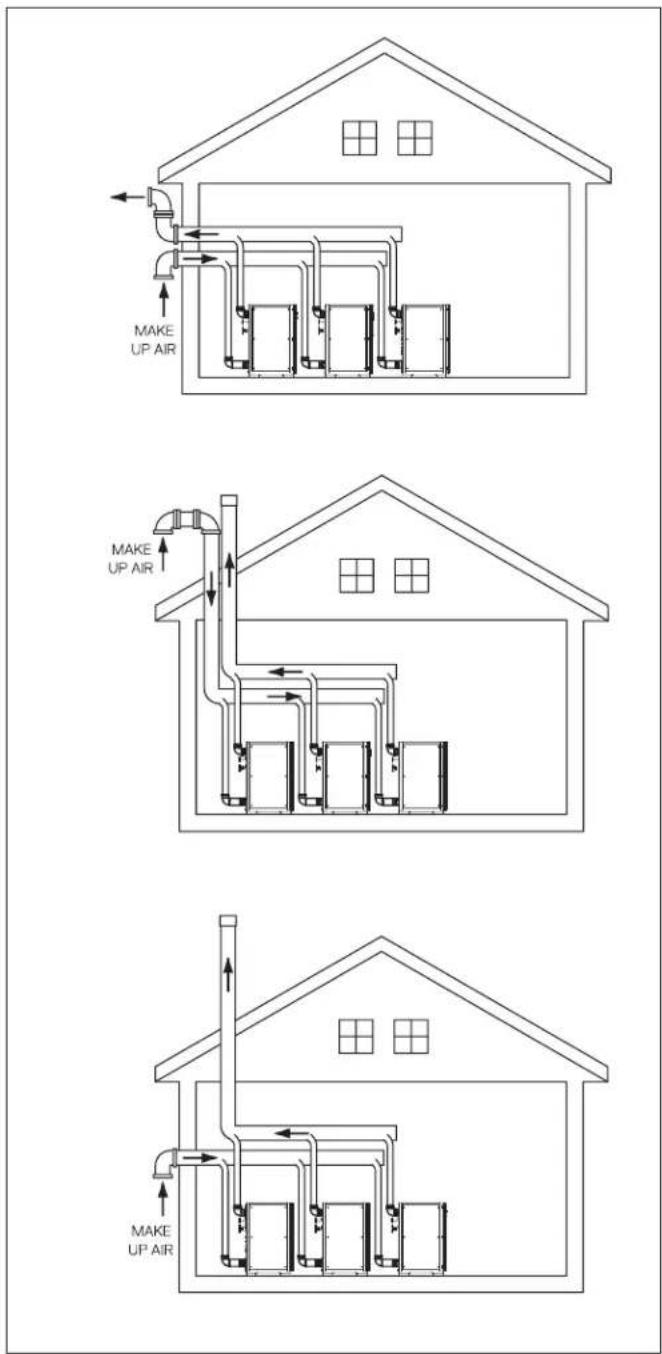

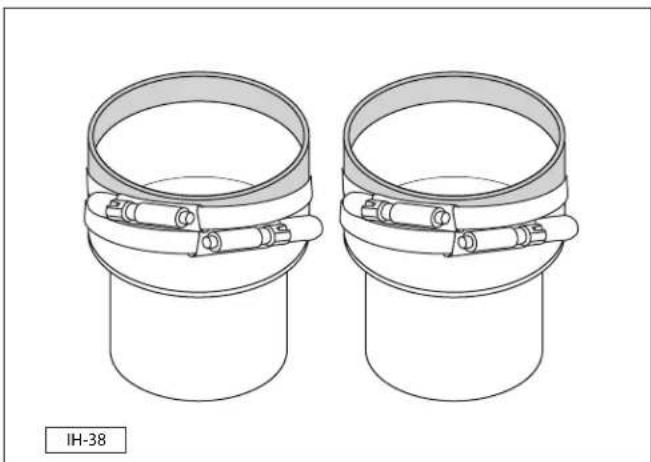

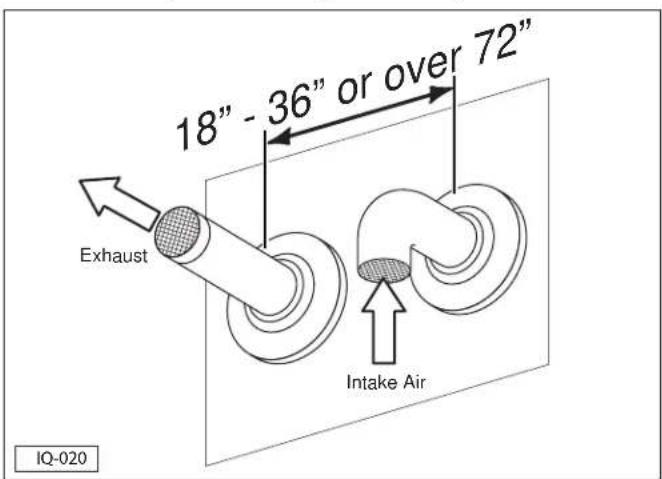

What type of venting is required?
This unit uses direct venting with PVC or CPVC pipes. Maximum vent length is 100 feet, including elbows. Horizontal or vertical termination is acceptable.

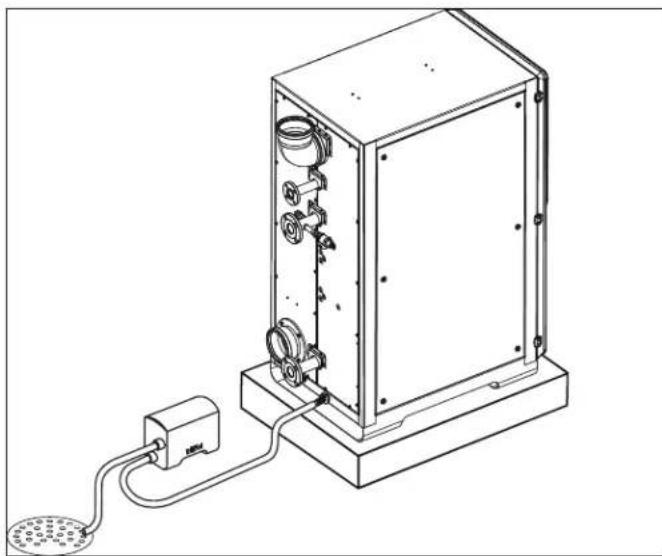

How do I flush the heat exchanger?
To flush, turn off power and gas, close isolation valves, connect pump to service ports, and circulate a vinegar or descaling solution for 45 minutes. Then rinse with fresh water.
What error code indicates a flame failure?
Error code E3 indicates flame failure. Check gas supply, ignition electrode, and flame sensor. Reset the unit after resolving the issue.
Can the iQ3001 be used with a recirculation loop?
Yes, the unit has a built-in recirculation mode compatible with most systems. Connect the recirculation line to the cold water inlet with a check valve.
What is the minimum temperature setting?
The minimum adjustable temperature is 85°F. This prevents scalding and ensures efficient operation in mild weather.
How often should the anode rod be replaced?
The anode rod should be inspected annually and replaced every 2-3 years in areas with hard or aggressive water to prevent tank corrosion.
Does the heater have freeze protection?
Yes, it includes automatic freeze protection down to -20°F. The burner activates if internal temperatures drop near freezing.
What is the power consumption?
The electrical requirement is 120V, 60Hz, 3A. A dedicated circuit is recommended. Power consumption in standby is less than 5 watts.

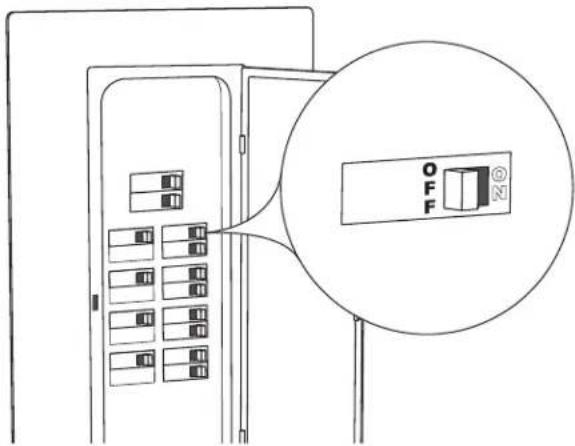

How do I reset the unit after a fault?

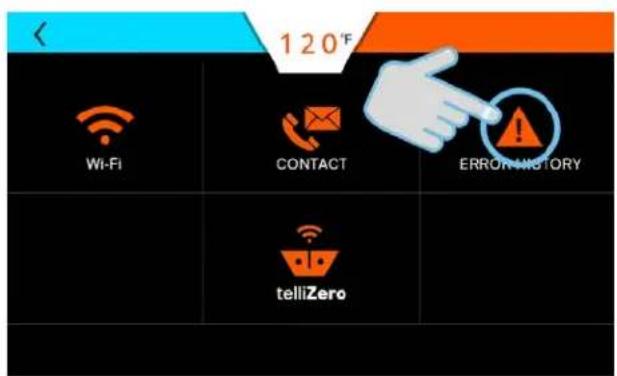

Turn off the power switch for 10 seconds, then turn it back on. If the fault persists, check the display for error codes and consult the manual for troubleshooting.
