Product Type	Line Voltage Mechanical Thermostat
Model	TKIT-2BW (Double Pole)
Brand	KING
Dimensions	Approx. 2.5 x 1.5 x 1.5 inches
Weight	0.2 lbs (90 g)
Power Supply	120 VAC to 277 VAC, 50-60 Hz
Resistive Load Rating	25 A at 120-240 V (6000 W max at 240 V), 18 A at 277 V
Inductive Load Rating	1/2 HP
Temperature Range	40°F - 90°F (4°C - 32°C)
Accuracy	±7°F (±3.5°C)
Sensor Type	Bimetal Snap Action, Open on Temperature Rise
Mounting	In-wall mounting bracket with screws
Wiring	Red wires to breaker, Black wires to heater, White neutral to heater
Compatible Heaters	PX, KT, KTW, PAW, W, WHF models
Safety Certifications	Approved for US & Canada
Maintenance	Keep clean and dry; no user-serviceable parts
Spare Parts	Knob and mounting screws available from manufacturer
Reparability	Not designed for field repair; replace unit if faulty

Frequently Asked Questions - TKIT-2BW KING

What is the difference between TKIT-1 and TKIT-2?

TKIT-1 is single pole (breaks one line) and TKIT-2 is double pole with positive OFF (breaks both lines). TKIT-2 is recommended for 208/240V applications.

Can I use this thermostat with 120V heaters?

Yes, the TKIT-2 can be used on 120, 208, 220, or 240V. For 120V, ensure the heater is compatible and wire according to the diagram.

How do I wire the thermostat?

Connect the red wires to the breaker (line), black wires to the heater (load), and white neutral wires to the heater neutral. Turn off power before wiring.

What is the maximum load for this thermostat?

For resistive loads: 25 A up to 240V (6000 W) and 18 A at 277V (4985 W). For inductive loads: 1/2 HP.

Does the thermostat have a positive OFF position?

Yes, the TKIT-2 double pole model features a positive OFF that completely disconnects both power lines.

What is the temperature accuracy?

Accuracy is ±7°F (±3.5°C) due to the bimetal mechanical sensor.

Can I mount the thermostat in any orientation?

It should be mounted vertically using the provided bracket. The dial should be easily accessible through the heater grill.

What heaters are compatible with this thermostat?

Designed for KING heaters: PX, KT, KTW, PAW, W, and WHF models. Check the heater manual for compatibility.

How do I clean the thermostat?

Use a dry soft cloth. Do not use water or cleaning solvents. Keep the vent openings free of dust.

Is this thermostat suitable for outdoor use?

No, it is designed for indoor use only. It must be installed inside a heater enclosure.

USER MANUAL TKIT-2BW KING

INSTALLATION INSTRUCTIONS

king

TKIT-1 &

TKIT-2

DANGER

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY

Inbuilt Thermostat for the PX, KT, KTW, PAW, W and WHF model heaters

SPECIFICATIONS Resistive Load

Source 120 VAC 25 AMP @ 3000W

Source 208 VAC 25 AMP @ 5200W

Source 220 VAC 25 AMP @ 5500W

Source 240 VAC 25 AMP @ 6000W

Source 277 VAC 18 AMP @ 4985W

Temperature range 40^-90^ (4^-32^)

Frequency 50-60 Hz

Accuracy 7^ F +/- 3.5^ C

Inductive Load 1/2HP

Snap Action / Open On Temp. Rise/ Bimetal Sensor

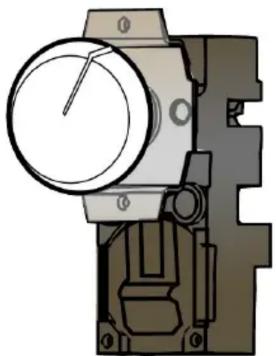

Technical diagram of a mechanical device with a circular dial and mounting bracket (no text or symbols)

Fig 1

Approved for US & Canada

WARNING

READ CAREFULLY - These instructions were written to help prevent difficulties that might arise during thermostat installation. Studying the instructions first may save considerable time and money later. Observing the following procedures will keep installation time to a minimum. Save these instructions for future use.

INSTRUCTIONS

WARNING: Turn OFF power at the breaker before talling.

1. Mount Thermostat with provided screws.
2. Wire the thermostat with RED thermostat wires to breaker, BLACK thermostat wires to heater, white neutral wires to heater.
3. Install heater assembly into wall can.
4. Remove 1/2" knockout in grill.
5. Mount grill with provided screws.
6. Place plastic knob by pushing through grill opening.

WIRING DIAGRAMS

TKIT-1 Single Pole

Single Pole Kit can be used on 120V or 240V

TKIT-2 Double Pole
(Positive OFF)

Double Pole Can Be Used For 120/208/240V Applications

KING ELECTRIC MFG CO · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 ·

INSTALLATION INSTRUCTIONS

king

TKIT-1 &

TKIT-2

Inbuilt Thermostat for the PX, KT, KTW, PAW, W and WHF model heat-ers

SPECIFICATIONS Resistive Load

Source 120 VAC 25 AMP @ 3000W

Source 208 VAC 25 AMP @ 5200W

Source 220 VAC 25 AMP @ 5500W

Source 240 VAC 25 AMP @ 6000W

Source 277 VAC 18 AMP @ 4985W

Temperature range 40^-90^ (4^-32^)

Frequency 50-60 Hz

Accuracy 7^ F +/- 3.5^ C

Inductive Load 1/2HP

Technical illustration of a mechanical device with a circular dial and mounting bracket (no text or symbols)

Fig 1

Approved for US & Canada

MOUNTING LOCATIONS

Use the two sheet metal screws provided to fasten the mounting bracket as shown below. Use the two machine screws to mount the thermostat to the mounting bracket.

PX Models

Technical line drawing of a mechanical assembly with a red circle highlighting a component (no text or symbols present)

PAW Models

Mechanical assembly diagram showing a motor with a red circle highlighting a specific component (no text or labels present)

KT & KTW Models

Technical diagram of a mechanical device with a red circle highlighting a component detail (no text or symbols present)

W Models

WHF Models

Technical diagram of an internal mechanical assembly with a red circle highlighting a specific component (no text or labels present)
