Product Type	Large diaphragm condenser microphone
Polar Patterns	Selectable: omni, cardioid, figure-8
Frequency Response	30 - 20,000 Hz
Sensitivity (mV/Pa)	12.5 (omni), 20 (cardioid), 15 (figure-8)
Self Noise (Equivalent Noise Level)	20 dB (omni), 16 dB (cardioid), 18 dB (figure-8) A-weighted
Maximum SPL (0.5% THD)	145 dB (omni), 140 dB (cardioid), 144 dB (figure-8) at 1 kHz
Output Impedance	200 ohms
Recommended Load Impedance	1000 ohms
Power Requirements	48V phantom power
Current Consumption	3.0 mA
Connector	3-pin XLR
Dimensions (Body Diameter)	57.91 mm (2.280 inches)
Dimensions (Length)	198.12 mm (7.80 inches)
Net Weight	545 g (1.2 lbs)
Included Accessories	Compact carrying case, swivel mount
Optional Accessory	Studio Pro Shock Mount
Switches	Polar pattern (3-position), low-frequency roll-off, -10 dB pad
Diaphragm	Large gold-plated dual diaphragm
Transducer Type	Pressure gradient
Front-to-Back Rejection (Cardioid)	20 dB typical
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid moisture.
Safety Precautions	Use only with 48V phantom power. Do not expose to rain or moisture. Professional servicing required.
Repairability	Contact authorized Peavey service center for repairs.

Frequently Asked Questions - Studio Pro M2 PEAVEY

What polar patterns does the Studio Pro M2 offer?

The Studio Pro M2 features three selectable polar patterns: omni, cardioid, and figure-8. Switch between them using the pattern selector switch on the microphone.

Does the Studio Pro M2 require phantom power?

Yes, the Studio Pro M2 is a condenser microphone and requires 48V phantom power. Ensure your mixer or audio interface provides phantom power.

What is the -10 dB pad used for?

The -10 dB pad attenuates the input level by 10 dB, allowing the microphone to handle high sound pressure levels up to 140 dB SPL without distortion. Use it when miking loud sources like drums or guitar amps.

What does the low-frequency roll-off switch do?

The low-frequency roll-off switch activates a high-pass filter that reduces low frequencies, minimizing proximity effect and rumble. This helps clean up muddy or boomy recordings.

What is the self-noise level of the Studio Pro M2?

The self-noise varies by polar pattern: 20 dB (omni), 16 dB (cardioid), and 18 dB (figure-8) A-weighted. The cardioid pattern offers the quietest performance.

What is the maximum SPL the microphone can handle?

Maximum SPL before 0.5% THD is 145 dB in omni, 140 dB in cardioid, and 144 dB in figure-8 at 1 kHz. With the -10 dB pad engaged, it can handle even higher levels.

Is an external shock mount available?

Yes, an optional Studio Pro Shock Mount can be purchased from Peavey dealers to further isolate the microphone from vibrations and handling noise.

How do I clean the Studio Pro M2?

Use a soft, dry cloth to gently wipe the microphone body and grille. Avoid using liquids or abrasive cleaners. Keep the microphone in its case when not in use.

What is the frequency response of the Studio Pro M2?

The frequency response is 30 Hz to 20 kHz with a smooth, flat response. On-axis response varies slightly by polar pattern, as shown in the manual's frequency response graphs.

Can I use this microphone with any audio interface?

Yes, as long as your audio interface provides 48V phantom power and has an XLR input with a recommended load impedance of at least 1000 ohms. The microphone's output impedance is 200 ohms.

USER MANUAL Studio Pro M2 PEAVEY

Black studio Pro M2 audio recording device with mesh grille and external stand (no visible text or symbols on body)

Element Type:

Pressure Gradient Transducer

Polar Pattern:

Selectable: omni, cardioid, figure 8

Front-to-back Rejection:

20 dB typical in cardioid pattern

Rated Output Impedance:

200 Ohms

Recommended Load Impedance:

1000 Ohms

Frequency Response:

30 - 20,000 Hz

Sensitivity (mV/pascal):

12.5 mV/20 mV/15 mV*

Self Noise (Equivalent Noise Level SPL):

20/16/18 dB* typical, A-weighted (per IEC 651)

Maximum SPL for 0.5% THD:

145/140/144 dB* at 1 kHz

Power Requirements:

48 Volts

Current Consumption:

3.0 mA

Connector:

3-pin XLR

* omni, cardioid, figure 8

Polarity:

Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 3

Dimensions:

2.280 inches (57.91 mm) maximum body diameter, 7.80 inches (198.12 mm) long

Packaging:

Compact carrying case

Net Weight:

1.2 pounds (545 grams)

Optional Accessory:

Studio Pro Shock Mount

Features

• Large gold-plated dual diaphragm microphone
• Pressure-gradient transducer
- Switchable polar pattern
- Switchable low frequency roll-off
- Switchable 10 dB pre-attenuation
- Ideal as main and as support microphone in most recording situations

Application Hints

• Announcer's studio, vocal, and instrument mic for broadcasting, dubbing, voice-over
  • Overhead

• Spot mic for

• wind instruments

• strings
• piano
• percussion

Description

The Studio Pro M2 is a large format side-address condenser microphone with a unique frequency and transient response. It has a selectable polar response for omni, cardioid or figure 8 patterns. It is an excellent choice for most applications in studios, for broadcasting, film and television.

Abstract black geometric logo design with stylized arrow-like shapes (no text or symbols)

LISTEN TO THIS™

SPECIFICATIONS Studio Pro™ M2

The Studio Pro M2 can be used as a main microphone for orchestra recordings, as a spot mic for single instruments, and as a vocal microphone for all types of music and speech.

The large gold-plated diaphragm capsule has a very smooth frequency response for all polar patterns. The microphone can be used very close to a sound source without the sound becoming unnaturally harsh. By means of a switchable high-pass filter, interference through subsonic and low frequencies are reduced remarkably. As such, this switch cuts the low frequency response reducing the proximity effect.

An additional switch is added for use in high SPL applications. This 10 dB attenuation switch enables the microphone to handle sound pressure levels up to 140 dB.

Operation

Position the M2 so that the side with the LED and Peavey logo faces the source. The M2 is equipped with three switches, one for mic pickup patterns, one for high SPL applications and the other for reduction in proximity effect and to reduce low frequencies that can make an instrument sound dull or muddy. Determine which of these conditions you're needing to mic and make the appropriate selection. Note: It is not recommended to change a switch selection without first reducing the mixer gain. The M2 is equipped with a swivel mount to secure the microphone to a floor or boom stand. The internal shock mount provides good isolation but for greater reduction of noise from external vibrations use the optional elastic shock mount which can be purchased from your local authorized Peavey dealer.

3 + 2 YEAR LIMITED WARRANTY

NOTE: For details, refer to the warranty statement. Copies of this statement may be obtained by contacting Peavey Electronics Corporation, P.O. Box 2898, Meridian, Mississippi 39301-2898.

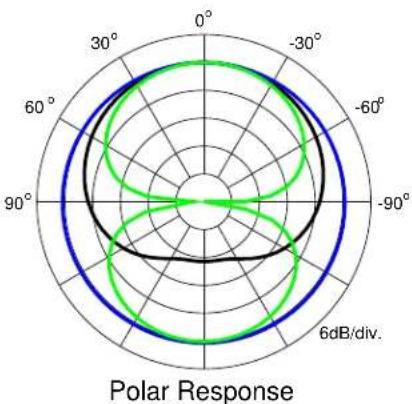

Frequency Response: On-Axis

SPECIFICATIONS

Studio Pro™ M2

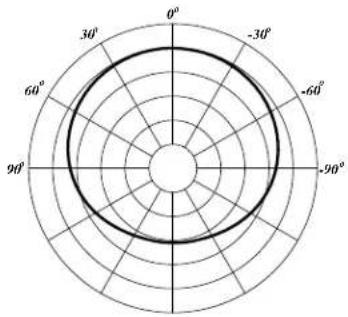

Cardioid Polar Patterns

Circular diagram with angular divisions marked from 0° to 360°, no text or symbols present

125 Hz

Circular diagram with angular divisions marked from 0° to 360°, no text or symbols present

250 Hz

Circular diagram with angular divisions marked from 0° to 360°, no text or symbols present

500 Hz

1 kHz

Radar chart displaying angular divisions from 0° to 360° with concentric circles and radial lines, no text or numerical labels present.

2 kHz

Radar chart displaying angular divisions from 0° to 90° with concentric circles and radial lines, no text or numerical labels present.

4 kHz

8 kHz

SPECIFICATIONS

Studio Pro™ M2

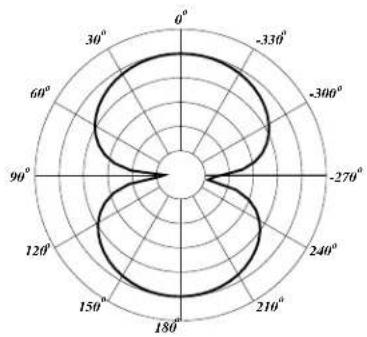

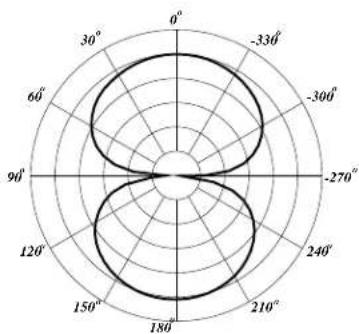

Figure 8 Polar Patterns

125 Hz

250 Hz

500 Hz

1 kHz

2 kHz

4 kHz

8 kHz

SPECIFICATIONS

Studio Pro™ M2

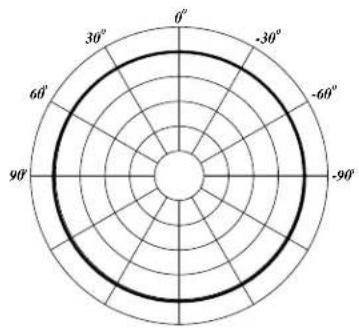

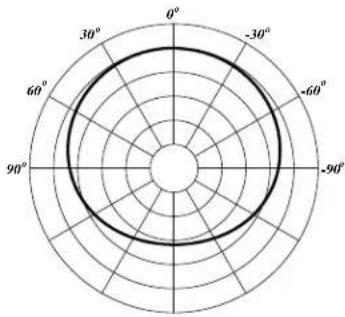

Omni Polar Patterns
