SPCS-001 - Tripod Robus - Free user manual and instructions

Product Type	Camera Tripod
Model	SPCS-001
Brand	Robus
Material	Aluminum alloy legs, plastic head
Maximum Height	Approximately 150 cm (59 inches)
Minimum Height	Approximately 30 cm (12 inches)
Folded Length	Approximately 50 cm (20 inches)
Weight	Approximately 1.2 kg (2.6 lbs)
Maximum Load Capacity	Approximately 3 kg (6.6 lbs)
Number of Leg Sections	3
Leg Lock Type	Flip locks
Head Type	3-way pan/tilt head
Quick Release Plate	Yes, compatible with Arca-Swiss type
Bubble Level	Yes, integrated
Spike Feet	Retractable rubber feet with spikes
Center Column	Geared column with hook for weight
Safety Features	Ensure all locks are tight; do not exceed load capacity
Maintenance and Cleaning	Wipe with dry cloth; lubricate locks occasionally
Spare Parts and Repairability	Contact Robus for replacement parts; user-serviceable leg sections
General Information	Intended for photography and videography; includes carrying bag

Frequently Asked Questions - SPCS-001 Robus

How do I adjust the height of the tripod?

Unlock the leg section locks, extend or retract the legs to the desired length, then tighten the locks securely. Use the center column for additional fine height adjustment.

What is the maximum load capacity of the SPCS-001?

The maximum load capacity is approximately 3 kg (6.6 lbs). Exceeding this may cause instability or damage.

Does the tripod come with a carrying case?

Yes, the Robus SPCS-001 includes a padded carrying bag for easy transport and storage.

How do I attach my camera to the tripod?

Attach the quick release plate to your camera's tripod socket using the included screw. Then slide the plate into the tripod head's mount until it clicks securely.

Can I use the tripod on uneven terrain?

Yes, the tripod has adjustable leg angles and retractable spike feet for stability on soft or uneven ground.

How do I clean and maintain the tripod?

Wipe the legs and head with a dry or slightly damp cloth. Periodically apply a small amount of silicone lubricant to the leg locks to keep them smooth.

Is the head removable?

Yes, the 3-way pan/tilt head is mounted on a standard 3/8-inch thread and can be removed if you wish to use a different head.

What is the weight of the tripod?

The tripod weighs approximately 1.2 kg (2.6 lbs), making it portable yet stable.

How do I use the bubble level?

Place the bubble level on the tripod head or camera. Adjust the legs until the bubble is centered in the tube for a perfectly level shot.

Can I replace parts if they break?

Yes, Robus offers spare parts such as leg sections, locks, and plates. Contact Robus customer support for ordering.

USER MANUAL SPCS-001 Robus

Thank you for choosing Robus

The Robus SPCS-001 is a versatile solution for mounting a smartphone on any accessory with a 1/4-20 or 3/8-16 stud, such as a tripod, tripod head, or monopod. The smartphone clamp is compatible with smartphones up to 4 inches wide, and the clamp's upper and lower jaws are adjustable for a perfect fit. Mounting options include 1/4-20 and 3/8-16 sockets that are compatible with most tripods. The Arca-type base is compatible with most tripod heads with Arca-style quick release clamps. Several 1/4-20 accessory sockets are placed around the adapter for adding your favorite accessory, and there is an integrated cold shoe for camera-mount accessories. When it's not mounted on a tripod, the desktop stand converts the adapter into a stand-alone smartphone stand.

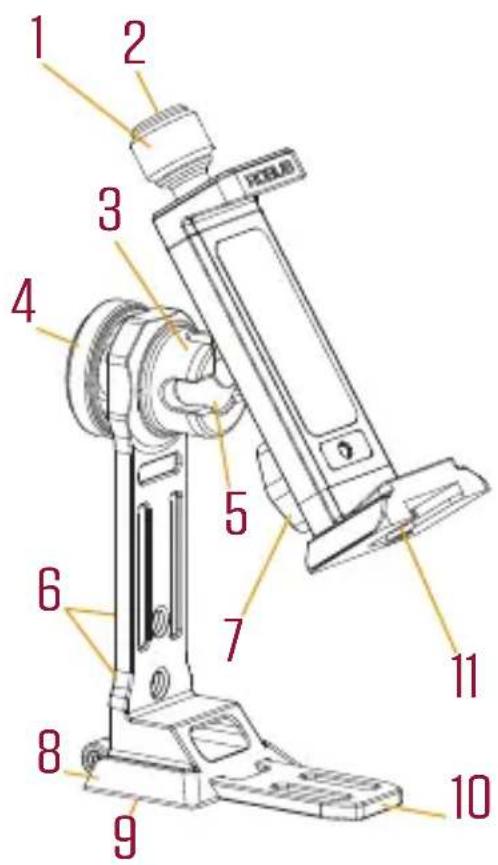

Overview

1. Fine-tune adjustment knob
2. 1/4-20 accessory socket
3. Ballhead
4. Ball joint lock
5. 90^ notch (× 3)

6. 1/4-20 accessory socket (×2)

7. Quick-release lock

8. Arca-type base
9. 1/4-20 and 3/8-16 mounting sockets
10. Desktop stand
11. Cold-shoe mount and 1/4-20 accessory socket

Attaching a Smartphone

1. Loosen the fine-tune adjustment knob a few rotations.

2. Loosen the quick-release lock, and widen the clamp.

3. Insert your phone into the clamp. Then close the clamp, and tighten the quick-release lock.

4. Tighten the fine-tune knob until snug. Be careful not to overtighten.

Aiming

Loosen the ball joint lock to aim the smartphone or change orientation. When it's in position, tighten the lock until secure. Use the notches to change the direction by 90°.

Diagram of a smartphone mounted on a stand with red arrows indicating rotational or mechanical motion (no text or symbols present)

Mounting Instructions

Tripod

Use the bottom 1/4-20 or 3/8-16 socket to screw the adapter onto the tripod's mounting stud.

Tripod Head

Fit the Arca-type base into the head's Arca-style clamp, and tighten the clamp until secure.

Note: Arca plates have varying dimensions. Make sure the base fits the clamp and is securely tightened before you proceed.

Desktop

Unfold the desktop stand, and place the adapter onto a flat and even surface.

Technical line drawing of a mechanical device with a red arrow indicating motion or force direction (no text or symbols)

Specifications

Compatibility Devices 2.6 to 4 in. (6.6 to 10.2 cm) wide

Connectors 1/4-20 mounting socket

3/8-16 mounting socket

Arca-type base

Cold shoe

1/4-20 accessory socket

Load Capacity 4.4 lb. (2 kg)

Dimensions

Width: 1.5 in. (3.8 cm)

Depth: 2.5 in. (6.3 cm)

Weight 5.5 oz. (156 g)

Five-Year Limited Warranty

This Robus product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of five (5) years from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement; at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Robus Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Robus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.robussupports.com or call Customer Service at 212-594-2353.
