TSSTTVVGS1 - Oven OSTER - Free user manual and instructions

Product Type	Countertop Toaster Oven
Brand	Oster
Model	TSSTTVVGS1
Dimensions (D x W x H)	22.5 x 18.5 x 11.5 inches
Weight	18 lbs
Power Supply	120 V, 60 Hz
Power Consumption	1500 W
Cooking Functions	Bake, Broil, Toast, Convection, Keep Warm
Temperature Range	150°F - 450°F
Timer	Up to 120 minutes with auto shut-off
Interior Capacity	0.9 cu. ft. (fits a 12" pizza)
Rack Positions	3 rack positions
Interior Light	Yes
Crumb Tray	Removable, dishwasher safe
Control Type	Mechanical knobs and dials
Stainless Steel Exterior	Yes
Convection Fan	Yes, for even cooking
Baking Pan Included	Yes, enamel baking pan
Broiler Rack Included	Yes
Safety Features	Automatic shut-off, cool-touch handle, Stay-On feature
Cleaning	Wipe exterior with damp cloth; wash removable parts with soap and water
Spare Parts & Repairability	Replacement parts available via Oster customer service; repair information in manual

Frequently Asked Questions - TSSTTVVGS1 OSTER

How do I preheat the Oster TSSTTVVGS1 oven?

Turn the function dial to the desired cooking mode (e.g., Bake, Convection). Then turn the temperature dial to the desired temperature. The oven will begin preheating; the indicator light will turn off once preheated.

Can I use aluminum foil in this oven?

Do not line the oven bottom or walls with foil as it may cause overheating. You may place a small sheet of foil on the baking pan or over food to prevent splattering, but keep it away from the heating elements.

What is the maximum baking time?

The timer can be set up to 120 minutes. For longer cooking, use the Stay-On position (if available) or reset the timer.

How do I clean the crumb tray?

The crumb tray is located at the bottom of the oven. Remove it and wash with warm soapy water or place it in the dishwasher. Ensure it is dry before reinserting.

Why does the oven turn off during cooking?

The oven has an automatic shut-off feature that activates if the timer runs out or if the oven overheats. Check that the timer is set correctly and ensure vents are not blocked.

Can I bake a 12-inch pizza in this oven?

Yes, the oven's interior is designed to fit a 12-inch pizza. Use the baking pan or place the pizza directly on the rack for a crisper crust.

How do I use the convection feature?

Select the Convection setting on the function dial. A fan circulates hot air for even cooking. Reduce cooking temperature by 25°F and check food earlier than usual.

What should I do if the oven won't turn on?

Ensure the oven is plugged into a working outlet. Check that the timer is set (not at 0) and the function dial is not set to Off. If it still doesn't work, contact Oster support.

Can I broil with the door closed?

For broiling, the door should be slightly ajar (usually at the broil stop position). Refer to the manual for your specific model's recommendation.

How do I replace the interior light bulb?

The interior light bulb is not user-replaceable. If the light fails, contact Oster customer service for assistance or authorized repair.

USER MANUAL TSSTTVVGS1 OSTER

For product questions contact: Sunbeam Consumer Service

USA : 1.800.334.0759 Canada : 1.800.667.8623 www.oster.com

© 2011 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.

CBA-071111

Exterior view of a black and silver Oster brand toaster oven with open lid and control knobs (no visible text or symbols)

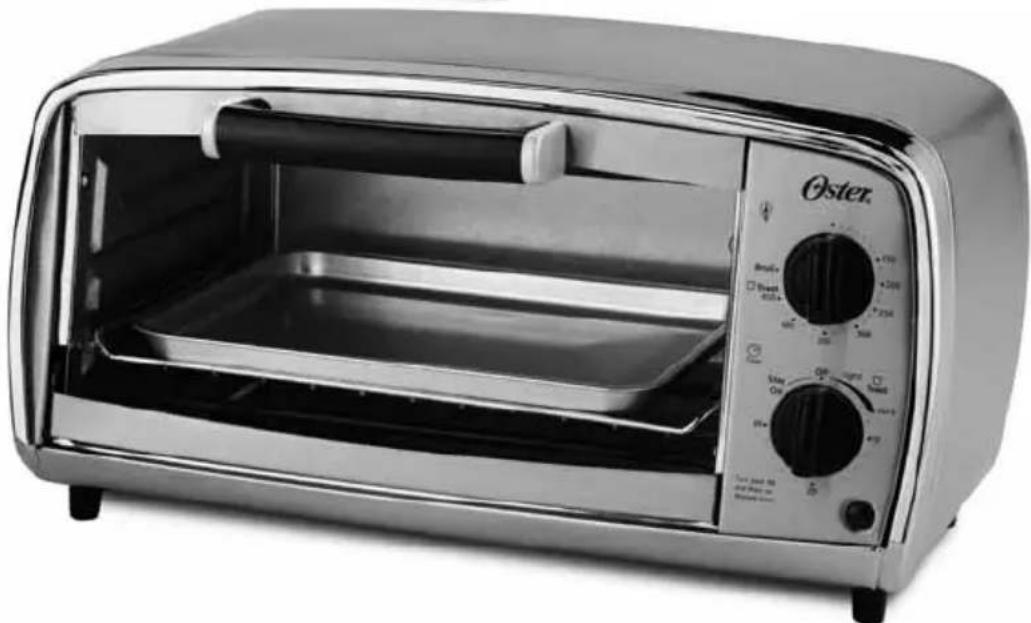

Exterior view of a stainless steel Oster brand toaster oven with open lid and control knobs (no visible text or symbols on main body)

IMPORTANT SAFEGUARDS

SAVE AND READ THESE INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

• READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE TOASTER OVEN.
• Do not touch hot surfaces. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts. Always use the oven handles when moving the unit.
• When the unit is not in use and before cleaning, unplug the countertop oven from the wall outlet. Note: Make sure the oven is turned off before unplugging.
• To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.
• Close supervision is always necessary when this or any appliance is used near children. This appliance is not for use by children.
• Do not operate this or any appliance with a frayed or damaged cord or plug or after the appliance malfunctions or is dropped or has been damaged in any manner. Return the countertop oven to the nearest Authorized Oster Appliance Service Center for examination, repair or electrical or mechanical adjustment.
• Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for other than its intended use.
• Do not let the cord dangle over the edge of a tabletop or countertop or touch hot surfaces.
• Do not place the appliance near a hot gas or electric burner or in a heated oven.
• Extreme caution should be used when using containers constructed of material other than metal or glass.
• A fire may occur if the countertop oven is covered or touching flammable materials, including curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.
• When using countertop oven, pull the unit out a minimum of 6 inches away from the wall or other cords.
• Do not store any materials, other than manufacturer's recommended accessories, in this unit when not in use.
• Do not place any flammable materials in oven, such as paper, cardboard, plastic or any materials that may catch fire or melt.
• Do not cover the oven tray with metal foil. This will cause overheating of the appliance.
• Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.
• When broiling, use extreme caution when removing pan or disposing of hot grease.
• To turn this appliance off, return all controls to the “OFF” position then unplug from wall outlet.

THIS UNIT IS FOR HOUSEHOLD USE ONLY SHORT POWER SUPPLY CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

For Products Purchased in the United States and Canada Only To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS

Welcome

Congratulations on your purchase of an OSTER® Toaster Oven!

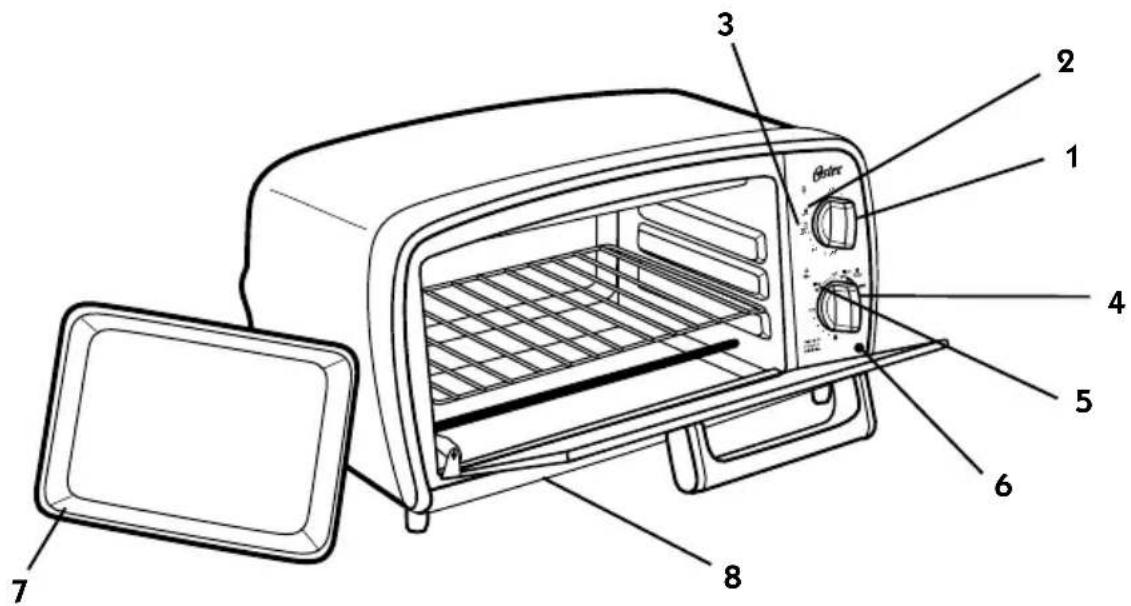

Features of Your Toaster Oven

(See Figure 1)

1. Temperature Control Dial

2. Stay-On Setting

3. Toast Setting

4. Indicator Light

5. Broil Setting

6. Baking Pan

7. Toast Color Control /Timer Dial

8. Crumb Tray

Line drawing of a kitchen interior showing a metal grate with a tray (no text or symbols)

RACK IN BAKE POSITION

Line drawing of a kitchen interior showing a grater rack inside a oven (no text or symbols)

RACK IN BROIL/TOAST POSITION

Operating Instructions

Your Oster ^® Toaster Oven/Broiler is equipped with all the options of a full-size oven in a countertop appliance; toasts, bakes and broils.

NOTE: During initial start up you may detect a slight smell and/or smoke. Turn the temperature to max and let run for approximately 5 minutes.

HOW TO TOAST

1. Place oven rack in Broil/Toast position. Place food on rack.

2. Turn function knob to Toast.

3. Rotate Toast Color Control/Timer Dial clockwise past 10 minutes then back to desired toast shade.

IMPORTANT

When choosing Toast color light, medium (set between light and dark) and dark, always rotate timer over 10 minutes and then rotate back to Dark, Medium or Light. This will ensure that the timer operates correctly and safely. When the toast cycle is finished the bell will ring and the electrical power is automatically turned off. To stop the cycle at any time, turn the timer counterclockwise to the “Off” position and the bell will ring.

In this cycle both the top and bottom heating elements operate, however they may not glow red hot. Please note this is normal and they are operating properly.

BAKING

1. Place the food on the baking pan and then place the pan on the top of the Wire Rack in the oven. Close the oven door.

NOTE: We suggest to always preheat the oven at this “Baking” setting before placing the food inside.

1. Rotate the Temperature Dial to the desired temperature.

2. The Timer Dial is the On/Off Switch.

3. After rotating the Temperature Dial to your desired temperature, then you must select from the following options on the Timer Dial.

For items requiring shorter baking times, rotate the Timer Dial clockwise (up to 30 min). At the sound of the bell, the bake function will automatically turn “Off.” – OR –

For longer baking times, rotate the Timer Dial counterclockwise to the “Stay On” setting. Baking will continue until the Timer Dial is manually turned to the “Off” position and the bell will sound.

During this cycle, both the top and bottom heating elements operate. NOTE: Always monitor the food at this setting to ensure that you are not overcooking. Do not use oven plastic or paper cooking bags in the toaster oven.

BROILING - TOP BROWN

1. Place the food on the baking pan and then place the pan on the top of the wire rack in the oven. Close the oven door.
2. Rotate the Temperature Dial clockwise to the "Broil" position.
3. The Timer Dial is the On/Off switch. After rotating the Temperature Dial to the "Broil" position, select the Timer Dial with the following options.

For items requiring short broil times, rotate the Timer Dial clockwise (up to 30 minutes). At the sound of the bell, the broil function will automatically turn “Off.”

- OR -

For longer broiling times, rotate the Timer Dial counterclockwise to the “Stay On” setting. The broiling will continue until the Timer Dial is manually turned to the “Off” position and the bell will sound. In this cycle only the upper heating elements operate, however they may not glow red hot. Please note this is normal and they are operating properly.

NOTE: Always monitor the food at this setting to ensure that you are not overcooking. We suggest using the Timer as food can burn quickly at this setting. When broiling, turn food over for even cooking. Food should not be placed directly on the wire rack. For Top Browning simply broil as long as desired.

NOTE: Do not preheat, Do not allow aluminum foil to touch heating elements. Allow one inch between heating element and food.

CARE AND CLEANING

Do not immerse oven in liquids. Wipe oven with damp cloth and dry. Before using your Oster ^® Toaster Oven/Broiler, wash all of the non-electrical accessories and the wire rack and baking pan in hot water with detergent or soap. Always make sure that the appliance is unplugged and cool before cleaning.

Cleaning the Wire Rack

The wire rack can be removed for easy cleaning. Open the oven door and tilt upward slightly, pull the wire rack toward you until it slides out completely. Once the rack is removed, clean the interior with a damp cloth. To replace the wire rack, open the oven door and tilt upward slightly and slide the rack into the two rack grooves at either side of the oven chamber, push straight to the back of the oven chamber. Ensure that the automatic door hooks are in the correct position to push in the wire rack towards the rear of the oven chamber. The exterior may be wiped with a damp cloth. Remember, do not place the entire unit in water or any liquid. DO NOT WIPE THE HEATING ELEMENTS – They are self-cleaning.

Cleaning the Bottom of the Crumb Tray

This appliance has a removable interior crumb tray at the bottom of the baking chamber. First, unplug this appliance and allow to cool. To clean out the crumbs, simply lift the crumb tray and pull out of the Toaster Oven/Broiler.

DO NOT use the dishwasher to clean any of the accessories which are included with these products.

DO NOT use any abrasive cleaning products.

TO PREVENT COUNTERTOP FROM BEING DAMAGED, THE TOASTER OVEN/BROILER MUST BE OPERATED WITH THE CRUMB TRAY IN PLACE AND CLEANED OF EXCESS FOOD. NEVER OPERATE YOUR TOASTER OVEN/BROILER WITH THE OVEN DOOR OPEN.

One-Year Limited Warranty

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS's Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How To Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.334.0759 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.667.8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.
