Product Type	Countertop Convection Oven
Brand	Oster
Model	TSSTTVMNDG-001
Dimensions (W x D x H)	20.1 x 17.8 x 12.5 inches
Weight	19.5 lbs
Power Consumption	1500 W
Capacity	0.9 cu ft (fits 12-inch pizza)
Controls	Digital touch with LED display
Functions	Bake, Broil, Toast, Convection, Keep Warm
Temperature Range	150°F – 450°F
Timer	Up to 2 hours with auto shut-off
Interior Light	Yes
Rack Positions	2 (including convection fan)
Accessories Included	Baking pan, wire rack, crumb tray
Material	Stainless steel body, tempered glass door
Safety Features	Auto shut-off, cool-touch handle, overheat protection
Cleaning	Removable crumb tray, wipe interior with damp cloth
Repair & Parts	Contact Oster customer service; no user-serviceable parts
Warranty	1-year limited warranty

Frequently Asked Questions - TSSTTVMNDG-001 OSTER

How do I set the time on the Oster TSSTTVMNDG-001 oven?

Press the Timer button, then use the +/- buttons to set desired minutes. Press Start to begin.

Can I use aluminum foil in this oven?

Yes, but avoid covering the crumb tray or touching the heating elements. Use small pieces to line the baking pan.

Why does my oven turn off before the timer ends?

This may be due to overheating. Ensure vents are not blocked and reduce cooking time if needed. The oven has auto shut-off for safety.

How do I clean the interior?

Unplug the oven, remove crumb tray and racks. Wipe interior with a damp cloth and mild detergent. Do not use abrasive cleaners.

What is the maximum pizza size?

The oven fits a 12-inch pizza comfortably.

Can I bake cookies and broil in the same cycle?

No, you must select one function at a time. The oven cannot combine bake and broil simultaneously.

Why is the display showing 'E01' error?

This indicates a sensor issue. Unplug the oven for 10 minutes, then plug back in. If error persists, contact customer service.

Does the oven preheat before toasting?

For toasting, the oven heats up quickly but does not have a preheat cycle. Insert bread and set toast level.

Can I use the convection function for frozen foods?

Yes, convection speeds up cooking. Adjust temperature and time as per package instructions, reducing by 25°F or 10 minutes.

How do I set the clock?

Press and hold Clock button for 3 seconds. Use +/- to set hour, press Clock again for minutes, then press Clock to confirm.

USER MANUAL TSSTTVMNDG-001 OSTER

For product questions contact:

Sunbeam Consumer Service

USA:1.800.334.0759

Canada:1.800.667.8623

www.oster.com

© 2010 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431. SPR-121409

Sunbeam Consumer Service

Exterior view of a modern microwave oven with open lid and control panel (no visible text or symbols)

IMPORTANT SAFEGUARDS

SAVE AND READ THESE INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

• READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE TOASTER OVEN.
• Do not touch hot surfaces. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts. Always use the oven handles when moving the unit.
• When the unit is not in use and before cleaning, unplug the toaster oven from the wall outlet. Note: Make sure the oven is turned off before unplugging.
• To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.
• Close supervision is always necessary when this or any appliance is used near children. This appliance is not for use by children.
• Do not operate this or any appliance with a frayed or damaged cord or plug or after the appliance malfunctions or is dropped or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
• Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for other than its intended use.
• Do not let the cord dangle over the edge of a tabletop or countertop or touch hot surfaces.
• Do not place the appliance near a hot gas or electric burner or in a heated oven.
• Extreme caution should be used when using containers constructed of material other than metal or glass.
• A fire may occur if the toaster oven is covered or touching flammable materials, including curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.
• When using toaster oven, pull the unit out a minimum of 6 inches away from walls on all sides. Remove cords from other products from behind toaster oven.
• Do not store any materials, other than manufacturer's recommended accessories, in this unit when not in use.
• Do not place any flammable materials in oven, such as paper, cardboard, plastic or any materials that may catch fire or melt.
• Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the appliance.
• Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.
• Use extreme caution when removing tray or disposing of hot grease.
• To turn this appliance off, press Stop/Cancel button twice.
• To disconnect, press Stop/Cancel button twice to turn unit off, then remove plug from wall outlet.

THIS UNIT IS FOR HOUSEHOLD USE ONLY SHORT POWER SUPPLY CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the electrical rating of the cord must be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

For Products Purchased in the United States and Canada Only

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS

Welcome

Congratulations on your purchase of an OSTER® Counter Top Oven! If you require service on your OSTER® Counter Top Oven, do not return to place of purchase. Please contact us at www.oster.com or 1.800.334.0759.

Features of Your Toaster Oven

(See Figure 1)

1. Removable Wire Rack
2. Interior Light
3. Time Display
4. Control Buttons
5. Two Rack Positions
6. Easy Clean
   Interior Walls

7. Glass Door

8. External Removable Crumb Tray

9. Baking Pan and Broiling Rack

FIGURE 1

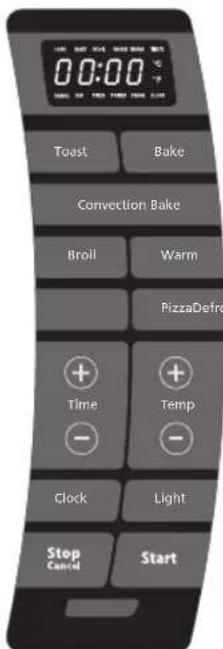

Control Buttons

1. Function Buttons - (See Figure 2)

Oven - Bake, Convection Bake & Broil

Toast – Select to toast bread, bagels, etc.

Pizza - Select to bake 9-12" pizza.

Defrost – Select to defrost foods.

+/- Timer/Temp - Use this button to change between time and temperature when Bake, Convection Bake or Broil have been selected.

Clock - Sets the Oven Clock.

Light - Turns on Interior Light.

Stop/Cancel - Stops heating or cancels function.

Start - Starts baking/cooking process.

FIGURE 2

English-2

Preparing To Use Your Toaster Oven for the First Time

If you are using your toaster oven for the first time, please be sure to:

Remove any stickers from the surface of the oven.

Open oven door and remove all printed documents and paper from inside the toaster oven.

Clean the rack, tray, and pan with hot water, a small amount of dishwashing liquid and a non-abrasive sponge or cleaning pad.

DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.

Dry the unit thoroughly before using.

Select a location for the toaster oven. The location should be in an open area on a flat counter where the plug will reach an outlet.

Plug the toaster oven into a 120 Volt AC electrical outlet.

The heating elements are designed to work efficiently and maintain a precise temperature. You may not see the elements glowing, key are working properly.

Using Your Toaster Oven

Setting the Clock

Press the Clock button. The clock will flash.

Use the timer (-) keys to set time. Press the Clock button again.

Use the +/- keys to set the minutes.

Push the Clock or Start button and the time will be set.

Preheating the Oven

Place oven rack into the desired position before heating the oven.

(See "Positioning Rack" Section)

Push bake button once.

Push the temperature +/- button to set desired temperature.

Push the Timer +/- keys until seven minutes is displayed.

Push the Start button.

To Use the Bake Function

Place oven rack into the desired position before heating the oven.

(See "Positioning Rack" Section)

Arrange food on the wire rack or in the baking pan.

Push the Bake button once. Push temperature +/- key to set desired temperature.

Push Timer +/- button. Use the +/- keys to select desired time.

Push the Start button.

Interior light turns on when timer is on. At the end of cooking cycle the light turns off automatically.

NOTE - Both heating elements will cycle ON and OFF to maintain the desired temperature.

When baking is completed, open door fully and remove food carefully with oven mitt.

To Use the Convection Bake Function

Place oven rack into the desired position before heating the oven.

(See "Positioning Rack" Section)

When you select the Convection Bake the convection fan will turn on and circulate air allowing the food to cook evenly and faster.

Arrange food on the wire rack or in the baking pan.

Push the Convection Bake button. Use the +/- keys to select desired temperature.

Push the Timer button. Use the +/- keys to select desired time.

Push the Start button.

Interior Light turns on when timer is on. At the end of the cooking time a bell signal sounds, and the oven and light turn off automatically.

NOTE - Both heating elements will cycle ON and OFF to maintain the desired temperature.

When baking is completed, open door fully and remove food carefully with oven mitt.

FAQs About Convection Baking

What is Convection?

Answer: In your Countertop Oven there is a built in fan that circulates the hot air in the oven chamber to better heat the food.

How do I adjust the time for Convection?

Answer: On average, convection will shorten the cooking time by 30% but it varies by food. It is suggested to go with a shorter cooking time to start with and then add time if it is needed.

What are the best foods to use with Convection?

Answer: While a shorter cook time is often desirable, bake goods in particular benefit from convection cooking as the circulating air keeps oven temperature consistent throughout.

To Use the Broil Function

Place oven rack into the desired position before heating the oven.

(See "Positioning Rack" Section)

Place broil rack in oven pan to make broiler pan.

Arrange food on broiler pan.

Place broiler pan on oven rack.

Close the door to the first notch, leaving approximately a 3 inch gap at top.

Push the Broil button.

Push Timer button. Use +/- keys to select the desired time.

Push the Start button.

NOTE - The top heating element will cycle ON and OFF to maintain desired temperature.

When broiling is completed, open door fully and remove food carefully with oven mitt.

WARNING: DO NOT LEAVE TOASTER OVEN UNATTENDED.

To Use the Toast Function

Place oven rack into the desired position before heating the oven.

(See "Positioning Rack" Section)

NOTE - Different types of bread require different settings. Lighter breads and waffles require a lighter setting. Darker breads, muffins, and English muffins require a darker setting.

Arrange food on the wire rack.

Push the Toast button. Use +/- keys to select Toast Shade.

Time is set automatically based on the shade selection.

Press the Start button.

When toasting is completed, open door fully and remove food carefully with oven mitt.

To Use the Pizza Function

Place oven rack into the desired position before heating the oven.

(See "Positioning Rack" Section)

Arrange pizza on the wire rack.

Push the Pizza button and 20:00 default time will appear. Use timer +/- keys to adjust the time as desired. Push the Start button.

NOTE - The Pizza function temperature is set at 400^ and cannot be adjusted.

If different temperature is desired, cancel Pizza function and use Bake function.

Defrosting Function

When defrosting do not preheat oven. Temperature Control is already set to 150^ F. Push the defrost button. Use +/- keys to adjust time. Allow 15 to 20 minutes per side for meats or fish to defrost. Always cook food promptly after thawing. Push the Start button.

Positioning Rack

To accommodate a wide variety of foods, the oven has two rack positions. (See Figure 3) Positioning of the rack will depend on the size of the food and desired browning. Before removing the rack, allow the unit to cool.

Cleaning Your Toaster Oven

Line drawing of a refrigerator interior showing the door, vent, and side panels (no text or symbols)

FIGURE3

Before cleaning your OSTER ^® Toaster Oven, unplug it and allow it to cool. To clean, wipe with damp cloth.

DO NOT IMMERSE IN WATER Make sure to use only mild, soapy water.

Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit. Empty crumb tray frequently to avoid accumulation of crumbs. Toaster oven racks are dishwasher safe (top of dishwasher only).

Storing Your Toaster Oven

Allow the appliance to cool completely before storing. If storing the toaster oven for long periods of time make certain that the toaster oven is clean and free of food particles.

Store the toaster oven in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

HELPFUL TIPS / TROUBLESHOOTING
PROBLEMOvercooked / Undercooked Foods	POTENTIAL CAUSEIncorrect temperature or time settingRack placement	SOLUTIONYou may have to adjust the time and temperature to desired taste.Because your toaster oven is smaller than your regular oven, it will heat up faster and generally cook in shorter periods of time.Refer to “Positioning Rack” Section, Page English-4. Rack may need to be adjusted to accommodate food type.
Burnt Smell	Food build-up inside oven, on heating elements or in crumb tray.	Refer to “Cleaning Your Toaster Oven” Section, Page English-5.
Oven does not turn ON	Unit is unpluggedDid not press Start.	Plug the toaster oven into a 120-volt AC electrical outlet.Set timer knob and temperature knob to desired setting. Both must be turned on to operate the toaster oven.Press Start.
Only one heating element is heating up	Function setting selection determines which heating element will operate.	When toasting, make sure the oven is not set to broil setting.
Heating elements do not stay ON	Heating elements will cycle ON and OFF to maintain proper heat.	Be certain that function is as desired.
Cannot change function button	Need to cancel function.	Press cancel.

One-YearLimitedWarranty

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS's Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Consumer Service Department

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

NOTES:

PRECAUCIONES IMPORTANTES LEA Y GUARDE ESTAS INSTRUCCIONES

FIGURA 1

Botones de control

FIGURA2

Line drawing of a vehicle interior showing dashboard, vent, and grille (no text or symbols)

FIGURA3
