Product Type	Carpet Washer / Vacuum Cleaner
Brand	Swan
Model	Dirt Master SC17320N
Clean Water Tank Capacity	2.1 litres
Dirty Water Tank Capacity	1.6 litres
Motor Power	700 Watts
Voltage	220-240V AC 50/60Hz
Cord Length	7 metres
Upholstery Hose Length	2.8 metres
Vacuum Power (Suction)	11 KPA
Max Air Flow	16.5 litres per second
Weight	Approximately 8 kg (unpackaged)
Dimensions (L x W x H)	Approximately 50 x 30 x 100 cm
Color	Black / Grey (as per image)
Intended Use	Domestic indoor use for carpets, upholstery, tiles, stone floors, PVC
Features	Smart Clean, Pet & Extend, 2-litre capacity, carpet brush, upholstery nozzle
Safety	Overheat protection, double insulated, automatic shut-off
Cleaning & Maintenance	Empty and rinse water tanks after each use; clean nozzles and brush under warm water
Spare Parts	Available for order (see manual part numbers)
Warranty	2 years from original purchase (UK and Eire only)
Recommended Cleaning Solution	Swan Dirtmaster Carpet Detergent (available online)

Frequently Asked Questions - Dirt Master SC17320N SWAN

What is the Swan Dirt Master SC17320N used for?

It is a carpet washer designed to remove light dirt and freshen carpets and upholstered furniture. It is not a substitute for a conventional vacuum cleaner; carpets should be vacuumed first.

Can I use any cleaning solution in the fresh water tank?

Only use the supplied cleaning agent or standard carpet cleaning products for carpet cleaners. Avoid high-foam products to prevent excessive foaming.

How do I fill the fresh water tank?

Press the release lever, remove the tank, flip open the seal cap, add water first (max 40°C) up to the Max mark, then add the recommended detergent (typically 50ml per 500ml water). Shake to mix.

How do I clean carpets with this device?

After vacuuming, fill the tank, switch on, move forward while holding the solution dispensing button, then pull backward to suck up dirty water. Overlap strips for thorough cleaning.

Why does the device stop during use?

It may activate overheat protection. Turn off and let it cool for about 60 minutes before restarting.

How do I empty the dirty water tank?

Press the dirty water tank handle down and pull it forward, lift the silicone cap, pour out the water, rinse the tank with warm water, and let it dry before reassembling.

Can I use the upholstery nozzle?

Yes, flip up the hose closure cap, attach the hose firmly, and work on upholstery similarly to carpets, using the spray button on the nozzle.

How do I clean the carpet brush?

Empty water tanks first, place the device on its side, press the locking device to remove the brush, rinse under warm water, dry, and reinsert until it clicks.

What items should I avoid vacuuming?

Do not vacuum glowing ash, cigarette ends, flammable/explosive substances, very fine dust (e.g., concrete dust), toner, sand, or sharp objects like broken glass.

Where can I buy replacement parts?

Order from the manufacturer's website www.swan-brand.co.uk using the part numbers listed in the manual.

USER MANUAL Dirt Master SC17320N SWAN

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

The device is designed to be used for removing light levels of dirt on carpets and upholstered furniture and for freshening up carpets and upholstered furniture. It is not a substitute for a conventional vacuum cleaner. Before using the device, the carpet or upholstered furniture which is to be treated must be thoroughly cleaned with a vacuum cleaner. The device is also suitable for use on tiles, stone floors and PVC.

On no account should the device be used to suck up the following:

• Glowing ash, cigarette ends, matches, etc.
  • Inflammable or explosive substances
• Very fine dust (e.g. concrete dust), toner or sand
• Pointed, hard objects such as pieces of broken glass

The device is designed for personal use only and is not intended for commercial applications.

The device should only be used as described in these instructions. Any other use is deemed to be improper.

The warranty does not cover faults caused by incorrect handling, damage, lime scale build-up or repair attempts. This also applies to the normal wear and tear of the individual components.

- This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• Children must not play with the device.
- Cleaning and user maintenance may not be carried out by children.
- Children younger than 8 years of age and animals must be kept away from the device and the connecting cable!
- Improper use can lead to injuries and electric shock.
- The device must always be disconnected from the mains power when it is left unattended and before assembly, dismantling, before you pour water into the water tanks or empty them, and before cleaning.
- If the device, the connecting cable or the mains plug of the device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
- Make sure that the connected mains cable does not present a trip hazard.
- Use the device only in closed rooms.
- Only connect the device to a properly installed plug socket. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device. Only use suitable extension cables whose technical data is the same as that of the device.
- Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
- Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

water while it is still connected to the mains power!

• Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
• In the interest of your own safety, you should therefore inspect the device for damage each time before you use it. Only use it if the device, mains cable and mains plug have no signs of damage.
• Always pull the mains plug and never the mains cable.
• Store the device only in dry indoor rooms.
• Do not operate the device in a very damp environment.
• Make sure that the device does not roll over the mains cable (danger of the cable breaking).
• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
• Do not operate the device in the vicinity of combustible material.
• Do not insert anything into the openings of the device and make sure that these do not become clogged so that the circulation of air is not impeded.
• Use the device only when it is completely assembled and the mains cable is completely unwound. The fresh water and dirty water containers must be inserted.
• Make sure that the device does not tip over. The water from the water containers could spill out.
• Do not use any sharp or pointed objects to remove foreign bodies from the device. These could damage the device.

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

• After use, place the device down on a cloth as residual water may escape from the nozzles after it has been switched off.
• Maintain a sufficient distance from heat sources and naked flames in order not to damage the device.
• Do not drop the device or subject it to heavy impacts.
• Use only original spare parts from the manufacturer.
• Only ever pour the cleaning agent supplied with the device or standard carpet cleaning products for carpet cleaners into the fresh water container.
• Never fill the water containers beyond the maximum fill level.
• Always test the cleaning at a small spot first to check the colourfastness.

DOMESTIC INDOOR USE ONLY

SPECIFICATION OVERVIEW

Clean tank capacity: 2.1 litres

Dirty water tank capacity: 1.6 litres

Motor power: 700 Watts

Voltage: 220-240V AC 50/60Hz

Cord length: 7 metres

Upholstery hose length: 2.8 metres

Vacuum power: 11KPA

Max air flow: 16.5 litres per second

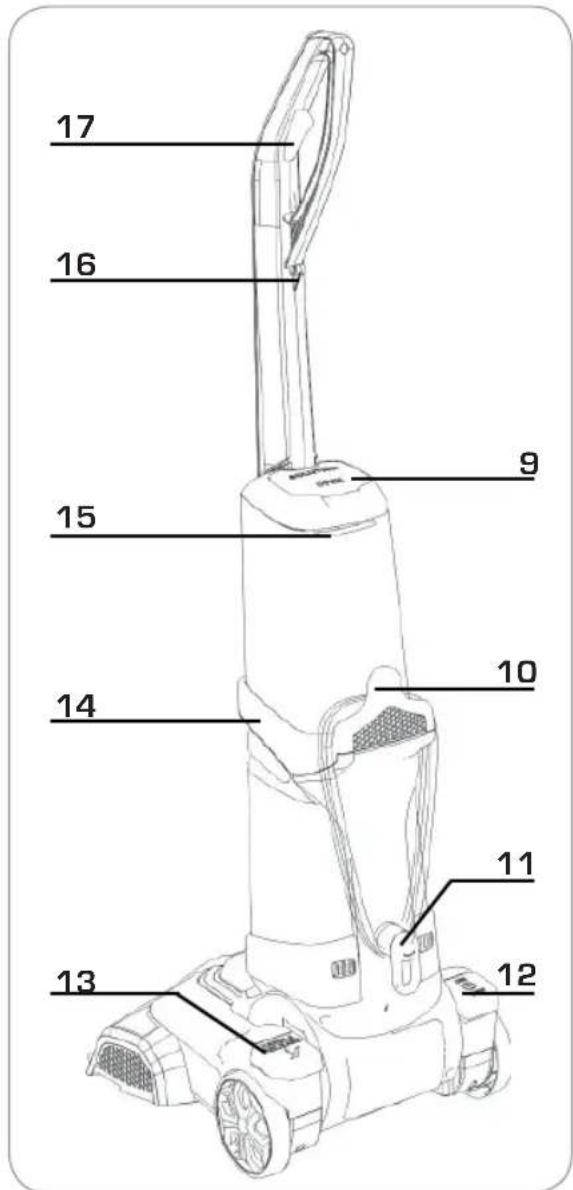

PRODUCT OVERVIEW

1. Handle
2. Fresh water container
3. Handle of the dirt container
4. Mains cable
5. Carpet brush (under the main unit
6. Carpet suction nozzle
7. Closure cap of the hose connection
8. Dirty water container
9. Closure cap of the fresh water container
10. Upper hook for winding up the cable

1. Lower hook for winding up the cable
2. On / Off switch
3. Pedal for tipping the handle
4. Container support
5. Release lever for the fresh water container
6. Cable mount
7. Button for dispensing water or cleaning solution

BEFORE FIRST USE

Included with product:

Main unit

2.8m Upholstery nozzle with hose

1 x handle 1 x water tank 2 x screws
[mounted on main unit]

Unpack the product and remove all packaging. Check that the above components are all included. Now to fit the handle to the main unit. You're going to need a cross-head screwdriver.

Insert the handle [1] into the opening of the container support [14] and align it so that the curved end of the handle [1] points towards the back of the device. Fix the handle [1] in place using the two screws.

Insert the fresh water container (2) into the container support (14). When you do this, make sure that the locking lugs on the fresh water container (1) fit in the recesses in the container support (14). Press the fresh water container (2) against the handle (1) until you hear it engage.

The dirty water container [8] is already inserted in the main unit.

7

Swan

HOW TO USE

Preparing the Carpet

1. Vacuum the carpet or upholstered furniture which is to be cleaned thoroughly with a vacuum cleaner. If possible, use a brush attachment to do this.
2. If possible, remove all furniture from the carpet. In the case of large items of furniture which cannot be moved to one side, place plastic film below or around the feet and only remove it once the carpet has completely dried after it has been cleaned. The feet could be damaged by the moisture from the carpet.
3. Check the colourfastness of the carpet or upholstered furniture. Soak a piece of white fabric with the cleaning solution supplied (see the "Preparing the Device / Filling the Fresh Water Container" section) and rub it carefully on an inconspicuous spot on the carpet. If the white fabric does not become discoloured, the carpet or upholstered furniture can be cleaned with the device. In the case of carpets or upholstered furniture with several colours, test the fastness of each colour.

Preparing the Device / Filling the Fresh Water Container

CAUTION: Only ever pour the cleaning agent supplied with the device or standard carpet cleaning products for carpet cleaners into the fresh water container. Do not use any cleaning products that produce a lot of foam as excessive foaming impedes the functioning of the device.

1. Press the release lever of the fresh water container (15) upwards. The fresh water container (2) is released from the locking mechanism.
2. Remove the fresh water container [2] from the device.
3. Flip open the seal cap of the fresh water container (9) and pour in carpet cleaning agent. Note the dosing instructions for the cleaning agent when you do this. Typically 50ml of solution to 500ml of water. It is important to put the water in first, then add the solution. Then give the tank a shake to mix it.
4. Fill the fresh water container (2) up to the Max mark with warm water (max. 40° C). Close the seal cap again.
5. Insert the fresh water container (2) into the container support (14) [see the "Before Initial Use" chapter].

CLEANING

ATTENTION

• Never leave the device switched on when it is unsupervised.
• Switch off the device before a water container is removed.
• Make sure that the device does not tip over. The water from the water containers could spill out. To park the device, move the handle to the vertical position in which it engages.
• Do not wet the carpet or the upholstered furniture excessively.
• If the device switches off during use, the built-in overheating protection has been activated. In this case, let the device cool down for approx. 60 minutes and then switch it on again using the On/Off switch.

Cleaning the Carpet

1. Decide where cleaning should start and where it should stop so that you do not step on the carpet which has already been cleaned. We recommend that right-handed people should start at the right-hand edge of the carpet, and left-handed people should start at the left-hand edge of the carpet. Cleaning solution may still escape from the device even after it has been switched off. Therefore have a towel or cloth ready on which the device can be placed down after use.
2. Fully unwind the mains cable from the hook for winding up the cable [10, 11] , insert it into the cable holder [16] and connect it to an easily accessible plug socket whose main voltage matches the technical data of the device.
3. Step on the pedal for tipping the handle (13) and tilt the handle (3) towards you.
4. Step on the On/Off switch (12) to switch on the device.
5. Roll the device to a corner of the carpet.
6. Slide the device forwards along the edge of the carpet and hold down the button for discharging the cleaning solution [17]. This applies the solution to the carpet and brushes it in. Walk to the side of the device as you do this. Do not tread on the wet carpet! Once you have reached the other end of the carpet, let go of the button.
7. Pull the device backwards along the same strip. The dirty water will be sucked up.
8. Start the next strip slightly overlapping the strip of carpet that has just been cleaned. Work up to the other edge of the carpet with even movements forwards and back- wards. If you find more stubborn patches of dirt, go over a strip several times if necessary.
9. Move slowly to give the machine a chance to do its work. About half the speed of a vacuum cleaner
10. When the dirty water container [8] is filled to the Max marking, it must be emptied (see the "After Use" chapter, "Cleaning the Water Containers" section).
11. When the dirty water container [8] is to be emptied, the fresh water container [2] is to be topped up or the cleaning is to be finished, place the device on the towel or cloth provided. Switch off the device by stepping on the On / Off switch [12], and move the handle [1] to a vertical position.
12. Remove the mains plug from the plug socket.

CLEANING

1. Use the upholstery nozzle for cleaning upholstered furniture. To do this, first flip up the closure cap of the hose connection [7], place the end of the hose onto the connection and press this down firmly until you feel it engage.

2 Step on the On/Off switch [12] to switch on the device.

1. Pull the upholstery nozzle along the edge of the upholstered furniture and hold down the button for dispensing the cleaning solution on the handle of the upholstery nozzle (A) [see picture]. Let go of the button (A) at the other end of the strip.

2. Pull the upholstery nozzle over the same strip. The dirty water will be sucked up.

3. Continue in the same way as with carpet cleaning (see the "Use" chapter, "Cleaning the Carpet" section).

After Use

• Empty both water containers after each use.
- Allow the freshly cleaned surfaces to dry completely.
- If possible, do not tread on the carpet while it is still damp. If it has to be trodden on, put down white or colourfast towels and tread on them.
- If cleaning solution has got onto wooden floors or furniture, wipe it away.
• Vacuum the dry carpet or upholstered furniture with a vacuum cleaner. If possible, use a brush attachment to do this.

CLEANING THE DEVICE

Remove the mains plug from the plug socket before cleaning the device.

• Do not use any chemical cleaning agents to clean the device. These may damage it.
• Before the device can be stored away, the water containers must be emptied and rinsed out.

CLEANING THE DEVICE

Cleaning the water containers

1. Make sure the plug has been pulled out

2. Empty the dirty water container (8). To do this, press down the handle of the dirty water container (3) and pull it (8) forwards out of the main unit (see picture).

3. Pull the silicone cap of the dirty water container (B) upwards.

4. Pour away the dirty water and rinse out the dirty water container (8) thoroughly with warm water.

5. Remove the fresh water container (2) from the container support (14) [see the "Pre- paring the Device / Filling the Fresh Water Container" section] and pour away the rest of the cleaning solution. Rinse out the

fresh water container (2) thoroughly with warm water.

1. Allow all parts to dry completely before assembling them.

2. Insert the fresh water container (2) back into the device [see the "Before Initial Use" chapter].

3. Press the silicone cap firmly onto the dirt container (8) and insert the dirty water container (8) into the main unit. When you do this, make sure that the recess on the dirty water container (8) fits in the frame of the main unit. Press the dirty water container (8) against the frame of the main unit until you hear it engage.

Cleaning the carpet suction nozzle

1. After cleaning a carpet, clean the carpet suction nozzle (6). To do this, flip up the closure cap of the hose connection (7). Grip hold of the upper end of the carpet suction nozzle (6), pull it up and remove (see picture).

2. Rinse out the carpet suction nozzle (6) thoroughly with warm water.

3. Allow the carpet suction nozzle (6) to dry completely and insert it back into the main unit. To do this, place the locking lugs of the carpet suction nozzle (6) into the recess- es on the main unit and press down the carpet suction nozzle (6). It must engage audibly.

1. For cleaning the carpet brush (5) place the device on the floor so that the bottom of the device is accessible. Attention! Make sure you empty the water containers prior to cleaning.

2. Press together the locking device (C, D) and pull out the carpet brush (5) [see picture].

CLEANING THE DEVICE

1. Rinse out the carpet brush (6) thoroughly under warm, running water.

1. Allow the carpet brush (5) to dry completely and insert it back into the main unit. Make sure it is in the correct position (see picture). Press together the locking device and press it into the recess on the bottom of the main unit. It must engage audibly.

Cleaning the Upholstery Nozzle

1. Clean the upholstery nozzle. To do this, press the button on the base of the upholstery nozzle (E) and detach the it from the hose (see picture).

2. If necessary, remove the brush insert from the upholstery nozzle. To do this, press down the button on the bottom of the upholstery nozzle (F) and pull out the brush insert

3. Rinse out the upholstery nozzle and brush insert thoroughly with warm water.

4. Allow all parts to dry completely before assembling them.

TROUBLESHOOTING

Problem Cause/Solution
The device does not work.• Is the plug inserted in the socket correctly?• Is the socket defective? Try another plug socket.• Check the fuse of the mains connection.• Has the overheating protection been activated? Let the device cool down for approx. 60 minutes and then switch it on again using the On/Off switch.
The stain is not removed.• The stain is too stubborn or too old. Treat the stain specifically with a carpet cleaning product.

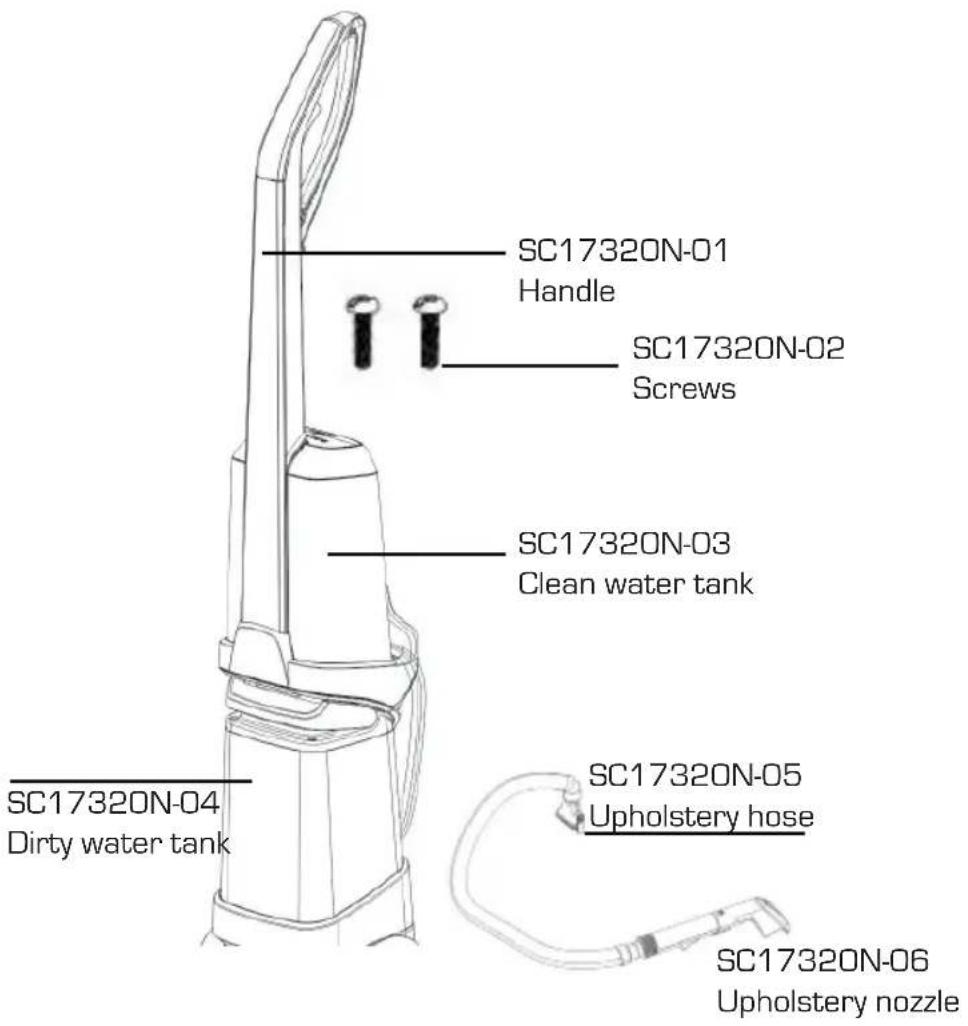

SPARES

Please refer to the diagram below and quote appropriate part number when ordering from our web site:

www.swan-brand.co.uk

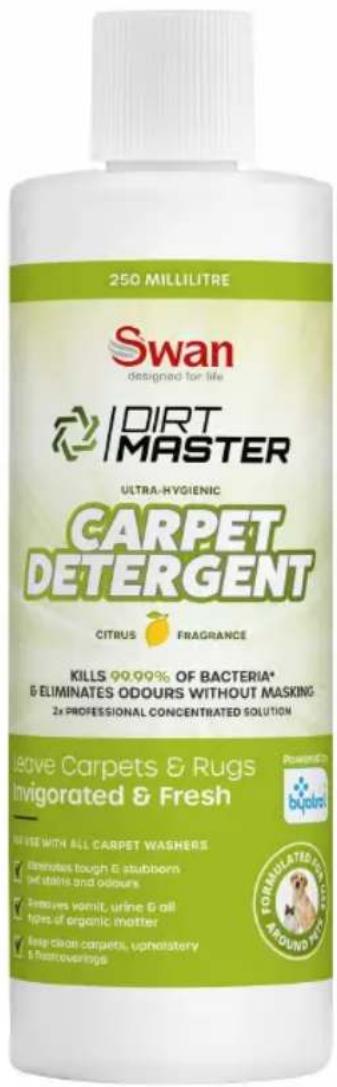

CLEANING SOLUTION

We recommend Swan Dirtmaster Carpet Detergent, which has be specially formulated for use in our carpet washers. It can be purchased from Swan on line at:

www.swan-brand.co.uk

14

wan

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

THIS PRODUCT IS DOUBLE INSULATED. WARNING: DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

www.swan-brand.co.uk

Scan this QR code to hear about our story

We love what we do

we're proud of our quality

Find us on Facebook

* on selected products

Copyright © Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
