Type of Product	Bender Head for EMT Conduit
Brand	IDEAL
Model Number	74-006
Material	Ductile Iron
Application	Bending 1-1/4 inch EMT Conduit
Construction	Heat-treated for extra strength, reinforced at stress points
Markings	Precision-located degree scale, star, arrow, and rim notch; raised and cast on both sides
Step	Deeply serrated to prevent slippage
Internal Hook Surface	Grooved to prevent conduit slipping
Flat Hook Surface	Provides stable starting point
Warranty	Lifetime replacement guarantee
Compatibility	Designed for use with standard bender handles for 1-1/4 inch EMT
Maintenance	Wipe clean with a damp cloth; store in a dry place
Safety	Use proper leverage and avoid over-bending to prevent tool or conduit damage
Spare Parts	Not sold separately; unit is integrated

Frequently Asked Questions - 74-006 IDEAL

What is the IDEAL 74-006 used for?

The IDEAL 74-006 is a ductile iron bender head designed for bending 1-1/4 inch EMT conduit. It attaches to a standard bender handle and allows precise bends up to 90 degrees.

Is the 74-006 compatible with other bender handles?

Yes, it is designed to fit standard bender handles for 1-1/4 inch EMT conduit. Ensure the handle has the correct mounting interface.

How do I read the degree scale on the bender head?

The head features a precision-located degree scale with a star, arrow, and rim notch. Align the conduit with the desired mark to achieve accurate bends.

What maintenance does the 74-006 require?

Simply wipe the bender head with a damp cloth after use to remove dirt and debris. Store in a dry place to prevent rust. Do not use lubricants as they may attract dust.

Does the 74-006 come with a warranty?

Yes, IDEAL offers a lifetime replacement guarantee for this bender head. If it fails under normal use, it will be replaced free of charge.

Can I bend other sizes of conduit with this head?

No, the 74-006 is specifically designed for 1-1/4 inch EMT conduit only. Using it with other sizes may cause damage or inaccurate bends.

How do I prevent conduit slipping during bending?

The head has a grooved internal hook surface and a deeply serrated step to prevent slipping. Ensure the conduit is fully seated in the hook before applying leverage.

What is the maximum bend angle achievable?

The bender head can achieve bends up to 90 degrees. For larger angles, use multiple bends or a different tool.

Is the 74-006 made of plastic or metal?

It is made of ductile iron, a strong metal alloy, and is heat-treated for added durability. The picture may appear dark, but it is metal.

Where can I find spare parts for the 74-006?

The bender head is a single-piece construction with no user-serviceable parts. If defective, the entire head should be replaced under the lifetime guarantee.

USER MANUAL 74-006 IDEAL

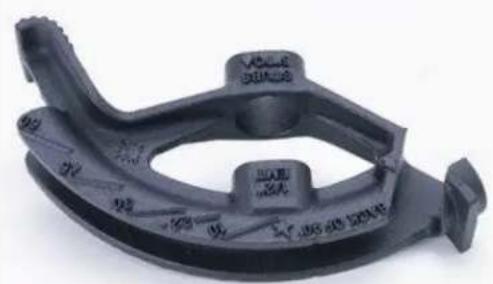

Ductile Iron Bender Head for 1-1/4 inch EMT conduit

Black plastic mechanical component with no visible text or symbols

Features

Ductile iron construction for added durability

Heat-treated for extra strength – reinforced at stress points for longer life

Precision-located degree scale, star, arrow and rim notch for perfect bends every time

Markings raised and cast into bender body on both sides for easy visibility

Deeply serrated step helps prevent slippage when applying maximum leverage

Grooved internal hook surface helps prevent conduit from slipping

Flat hook surface provides stable starting point Lifetime replacement guarantee

Models

Description Catalog #
Ductile Iron Bender Head for 1-1/4 inch EMT conduit 74-006
