Product Type	Portable Bluetooth Speaker
Model Number	HX-P210
Brand	JAM
Power Source	Built-in rechargeable lithium battery (non-replaceable)
Charging Time	Approximately 3 hours
Battery Life	Up to 4 hours of playtime
Charging Port	Micro USB
Bluetooth	Yes, with pairing mode (code 0000 if prompted)
Speakerphone	Yes, with call management via play/pause button
Auxiliary Input	3.5mm audio jack (cable not included)
LED Indicators	Bluetooth status and battery level
Voice Prompts	English, Spanish, French, Portuguese (toggle with +/- hold)
Controls	Power, Play/Pause, Volume +/-, Track forward/backward
Auto Power Off	After 2 minutes of unpaired inactivity; after 15 minutes of paused music
Cleaning	Soft, damp towel; no harsh cleaners
Warranty	1 year limited warranty
Safety	Not a toy; keep away from water and heat; California Prop 65 warning

Frequently Asked Questions - Rave Max HX-P210 JAM

How do I pair my JAM Rave Max with a Bluetooth device?

Turn on the speaker by holding the power button for 3 seconds. Enable Bluetooth on your device and select JAM Rave Max from the list. If prompted, enter pairing code 0000.

Why is my JAM Rave Max not charging?

Ensure you are using the supplied USB cable or a compatible micro USB cable. Try charging from a wall adapter (not included) or a computer USB port. The LED battery indicator will show charging status.

How long does the battery last?

The battery provides up to 4 hours of playtime on a full charge. Charging takes approximately 3 hours.

Can I use the speaker as a speakerphone?

Yes, when connected via Bluetooth, press the play/pause button to answer or end a call. Press and hold for 3 seconds to reject a call. The music automatically pauses during calls and resumes after.

How do I connect an audio device using the aux cable?

Plug a 3.5mm aux cable (not included) into the speaker and your device. Turn on the speaker and control playback from your device. The speaker will automatically switch to Aux-In Mode.

Why does my speaker turn off automatically?

The speaker has an auto-off feature: it turns off after 2 minutes if not paired, or after 15 minutes of paused playback to save battery.

How do I clean the speaker?

Use a soft, damp cloth to wipe the exterior. Do not use water, harsh cleaners, or submerge the speaker.

Can I change the voice prompt language?

Yes, press and hold the + and - buttons together to cycle through English, Spanish, French, and Portuguese, or to mute the voice prompts.

What does the blinking blue light mean?

A blinking blue light indicates the speaker is in pairing mode. A solid blue light means it is connected. The battery light shows charging or low battery status.

Where can I find warranty information?

This speaker comes with a 1-year limited warranty. Visit www.jamaudio.com/customer-support/warranty-1yr for details, or contact customer service.

USER MANUAL Rave Max HX-P210 JAM

USER GUIDE AND WARRANTY INFORMATION

HEY THERE!

Thank you for purchasing the JAM Rave Max. Check out the sections below for all the important information about your new speaker.

WE'RE HERE TO HELP. CONTACT US!

You've got questions? We've got answers.

Contact a Consumer Relations representative by phone or email to help answer any questions. Please be sure to have the model number of your product available. (Hint: It's HX-P210)

Register your speaker! Information about where you bought it and how you're using it is like gold for the people who make these speakers.

To register, visit:

USA: www.jamaudio.com/customer-support/product-registration

CAN: http://canada.jamaudio.com/product-registration

USA

1.888.802.0040 8:30am-7:00pm EST M-F

CANADA

[e-mail]

1.888.225.7378 8:30am-5:00pm EST M-F

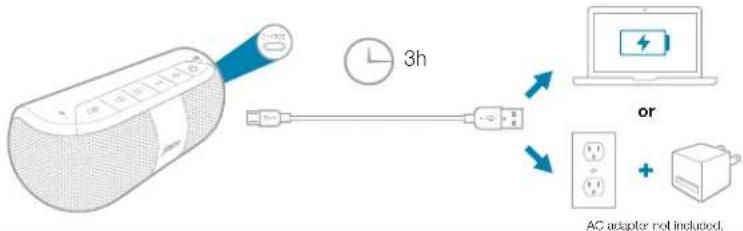

JUST CHARGE IT

Charging the speaker is so easy you've probably figured it out by now, but just in case, you've got two options: you can charge it using your computer or a wall outlet. The Rave Max needs about 3 hours for up to 4 hours of party time.

1. The cord that came with the speaker — the one with the USB on one end and the micro USB on the other — will work with your computer.

2. If you want to use the wall outlet, you'll need to pick up a power cord with a micro USB the next time you're at the store, or use any USB AC adapter, including the one for your cell phone.

CONTROL YOUR DESTINY ... OR AT LEAST YOUR SPEAKER

1. Lets you know when Bluetooth is paired

2. Push it to play, push it again to pause

3. Go back a track

4. Jam on to the next song

5. Turn the music down

6. Turn the music up

7. This is the power button

8. Check out how much juice is in the battery

9. Here's where you hook it up old-school

10. The power cord goes here

SHED SOME LIGHT

The LED lights on your speaker let you know what it's doing.

Bluetooth Light Battery Light

Pairing Mode

Low Battery

Connected

Charging

Aux-In Mode

Ready to Party

BLUETOOTH® CONNECTION — IT'S A SETUP

Like any amazing couple, this one starts with a connection — one between your device and the speaker's Bluetooth. Here's how it works:

1. Make sure the smartphone, tablet, or computer you're using with the speaker has Bluetooth.
2. Turn on the speaker (press and hold the power button for 3 seconds) and look for the little blinking light.
3. Do whatever your device needs you to do on its end.
4. Look for JAM Rave Max in your device's Bluetooth list or click YES.
5. Now hit PLAY on your speaker and crank it up — or down if you're lame.

Continued on page 2.

Bluetooth

Devices

JAM Rave Max

BLUETOOTH® CONNECTION, CONTINUED

The device and Bluetooth will find each other every time, as long as the speaker is set to Bluetooth and your device's Bluetooth is, you know, on.

If you're connecting to a computer, you may have some extra steps on that end. You'll have to get that information from the computer company.

Depending on your device, you may be prompted to enter a pairing code. If prompted, enter "0000" as the code.

To disable pairing of an existing device and pair a new device, press and hold the + and - buttons for 15 seconds to activate pairing mode.

Note: If you turn on your Rave Max but haven't started the party yet, it will automatically power off after 2 minutes of unpaired inactivity.

Note: Once you've paired, if you pause the party for 15 minutes or more, the JAM Rave Max will automatically shut off to preserve battery power.

Illustration of a blue and white portable electronic device with control buttons and speaker grille (no text or symbols)

2m

15m

HOOKING UP OLD-SCHOOL AUDIO, JACK

1. Plug one end of the cord into the speaker and the other into the headphone jack on your device.
2. Turn on the speaker.
3. Hit PLAY on your device and crank it up — or down if you're lame.

You'll have to play and pause the music from your device, not your speaker. No problem. You're there anyway, right?

Auxiliary cable not included.

COMING CLEAN

A soft, damp towel is all you need to clean off your speaker. Using water, harsh cleaners, or anything else only starts messing with the mechanics inside. So, yeah, don't do it.

HELLO? SPEAKERPHONE? YES!

When friends call asking to join the party — and you know they will — answer the phone without disconnecting from your JAM Rave Max. Yes, that's right. Your speaker is a speakerphone, too. How amazing is that? Here's how it works:

1. Make sure your phone and speaker are connected through Bluetooth.
2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your Rave Max.
3. If you'd rather not talk, hold down the PLAY/PAUSE button on your Rave Max for 3 seconds to ignore the call.
   THE COOLEST PART: The Rave Max knows when a call is coming in and pauses the music before ringing. When you hang up, the music starts where it left off — and so does the party. If it's you making the call, just start dialing from your phone, and the Rave Max automatically does its hands-free thing. Isn't it refreshing to know your speaker totally gets you?
   Check out the chart below for a complete guide on handling calls with your Rave Max.

Situation	Short Press Play/Pause Button Long Press Play/Pause Button
1^st Incoming call	Pick up callReject call
On call	End callMove call from speaker to device
2^nd Incoming call	Call 1 on hold, pick up call 2Reject call 2

THE VOICE FROM WITHIN

When your JAM Rave Max isn't rocking out, it can tell you all sorts of things it's doing: when it's powering on, ready to pair, paired, at maximum volume, charging, receiving a call, ending a call, rejecting a call, and powering off.

Just like the global gadget it is, your speaker toggles between several languages or no language at all. Your speaker can parlay with you in English, Spanish, French, or Portuguese. Making the change between language and tone is as simple as pressing and holding the + and - buttons together. Click through until the speaker starts speaking your language.

1 YEAR LIMITED WARRANTY

For detailed warranty instructions and information, visit: USA: www.jamaudio.com/customer-support/warranty-1yr CAN: canada.jamaudio.com/warranty-1yr

To obtain warranty service on your JAM product, contact a Consumer Relations representative by telephone or email for assistance (you can find their contact info on page 1). Please make sure to have the model number of the product available.

STUFF THE GOVERNMENT MAKES US SAY STUFF OUR LAWYERS MAKE US SAY

FCC Compliance:

Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: Changes or modifications not expressly approved by HMDX could void the user's authority to operate this equipment.

IC Caution: RSS-GEN Issue 4 December 2014

This device complies with Industry Canada's licence-exempt RSSs.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT SAFEGUARDS:

When using an electrical product, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

• WARNING: Do not place speakers too close to ears. May cause damage to eardrums, especially in young children.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by HMDX.
• HMDX is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents.

Attention California Residents:

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

A MESSAGE FROM THE ENVIRONMENT

WARNING:

This product has an internal, non-replaceable lithium battery. Please dispose in accordance with your local, state, province, and country guidelines.

This product contains small parts that may present a choking hazard for young children.

CAUTION: All servicing of this product must be performed by authorized HMDX Service Personnel only.
