Storm HX-P740 - Loudspeaker JAM - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	JAM
Model	Storm HX-P740
Connectivity	Bluetooth
Speakerphone	Yes
Voice Prompts	Yes (English, Spanish, French, Portuguese, Tone)
Language Selection	Via Language Selector Pin
Bass Boost	Storm button
Battery Type	Internal lithium (non-replaceable)
Charging Time	Approximately 5 hours
Play Time	Up to 12 hours
Power Input	Included adaptor and cord
Cleaning	Soft dry towel only
Safety	Not a toy; keep away from water; not for children
Warranty	1 year limited
Package Contents	Speaker, User Manual, Adaptor Cord, Adaptor, Language Selector Pin, Protective Cap
Auto Power Off	After 2 minutes of inactivity when unpaired

Frequently Asked Questions - Storm HX-P740 JAM

How do I charge the Storm HX-P740 speaker?

Plug the included adaptor cord into the speaker and the adaptor into a wall outlet. Charging time is approximately 5 hours for up to 12 hours of play time. The LED indicator will show white when charging and turn off when ready.

How do I pair my device via Bluetooth?

Turn on the speaker and ensure Bluetooth is enabled on your device. Look for 'Jam Storm' in the Bluetooth list and select it. If prompted, enter the code '0000'. The speaker will automatically pair with previously connected devices when turned on.

How do I change the language of the voice prompts?

Use the included Language Selector Pin to press the small hole on the bottom of the speaker. Toggle through the options: English, Spanish, French, Portuguese, or a tone-only mode. The order is fixed.

Can I use the speaker as a speakerphone?

Yes. When connected via Bluetooth, press the Play/Pause button to answer or end a call. Hold the Play/Pause button for 3 seconds to ignore a call. The music automatically pauses during calls and resumes after.

How do I activate the bass boost (Storm button)?

Press the Storm button on the speaker to enhance bass for a deeper sound. To keep the base clean, gently wipe it with a damp towel and replace the protective cap when not in use.

What should I do if the speaker doesn't turn on?

Ensure the speaker is charged. Press and hold the power button for 5 seconds to turn it on. If it still doesn't respond, try charging it with the included adaptor for at least 30 minutes.

How do I clean the Storm HX-P740?

Use a soft, dry towel to clean the speaker. Do not use water, harsh cleaners, or any liquids, as they can damage the internal components.

How long does the battery last on a full charge?

The speaker provides up to 12 hours of play time on a full charge (approximately 5 hours charging time). Actual battery life may vary depending on volume level and usage.

What is the warranty coverage for this product?

The speaker comes with a 1-year limited warranty. For details, visit www.jamaudio.com/customer-support/warranty-1yr or contact customer service at 1-888-802-0040.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is plugged in and charging. The LED will show white during charging.

USER MANUAL Storm HX-P740 JAM

USER GUIDE AND WARRANTY INFORMATION

HX-P740

READ UP.

PARTY DOWN.

JAM STORM LANGUAGE SELECTOR PIN

Below you will find a Language Selector Pin (LSP), which you can use to toggle through featured languages on your Jam Storm.

1. Once the speaker is on, turn it over.
2. Place the LSP in the language pin hole and toggle through until you reach your desired language or tone.

Note: The languages are loaded in the following order: English, Spanish, French, Portuguese, Tone, and back to English.

VOICE PROMPTS

The voice prompts will walk you through your speaker's status, telling you when it is: Powering on, ready to pair, paired, at maximum volume, incoming call, ignoring a call, ending a call, charging and powering off.

If you'd rather hear tones, simply use the included Language Selector Pin to toggle to the tone option.

Please visit www.jamaudio.com to explore translations in your language.

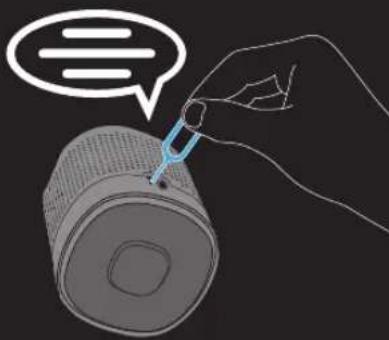

Illustration of a hand holding a pen tip over a cylindrical object, with a speech bubble containing three horizontal lines (no text or symbols on the object itself)

HEY. HAVE WE SEEN YOU HERE BEFORE?

Register your speaker at www.jamaudio.com.

Information about where you bought it and how you're using it is like gold for the people who make these speakers. Do them a solid, will ya?

There are lots of cool Jam speakers.

Check them all out at www.jamaudio.com

PACKAGE CONTENTS

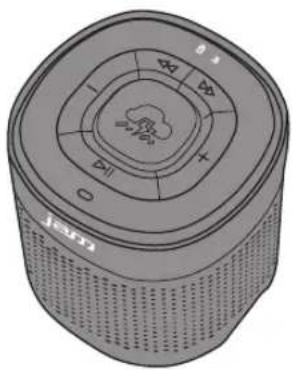

Illustration of a cylindrical smart speaker with top panel and front panel, showing cloud and ventilation patterns (no text or symbols)

Speaker

User Manual

Adaptor Cord

Adaptor

Language Selector Pin

Protective Cap

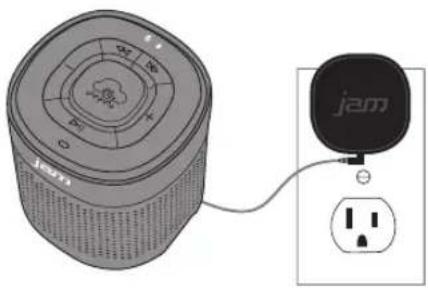

JUST CHARGE IT

Charging the speaker is so easy you've probably figured it out by now, but just in case, use the wall outlet.

1. The cord that came with the speaker—just plug it into the adaptor.

Plug it in and your speaker will be ready for an epic night in no time. You should go get ready too! It needs about 5 hours for 12 hours of party time.

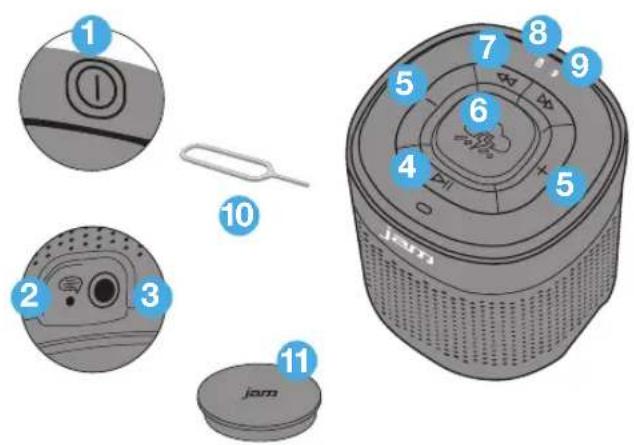

CONTROL YOUR DESTINY...OR AT LEAST YOUR SPEAKER

1. This is the power button, press and hold for 5 seconds to power on
2. It speaks too. Toggle between languages here
3. The power cord goes here
4. Push it to play, push it again to pause
5. Turn the music up or down (Wait, why do you need to turn it down?)
6. Storm button
7. Skip back a track or jam on to the next song
8. Check out how much juice is in the battery
9. This light lets you know when Bluetooth is paired with your speaker
10. Language Selector Pin
11. Protective cap

FEATURES:

	What It Looks Like	What It Means
CHARGE	Flashing WHITE	Low Battery
	WHITE (when plugged in)	Charging
	OFF (when plugged in)	Ready to Party
	Quickly Flashing WHITE Pairing Mode
	Slowly Flashing WHITE Connected

Circular diagram with concentric rings and directional arrows, no readable text or symbols

Like any amazing couple, this one starts with a connection—one between your device and the speaker's Bluetooth.

1. We know you're probably going to think, "derp" with this one, but we have to say it: Make sure the smartphone, tablet or computer you want to hook up to the speaker has Bluetooth. (There. We got that out of the way.)
2. Turn on the speaker and look for the little blinking light.
3. Do whatever your device needs you to do on its end. (We don't know what you're using. We're not spies.)
4. Look for Jam Storm in your device's Bluetooth list or click YES—whatever pops up on your device—and BAM! you're connected.
5. Now hit PLAY on your speaker and crank it up—or down if you're lame.

BRING THE STORM, BRING THE THUNDER

You're probably only going to have to do this once, unless your device goes through a major I-just-dropped-it-in-the-pool kind of reboot. The device and Bluetooth will find each other every time just as long as the speaker is set to Bluetooth and your device's Bluetooth is, you know-on.

If you're connecting to a computer, you may have some extra steps on that end. You'll have to get that information from the computer company.

Depending on your device you may be prompted to enter a pairing code. If prompted enter "0000" as the code.

Press and hold the PLAY/PAUSE button for 5 seconds to activate pairing mode.

Note: If you turn on your Storm but haven't started the party, it will automatically power off after 2 minutes of unpaired inactivity.

Have a playlist that needs a little—scratch that—a lot of extra bass? Hit the Storm button for a sound so deep you feel the boom in your body.

Note: To keep Storm base tacky and dirt-free, gently wipe with a damp towel. When not in use, place the included protective cap back on the Storm base.

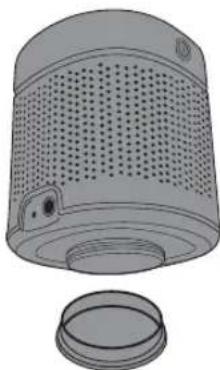

Illustration of a cylindrical device with perforated top and bottom, showing internal structure and a separate circular component (no text or symbols)

HELLO? SPEAKERPHONE? YES!

When friends call asking to join the party—and you know they will—answer the phone without disconnecting from your JAM Storm. Yes, that's right. Your speaker is a speakerphone too. How amazing is that?

1. Make sure your phone and speaker are connected through Bluetooth.
2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your Storm.
3. If you'd rather not talk, hold down the PLAY/PAUSE button on your Storm for three seconds to ignore the call.

THE COOLEST PART: The Storm knows when a call is coming in and pauses the music before ringing. When you hang up, the music starts where it left off—and so does the party. If it’s you making the call, just start dialing from your phone, and the Storm automatically does its hands-free thing. Isn’t it refreshing to know your speaker totally gets you?

THE VOICE FROM WITHIN

When your Jam Storm isn't rocking out, it can tell you all sorts of things it's doing: when it's powering on, ready to pair, paired, at maximum volume, incoming call, ignoring a call, ending a call, charging and powering off.

Just like the global gadget it is, your speaker toggles between several languages or no language at all. Your speaker can parlay with you in English, Spanish, French, or Portuguese. But, making the change is as simple as poking the included Language Selector Pin into the small hole on the bottom. Toggle through until the speaker starts speaking your language.

COMING CLEAN

A soft, dry towel is all you need to clean off your speaker. Using water, harsh cleaners or anything else only starts messing with the mechanics inside. So, yeah, don't do it.

STUFF THE GOVERNMENT MAKES US SAY

FCC DISCLAIMER:

Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

ONE YEAR LIMITED WARRANTY

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: Changes or modifications not expressly approved by HMDX could void the user's authority to operate this equipment.

For detailed Warranty Instructions and Information visit:

http://www.jamaudio.com/customer-support/warranty-1yr

To obtain warranty service on your Jam product, contact a Consumer Relations Representative at 1-888-802-0040 or email [e-mail] for assistance. Please have the model number of the product available. Representatives are available 8:30am - 7:00pm EST Monday-Friday.

STUFF OUR LAWYERS MAKE US SAY

IMPORTANT SAFEGUARDS:

When using an electrical product, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

• WARNING: Do not place speakers too close to ears. May cause damage to ear drums, especially in young children.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by HMDX.
• HMDX is not liable for any damage caused to Smartphones, iPod/MP3 player or any other device.

• Do not place or store this product where it can fall or be dropped into a tub or sink.

• Do not place or drop into water or any other liquid.

• Not for use by children. THIS IS NOT A TOY.
• Never operate this product if it has a damaged cord, plug, cable or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents.

A MESSAGE FROM THE ENVIRONMENT

WARNING:

This product has an internal, non-replaceable lithium battery. Please dispose in accordance with your local state, province and country guidelines.

This product contains small parts that may present a choking hazard for young children.

CAUTION: All servicing of this product must be performed by authorized Jam Audio Service Personnel only.

Note: The most up-to-date version of the Jam Storm User Guide can always be found at www.jamaudio.com

Where There's A Jam, There's A Party!

www.jamaudio.com
