WG2510 - Loudspeaker CLARION - Free user manual and instructions

Product Type	Car Speaker
Model	WG2510
Brand	Clarion
Size	6.5 inches (165 mm)
Impedance	4 Ohms
Power Handling (RMS)	50 Watts
Peak Power	150 Watts
Sensitivity	91 dB
Frequency Response	50 Hz - 22 kHz
Magnet Type	Ferrite
Voice Coil	Copper
Mounting Depth	2.5 inches (64 mm)
Weight	1.2 kg (2.65 lbs)
Material	Polypropylene cone, rubber surround
Installation	Flush or surface mount
Power Range	20 - 100 Watts RMS
Cleaning	Wipe with dry cloth
Safety	Avoid exposure to moisture and extreme temperatures
Spare Parts	Contact Clarion support

Frequently Asked Questions - WG2510 CLARION

How do I install the Clarion WG2510 speaker?

Ensure the speaker is securely mounted using the provided screws and bracket. Connect the positive and negative terminals to your car's audio system. Refer to the vehicle's wiring diagram for polarity.

What is the recommended amplifier power for the WG2510?

The speaker handles up to 50 Watts RMS and peaks at 150 Watts. An amplifier delivering 20-100 Watts RMS per channel is ideal.

Can I use the WG2510 in a marine environment?

No, the WG2510 is not waterproof or marine-rated. Exposure to moisture can damage the speaker. Use it only in dry interior car locations.

What is the impedance of the WG2510?

The impedance is 4 Ohms, which is standard for most car audio systems.

How do I clean the WG2510 speaker?

Gently wipe the cone and surround with a soft, dry cloth. Do not use any liquids or chemicals as they may damage the material.

What is the frequency response of the WG2510?

The frequency response ranges from 50 Hz to 22 kHz, covering deep bass to clear highs.

Can I install the WG2510 in a door panel?

Yes, the WG2510 is designed for flush mounting in doors or rear decks. Ensure proper depth clearance and seal any gaps to prevent rattles.

Does the WG2510 come with a warranty?

Clarion typically offers a 1-year limited warranty against defects. Check your purchase documentation or contact Clarion support for details.

What is the mounting depth of the WG2510?

The mounting depth is 2.5 inches (64 mm). Measure your installation space to ensure a proper fit.

Are replacement parts available for the WG2510?

Direct replacement parts like cones or voice coils are not widely available. For repairs, contact Clarion authorized service centers.

USER MANUAL WG2510 CLARION

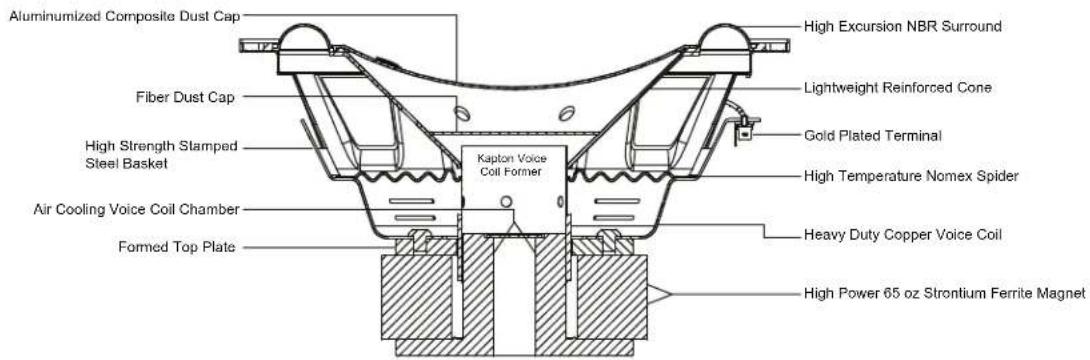

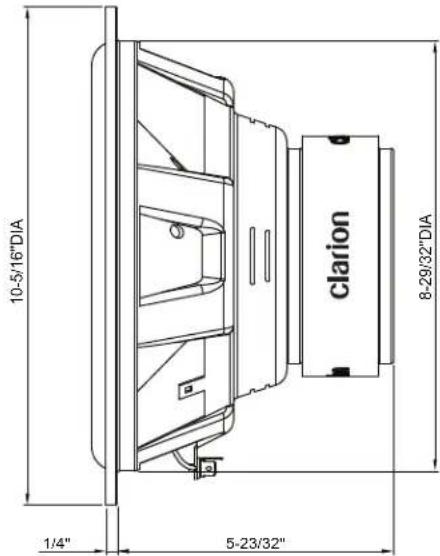

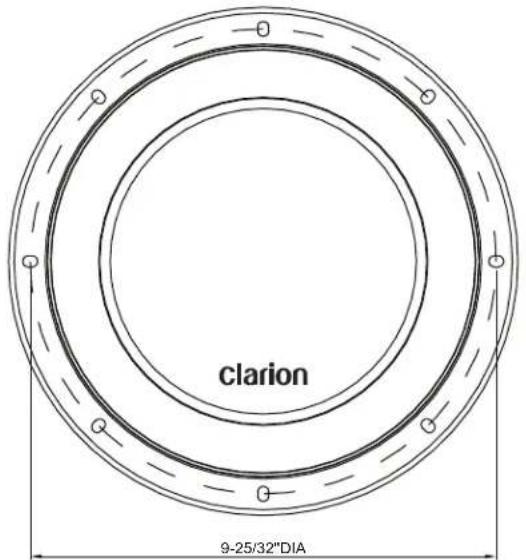

10" (25.4cm) SUBWOOFER

Electrical Specifications
Maximum Musical Input Power	900W F
Continuous Input Power	300W V
Sensitivity	83dB
Impedance	4 ohms

Thiele / Small Electromechanical Parameters
o	Resonance Frequency	29Hz
as	Equivalent Stiffness	24.5L
Qts	Total Electromechanical Dampening	0.53
Sd	Cone Area	314.6 cm ^2

Sealed Enclosure Recommendation
V_b Internal Area cu. ft. (liter) 0.5 (14.16) Internal Area cu. ft. (liter)
F_3 -3dB Point (Hz) 46 -3dB Point (Hz) 27
Qtc Enclosure Damping 0.76 Tuning Frequency (Hz) 33
H Height -inch (cm) 13 (33.02) H Height -inch (cm) 13 (33.02)
W Width -inch (cm) 18.5 (46.99)	W Width -inch (cm)
D Depth -inch (cm)	6.75 (17.15)

Ported Enclosure Recommendation

1.0 (8.32)

F_3

F_b

24 (60.96)

D Depth -inch (cm) 9.25 (23.50)

P Port Diameter and Length -inch (cm) 3 x 15.25 (7.62x 38.74)

NOTE: Internal volume is measured before speaker and/or port displacement. External dimensions are based on the use of 3/4" (1.9cm) material. The port can be placed on any fitting face as long as the port ends are not obstructed. When using enclosures other than recommended, contact technical support or your local installation expert. Proper enclosure design is one of the key components to subwoofer performance and should be handled by experienced installers. Please contact your authorized Clarion dealer for the best results.
