SRW1252 - Loudspeaker CLARION - Free user manual and instructions

Brand	Clarion
Model	SRW1252
Product Type	Car Subwoofer
Size	12 inches
Impedance	4 ohms
Power Handling (RMS)	250 Watts
Power Handling (Peak)	500 Watts
Frequency Response	30 Hz - 500 Hz
Sensitivity	88 dB
Mounting Depth	5.51 inches (140 mm)
Mounting Diameter	11.02 inches (280 mm)
Cone Material	Polypropylene with rubber surround
Voice Coil	Single 4-ohm
Magnet Type	Ferrite
Sealed Enclosure Volume	0.8 - 1.2 cu ft
Ported Enclosure Volume	1.5 - 2.0 cu ft
Dimensions (Overall Diameter)	12.6 inches (320 mm)
Weight	8.6 lbs (3.9 kg)
Recommended Amplifier Power	200 - 300 Watts RMS
Protection	Voice coil overheat protection
Terminal Type	Spring-loaded push terminals

Frequently Asked Questions - SRW1252 CLARION

What is the power handling of the Clarion SRW1252?

The Clarion SRW1252 has an RMS power handling of 250 Watts and a peak power handling of 500 Watts.

What is the impedance of this subwoofer?

The subwoofer has a 4 ohm impedance, single voice coil.

What size enclosure does the SRW1252 require?

For a sealed enclosure, recommended volume is 0.8 to 1.2 cubic feet. For a ported enclosure, use 1.5 to 2.0 cubic feet with a tuning frequency around 35 Hz.

What is the mounting depth of the Clarion SRW1252?

The mounting depth is 5.51 inches (140 mm). Ensure your enclosure or vehicle has sufficient space.

Can I run this subwoofer in a ported enclosure?

Yes, the SRW1252 can be used in either sealed or ported enclosures. For optimal performance, follow the recommended ported enclosure volume of 1.5 to 2.0 cu ft.

What amplifier should I use with the SRW1252?

A mono amplifier delivering 200-300 Watts RMS at 4 ohms is recommended. Ensure the amplifier is stable at 4 ohms.

What is the frequency response of this subwoofer?

The frequency response ranges from 30 Hz to 500 Hz, making it suitable for deep bass reproduction.

Is the Clarion SRW1252 compatible with a factory radio?

Compatibility depends on the factory radio's output. It is best used with an external amplifier as most factory radios lack sufficient power.

What type of terminals does the SRW1252 have?

It features spring-loaded push terminals that accept bare wire or spade connectors for easy installation.

How do I clean and maintain the subwoofer?

Gently dust the cone with a soft cloth. Avoid using liquids or solvents. Ensure the rubber surround remains free of debris. Check mounting screws periodically.

USER MANUAL SRW1252 CLARION

Congratulations, you have just purchased one of the most refined products Clarion has ever produced. The SFW/SRW/SW line of subwoofers offers benchmark levels of performance, reliability and style.

We highly recommend that an Authorized Clarion dealer construct an application specific enclosure. This will ensure that the speaker offers the best possible performance for your application, while consuming the least amount of space in the your vehicle.

To achieve the maximum possible performance from this speaker, we highly recommend that an Authorized Clarion Dealer construct an application specific enclosure that maximizes the space in your vehicle, while offering the best possible performance from this product.

This manual contains all the information required to design your own enclosure with appropriate computer modeling software as well as several highly effective applications, including the intended purpose of each. If you have any hesitation or concern regarding the construction of these enclosures, please consult your authorized Clarion Dealer.

Content

1. Thiele Small Parameters ...... 2
2. Mounting Information .... 3
3. Subwoofer Break-In Period 3
4. Subwoofer Enclosure Applications
   SFW1051 Single 4 Ohm Voice Coil Shallow Mount
   10" Subwoofer 4
   SRW1051/SRW1052 10" Subwoofers 5
   SRW1251/SRW1252 12" Subwoofers 6
   SW1051 Single Voice Coil 10" Subwoofer 7
   SW1251 Single Voice Coil 12" Subwoofer 8
5. Subwoofer Application Comparison 9
6. Calculating Enclosure Dimensions ...... 10
7. Limited Warranty Information 12

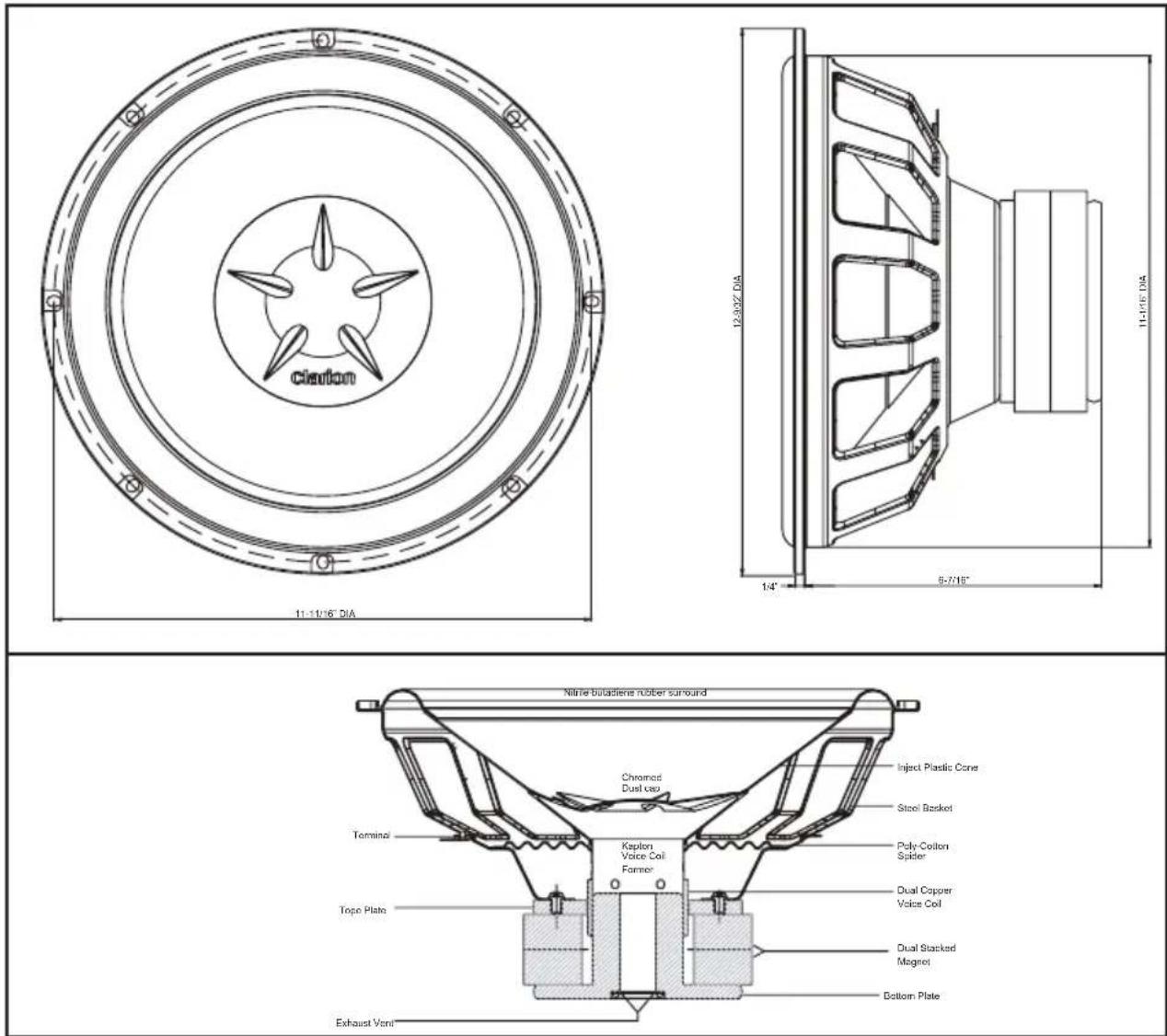

1. Thiele Small Parameters

Model: SFW	1051 SRW1051	*SRW1052	SRW1251 *SRW	1252 SW105	SW1251
Revc (Ohm)	3.75 3.67 3.68	+3.68 3.72 3.68	+3.68 3.7 3.66
Fo (Hz)	317 31.475 32	487 31.745 31	1.034 30.811 29.891
Sd (sqM)	0.031416	0.031416	0.031416	0.049087	0.049087	0.034636	0.053913
Vas (Ltr)	19.081 29	005 30.595 59	009 68.690 35	5.598 67.924
Cms (M/N)	136.15	206.957	218.307	172.46	199.356	208.971	164.568
Mmd (g)	130.399	118.254	106.740	139.493	125.677	124.517	157.877
Mms (g)	133.601	121.455	109.942	145.746	131.930	131.930	172.273
BL (TM)	13.771 13.351	18.916 13.556	17.012 13.245	13.150
Qms	8.635	9.020	7.243	7.227	7.200	5.287	6.573
Qes	0.619	0.499	0.499	0.592	0.641	0.530	0.685
Qts	0.578	0.473	0.467	0.547	0.592	0.482	0.620
Levc (m H)	1.104	1.410	2.465	1.505	2.721	1.600	1.845
No (%)	0.155	0.187	0.203	0.3133	0.311	0.181	0.256
SPLo (dB)	83.916	84.768	85.101	86.96	86.92	84.592	86.103
Xmax(mm)	5.25	12	12	12	12	12	12
Vd (ft3)	0.16	0.045	0.045	0.06	0.06	0.045	0.06

* ALL DUAL VOICE COIL SUBWOOFERS ARE MEASURED IN SERIES ONLY

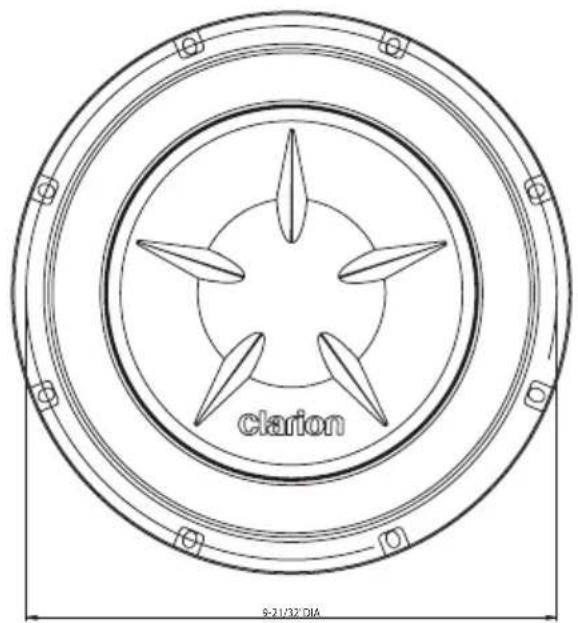

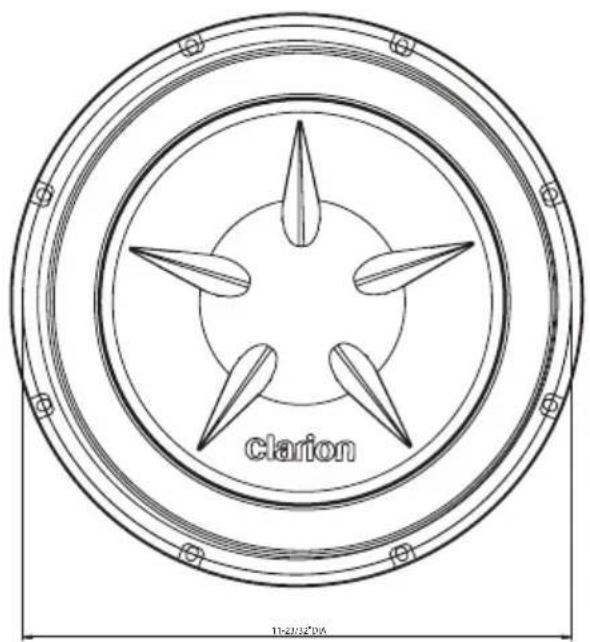

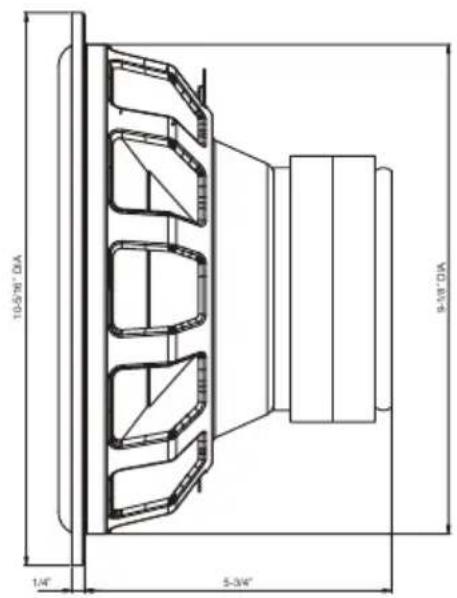

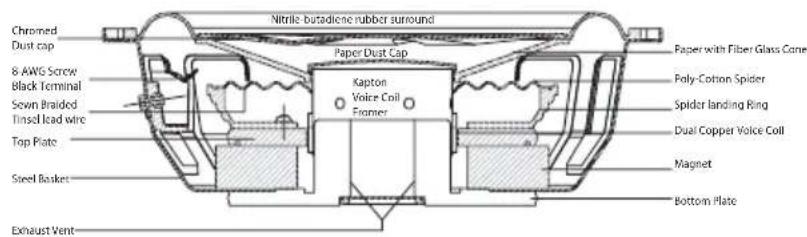

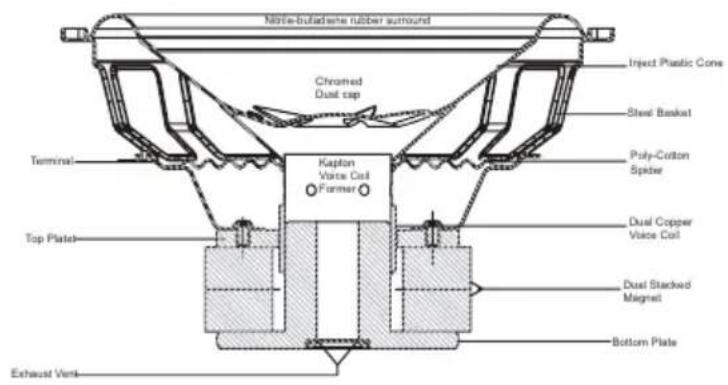

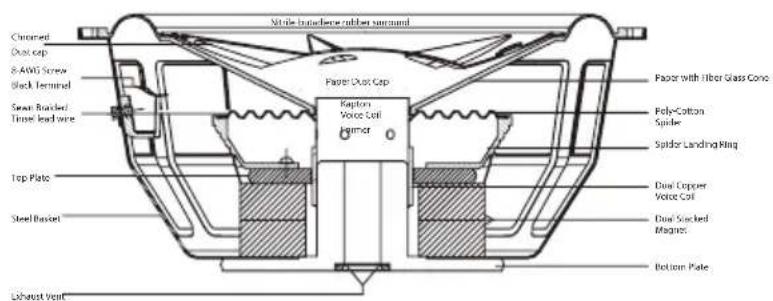

2. Mounting Information

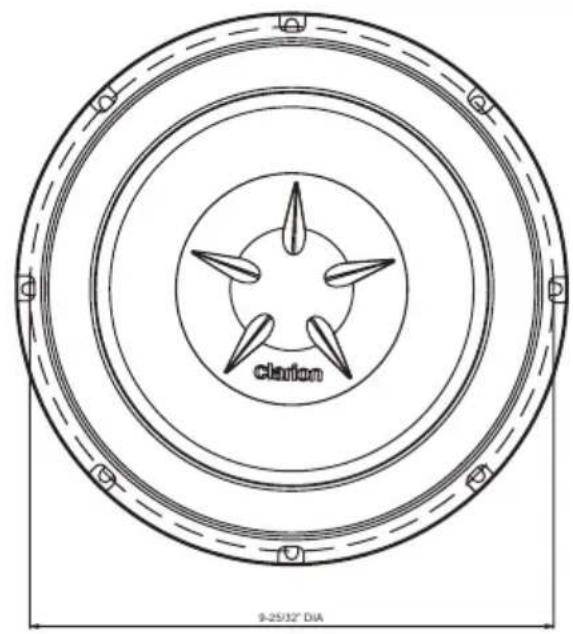

Model: SFW	1051 SRW10	51/SRW1052 SRW125	1/SRW1252 SW1051 SW1251
Outside Diameter	10-5/16"	10-5/16" 12-9/32" 10-5/	16" 12-9/32"

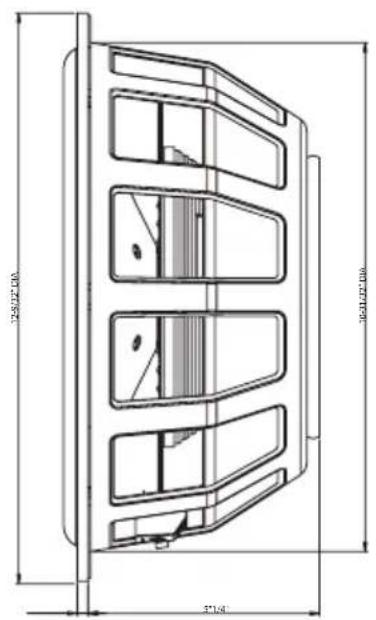

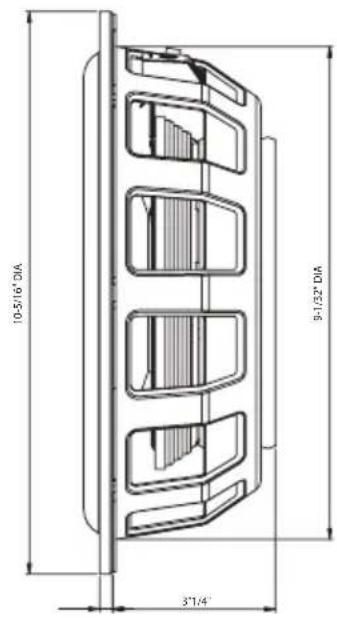

Subwoofer Basket Diameter	9-1/32" 9-	1/32" 10-31/32" 9-1/8"	11-1/16"
Mounting Depth •	3" 4-25	/32" 5"	5-3/4" 6-7/16"
Total Height	3-3/4"	5-1/32"	5-1/4"	6"	6-11/16"

NOTES:

- This is the exact mounting depth of the driver, and does not include provisions for air flow from the vented pole piece. Clarion recommends at least 1" of clearance behind the driver to facilitate air flow and proper cooling.

3. Subwoofer Break-In Period

All new speakers require some amount of time to break in. Depending on the application, this may take between one and four weeks. To accelerate this process, you can manually 'break in' your subwoofer before installing it. With the subwoofer sitting on a scratch-resistant surface, connect it to an amplifier and play a 25Hz sine wave at a level of 10V (8V for SFW) for a period of four to six hours. If you have any questions or concerns, please do not hesitate to contact your Authorized Clarion Dealer.

4. Subwoofer Enclosure Applications

SFW1051

Single 4 Ohm Voice Coil Shallow Mount 10-inch Subwoofer

PORTED ENCLOSURE

Net Volume: 0.5 Cubic feet

Port: 2" x 9"

Subsonic Filter: 30Hz

F3: 52 ~Hz

SEALED ENCLOSURE

* Limit power levels to 160W in this application

Net Volume 0.45 cubic feet

F3 55.7 Hz

Qtc 0.712

Subsonic Filter 35Hz

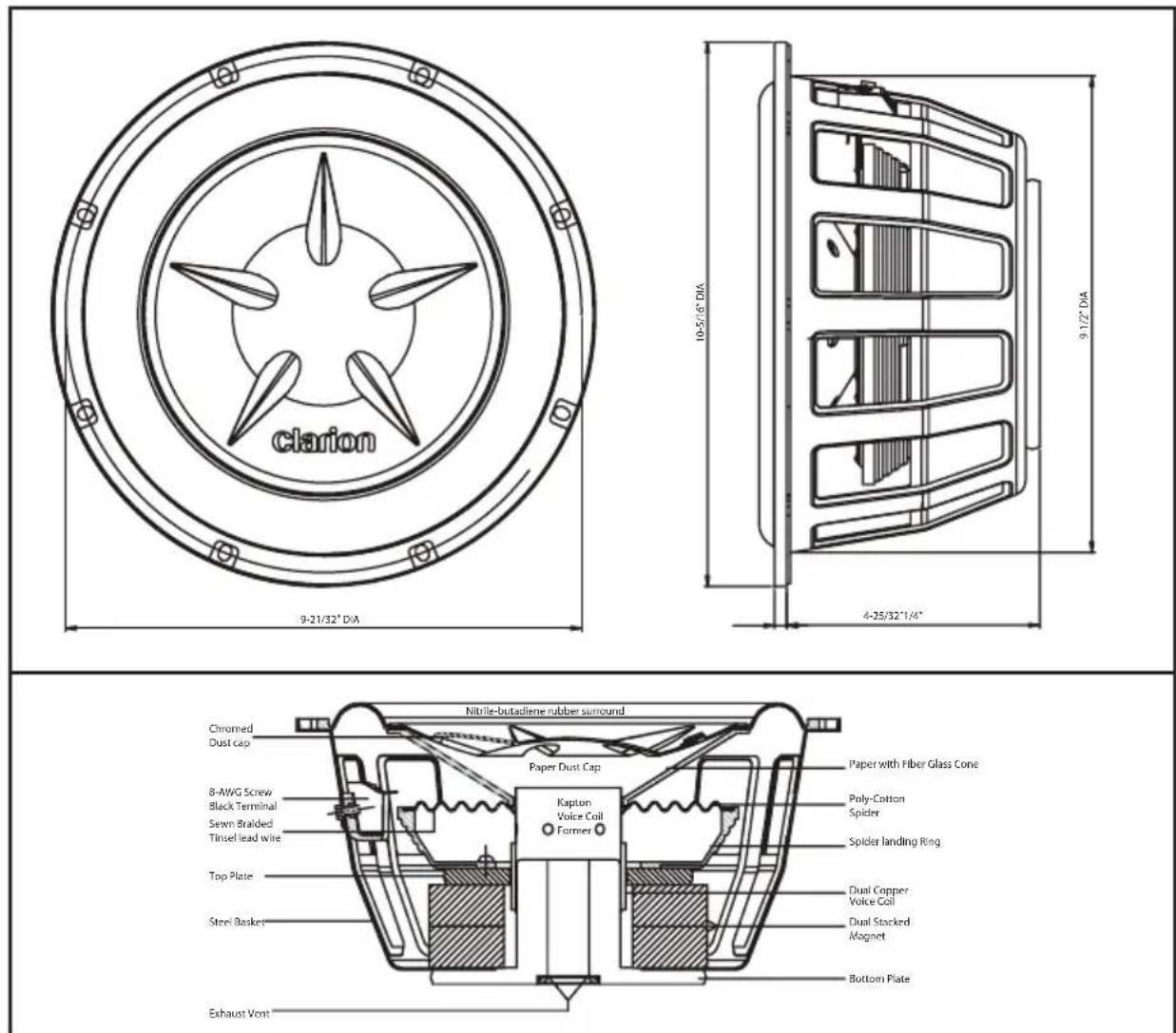

SRW1051/SRW1052

10" Subwoofer

SEALED ENCLOSURE - SOUND QUALITY

Net Volume: 0.4 cubic feet

F3: 57 Hz

Qtc: 0.69

PORTED ENCLOSURE - SOUND QUALITY

Net Volume: 1.0 Cubic feet

Port 0.75" x 12" x 26"

Subsonic Filter 25Hz

F3 30.5 Hz

DUAL PORTED ENCLOSURE - SPL

Net Volume: 1.75 Cubic Feet

Port 4" x 12-3/8"

Subsonic Filter: 25Hz

F3 33Hz

SRW1251/SRW1252

12" Subwoofer

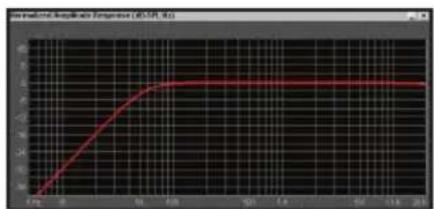

SEALED ENCLOSURE - SOUND QUALITY

Net Volume: 0.8 Cubic Feet

F3 54 Hz

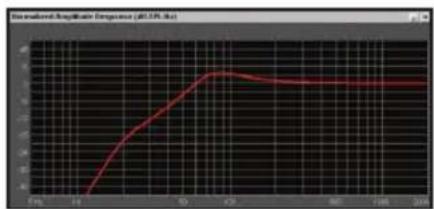

PORTED ENCLOSURE - SOUND QUALITY

Net Volume: 1.5 Cubic Feet

Port: 3" x 7-7/8"

Subsonic Filter: 30Hz

F3: 36 ~Hz

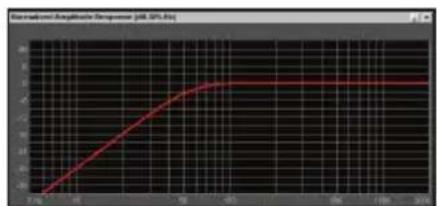

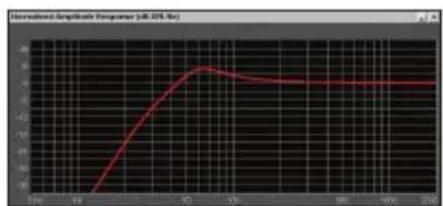

DUAL PORTED ENCLOSURE - SPL

Net Volume: 2.5 Cubic Feet

Port: 4" x 7-1/2"

Subsonic Filter: 30Hz

F3: 39Hz

Z

SW1051

Single Voice Coil 10" Subwoofer

SW1051 SEALED ENCLOSURE - SOUND QUALITY

Net Volume: 0.5 Cubic Feet

Qts 0.748

F3: 53.62 ~Hz

SW1051 PORTED ENCLOSURE - SOUND QUALITY

Net Volume: 0.65 Cubic Feet

Vent 3" x 16"

F3: 38.56 ~Hz

SW1051 DUAL PORTED ENCLOSURE - SPL

Net Volume: 1.25 Cubic Feet

Vent: 4" x 11-1/8"

F3: 39.79 Hz

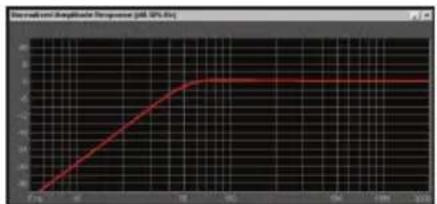

SW1251

Single Voice Coil 12" Subwoofer

SW1251 SEALED ENCLOSURE - SOUND QUALITY

Net Volume: 0.9 Cubic Feet

Qts: 0.87

F3: 45.41 Hz

SW1251 PORTED ENCLOSURE - SOUND QUALITY

Net Volume: 1.5 Cubic Feet

Vent: 3" x 7-7/8"

F3: 34.13 Hz

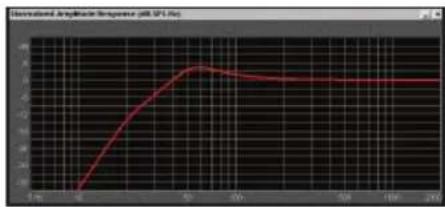

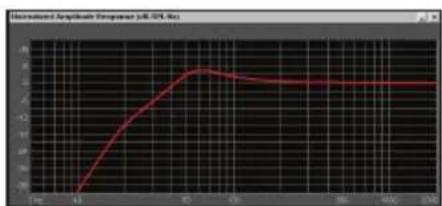

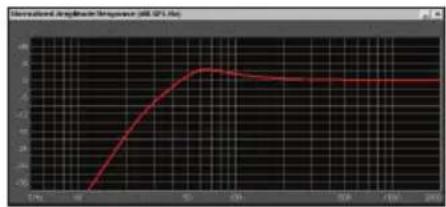

SW1251 DUAL PORTED ENCLOSURE - SPL

Net Volume: 2.5 Cubic Feet

Vent" 4" x 7.5"

F3: 36.51 Hz

SFW ENCLOSURE DESIGN NOTE:

When constructing an enclosure for the SFW1051, please ensure the subwoofer is mounted in so the cone does not come into contact with any object (back of seat) when in use. This may require the installation of a grill or recessing the subwoofer into the enclosure. The subwoofer may be damaged if it comes into contact with any surface while in operation.

ENCLOSURE DESIGN NOTES:

• All enclosures should be constructed of at least 3/4" MDF. Particle board is not suitable for any enclosure and may result in the subwoofer system offering poor performance or the driver may be damaged.
• All panel joints should be sealed with appropriate caulking (latex or rope caulk). Do not use Silicone.
• All joints must be secured with screws or nails.
• Any panel exceeding 4 square feet in area (2'x2' or 1'x4' for example) should be braced internally for resistance to flexing
• All enclosure volumes are net and do not include the displacement of the subwoofer, ports or bracing. Please include these items in your enclosure calculations
• Clarion does not recommend the use of passive crossover networks with our subwoofers (inductors, chokes). Use an amp with an electronic crossover for the subwoofer to achieve optimum performance.
• Where noted, please use a subsonic filter to protect your Clarion subwoofer from over-excursion situations that may cause damage.
• All specifications are subject to change without prior notice.

5. Subwoofer Application Comparison

Enclosure Type Sealed Vented Bandpass
Power Handling Good at all Frequencies		Good above Tuning Frequency	Good near Tuning Frequency
Linearity Excellent Good Poor
Dynamic Performance	Excellent Good Poor
Efficiency Good Very Good	Excellent
Subsonic Output	Excellent Good Good
Midbass Output	Excellent Very Good	Poor
Enclosure Size	Small	Medium	Large

6. Calculating Enclosure Dimensions

There are several important equations required to facilitate the calculation of enclosure dimensions. You will ultimately want to alter then dimensions for your enclosure to maximise the usable trunk space in your vehicle. The following example will show the general procedure to calculate the dimensions for an enclosure suitable for 2 SRW1251/SRW1252 subwoofers.

The calculations below will provide the enclosure depth, allowing you to construct your enclosure and enjoy bass, the way it was meant to be heard.

What you need to know: Example: Maximum Trunk Width 35 inches Maximum Trunk Height 15 inches Net Enclosure Volume 2.5 cubic feet Material Thickness 0.75 inches Driver Displacement 0.06 cubic feet Port Dimensions 4" x 7.5" long

Step 1: Measure the trunk width and height. Take note of seat belt mechanisms, strut tower protrusions and trunk opening size when measuring.

Eg: 35" wide by 15" tall

Step 2: Calculate the gross enclosure volume. This includes the net enclosure volume, plus the displacement of the drivers, port(s) and any bracing. There is no bracing being used in this example, however Clarion recommends an enclosure of this size be properly braced.

Eg: 2.5 ft ^3 net volume, 0.06 ft ^3 per speaker, 0.049 ft ^3 port.

Gross Volume: 2.5 + 0.06 + 0.06 + 0.049 = 2.665 ft ^3 or 4605.12 cubic inches.

Step 3: after subtracting the material thickness from the maximum width and maximum height, we can calculate the depth of the enclosure.

Eg: 4605.12 ÷ ((35-0.75-0.75) × (15-0.75-0.75) = 10.18 inches.

Step 4: Add the material thickness to the inside depth calculation and you have the outside dimensions of you enclosure.

Eg: 10.18 + 0.75 + 0.75 = 11.68 inches.

Width = 35" Height = 15" Depth = 11.68"

Step 5: You can now cut and assemble the panels for your enclosure. Make sure all joints are perfectly sealed and there are no air leaks anywhere. If you choose not to wrap the enclosure in carpet, use foam gaskets when installing the woofers to ensure an air-tight seal against bare wood.

Converting cubic inches to cubic feet

To convert cubic inches to cubic feet, divide by 1728

To convert cubic feet to cubic inches, multiply by 1728

Port Volume Calculation

The equation to calculate the volume of a round port is: Radius x Radius x Pi x Net Depth.

The net depth is the total depth of the port minus the thickness of the wood it is mounted in. For our example using a 4" port, 7.5" long, the equation would be: 2 × 2 × 3.1416 × (7.5 - .075) = 84.85 cubic inches or 0.049 cubic feet.

Wedge Style Enclosures

To further maximize the available storage space in your vehicle, you may choose to have the back panel of the enclosure follow the angle of the rear seat back. To calculate the volume of the enclosure, we need to find the average depth of the enclosure.

In our example, we had an enclosure depth of 11.68 inches. To calculate the top and bottom panel depths of a wedge enclosure, we need to know how much deeper the bottom is than the top. Follow these steps

Step 1: Place a board on the trunk floor and slide it to the base of the rear seats.

Step 2: Cut a small board that when combined with the thickness of the first board, is the total height of the enclosure. In our example with would be 15 inches, so the board would be 14.25 inches.

Step 3: Stand this board up on the first board and slide it toward the back of the trunk until it runs into the top of the seat back. Mark a line at the rear edge of the board.

Step 4: Measure from the line to the end of the bottom board. This is how much longer the bottom board is than the top. For this example, we will say it is 5 inches.

We now need to calculate the new depth of the enclosure, knowing the bottom is 5 inches deeper than the top. The average new depth of the enclosure is half of 5 inches, or 2.5 inches.

The top of the enclosure will need to be 11.68 - 2.5 = 9.18 inches

The bottom of the enclosure will need to be 11.68 + 2.5 = 14.18 inches
