Type	Bookshelf Speaker
Dimensions (W x H x D)	200 x 300 x 250 mm
Weight	5.2 kg per speaker
Power Handling	50 W RMS, 100 W peak
Impedance	8 ohms
Frequency Response	50 Hz – 20 kHz
Sensitivity	88 dB (1W/1m)
Driver Configuration	2-way: 1" tweeter, 6.5" woofer
Enclosure Type	Bass reflex (rear port)
Grille	Removable cloth grille
Binding Posts	5-way binding posts
Magnetic Shielding	Not shielded (keep away from CRT monitors)
Recommended Amplifier Power	20 – 100 W RMS per channel
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents or water.
Safety Notes	Place on a stable surface. Keep away from moisture and heat sources.
Spare Parts	Tweeter and woofer available separately. Contact Clarion support for replacements.

Frequently Asked Questions - WF2510D CLARION

What is the impedance of the Clarion WF2510D?

The Clarion WF2510D has an impedance of 8 ohms, suitable for most home stereo amplifiers.

What is the recommended amplifier power for these speakers?

We recommend an amplifier with 20 to 100 watts RMS per channel to drive the WF2510D effectively.

Can I place these speakers near a TV or computer monitor?

The WF2510D is not magnetically shielded, so keep them at least 30 cm away from CRT monitors or old TVs to avoid color distortion.

How do I clean the Clarion WF2510D?

Use a soft, dry cloth to wipe the cabinet. Do not apply water or cleaning agents to the grille or drivers.

What type of speaker cable should I use?

Use 16-12 AWG speaker wire with banana plugs or bare wire for the binding posts.

Is the Clarion WF2510D a powered speaker?

No, the WF2510D is a passive speaker and requires an external amplifier or receiver.

What is the frequency response of the WF2510D?

The frequency response is 50 Hz to 20 kHz, providing balanced sound for music and movies.

How do I connect the speakers to my amplifier?

Connect the positive (+) and negative (-) terminals of the speaker to the corresponding terminals on the amplifier. Ensure proper polarity for best sound.

Are replacement drivers available for the WF2510D?

Yes, you can order replacement tweeters and woofers from Clarion or authorized dealers.

Can I use these speakers for home theater?

Absolutely, the WF2510D works well as front or surround speakers in a home theater setup with a compatible subwoofer.

USER MANUAL WF2510D CLARION

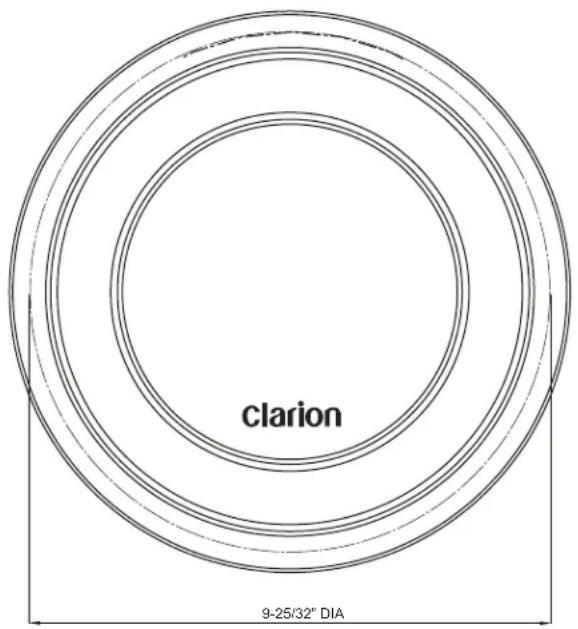

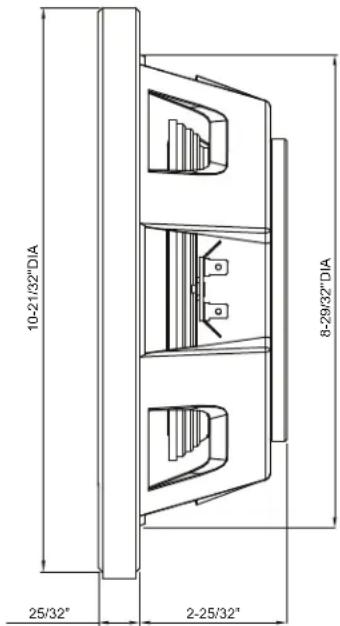

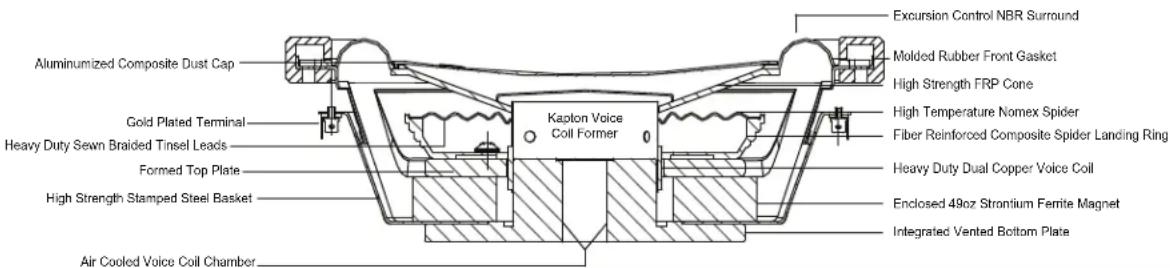

10" (25.4cm) SHALLOW DVC SUBWOOFER

Electrical Specifications
Maximum Musical Input Power	900W F
Continuous Input Power	300W V
Sensitivity	83dB
Impedance	4 ohms + 4 ohms

Thiele / Small Electromechanical Parameters
o	Resonance Frequency	35Hz
as	Equivalent Stiffness	19.8L
Qts	Total Electromechanical Dampening	0.56
Sd	Cone Area	314.1 cm2

Sealed Enclosure Recommendation
V_b Internal Area cu. ft. (liter) 0.5 (14.16) Internal Area cu. ft. (liter)
F_3 -3dB Point (Hz) 38 -3dB Point (Hz) 35
Qtc Enclosure Damping 0.76 Tuning Frequency (Hz) 40
H Height -inch (cm) 14 (35.56)	H Height -inch (cm)
W Width -inch (cm)	23 (58.42)
D Depth -inch (cm)	5 (12.70)

Ported Enclosure Recommendation
.5 14.16
F_3
F_b
4 (35.56)
W	Width -inch (cm)	23 (58.42)
D	Depth -inch (cm)	5 (12.70)
P	Port Diameter and Length -inch (cm)	2 x 9 (5.08x 22.86)

NOTE: Internal volume is measured before speaker and/or port displacement. External dimensions are based on the use of 3/4" (1.9cm) material. The port can be placed on any fitting face as long as the port ends are not obstructed. When using enclosures other than recommended, contact technical support or your local installation expert. Proper enclosure design is one of the key components to subwoofer performance and should be handled by experienced installers. Please contact your authorized Clarion dealer for the best results.
