WQ2510D - Loudspeaker CLARION - Free user manual and instructions

Product Type	Subwoofer
Model	WQ2510D
Brand	Clarion
Speaker Size	10 inches (25 cm)
Impedance	4 ohms
RMS Power Handling	250W
Max Power Handling	500W
Frequency Response	25 - 500 Hz
Sensitivity	90 dB
Cone Material	Polypropylene
Magnet Type	Ferrite
Weight	3.5 kg (approx.)
Dimensions (Diameter x Depth)	280 mm x 150 mm
Power Supply	Passive (requires external amplifier)
Main Functions	Low-frequency reproduction for car audio systems
Care and Cleaning	Wipe with a soft, dry cloth. Avoid moisture.
Safety	Do not expose to water or extreme temperatures. Ensure proper enclosure.
Spare Parts and Repairability	Contact Clarion authorized service centers for spare parts.
Installation	Mount in a sealed or ported enclosure recommended by Clarion.

Frequently Asked Questions - WQ2510D CLARION

What is the recommended enclosure type for the Clarion WQ2510D?

The Clarion WQ2510D performs best in a sealed or ported enclosure. Refer to the manual for specific volume recommendations.

What amplifier power is suitable for the WQ2510D?

An amplifier delivering 250W RMS at 4 ohms is ideal. Ensure the amplifier's RMS rating matches the subwoofer's handling.

Can I use the WQ2510D in a home audio system?

Yes, but it requires a suitable enclosure and a car audio amplifier with a power supply. It is designed primarily for car use.

What is the impedance of the Clarion WQ2510D?

The impedance is 4 ohms, which is standard for most car audio subwoofers.

How do I clean the WQ2510D subwoofer?

Use a soft, dry cloth to gently wipe the cone and surround. Avoid any liquids or harsh chemicals.

Is the Clarion WQ2510D compatible with a dual voice coil?

This model features a single 4-ohm voice coil. It is not a dual voice coil subwoofer.

What is the frequency response of the WQ2510D?

The frequency response ranges from 25 Hz to 500 Hz, focusing on deep bass reproduction.

Can I bridge two WQ2510D subwoofers?

Yes, you can wire two 4-ohm subwoofers in series (8 ohms) or parallel (2 ohms) to match your amplifier's capabilities.

What is the power handling of the WQ2510D?

It handles 250W RMS and 500W peak power. Exceeding these limits may damage the speaker.

Where can I find the user manual for the Clarion WQ2510D?

The manual is available for free download on notice-facile.com in PDF format. You can also request a translated version.

USER MANUAL WQ2510D CLARION

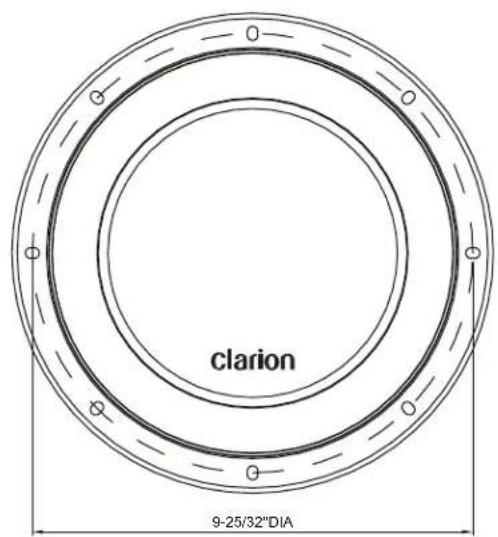

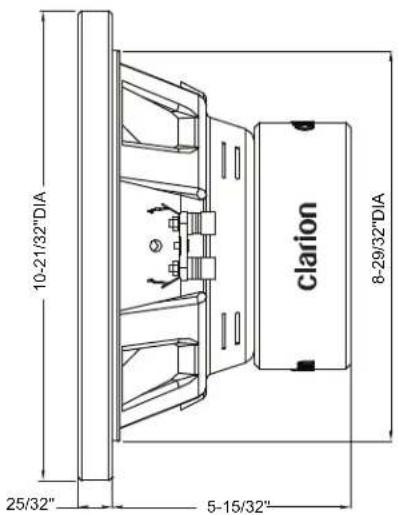

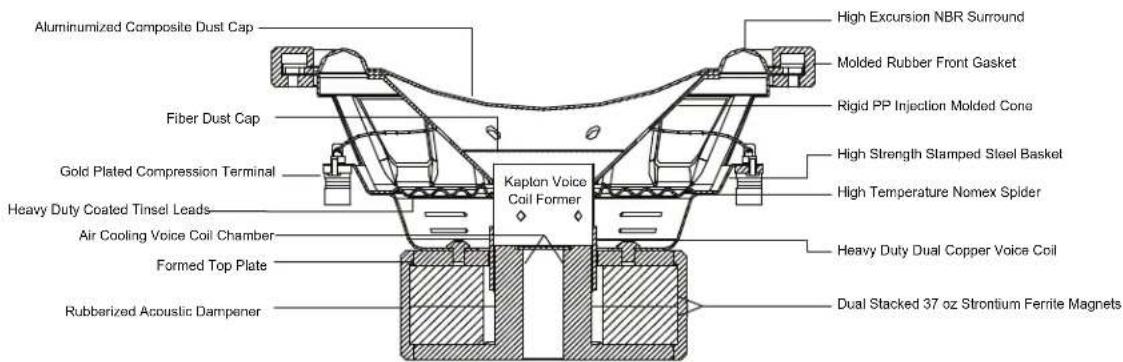

10" (25.4cm) DVC SUBWOOFER

Electrical Specifications
Maximum Musical Input Power	1500W
Continuous Input Power	500W V
Sensitivity	82dB
Impedance	4 ohms + 4 ohms

Thiele / Small Electromechanical Parameters
F_o	Resonance Frequency	35Hz
as	Equivalent Stiffness	18.5L
Q_ts	Total Electromechanical Dampening	0.65
S_d	Cone Area	314.1 cm^2

Sealed Enclosure Recommendation
V_b Internal Area cu. ft. (liter) 0.5 (14.16) Internal Area cu. ft. (liter)
F_3 -3dB Point (Hz) 51 -3dB Point (Hz) 29
Qtc Enclosure Damping 0.75 Tuning Frequency (Hz) 33
H Height -inch (cm) 13 (33.02) H Height -inch (cm) 13 (33.02)
W Width -inch (cm)	18.5 (46.99)
D Depth -inch (cm)	6.75 (17.15)

Ported Enclosure Recommendation
1.0 (8.32)
F_3
F_b
W	Width -inch (cm)	24 (60.96)
D	Depth -inch (cm)	9.25 (23.50)
P	Port Diameter and Length -inch (cm)	3 x 15.25 (7.62x 38.74)

NOTE: Internal volume is measured before speaker and/or port displacement. External dimensions are based on the use of 3/4" (1.9cm) material. The port can be placed on any fitting face as long as the port ends are not obstructed. When using enclosures other than recommended, contact technical support or your local installation expert. Proper enclosure design is one of the key components to subwoofer performance and should be handled by experienced installers. Please contact your authorized Clarion dealer for the best results.
