Product Type	Wireless Access Point
Brand	EnGenius
Model	Neutron EWS355AP
Wi-Fi Standard	802.11ac Wave 2, dual-band 2.4 GHz and 5 GHz
Maximum Speed	Up to 1.2 Gbps (300 Mbps 2.4 GHz + 867 Mbps 5 GHz)
Number of Antennas	2 internal antennas (MIMO 2x2)
Network Ports	1 Gigabit Ethernet port (RJ-45) with PoE
Power Supply	PoE (Power over Ethernet) 802.3af/at or 12V 1A AC adapter (not included)
Maximum Power Consumption	12 W
Dimensions (L x W x H)	19.2 x 19.2 x 3.5 cm
Weight	350 g
Mounting	Ceiling or wall (mounting kit included)
Protection Rating	IP30
Management	Via web interface, SNMP, or EnGenius ezMaster software
Wireless Security	WPA2-PSK, WPA3, 802.1X, MAC filtering, VLAN
Advanced Features	MU-MIMO, Beamforming, QoS, load balancing, VLAN
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% non-condensing
Certifications	CE, FCC, RoHS
Maintenance and Cleaning	Dust with a soft cloth, avoid moisture and solvents
Spare Parts and Repairability	No spare parts provided; contact EnGenius support for repair

Frequently Asked Questions - Neutron EWS355AP ENGENIUS

How to reset my EnGenius Neutron EWS355AP to factory settings?

Press and hold the Reset button on the back of the access point for about 10 seconds until the LEDs flash. Release, the device will reboot with default settings.

How to connect the EWS355AP to my network?

Connect an Ethernet cable from the PoE switch to the LAN port of the access point. Ensure the switch provides PoE power (802.3af/at). The device will power on automatically.

What is the default IP address to access the web interface?

The default IP address is 192.168.1.1. Set your computer to a static IP (e.g., 192.168.1.100) and connect via a browser.

How to configure the Wi-Fi on the access point?

Log in to the web interface, go to Wireless > Basic. Create an SSID, choose the band, security mode (WPA2 recommended), and set a password.

Can I use multiple EWS355APs in mesh?

No, the EWS355AP is a standalone access point, not a mesh system. For centralized management, use the ezMaster software from EnGenius.

How to update the firmware?

Download the latest firmware from the EnGenius website. In the web interface, go to Administration > Firmware Upgrade and select the file.

What to do if the EWS355AP does not power on?

Check that the Ethernet cable is connected to an active PoE port. Try with a 12V 1A AC adapter (sold separately). If nothing works, contact support.

How to enable WPA3 mode?

In the interface, go to Wireless > Security. Select WPA3 from the dropdown (if available). Note that all clients must support WPA3.

What is the range of the access point?

Indoors, up to 30 meters on 2.4 GHz and 15 meters on 5 GHz, depending on obstacles. Outdoors, the range may be reduced.

Can I mount the device on the ceiling?

Yes, the included mounting kit allows ceiling or wall mounting. Follow the mounting instructions in the manual for a secure installation.

USER MANUAL Neutron EWS355AP ENGENIUS

Wireless Managed Indoor Access Point

Table of Contents

Chapter 1 .... 5

Key Features 6

Introduction 7

System Requirements....8

Package Contents 8

Applications 9

Technical Specifications 10

Physical Interface....11

Chapter 2....12

Considerations for Wireless Installation 13

Computer Settings....14

Hardware Installation....18

Mounting the Access Point 19

Chapter 3....22

Default Settings....23

Web Configuration....24

Chapter 4....26

Device Status....27

Connections....30

Chapter 5....31

IPv4 Settings 32

IPv6 Settings 33

Spanning Tree Settings.... 34

Chapter 6....35

2.4GHz/5GHz SSID Profile 36

Wireless Security 38

Wireless MAC Filter 41

Traffic Shaping....42

Guest Network 43

Fast Handover 45

Management VLAN Settings....46

Chapter 7....47

SNMP Settings 48

CLI/SSH Settings....50

HTTPS Settings....51

Email Alert 52

Date and Time Settings 53

WiFi Scheduler....54

Tools 56

LED Control....59

Device Discovery....60

Chapter 8....61

Account Setting....62

Firmware Upgrade 63

Backup/Restore 64

System Log 65

Reset....66

Logout 67

Appendix 68

Appendix A - FCC Interference Statement 69

Appendix B - IC Interference Statement....70

Appendix C - CE Interference Statement....72

Chapter 1

Product Overview

White EnGenius 3.0 network device with ports and indicator lights (no readable text or symbols beyond branding)

Introduction

Key Features

• Deploy and manage with ease using EWS Series Wireless Management Switches.
• Internal 5dBi Omni-Directional MIMO antennas optimized for maximum RF performance.
• Backward compatible with IEEE802.11a/b/g/n wireless devices.
• Integrated Power over Ethernet (IEEE802.3af/at) for lowering deploying costs. Can be powered using either the included power adapter or via PoE with PoE 802.3af/at capable Switches or Injectors.
• Band Steering to load balance clients between 2.4GHz and 5 GHz for better throughput performance. ¹
  • Secured Guest Network.
• Stylish low profile design with easy ceiling mounting kit.

Note: ¹ Feature available only for dual band models.

Introduction

This device is an enhanced-powered, long-range wireless access point. It is designed to operate in numerous environments; from large homes, small and medium-sized businesses, multiple-floor offices, hotels, and other venues, to larger enterprise deployments. Its enhanced-powered, long-range characteristics make it a cost-effective alternative to ordinary Access Points that don't have the range and reach to connect to a growing number of wireless users who wish to connect to a large hotspot or business network.

To protect sensitive data during wireless transmissions, the device offers different encryption settings for wireless transmissions, including industry standard WPA and WPA2 encryption. The device also includes MAC address filtering to allow network administrators to offer network access only to known computers and other devices based on their MAC addresses.

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and mix of devices in the network. Features and specifications are subjected to change without prior notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2013 EnGenius Technologies, Inc. All rights reserved.

System Requirements

The following are the Minimum System Requirements in order to configure the device:

• Computer with an Ethernet interface or wireless network capability
• Windows OS (XP, Vista, 7, 8), Mac OS, or Linux-based operating systems
• Web-Browsing Application (i.e.: Internet Explorer, Firefox, Chrome, Safari, or another similar browser application)

Package Contents

The package contains the following items (all items must be in package to issue a refund):

• EWS Indoor Access Point
- Power Adapter
• RJ-45 Ethernet Cable
- Quick Installation Guide
• Ceiling and Wall Mount Screw kit

Applications

Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of WLANs:

• Difficult-to-Wire Environments: There are many situations where wires cannot be installed, deployed easily, or cannot be hidden from view. Older buildings, sites with multiple buildings, and/or areas that make the installation of a Ethernet-based LAN impossible, impractical or expensive are sites where WLAN can be a network solution.
• Temporary Workgroups: Create temporary workgroups/networks in more open areas within a building; auditoriums, amphitheaters classrooms, ballrooms, arenas, exhibition centers, or temporary offices where one wants either a permanent or temporary Wireless LAN established.
• The Ability to Access Real-Time Information: Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing with patients, serving customers, and/or processing information.
• Frequently Changing Environments: Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).
• Small Office and Home Office (SOHO) Networks: SOHO users require a cost-effective, easy, and quick installation of a small network.
• Training/Educational Facilities: Training sites at corporations or students at universities use wireless connectivity to exchange information between peers and easily access information for learning purposes.

Technical Specifications

		EWS210AP	EWS310AP	EWS320AP	EWS360AP
Standard	2.4GHz	IEEE802.11b/g/n
	5GHz	-	IEEE802.11a/n		IEEE802.11a/n/ac
Antennas		4 x Internal 5dBi Omni-Directional		6 x Internal 5dBi Omni-Directional
Interface		1 x 10/100/1000 Gigabit Ethernet Port1 x Reset Button1 x Power Connector
LED Indicator		Power, WLAN, LAN, Mesh
PoE Support		IEEE802.3af/at IEEE802.3at
Power Requirement		External Power AdapterDC IN, 12V/2A
Environment		Operating:Temperature: 32°F to 104°F (0°C to 40°C)Humidity (Non-condensing); 90% or lessStorage:Temperature: -4°F to 140°F (-20°C to 60°C)Humidity (Non-condensing); 90% or less
Dimensions		161.5 x 41.5mm

Physical Interface

3D rendering of a white electronic device casing with labeled ports (no text or symbols beyond numbered labels)

1. Reset Button: Press and hold for over 10 seconds to reset to factory default settings.
2. LED Indicators: LED lights for Mesh, WLAN 5GHz ¹ , WLAN 2.4GHz, LAN, and Power
3. LAN Port (802.3at PoE): Ethernet port for RJ-45 cable.
4. Power Connector: 12V DC IN for Power Adapter.
5. Ceiling (Wall) Mount Hole: Using the provided mounting kit, the Access Point can be attached to a ceiling or wall.
6. Kensington Security Slot: To protect your Access Point, use the Kensington Security Slot to attach a cable lock.

Chapter 2

Before You Begin

White EnGenius wireless router device with no visible text or symbols on the body

Before You Begin

This section will guide you through the installation process. Placement of the EnGenius Access Point is essential to maximize the Access Point's performance. Avoid placing the Access Point in an enclosed space such as a closet, cabinet, or stairwell.

Considerations for Wireless Installation

The operating distance of all wireless devices can often not be pre-determined due to a number of unknown obstacles in the environment in which the device is deployed. Obstacles such as the number, thickness, and location of walls, ceilings, or other objects that the Access Point's wireless signals must pass through can weaken the signal. Here are some key guidelines for allowing the Access Point to have an optimal wireless range during setup.

• Keep the number of walls and/or ceilings between the Access Point and other network devices to a minimum. Each wall and/or ceiling can reduce the signal strength, resulting in a lower overall signal strength.
• Building materials make a difference. A solid metal door and/or aluminum stubs may have a significant negative effect on the signal strength of the Access Point. Locate your wireless devices carefully so the signal can pass through drywall and/or open doorways. Materials such as glass, steel, metal, concrete, water (example: fish tanks), mirrors, file cabinets, and/or brick can also diminish wireless signal strength.
• Interference from your other electrical devices and/or appliances that generate RF noise can also diminish the Access Point's signal strength. The most common types of devices are microwaves or cordless phones.

Computer Settings

Windows XP/Windows 7

In order to use the Access Point, you must first configure the TCP/IPv4 connection of your Windows OS computer system.

1. Click the Start button and open the Control Panel.

Windows XP

Windows 7

2a. In Windows XP, click on Network Connections.

2b. In Windows 7, click View network status and tasks in the Network and Internet section, then select Change adapter settings.

Network and Internet

View network status and tasks

Choose homegroup and sharing options

Control Panel Home

Change adapter settings

Change advanced sharing settings

1. Right click on Local Area Connection and select Properties.

2. Select Internet Protocol Version 4 (TCP/IPv4) and then select Properties.

1. Select Use the following IP address and enter an IP address that is different from the Access Point and Subnet mask, then click OK.

Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.

For example: Access Point IP address: 192.168.1.1

PC IP address: 192.168.1.2 - 192.168.1.255

PC Subnet mask: 255.255.255.0

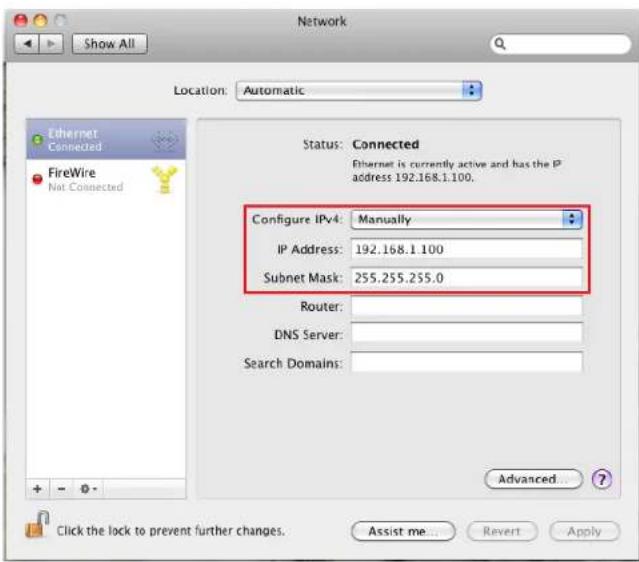

Apple Mac OS X

1. Go to System Preferences (it can be opened in the Applications folder or by selecting it in the Apple Menu).
2. Select Network in the Internet & Network section.

1. Highlight Ethernet.
2. In Configure IPv4, select Manually.
3. Enter an IP address that is different from the Access Point and Subnet mask, then click OK.

Note: Ensure that the IP address and Subnet mask are on the same subnet as the device.

For example: Access Point IP address: 192.168.1.1

PC IP address: 192.168.1.2 - 192.168.1.255

PC Subnet mask: 255.255.255.0

1. Click Apply when finished.

Hardware Installation

1. Ensure that the computer in use has an Ethernet Controller port (RJ-45 Ethernet Port). For more information, verify with your computer's user manual.
2. Connect one end of the Category 5e Ethernet cable into the RJ-45 port of the Access Point and the other end to the RJ-45 port of the computer. Ensure that the cable is securely connected to both the Access Point and the computer.
3. Connect the Power Adapter DC connector to the DC-IN port of the Access Point and the Power Adapter to an available electrical outlet. Once both connections are secure, verify the following:

a) Ensure that the POWER light is on (it will be orange).
b) Ensure that the 2.4 GHz/5 GHz WLAN light is on (it will be blue for 2.4G, and green for 5G).
c) Ensure that the LAN (Computer/ Access Point Connection) light is on (it will be blue).
d) Once all three lights are on, proceed to set up the Access Point using the computer.

Mounting the Access Point

Using the provided hardware, the Access Point can be attached to a ceiling or wall.

To attach the Access Point to a ceiling or wall using the mounting bracket:

1. Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mounting hardware kit.

2. Insert the provided short screws into the bottom cover of the Access Point.

Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket.

If extra space is required, use the provided spacers and long screws from the T-Rail mounting hardware kit to increase the space between the unit and the mounting bracket.

1. Mount the Access Point on the mounting bracket by rotating the unit clockwise about 90 degrees to secure it in place.

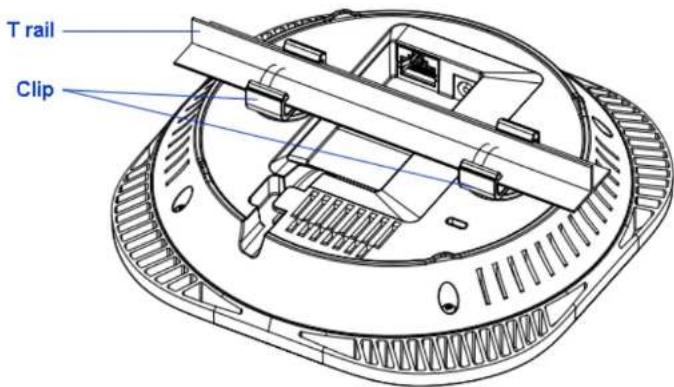

Attaching the Access Point to a ceiling using the provided T-Rail connectors:

1. Attach the T-Rail connectors to the bottom cover of the Access Point using the provided short screws.

Note: Two sizes of T-Rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in (1.43cm). If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long screws.

1. Line up the connected T-Rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps into place.

Note: To protect your Access Point, use the Kensington Security Slot to attach a cable lock (cable lock is not included).

Chapter 3

Configuring Your Access Point

Exterior view of a white EnGenius 3.0 micro network device (no visible text or symbols on the device body)

Configuring Your Access Point

This section will show you how to configure the device using the web-based configuration interface.

Default Settings

Please use your Ethernet port or wireless network adapter to connect the Access Point.

IP Address	192.168.1.1
Username/Password	admin/admin

Web Configuration

1. Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address http://192.168.1.1.

Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.

1. The default username and password are: admin. Once you have entered the correct username and password, click the Login button to open the web-based configuration page.

1. If successful, you will be logged in and see the Access Point User Interface. *Model name varies depending on model.

EnGenius®

EWS320AP

Dual Radio AP, 3T3R, 450Mbps + 450Mbps

Changes: 0

Reset

Logout

Overview

Device Status

Connections

Network

Basic

Wireless

Management

Advanced

Time Zone

WiFi Scheduler

Tools

System Manager

Account

Firmware

Log

Device Information

Device Name	EWS320AP
MAC Address
- LAN	88:DC:06:05:B0:68
- Wireless LAN - 2.4GHz	88:DC:96:05:B0:69
- Wireless LAN - 5GHz	88:DC:96:05:B0:6A
Country	Default
Current Local Time	Tue Jan 7 07:56:35 UTC 2014
Firmware Version	2.0.0
Management VLAN ID	4096

LAN Information - IPv4

IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0

Chapter 4

Overview

White EnGenius wireless router device with no visible text or symbols on the body

Overview

The Overview section contains the following options:

• Device Status
• Connections

The following sections describe these options.

Device Status

Clicking the Device Status link under the Overview menu shows the status information about the current operating mode.

- The Device Information section shows general system information such as Device Name, MAC address, Current Time, Firmware Version, and Management VLAN ID

Device Information

Device Name	EWS320AP
MAC Address
- LAN	88:DC:96:05:B0:68
- Wireless LAN - 2.4GHz	88:DC:96:05:B0:69
- Wireless LAN - 5GHz	88:DC:96:05:B0:6A
Country	Default
Current Local Time	Tue Jan 7 07:56:35 UTC 2014
Firmware Version	2.0.0
Management VLAN ID	4096

- The LAN Information section shows the Local Area Network settings such as the LAN IP Address, Subnet mask, Gateway, DNS Address, DHCP Client, and STP status.

LAN Information - IPv4

IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0
DHCP Client	Disable
Spanning Tree Protocol (STP)	Disable

LAN Information - IPv6

IP Address	N/A
Link-Local Address	fe80::8adc:96ff.fe05:b068
Gateway	N/A
Primary DNS	N/A
Secondary DNS	N/A

- The Wireless LAN Information 2.4 GHz/5GHz section shows wireless information such as Operating Mode, Frequency, and Channel. Since the Access Point supports multiple-SSIDs, information about each SSID and security settings are displayed.

*Wireless LAN Information - 5GHz only available for 5GHz capable models.

Wireless LAN Information - 2.4GHz

Operation Mode		AP
Wireless Mode		802.11 B/G/N
Channel Bandwidth		20-40 MHz
Channel		2.412 GHz (Channel 1)
Profile	SSID		Security	VID	802.1Q
#1	EnGenius05B069_1-2.4GHz		None	1	Disable
#2	EnGenius05B069_2-2.4GHz		None	2	Disable
#3	EnGenius05B069_3-2.4GHz		None	3	Disable
#4	EnGenius05B069_4-2.4GHz		None	4	Disable
#5	EnGenius05B069_5-2.4GHz		None	5	Disable
#6	EnGenius05B069_6-2.4GHz		None	6	Disable
#7	EnGenius05B069_7-2.4GHz		None	7	Disable
#8	EnGenius05B069_8-2.4GHz		None	8	Disable

Wireless LAN Information - 5GHz

Operation Mode		AP
Wireless Mode		802.11 A/N
Channel Bandwidth		40 MHz
Channel		5.66 GHz (Channel 132)
Profile	SSID		Security	VID	802.1Q
#1	EnGenius05B06A_1-5GHz		None	51	Disable
#2	EnGenius05B06A_2-5GHz		None	52	Disable
#3	EnGenius05B06A_3-5GHz		None	53	Disable
#4	EnGenius05B06A_4-5GHz		None	54	Disable
#5	EnGenius05B06A_5-5GHz		None	55	Disable
#6	EnGenius05B06A_6-5GHz		None	56	Disable
#7	EnGenius05B06A_7-5GHz		None	57	Disable
#8	EnGenius05B06A_8-5GHz		None	58	Disable

Connections

Clicking the Connections link under the Device Status menu displays the list of clients associated to the Access Point's 2.4GHz/5GHz, along with the MAC address, TX, RX and signal strength for each client. Clicking Kick in the Block column removes this client.

Connection List - 2.4GHz

SSID	MAC Address	TX	RX	RSSI	Block
Connection List - 5GHz
SSID	MAC Address	TX	RX	RSSI	Block
EnGenius05B06A_1-5GHz	00:02.6F:93:47.5C	162Kb	30Kb	-42dBm	Kick

Refresh

Click Refresh to refresh the Connection List page.

Chapter 5

Network

White EnGenius wireless router device with ports and indicator lights (no visible text or symbols on body)

Basic

This page allows you to modify the device's IP settings and the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops in your LAN network.

IPv4 Settings

IPv4 Settings

IP Network Setting	○ DHCP ● Static IP
IP Address	192.168.1.1
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Primary DNS	0.0.0.0
Secondary DNS	0.0.0.0

IP Network Setting: Select whether the device IP address will use the static IP address specified in the IP Address field or be obtained automatically when the device connects to a DHCP server.

IP Address: The IP Address of this device.

IP Subnet Mask: The IP Subnet mask of this device.

Gateway: The Default Gateway of this device. Leave it blank if you are unsure of this setting.

Primary/Secondary DNS: The primary/secondary DNS address for this device.

IPv6 Settings

IPv6 Settings	Link-local Address
IP Address
Subnet Prefix Length
Gateway
Primary DNS
Secondary DNS

Link-Local Address: Check this if you want to use Link-Local Address.

IP Address: The IPv6 IP Address of this device.

Subnet Prefix Length: The IPv6 Subnet Prefix Length of this device.

Gateway: The IPv6 Default Gateway of this device. Leave it blank if you are unsure of this setting.

Primary / Secondary DNS: The primary / secondary DNS address for this device.

Spanning Tree Settings

Spanning Tree Protocol (STP) Settings

Status	○ Enable ● Disable
Hello Time	2	seconds (1-10)
Max Age	20	seconds (6-40)
Forward Delay	4	seconds (4-30)
Priority	32768	(0-65535)

Save

Save current setting(s)

Status: Enables or disables the Spanning Tree function.

Hello Time: Specify Bridge Hello Time, in seconds. This value determines how often the device sends handshake packets to communicate information about the topology throughout the entire Bridged Local Area Network.

Max Age: Specify Bridge Max Age, in seconds. If another bridge in the spanning tree does not send a hello packet for a long period of time, it is assumed to be inactive.

Forward Delay: Specifies Bridge Forward Delay, in seconds. Forwarding Delay Time is the time spent in each of the Listening and Learning states before the Forwarding state is entered. This delay is provided so that when a new bridge comes onto a busy network, it analyzes data traffic before participating.

Priority: Specify the Priority Number. A smaller number has greater priority.

Save: Click Save to confirm the changes.

Chapter 6

2.4GHz & 5GHz Wireless

White EnGenius wireless router device with ports and indicator lights (no visible text or symbols beyond branding)

2.4GHz/5GHz SSID Profile

Under Wireless Settings, you can edit the SSID profile to fit your needs. Click Edit under the SSID you would like to make changes to.

Wireless Settings - 2.4GHz

No.	Enable	SSID	Edit	Security	Hidden SSID	Client Isolation	VLAN Isolation	VLAN ID
1	☑	EnGenius05B069_1-2.4GHz	Edit	None		☐	☐	1
2	☐	EnGenius05B069_2-2.4GHz	Edit	None		☐	☐	2
3	☐	EnGenius05B069_3-2.4GHz	Edit	None		☐	☐	3
4	☐	EnGenius05B069_4-2.4GHz	Edit	None		☐	☐	4
5	☐	EnGenius05B069_5-2.4GHz	Edit	None		☐	☐	5
6	☐	EnGenius05B069_6-2.4GHz	Edit	None		☐	☐	6
7	☐	EnGenius05B069_7-2.4GHz	Edit	None		☐	☐	7
8	☐	EnGenius05B069_8-2.4GHz	Edit	None		☐	☐	8

Wireless Settings - 5GHz

No.	Enable	SSID	Edit	Security	Hidden SSID	Client Isolation	VLAN Isolation	VLAN ID
1	☑	EnGenius05B06A_1-5GHz	Edit	None				51
2	□	EnGenius05B06A_2-5GHz	Edit	None				52
3	□	EnGenius05B06A_3-5GHz	Edit	None				53
4	□	EnGenius05B06A_4-5GHz	Edit	None				54
5	□	EnGenius05B06A_5-5GHz	Edit	None				55
6	□	EnGenius05B06A_6-5GHz	Edit	None				56
7	□	EnGenius05B06A_7-5GHz	Edit	None				57
8	□	EnGenius05B06A_8-5GHz	Edit	None				58

Enable: Check this option to enable this profile.

SSID: Specifies the SSID for the current profile.

Security: Displays the Security Mode the SSID uses. You can click Edit to change the security mode. For more details, see the next section.

Hidden SSID: Check this option to hide the SSID from clients. If checked, the SSID will not appear in the site survey.

Client Isolation: Check this option to prevent communication between client devices.

VLAN Isolation: Check this option to enable VLAN Isolation feature.

VLAN ID: Specifies the VLAN ID for the SSID profile.

*5GHz settings only available for dual radio models.

Wireless Security

The Wireless Security section lets you configure the Access Point's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA-Enterprise, WPA2-Enterprise and WPA Mixed Enterprise.

It is strongly recommended that you use WPA2-PSK. Click on the Edit button under Wireless Settings next to the SSID to change the security settings.

WEP

Security Mode	WEP
Auth Type	Open System
Input Type	Hex
Key Length	40/64-bit (10 hex digits or 5 ASCII char)
Default Key	1
Key1
Key2
Key3
Key4

Auth Type: Select Open System or Shared Key.

Input Type: ASCII: Regular Text (Recommended) or HEX: Hexadecimal Numbers (For advanced users).

Key Length: Select the desired option and ensure the wireless clients use the same setting. Your choices are: 64, 128, and 152-bit password lengths.

Default Key: Select the key you wish to be default. Transmitted data is ALWAYS encrypted using the Default Key; the other Keys are for decryption only. You must enter a Key Value for the Default Key.

Encryption Key: Enter the Key Value or values you wish to use. The default is none.

WPA-PSK/WPA2-PSK (Pre-Shared Key)

Security Mode	WPA-PSK Mixed
Encryption	Both(TKIP+AES)
Passphrase
Group Key Update Interval	3600

Encryption: Select the WPA/WPA2 encryption type you would like to use. Available options are Both, TKIP(Temporal Key Integrity Protocol) and AES(Advanced Encryption Standard). Please ensure that your wireless clients use the same settings.

Passphrase: Wireless clients must use the same Key to associate the device. If using ASCII format, the Key must be from 8 to 63 characters in length. If using HEX format, the Key must be 64 HEX characters in length.

Group Key Update Interval: Specify how often, in seconds, the Group Key changes.

WPA/WPA2-Enterprise

Security Mode	WPA Mixed-Enterprise
Encryption	Both(TKIP+AES)
Group Key Update Interval	3600
Radius Server
Radius Port	1812
Radius Secret
Radius Accounting	Disable
Radius Accounting Server
Radius Accounting Port	1813
Radius Accounting Secret
Interim Accounting Interval	600

Encryption: Select the WPA/WPA2 encryption type you would like to use. Available options are Both, TKIP(Temporal Key Integrity

Protocol) and AES(Advanced Encryption Standard). Please ensure that your wireless clients use the same settings.

Group Key Update Interval: Specify how often, in seconds, the group key changes.

Radius Server: Enter the IP address of the Radius server.

Radius Port: Enter the port number used for connections to the Radius server.

Radius Secret: Enter the secret required to connect to the Radius server.

Radius Accounting: Enables or disables the accounting feature.

Radius Accounting Server: Enter the IP address of the Radius accounting server.

Radius Accounting Port: Enter the port number used for connections to the Radius accounting server.

Radius Accounting Secret: Enter the secret required to connect to the Radius accounting server.

Interim Accounting Interval: Specify how often, in seconds, the accounting data sends.

Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The connection mode will automatically change from 802.11n to 802.11g.

Wireless MAC Filter

Wireless MAC Filter is used to allow or deny network access to wireless clients (computers, tablet PCs, NAS, smart phones, etc.) according to their MAC addresses. You can manually add a MAC address to restrict permission to access the Access Point. The default setting is: Disable Wireless MAC Filter.

Wireless MAC Filter

ACL (Access Control List) Mode: Determines whether network access is granted or denied to clients whose MAC addresses appear in the MAC address table on this page. Choices given are: Disabled, Deny MAC in the list, or Allow MAC in the list.

MAC Address: Enter the MAC address of the wireless client.

Add: Click Add to add the MAC address to the MAC Address table.

Delete: Deletes the selected entries.

Traffic Shaping

Traffic Shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service.

Wireless Traffic Shaping

Enable Traffic Shaping	○ Enable	● Disable
Download Limit	100	Mbps (1-999)
Upload Limit	100	Mbps (1-999)

Save

Save current setting(s)

Enable Traffic Shaping: Select to Enable or Disable Wireless Traffic Shaping.

Download Limit: Specifies the wireless transmission speed used for downloading.

Upload Limit: Specifies the wireless transmission speed used for uploading.

Save: Click Save to apply the changes.

Guest Network

The Guest Network function allows administrators to grant Internet connectivity to visitors or guests while keeping other networked devices (computers and hard drives) and sensitive personal or company information private and secure.

Guest Network Settings

Enable	SSID	Edit		Security	Hidden SSID	Client Isolation
□	EnGenius-2.4GHz_GuestNetw	Edit	None		□	☑
□	EnGenius-5GHz_GuestNetwo	Edit	None		□	☑

Enable SSID: Select to Enable or Disable SSID broadcasting.

SSID: Specify the SSID for the current profile. This is the name visible on the network to wireless clients.

Security: You can use None or WPA-PSK / WPA2-PSK security for this guest network.

Hidden SSID: Check this option to hide the SSID from broadcasting to discourage wireless users from connecting to a particular SSID.

Client Isolation: Check this option to prevent wireless clients associated with your access point to communicate with other wireless devices connected to the AP.

After enabling Guest Network in the SSID Config page, assign an IP Address, Subnet Mask and DHCP server IP address range for this Guest Network.

Manual IP Settings
- IP Address	192.168.200.1
- Subnet Mask	255.255.255.0
Automatic DHCP Server Settings
- Starting IP Address	192.168.200.100
- Ending IP Address	192.168.200.200
- WINS Server IP	0.0.0.0

Manual IP Settings

IP Address: Specify an IP Address for the Guest Network

Subnet Mask: Specify the the Subnet Mask IP Address for the Guest Network

Automatic DHCP Server Settings

Starting IP Address: Specify the starting IP Address range for the Guest Network.

Ending IP Address: Specify the ending IP Address range for the Guest Network.

WINS Server IP: Specify the WINS Server IP Address for the Guest Network. WINS means Windows Internet Name Service. It is Microsoft's implementation of NetBIOS Name Service (NBNS), a name server and service for NetBIOS computer names.

Fast Handover

With Fast Handover enabled, the AP will send a disassociation request to the wireless client and let it find another AP to handover and associate upon detecting the wireless client's RSSI value lower than specified. The RSSI value can be adjusted to allow more clients to stay associated to this AP. Note that setting the RSSI value too low may cause wireless clients to reconnect frequently.

Fast Handover

Status	○ Enable	● Disable
RSSI	-70	dBm (Range: -60dBm ~ -90dBm)

Management VLAN Settings

This section allows you to assign a VLAN tag to the packets. A VLAN is a group of computers on a network whose software has been configured so that they behave as if they were on a separate Local Area Network (LAN). Computers on VLAN do not have to be physically located next to one another on the LAN.

Management VLAN Settings

Status

○ Enable

● Disable

4096

Caution: If you encounter disconnection issue during the configuration process, verify that the switch and the DHCP server can support the new VLAN ID and then connect to the new IP address.

Save

Save current setting(s)

Status: If your network includes VLANs and if tagged packets need to pass through the Access Point, select Enable and enter the VLAN ID. Otherwise, click Disable.

Save: Click Save to apply the changes.

Note: If you reconfigure the Management VLAN ID, you may lose your connection to the Access Point. Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the Access Point using the new IP address.

Chapter 7

Management

White EnGenius wireless router device with ports and indicator lights (no visible text or symbols on body)

SNMP Settings

This page allows you to assign the Contact Details, Location, Community Name, and Trap Settings for Simple Network Management Protocol (SNMP). This is a networking management protocol used to monitor network attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of the network. Upon receiving these messages, SNMP compatible devices (called agents) returns the data stored in their Management Information Bases. To configure SNMP Settings, click under the Advanced tab on the side bar under Management.

SNMP Settings

Status	● Enable ○ Disable
Contact
Location
Port	161
Community Name (Read Only)	public
Community Name (Read Write)	private
Trap Destination
- Port	162
- IP Address
- Community Name	public
SNMPv3 Settings
- Status	● Enable ○ Disable
- Username	admin	(1-31 Characters)
- Authorized Protocol	MD5
- Authorized Key	12345678	(8-32 Characters)
- Private Protocol	DES
- Private Key	12345678	(8-32 Characters)
- Engine ID

Status: Enables or Disables the SNMP feature.

Contact: Specifies the contact details of the device.

Location: Specifies the location of the device.

Port: Displays the port number.

Community Name (Read Only): Specifies the password for the SNMP community for read only access.

Community Name (Read/Write): Specifies the password for the SNMP community with read/write access.

Trap Destination Address: Specifies the port and IP address of the computer that will receive the SNMP traps.

Trap Destination Community Name: Specifies the password for the SNMP trap community.

SNMPv3 Status: Enables or Disables the SNMPv3 feature.

User Name: Specifies the username for the SNMPv3.feature

Auth Protocol: Select the Authentication Protocol type: MDS or SHA.

Auth Key: Specify the Authentication Key for authentication.

Priv Protocol: Select the Privacy Protocol type: DES.

Priv Key: Specifies the privacy key for privacy.

Engine ID: Specifies the Engine ID for SNMPv3.

CLI/SSH Settings

Most users will configure the device through the graphical user interface (GUI). However, for those who prefer an alternative method there is the command line interface (CLI). The CLI can be access through a command console, modem or Telnet connection. For security's concern, you can enable SSH (Secure Shell) to establish a secure data communication.

CLI Setting

Status	● Enable ○ Disable
SSH Setting
Status	○ Enable ● Disable

CLI Status: Select Enable or Disable to enable or disable the ability to modify the Access Point via a command line interface (CLI). SSH Status: Select Enable or Disable to enable or disable the ability to modify the Access Point via a command line interface (CLI) with a secure channel.

HTTPS Settings

Hypertext Transfer Protocol Secure (HTTPS) is a communications protocol for secure communication over a computer network, with especially wide deployment on the Internet. Technically, it is not a protocol in and of itself; rather, it is the result of simply layering the Hypertext Transfer Protocol (HTTP) on top of the SSL/TLS protocol, thus adding the security capabilities of SSL/TLS to standard HTTP communications.

HTTPS Settings

Status	● Enable ○ Disable
HTTPS forward	○ Enable ● Disable

Status: Select Enable or Disable to enable or disable the ability to modify the Access Point via a HTTPS. HTTPS forward: Enable this option; it will be forwarded to HTTPS if user uses HTTP to access the Access Point.

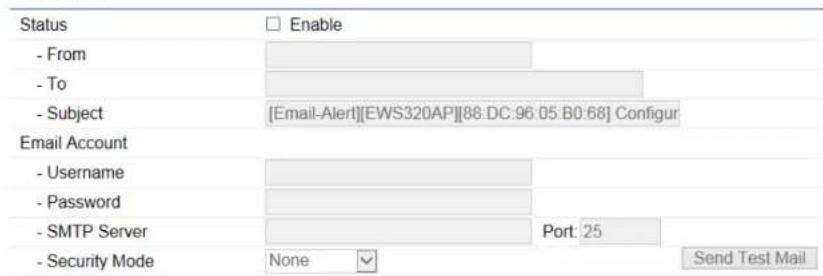

Email Alert

The Access Point will send email alerts when configurations have been changed.

Email Alert

Apply

Apply saved settings to take effect

Status: Check Enable to enable Email Alert feature.

From: Enter the address to show as the sender of the email.

To: Enter the address to show as the receiver of the email.

Subject: Enter the subject to show as the subject of the email.

Email Account

Username/Password: Enter the username and password required to connect to the SMTP server.

SMTP Server/Port: Enter the IP address/domain name and port of the SMTP server. The default port of SMTP Server is port 25.

Security Mode: Select the mode of security for the Email alert. The options are None, SSL/TLS and STARTTLS.

Send Test Mail: Click Send Test Mail button to test the Email Alert setup.

Apply: Click Apply to save the changes.

Date and Time Settings

This page allows you to set the internal clock of the Access Point. To access the Date and Time settings, click Time Zone under the Management tab on the side bar.

Date and Time Settings

○ Manually Set Date and Time

Date:	2014	/	01	/	07
Time:	11	:	16	(24-Hour)
Synchronize with PC

- Automatically Get Date and Time

NTP Server: 209.81.9.7

Time Zone

Time Zone: UTC+00:00 Gambia, Liberia, Morocco

□ Enable Daylight Saving

Start:	January	1st	Sun	12 am
End:	January	1st	Mon	12 am

Apply

Apply saved settings to take effect

Manually Set Date and Time: Manually specify the date and time.

Synchronize with PC: Click to synchronize the Access Point's internal clock with the computer's time.

Automatically Get Date and Time: Enter the IP address of an NTP server or use the default NTP server to have the internal clock set automatically.

Time Zone: Choose the time zone you would like to use from the drop-down list.

Enable Daylight Savings: Check the box to enable or disable daylight savings time for the Access Point. Next, enter the dates that correspond to the present year's daylight savings time.

Click Apply to save the changes.

WiFi Scheduler

Use the schedule function to reboot the Access Point or control the wireless availability on a routine basis. The Schedule function relies on the GMT time setting acquired from a network time protocol (NTP) server. For details on how to connect the Access Point to an NTP server, see Date and Time Settings.

Auto Reboot Settings

You can specify how often you would like to reboot the Access Point.

Auto Reboot Settings

Status	○ Enable	● Disable
Timer	□ Sunday	□ Monday	□ Tuesday	□ Wednesday	□ Thursday	□ Friday	□ Saturday
	0	:	0

Status: Enables or disables the Auto Reboot function.

Timer: Specifies the time and frequency in rebooting the Access Point by Min, Hour and Day.

WiFi Scheduler

Wi-Fi Scheduler

Status	○ Enable ● DisableNOTE: Please assure that the Time Zone Settings is synced with your local time when enabling the Wi-Fi Scheduler.
Wireless Radio	2.4GHz√
SSID Selection	EnGenius05B069_1-2.4GHz√
Schedule Templates	Choose a template √
Schedule Table	Day	Availability	Duration
	Sunday	available √	00	: 00	~ 24	: 00
	Monday	available √	00	: 00	~ 24	: 00
	Tuesday	available √	00	: 00	~ 24	: 00
	Wednesday	available √	00	: 00	~ 24	: 00
	Thursday	available √	00	: 00	~ 24	: 00
	Friday	available √	00	: 00	~ 24	: 00
	Saturday	available √	00	: 00	~ 24	: 00

Save

Save current setting(s)

Status: Enables or disables the WiFi Scheduler function.

Wireless Radio: Select 2.4GHz or 5GHz* to use WiFi Schedule.

SSID Selection: Select a SSID to use WiFi Schedule.

Schedule Templates: There are 3 templates available: Always available, Available 8-5 daily and Available 8-5 daily except weekends. Select Custom schedule if you want to set the schedule manually.

Schedule Table: Set the schedule manually.

*5GHz radio settings only available for dual radio models.

Tools

This section allows you to analyze the connection quality of the Access Point and trace the routing table to a target in the network.

Ping Test Parameters

Ping Test Parameters

Target IP / Domain Name
Ping Packet Size	64	Bytes
Number of Pings	4
Start

Target IP/Domain Name: Enter the IP address or Domain name you would like to search.

Ping Packet Size: Enter the packet size of each ping.

Number of Pings: Enter the number of times you wish to ping.

Start: Click Start to begin pinging target device (via IP).

Traceroute Parameters

Traceroute Test Parameters

Target IP/Domain Name: Enter an IP address or domain name you wish to trace.

Start: Click Start to begin the trace route operation.

Stop: Halts the traceroute test.

Speed Test Parameters

Speed Test Parameters

Target IP / Domain Name
Time Period	20	sec
Check Interval	5	sec
Start
	<	>
IPv4 Port	5001
IPv6 Port	5002

Target IP/Domain Name: Enter an IP address or domain name you wish to run a Speed Test for.

Time Period: Enter the time in seconds that you would like the test to run for and in how many intervals.

Start: Starts the Speed Test.

IPv4 / IPv6 Port: The Access Point uses IPv4 port 5001 and IPv6 port 5002 for the speed test.

LED Control

This section allows you to control the LED control functions: Power status, LAN interface and 2.4GHz/5GHz WLAN interface.

LED Control

Power	● Enable ○ Disable
LAN	● Enable ○ Disable
WLAN-2.4GHz	● Enable ○ Disable
WLAN-5GHz	● Enable ○ Disable
Apply	Apply saved settings to take effect

Click Apply to save the settings after selecting your choices from the boxes.

*5GHz settings only available for dual radio models.

Device Discovery

Under Device Discovery, you can choose for the Access Point to automatically scan for local devices to connect to. Click Scan to begin the process.

Device Discovery

Device Name	Operation Mode	IP Address	System MAC Address	Firmware Version
Scan

Chapter 8

System Manager

White EnGenius wireless router device with ports and indicator lights (no visible text or symbols on body)

Account Setting

This page allows you to change the username and password of the device. By default, the username is admin and the password is admin. The password can contain from 0 to 12 alphanumeric characters and is case sensitive.

Account Settings

Administrator Username	admin
Current Password
New Password
Verify Password

Apply

Apply saved settings to take effect

Administrator Username: Enter a new username for logging in to the Administrator Username entry box.

Current Password: Enter the old password for logging in to the Current Password entry box.

New Password: Enter the new password for logging in to the New Password entry box.

Verify Password: Re-enter the new password in the Verify Password entry box for confirmation.

Apply: Click Apply to save the changes.

Note: it is highly recommended that you change your password to something more unique for greater security.

Firmware Upgrade

This page allows you to upgrade the Firmware of the Access Point.

Firmware Upgrade

Current Firmware Version: 2.0.0

Select the new firmware from your hard disk.

To Perform the Firmware Upgrade:

1. Click the Browse... button and navigate the OS File System to the location of the Firmware upgrade file.
2. Select the upgrade file. The name of the file will appear in the Upgrade File field.
3. Click theUpload button to commence the Firmware upgrade.

Note: The device is unavailable during the upgrade process and must restart when the upgrade is completed. Any connections to or through the device will be lost.

Backup/Restore

This page allows you to save the current device configurations. When you save the configurations, you can also reload the saved configurations into the device through the Restore New Settings from a file folder. If extreme problems occur, or if you have set the Access Point incorrectly, you can use the Reset button in the Reset to Default section to restore all the configurations of the Access Point to the original default settings. To Configure the Backup/Restore Settings, click Firmware under the Systems Manager tab.

Backup/Restore Settings

Factory Setting
- Backup Setting	Export
- Restore New Setting		Browse...	Import
- Reset to Default	Reset
User Setting
- Back Up Setting as Default	Backup
- Restore to User Default	Restore

Factory Setting

Backup Setting: Click Export to save the current device configurations to a file.

Restore New Setting: Choose the file you wish restore for settings and click Import.

Reset to Default: Click the Reset button to restore the Access Point to its factory default settings.

User Setting

Back Up Setting as Default: Click Backup to backup the user settings you would like to use as the default settings. Restore to User Default: Click Restore to restore the Access Point to user's default settings.

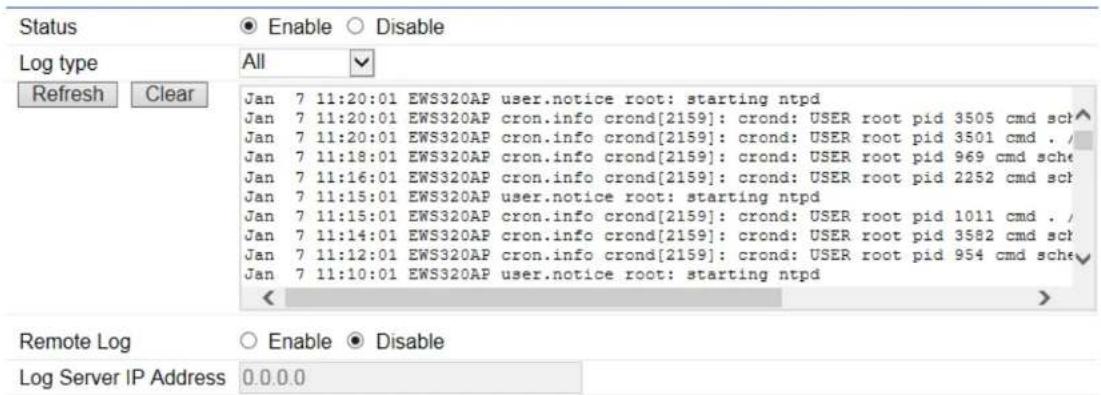

System Log

This page allows you to setup the System Log and local log functions of the Access Point. Click Log under the Systems Manager tab to open up the System Log page.

System Log

Apply

Apply saved settings to take effect

Status: Enables or disables the System Log function.

Log Type: Select the Log Type mode you would like to use.

Remote Log: Enables or disables the Remote Log feature. If enabled, enter the IP address of the Log you would like to remote to.

Log Server IP Address: Enter the IP address of the log server.

Apply: Click Apply to save the changes.

Reset

In some circumstances, you may be required to force the device to reboot. Click on Reboot the Device to reboot the device.

Logout

Click Logout, it will pop up a warning window. Click OK to logout.

Appendix

ExGenius-branded wireless router device with no visible text or symbols on the body

Appendix A - FCC Interference Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25 GHz band are restricted to indoor usage only.

IMPORTANT NOTE:

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 21 cm between the radiator & your body.

Appendix B - IC Interference Statement

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Avertissement:

Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 21cm between the radiator & your body.

Europe - EU Declaration of Conformity

• EN60950-1

Safety of Information Technology Equipment

• EN50385

Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (0 Hz - 300 GHz)

• EN 300 328

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

• EN 301 893

Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

• EN 301 489-1

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

• EN 301 489-17

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up

outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

CE0560!

cs Česky [Czech]	[Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
da Dansk [Danish]	Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
de Deutsch [German]	Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
et Eesti [Estonian]	Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
en English	Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
es Español [Spanish]	Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
el Eλληνική [Greek]	ME THN ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ OTI [type of equipment] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.
fr Français [French]	Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
it Italiano [Italian]	Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme airequisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]	Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]	Šluo [manufacturer name] deklarujoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]	Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese]	Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-ħtigijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]	Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetō követelményeknek és az 1999/5/EC irányelv egyéb előirásainak.
Polski [Polish]	Niniejszym [nazwa producenta] oświadcza, že [nazwa wyrobu] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]	[Nome do fabricante] declara que este [tipo de equipamento] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]	[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]	[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] splňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]	[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish]	Härmed intygar [företag] att denna [utrustningstyp] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
