Product Type	Full Size Manual / Electric Convection Oven (Double Stacked on Stainless Steel Base Stand)
Model	E27M3/2 (adjustable feet) or E27M3/2C (castors)
External Dimensions (Double Stack)	Width 31 7/8"/810mm, Depth 30"/763mm, Height 61 1/4"/1571mm (E27M3/2) or 65 1/4"/1653mm (E27M3/2C)
Oven Internal Dimensions (Each)	Width 27 3/8"/695mm, Height 12"/305mm, Depth 18 1/2"/470mm
Volume (Each Oven)	3.53 ft³ / 0.10 m³
Net Weight (Complete Double Stack)	311 lbs / 141 kg
Power Supply (Each Oven)	208V, 50/60Hz, 1-phase, 4.2kW, 20A OR 220-240V, 50/60Hz, 1-phase, 4.7kW, 19.6A
Plug Type	NEMA 6-20P cordset fitted
Heating Elements (Each Oven)	4.5kW (220-240V models) or 4.0kW (208V models)
Temperature Range	150-500°F / 50-260°C (mechanical thermostat)
Timer	60 minute bake timer with time-up alarm
Fan System	Bi-directional single reversing fan
Oven Lighting	Dual halogen oven lamps
Oven Chamber	Porcelain enameled, fully welded
Exterior Material	Stainless steel front, sides, and top; aluminized coated steel base and rear
Door	Safe-Touch vented drop down door with easy clean glass system
Rack Capacity (Each Oven)	3 full size sheet pans (13" / 85mm tray spacing); 3 wire racks supplied
Safety Features	Over-temperature safety cut-out; E.T.L. and NSF-4 listed
Cleaning & Maintenance	Removable chrome plated side racks; removable stainless steel oven fan baffle; easy clean door system with hinge-out inner glass; removable plug-in door seal (no tools required)
Spare Parts & Repairability	Replacement parts available (door seal, fan, hinges, glass, heating elements, controls); designed for field assembly
Warranty & Quality	Manufactured under ISO9001 quality management system; specifications subject to change without notice

Frequently Asked Questions - Turbofan E27M3 MOFFAT

What are the available models of the Moffat Turbofan E27M3 double stack oven?

The models are E27M3/2 (with adjustable feet base stand) and E27M3/2C (with castor base stand). Both come with a full stainless steel base stand and spacer frame.

What are the electrical requirements for each oven?

Each oven requires either 208V (4.2kW, 20A) or 220-240V (4.7kW, 19.6A), 50/60Hz, 1-phase. It is fitted with a NEMA 6-20P cordset.

What is the temperature range and timer setting?

The mechanical thermostat ranges from 150°F to 500°F (50°C to 260°C). There is a 60-minute bake timer with a time-up alarm.

How many sheet pans can each oven hold?

Each oven holds 3 full-size sheet pans with 13" / 85mm tray spacing. Three wire racks are supplied.

What is the fan system?

The oven features a bi-directional single reversing fan system, ensuring even heat distribution.

How do I clean the oven?

The oven has removable chrome-plated side racks, a removable stainless steel fan baffle, and an easy clean door system with hinge-out inner glass. The door seal is also removable without tools.

What safety features are included?

Each oven has an over-temperature safety cut-out. The units are E.T.L. and NSF-4 listed for safety and sanitation.

What are the overall dimensions of the double stack unit?

Width: 31 7/8" (810mm), Depth: 30" (763mm). Height: 61 1/4" (1571mm) for E27M3/2, and 65 1/4" (1653mm) for E27M3/2C.

Is the oven easy to install?

Yes, the double stack is supplied as two individual ovens and a double stacking kit for field assembly. Required clearances: 1" (25mm) rear and sides.

What materials are used in construction?

The oven chamber is porcelain enameled, the exterior is stainless steel (front, sides, top), and the door has double 0.2" thick glass for low energy loss. The base stand and spacer frame are all stainless steel.

USER MANUAL Turbofan E27M3 MOFFAT

Technical data sheet for

E27M3 DOUBLE STACKED

Full Size Manual / Electric Convection Ovens Double Stacked on a Stainless Steel Base Stand

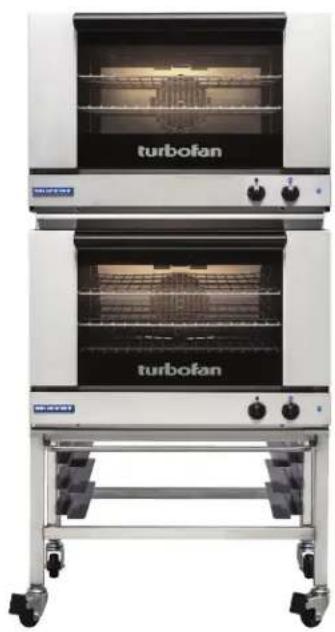

Exterior view of a turbofan oven appliance with dual doors and control knobs (no visible text or symbols on the main body)

Model E27M3/2C shown

E27M3/2 E27M3/2C

E27M3 ovens shall be Moffat electrically heated Turbofan convection ovens E.T.L. listed and NSF-4 listed. The ovens shall have a one piece porcelain enameled oven chamber, stainless top and sides and safe touch vented easy clean drop down door. Ovens shall have capacity for three full size sheet pans. The ovens shall have 4.5kW heating elements for 220-240V models or 4.0kW heating elements for 208V models. The ovens shall have a bi-directional single reversing fan system. The ovens shall be controlled by a mechanical thermostat with a range of 150-500°F / 50-260°C, a 60 minute bake timer, and feature dual halogen oven lamps. Ovens shall be fitted with a NEMA 6-20P cordset. Ovens shall be double stacked using Double Stacking Kits DSK272831 (adjustable feet option) or DSK272831C (castor option). Units shall be supplied in 100% recyclable shipping packaging.

Double stack models are supplied as two individual ovens and a double stacking kit for field assembly.

E27M3/2 - Double stack with adjustable feet base stand E27M3/2C - Double stack with castor base stand

DOUBLE STACK FEATURES

• Two 3 full size ovens
• Compact 31 78 "/810mm width
  • Full stainless steel base stand
  • Full stainless steel oven spacer frame
• Adjustable feet or castor models
• Guard rail for bottom oven

OVEN FEATURES (each)

• 3 full size sheet pan capacity
- 3 13 "/85mm tray spacing
• Bi-directional reversing fan system
• 4.5kW heating (220-240V) / 4.0kW heating (208V)
• 20A plug-in (NEMA 6-20P cordset fitted)
• Porcelain enameled oven chamber
• Plug-in continuous oven door seal
- Safe-Touch vented drop down door

- Easy clean door glass system

• Mechanical thermostat 150-500°F / 50-260°C

- 60 minute timer with time up alarm

• Dual halogen oven lamps

• Dia. 7" / 180mm full stainless steel oven fan

• 3 oven wire racks supplied

E27M3/2 E27M3/2C Full Size Manual / Electric Convection Ovens Double Stacked on a Stainless Steel Base Stand

CONSTRUCTION - OVENS

Porcelain enameled fully welded oven chamber Stainless steel front, sides and top exterior Stainless steel oven fan baffle and oven vent Removable 3 position chrome plated wire side racks Oven racks chrome plated wire (3 supplied) Stainless steel frame drop down hinged door 0.2" / 5mm thick door outer glass 0.2" / 5mm thick low energy loss door inner glass Heavy-duty counterbalanced door hinges Wear resistant powder coated welded door handle Stainless steel control panel Aluminized coated steel base and rear panels

CONSTRUCTION - DOUBLE STACKING KIT All stainless steel construction

Welded 1½" and 1¼" square tube front and rear frame base stand

4 adjustable feet on E27M3/2

4 dia. 3" / 76mm swivel castors with 2 front castors dual wheel and swivel lock on E27M3/2C Stainless steel oven spacer frame Stainless steel bottom oven vent extension

CONTROLS (each oven)

Power ON control panel indicator Mechanical thermostat 150-500°F / 50-260°C Heating ON control panel indicator Manual 60 minute timer Time-Up control panel indicator and buzzer Over-temperature safety cut-out

CLEANING

Stainless steel top and sides continuous exterior panel Porcelain enameled oven chamber

Fully removable chrome plated oven side racks Removable stainless steel oven fan baffle

Full stainless steel oven fan Easy clean door system with hinge out door inner glass (no tools required)

Removable plug-in oven door seal (no tools required)

SPECIFICATIONS

Electrical Requirements (each oven)

208V, 50/60Hz, 1-phase, 4.2kW, 20A 220-240V, 50/60Hz, 1-phase, 4.7kW, 19.6A

NEMA 6-20P cordset fitted

External Dimensions

Width 31 7/8"/810mm

Height 61 /a" / 1571mm (E27M3/2) 65/-a" / 1653mm (E27M3/2C)

Depth 30" / 763mm

Oven Internal Dimensions (each oven)

Width 27 ^3/8 " / 695mm

Height 12" / 305mm

Depth 18½" / 470mm

Volume 3.53ft³/0.10m³

Oven Rack Dimensions

Width 26" / 660mm

Depth 18" / 460mm

Nett Weight (double stack complete)

311lbs/141kg

Packing Data (E27M3 ovens each)

172lbs / 77.8kg

19.4 ft³ / 0.55m3

Width 34¼" / 870mm

Height 29 ^3/4 "/755mm

Depth 32 ^7 /a" / 835mm

Packing Data (Stacking Kit)

42lbs / 19kg (DSK272831 - adjustable feet)

48lbs / 22kg (DSK272831C - castor)

2.8ft³/0.08m3

Width 23 1/4" / 590mm

Height 33 ^2 /a" / 840mm

Depth 6¼" / 160mm

Supplied CKD for assembly on site

INSTALLATION CLEARANCES

Rear 1" / 25mm

LH Side 1" / 25mm

RH Side 1" / 25mm

CLEARANCE FROM SOURCES OF HEAT

A minimum distance of 12" / 300mm from the appliance

sides is required

Double Stacking Kits

For after market double stacking two E27M3 convection ovens DSK272831 - Double stacking kit - adjustable feet

DSK272831C - Double stacking kit - castor

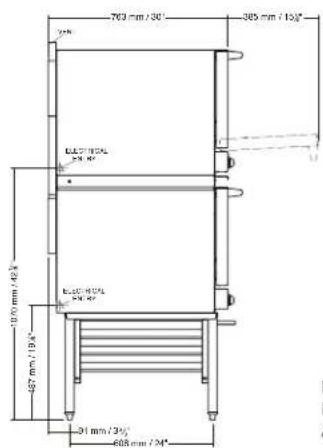

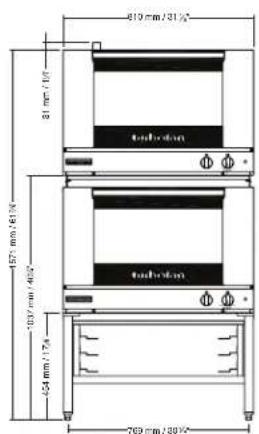

Model E27M3/2 shown

Model E27M3/2C dimensions:

Add 3 ^1/4 " / 82mm to vertical heights
