USER MANUAL Turbofan E35 MOFFAT

Full Size Electric Convection Oven

E35 OVEN

• 6 sheet pan capacity (8 with cookie kit option)
• Stainless steel outer
• Porcelain inner
  • Solid state thermostat
  * Plug in door seal
• 60 minute bake timer
  • Hot reversing air system
  • Time driven steam system
• 2 speed fan
  • Field reversible door

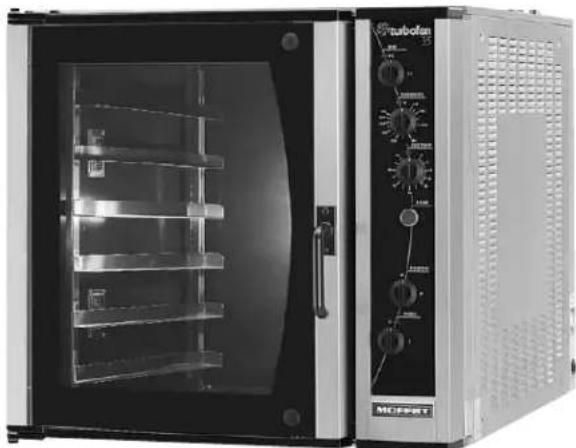

Exterior view of a turbofan oven with control panel and side door (no visible text or symbols)

E35

E35 Unit shall be a Moffat electrically heated Turbofan convection oven, E.T.L listed (UL Std 197, NSF-4). The oven shall have a one piece vitreous porcelain enamel oven liner, stainless steel exterior, twin pane field reversible full view glass door with ventilation top and bottom, with the outer panel hinged for cleaning. A two speed auto reversing fan shall evenly circulate air internally. Heating shall be accomplished via electric elements surrounding the fan. The oven shall be controlled by a solid state thermostat accurate to ±2°F, range 150°F to 550°F, have a 60 minute bake timer, push button steam injection system, fan speed control and oven vent control. Oven shall be able to be bench mounted on 4" legs or on Moffat's A26 stand or E85-HLD proofer and holding cabinet, rated for zero clearance left and rear.

E35 Full Size Electric Convection Oven

CONSTRUCTION

Tops and sides stainless steel

Porcelain oven interior

Stay cool twin pane glass door (outer surface)

163°F when oven operating at 356°F

Stainless steel oven racking system with

runners for wire racks or full size sheet pan

Insulated all round for zero clearance

left side and rear

Porcelain control panel

Electronic thermostat variable from

150°F to 550°F ± 2°F

1 hour bake timer with buzzer

Timed water injected steam

2 speed fan (700rpm-1400rpm)

On/off switch

Hot reversing air system

High limit safety

CLEANING

Stainless steel top and side exterior panels side of the unit

Easy clean surfaces

Fully removable oven racking system

Door outer glass hinged for cleaning access

Removable Proofer water tank

OPTIONS

Fully insulated stainless steel door with

twin pane glass viewing window

E85-A-8-HLD or E85-A-12-HLD Proofers and

Holding Cabinets

Sheet pans, wire racks

Specialist side racks for cookies

SPECIFICATIONS

Electrical Requirements

208V 3ph+E 11.2kW L1 31.1A

L2 31.1A

13 31 1A

220-240V 3ph+E 12.5kW L1 30-1A

L2 30-1A

L3 30-1A

Water Requirements

3/4" thread

80psi maximum inlet pressure

20psi minimum inlet pressure

External Dimensions

Width 34 5/8" / 880mm

Height 31 1/2" /800mm

Depth 34 5/8" / 880mm

Internal Dimensions

Width 18" / 460mm

Height 28" / 710mm

Depth 26" / 660mm

Oven Rack Dimensions

Width 18" / 460mm

Depth 26" / 660mm

Nett Weight

330lbs / 150kg

Packing Data

441lbs/181kg

33.8ft³/0.96m3

Width 39 1/2" / 1001mm

Height 39" / 990mm

Depth 38" / 965mm

INSTALLATION CLEARANCES

Rear 0" / 0mm

LH Side 0" / 0mm

RH Side 3" / 75mm

* For fixed installations a minimum of 20" / 500mm is required

for service

CLEARANCE FROM SOURCES OF HEAT

A minimum distance of 12" / 300mm from the appliance sides

is required

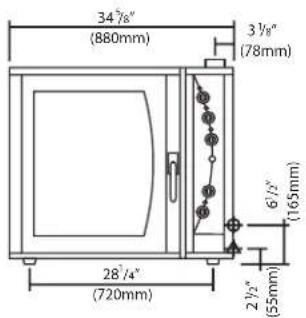

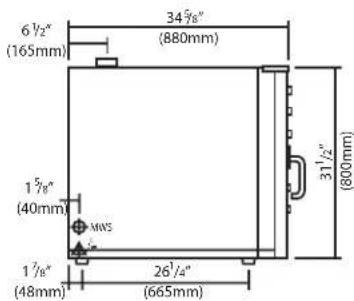

Simple line drawing of a rectangular object with a small circular mark on top and a small bracket at the bottom (no text or symbols)

Door swing 24 ^3/4 " (630mm)
