Product Type	Bath Exhaust Fan with Light
Brand	Hunter
Model	Halcyon 81030
Housing Dimensions	8" x 8.5"
Duct Size	4 inches
Light Bulbs	2 x Max 60W A15 (not included)
Power Supply	120V AC, 60 Hz
Motor Type	Permanently lubricated, sealed
Noise Level	Extremely quiet
Installation Options	New construction, existing construction (accessible from above or below)
Maximum Ceiling Slope	12/12 pitch (45 degrees)
GFCI Protection	Required if installed over tub or shower
Warranty	1 year parts and labor, 5 years on motor
Housing Material	Metal
Light Fixture Material	Glass dome with metal trim
Control Type	Wall switch (separate for fan and light)
Safety Listing	UL listed (assumed)
Cleaning	Mild detergent and soft cloth; vacuum motor interior
Ducting Requirement	Must be vented to outdoors
Minimum Mounting Height	5 feet above floor
Thermal Insulation Limit	R40 maximum
Assembly Time	30 to 60 minutes
Wiring	120V AC, black (hot), white (neutral), green/bare (ground)
Weight	Approx. 8 lbs (estimated)

Frequently Asked Questions - Halcyon 81030 HUNTER

How do I install the Hunter Halcyon 81030 in an existing ceiling?

For existing construction, you can install from above or below. Remove the old fan, ensure the opening is at least 8" x 8.5", then slide the mounting rails into brackets and secure. Connect the 4" duct to the outside, wire according to the diagram, and reinstall the motor. See pages 11-18 of the manual for detailed steps.

What type of light bulbs does the Halcyon 81030 use?

It uses two A15 bulbs with a maximum of 60 watts each. The bulbs are not included in the box.

Can I install this fan over a bathtub or shower?

Yes, but the unit must be connected to a GFCI-protected branch circuit. The fan must also be mounted at least 5 feet above the floor.

How do I clean the fan?

Disconnect power first. Clean the grille with a mild detergent and soft cloth. To clean the motor area, unplug the motor cord, remove the motor plate, and gently vacuum the fan, motor, and housing interior. Never immerse metal or electrical parts in water.

My fan is not running. What should I check?

First, ensure power is on (circuit breaker and wall switch). Check that all plug connections are secure. Verify wiring matches the diagram in the manual. Note that Hunter fans are extremely quiet, so place your hand near the vents to feel airflow.

The light does not work. How can I fix it?

Replace the bulbs with new 60W A15 bulbs. Check the circuit breaker and wall switch. Ensure all wiring connections are secure and match the wiring diagram.

How long is the warranty?

Hunter offers a 1-year warranty on parts and labor for the entire fan, and a 5-year warranty on the motor. Glass fixtures and light bulbs are not covered.

What size duct does this fan require?

It requires a 4-inch duct that must be vented to the outdoors. Use duct tape to secure joints. If the duct does not fit securely, you may need an adapter.

Can I install this fan in a wall?

No, this product is designed for ceiling installation only. It can be installed on ceilings with a pitch up to 12/12 (45 degrees). The ductwork must point upward.

The fan is making noise. What could be wrong?

Check and tighten all fasteners. Ensure the glass dome is secure. Verify that the backdraft damper (flapper) moves freely. If noise persists, the motor may need replacement; contact Hunter service at 888-830-1326.

USER MANUAL Halcyon 81030 HUNTER

Bath Ventilator with Light

Abstract geometric sculpture with intersecting curved lines forming a symmetrical V-shape (no text or symbols)

English

Español Página 22

Owner's Manual

Model

81030

SINCE 1886 Hunter®

43034-01

20110908

©2011 Hunter Fan Co.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer.
2. Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. when the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
4. Sufficient air is needed for proper combustion and exhausting of gasses through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards, such as those published by the National Fire Prevention Association (NFPA), and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code authorities.

1. When cutting or drilling into wall(s) or ceiling, do not damage electrical wiring or other hidden utilities.

2. Ducted fans must always be vented to the outdoors.

3. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.

4. Never place a switch where it can be reached from a tub or shower.

5. Install fan at least 5 feet (1.52 m) above the floor.

6. This unit must be grounded.

7. Unit must not be installed in a ceiling thermally insulated to a value greater than R40.

!

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy/unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. DO NOT install this product in a wall. This product is designed for installation in ceilings up to a 12/12 pitch (45 degrees). Ductwork must point upward.
4. Please read specification label on product for further information and requirements.

WARNINGCAU

DISCONNECT ELECTRIC POWER SUPPLY AND LOCK OUT SERVICE PANEL BEFORE SERVICING UNIT

PREVENTATIVE MAINTENANCE

A clean fan provides better service. Disconnect the power supply and clean the fan as listed below.

TO CLEAN GRILLE: Use a mild detergent, such as dishwashing liquid, and a soft cloth. DO NOT use abrasive cloths, steel wool pads or scouring powders. TO CLEAN FAN ASSEMBLY: Unplug motor cord from receptacle. To remove motor plate, find the single tab on the motor plate (located next to the receptacle). Push up rear motor plate tab while pushing out on the side of the housing or insert a screwdriver into the slot in the housing (next to tab) and twist screwdriver. Gently vacuum fan, motor and interior of housing.

METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

MAINTENANCE

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the motor with the exact service motor. You should replace the impeller at the same time.

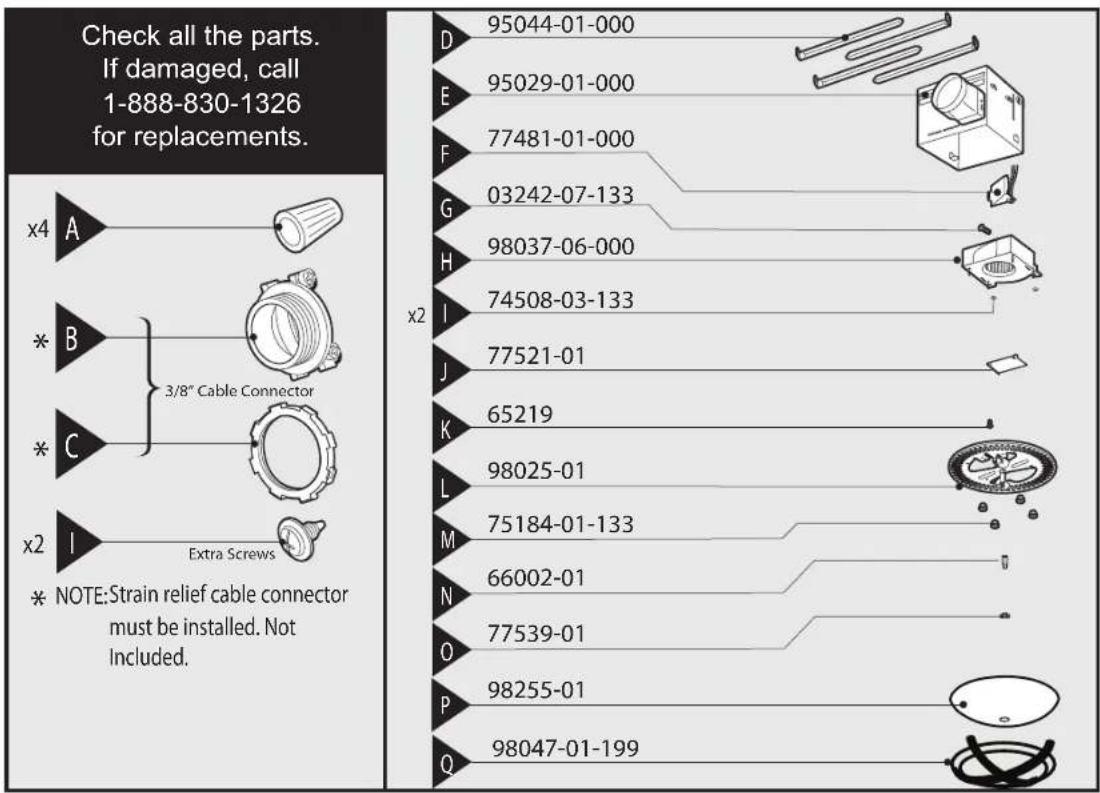

COOKING AREA

Included.

Illustration of six different types of tools including a tape measure, screwdriver, screwdriver, saw, and tape roll (no text or labels)

Tools Needed.
Estimated assembly time: 30 to 60 minutes

Before Installation

NOTE: Remove all packing materials before installation.

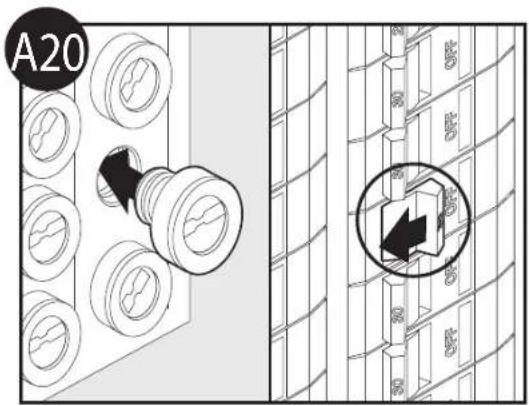

Turn off the power source.

Loosen screws.

Remove the motor/blower from the housing.

Remove packing material.

Remove the pre-loaded screw tip covers.

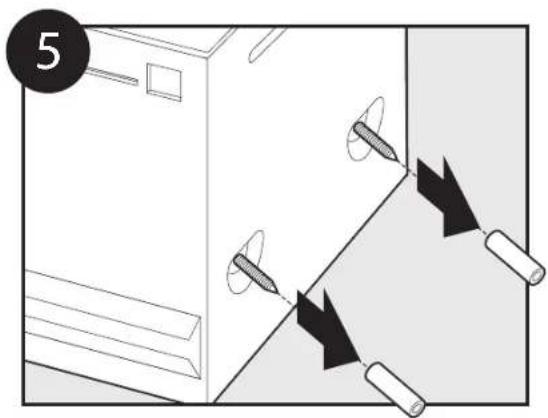

Back out the pre-loaded screw tips until flush with the side of the housing.

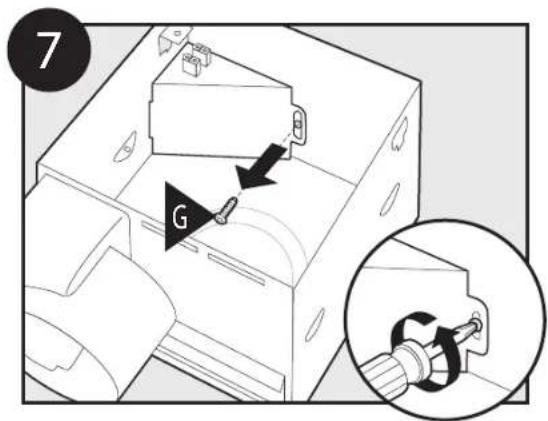

Remove the wiring cover screw.

Remove the wiring cover.

Pop out the first wiring access slug. Use second if needed.

Insert the strain relief into the housing and secure with the washer.

Choose Installation Option

For New Construction - attaching to joist go to step A11, page 5 For New Construction - suspended between joists go to step B11, page 8 For Existing Construction - accessible from above go to step C11, page 11 For Existing Construction - accessible only from below go to step D11, page15

New Construction – attaching to joist

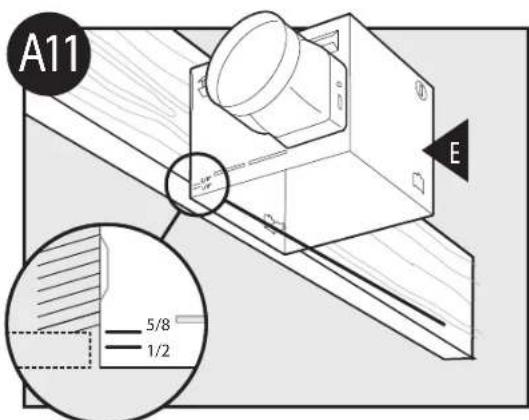

Position the correct depth mark at the bottom edge of the joist based on the thickness of your sheetrock.

Screw pre-loaded screws into joist or framing.

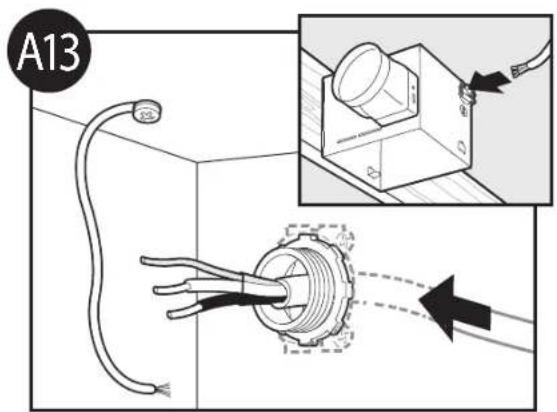

Pull wires through the strain relief.

Connect wires as shown.

Install the wiring cover plate. Make sure all wiring connections are inside the box or under the wiring cover plate.

Connect 4" duct and vent to the outside. Tape joints. If ducting does not fit securely, an adapter may need to be purchased.

Connect wiring from the motor to the wiring cover plate.

Reinstall the motor by inserting the tabs and pushing up into position. Make sure the wires are not pinched between the motor and the housing.

Secure the motor by tightening the 2 screws.

Turn on the power source.

Test the motor. If the motor does not run, check the plug connection.

New Construction – suspended between joists

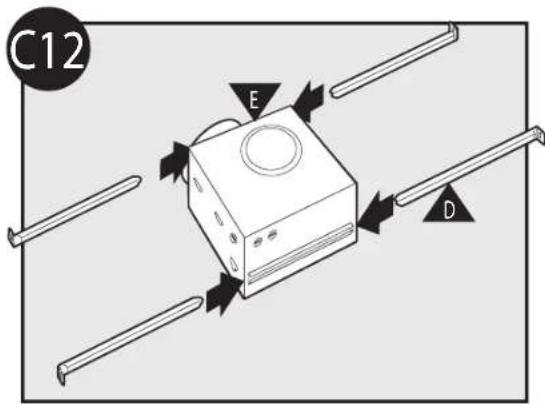

Slide the mounting rails into brackets.

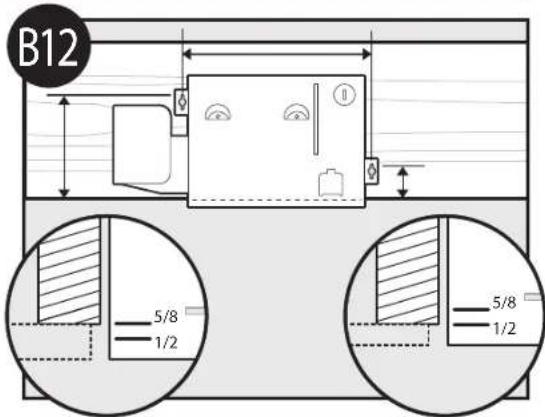

Position the correct depth mark at the bottom edge of the joist based on the thickness of your sheetrock.

Mark position of screws by using holes as a template.

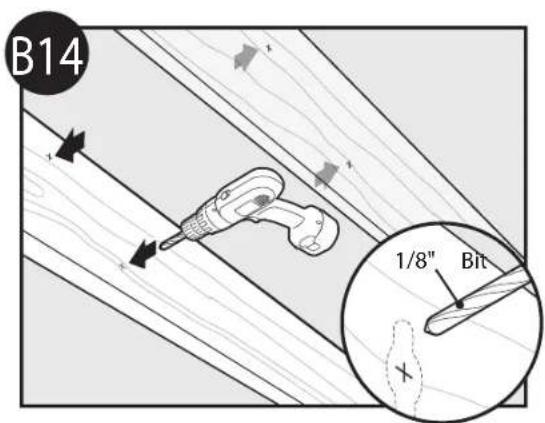

Drill a hole in the center of each outline.

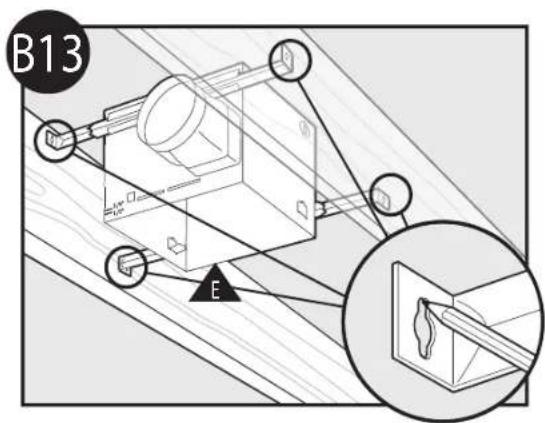

Insert screws, leaving space between the screw head and the joist. Screws are not provided.

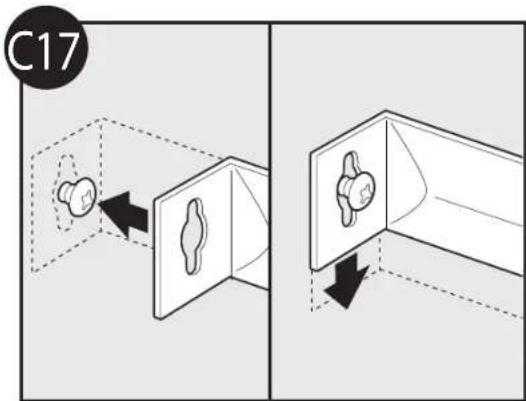

Attach the rails onto the screws.

Tighten screws. Pull wires through the strain relief.
    note right of A "*Option Fan & Main Light Together......"
    note right of D "Ground"
    note right of E "*Option Black Light"
    note right of F "*Option Black Light"
    note right of G "*Option Black Light"
    note right of H "*Option Black Light"
    note right of I "*Option Black Light"

Connect wires as shown.

Install the wiring cover plate. Make sure all wiring connections are inside the box or under the wiring cover plate.

Connect 4" duct and vent to the outside. Tape joints. If ducting does not fit securely, an adapter may need to be purchased.

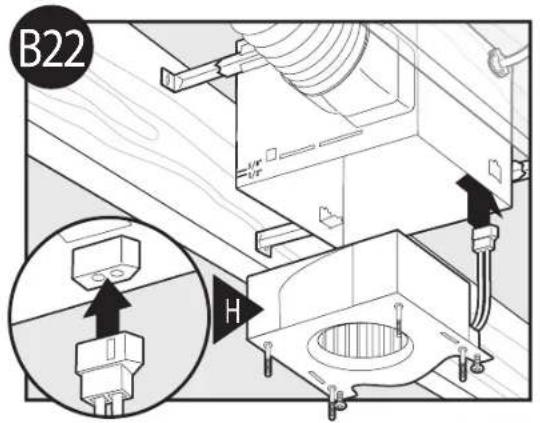

Connect wiring from the motor to the wiring cover plate.

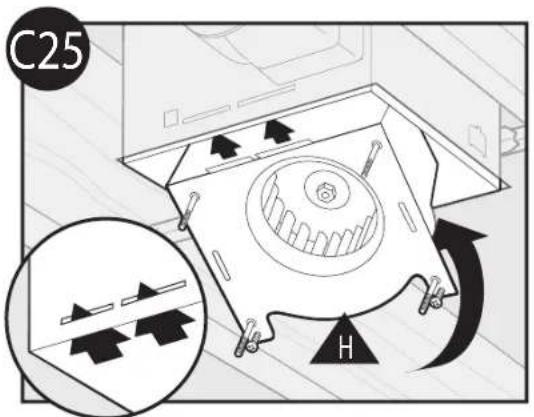

Reinstall the motor by inserting the tabs and pushing up into position. Make sure the wires are not pinched between the motor and the housing.

Secure the motor by tightening the 2 screws.

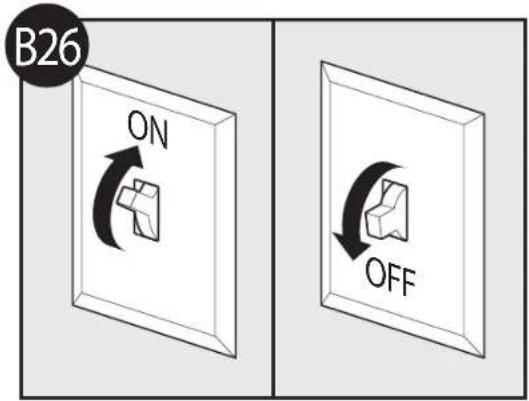

Turn on the power source.

Test the motor. If the motor does not run, check the plug connection.

Existing Construction – accessible from above

Remove an existing fan and check to make sure the opening is large enough to accommodate the new motor housing (8"x 8.5").

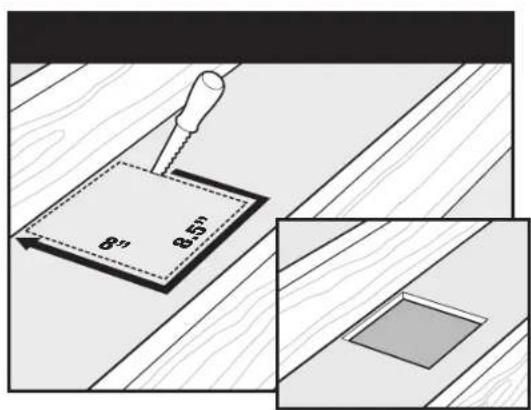

Use the motor housing as a template to mark position.

Cut out an opening for the housing.

Slide the mounting rails into brackets.

Position the correct depth mark at the bottom edge of the joist based on the thickness of your sheetrock.

Technical diagram of a mechanical assembly with labeled components and an inset close-up view (no text or symbols present)

Mark position of screws by using holes as a template.

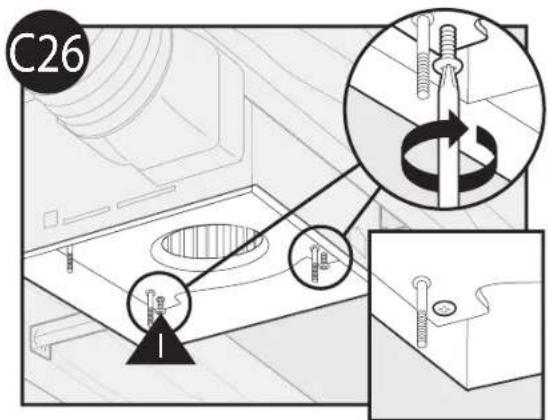

Drill a hole in the center of each outline. Insert screws, leaving space between the screw head and the joist. Screws are not provided.

Attach the rails onto the screws. Tighten screws.

Connect 4" duct and vent to the outside. Tape joints. If ducting does not fit securely, an adapter may need to be purchased.

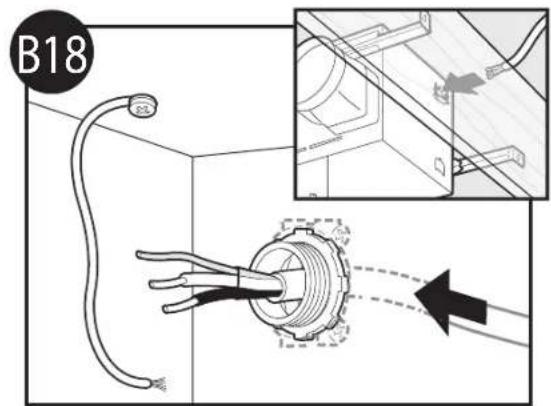

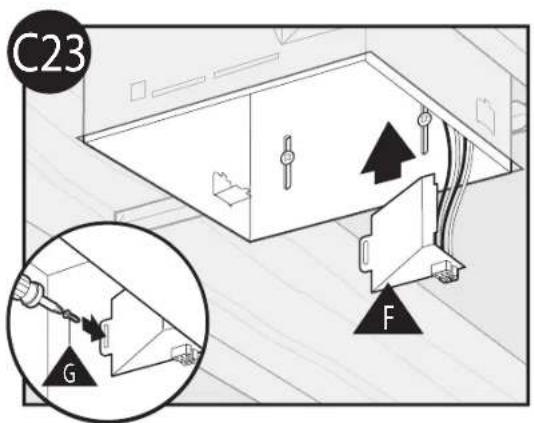

Pull wires through the strain relief.

Technical diagram showing a mechanical assembly with a screwdriver and a magnified inset of a rope knot (no text or symbols)

Tighten the strain relief screws.


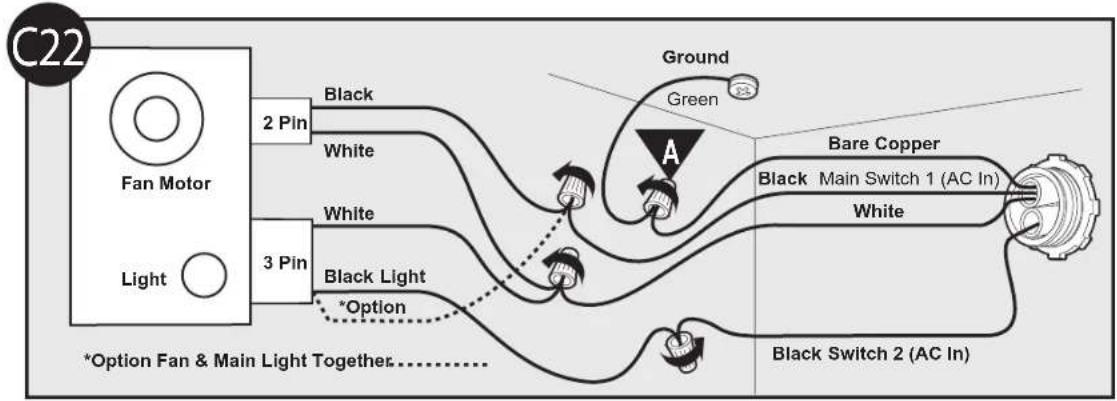

Connect wires as shown.

Install the wiring cover plate. Make sure all wiring connections are inside the box or under the wiring cover plate.

Connect wiring from motor the motor to the wiring cover plate.

Reinstall the motor by inserting the tabs and pushing up into position. Make sure the wires are not pinched between the motor and the housing.

Secure the motor by tightening the 2 screws.

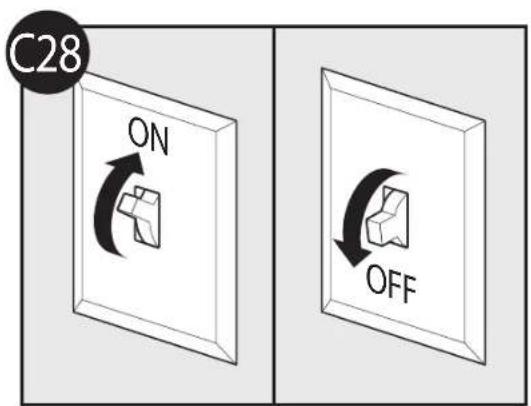

Turn on the power source. Test the motor. If the motor does not run, check the plug connection.

Existing Construction – accessible only from below

D11) EXISTING FAN

Simple line drawing of a graduation cap with a coiled tube and a string (no text or symbols)

Remove an existing fan and check to make sure the opening is large enough to accommodate the new motor housing (8"x 8.5").

D12

3D mechanical assembly diagram showing a component with labeled parts (no readable text or symbols)

Move the housing into position above the ceiling.

Pull wires through strain relief.

Attach existing ducting to duct connector. Tape joints. If ducting does not fit securely, an adapter may need to be purchased.

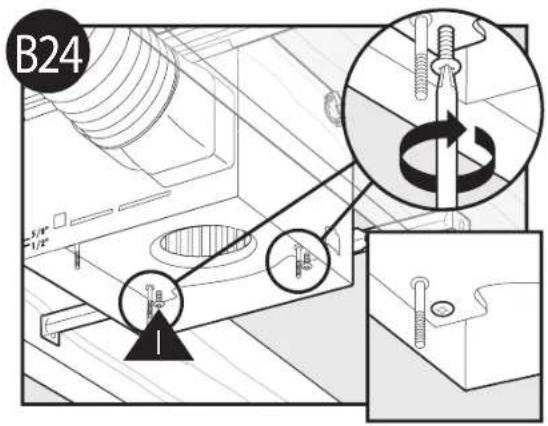

Install the housing flush with the sheetrock and secure by tightening the pre-loaded screws into the joist.

		Ground
	Black	Green
	2 Pin
	White		Bare Copper
Fan Motor			Black Main Switch 1 (AC In)
	White		White
Light	3 Pin
	Black Light
	*Option
*Option Fan & Main Light Together			Black Switch 2 (AC In)

Connect wires as shown.

Install the wiring cover plate.

Connect wiring from the motor to the wiring cover plate.

Reinstall the motor by inserting the tabs and pushing up into position. Make sure the wires are not pinched between the motor and the housing.

Secure the motor by tightening the 2 screws.

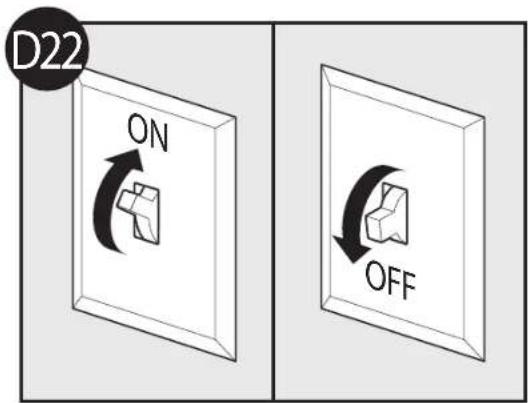

Turn on the power source.

Test the motor. If the motor does not run, check the plug connection.

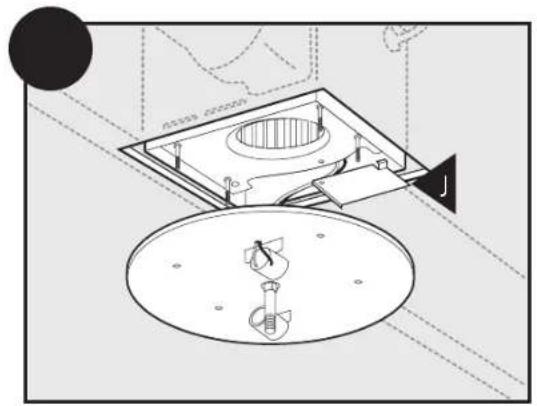

Attaching the Dome Assembly

Remove the thumbscrews.

Connect wiring harness.

Remove the strain relief bracket screw.

Position the strain relief bracket under the motor as shown.

Insert the strain relief bracket's dog-leg tab so that it hooks over the lip of the motor. Reinstall the strain relief bracket screw.

Align posts A, B, C and D (stamped into motor housing) with posts A, B, C and D (stamped into light fixture). Slide light fixture over posts.

Attach thumbscrews. WARNING: To reduce the risk of electrical shock, all 4 thumbscrews MUST be properly installed.

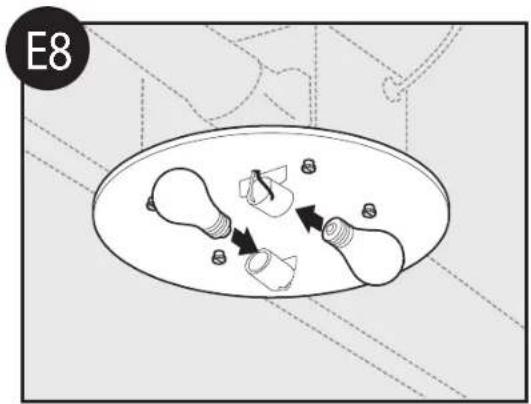

Install 2 Max 60 Watt A15 bulbs (Not Included).

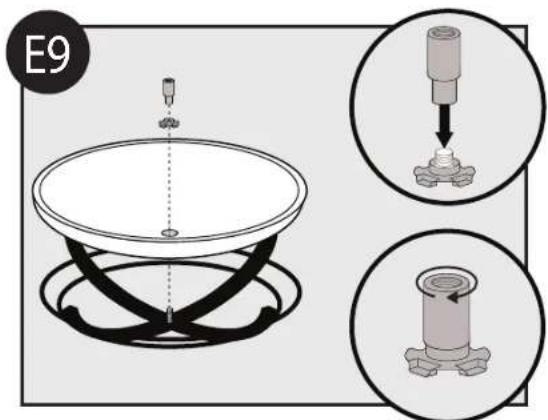

Assemble the grille, glass dome, washer, and barrel nut as shown. Tighten the barrel nut "finger-tight." NOTE: The washer must be oriented as shown.

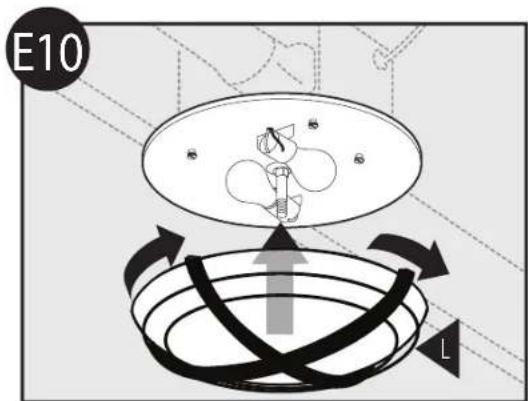

Screw the dome assembly dome into position.

Simple line drawing of a bowl with a curved black band, set against a grid background (no text or symbols)

Complete.

Trouble Shooting

Problem: Fan does not come on.

Solution:

- Hunter Fan Bath Ventilators are extremely quiet. To confirm that the fan is running, place your hand near the vents to feel the air movement.

• Turn power on, replace fuse, or reset breaker.
• Check all plug connections to be sure they are secure.
• Check the wiring to make sure it matches the wiring diagram.

Problem: Light does not come on.

Solution:

• Replace the light bulb with a new bulb.
• Turn power on, replace fuse, or reset breaker.
• Check all plug connections to be sure they are secure.
• Check the wiring to make sure it matches the wiring diagram.

Problem: Fan is noisy.

Solution:

• Check and tighten all fasteners.
• Check the glass to make sure it is secure.
• Check the flapper to make sure it moves freely.

If you need parts or service assistance, please call 888-830-1326 or visit us at our web site at http://www.hunterfan.com.

Warranty

Hunter Fan Company

Bath Exhaust Fan

LIMITED WARRANTY

Hunter Fan Company makes the following limited warranty to the original user or consumer purchaser of this Hunter bath

exhaust fan:

If any part of your Hunter bath exhaust fan (except for glass fixtures and light bulbs) fails at any time within one year after the date of sale to you due to a defect in material or workmanship, we will repair or, at our option, replace the defective part free of charge for parts and labor performed at our nearest service center or at our Service Department in Memphis, Tennessee. After this one-year period, you will be responsible for all parts and labor costs for repairs on the bath exhaust fan except for motor repairs as provided below.

If your Hunter bath exhaust fan motor fails at any time within five years after the date of sale to you due to a defect in material or workmanship, labor and materials to repair the defect will be provided free of charge at our nearest service center or our Service Department in Memphis, Tennessee. If no replacement part can be provided, we will, at our option, either refund the actual purchase price of your bath exhaust fan or provide a replacement free of charge. After this five-year period, you will be responsible for all parts and labor costs for repairs on all parts of the bath exhaust fan.

IF THE ORIGINAL USER OR CONSUMER PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH THEN REMAINS IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. NO WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RESPECT OF GLASS FIXTURES OR LIGHT BULBS OR THE FINISH ON ANY METAL PORTION OF THE BATH EXHAUST FAN.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY HUNTER FAN BATH EXHAUST FAN MOTOR OR OTHER FAN PART, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH MOTORS OR OTHER PARTS.

This warranty is voided if your Hunter bath exhaust fan is not purchased and installed in the U.S.A. This warranty excludes and does not cover defects, malfunctions or failures of any Hunter bath exhaust fan which were caused by repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation, modifications or damage to the Hunter bath exhaust fan while in your possession, or unreasonable use, including failure to provide reasonable and necessary maintenance.

To obtain servicing, contact the nearest Hunter authorized service center of the Hunter Fan Company Service Department, 7130 Goodlett Farms Pkwy Suite 400, Memphis, TN 38016. Please contact us before shipping your bath exhaust fan to us. If we authorize you to ship it to us, you will be responsible for all insurance and freight or other transportation charges to our factory or service center. We will return your Hunter bath exhaust fan freight prepaid. Your Hunter bath exhaust fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage. Proof of purchase is required when requesting warranty service. The purchaser must present the sales receipt or other document that establishes proof of purchase.

IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU.

THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE

Halcyon

Symmetrical geometric pattern with intersecting curved lines forming a V-shape (no text or symbols)

Español

©2011 Hunter Fan Co.

! ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIO, CHOQUE ELÉCTRICO O LESIONES A PERSONAS, OBSERVE LO SIGUIENTE:

Illustration of six different types of tools including a tape measure, screwdriver, screwdriver, saw, and tape roll (no text or labels)

Simple line drawing of a graduation cap with a coiled spring and cable (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a pencil inserted, placed on a wooden surface (no text or symbols)

Technical diagram of a mechanical assembly with labeled component C14, showing connections and a magnified inset (no readable text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing a cylindrical component being inserted into a housing (no text or symbols present)

Technical diagram showing a mechanical assembly with a magnified inset of a cable being inserted (no text or symbols present)

Diagram of a graduation cap with a coiled spring and cord, no text or symbols present

3D mechanical assembly diagram showing a housing and component with no visible text or symbols

Technical diagram of a ceiling fixture with internal components and wiring (no text or symbols)

Simple line drawing of a bowl with two curved bands, no text or symbols present

Completo.
