Product Type	Pico Projector
Brand	AAXA Technologies
Model	P2-B
Dimensions (W x H x D)	2.8" x 2.8" x 2.3"
Weight	0.55 lbs
Brightness	130 Lumens
Native Resolution	854 x 480 (WVGA)
Maximum Resolution	1920 x 1080 (1080p)
Contrast Ratio	1000:1
Aspect Ratio	16:9
Lamp Type	Triple RGB LEDs
Lamp Life	20,000 hours
Battery Life	150 minutes (Eco Mode)
Power Consumption	11 W
Input Ports	Composite A/V (3.5mm), Mini Digital Input, TF Card Slot, USB 2.0
Audio Output	3.5mm Stereo Headphone Jack
Projection Lens	Manual Focus
Image Size	8" – 100"
Throw Ratio	1.20
Supported File Formats	MP3, WMA, OGG, WAV, AVI, BMP, JPG, TXT, GIF
Included Accessories	Tripod, Remote Control, Power Adapter, A/V Cable
Safety Certifications	CE, FCC Class A
Customer Service	AAXA Technologies, Inc., Irvine, CA, [phone], [e-mail]

Frequently Asked Questions - P2-B AAXA Technologies

How do I adjust the focus on the P2-B projector?

To adjust the focus, spin the focus wheel up or down until the projected image becomes clear. The focus wheel is located on the projector.

How do I connect the P2-B to a computer?

Connect a Mini Digital Input cable (purchased separately) from your computer's Digital Input port to the P2-B's Digital Input port. Then select the 'INPUTS' icon on the main menu and choose 'VIDEO'. On your computer, press Windows+P to toggle display settings and select 'Duplicate' or 'Extend'. If the image is blurry, adjust the screen resolution to 1920x1080.

Can I play videos directly from a USB drive?

Yes. Insert a USB drive (up to 32GB) into the USB port. From the main menu, select the 'VIDEOS' icon, then choose the USB drive icon. Navigate to your video file and press OK to play. Supported formats include AVI.

How do I loop a video or song?

During video playback, press OK to open the playback menu. Move left to select 'Repeat' and press OK until it shows 'Repeat 1'. For audio, during music playback press OK, navigate to 'Repeat 1' and confirm. The file will loop continuously.

How do I view photos from a TF card?

Insert the TF card (up to 32GB) into the slot on the back of the projector. From the main menu, select the 'PHOTOS' icon, then choose the TF card icon. Navigate to your picture file and press OK to view. Use left/right arrows to browse images.

What file formats are supported by the P2-B?

The built-in media player supports MP3, WMA, OGG, WAV, AVI, BMP, JPG, TXT, and GIF. Microsoft Office and PDF files are not supported directly; convert slideshows to JPEG images first.

How long does the battery last and how do I charge it?

The battery lasts up to 150 minutes in Eco Mode. To charge, use the included power adapter connected to the projector. Note: The battery does not charge while the projector is in operation.

What should I do if there is no picture or signal?

Ensure the video source is properly connected and selected. On a computer, enable video output (e.g., press Function+F5 on some laptops). Try selecting 'Extend my desktop' in display settings. The projector's native resolution is 854x480; adjust computer resolution if needed.

How do I turn the projector on and off?

To power on, hold the power button for approximately three seconds until the projector turns on. To turn off, hold the power button for three seconds again. The remote control cannot power on the projector; it only enables/disables the remote. To fully power off using the remote, hold the power button for 3 seconds.

How do I use the touchpad on the projector?

The touchpad is located on top of the projector. Use directional swipes to navigate through menu options. Tap the center to select (equivalent to 'OK'). Press the 'Back' button to return to the previous screen.

USER MANUAL P2-B AAXA Technologies

Exterior view of a gray modular projector with a small screen and brick-patterned casing (no visible text or symbols)

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause injury or death.

DO NOT use while driving

DO NOT expose to water or wet surfaces. Electric shock may occur.

DO NOT expose the projected LED image to your eyes or the eyes of others

DO NOT block or restrict airflow from ventilation holes as this may cause the projector to overheat

Keep the projector, battery, or charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery with sharp objects
• Do not heat the product or expose it to high temperature.
• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may impair your hearing.
  • High volume during walking or driving may cause distractions and result in injury or death

Table of Contents

Chapter 1: P2-B at a Glance

P2-B Introduction 1

Remote 2

Accessories 4

Chapter 2: Getting Started

Powering On / Off 5

Focus Adjustment / Throw

Distance 6

External Input/Outputs 7

Connecting to Digital Input 10

Connecting to Composite Video • • 12

Connecting to Digital Input Video 14

Connecting to Speaker or

Headphones 16

Connecting a TF Card 17

Connecting a USB Stick 19

Chapter 3: Menu Screens

Main Menu 22

Video Player Menu 23

Photo Viewer Menu 27

Music Player Menu 31

Text Viewer Menu 34

Chapter 4: Setup Menu

Settings 35

Chapter 5: Technical Details

Troubleshooting 40

Specifications 42

Notes 43

P2-B at a Glance

Chapter 1

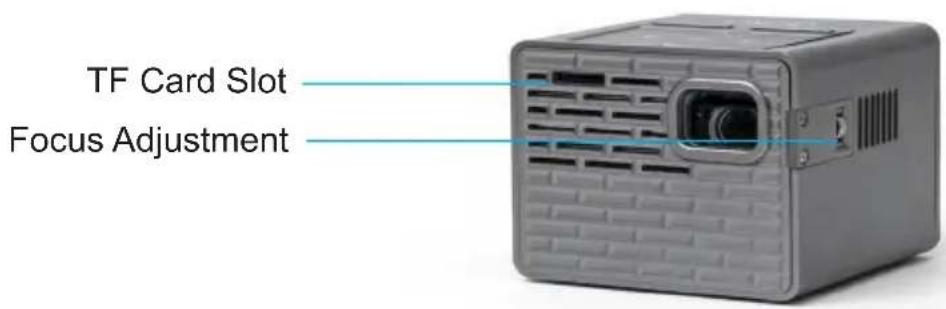

Main Unit Front/Back

Remote & Touchpad

* The remote control is not able to POWER ON the projector NOTE: Pressing power on the remote once will only enable or disable the remote control. In order to fully turn the projector off, hold the power button down on the remote or projector for at least 3 seconds.

Remote & Touchpad Cont.

The P2-B includes a touchpad directly on top of the projector. The touchpad allows users to navigate through the menu options. In order to select an option, "OK" needs to be tapped.

Accessories

Line drawing of a tripod-mounted tripod with a small attached device (no text or symbols)

Tripod

Remote

Line drawing of a cable and connector with connectors (no text or symbols)

Power Adapter A/V Cable

Illustration of a multi-pin connector with multiple Ethernet ports (no text or symbols)

*Under various circumstances, the actual accessories may be different from those shown in the pictures above.

Additional accessories are available for purchase at www.aaxatech.com

Getting Started

Chapter 2

Powering ON the projector

1. To power-on a fully charged P2-B, hold down the power button for approximately three seconds until the projector turns on.

Powering OFF the projector

1. Hold down the power button for approximately three seconds until the projector turns off.

NOTE: The P2-B Projector battery does not charge when it is in operation.

Focus Adjustment / Throw Distance

Focus Adjustment

- Spin the focus wheel up or down until the image becomes clear.

Simple diagram showing a vertical bar inside an oval and a vertical line on the right (no text or symbols)

Throw Distance Chart

Throw Distance	Diagonal Size
Unit: Inches	Unit: Inches
20	19
30	29
40	38
50	48
60	57
70	67
80	76
90	86

Throw Ratio 1.20

Projection Angle: 100% Offset

*minimum throw distance: 10 inches

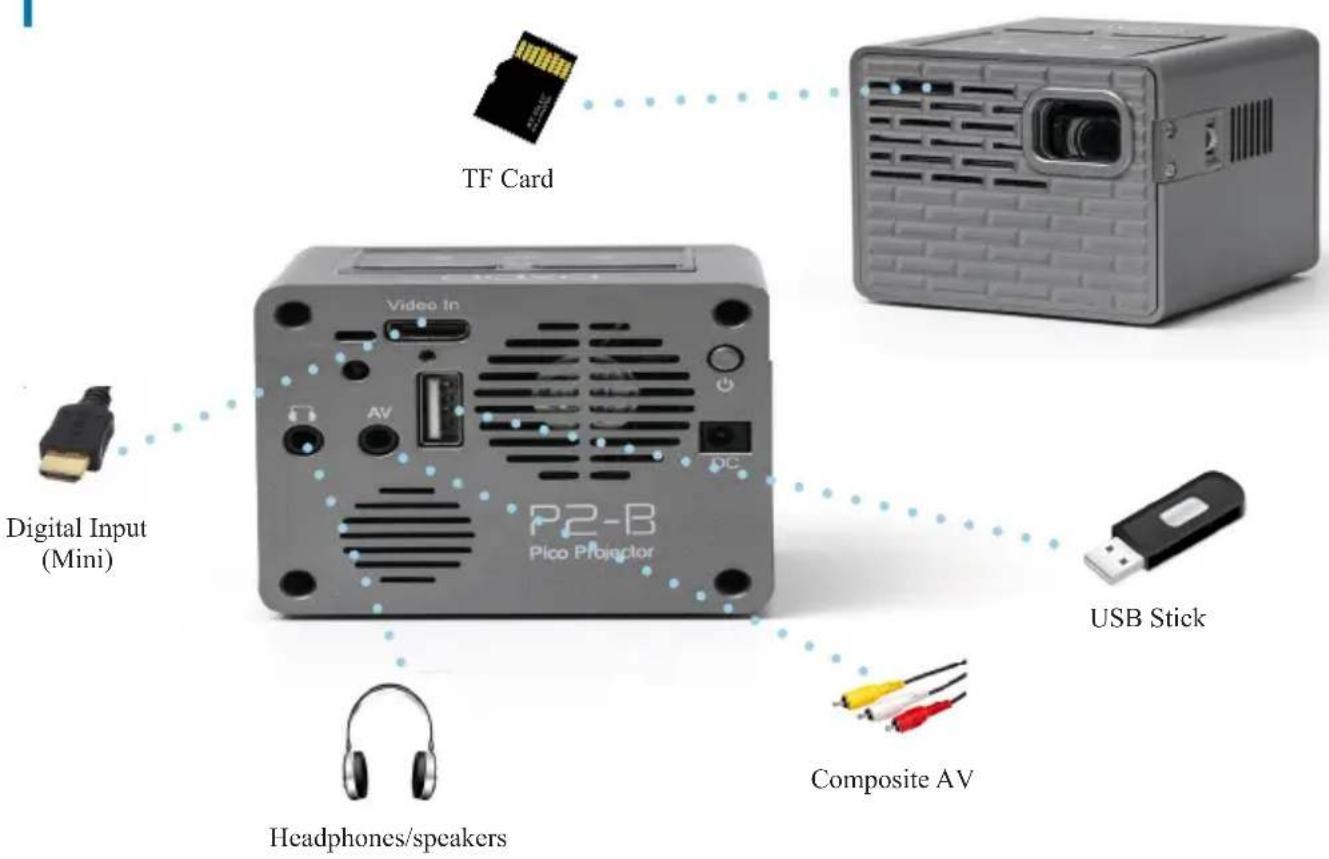

External Inputs and Outputs

Connecting to a Computer via Digital Input

Step 1:

Connect one end of the mini-Digital Input Cable (purchased separately) to your computer's Digital Input port.

Step 2:

Connect the other end of the mini-Digital Input Cable to your P2-B's Digital Input port.

Step 3:

In the Main Menu, select the "INPUTS" icon and then the "VIDEO" icon.

Select the "INPUTS" icon Select the "VIDEO" icon

Connecting to a Computer Cont.

Step 4:

To enable Digital Video output on your computer, most computers require "turning on" the video output feature. Each computer is different. Please consult your computer's manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer – not all systems are the same.

Step 5:

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option.

*NOTE: different operating systems may differ

Step 6:

1. Right click on computer desktop and select "Screen Resolution"
2. Display Properties window will pop up
3. If a secondary monitor is grayed out, click on it and select "Extend these displays" in the "Multiple Displays" drop down
4. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 1920x1080.

Connecting to Composite Video

Step 1:

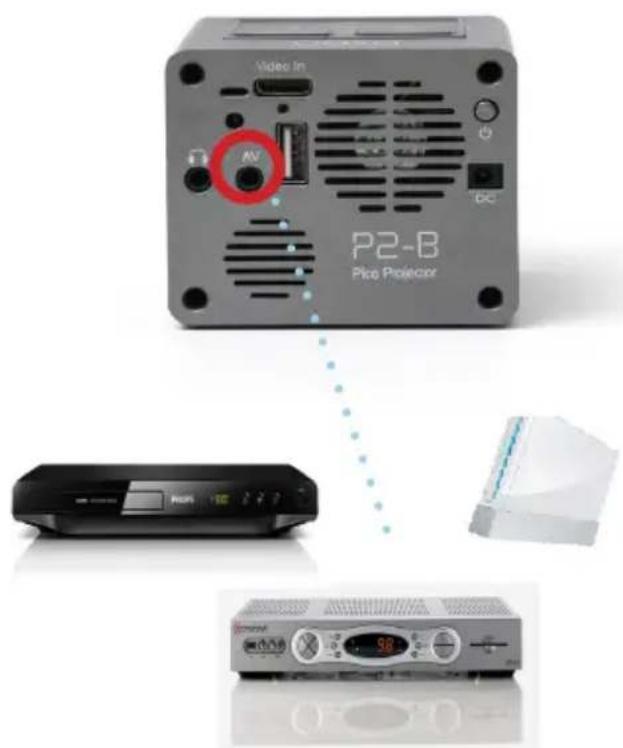

Connect the 3.5mm Composite A/V Cable to the back of the P2-B.

Close-up of a black audio jack component and its corresponding button labeled 'AV' (no text or symbols on the device itself)

Step 2:

Plug the composite end of the AV Cable (Red, White, Yellow) to your device.

Two images showing a red and white audio/video cables connected by black cables, with no visible text or symbols.

Connecting to Composite Video Cont.

Step 3:

In the Main Menu

Select the "INPUTS" icon

Select the "RCA" icon

Step 4:

Turn on your multimedia device.

Connectivity with multimedia devices through Composite AV

The P2-B can connect to many media devices including: VHS players, DVD players, cameras, video game consoles and other peripherals with ease.

Connecting to Digital Video Input

Step 1:

Connect one end of the mini-Digital Input Cable (purchased separately) to your device's Digital Input port.

Close-up of a black D-sub connector with a close-up view showing its internal structure (no text or symbols visible)

Step 2:

Connect the other end of the mini-Digital Input Cable to your P2-B's Digital Input port.

Close-up of a black USB connector next to a gray video in button (no text or symbols on the connector itself)

Note: Apple devices require a specialized Digital Input adapter (Sold separately by Apple)

Connecting to Digital Video Input Cont.

Step 3:

In the Main Menu

Select the "INPUTS" icon

Select the "VIDEO" icon

Step 4:

Turn on your multimedia device. If available, select 1920x1080.

Connectivity with multimedia devices via Digital Video Input

The P2-B can connect to many media devices including: iPod, iPhone, iPad, DVD players, Blu-Ray players, smart phones, cameras, video game consoles and other peripherals with ease.

*Some smart phones require video out capabilities to work with the P2-B. Check with your phone manufacturer.

Connecting Speakers / Headphones

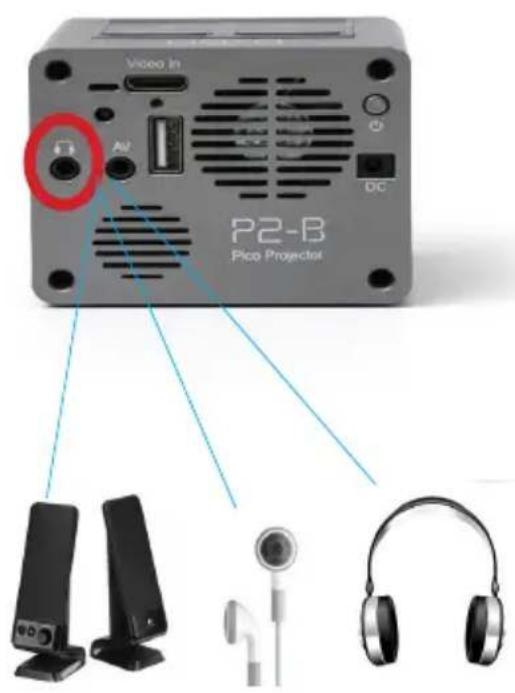

Step 1: Connect your speakers/headphones to the projector's audio port.

Step 2: Ensure that the projector and/or the headphones are powered on.

Step 3: Place the headphones on and enjoy!

CAUTION: Prolonged use of headphones at a high volume may impair hearing.

TF Card

How to insert your TF Card

• Slide in your TF card into the TF card slot on the back of the P2-B (facing down as shown in picture).
  • Gently slide the TF card until it clicks into place.

How to access your TF Card

• Once your TF Card has been inserted, you can navigate to any media content in the main menu.

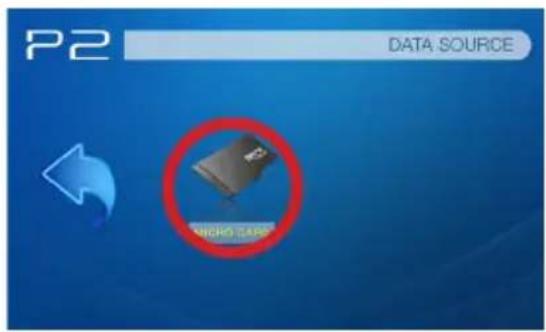

  • After selecting the media content, choose the TF card selection.
• You can now access the data on your TF card through the onboard media player

*Review the “Specifications” section of this manual to read about the supported file formats.

Exterior view of a gray modular device with a red circle highlighting a camera lens, connected to a black 16GB flash card (no text or symbols on the device itself)

(up to 32 GB)

Note: Microsoft Office and PDF file formats are not supported directly. In order to view a slideshow, you need to convert your slideshow into JPEG pictures first.

TF Card Cont.

Media Player menu

• In the main menu, select the type of file you wish to play.
• Select the TF Card icon to access your files.

File Menu System

• The P2-B will show all folders and files you have on your TF Card in the C: drive.
• Use the remote or touchpad to navigate to different folders or files.

Return: Brings you back to the main menu

USB Drive

How to insert your USB Drive

• Slide your USB Drive into the USB port.
  • Gently slide the drive until it cannot go in any further.

How to access your USB Drive

• Insert your USB Drive into the projector.
• Use the remote or touchpad to choose the USB Drive icon from the main menu to access your files.
• Choose your desired file.

*Review the “Specifications” section of this manual to read about the supported file formats.

Note: Microsoft Office and PDF file formats are not supported directly. In order to view a slideshow, you need to convert your slideshow into JPEG pictures first.

USB Drive Cont.

Media Player menu

- In the main menu, select the type of file you wish to play.

- Select the USB Drive icon to access your files.

File Menu System

• The P2-B will show all folders and files you have in the C: drive.
• Use the remote or touchpad to navigate to different folders or files.

Return: Brings you back to the main menu

TF Card and USB Drive

- If both TF Card and USB Drive are inserted, depending on which one inserted first, the first one will show in the C: drive and the second one will show in the D: drive.

Menu Screens

Chapter 3

Main Menu

The P2-B features a built-in PMP (Portable Media Player) function.

This function allows the projector to play videos, pictures, music files, and text directly from your connected devices.

• Press the left and right directional buttons on the remote or the directional arrows on the touchpad to choose an icon from the main menu.
• To select a menu option, press the "OK" button on the remote or in the middle of the touchpad.
• To go back to the previous screen, press the "Back" button.

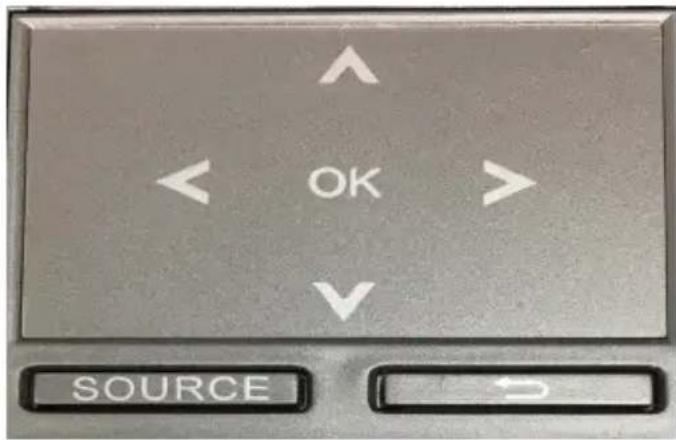

• To Jump to the INPUTS menu, press the "Source" button on the projector once.

Video Player Menu

Opening a file:

• Select the "VIDEOS" icon (Fig. 3.1).

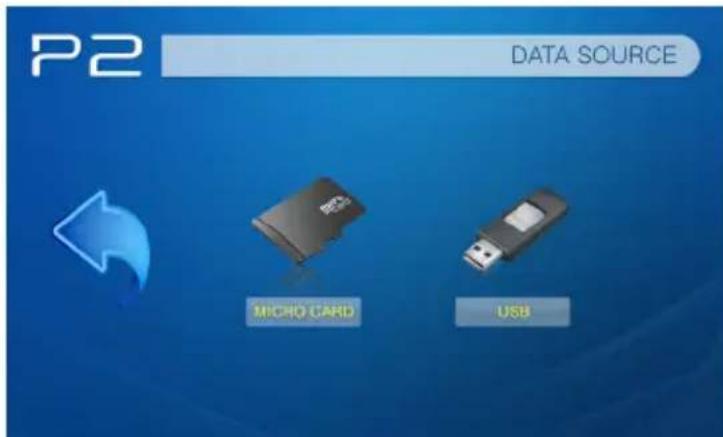

• From the sub menu (Fig. 3.2), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.1

Fig. 3.2

The P2-B will show all folders and files you have on your USB or TF card. Use the remote or touchpad to select folders or files.

Video Player Menu

While Playing Videos

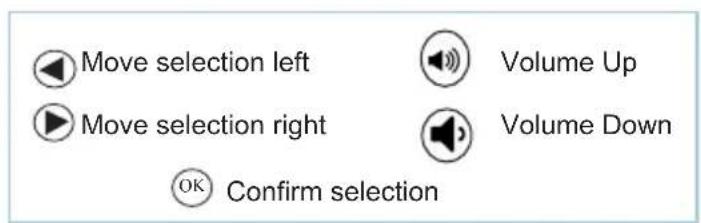

While playing videos, the volume is adjustable. You can simply adjust volume by pressing the volume buttons on the remote or the up & down arrows on the touchpad. Further controls of the video are available in the video player submenu - which is accessed through the "OK" button.

Volume Down

Volume Up

Enter Video Player Submenu

- To open/hide the video playback menu, use the "Down" arrow on the remote or touchpad.

Video Player Sub-Menu

Playing Videos

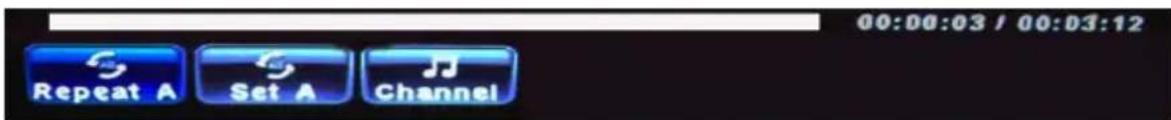

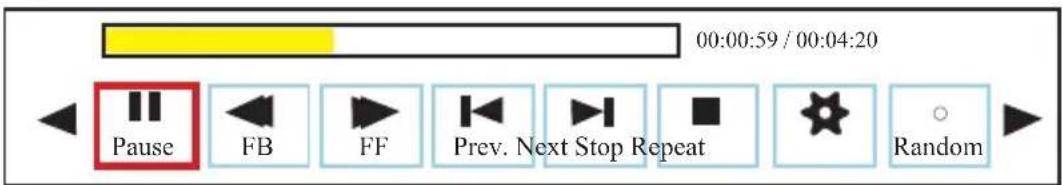

The Video Player Sub-Menu can be accessed by pressing "OK" during video playback. To exit the Video Player Sub-Menu, press the "Down" arrow on the remote or touchpad. To navigate the Playback Menu, use the directional buttons on the remote or touchpad to highlight the option you wish to choose (Fig 3.3).

Fig. 3.3

Video Playback FAQ

How do I loop a video?

1. Choose either USB or TF Card for playback
2. Navigate the folders until you reach the file you wish to play.
3. Choose the file you want to play.
4. Press "OK" when video is playing, then move left on the video player menu to select "Repeat" and press "OK" until it shows "Repeat 1."
5. The video will now loop after playback is finished.

Photo Menu

Opening A File:

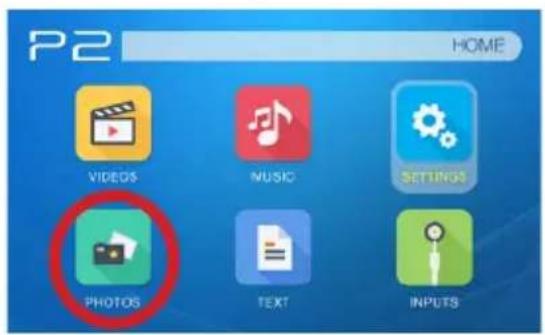

• Select the "PHOTOS" icon (Fig. 3.4)

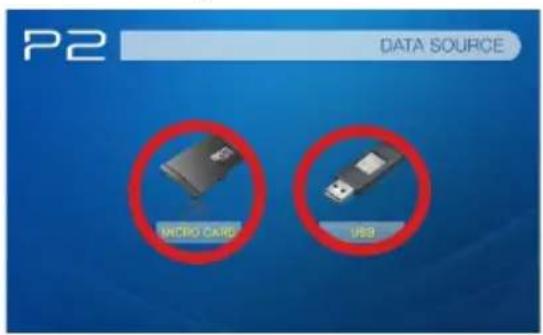

• From the sub menu (Fig. 3.5), select the storage media with the stored files.
• Choose the file you wish to play.

Fig 3.4

Fig 3.5

The P2-B will show all folders and files you have on your USB or TF card drive. Use the navigation buttons to select folders or files.

Photo Menu

While Viewing Pictures

While viewing pictures, you can simply navigate through all images by pressing the left and right buttons on the remote or touchpad. Further controls are available in the Photo Submenu - which is accessed through the "OK" button.

Enter Photo Player Submenu

- To open/hide the Photo Playback menu, use the "Down" Arrow on the remote or touchpad.

Photo Sub-Menu

Viewing Pictures:

After pressing "OK" during picture slide-show playback, the Photo Sub-Menu appears. To exit the Photo Sub-Menu, press the "Down" arrow on the remote or touchpad. Every picture is able to be rotated and zoomed in or out based on the option you wish to choose on the Sub-Menu. To navigate the Sub-Menu, use the remote or touchpad to move selection (Fig 3.6).

Fig 3.6

Photo Slideshow FAQ

How do I convert PPT to JPG?

1. First open your presentation on your PC or MAC.
2. Go to "Save As" and save your presentation as .JPG files. (Fig 3.6.1)
3. Choose "All slides". (Fig 3.6.2)
4. *If you have more than 10 slides, you must rename Slides 1-9 with a "0" in front of it or the playback order will be mixed up. If you have more than 100 slides you will need to use a "00" format. (Fig 3.6.3)
5. Copy the files either to your TF Card or to the USB memory stick.
6. insert the TF Card or Memory stick into the projector.
7. View the slidershow under "PHOTOS"

Fig 3.6.1

Fig 3.6.2

Fig 3.6.3

Music Player Menu

Opening A File:

• Select the "MUSIC" icon (Fig. 3.7).
• From the Sub-Menu (Fig. 3.8), select the storage media with the stored files.
• Choose the file you wish to play.

Fig. 3.7

Fig. 3.8

The P2-B will show all folders and files you have on your USB or TF card drive. Use the remote or touchpad to select folders or files.

Music Player Menu

Listening To Audio:

To adjust the volume, use the volume keys on the remote or "Up" and "Down" arrows on the touchpad. To navigate the playback menu, push the "OK" button to open the menu and use the directional buttons on the remote or touchpad to highlight the option you wish to choose (Fig 3.9).

- To hide the music playback menu, press "Down" arrow on the remote or touchpad.

Fig. 3.9

Music Playback FAQ

How do I loop a song?

1. Choose either USB or TF Card for playback
2. Navigate the folders until you reach the file you wish to play.
3. Highlight the file you want to play, then confirm the selection.
4. Move selection on music player menu to "Repeat 1," and confirm the selection.
5. The song will now loop after playback is finished.

How do I create a song playlist?

1. Insert your media device (either TF card or USB) into computer.
2. Make a new folder on media device (folder name will be the name of the playlist).
3. Transfer songs from computer to the new folder, name accordingly.
4. Remove media device from computer and insert into projector.
5. Navigate to Audio section, then choose appropriate media device.
6. Navigate to your playlist folder.
7. Start at first song.
8. Playback will follow each successive song on the list.

*To create a special order for the list, add numerical numbering to the beginning of each file.

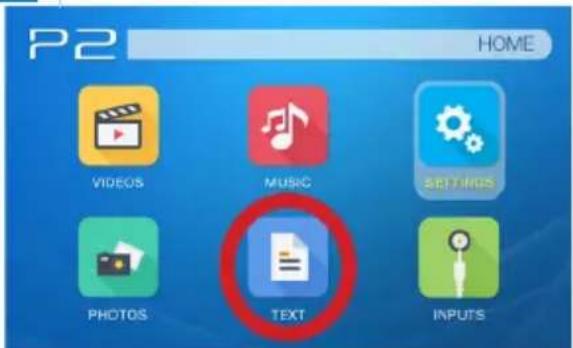

Text Viewer Menu

Opening A File:

• From the Sub-Menu, select the storage media with the stored files. (Fig 3.10)

- Choose which file you wish to play.

Fig. 3.10

The P2-B will show all folders and files you have on your USB or TF card drives. Use the navigation buttons to select folders or files.

Viewing Text Files:

The P2-B Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the remote to flip through the pages you have in the present folder.

Note: Microsoft Office and PDF file formats are not supported directly. In order to view a slideshow, convert your slideshow into JPEG pictures first.

Setup Menu

Chapter 4

The Settings Menu can be accessed by selecting "Setting" on the Main Menu

Within the settings menu, there are four more submenus that allow you to customize your P2-B the settings you want.


• Picture Mode
• Color Mode
• Aspect Ratio
• Brightness Mode
• Projection

Sound

• Sound Mode
  • Balance
• Auto Volume

Time

• Sleep Timer
• Auto Sleep

Option

• OSD Language
• Restore Factory Default

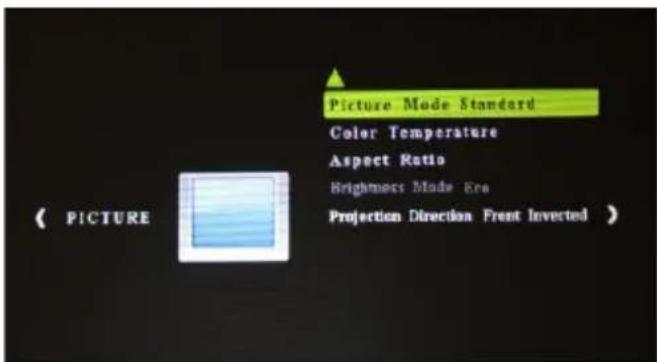

Picture Settings

Picture Mode

• Changes the picture mode to different settings depending on your usage

Color Mode

- Adjusts the color temperature from warm to cool (red to blue)

Aspect Ratio

- Changes the aspect ratio of the picture - Auto, 4:3, 16:9*, etc.

Brightness Mode

- Choose between Eco, Standard, and Boost**

Projection

• Flips the projected image

*Caution: Some pictures may be cut off when aspect ratio is set incorrectly

**Boost mode should only be used in low temperature environments with adequate clearance of exhaust / intake vents. A tripod is highly recommended. DO NOT block vents while operating in Boost mode.

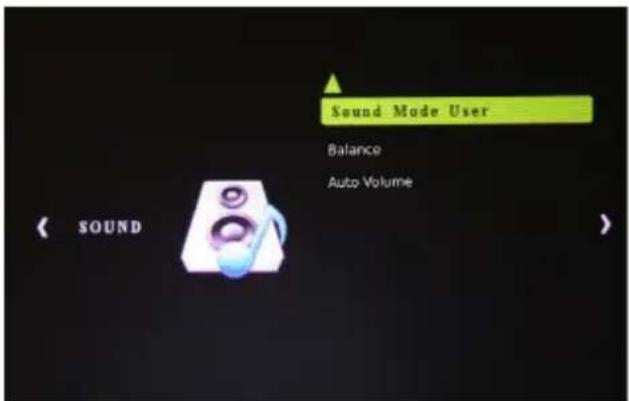

Sound Settings

Sound Mode

• Changes the sound mode depending on what is currently playing

Balance

- Adjusts the sound balance manually

Auto Volume

- When the auto volume function is turned on, it normalizes the incoming audio signal so that the video will be played at a moderate volume

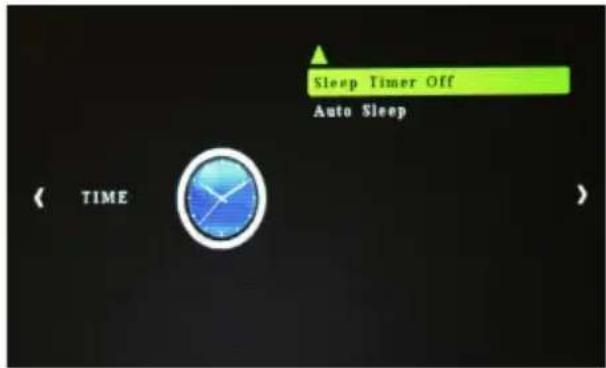

Time Settings

Sleep Timer

- Sets when projector goes to sleep

Auto Sleep

- Sets auto sleep function where projector will turn off when not in use or if there is no signal.

Option Settings

OSD Language

• Changes the language of the device. Options include English, Spanish, Chinese, German, French, Korean, Japanese

- Restores the projector to factory settings

Technical Details

Chapter 5

Troubleshooting

IMAGE IS BLURRED

Possible Causes Solution
The Projector is not in focus Adjust the focus with the focus adjustment dial until the image comes into focus
The Projector is offset from plane / angle of operation	Move the projector so that it is both 180 degrees and on an evern plane with the screen.

NO SYNC, NO SIGNAL

1. Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the P2-B as an external monitor on Windows based systems, this can be done by selecting "extend my desktop to this monitor". The native resolution of the P2-B projector is 854x480 (WVGA). Depending on the video driver different resolutions may need to be selected for proper output.

Technical Details

Troubleshooting

THE PROJECTOR DOES NOT TURN ON

Possible Causes Solution
There is no power Check to ensure the power outlet source is good.Check the Power Adapter to ensure a proper connection with the wall outlet as well as the projector. Confirm that the unit is charged and has enough power
The power button was not held long enough To power on the projector, the power button needs to be depressed for a full 3 seconds. Try holding the power button until the optical engine turns on

NO PICTURE / FILE NOT SUPPORTED

Possible Causes Solution
The video source is not properly connected or selected	Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menu
Incorrect file extension / Video is encoded with incorrect codec	Please refer to “Specifications” page to see which file types and codex are supported. Verify that the file was encoded properly.

Specifications

Brightness:

Max Resolution:

Native Resolution:

Contrast Ratio:

Aspect Ratio:

Projection Lens:

Image Size:

Lamp:

Video in:

Audio Out:

Color:

TF Card:

USB:

Dimensions:

Weight:

Power Consumption:

Battery Life:

Throw Ratio:

Projection Offset:

Conformances:

Supported File Formats:

130 Lumens

1920x1080 (1080P)

854x480 (WXGA)

1000:1

16:9

Manual Focus

8\~100 inches

Triple RGB LEDs with Vibrant Color

Technology Life 20,000hrs

Composite A/V (3.5mm Jack)

Digital Input (Mini) (compatible)

3.5 mm Stereo Headphone Jack

Gray

TF Card Slot (32GB maximum)

Full Size USB 2.0 (32GB maximum)

2.8" x 2.8" x 2.3"

0.55 lbs

11 W

150 Minute Li-Ion Rechargeable Battery (Eco Mode)

1.2

100%

CE, FCC Class A

MP3, WMA, OGG, WAV, AVI,

BMP, JPG, TXT, GIF

Notes

Please direct all customer service inquiries to:

AAXA Technologies, Inc.

17691 Mitchell N., Unit #B

Irvine, CA 92614

[phone]

[e-mail]
