| Product Type | LED TV |
| Model | 32LH591D |
| Screen Size | 32 inches (81 cm) |
| Resolution | 1920 x 1080 (Full HD) |
| Refresh Rate | 60 Hz |
| Dimensions (With Stand) (W x H x D) | 734 x 474 x 172 mm |
| Weight (With Stand) | 4.7 kg |
| Power Supply | AC 100-240 V ~ 50/60 Hz, Output: 19 V, 2.53 A |
| Power Consumption (Typical) | Not specified, estimated 30-40 W (based on similar models) |
| VESA Mount Pattern | 200 x 200 mm (M6 screws, 4 pcs) |
| HDMI Ports | 2 (High-Speed HDMI) |
| USB Ports | 1 (USB 2.0) |
| Audio Output | Optical Digital Audio Out, Headphone Out |
| Tuner | DVB-T/T2/C/S/S2 (depending on region) |
| Wireless Connectivity | Wi-Fi 802.11a/b/g/n (built-in) |
| Smart TV Features | Limited (VOD only, no web browser for LH59 series) |
| Remote Control | Magic Remote (AN-MR650) or standard remote |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | Less than 80% |
| Storage Temperature | -20 °C to 60 °C |
| Storage Humidity | Less than 85% |
| Accessories Included | Remote control, batteries, power cord, quick setup guide |
| Reparability | Serviceable by qualified personnel; VESA mount compatible |
Frequently Asked Questions - 32LH591D LG
User questions about 32LH591D LG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual 32LH591D - LG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 32LH591D by LG.
USER MANUAL 32LH591D LG
+เฉพาะบางรุ่น
www.lg.com
P/No: MFL69275526 (1606-REV03-00)
Printed in Vietnam
English
H/P OUT
Satellite IN
(العربية)
- เลพย์บ้าน


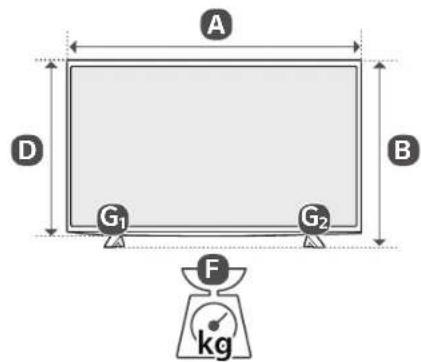

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (kg) | F - (G1 + G2) (kg) | |
| 32LH570D-TA32LH571D-TB32LH572D-TC32LH572U-TC32LH591D-TH | 734 474 | 172 438 71 4.7 | 4.5 | ||||
| 32LH576D-TA32LH577D-TB32LH578D-TC32LH590D-TA32LH592U-TC32LH592Z-TC | 734 474 | 172 438 71 5.0 | 4.8 |
Safety and Reference
LED TV*
*หมายเหตุ
LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
Please read these safety precautions carefully before using the product.
WARNING
Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.
Do not place the TV and/or remote control in the following environments:
• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
- Near any heat source such as stoves and other devices that produce heat
- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases
Insert power cable plug completely into wall socket otherwise if not secured completely into socket, re ignition may break out.
Otherwise, this may result in re, electric shock, malfunction or product such as a heater. This may cause a re or an electric shock hazard. deformation.
Ensure the power cord does not come into contact with hot objects on or product such as a heater. This may cause a re or an electric shock hazard.
Do not place the product where it might be exposed to dust. This may this may result in fire or electric shock. cause a fire hazard.
Do not place a heavy object, or the product itself, on power cables.
Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.
Bend antenna cable between inside and outside building to prevent
rain from flowing in. This may cause water damaged inside the Product AC mains and could give an electric shock. operable
Do not touch the power plug with wet hands. Additionally, exiting from rear of TV as to not create possibility of electric shock / pin is wet or covered with dust, dry the power plug completely by a pipe dust oil. You may be electrocuted due to excess moisture.
Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.
Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)
Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.
Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.
Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.
Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.
If any of the following occur, unplug the product immediately and contact your local service centre.
• The product has been impacted by shock
• The product has been damaged
• Foreign objects have entered the product
• The product produced smoke or a strange smell
This may result in fire or electric shock.
Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.
If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electric shock or fire.

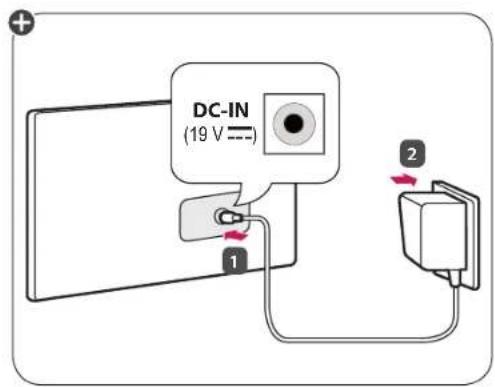

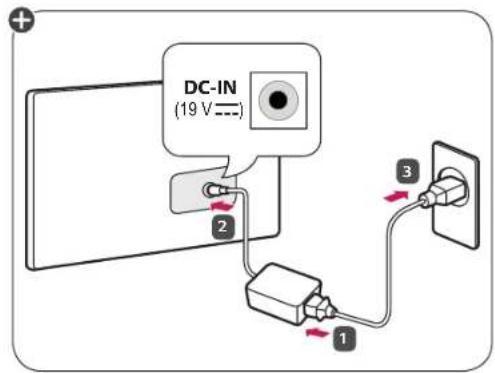

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.
Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.
Be careful in handling the adapter to prevent any external shocks to it. An external shock may cause damage to the adapter.
Make sure the power cord is connected securely to the power plug on the TV. (Depending on model)
CAUTION
Install the product where no radio wave occurs.
There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.
If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
Only use the attachments / accessories specified by the manufacturer.
When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.
When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.
We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.
Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.
Only use the specified type of battery. This could cause damage to the remote control.
Please follow the installation instructions below to prevent the product from overheating.
Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

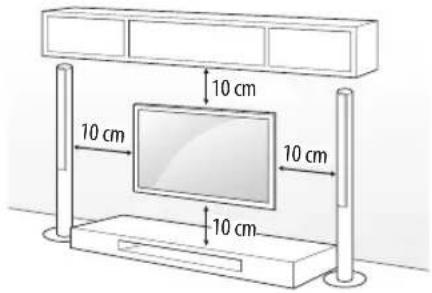

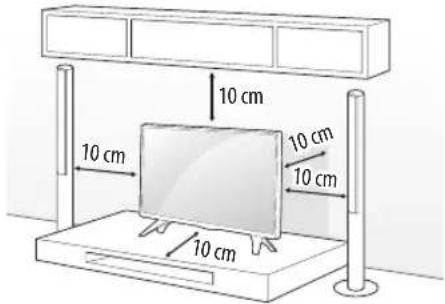

- The distance between the product and the wall should be more than 10 cm.
- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
- Do not install the product on a carpet or cushion. - Make sure the air vent is not blocked by a tablecloth or curtain.
Otherwise, this may result in fire.
Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.
Do not place non-rechargeable batteries in charging device.
Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Make sure there are no objects between the remote control and its sensor.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.
Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.
Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.
When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.
When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.
This panel is an advanced product that contains millions of pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.
Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.
Generated sound
"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.
This generated sound does not affect the performance and reliability of the product.
Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in product malfunction.
Preparing
NOTE
- If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes. (Depending on model)
• Image shown may differ from your TV. - Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future. - The items supplied with your product may vary depending on the model.
- Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

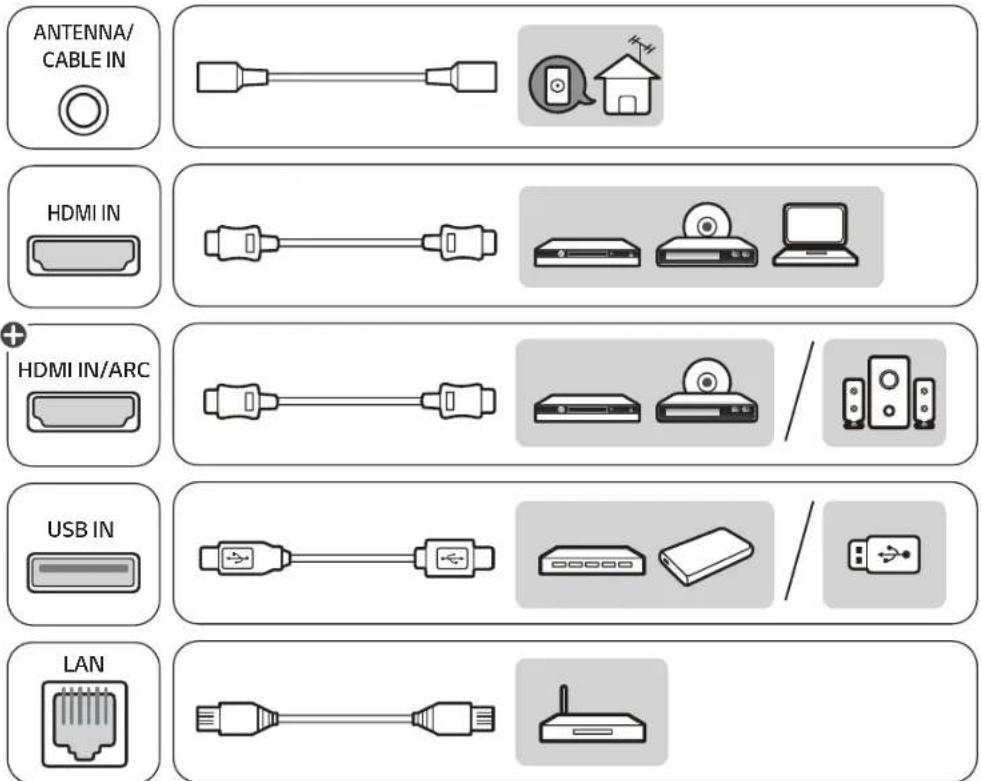

- For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.
^* A≤10mm
^* B≤18mm
• Use a certified cable with the HDMI logo attached.
- If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)
- High-Speed HDMI ^® / ^TM Cable (3 m or less)
- High-Speed HDMI ^® / ^TM Cable with Ethernet (3 m or less)
- How to use the ferrite core (Depending on model)
- Use the ferrite core to reduce the electromagnetic interference in the power cord. Wind the power cord on the ferrite core once.
[Wall side]
[TV side]
- This Smart TV is for VOD watching service, some smart functions may not be supported including web browser. (Only LH57**)
CAUTION
- Do not use any unapproved items to ensure the safety and product life span.
- Any damage or injuries caused by using unapproved items are not covered by the manufacturer's warranty.
- Some models have a thin film attached on to the screen and this must not be removed.

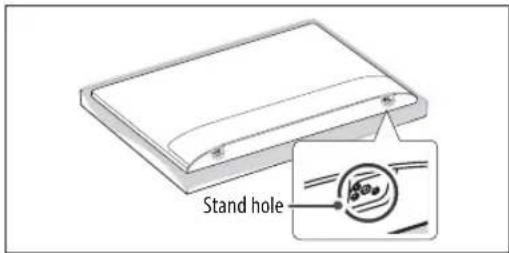

- When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
- Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models. The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.
(Depending on model)

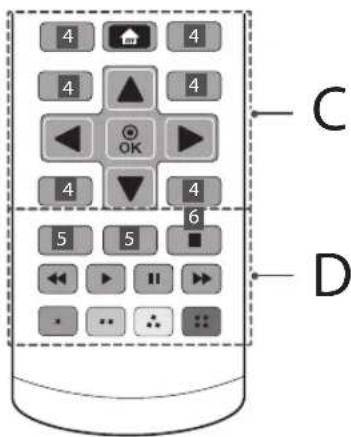

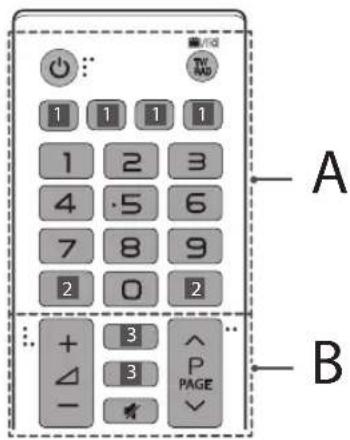

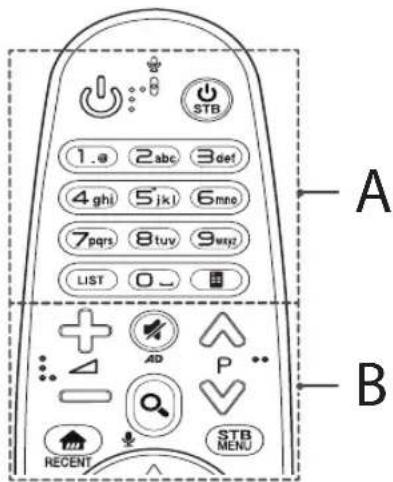

AN-MR650
Magic Remote
Lifting and moving the TV
Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
- It is recommended to move the TV in the box or packing material that the TV originally came in.
- Before moving or lifting the TV, disconnect the power cord and all cables.
- When holding the TV, the screen should face away from you to avoid damage.
- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
- When transporting a large TV, there should be at least 2 people.
- When transporting the TV by hand, hold the TV as shown in the following illustration.
- When transporting the TV, do not expose the TV to jolts or excessive vibration.
- When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
- Do not apply excessive pressure to cause flexing / bending of frame chassis as it may damage screen.
- When handling the TV, be careful not to damage the protruding buttons.
CAUTION
- Avoid touching the screen at all times, as this may result in damage to the screen.
- Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

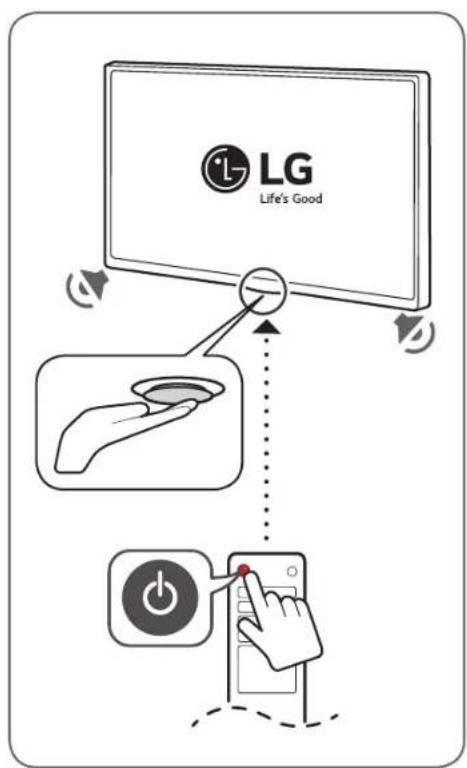

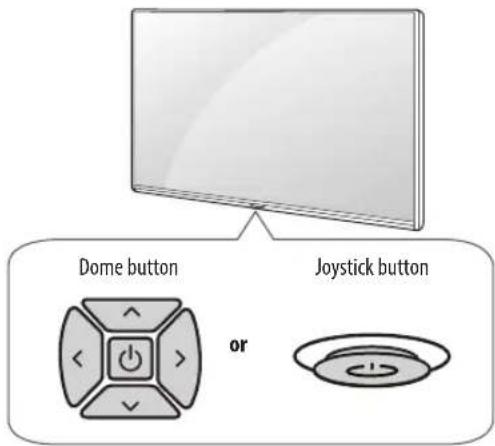

Using the button
(Depending on model)
You can simply operate the TV functions, pressing or moving the button.
NOTE
- LH57, 32/43/49LH59 series does not have a Joystick functions but has only a power On/Off button.
Basic functions
| Power On (Press)Power Off (Press and hold)1 | ||
 | Volume Control | |
 | Programmes Control | |
1 All running apps will close, and any recording in progress will stop.
Adjusting the menu
When the TV is turned on, press the button one time. You can adjust the Menu items pressing or moving the buttons.
| Turns the power off. | |
| Clears on-screen displays and returns to TV viewing. | |
| Changes the input source. | |
| Accesses the settings menu. |
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for proper ventilation.
2 Connect the power cord to a wall outlet.
CAUTION
- Do not place the TV near or on sources of heat, as this may result in fire or other damage.
WARNING
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
- Ensuring the television is not overhanging the edge of the supporting furniture.
- Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.
CAUTION
• Make sure that children do not climb on or hang on the TV.
NOTE
- Use a platform or cabinet that is strong and large enough to support the TV securely.
- Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.
Mounting on a wall
Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. LG's wall mount bracket is easy to move with cables connected. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. It is advised to connect all the cables before installing fixed wall mounts.
Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.
Separate purchase (Wall mounting bracket)
| Model | 32/43LH57**32/43LH59**32/40/43LH60** | 49LH57**49LH59**49/55LH60** |
| VESA (A x B) (mm) 200 x 200 300 x 300 | ||
| Standard screw M6 M6 | ||
| Number of screws 4 4 | ||
| Wall mount bracket | LSW240BMSW240 | LSW350BMSW240 |
| Model | 55LH57**55LH59** | |
| VESA (A x B) (mm) 400 x 400 | ||
| Standard screw M6 | ||
| Number of screws 4 | ||
| Wall mount bracket | LSW440BMSW240 | |
CAUTION
- Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.
NOTE

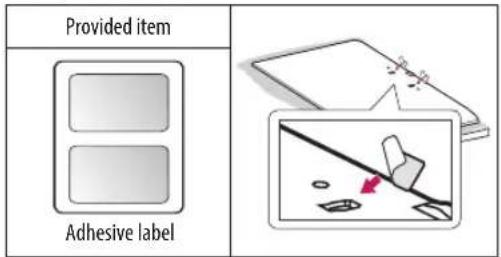

- When installing the wall mounting bracket, use the adhesive label provided. The adhesive label will protect the opening from accumulating dust and dirt. (Only when the item of the following form is provided)
- When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust and insects. (Depending on model)
Connections (notifications)
Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
NOTE
• The external device connection may differ from the model.
- Connect external devices to the TV regardless of the order of the TV port.
- If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
- Refer to the external equipment's manual for operating instructions.
- If you connect a gaming device to the TV, use the cable supplied with the gaming device.
- In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
- In PC mode, some resolution settings may not work properly depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
• Use a signal splitter to use more than 2 TVs.
- If the image quality is poor, install a signal amplifier properly to improve the image quality.
- If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
• Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
Adapter connection
(Depending on model)
CAUTION
- Please be sure to connect the TV to the AC-DC power adapter before connecting the TV's power plug to a wall power outlet.
Satellite dish connection
(Only satellite models)
Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).
CI module connection
(Depending on model)
View the encrypted (pay) services in digital TV mode.
- Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.
- If the TV does not display any video and audio when CI+ CAM is connected, please contact to the Terrestrial/Cable/Satellite Service Operator.
USB connection
Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

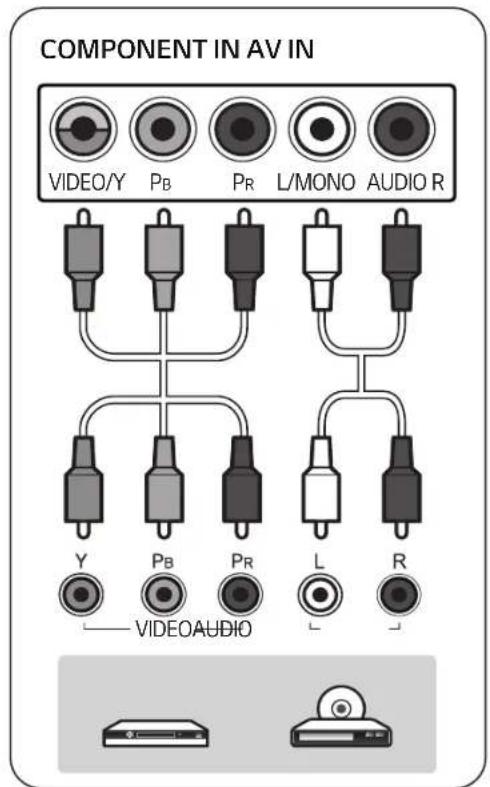

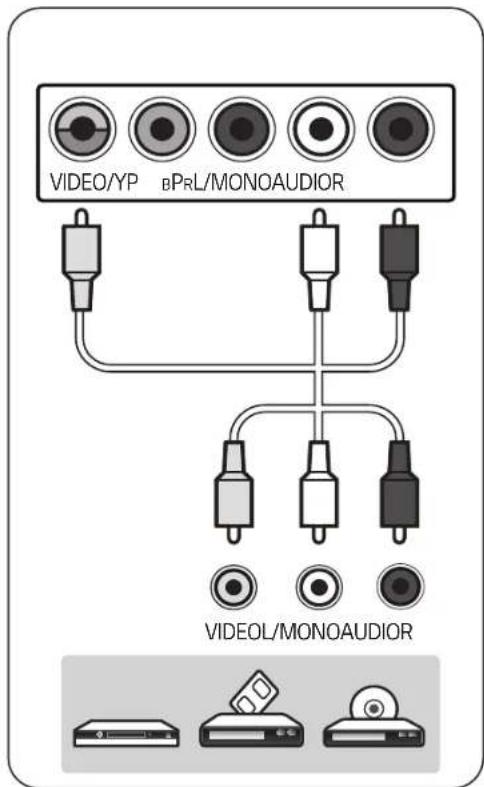

Other connections
Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.
NOTE
• Supported HDMI Audio format : Dolby Digital (32 kHz, 44.1 kHz, 48 kHz), DTS (44.1 kHz, 48 kHz), PCM (32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz) (Depending on model)
Remote control
(Depending on model)
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.
CAUTION
• In Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
A
(POWER) Turns the TV on or off.
TV/RAD Selects Radio, TV and DTV programme.
1 QSearch) Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar. (Depending on model)
1 SUBTITLE your preferred subtitle in digital mode. (Depending on model)
1 INPUT) Changes the input source. (Depending on model)
1 LIVE ZOOMing in on the selected area, you can view it in full screen. (Depending on model)
1 Restoration image. (Depending on model)
1 ☐Q. Settings) Accesses the Quick Settings. (Depending on model)
1 ①YHE's the information of the current programme and screen. (Depending on model)
Number buttons Enters numbers.
Alphabet buttons Enters letters. (Depending on model)
☐ (SPACE) Opens an empty space on the screen keyboard. (Depending on model)
2 GUIDE vs programme guide. (Depending on model)
2 LISTcesses the saved programme list. (Depending on model)
2 Q.MEWs to the previously viewed programme. (Depending on model)
B
+△- Adjusts the volume level.
3 FAV accesses your favourite programme list. (Depending on model)
3 Ⓐ MEWs the information of the current programme and screen. (Depending on model)
3 GUIDE vs programme guide. (Depending on model)
3 (Search) Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar. (Depending on model)
(MUTE) Mutes all sounds.
^P∨ Scrolls through the saved programmes.
^PAGE ∨ Moves to the previous or next screen.
C
4 RÉGEMT the previous history. (Depending on model)
4 Teletext buttons (■) text buttons are used for teletext. (Depending on model)
4 LISTUMENTA list of Programmes and Recommended. (Depending on model)
(HOME) Accesses the Home menu.
4 🎨. Settings) Accesses the Quick Settings. (Depending on model)
4 BACKurns to the previous level. (Depending on model)
4 Q MENUS the Quick menus. (Depending on model)
4 EXTEARS on-screen displays and returns to TV viewing. (Depending on model)
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK Selects menus or options and confirms your input.
D
5 AD/By pausing the AD button, audio descriptions function will be enabled. (Depending on model)
5 ●REC ●REStarts to record and displays record menu. (Only Time Machine Ready supported model) (Depending on model)
5 SLEEP Sets the sleep timer. (Depending on model)
6 LIVE TV Returns to LIVE TV. (Depending on model)
Control buttons (■, ▶, □, ◀, ▶) Controls media contents.
Coloured buttons These access special functions in some menus.
(●: Red, ⋯: Green, ⋮: Yellow, ⋮: Blue)
Magic remote functions
(Depending on model)
When the message "Magic remote battery is low. Change the battery." is displayed, replace the battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.
CAUTION
- In Analogue TV and some countries, some remote control buttons may not work.
A
(POWER) Turns the TV on or off.
(STB POWER) You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV.
Number buttons Enters numbers.
Alphabet buttons Enters letters. (Depending on model) Accesses the saved programmes list.
(SPACE) Opens an empty space on the screen keyboard. (Depending on model)
(Screen Remote) Displays the Screen Remote.
* Accesses the Universal Control Menu. (Depending on model)
B
Adjusts the volume level.
(MUTE) Mutes all sounds.
* By Pressing and holding the button, audio descriptions function will be enabled. (Depending on model) Scrolls through the saved programmes.
(SEARCH) Search for content such as TV programmes, movies and other videos, or perform a web search by entering text in the search bar.
(HOME) Accesses the Home menu.
Shows the previous history.
(Voice recognition) (Depending on model)
Network connection is required to use the voice recognition function.
1 Press the voice recognition button.
2 Speak when the voice display window appears on the TV screen. Displays the set-top box Home menu.
* When you are not watching via a set-top box: the display changes to the set-top box screen.
C
Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the wheel button.
(up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right.
D
Returns to the previous level.
Shows programme guide.
Clears on-screen displays and returns to last input viewing. Used for viewing 3D video. (Only 3D models)
(INPUT) Changes the input source.
* Pressing and holding the button displays all the lists of external inputs.
(Q. Settings) Accesses the Quick Settings.
* Pressing and holding the button displays the All Settings menu.
Coloured buttons These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue)
Teletext buttons ( , ) These buttons are used for teletext.
You can zoom in on the area where the remote control is pointed. (Depending on model) By zooming in on the selected area, you can view it in full screen. (Depending on model)
Registering magic remote
How to register the magic remote
To use the Magic Remote, first pair it with your TV.
1 Put batteries into the Magic Remote and turn the TV on.
2 Point the Magic Remote at your TV and press the ⏻ Wheel (OK) on the remote control.
* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.
How to deregister the magic remote
Press the BACK (HOME) buttons at the same time, for five seconds, to unpair the Magic Remote with your TV.
* Pressing and holding the GUIDE button will let you cancel and re-register Magic Remote at once.
Licenses
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
(Australia region only)
freeviewplus
FreeviewPlus provides access to content and services from the Freeview networks. The FreeviewPlus service provides a 7 + day EPG, all available Catch Up TV, recommendations and the ability to set reminders and favourites. FreeviewPlus is available by pressing the green button on the remote.
* FreeviewPlus uses HbbTV technology which combines broadcast and broadband. It requires an internet connection. Normal data usage charges and conditions apply.
Open source software notice information
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
External control device setup
To obtain the external control device setup information, please visit www.lg.com.
Troubleshooting
Cannot control the TV with the remote control.
- Check the remote control sensor on the product and try again.
- Check if there is any obstacle between the product and the remote control.
- Check if the batteries are still working and properly installed to ④ to -.
No image display and no sound is produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
- Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.
- Check the power control settings. The power supply may be interrupted.
- Check if the Sleep Timer / Timer Power Off is activated in the Timers settings.
- Check if the Auto Power Off is activated in the GENERAL Eco Mode settings. (Depending on model)
- If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.
• Turn the TV off/on using the remote control.
• Reconnect the HDMI cable.
- Restart the PC with the TV on.
Specifications
Wireless module specification
- As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
- For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
(Only LH57**, LH59**)
| Wireless LAN module (TWFM-B006D) specification | |
| Standard IEEE802.11a/b/g/n | |
| Frequency Range Output power (Max.) | |
| 2400 to 2483.5 MHz | 14 dBm |
| 5150 to 5250 MHz | 12.5 dBm |
| 5725 to 5850 MHz (for Non EU) | 15.5 dBm |
(Only LH60**)
| Wireless module (LGSBW41) specification | |
| Wireless LAN (IEEE 802.11a/b/g/n) | |
| Frequency Range Output power (Max.) | |
| 2400 to 2483.5 MHz | 16 dBm |
| 5150 to 5250 MHz | 16 dBm |
| 5725 to 5850 MHz (Not for EU) | 11.5 dBm |
| Bluetooth | |
| Frequency range Output power (Max.) | |
| 2400 to 2483.5 MHz 10 dBm | |
| CI Module1 (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm | |
| Environment condition | Operating Temperature0 °C to 40 °C |
| Operating HumidityLess than 80 % | |
| Storage Temperature-20 °C to 60 °C | |
| Storage HumidityLess than 85 % | |
1 Only Satellite models.
| Digital TV(Depending on Country) | Analogue TV(Depending on Country) | ||
| Television system | DVB-T/T21DVB-T/T2/C/S/S22 | PAL B/B, PAL B/G,PAL D/K, PAL-I,SECAM B/G,SECAM D/K,NTSC-M | |
| Programme coverage | VHF, UHFC-Band2Ku-Band2 | VHF, UHF, CATV | |
| Maximum number of storable programmes | LH57** | DVB-T/T2 & Analogue TV: 2,000DVB-S/S2: 6,000 | |
| LH59**LH60** | DVB-T/T2 & Analogue TV: 3,000DVB-S/S2: 6,000 | ||
| External antenna impedance | 75 Ω | ||
1 Only DVB-T2 support models. Despite DVB-T2 model, DVB-T/T2 function does not apply in Philippines.
2 Only DVB-T2/C/S2 support models.
| AC/DC Adapter | 32LH570*, 32LH571*, 32LH572*, 32LH59** |
| Manufacturer: APDModel: DA-48G19Manufacturer: Lien ChangModel: LCAP45 | |
| Input: AC 100-240 V~ 50/60 HzOutput: 19 V =2.53 A | |
| 32LH576*, 32LH577*, 32LH578* | |
| Manufacturer: APDModel: DA-65F19Manufacturer: Lien ChangModel: LCAP40 | |
| Input: AC 100-240 V~ 50/60 HzOutput: 19 V --- 3.42 A |
- The energy information provided with the product is indicated in accordance with the regulations of each country. (Depending on Country)
- The Energy consumption is measured in accordance with IEC 62087.
- Actual Energy consumption may vary depending on factors such as the type of video content being played and TV settings.
Regulatory
WARNING!
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.
If your existing television set is being retained and relocated, the same considerations as above should be applied.
Symbols
| ~ | Refers to alternating current(AC). |
| --- | Refers to direct current(DC). |
| ☐ | Refers to class II equipment. |
| ∅ | Refers to stand-by. |
| | | Refer to “ON” (power). |
| ⚡ | Refers to dangerous voltage. |
- Stop bit : 1 bit
- Communication code : ASCII code
- Use a crossed (reverse) cable.
รายการรูปแบบคำสั่ง
(เฉพาะบางรุ่น)
| COMMAND1 | COMMAND2 | DATA (Hexadecimal) | COMMAND1 | COMMAND2 | DATA (Hexadecimal) | ||
| 01. Power* k a | 00 to 01 15. Balance k t 00 to | 64 | |||||
| 02. Aspect Ratio | k c (p.7) | 16. Color (Colour) Temperature | x u 00 to 64 | ||||
| 03. Screen Mute | k d (p.7) | 17. ISM Method (Only Plasma TV) | j p (p.8) | ||||
| 04. Volume Mute | k e 00 to 01 18. Equalizer j v | (p.8) | |||||
| 05. Volume Control | k f 00 to 64 | 19. Energy Saving | j q 00 to 05 | ||||
| 06. Contrast k g | 00 to 64 | 20. Tune Command | m a (p.9) | ||||
| 07. Brightness | k h 00 to 64 | 21. Channel (Programme) Add/Del(Skip) | m b 00 to 01 | ||||
| 08. Color/ Colour | k i 00 to 64 22. Key m c Key | Codes | |||||
| 09. Tint | k j 00 to 64 | 23. Control Backlight, Control Panel Light | m g 00 to 64 | ||||
| 10. Sharpness | k k 00 to 32 | 24. Input select (Main) | x b (p.11) | ||||
| 11. OSD Select | k l 00 to 01 | 25. 3D (Only 3D models) | x t (p.11) | ||||
| 12. Remote Control Lock Mode | k m 00 to 01 | 26. Extended 3D (Only 3D models) | x v (p.11) | ||||
| 13. Treble | k r | 00 to 64 | 27. Auto Configure | j u (p.12) | |||
| 14. Bass | k s 00 to 64 | ||||||
[Command1][Command2][ ][Set ID][ ][Data][Cr]
08. Color/Colour (Command: k i)
Transmission [k][k][ ][Set ID][ ][Data][Cr]
- Equalizer (Command : j v)
02: Satellite DTV 10: ATV
ISDB-BS (ญี่ปุ่น)
[Data 01] 00: Top and Bottom
01: Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
| 00 0 0 0 | ||
| 01 X X X | ||
| 02 X X X | ||
| 03 X 0 0 |
x:ไม่สนใจ
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
- English
- WARNING
- CAUTION
- Generated sound
- Preparing
- NOTE
- Separate purchase
- Lifting and moving the TV
- Using the button
- Adjusting the menu
- Mounting on a table
- Securing the TV to a wall
- Mounting on a wall
- Connections (notifications)
- Antenna connection
- Adapter connection
- Satellite dish connection
- CI module connection
- USB connection
- Other connections
- Remote control
- A
- B
- C
- D
- Magic remote functions
- Registering magic remote
- How to register the magic remote
- How to deregister the magic remote
- Licenses
- freeviewplus
- Open source software notice information
- External control device setup
- Troubleshooting
- Specifications
- Wireless module specification
- Regulatory
- WARNING!
- รายการรูปแบบคำสั่ง
- Color/Colour (Command: k i)
Brand : LG
Model : 32LH591D
Category : Television
