X606-SA - Lighting Epcom - Free user manual and instructions

Product Type	Mini Lightbar
Brand	Epcom
Model	X606-SA
Light Source	18 LEDs Gen III
Voltage	12 Vdc
Power Consumption	3A max (36W)
Flash Patterns	25 patterns
Operating Temperature	-40°C to 55°C
Mounting Method	Suction cup and magnet with cigarette lighter adapter
Dimensions (L x W x H)	15.7" x 7.8" x 2.4" (40cm x 20cm x 6.3cm)
Installation Location	Outside vehicle
Package Contents	Mini lightbar X606S, user manual
Maintenance	Periodically check mounting bolts; clean with neutral soap and soft cloth
Cleaning Warning	Do not use gasoline or chemicals on plastic cover
Safety	Designed for exterior vehicle use; read manual before installation
Repairability	Not specified; contact Epcom for service

Frequently Asked Questions - X606-SA Epcom

How do I install the X606-SA lightbar?

Place the lightbar on a clean, dry exterior surface of your vehicle. Use the built-in suction cups or magnet to secure it. Plug the cigarette lighter adapter into your vehicle's 12V outlet. Ensure the mounting bolts are tightened properly to avoid accidents. Refer to the user manual for detailed steps.

What are the flash patterns and how do I change them?

The X606-SA offers 25 flash patterns. To change patterns, press the mode button (usually located on the unit or the power cord). Each press cycles to the next pattern. Refer to the manual for the button location.

Can I use this lightbar on any vehicle?

Yes, it is designed for exterior installation on vehicles with a 12V power system. The suction and magnet mount allow temporary or semi-permanent placement on metal or smooth surfaces. However, check local laws regarding the use of warning lights on public roads.

What is the power consumption?

The lightbar draws a maximum of 3A at 12V, equivalent to 36W. Ensure your vehicle's electrical system can handle this load, especially if multiple devices are connected.

How do I clean the lightbar?

Clean the plastic cover with a soft cloth and neutral soap. Do not use gasoline, alcohol, or harsh chemicals as they may damage the plastic. Periodically check and tighten mounting bolts.

Is the lightbar weatherproof?

The operating temperature range is -40°C to 55°C. While not explicitly rated as waterproof, it is designed for exterior use. Avoid submerging in water and ensure the power connector is protected from moisture.

What does the package include?

The package contains one X606S mini lightbar and a user manual. The cigarette lighter adapter is integrated into the power cord. No additional mounting hardware is required.

Can I replace the LEDs?

The LEDs are built-in and not user-serviceable. If the lightbar malfunctions, contact Epcom or a qualified technician. Do not attempt to disassemble the unit as it may void the warranty.

How long does the lightbar last?

With proper use and maintenance, the LED lightbar can last for thousands of hours. The Gen III LEDs are energy-efficient and durable. Avoid excessive heat and moisture to extend lifespan.

Are there any safety precautions?

Install the lightbar securely to prevent it from falling off while driving. Do not use on public roads if prohibited by local regulations. Keep the plastic cover clean to maintain brightness. Read the entire manual before installation.

USER MANUAL X606-SA Epcom

Important Announcement

Due to continuous changes & improvements done to this product We reserve the right to change specifications and information provided in this user manual at any time without notice

Mini Light-bar

X606S series

Close-up of a transparent orange warning light fixture with three illuminated buttons (no visible text or symbols)

Introduction

The X606 mini lightbar, adopts the high power of 18 Leds Gen III (Generation III) as a light source, with unique appearance, Compact structure, easy operation and flashing patterns

Features included are high brightness, easy installation and a long life span.

The lightbar is designed to be installed outside a vehicle

Please read the manual before installing.

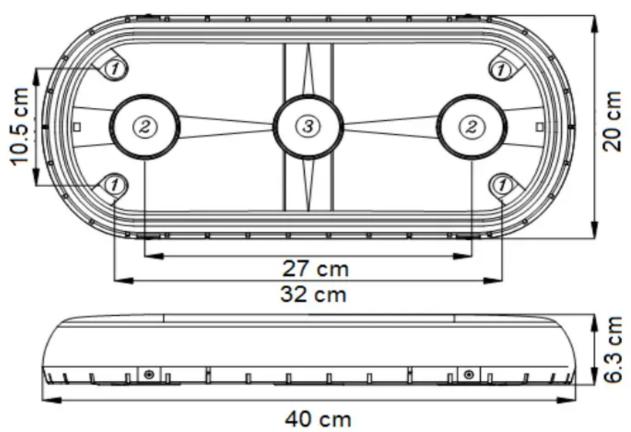

Dimensions

Technical Data

☒ Voltage: 12 Vdc
☒ Consumption:: 3A max
Power: 36W
☒ Flash Patterns: 25 patterns
☒ Temperature: -40°C \~ 55°C
☒ Mounting: Suction and Magnet with vehicular cigarette lighter adapter
☒ Dimensions: 15.7" x 7.8" x 2.4" / 40cm x 20cm x 6.3cm

Content

Mini light bar X606S 1 Pz
☒ User Manual 1 Pz

Maintenance

It is recommended to periodically check the mounting bolts in order to avoid any accident. Use neutral soap and a soft cloth to clean the cover plastic.

Note: Do not use gasoline or other chemicals to clean the plastic cover.
