Brand	Epcom
Model	X12BW
Product Type	Indoor LED Ceiling Light
Power Source	AC 220-240V, 50Hz
Wattage	12W
Luminous Flux	1000 lumens
Color Temperature	3000K - 6500K (adjustable)
Beam Angle	120°
Material	Aluminum + Polycarbonate
Dimensions	30 cm x 30 cm x 5 cm
Weight	0.5 kg
Installation	Ceiling mounted (hardwired)
Dimmable	Yes, with compatible dimmer
Lifespan	25,000 hours
Energy Class	A+
Certifications	CE, RoHS
IP Rating	IP20 (indoor use only)
Included Accessories	Mounting bracket, screws, user manual
Cleaning	Wipe with a soft dry cloth
Warranty	2 years

Frequently Asked Questions - X12BW Epcom

How do I install the Epcom X12BW ceiling light?

Installation must be done by a qualified electrician. Turn off power at the circuit breaker, connect the fixture wires to the house wiring (live, neutral, ground), and secure the fixture to the ceiling bracket.

Is the X12BW dimmable?

Yes, it is dimmable when used with a compatible LED dimmer. Ensure the dimmer is rated for LED loads.

What color temperatures are available?

The light has adjustable color temperature from warm white (3000K) to cool white (6500K). You can switch using the built-in selector or remote (if included).

How do I clean the Epcom X12BW?

Disconnect power and allow the light to cool. Wipe the surface with a soft, dry cloth. Do not use abrasive cleaners or water.

What is the power consumption of this light?

The Epcom X12BW consumes 12 watts and provides 1000 lumens, making it energy-efficient.

Can the X12BW be used outdoors?

No, it has an IP20 rating and is designed for indoor use only. Do not expose to moisture or dust.

Does the fixture come with replacement parts?

The package includes mounting hardware and screws. For LED driver or other parts, contact Epcom customer service or an authorized dealer.

What is the lifespan of the LED?

The LED module is rated for 25,000 hours of operation under normal conditions.

How do I troubleshoot if the light does not turn on?

Check the circuit breaker, ensure wiring connections are secure, and verify the dimmer switch is compatible. If still not working, contact a professional.

Is the Epcom X12BW compatible with smart home systems?

The standard model does not include smart features. However, if used with a smart dimmer, it can be controlled via voice or app.

USER MANUAL X12BW Epcom

Electrical circuit setup with black components and two pressure gauges (no visible text or symbols)

Introduction

The X12 hidden LED kit adopts the highly innovative Gen III technology as a light source with unique appearance, compact structure, easy operation and diversified flash patterns.

It is characterized by high brightness, low work intensity, easy installation and a long service time; They are also specially designed to work on all types of emergency vehicles.

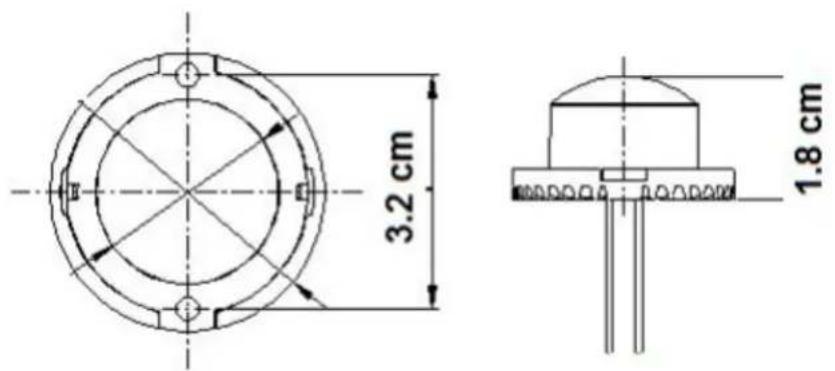

Dimensions

3.2 cm 1.8 cm

Please read all instructions before installing your equipment.

Technical data

• Voltage: 10-24 VDC
• 36W
- Consumption: 1 A max
- Flash patterns: 12
- Mounting: Permanent
• Total # of Leds: 6 for each lamp

Cable configuration

• Red Cable: VCC
• Black Cable: GND
• White Cable: to define type of flash (Pulse to Vcc)
• Green Cable: To synchronize with another light

Recommendations:

The equipment is designed for external use of the vehicle. The equipment must have adequate ventilation.

CAUTION

serious or fatal injuries

High intensity equipment. Do not look directly while the device is on. May cause momentary blindness and/or permanent eye damage.

WARNING You must be careful when positioning this equipment, for that the light and / or cable do not interfere with the proper functioning of the airbag of both the driver and the passenger. Not paying attention to this warning can cause

NOTE Due to continuous product improvements, we reserve the right to change the specifications and information contained in this manual without prior notice.
